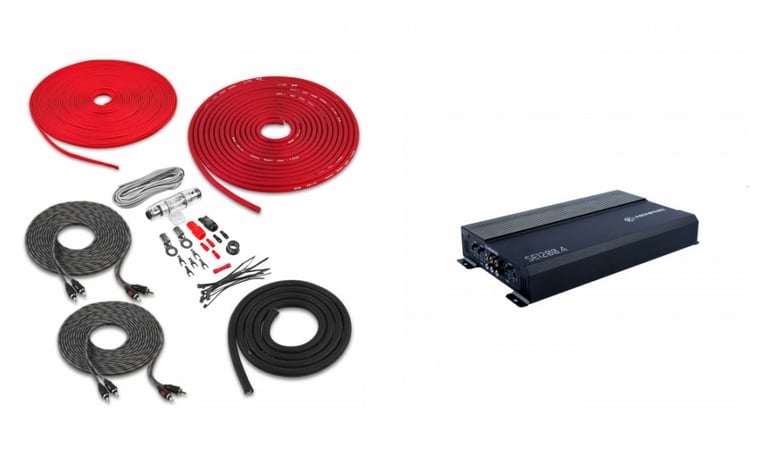

Name: Memphis SE1200.4 + Belva BAK84 8 Gauge Amp Kit
Brand: Memphis
SKU: se12004_bak84
Price: 199.95 USD
Availability: Discontinued
Rating: 4.7500 (16 reviews)

Shop all Memphis

by Memphis

About
Specs & Details
Reviews
Add-ons
Similar Products
Related Searches

Memphis SE1200.4 + Belva BAK84 8 Gauge Amp Kit

Memphis SE1200.4 + Belva BAK84 8 Gauge Amp Kit-thumbnail

Product highlights

• 50 watts x 4 channel @ 4 ohms
• 75 watts x 4 channel @ 2 ohms
• Bridged: 150 watts x 2 channel @ 4 ohms
• Total RMS Power: 300 watts
• Class D 4-Channel Amplifier
• 8 Gauge Amp Wiring Kit

Learn more about the se12004_bak84

Description

Authorized dealer

Affordability Without Breaking the Bank

Memphis Audio has been providing high-quality sound since 1965. Their line of Street Edge amplifiers is designed to be affordable without sacrificing performance. The stripped-down styling allows more resources to be dedicated to achieving solid performance with big power ratings at an affordable price point.

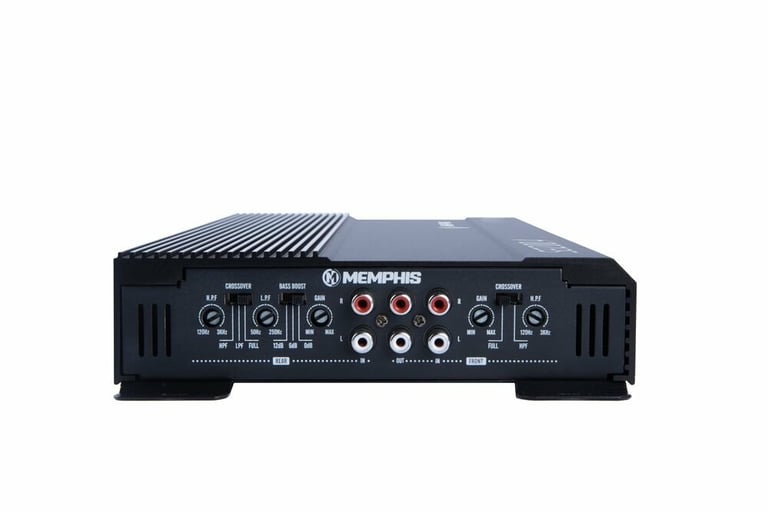

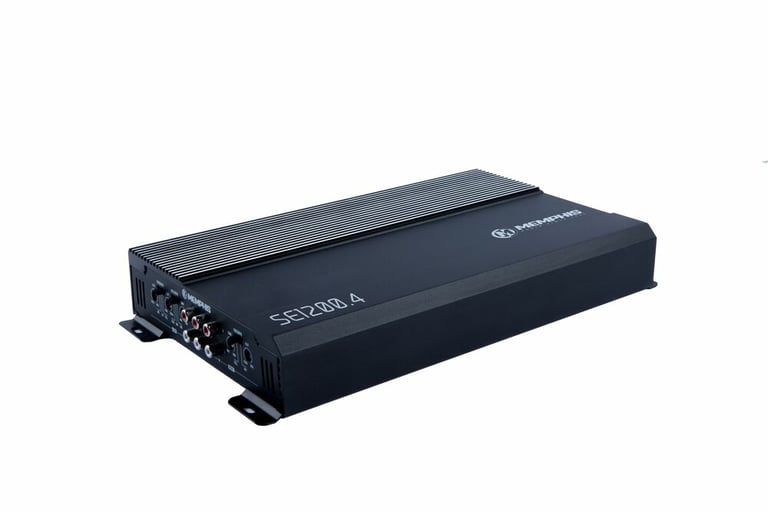

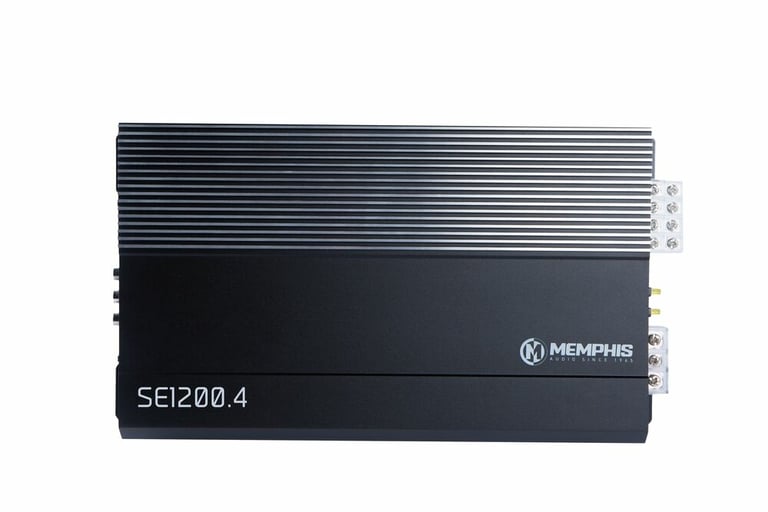

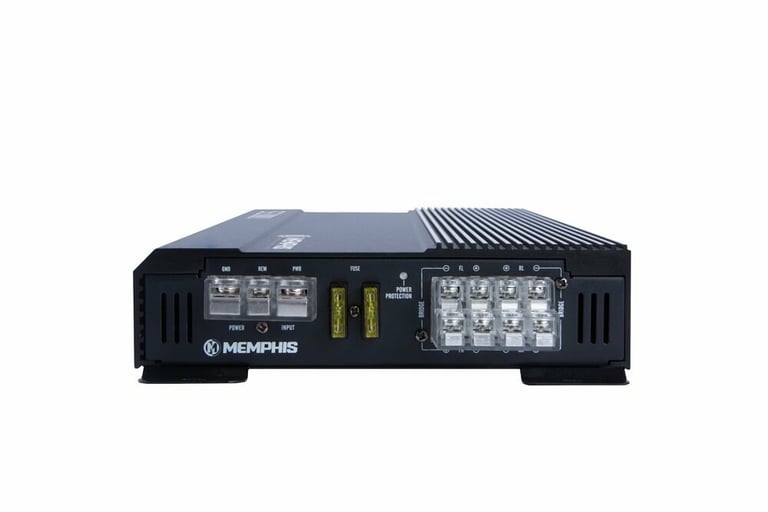

Memphis SE1200.4

1200W Peak (300W RMS) Street Edge Series Class D 4-Channel Amplifier
Quantity: 1

Product Details:

Class D 2 ohms Stable 4-Channel Amplifier
RMS Power Rating:

4 ohms: 50 watts x 4 channel
2 ohms: 75 watts x 4 channel
Bridged, 4 ohms: 150 watts x 2 channel

Total power output: 300 watts
Pulse Width Modulated MOSFET power supply
LED Power/Protect Light
Extruded Aluminum Heatsink
Variable Crossovers
3-way protection circuitry (thermal, overload, and speaker short protection)
Remote not included
High Pass filter: Yes
Low Pass filter: Yes
Frequency Response: 20 - 20,000 Hz
Total Harmonic Distortion (THD): 1%
Signal to Noise Ratio: 85 dB
Variable high-pass filter: 120 - 3,000 Hz, 24 dB/octave
Variable low-pass filter: 50 - 250 Hz, 24 dB/octave
Variable Bass Boost: 0 - 12 dB bass boost at 50 Hz
Fuse Rating: 40A
8 AWG gauge power and ground wiring is recommended for installation.
Dimensions: 7.59" W x 13.98" L x 2.08" H
Authorized Internet Dealer
1-year Manufacturer's Warranty

Belva BAK84

8 Gauge Premium (CCA) Copper Clad Aluminum Complete 4-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 600 Watts - RED
Quantity: 1

Product Details:

Complete 8 Gauge 4-Channel Amplifier Installation Kit
Designed for car audio systems up to 600 watts RMS
Premium Powerflex power and ground wire provides optimal power transfer
Belva CCA wire is made from 30% copper while the competition uses only 10%
Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
MINI-ANL Fuse holder with a 60 amp fuse offers ideal protection for high powered systems
Complies to American Wire Gauge standards
Authorized Internet Dealer
1-year Manufacturer's Warranty

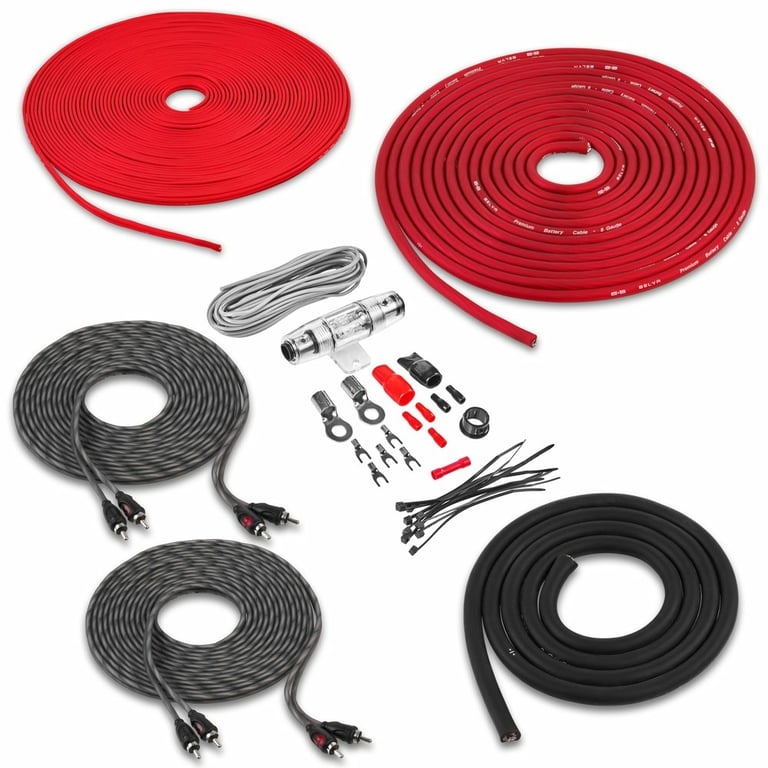

Kit includes:

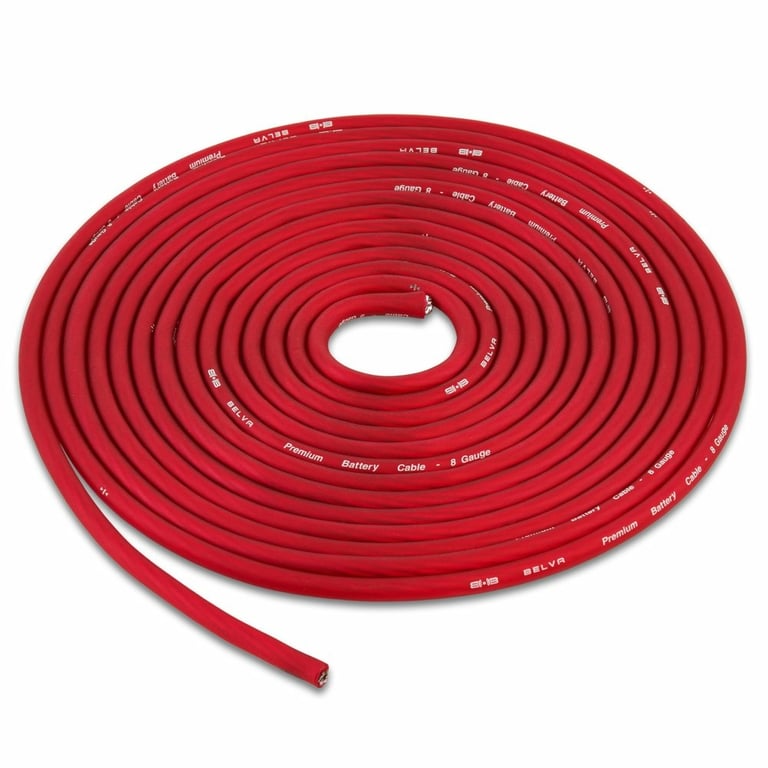

17 ft. (5.2 meters) Red 8 gauge power wire
3 ft. (.91 meters) Black 8 gauge ground wire
17 ft. (5.2 meters) Gray 18 gauge remote lead wire
17 ft. (5.2 meters) Helical Twist 4-channel RCA interconnect cable
40 ft. (12.2 meters) 16 Gauge Speaker cable
One MINI-ANL Fuse Holder with a 60 amp fuse
One Black rubber firewall grommet
One 8 Gauge Red chrome plated ring terminals
One 8 Gauge Black chrome plated ring terminal
Three 18 Gauge Red Spade terminal
Two 18 Gauge Black Spade terminal
One 18 Gauge Red butt connector
Ten 4" Black zip ties

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

50 watts x 4 channel

RMS Power @ 2 ohms

75 watts x 4 channel

Bridged RMS Power

150 watts x 2 channel

Amplifier Specifications

Amplifier Class

Number of Channels

4-Channel

Total Peak Power Output

1200 watts

Total RMS Power Output

300 watts

Maximum Input Gauge Size

8 AWG

Minimum Impedance Unbridged

2 ohms

Minimum Impedance Bridged

4 ohms

Frequency Response

20 - 20,000 Hz

THD at Rated RMS Power

<.1%

Speaker Level Inputs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

120 - 3,000 Hz

Low-Pass Crossover Frequency

50 - 250 Hz

Signal-to-Noise Ratio

>85 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Fuse Rating

20A x 2

Total Fuse Rating

Low-Level Input Sensitivity

.15 - 8 volts

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
