Memphis SE1200.4

1200W Peak (300W RMS) Street Edge Series Class D 4-Channel Amplifier

Memphis
Shop all Memphis
highlight-star-icon

• 50 watts x 4 channel @ 4 ohms
• 75 watts x 4 channel @ 2 ohms
• Bridged: 150 watts x 2 channel @ 4 ohms
• Total RMS Power: 300 watts
• Class D 2 ohms Stable 4-Channel Amplifier

Learn more about the se12004

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

se12004v2 thumbnail

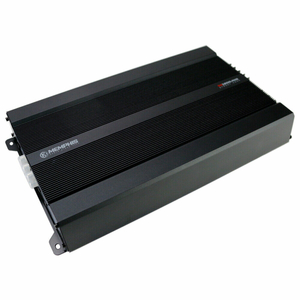

Memphis SE1200.4V2

OUR PRICE: $149.95

View item

Description


Memphis brand icon

Authorized dealer

Affordability Without Breaking the Bank

Memphis Audio has been providing high-quality sound since 1965. Their line of Street Edge amplifiers is designed to be affordable without sacrificing performance. The stripped-down styling allows more resources to be dedicated to achieving solid performance with big power ratings at an affordable price point.

Product Details:

  • Class D 2 ohms Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 50 watts x 4 channel
    • 2 ohms: 75 watts x 4 channel
    • Bridged, 4 ohms: 150 watts x 2 channel
  • Total power output: 300 watts
  • Pulse Width Modulated MOSFET power supply
  • LED Power/Protect Light
  • Extruded Aluminum Heatsink
  • Variable Crossovers
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Remote not included
  • High Pass filter: Yes
  • Low Pass filter: Yes
  • Frequency Response: 20 - 20,000 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: 85 dB
  • Variable high-pass filter: 120 - 3,000 Hz, 24 dB/octave
  • Variable low-pass filter: 50 - 250 Hz, 24 dB/octave
  • Variable Bass Boost: 0 - 12 dB bass boost at 50 Hz
  • Fuse Rating: 40A
  • 8 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 7.59" W x 13.98" L x 2.08" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Memphis SE1200.4V2 thumbnail
(newest, current model)
Memphis SE1200.4 thumbnail
(previous model, replaced by Memphis SE1200.4V2)

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
50 watts x 4 channel
RMS Power @ 2 ohms
75 watts x 4 channel
Bridged RMS Power
150 watts x 2 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
4-Channel
Total Peak Power Output
1200 watts
Total RMS Power Output
300 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
Frequency Response
20 - 20,000 Hz
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes
Preamp Outputs
3 pairs
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
120 - 3,000 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
85 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Total Fuse Rating
40A
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Amplifiers
Amplifier
Washers (4)
Allen wrenches (2)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SE1200.4

Weight:

5.60lbs

Internal SKU:

se12004

Internal Product ID:

186611
