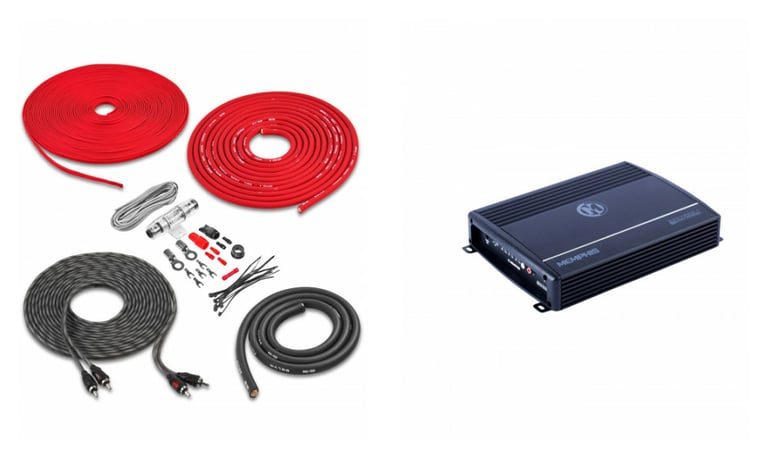

Memphis SRX750D.1 with Amplifier Wiring Kit

750W RMS SRX Series Class-D Monoblock Amplifier with Bass Remote

Memphis
Shop all Memphis
highlight-star-icon

• 400 watts x 1 channel @ 4 Ohm
• 750 watts x 1 channel @ 2 Ohm
• Total RMS Power: 750 watts
• Class D 2 ohm Stable Monoblock Amplifier
• Includes Amplifier Wiring Kit

Learn more about the srx750d1_bak42

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

44
-20.01%

$11.99

List price $14.99

95-7526B main

Metra 95-7526B Dash Kit

Install a new Double-DIN car stereo in select 2014-2018 3

-10.00%

$89.99

List price $99.99

40-HD10 main

Metra 40-HD10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2005-2024 vehicles from Honda, Mazda, Acura

29
-15.40%

$10.99

List price $12.99

82-7501 main

Metra 82-7501

Speaker Brackets for select 2013-2023 vehicles from Mazda - Pair

3
-48.85%

$21.99

List price $42.99

70-7905 main

Metra 70-7905 Wiring Harness

Install a New Car Stereo in select 2016-2024 vehicles from Mazda

-11.12%

$23.99

List price $26.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

39
-33.50%

$399.00

List price $600.00

Description


Memphis brand icon

Authorized dealer

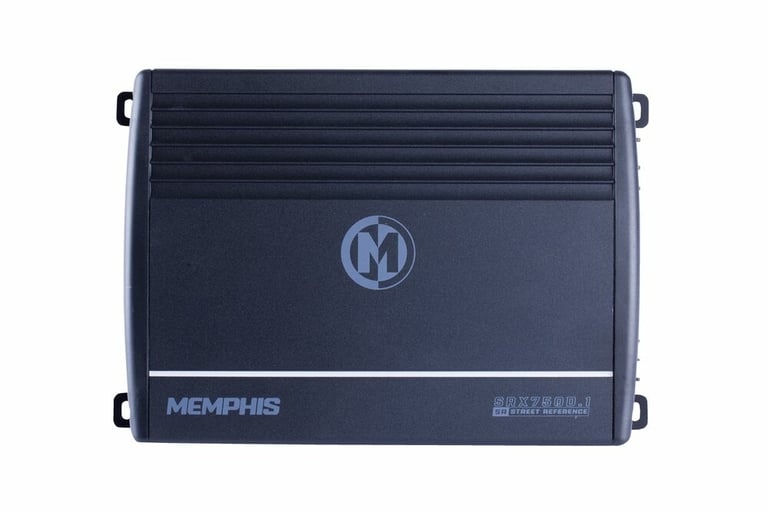

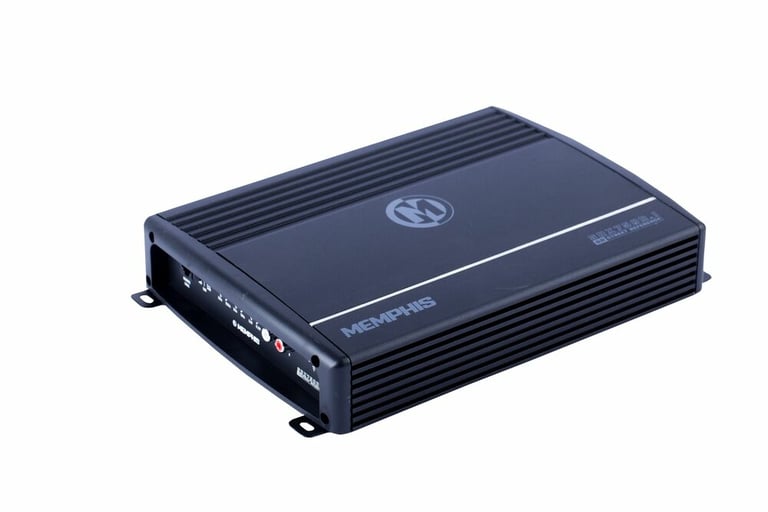

Memphis SRX750D.1

750W RMS Street Reference Series Class-D Monoblock Amplifier with Bass Remote
Quantity: 1

Product Details:

  • Class D 2 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 400 watts x 1 channel
    • 2 ohm: 750 watts x 1 channel
  • Total RMS power output: 750 watts
  • Pulse Width Modulated MOSFET power supply
  • LED Power/Protect Light
  • Textured Aluminum heatsink
  • Ultra-bright LED accent light strip

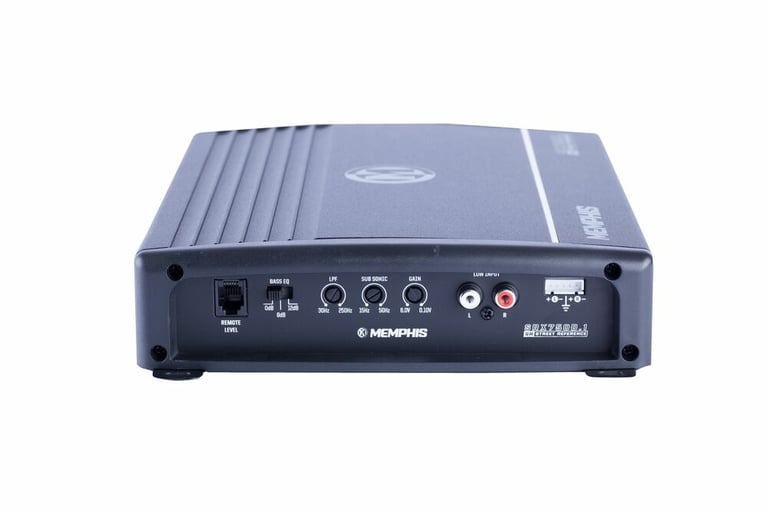

  • Selectable Bass boost
  • Variable crossover network
  • Wired remote bass level control included
  • Soft start turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity:
    • Low level: 100mV - 6 volts
  • Frequency Response: 30 - 250 Hz
  • Total Harmonic Distortion (THD): .5%
  • Signal to Noise Ratio: 90 dB
  • Variable low-pass filter: 30 - 250 Hz
  • Subsonic filter: 15 - 50 Hz
  • Variable Bass Boost: 0 - 12 dB
  • Fuse Rating: 70A
  • 4 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 11-1/2" W x 8" L x 2-3/16" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

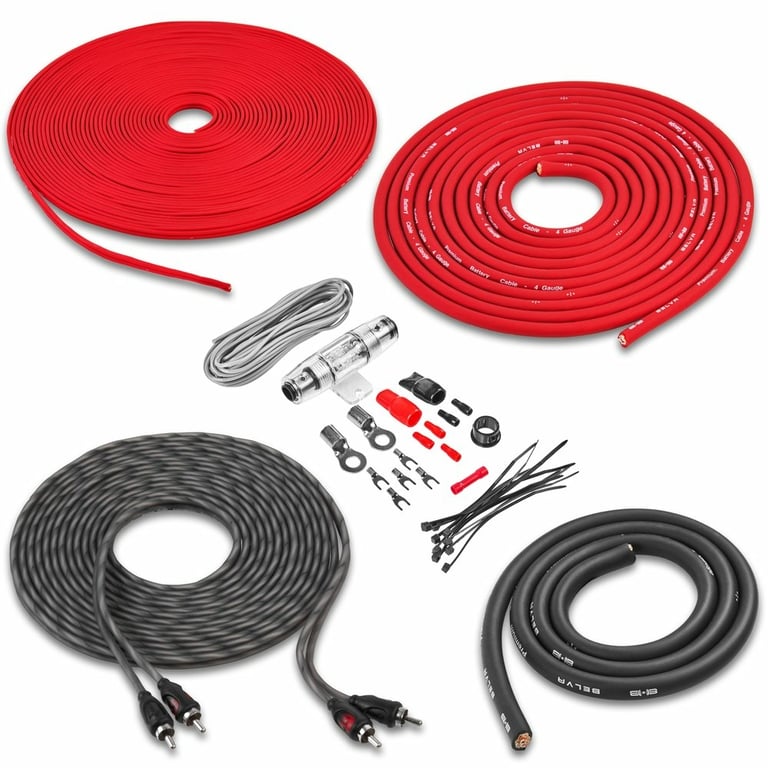

Belva BAK42

4 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - RED
Quantity: 1

Product Details:

  • 4 Gauge 2-Channel Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1200 watts RMS
  • Made from 100% Copper-Clad Aluminum (CCA)
  • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • RCA Interconnect Cable
  • Twisted-pair construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Kit includes:

  1. 17 ft. Red 4 gauge power wire
  2. 3 ft. Black 4 gauge ground wire
  3. 17 ft. Gray 18 gauge remote lead wire
  4. 20 ft. 16 gauge speaker wire
  5. One 17 ft. 2-channel twisted-par construction RCA interconnect Cable
  6. One Mini-ANL Fuse Holder with 80 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 4 Gauge Chrome Plated ring terminals
  9. Five 16 Gauge Spade terminal
  10. One 18 Gauge Red butt connectors
  11. Ten 4" Black zip ties

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(149)

$530.20

List price $593.98

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(261)

$486.93

List price $677.43

BAK42,R500X1D small

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(73)

$309.99

List price $369.98

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(250)

$311.43

List price $533.42

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(80)

$309.99

List price $369.98

NPKG212_65_69_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 6x9" & 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 and 6x9 Coaxial Speakers and Damping Kits

(267)

$495.93

List price $688.43

T500-1bdCP, BAK42 small

Rockford Fosgate Power T500-1bdCP & BAK42 4 AWG Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm, 500W x 1 @ 1 ohm
• Dynamic Power Output: 690W
• CEA-2006 Compliant
• Variable Bass Boost: 0 to +18 dB at 45 Hz
• Ultra Efficient Class bD Circuitry
• Dimensions: 11-7/16"L x 8-3/16"W x 2-3/16"H

(216)

$574.48

List price $609.98

VCW84_NDA12001_XKIT42 small

NVX VCW84v3 + NDA12001 + XKIT42

• Two 8" VCW84v3 VC-Series v3 1300W RMS Subwoofers
• 2400W Peak (1200W RMS) Class D NDA12001 Monoblock Amplifier
• XKIT42 Complete 4 AWG Amplifier Wiring Kit
• 1-year Warranty from the Original Purchase Date

(153)

$619.96

List price $791.96

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
400 watts x 1 channel
RMS Power @ 2 ohms
750 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1500 watts
Total RMS Power Output
750 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
Frequency Response
30 - 250 Hz
THD at Rated RMS Power
.5%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
30 - 250 Hz
Subsonic Filter
15 - 50 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Total Fuse Rating
70A
CEA-2031 Compliant
No
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
120mv - 6.1 volts
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SRX750D.1, BAK42

Weight:

9.60lbs

Internal SKU:

srx750d1_bak42

Internal Product ID:

196031

Customer Ratings & Reviews


Memphis SRX750D.1 with Amplifier Wiring Kit thumbnail image

5 star
68%
4 star
21%
3 star
6%
2 star
5%
1 star
1%



Durability
4.5
Value
4.7
Features
4.4
Design
4.7
Usability
4.6

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Belva bak42

The following review is for BAK42, which is a part of the bundle you are viewing.

This item works okay, easy to install, and good for price.

By Danny on June 6, 2014

195 found this helpful


good package

The following review is for BAK42, which is a part of the bundle you are viewing.

Great value and worth your money as far as what you would need for an amplifier/subs system setup. Quality wires.

By john on January 5, 2015

192 found this helpful


impressed

The following review is for BAK42, which is a part of the bundle you are viewing.

I ordered this kit because it was fairly cheap but I have to say in very impressed with the quality of the wire as well as the thickness of the insulation. It was much thicker than I had anticipated and was pleasantly surprised.

By Bryan on May 20, 2014

194 found this helpful


Wiring kit

The following review is for BAK42, which is a part of the bundle you are viewing.

Very quality wires and very pliable. Will definitely buy again

By Phil on December 25, 2014

188 found this helpful


best bang for your buck

The following review is for BAK42, which is a part of the bundle you are viewing.

hooked up to my amp with ease subs bump all day long no problems installing except finding a good ground the ground wire could be a little longer but not a major problem.

By Hoffman on January 18, 2015

184 found this helpful


Everything you need

The following review is for BAK42, which is a part of the bundle you are viewing.

This package comes with everything you need to install your amp and speakers. Great value.

By Bradford on January 16, 2014

179 found this helpful


Belva

The following review is for BAK42, which is a part of the bundle you are viewing.

Parts came fast, and seems to be a good quality for price.

By Ricke on March 3, 2014

180 found this helpful


Not bad

The following review is for BAK42, which is a part of the bundle you are viewing.

It was pretty nice the wire was a little bigger than i thought (wire is about as fat as a sharpie marker just the wire not the insulation), the grommet that came with it was way to big for the wire so i didn't use it the fuse seems ok the connectors are good didn't have trouble crimping. I had to drill out the ring terminals a little but wasn't bad; wire insulation kind of soft and easy to puncture.

By jeff on December 31, 2013

177 found this helpful


Ok product

The following review is for BAK42, which is a part of the bundle you are viewing.

The product works. Not the best quality though. The cables are pretty lightweight. If I did it again I would spend a little more money and get a higher quality cable.

By JR on April 28, 2014

181 found this helpful


not enough

The following review is for BAK42, which is a part of the bundle you are viewing.

first the terminals are too small for the gauge wire for the power and ground and fuse. a lot of the things that came with the kit didn't seem to have a place with the wires e.g. butt end connectors, cable terminals, all were too small for gauge wire included. im having to run out and buy pieces from my local radioshack. the remote wire has nothing to even connect to my head unit making have to go out and buy more materials to complete my install.

By matthew on March 9, 2014

182 found this helpful




TITAN-1544 small

American Bass TITAN-1544

3000W Peak (1500W RMS) 15" Titan Series Dual 4-ohm Car Subwoofer

$196.08

List price $302.28

GT5-2402BR_K600 small

JBL and Infinity 1500 Watt Dual 12" Bass Package

GT Series Dual 12" Bass-Reflex (Ported) Subwoofer Box + Kappa Series Class-D Monoblock Amplifier

(7)

$303.72

List price $899.90

GT5-1202BR_12CX3001 small

600 Watt JBL and Kicker 12" Ported Bass Package

1100 Watts Peak Single 12" GT Series Bass-Reflex Subwoofer Enclosure + 600W Max CX Series Class D Monoblock Amplifier

(18)

$216.10

List price $419.90

SW-NSV610D1 small

Sundown Audio NS v.6 D1 10" (NSV610D1)

7000W Peak (3500W RMS) 10" Nightshade Series Dual 1-ohm Car Subwoofer (SW-NSV610D1)

$999.99

List price $1199.99

(2) R2SD4-10,BAK82,MDFD10,VADM2 small

Rockford Fosgate Prime R2SD410 + NVX VADM2 + Belva 10" Dual Sub Enclosure +Bak82

Rockford Fosgate 10" Prime 4 ohm Subwoofer + NVX 2-Channel VADM2 + Belva MDFD10 Dual Sub Enclosure +Bak82

(196)

$555.03

List price $719.95

BAGUH2 small

Rust and Weather Resistant AGU Fuse Holder (Belva BAGUH2)

High Quality Element Resistant AGU Fuse Holder for Excellent Power Transfer

(2)

$4.99

List price $9.99

RUB5.800 small

Soundstream RUB5.800

800W RMS, Rubicon Series 5-Channel Class AB Amplifier

(1)

$159.95

List price $379.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2017 Mazda 3

2012 Subaru Impreza

1991 Dodge Stealth

1996 Hyundai Accent

2007 Hyundai Accent

2003 Lexus RX300

2002 Ford Focus

2024 Chevrolet Corvette

1996 Saturn SW2

2023 Audi A3

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
