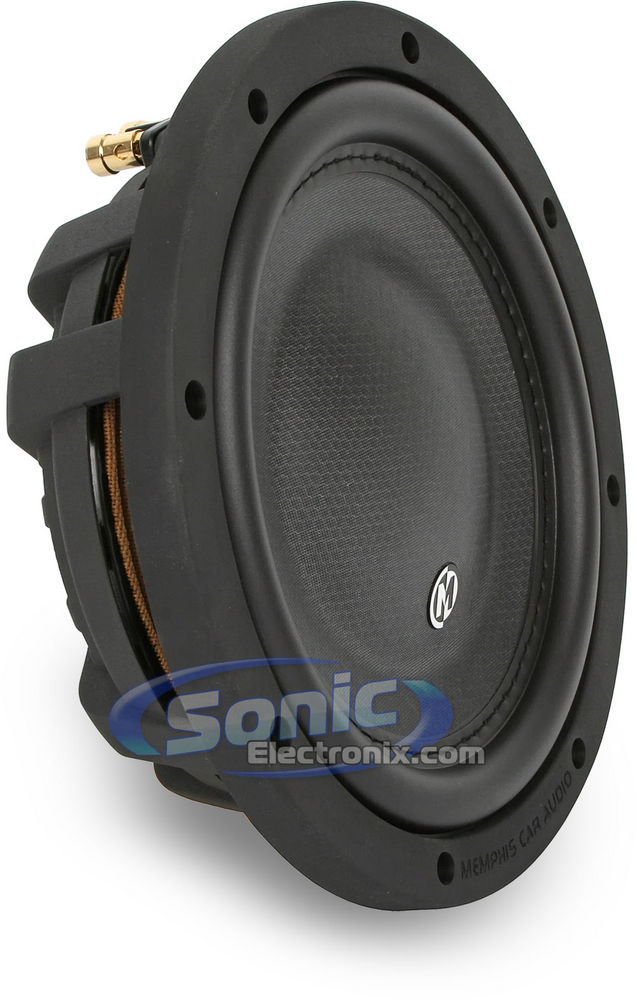

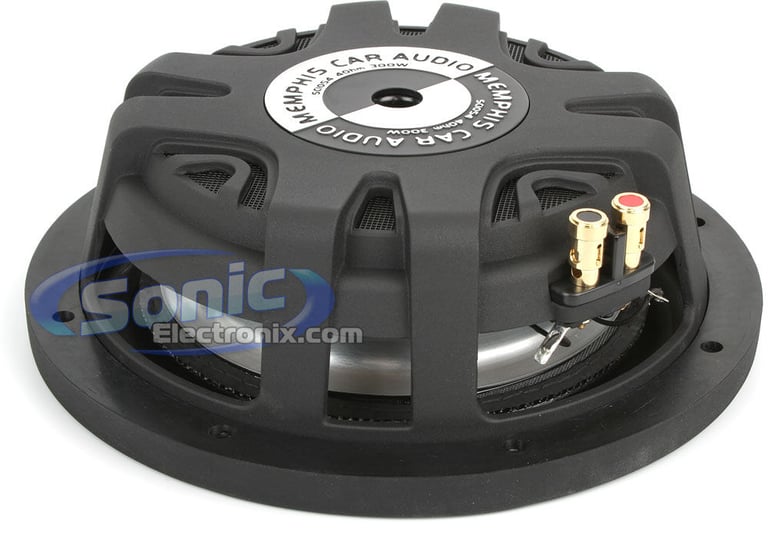

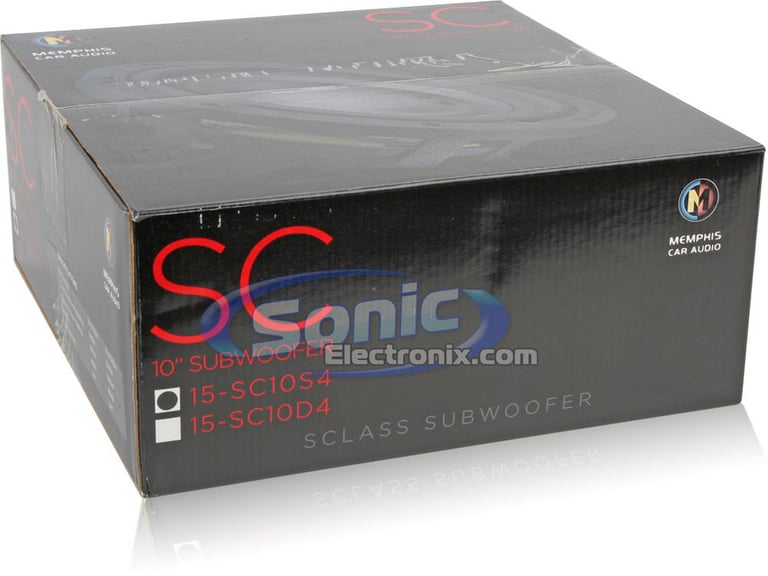

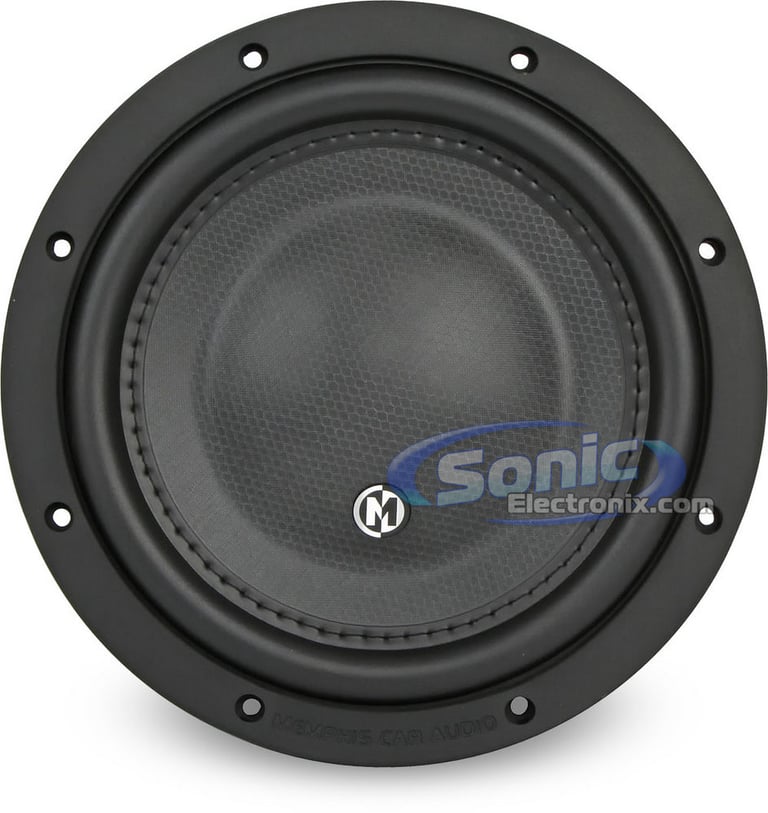

Memphis 15-SC10S4

10" Single 4 ohm SClass (SC Series) Slim Subwoofer

Memphis
Shop all Memphis
Product videos
highlight-star-icon

10" Single 4 ohm SClass (SC Series) Slim Subwoofer • 600W Max • 300W RMS • Fiberglass Honeycomb Woofer • Butyl Rubber Surround • Shallow Mounting Depth • Cast Aluminum Basket And Heatsink • Reinforced Spider

Learn more about the 15sc10s4

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
XED693 main

Cerwin-Vega XED693

700W Peak (90W RMS) 6x9" XED Series 3-Way Coaxial 4-ohm Speakers

25
-16.67%

$54.99

List price $65.99

TS-G6930F main

Pioneer TS-G6930F

800W Peak (90W RMS) 6x9" G-Series 3-way 4-ohm Coaxial Car Speakers

14
-25.01%

$59.99

List price $80.00

ZS525CX main

Hifonics ZS525CX

400W Peak (60W RMS) 5.25” Zeus Series 2-way 4-ohm Coaxial Car Speakers

7
-31.05%

$19.99

List price $28.99

XED52 main

Cerwin-Vega XED52

550W Peak (60W RMS) 5.25" XED Series 2-Way Coaxial 4-ohm Speakers

7
-16.67%

$44.99

List price $53.99

Limited time!
STAGE151F main

JBL STAGE1 51F (JBLSPKS151F)

300W Peak (60W RMS) 5.25" Stage Series 2 Way Coaxial 4-ohm Speakers

-37.50%

$49.99

List price $79.99

Product Highlights


10" Single 4 ohm SClass (SC Series) Slim Subwoofer • 600W Max • 300W RMS • Fiberglass Honeycomb Woofer • Butyl Rubber Surround • Shallow Mounting Depth • Cast Aluminum Basket And Heatsink • Reinforced Spider

Description


Memphis brand icon

Authorized dealer

  • 10" Single 4 ohm SClass (SC Series) Slim Subwoofer
  • Power Handling:
    • Peak: 600 watts
    • RMS: 300 watts
  • Impedance: Single 4 Ohm
  • Fiberglass honeycomb woofer
  • Butyl rubber surround
  • Patent pending voice coil lock
  • Shallow mounting depth
  • Cast aluminum basket and heatsink
  • Reinforced spider for increased performance
  • Gold-plated push terminals
  • 35oz. magnet structure
  • Sensitivity: 86 dB
  • 1-year SonicElectronix.com warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Memphis 15-SC10S4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Memphis 15-SC10S4 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Memphis 15-SC10S4 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Memphis 15-SC10S4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

AVH-3500NEX main

Pioneer AVH-3500NEX

7" Single DIN Flip-Out Touchscreen CD/DVD Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

9
-10.75%

$829.99

List price $930.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7

Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(89)

$139.99

List price $139.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(15)

$189.95

List price $159.95

R2-W10D2 small

Alpine R2-W10D2

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 5.92"
• Sensitivity: 82.3 dB

(3)

$319.95

List price $480.00

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
600 watts
RMS Power Handling
300 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Sensitivity
86 dB
Xmax (millimeters)
4.57 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Fiberglass Honeycomb
Woofer Surround
Butyl Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.30 cubic feet
Maximum Sealed Box Volume
0.30 cubic feet
Minimum Ported Box Volume
1.00 cubic feet
Maximum Ported Box Volume
1.00 cubic feet
Top-Mount Depth (Mounting Depth)
2.8"
Cutout Diameter
9-1/4"
Shallow Mount Installation
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

15-SC10S4

Weight:

11.00lbs

Internal SKU:

15sc10s4

Internal Product ID:

19644
