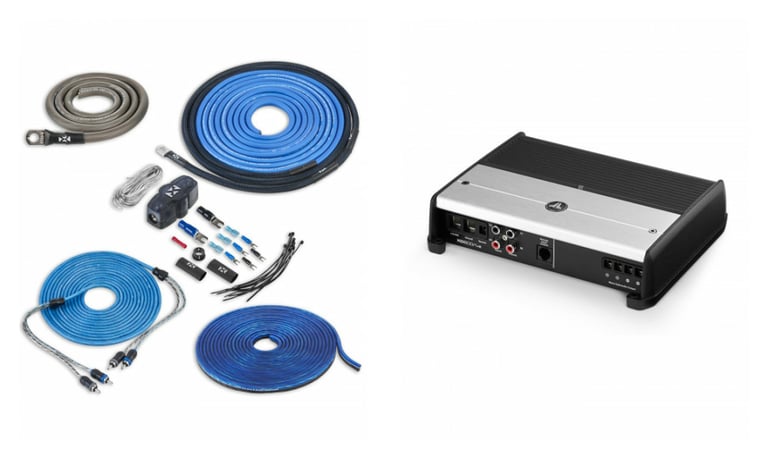

JL Audio XD600/1v2 with Amplifier Wiring Kit

JL Audio XD600/1v2 with Amplifier Wiring Kit-thumbnail

Product highlights

• NexD Switching Technology
• Dual-Range Differential Balanced Input Section
• Advanced Rollback Protection
• Selectable Low-Pass Filter Slope: 12 dB or 24 dB
• Detented, Calibrated Filter Freq. Potentiometer
• Includes Amplifier Wiring Kit

Learn more about the xd6001v2_xkit42

Description

Authorized dealer

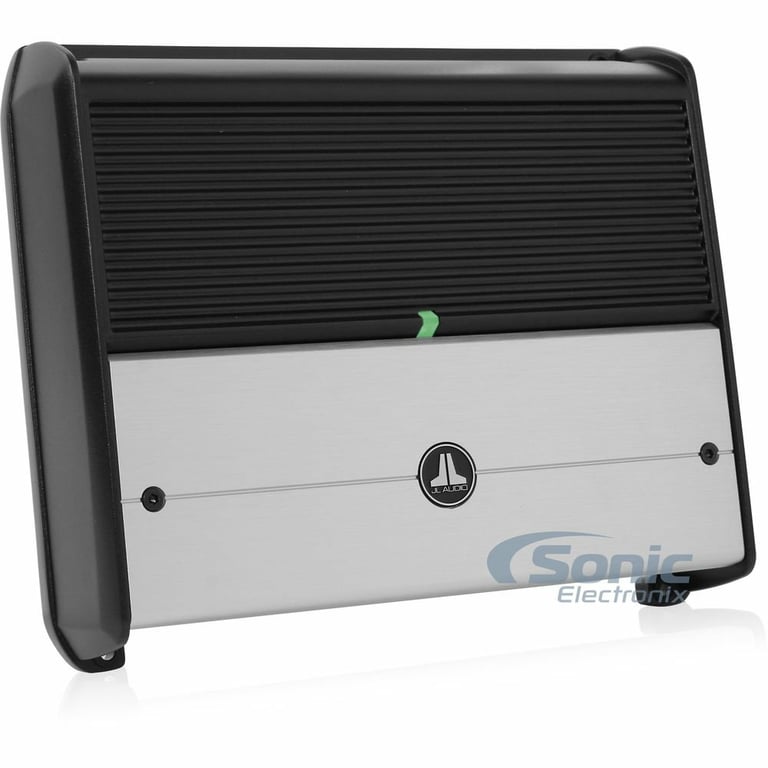

JL Audio XD600/1v2 - XDv2 Series Monoblock Class D Subwoofer Amplifier

This potent monoblock amplifier employs JL Audio's high-speed NexD switching design to achieve unprecedented efficiency and amazing power output in a very compact chassis. Don't let the small size fool you, though... this amplifier is capable of serious subwoofer power, delivering a full 600 W of continuous power into a 2 ohm load (14.4V, 1% THD). Targeted specifically for subwoofer applications, the XD600/1v2 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500 Hz. The XD600/1v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier's level can be directly controlled from the driver's seat. This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls. Its frequency response is limited to the range below 500 Hz. It is not designed for driving midrange speakers or tweeters. Every aspect of its operation has been optimized for low-frequency amplification.

Advanced Rollback Protection

JL Audio's signature Advanced Thermal Rollback protection system eliminates annoying thermal shutdown events to keep the music playing, even under the most demanding conditions. Should the amplifier reach an unsafe operating temperature, a special circuit rolls back peak power output, without changing gain, until the amplifier cools down to a safe operating temperature. The red "Thermal" LED will light to indicate this condition has been reached. Once the amplifier cools down, the circuit restores full peak power output and the red "Thermal" indicator reverts to its normal state. The operation of Advanced Rollback Protection is inaudible in most cases.

NexD Switching Technology

From the same minds that gave us the technology found in the 'Slash' amplifiers, JL Audio has taken the simple fixed Pulse Width Modulation design approach and enhanced it with a very high switching frequency: 240 kHz, which is about 4x higher than most Class D subwoofer amplifiers. This pushes the amplifier's bandwidth to at least 500 Hz with minimal distortion and improves efficiency, while keeping typically bulky circuity more compact. Your subwoofers will reward you with tight, rock-solid bass. These technologies allow XDv2 amplifiers to achieve efficiencies exceeding 80%, meaning far less heat and strain on your vehicle's electrical system than a conventional large amplifier.

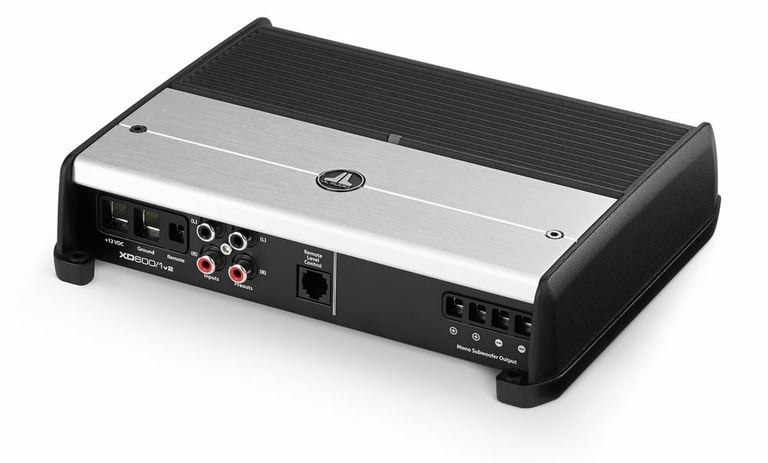

JL Audio XD600/1v2

600W RMS XDv2 Series Monoblock Class D Subwoofer Amplifier with High-Speed NexD Switching
Quantity: 1

General Features:

XDv2 Series Class D Monoblock Amplifier
RMS Power Rating @14.4V:

4 ohms: 400 watts x 1 chan.
3 ohms: 500 watts x 1 chan.
2 ohms: 600 watts x 1 chan.
1 ohm: ----------N/A----------

RMS Power Rating @12.5V:

4 ohms: 300 watts x 1 chan.
3 ohms: 400 watts x 1 chan.
2 ohms: 500 watts x 1 chan.
1 ohm: ----------N/A----------

NexD High Speed Switching Class D Technology
Wired HD-RLC remote level control available, sold separately
LED power (green), over-current (yellow) and protect (red) indicators
Advanced Rollback Protection
Dual-Range Differential Balanced Input Section

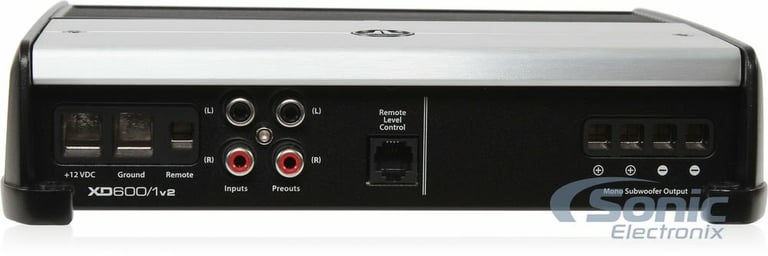

Buffered pass-through preamp RCA outputs

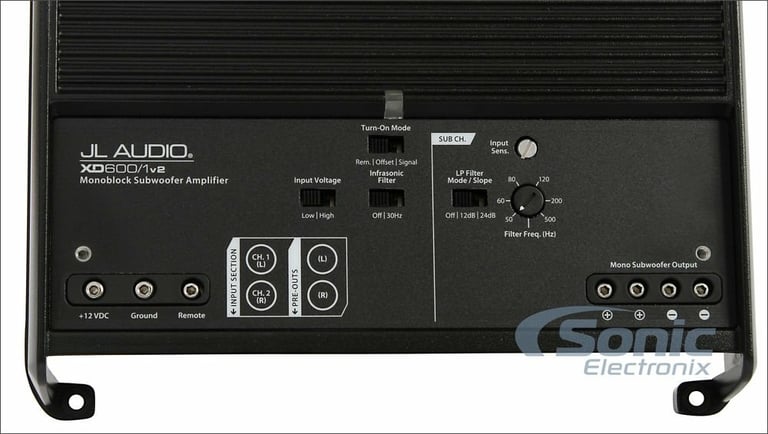

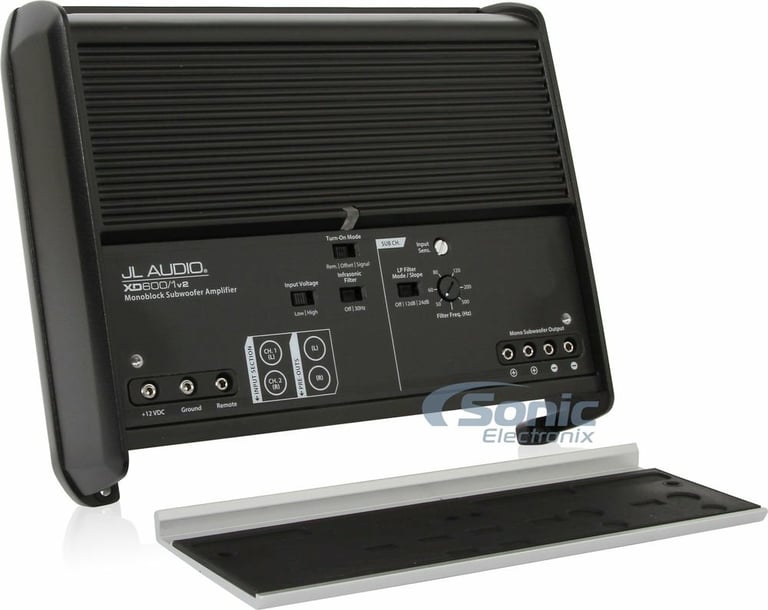

Selectable turn-on modes: REM / Offset / Signal

+12 V Remote Turn-On: Traditional remote lead wire, from headunit
DC Offset-Sensing: On/Off by detecting a very small DC signal (high-level signal only)
Signal-Sensing: On/Off by detecting a full-range audio signal at left-channel input (high-level signal only)

Speaker level inputs via RCA, JL Audio XD-CLRAIC2-SW required
Dual speaker terminals simplify the hookup of multiple speakers
Heavy duty aluminum alloy heat-sink for extreme heat dissipation
3-way protection circuitry (thermal, overload, and speaker short protection)
Detented, Calibrated Filter Freq. Potentiometer
12 dB/octave Butterworth or 24 dB/octave Linkwitz-Riley Crossover
Input sensitivity:

Low level: 800mV - 8V
High level: 200mV - 2V

Frequency Response: 7 - 500 Hz
Total Harmonic Distortion (THD): <1%
Signal to Noise Ratio: >87 dB
Damping Factor @4ohms: >1000 / 50 Hz
Selectable Infrasonic Filter: Off / 30 Hz
Selectable Low-Pass Filter Slope: 12 dB or 24 dB
Variable low-pass filter: 50 - 500 Hz, 12 or 24 dB/octave
Fuse Rating: 50A x 1 inline (not supplied)
4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
Weight: 6.30 lb
Dimensions: 7.09"W x 8.52"L x 2.05"H
Authorized Internet Dealer
2 Year Manufacturer's Warranty

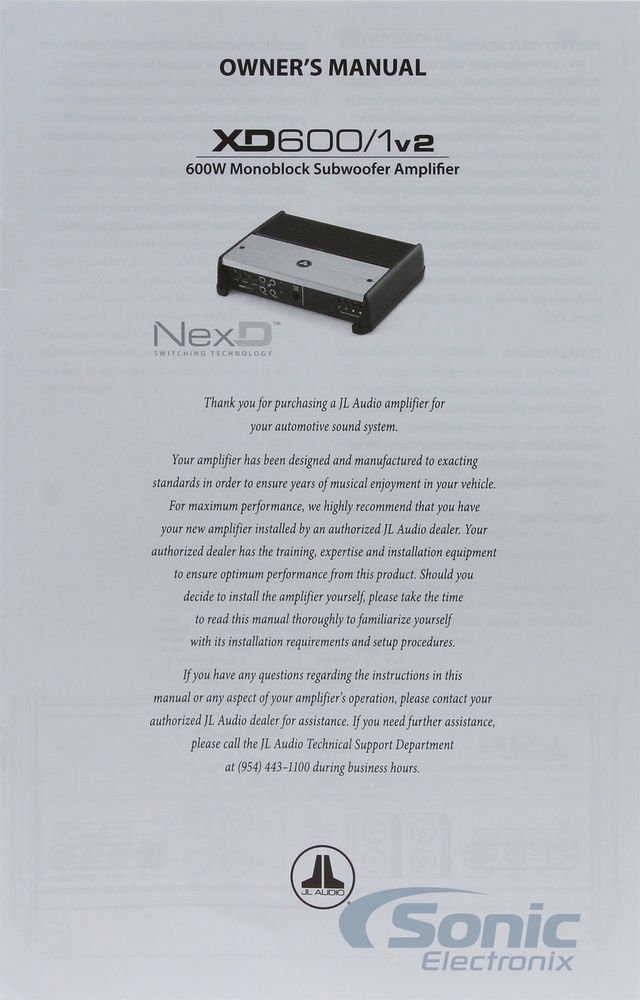

Check out the JL Audio XD600/1v2 Owner's Manual

NVX XKIT42

Full Spec 4 Gauge 100% (OFC) Oxygen Free Copper Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1500 Watts
Quantity: 1

Product Details:

4 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
Designed for car audio systems up to 1500 watts RMS

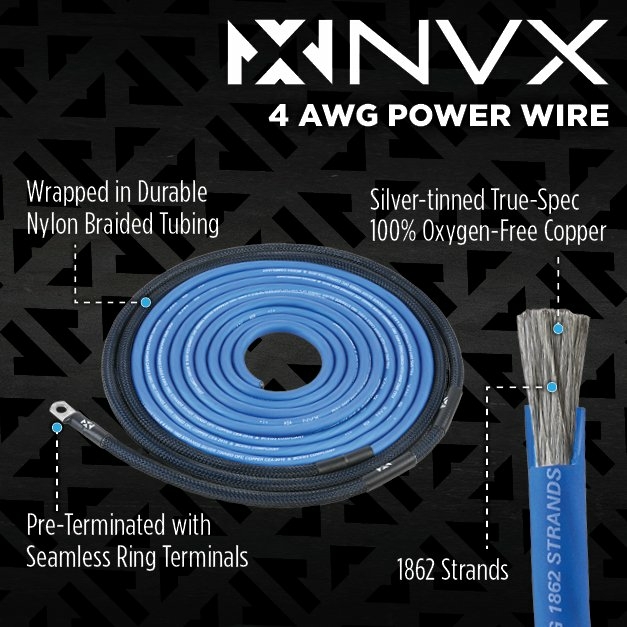

Made from 100% (OFC) Oxygen-Free Copper for pure uninterrupted power and current transfer
Tinned conductors for corrosion resistance
Pre-installed black nylon mesh covering protects power wire from being damaged

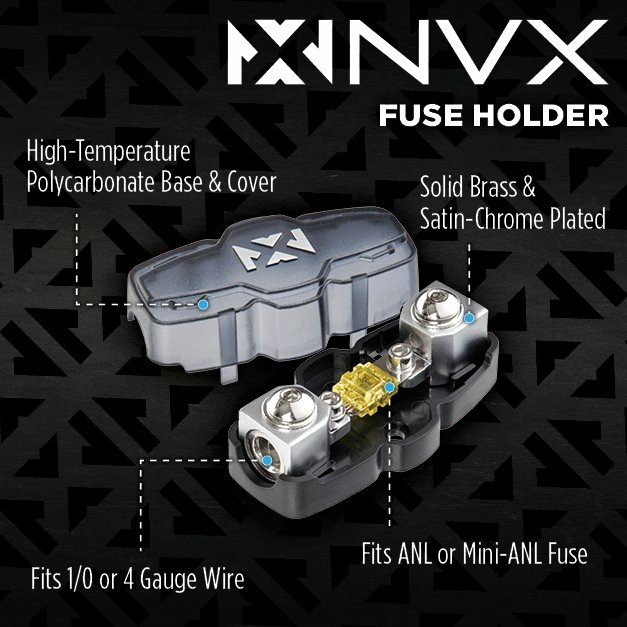

Solid Brass and Satin Chromed ANL/Mini-ANL Fuse holder offers ideal protection for high powered systems
Pre-terminated seamless power and ground ring terminals provide reliable performance
Full Spec cables meet or exceed the American Wire Gauge standards

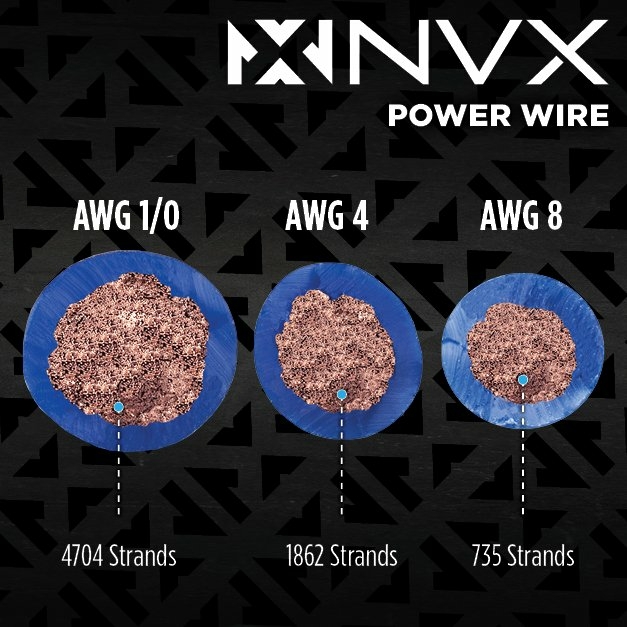

Strand Count: 1862
CEA-2015 and BC5W2 Compliant
Authorized Internet Dealer
1-year Manufacturer's Warranty

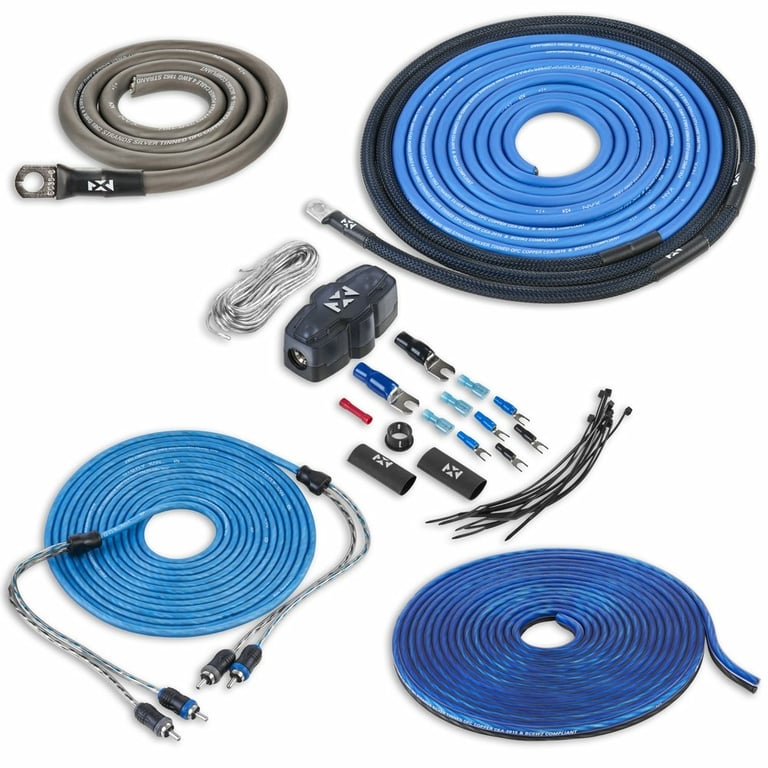

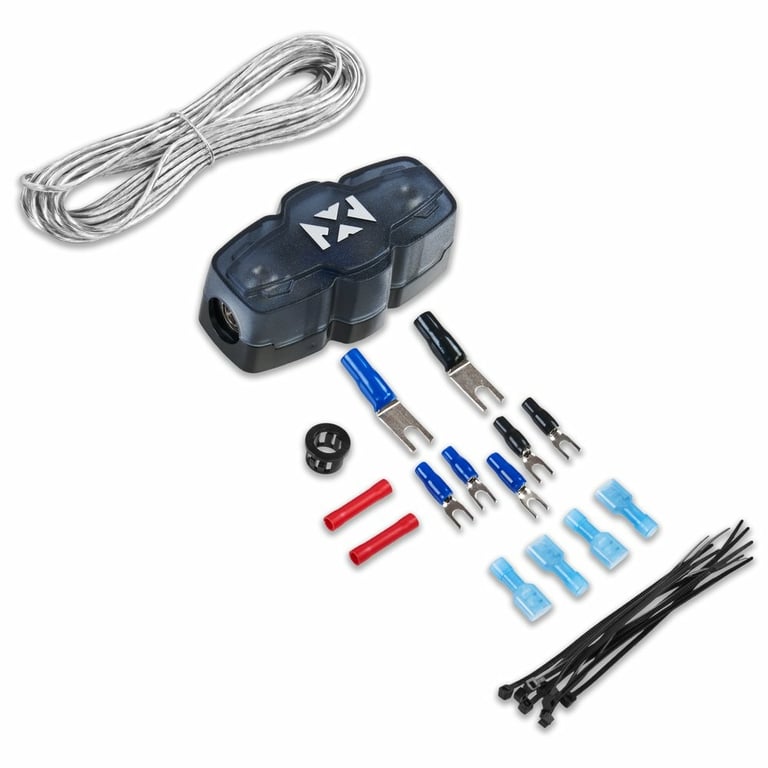

Kit includes:

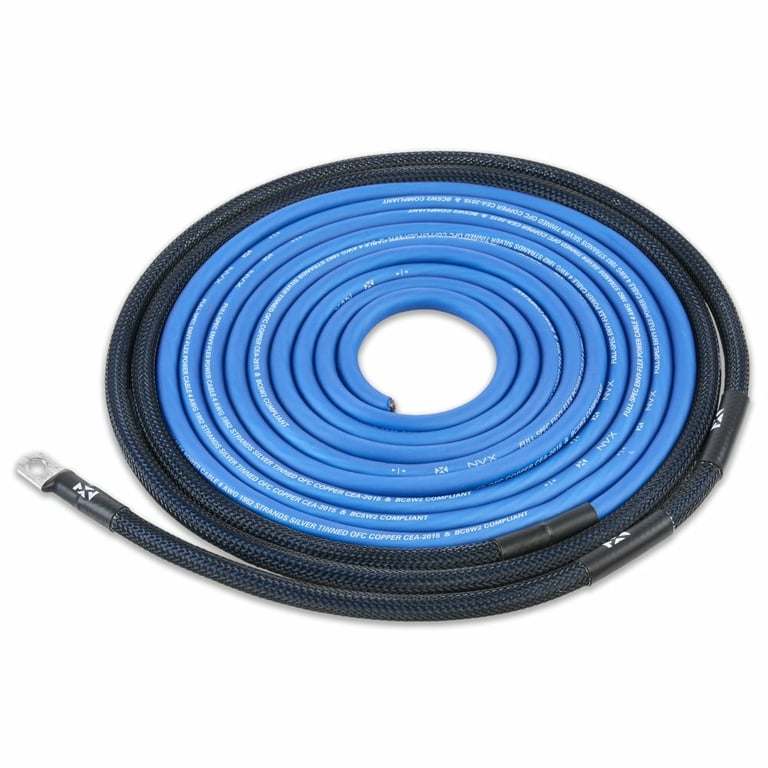

20 ft. (6.1 meters) Frosted Blue 4 gauge power wire with seamless crimp ring terminal

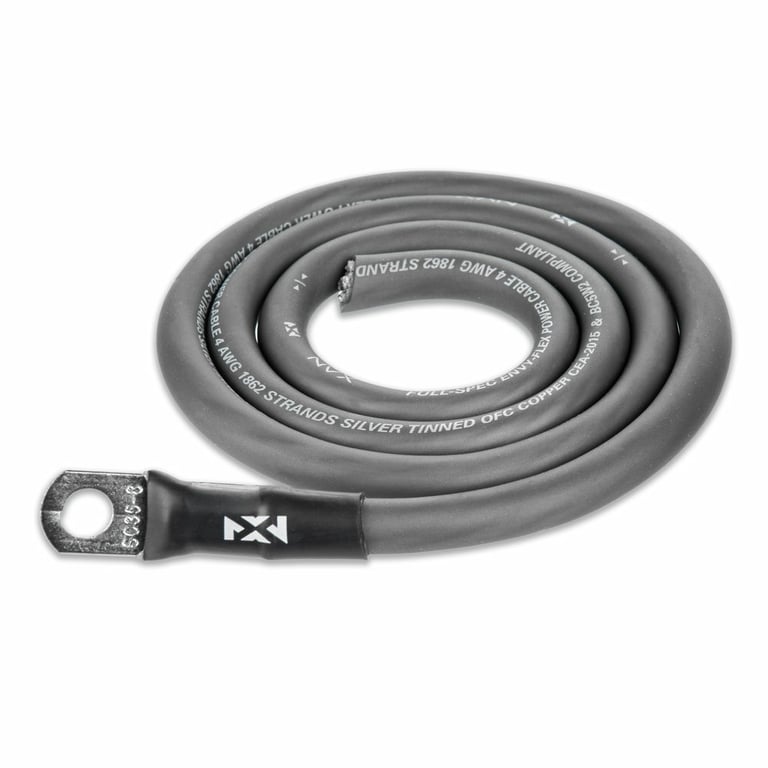

3 ft. (.91 meters) Frosted Black 4 gauge ground wire with seamless crimp ring terminal
20 ft. (6.1 meters) Clear 18 gauge remote lead wire

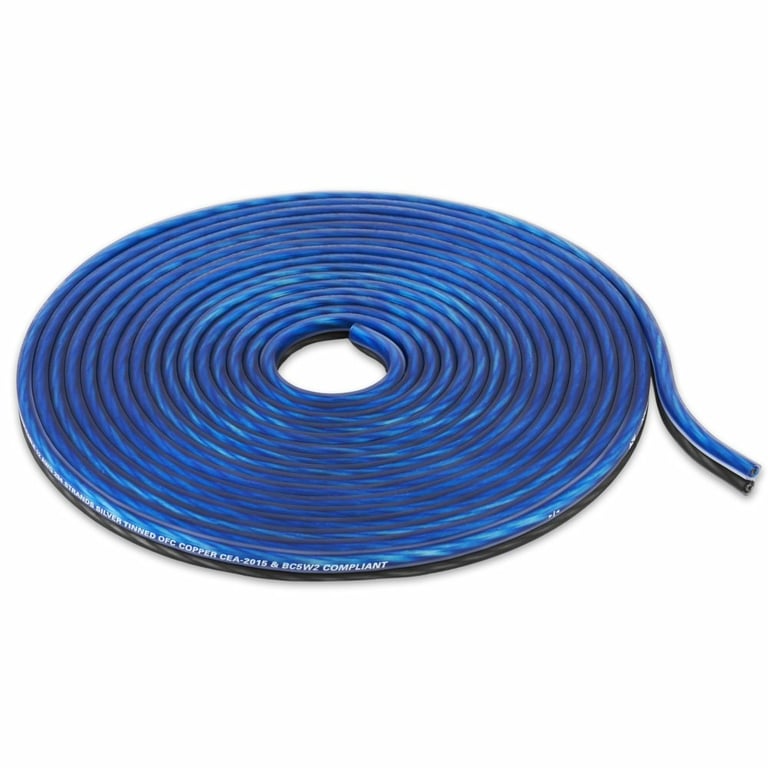

40 ft. (12.2 meters) Frosted Black/Blue 16 gauge speaker wire

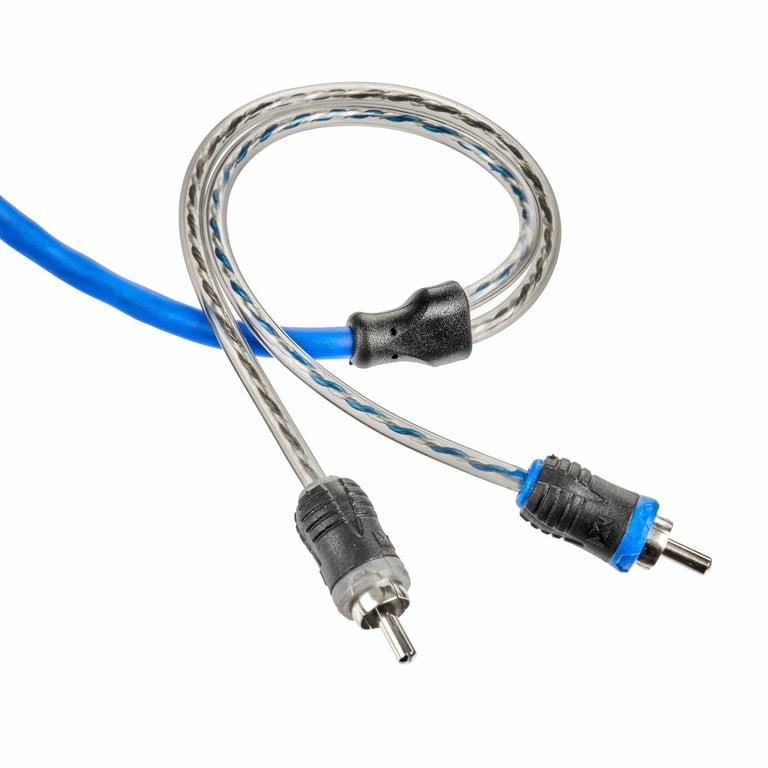

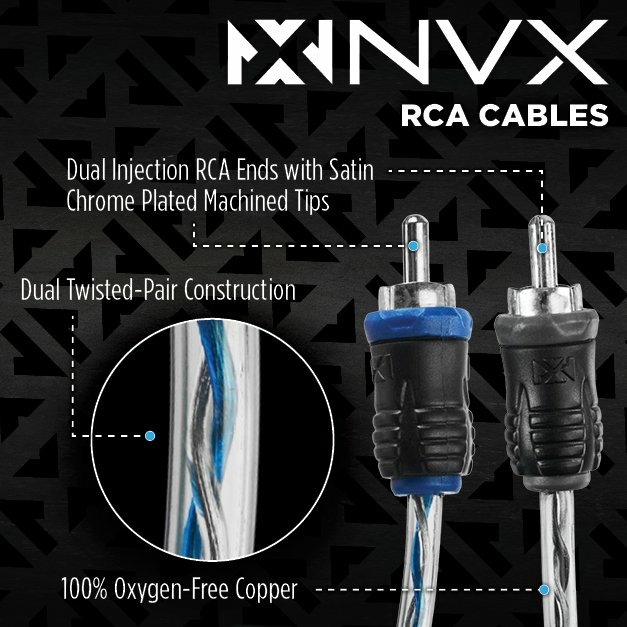

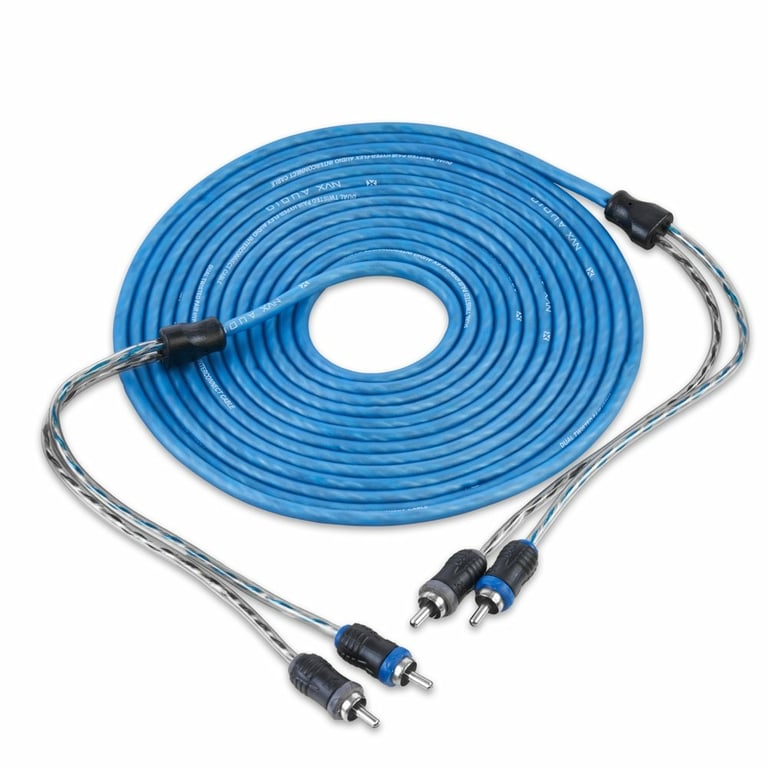

One 16 ft. (5 meters) 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)

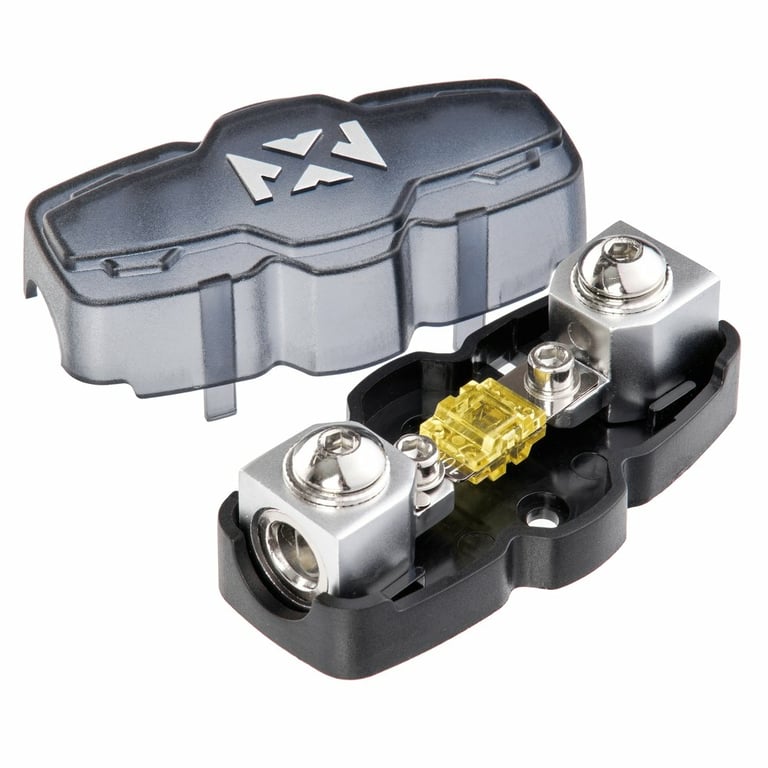

One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
One Black rubber firewall grommet
Two 4 Gauge Nickel Plated spade terminals
Four 18 Gauge Spade terminal
Two 18 Gauge Red butt connectors
Four 16 Gauge quick disconnect
Five 16 Gauge Nickel Plated spade terminals
Two Heat Shrink tube with NVX logo
Ten 6" Black zip ties

Product history:

	JL Audio XD600/1v2 with Amplifier Wiring Kit (newest, current model)
	JL Audio XD600/1 (previous model, replaced by JL Audio XD600/1v2 with Amplifier Wiring Kit)

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

400 watts x 1 channel

RMS Power @ 2 ohms

600 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

600 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohms

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

<1.0%

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

50 - 500 Hz

Signal-to-Noise Ratio

87 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

JL Audio HD-RLC

Fan Cooled

Fuse Rating

50A X 1 In-Line Fuse Recommended

Total Fuse Rating

CEA-2031 Compliant

Sonic Certified Amplifier

Not Tested

Amp Bluetooth Connectivity

Hi-Res Certified

Warranty and Return Policy

Parts Warranty Duration

2 years

Labor Warranty Duration

2 years

Warranty Provider

Manufacturer
