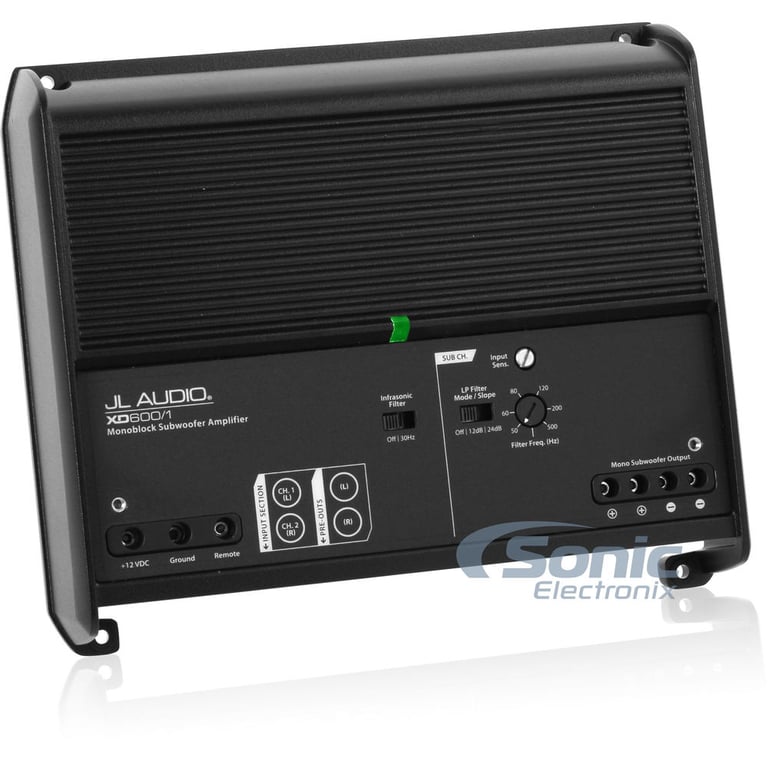

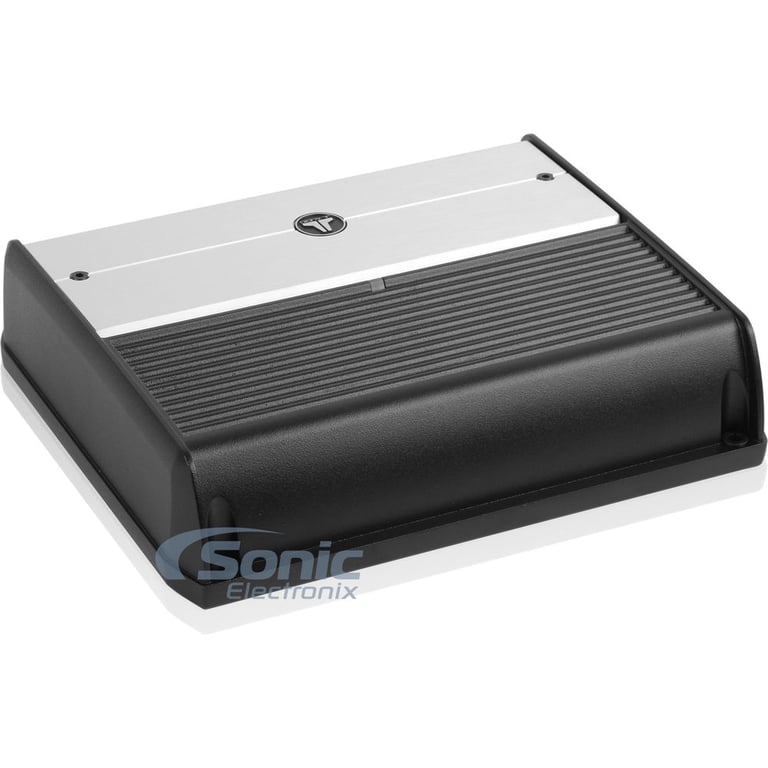

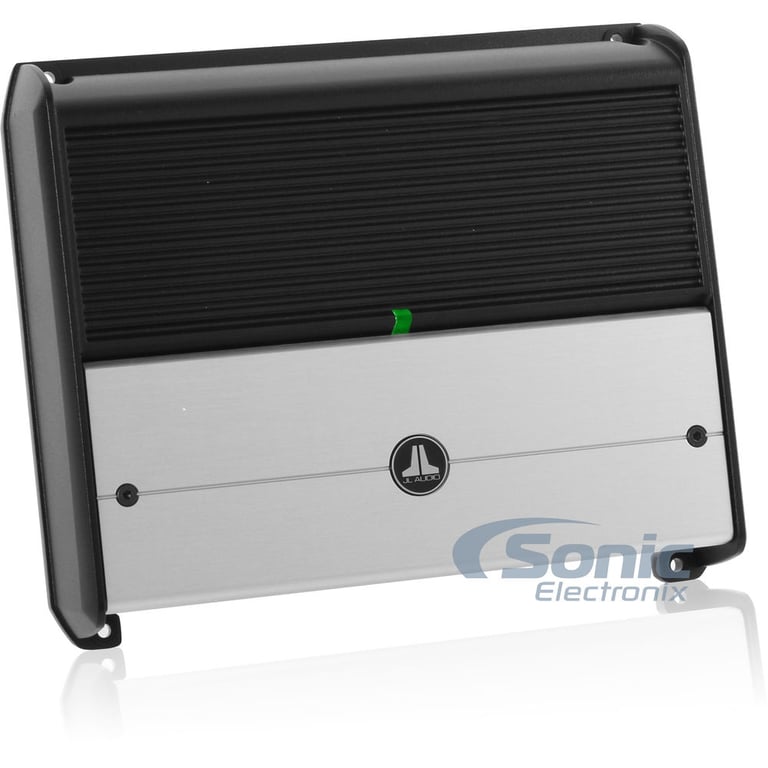

JL Audio XD600/1

600W, Single-Channel Class D XD Series Subwoofer Monoblock Car Amplifier

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

• 600W x 1-Chan @ 2 Ohm
• NexD Ultra-High Speed Topology
• Preamp RCA Outputs
• Variable High/Low-Pass Filter
• 3-Way System Protection Circuitry
• Remote Bass Input

Learn more about the xd6001

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

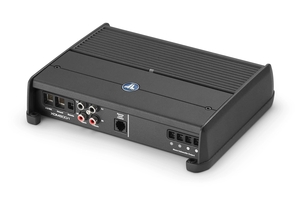

xdm6001 thumbnail

JL Audio XDM600/1

OUR PRICE: $629.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
MA03B main

Scosche MA03B Wiring Harness

Install a new car stereo in select 2001-2018 vehicles from Mazda

26
HO6 main

PAC HO6

Install a New Car Stereo and Retain the Factory Antenna in select 2003-2016 vehicles from Honda, Mazda, Acura

-70.83%

$7.00

List price $24.00

99-7520B main

Metra 99-7520B

Install a new Single-DIN or Double-DIN car stereo in select 2010-2012 CX-7 (Matte Black)

-10.98%

$72.99

List price $81.99

H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

Limited time!
46CSC54 main

Kicker CSC5 (46CSC54)

450W Peak (150W RMS) 5.25” CS Series 2 Way Coaxial 4-ohm Speakers

15
-33.36%

$79.96

List price $119.99

Product Highlights


• 600W x 1-Chan @ 2 Ohm
• NexD Ultra-High Speed Topology
• Preamp RCA Outputs
• Variable High/Low-Pass Filter
• 3-Way System Protection Circuitry
• Remote Bass Input

Description


JL Audio brand icon

Authorized dealer

Quality, Efficiency, and Convenience with JL Audio XD Amplifiers

JL Audio's XD600/1 monoblock XD series amplifier encompasses high quality at an affordable price. When JL Audio sets out to make an affordable amplifier the one thing that you can bet they will not do is compromise on quality and performance. XD amplifiers feature NexD Class D Technology, that reduces distortion and increases efficiency. The use of an Advanced Rollback Protection system will allow the XD amplifiers to maintain both thermal and low-impedance protection by either limiting available peak voltage when overheating or rolling back peak voltage when low impedance is presented at the outputs. In order to minimize engine whine or alternator noise, XD amplifiers feature differential-balanced inputs that eliminate voltage sensitivity between one input terminal and ground thus reducing the occurrence of interference. Apart from all these great technologies, XD amplifiers also feature a relatively small chassis, making them easily mountable in any vehicle without extraneous hassle. When looking for a space-saving amplifier loaded with the latest technologies and unsurpassed quality and performance, then look no further than JL Audio's XD series car amplifiers.

General Features

  • XD Series Monoblock Class D Car Amplifier
  • RMS Power Rating (14.4V):
    • 4 ohm: 400 watts x 1 chan.
    • 2 ohm: 600 watts x 1 chan.
  • RMS Power Rating (12.5V):
    • 4 ohm: 300 watts x 1 chan.
    • 2 ohm: 500 watts x 1 chan.
  • Unregulated MOSFET switching type power supply
  • NexD Ultra-High Speed Class D topology
  • Wired JL Audio HD-RLC remote level control sold separately
  • LED power (green) and protect (red/yellow) indicators
  • State-of-the-art microelectronic components
  • Mono channel operation
  • Advanced Thermal Rollback System completely eliminates annoying thermal shut-down events
  • Studio-grade signal processing with fully variable crossover filters
  • Extruded aluminum alloy system setting security cover
  • Total amplifier efficiencies exceeding 80%
  • Noise-killing, highly flexible differential-balanced inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • Defeatable low-pass and infrasonic crossover filters

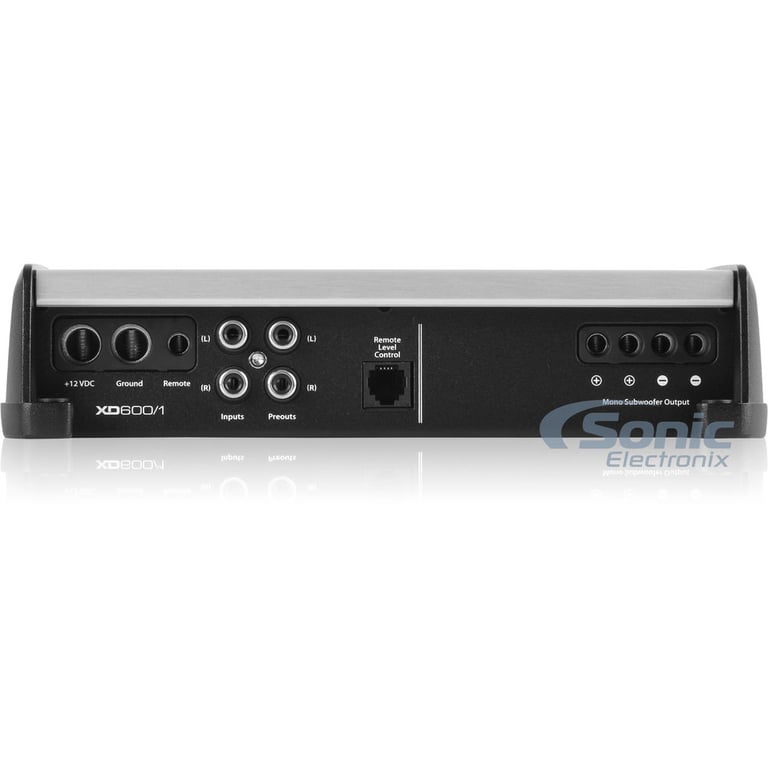

  • Dual speaker terminals simplify speaker installation
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty compact unitary cast alloy heat sink for extreme heat dissipation
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Input sensitivity:
    • Level: 100mV-4V
  • Variable low-pass filter (50-500 Hz, 12 dB/octave Butterworth or 24 dB/octave Linkwitz-Riley)
  • Infrasonic Filter (30 Hz, 24dB/octave Butterworth)
  • Damping factor: >1,000 @ 4 ohm / 50Hz, >500 @ 2 ohm / 50Hz
  • Frequency response: 7-500 Hz

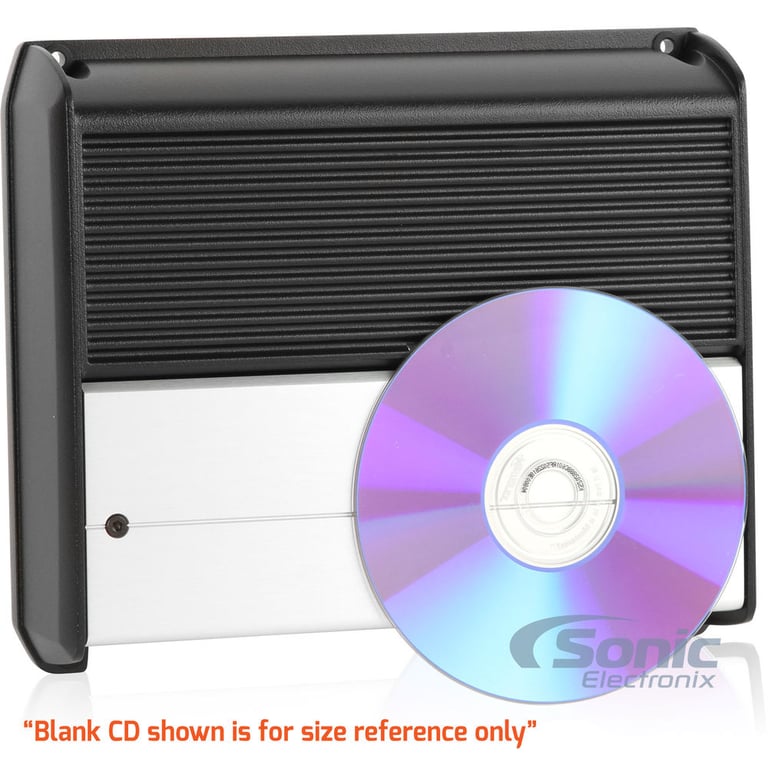

  • Dimensions: 8-1/2"L x 7-1/16"W x 2-1/16"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 2 Year Manufacturer's Warranty

Product history:

JL Audio XDM600/1 thumbnail
(newest, current model)
JL Audio XD600/1V2 thumbnail
(previous model, replaced by JL Audio XDM600/1)
JL Audio XD600/1 thumbnail
(previous model, replaced by JL Audio XD600/1v2)

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(19)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(41)

$399.99

List price $429.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(144)

$259.99

List price $335.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(24)

$199.99

List price $219.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
400 watts x 1 channel
RMS Power @ 2 ohms
600 watts x 1 channel
Amplifier Specifications
Series
XD Series
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
600 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
1.0%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 500 Hz
Subsonic Filter
30 Hz
Signal-to-Noise Ratio
87 dB
Channel Separation
67 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
50A x 1
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XD600/1

Weight:

6.00lbs

Internal SKU:

xd6001

Internal Product ID:

26845
