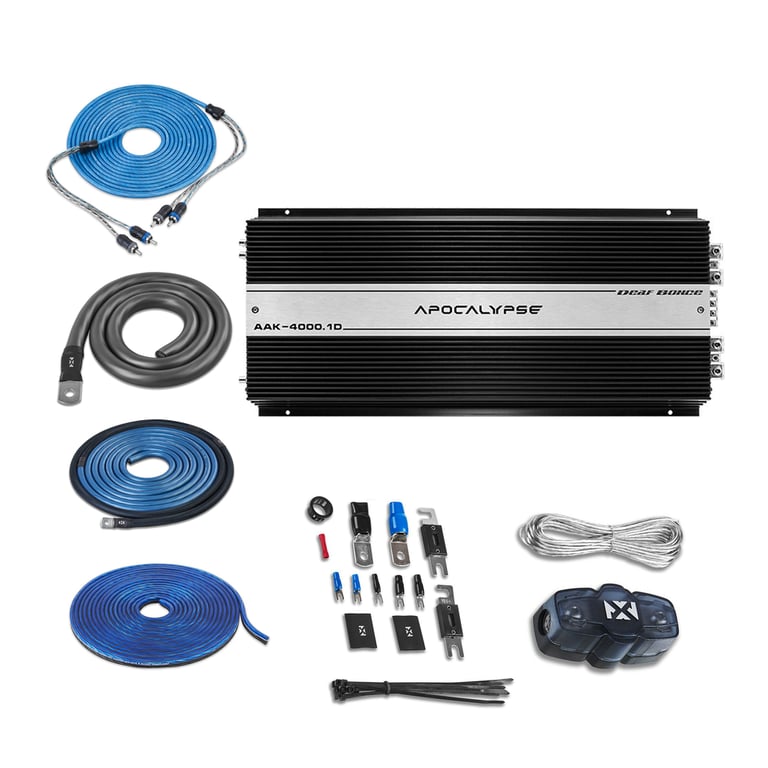

Deaf Bonce AAK4000.1D with Amplifier Wiring Kit

2,500W RMS Apocalypse Series Class-D Monoblock Amplifier

highlight-star-icon

• 1350 watts x 1 channel @ 4 ohm
• 2500 watts x 2 channel @ 2 ohm
• 4000 watts x 1 channel @ 1 ohm
• Total RMS Power: 2500 watts
• Class D 1 ohm Stable Monoblock Amplifier
• Includes Amplifier Wiring Kit

Learn more about the aak40001d_xkit02

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

Description


Deaf Bonce brand icon

Authorized dealer

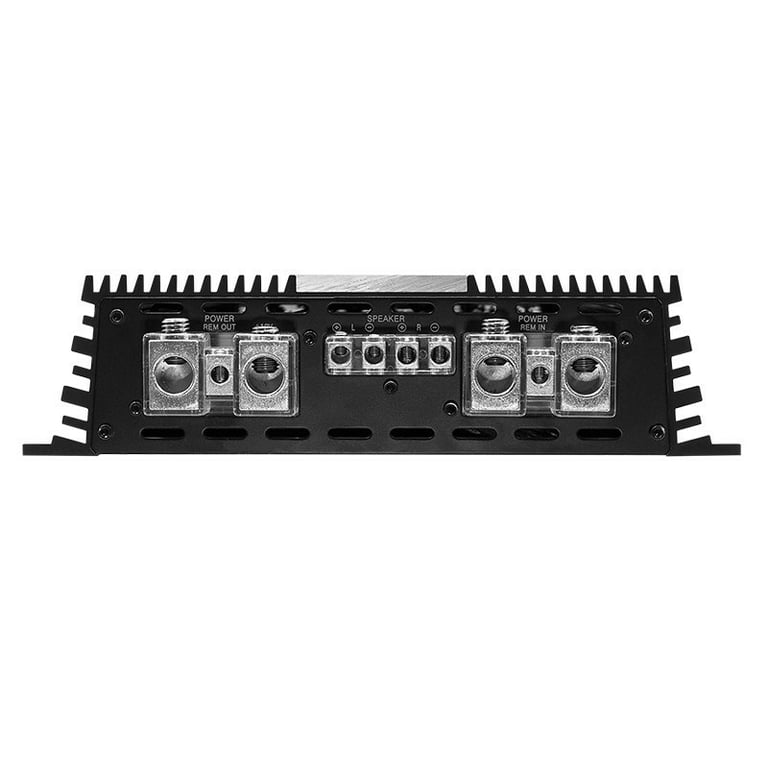

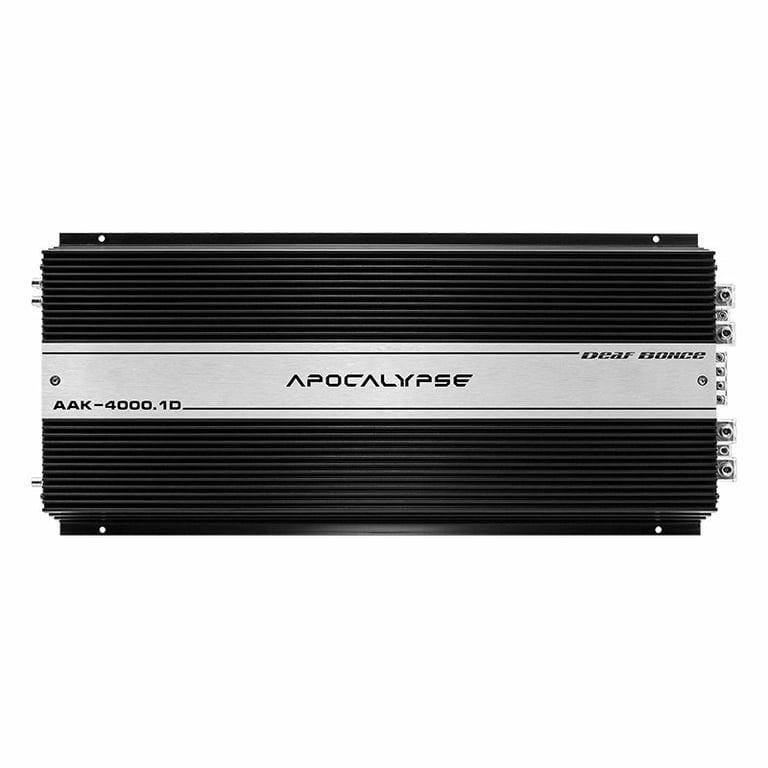

Deaf Bonce AAK4000.1D

4000W RMS Apocalypse Series Class-D Monoblock Amplifier
Quantity: 1

Product Details:

  • Apocalypse Series Class D 1 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 1350 watts x 1 channel
    • 2 ohm: 2500 watts x 2 channel
    • 1 ohm: 4000 watts x 1 channel
  • Total RMS power output: 2500 watts

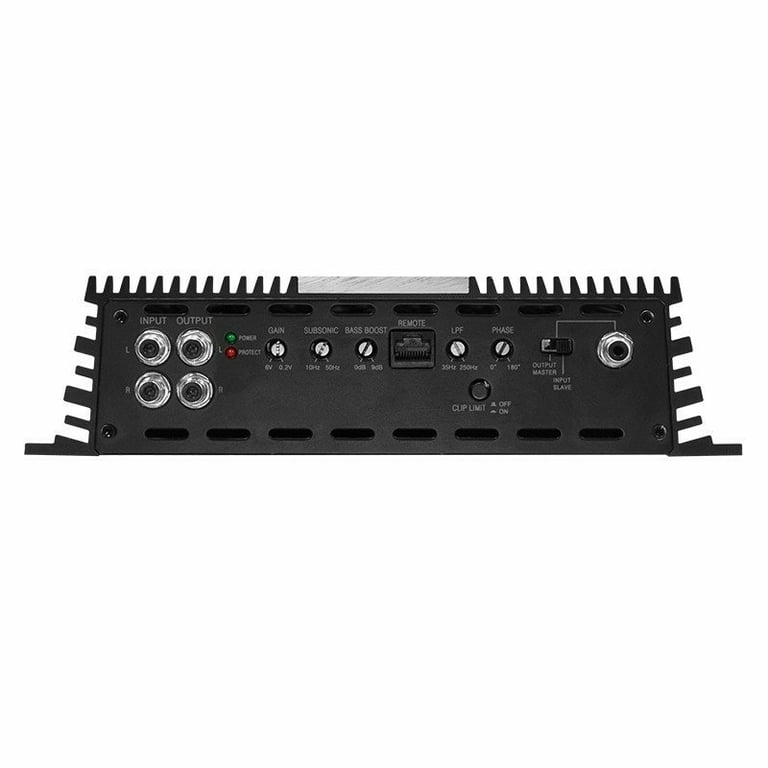

  • LED Power/Protect Light

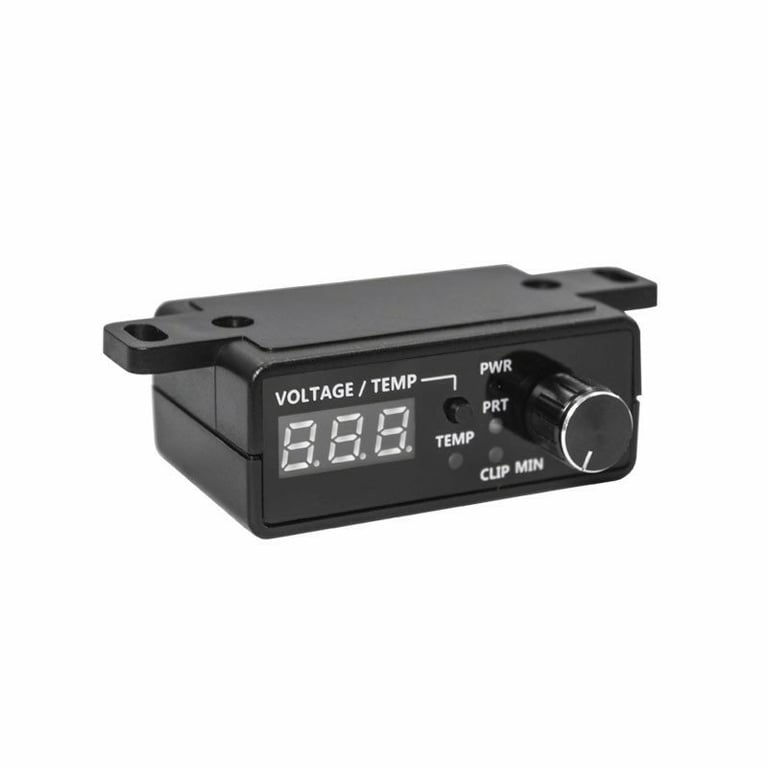

  • Wired bass level remote control included
  • 2 pairs of pre-amp outputs
  • Input sensitivity: 0.2 - 6 volts
  • Strappable Amplifier
  • Frequency Response: 15 - 270 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: >95 dB
  • Variable low-pass filter: 35 - 250 Hz
  • Subsonic filter: 10 - 50 Hz
  • Variable Bass Boost: 0 - 9 dB
  • Fuse Rating: 350A
  • 1/0 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 21.26" L x 9.65" W x 2.54" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: AAK4000.1D

NVX XKIT02

Full Spec 1/0 Gauge 100% (OFC) Oxygen Free Copper Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 4000 Watts
Quantity: 1

Product Details:

  • 1/0 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
  • Designed for car audio systems up to 3000 watts RMS
  • Made from 100% Oxygen-Free Copper (OFC)
  • Tinned conductors for corrosion resistance
  • Pre-installed black nylon mesh covering protects the power wire from damage

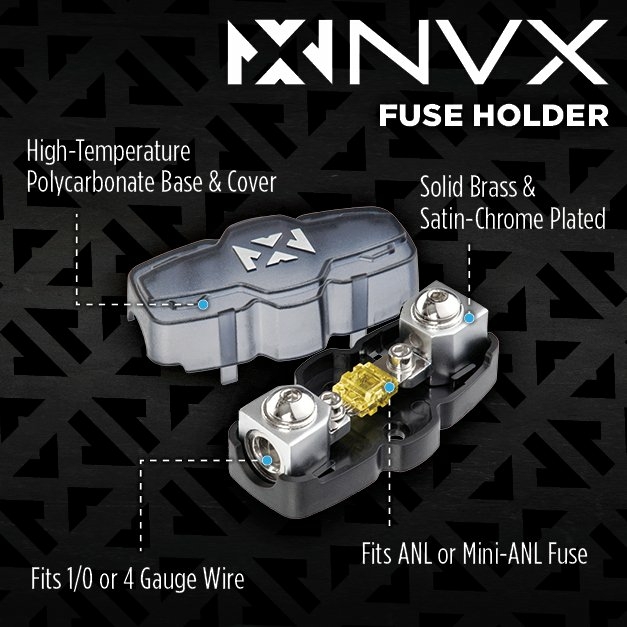

  • Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Pre-terminated seamless power and ground ring terminals provide reliable performance
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • CEA-2015 and BC5W2 compliant
  • V-Series RCA Interconnect Cable
  • Shielded noise-rejecting coaxial construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Twisted-pair construction featuring two conductors per channel
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

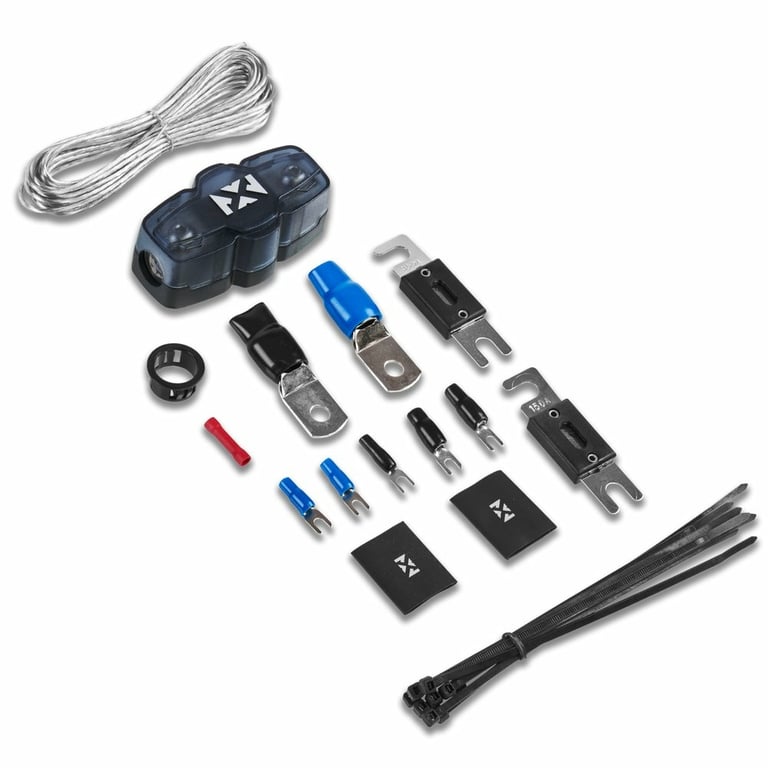

Kit includes:

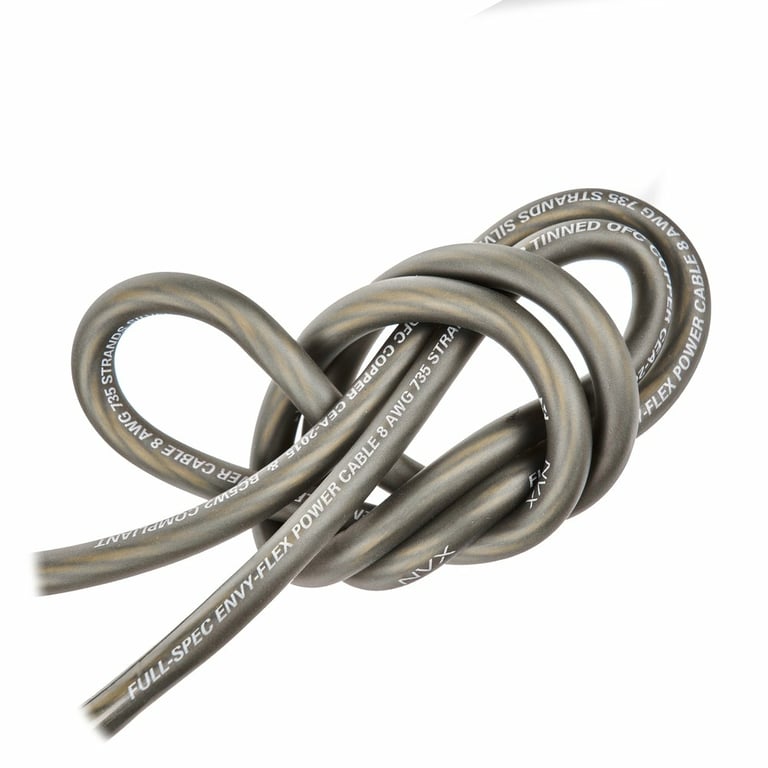

  1. 17 ft. Frosted Blue 1/0 gauge power wire with seamless crimp ring terminal

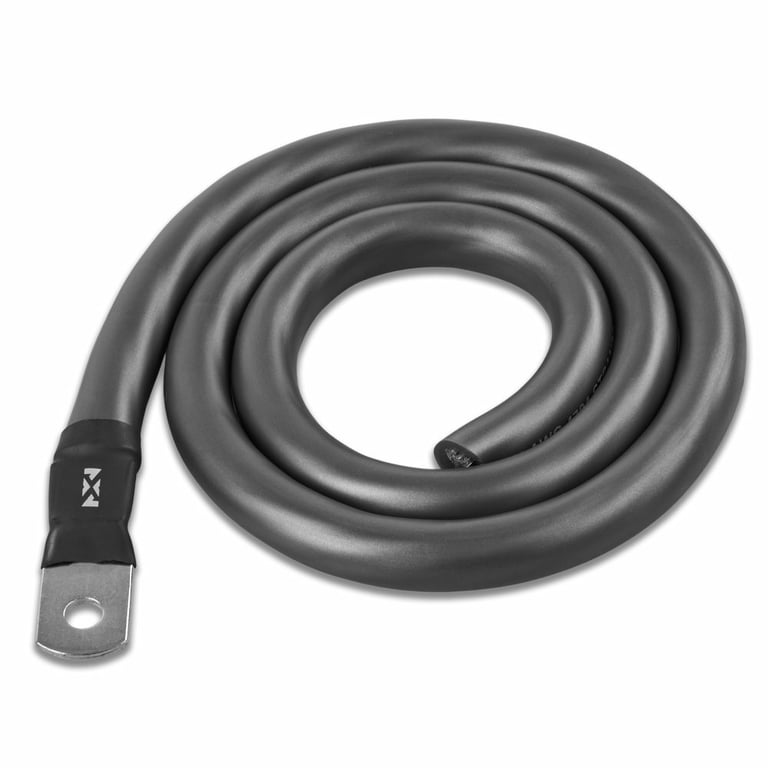

  2. 3 ft. Frosted Black 1/0 gauge ground wire with seamless crimp ring terminal
  3. 17 ft. Clear 18 gauge remote lead wire
  4. 20 ft. Frosted Black/Blue 12 gauge speaker wire
  5. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)
  6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 300 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 1/0 Gauge Nickel Plated ring terminals
  9. Four 12 Gauge Spade terminal
  10. Two 18 Gauge Red butt connectors
  11. Two Heat Shrink tubes with the NVX logo
  12. Ten 6" Black zip ties

Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
1350 watts x 1 channel
RMS Power @ 2 ohms
2500 watts x 2 channel
RMS Power @ 1 ohm
4000 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
2500 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Speaker Level Inputs
Yes
Preamp Outputs
Mono output
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
35 - 250 Hz
Subsonic Filter
10 - 50 Hz
Signal-to-Noise Ratio
>95 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
Yes
CEA-2031 Compliant
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

AAK4000.1D, XKIT02

Weight:

38.88lbs

Internal SKU:

aak40001d_xkit02

Internal Product ID:

196939
