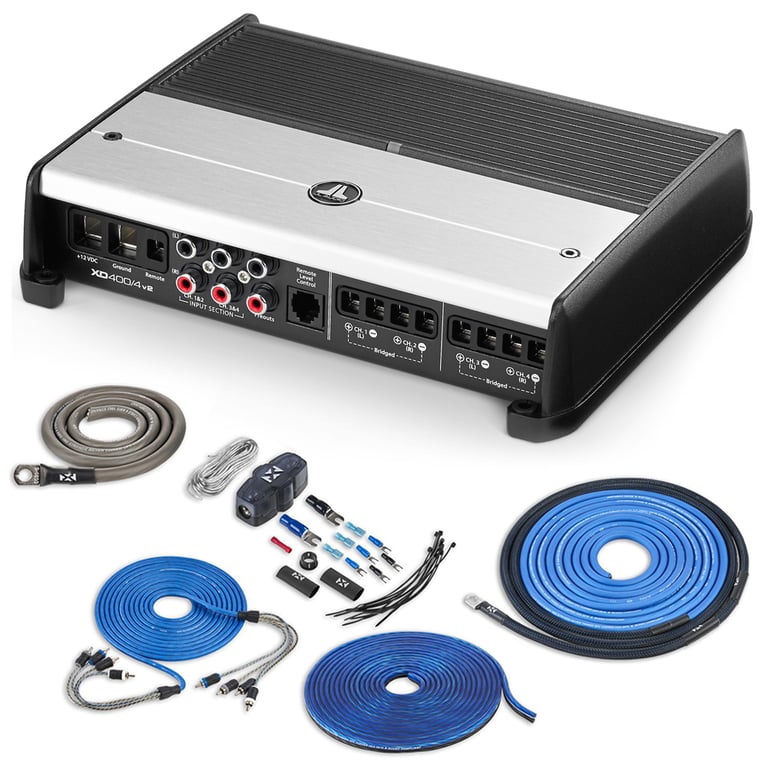

JL Audio XD400/4v2 with Amplifier Wiring Kit

400W XDv2 Series 4-Channel Class D Full-Range Amplifier with High-Speed NexD Switching

JL Audio
Shop all JL Audio
highlight-star-icon

• NexD Switching Technology
• Differential Balanced Input Section
• Advanced Rollback Protection
• Frequency Response: 12 Hz - 22 kHz (+0, -1dB)
• Detented, Calibrated Filter Freq. Potentiometer
• Includes NVX XKIT44 4 Gauge Amp Wiring Kit

Learn more about the xd4004v2_xkit44
Was $779.98 Details
Thanks , You Pay:

$454.98

 with warranty

Heads up

We confirm fitment and offer accessories for speakers. Please set your vehicle first if you would like to purchase more than one xd4004v2_xkit44.

Set your vehicle or Return to product page
shipping truck icon
FREE 3-day shipping to VA. Get it Fri, Sept. 29
Quantity
In Stock
Brand new

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Allstate logo

Keep your product protected longer! Extend the warranty after the manufacturer warranty expires.

  • Mechanical, electrical and product failure covered! 100% parts and labor covered. (Coverage starts after Mfr. warranty)
  • Easy online management! Zero hassle claim service, available 24/7

For over 23 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

AwardWinning
Award-Winning Service
Shipping
FREE Shipping Orders $49+
60Days
60-Day Easy Returns
lowestPrice
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Description


JL Audio

Authorized dealer

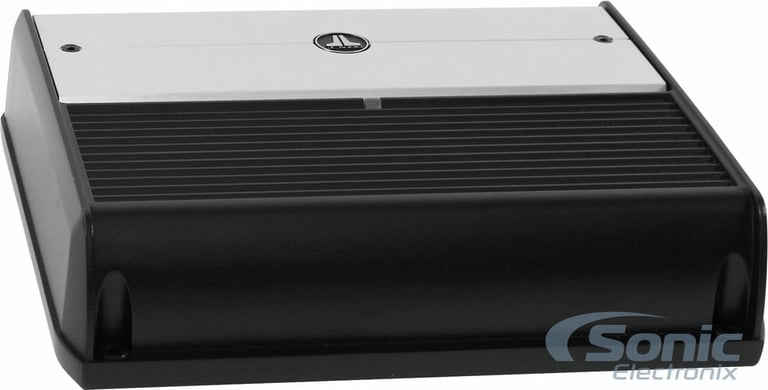

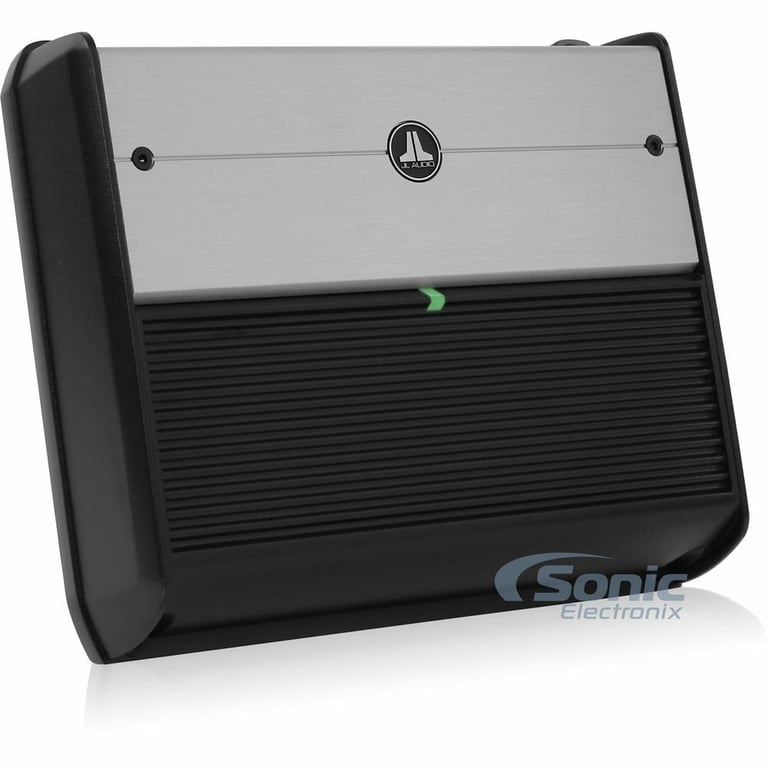

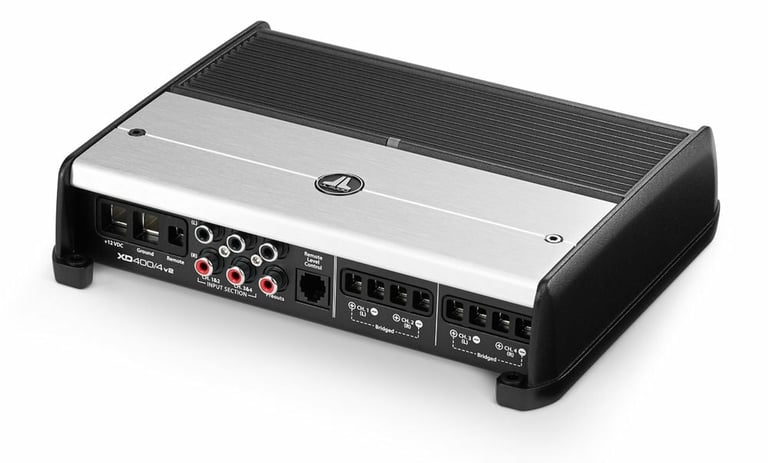

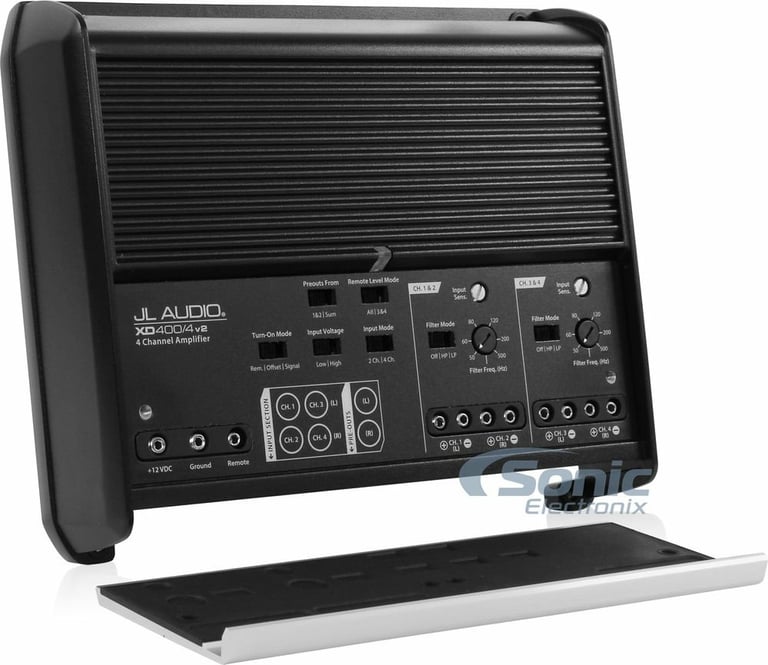

JL Audio XD400/4v2

JL Audio XD400/4v2 - XDv2 Series 4-Channel Class D Full-Range Amplifier

This potent 4-Channel amplifier employs JL Audio's high-speed NexD™ switching design to achieve unprecedented efficiency and amazing power output in an ultra-compact chassis. Don't let the small size fool you, though... this amplifier is capable of serious power, delivering a full 400W of continuous total power into a 2 ohm load (14.4V, 1% THD). Targeted specifically for an audiophile-grade four satellite system, the XD400/4v2 includes a variable mode low-pass/high-pass filter with a continuously variable cutoff frequency selection from 50-500 Hz. The XD400/4v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), you can control the volume of one or both channel pairs of the XD400/4v2 from the front of the vehicle. This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.

Advanced Rollback Protection

JL Audio's signature Advanced Thermal Rollback protection system eliminates annoying thermal shutdown events to keep the music playing, even under the most demanding conditions. Should the amplifier reach an unsafe operating temperature, a special circuit rolls back peak power output, without changing gain, until the amplifier cools down to a safe operating temperature. The red "Thermal" LED will light to indicate this condition has been reached. Once the amplifier cools down, the circuit restores full peak power output and the red "Thermal" indicator reverts to its normal state. The operation of Advanced Rollback Protection is inaudible in most cases.


NexD Switching Technology

From the same minds that gave us the technology found in the 'Slash' amplifiers, JL Audio has taken the simple fixed PWM design approach and enhanced it with a very high switching frequency. Full-range NexD™ amplifiers and channels feature a variable, ultra-high speed version of the NexD™ technology (switching at well over 400 kHz). In these designs, a self-oscillating modulator with "feed-forward" sends information about the instantaneous power supply voltage to the modulator, combining this with the input signal to cancel out any distortion due to supply voltage fluctuation. This reduces distortion prior to applying feedback, simplifying the overall feedback loop design.

JL Audio XD400/4v2

400W RMS XDv2 Series Class-D 4-Channel Amplifier
Quantity: 1

Product Details:

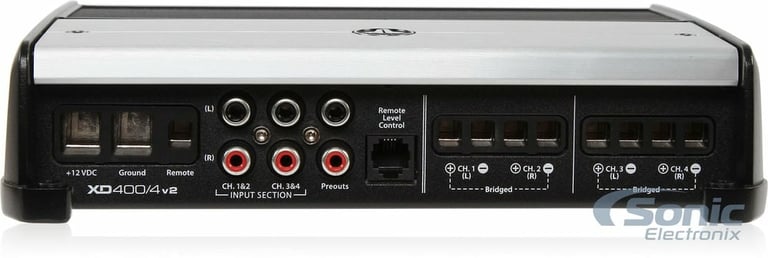

  • XD-v2 Series Class D 2 ohms Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 75 watts x 4 channel
    • 2 ohms: 100 watts x 4 channel
    • Bridged: 200 watts x 2 channel @ 4 ohms
  • Total power output: 400 watts

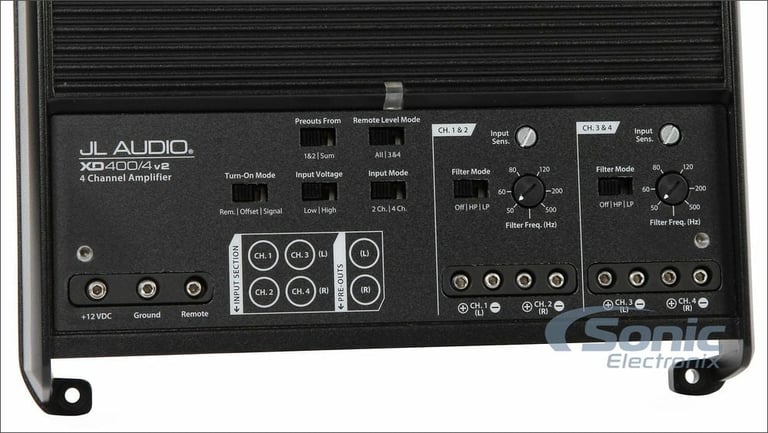

  • LED Power/Protect Light
  • Wired bass level remote control with optional JL Audio HD-RLC
  • Speaker-level (high-level) inputs (Requires adapter like the JL Audio XD-CLRAIC2-SW)
  • Signal sensing remote turn-on
  • Protection Circuitry with Status LED
  • NextD™ switching amp technology
  • Differential-balanced inputs help eliminate noise
  • Advanced Rollback Protection System prevents thermal shut-down
  • Speaker-level (high-level) inputs
  • Input sensitivity:
    • Low level: 200mV - 2 volts
    • High level: 800mV - 8 volts
  • Frequency Response: 12 - 22000 Hz
  • Total Harmonic Distortion (THD): <1%
  • Signal to Noise Ratio: >104 dB
  • Variable high-pass filter: 50 - 500 Hz
  • Variable low-pass filter: 50 - 500 Hz
  • Fuse Rating: 40A
  • 8 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 8-9/16" L x 7-1/8" W x 2-1/16" H
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty
  • MFR #: XD400/4V2

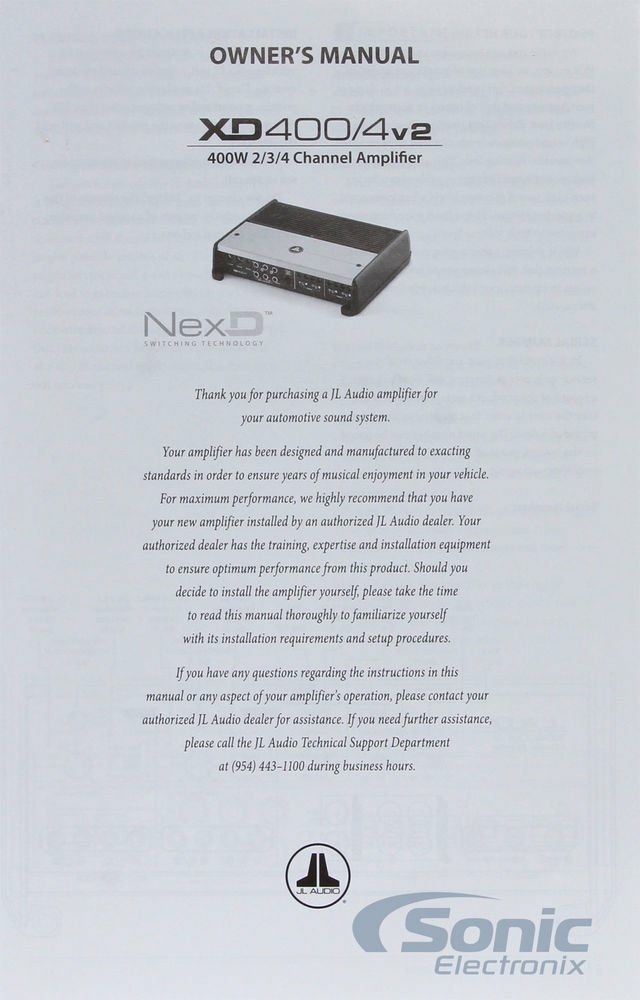

Check out the JL Audio XD400/4v2 Owner's Manual

NVX XKIT44

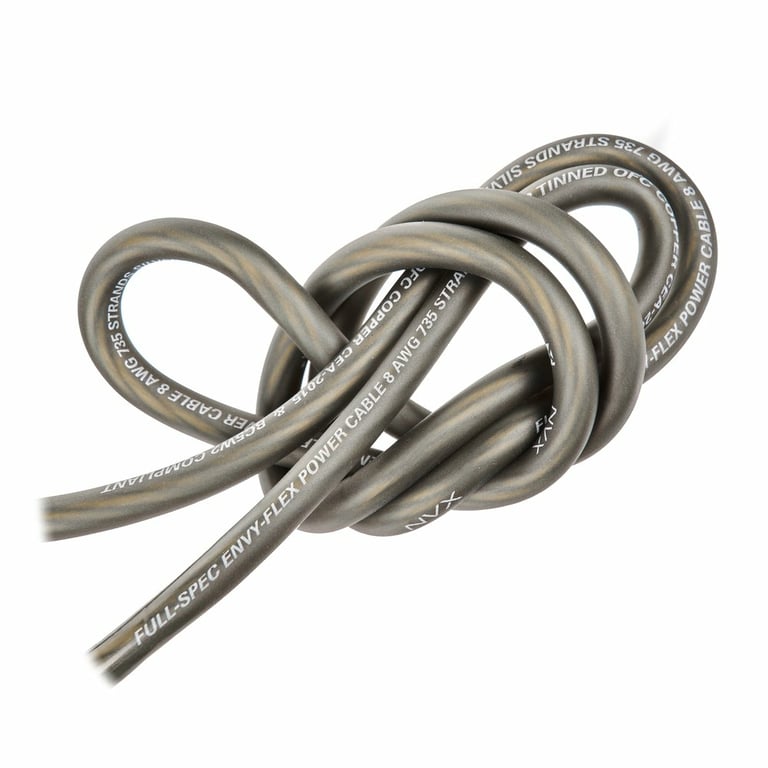

Full Spec 4 Gauge 100% (OFC) Oxygen Free Copper Complete 4-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1500 Watts
Quantity: 1

Product Details:

  • 4 Gauge 4-Channel X-Series Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1500 watts RMS
  • Made from 100% (OFC) Oxygen-Free Copper for pure uninterrupted power and current transfer
  • Tinned conductors for corrosion resistance
  • Pre-installed black nylon mesh covering protects power wire from being damaged

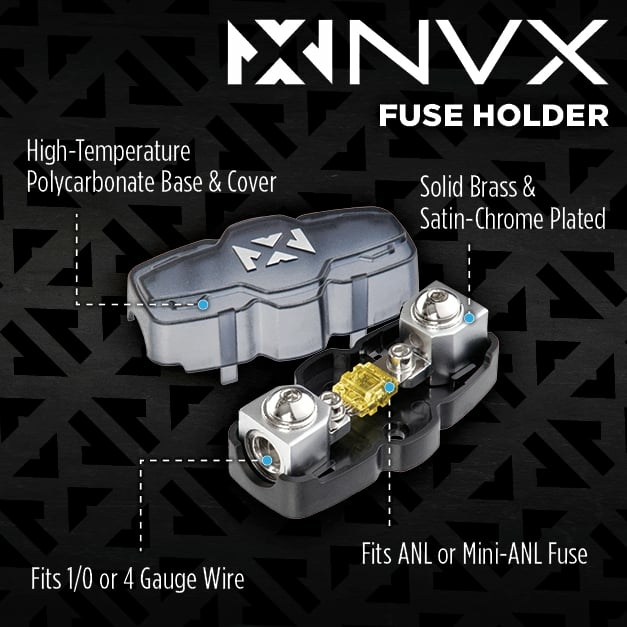

  • Solid Brass and Satin Chromed ANL/Mini-ANL Fuse holder offers ideal protection for high powered systems
  • Pre-terminated seamless power and ground ring terminals provide reliable performance
  • Full Spec cables meet or exceed the American Wire Gauge standards
  • Strand Count: 1862
  • CEA-2015 and BC5W2 Compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

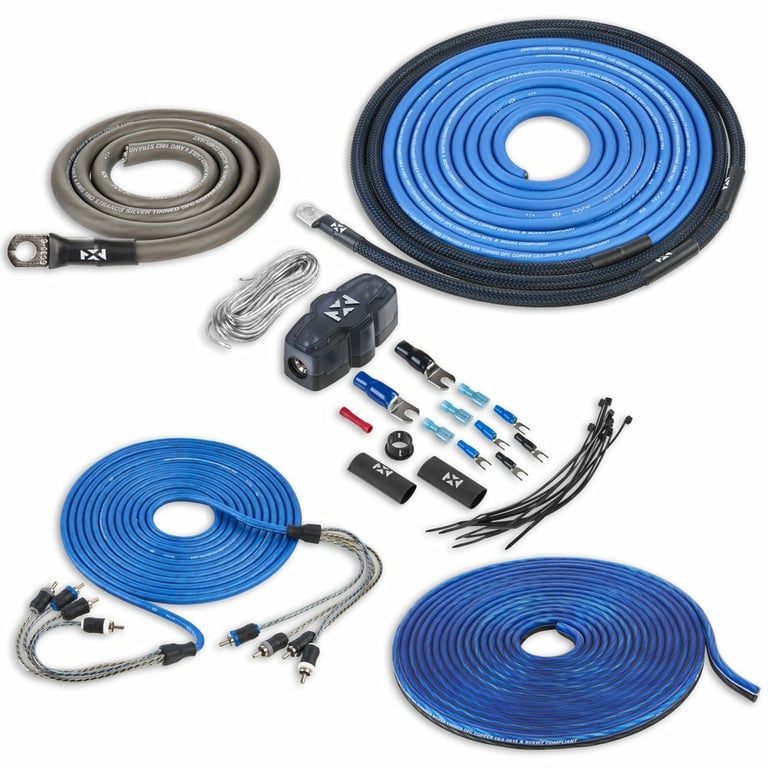

Kit includes:

  1. 20 ft. (6.1 meters) Frosted Blue 4 gauge power wire with seamless crimp ring terminal
  2. 3 ft. (.91 meters) Frosted Black 4 gauge ground wire with seamless crimp ring terminal
  3. 20 ft. (6.1 meters) Clear 18 gauge remote lead wire
  4. 60 ft. (18.29 meters) Frosted Black/Blue 16 gauge speaker wire

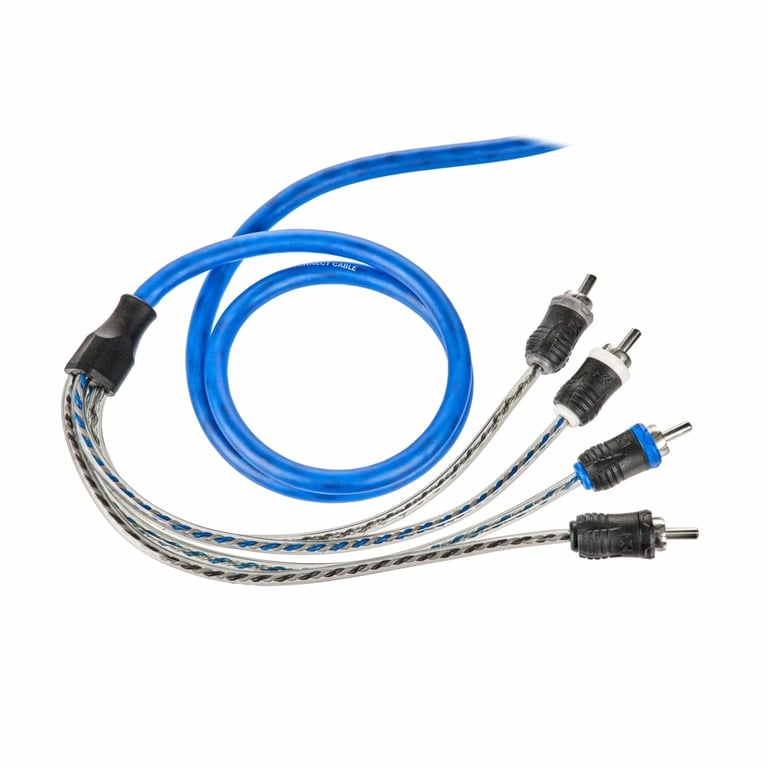

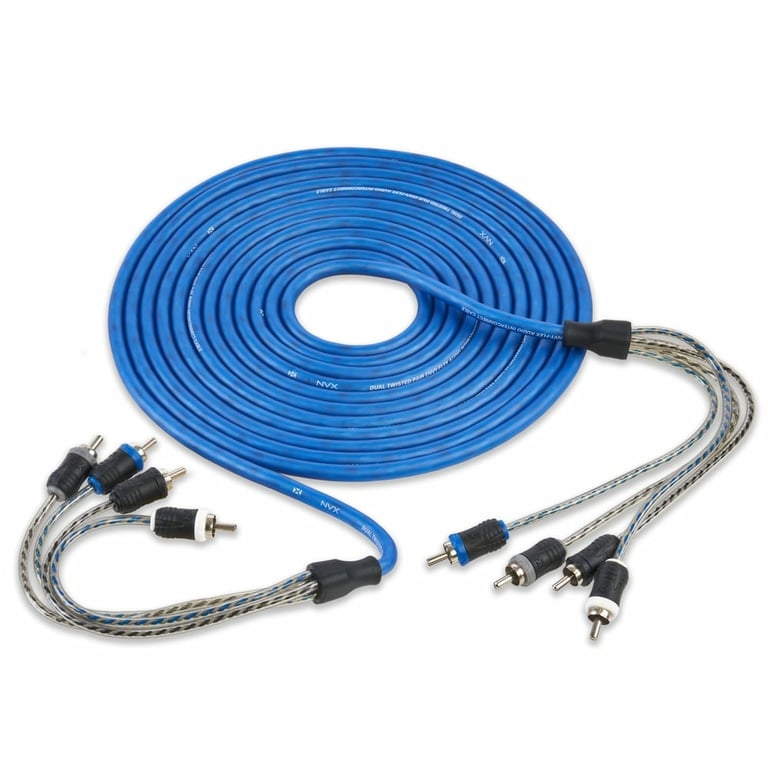

  5. One 16 ft. (5 meters) 4-channel dual twisted construction RCA interconnect Cable (NVX XIV45)

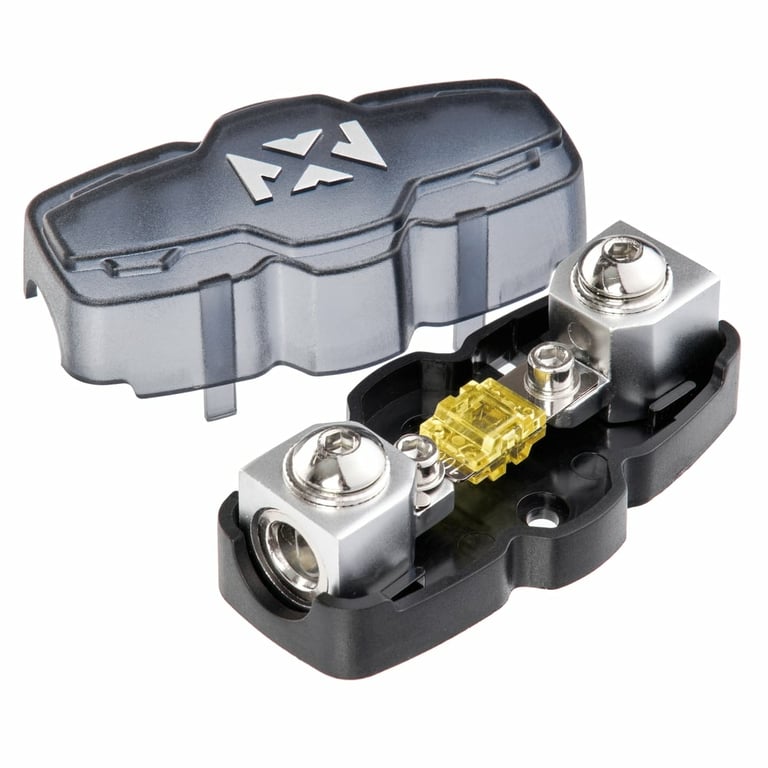

  6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 4 Gauge Nickel Plated spade terminals
  9. Four 18 Gauge Spade terminal
  10. Two 18 Gauge Red butt connectors
  11. Four 16 Gauge quick disconnect
  12. Five 16 Gauge Nickel Plated spade terminals
  13. Two Heat Shrink tube with NVX logo
  14. Ten 6" Black zip ties

Product history:

JL Audio XD400/4V2, XKIT44 thumbnail
(newest, current model)
JL Audio XD400/4 thumbnail
(previous model, replaced by JL Audio XD400/4v2 with Amplifier Wiring Kit)

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
100 watts x 4 channel
Bridged RMS Power
200 watts x 2 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
4-Channel
Total RMS Power Output
400 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1.0%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
>104 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fan Cooled
No
Fuse Rating
40A X 1 In-Line Fuse Recommended
CEA-2031 Compliant
No
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XD400/4V2, XKIT44

Weight:

13.87lbs

Internal SKU:

xd4004v2_xkit44

Internal Product ID:

197037
