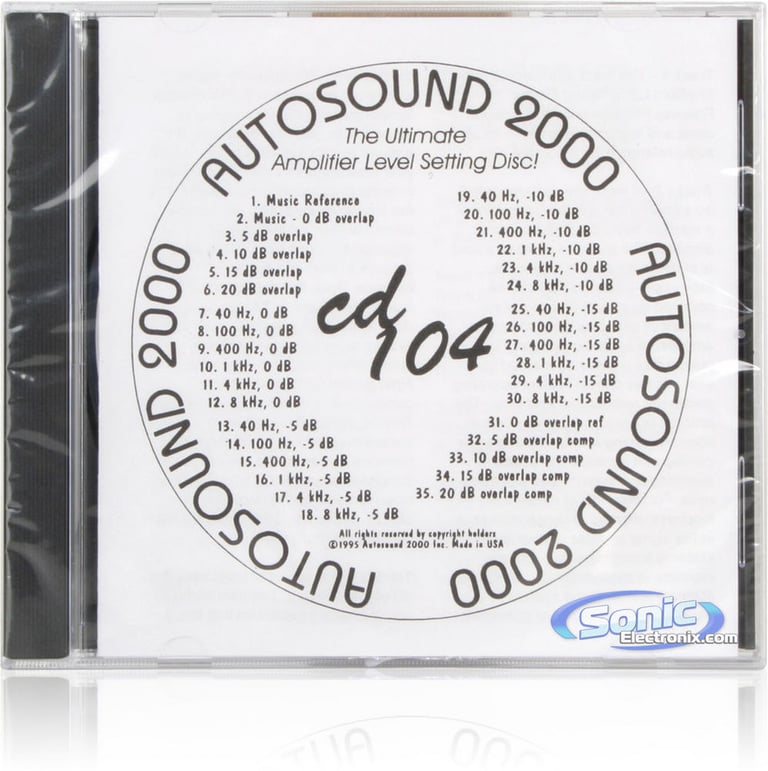

Name: AutoSound 2000 CD-104 (CD104)
Brand: AutoSound 2000
SKU: cd104
Price: 11.99 USD
Availability: Discontinued
Rating: 4.6667 (9 reviews)

Shop all AutoSound 2000

by AutoSound 2000

About
Similar Products
Specs & Details
Reviews
Recently Viewed
Related Searches

Product highlights

The Ultimate Amplifier Level Setting Disc, for Critical Evaluation of Audio Components • The ultimate test disc for determining the audible level of distortion in an audio system • No special equipment is needed

Learn more about the cd104

NVX - Worth the Envy - Direct to Consumer Car Audio

Other products for your Daewoo Lanos

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

-19.05%

$339.99

List price $420.00

Add to cart

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

-16.69%

$149.95

List price $180.00

Add to cart

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

$69.99

Add to cart

Limited time!

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

-24.20%

$469.99

List price $620.00

Add to cart

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

-13.34%

$129.99

List price $150.00

Add to cart

Limited time!

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

-33.50%

$399.00

List price $600.00

Add to cart

Limited time!

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

-30.01%

$349.95

List price $500.00

Add to cart

Limited time!

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

-20.20%

$798.00

List price $999.99

Add to cart

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

-20.40%

$199.00

List price $250.00

Add to cart

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

-17.08%

$199.00

List price $240.00

Add to cart

Description

General Features

The Ultimate Amplifier Level Setting Disc, for Critical Evaluation of Audio Components
The ultimate test disc for determining the audible level of distortion in an audio system
Uses specialized tracks to set up your system for maximum sound and minimum system hiss
No special equipment is needed
The tracks will indicate the specific amount of gain overlap (clipping), average distortion, and the relative loudness present in your system
Other tracks on cd#104 will permit optimal component adjustments of the signal level to maintain optimal system performance
Also available in 5 Disc Set
Authorized Internet Dealer
30 Day Manufacturer's Warranty

Specifications:

Tracks 2-6 demonstrate the subjective increase in loudness that can be obtained by providing a specified amount of gain overlapping at the amplifier of an audio system.

Track 2: Demonstrates 0 dB of gain overlap
Track 3: Demonstrates 5 dB of gain overlap
Track 4: Demonstrates 10 dB of gain overlap
Track 5: Demonstrates 15 dB of gain overlap
Track 6: Demonstrates 20 dB of gain overlap

Tracks 7-12 are used for setting the max level (clipping threshold) of electronic components

Track 7: 50 Hz @ 0dBFS useful for adjusting subwoofer crossover)
Track 8: 100Hz @ 0dBFS useful for setting midbass of an electronic crossover
Track 9: 400Hz @ 0dBFS useful for x-over setting at this frequency
Track 10: 1kHz @ 0dBFS used to set x-over midrange output
Track 11: 4kHz @ 0dBFS useful to set tweeter output of an electronic crossover
Track 12: 8kHz @ 0dBFS useful to set tweeter output of an electronic crossover

Tracks 13-18 are used to obtain 5 dB of gain overlap

Track 13: 40 Hz @ -5 dBFS
Track 14: 100 Hz @ -5 dBFS
Track 15: 400 Hz @ -5 dBFS
Track 16: 1 kHz @ -5 dBFS
Track 17: 4 kHz @ -5 dBFS
Track 18: 8 kHz @ -5 dBFS

Tracks 19-24 are used to obtain 10 dB of gain overlap

Track 19: 40 Hz @ -10 dBFS
Track 20: 100 Hz @ -10 dBFS
Track 21: 400 Hz @ -10 dBFS
Track 22: 1 kHz @ -10 dBFS
Track 23: 4 kHz @ -10 dBFS
Track 24: 8 kHz @ -10 dBFS

Tracks 25-30 are used to obtain 15 dB of gain overlap

Track 25: 40 Hz @ -15 dBFS
Track 26: 100 Hz @ -15 dBFS
Track 27: 400 Hz @ -15 dBFS
Track 28: 1 kHz @ -15 dBFS
Track 29: 4 kHz @ -15 dBFS
Track 30: 8 kHz @ -15 dBFS

Tracks 31-35 are the same as tracks 2-6. However, the levels of these tracks have been adjusted to compensate for the loudness increase

Track 31: Reference track with 0 dB gain overlap
Track 32: 5 dB of gain overlap w/recording level lowered 4.9dB
Track 33: 10 dB of gain overlap w/recording level lowered 9.4 dB
Track 34: 15 dB of gain overlap w/recording level lowered 13.3 dB
Track 35: 20 dB of gain overlap w/recording level lowered 16.2 dB

Specifications & Details

Test Disc Specifications

Intended Testing Applications

Car Amplifier
Car Subwoofers

Number of Discs

Warranty and Return Policy

Parts Warranty Duration

30 days

Labor Warranty Duration

30 days

Warranty Provider

Manufacturer

Customer Ratings & Reviews

AutoSound 2000 CD-104 (CD104) thumbnail image

Overall rating distribution

5 star		67%
4 star		33%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		4.6
Value		4.4
Features		4.5
Design		3.8
Usability		4.7

Customer Reviews

Sort by:

AWESOME BUY!!!!!!

The Autosound cds are a must for car audio. I have used them to tune my system, and now it rocks! There are many different tests on these cds. So, if you have a rocking system that needs tuned, Sonic Electronix has what you need.

By Tanner on April 26, 2012

10 found this helpful

Report abuse

Excellent Tuning Tool

This CD is essential for fine tuning a high end car audio system. Directions are printed on inner jacket and are very easy to undetstand. I wouldn't use any other brand car audio set up disks then these.

By Rick on September 18, 2013

10 found this helpful

Report abuse

AutoSound 2000 CD-104

Its a good disc to tune your system, but I rarely use it. I highly recommend the DD-1 but if you don't have that kind of money this is still a good choice.

By brian on September 17, 2013

7 found this helpful

Report abuse

autosound 2000 cd-104

I use this cd to play my autosound equipment, is great, ease to use

By Carlos on April 29, 2011

8 found this helpful

Report abuse

autosound test cd (ultimate amplifier level setting cd)

If you wish to set your gains using an oscilliscope this is the cd for you. I have set the gains of several car audio systems using this cd and have noticed an improvement in sound quality. Using your ears will get you close this cd in combination whith an oscilliscope will get you bang on the money. Good stuff.

By liesbeth allen on January 15, 2012

6 found this helpful

Report abuse

info

perfect tool for audio setup if you know what you are doing.makes setup easy and fast

By Jonathan on December 11, 2014

5 found this helpful

Report abuse

great test cd

Has a couple tracks with music, so you can hear what some instrumental music sounds like, and it has several test tones that you can set gain with either by ear or with the use of an oscilloscope for precise tuning.

By Tecknodude180 on July 15, 2012

5 found this helpful

Report abuse

Great for tuning a new system!

This was the first time I tuned the new sound system and amplifier in my car, and this product really helped me do it right on the first try.

By Joe B. on October 10, 2012

5 found this helpful

Report abuse

It works

Does what it is intended to. Buy it if you need it. Nice to have for test tones.

By Randy on February 1, 2017 Checkmark Icon

Verified purchase
