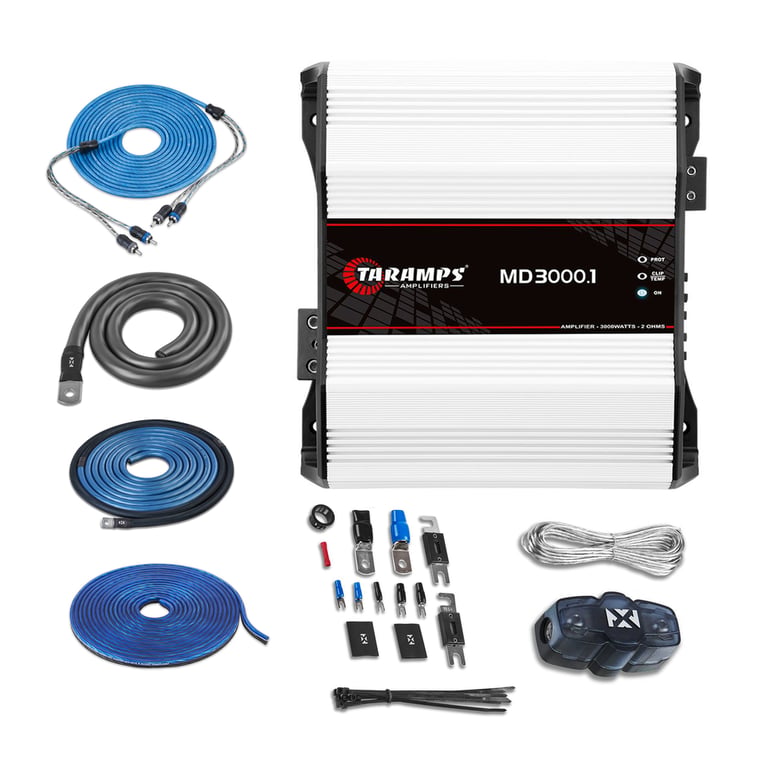

Taramps MD 3000.1 - 2 OHM + NVX XKIT02

3000W RMS MD Series Full Range 2-Ohm Stable Class-D Monoblock Amplifier + NVX 1/0 Gauge Amp Wiring Kit

Taramps
Shop all Taramps
highlight-star-icon

• 1920 watts x 1 channel @ 4 ohms
• 3000 watts x 1 channel @ 2 ohm
• Total RMS Power: 3000 watts
• Class Class D 2 ohms Stable Monoblock Amplifier

Learn more about the md30001-2ohm_xkit02

We apologize

This item has been discontinued

Description


Taramps brand icon

Authorized dealer

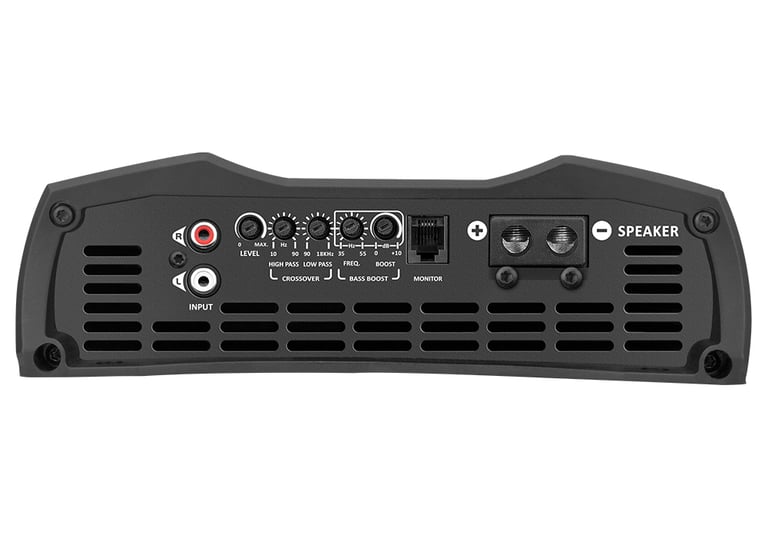

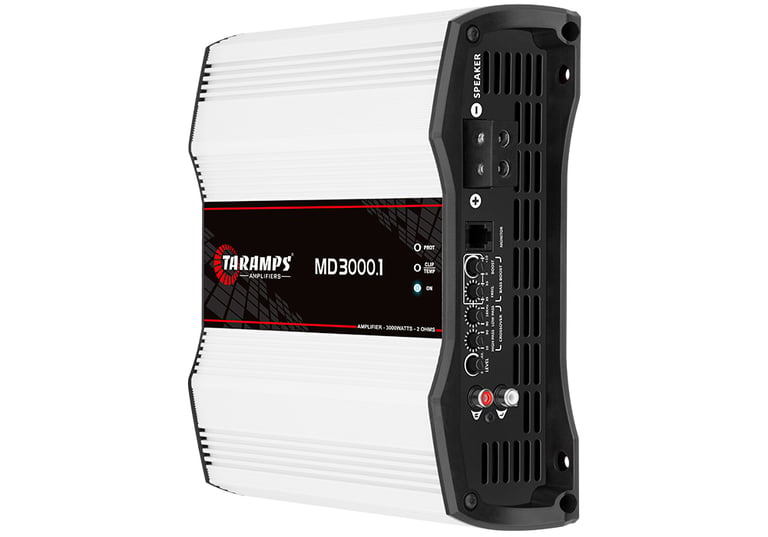

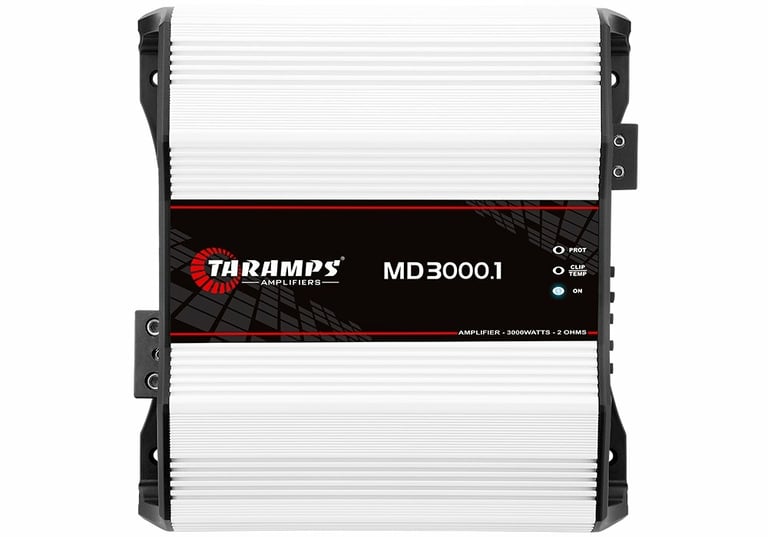

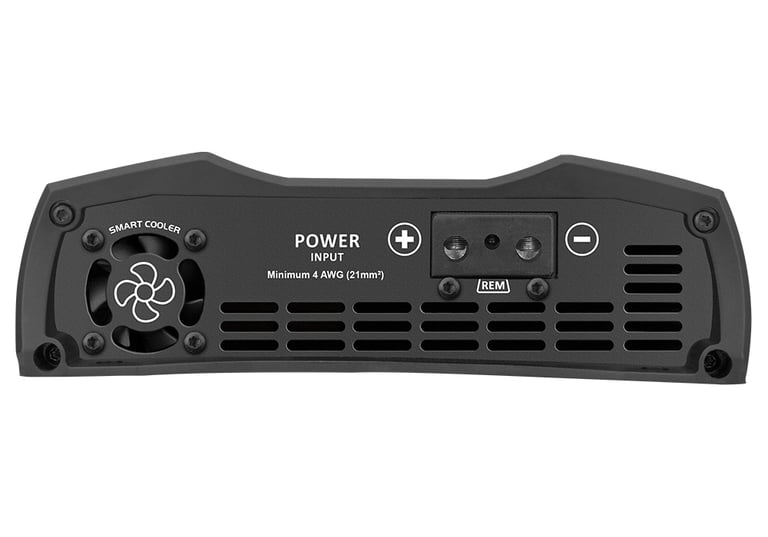

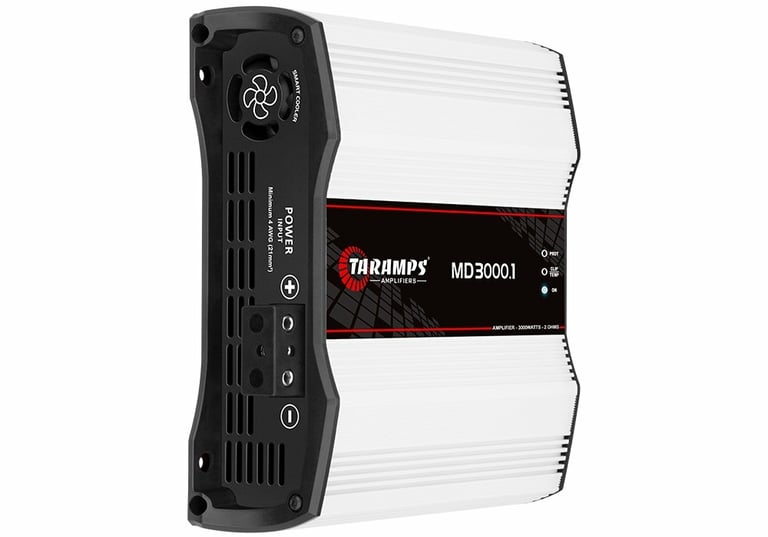

Taramps MD 3000.1 - 2 OHM

3000W RMS MD Series Full Range 2-Ohm Stable Class-D Monoblock Amplifier
Quantity: 1

Product Details:

  • MD Series Class D 2 ohms Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohms: 1920 watts x 1 channel
    • 2 ohm: 3000 watts x 1 channel
  • Total RMS power output: 3000 watts
  • Aluminum chassis
  • LED power & protect indicator light
  • Soft start turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity:
    • Low level: 220mV - 6 volts
  • Frequency Response: 10 - 18,000 Hz
  • Total Harmonic Distortion (THD):
  • Signal to Noise Ratio: 90 dB
  • Variable low-pass filter: 90 - 18,000 Hz
  • Subsonic filter:
  • Variable Bass Boost: 0 - 10 dB
  • Fuse Rating: 150A
  • 4 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 8.98" W x 8.58" L x 2.76" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

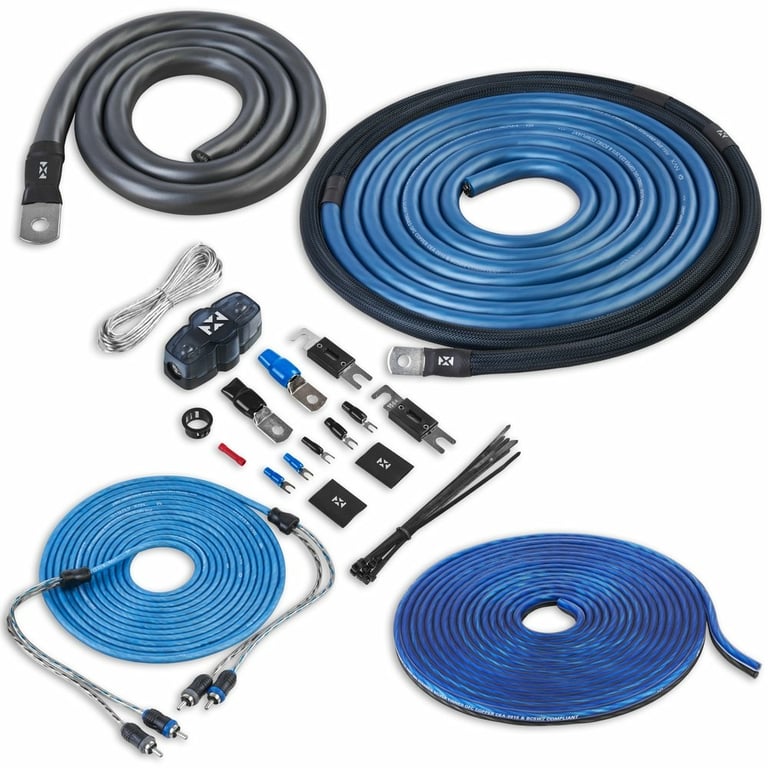

NVX XKIT02

Full Spec 1/0 Gauge 100% (OFC) Oxygen Free Copper Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 4000 Watts
Quantity: 1

Product Details:

  • 1/0 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
  • Designed for car audio systems up to 4000 watts RMS
  • Made from 100% (OFC) Oxygen-Free Copper for pure uninterrupted power and current transfer
  • Tinned conductors for corrosion resistance
  • Pre-installed black nylon mesh covering protects power wire from being damaged
  • Solid Brass and Satin Chromed ANL/Mini-ANL Fuse holder offers ideal protection for high powered systems
  • Pre-terminated seamless power and ground ring terminals provide reliable performance
  • Full Spec cables meet or exceed the American Wire Gauge standards
  • Strand Count: 4704
  • CEA-2015 and BC5W2 Compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

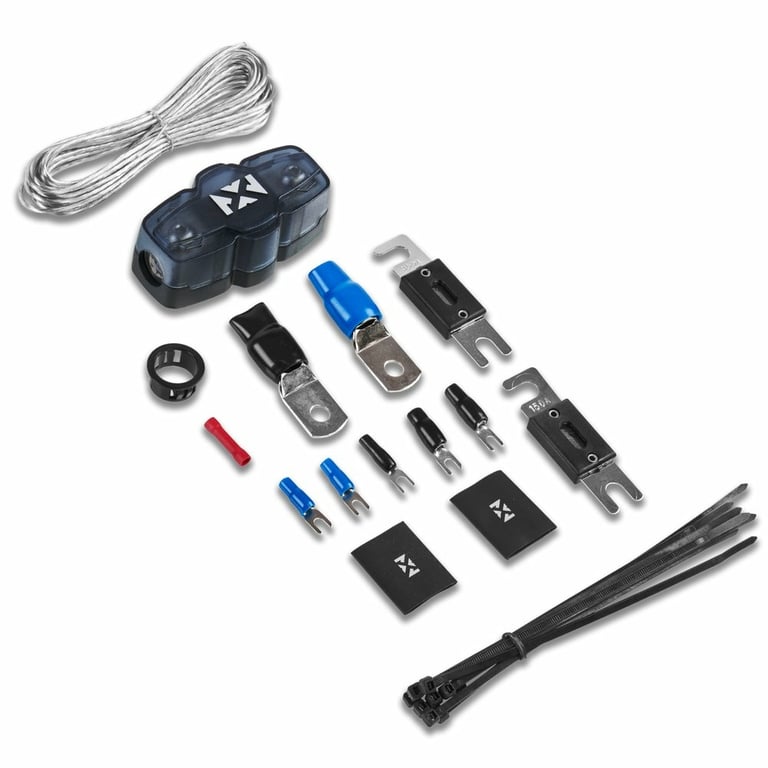

Kit includes:

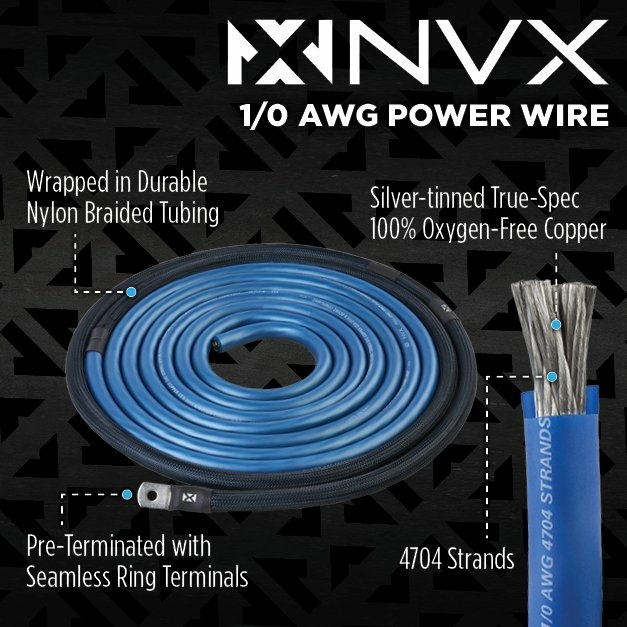

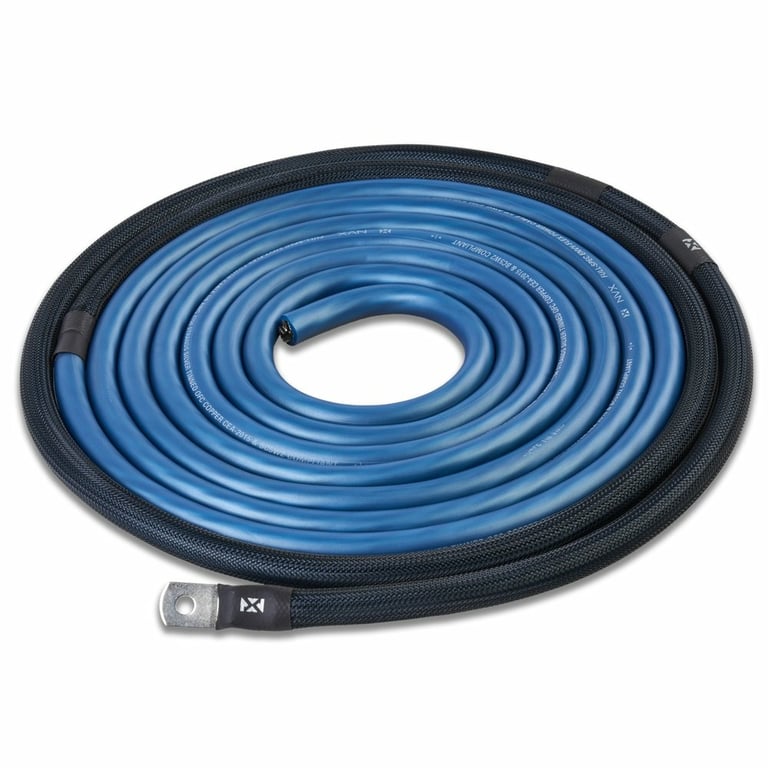

  1. 20 ft. (6.1 meters) Frosted Blue 1/0 gauge power wire with seamless crimp ring terminal

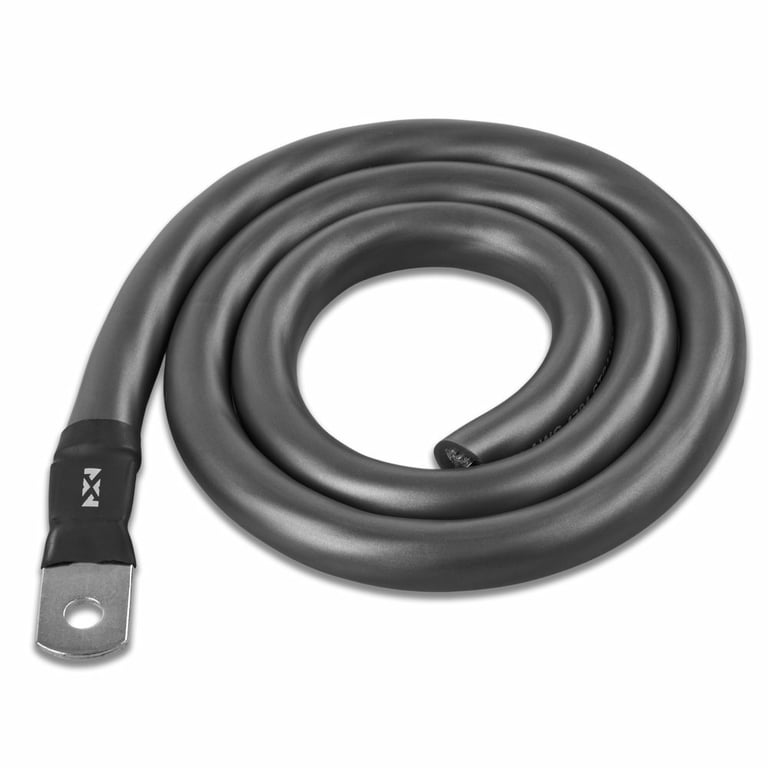

  2. 3 ft. (.91 meters) Frosted Black 1/0 gauge ground wire with seamless crimp ring terminal
  3. 20 ft. (6.1 meters) Clear 18 gauge remote lead wire
  4. 20 ft. (6.1 meters) Frosted Black/Blue 12 gauge speaker wire
  5. One 16 ft. (5 meters) 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)

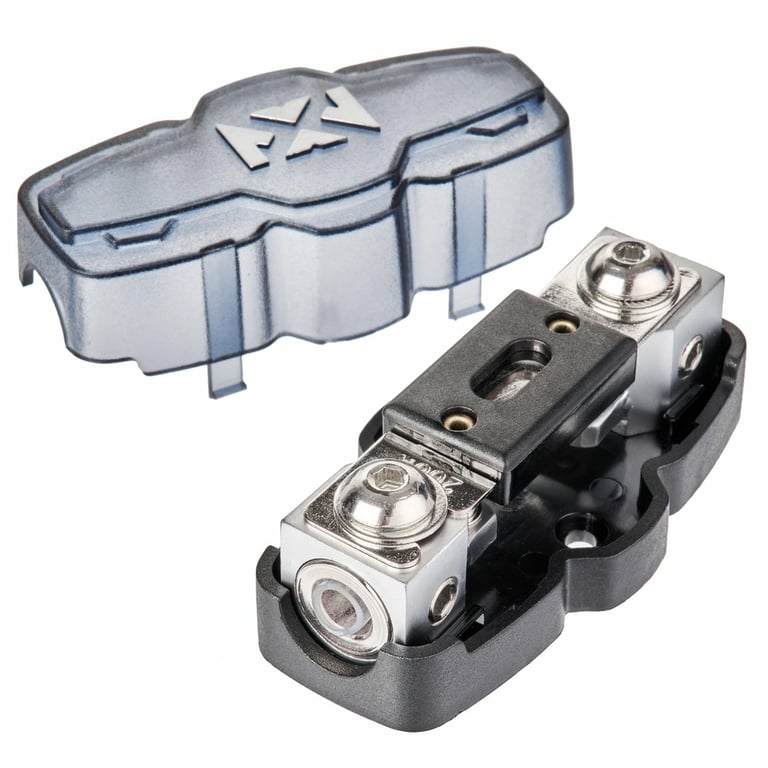

  6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 300 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 1/0 Gauge Nickel Plated ring terminals
  9. Four 12 Gauge Spade terminal
  10. Two 12 Gauge Red butt connectors
  11. Two Heat Shrink tube with NVX logo
  12. Ten 6" Black zip ties

Item Details


Manufacturer:

Model Number:

MD 3000.1 - 2 OHM, XKIT02

Weight:

20.38lbs

Internal SKU:

md30001-2ohm_xkit02

Internal Product ID:

197788

Customer Ratings & Reviews



5 star
97%
4 star
3%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.7
Features
4.7
Design
4.9
Usability
4.9

Customer Reviews

Sort by:

Loading...

Awesome Kit!

The following review is for XKIT02, which is a part of the bundle you are viewing.

Came With Everything described in kit. If Your looking to push that power to your system, This kit will do it! Worth Every Penny!!

By Raymond on January 12, 2015

101

found this helpful.

NVX XKIT02

The following review is for XKIT02, which is a part of the bundle you are viewing.

This is a nice wiring kit no doubt about it. Very sturdy and flexible, easy to work with. It is definitely true 1/0 cable and seems to be pushing the Hifonics BRX2000 amp I have with more than enough power. Rca's are also pretty nice and seem to be working as stated (no feedback or humming). I also like the fact that the battery side of the power cable is pre-sleeved and has the ring terminal already installed for you with heat shrinks as well. Same on the ground cable. Over all its a nice kit, might be a little pricey compared to other kits, but you pay for quality. Well worth the money in my opinion.

By Shawn on January 13, 2014

102

found this helpful.

Fine Wire

The following review is for XKIT02, which is a part of the bundle you are viewing.

Wires seem accurate. They transfer plenty power but I do have to upgrade battery to turn amp up more only running it at .25(1/4) and even then my lights dim front to back.

By Jermiah on October 27, 2014

94

found this helpful.

Nothing but the best!

The following review is for XKIT02, which is a part of the bundle you are viewing.

A little heavy but my stereo system sounds great! Would buy this again!

By Mark on May 1, 2014

96

found this helpful.

fuccin aye

The following review is for XKIT02, which is a part of the bundle you are viewing.

Well worth the money, go hard or go home!!! Only mess with the best

By Michael on March 31, 2014

93

found this helpful.

Good kit

The following review is for XKIT02, which is a part of the bundle you are viewing.

Comes with everything except rca cables, includes some terminals and boots, look for the bundle and save a lot

By Dutch on May 4, 2014

88

found this helpful.

premiun

The following review is for XKIT02, which is a part of the bundle you are viewing.

Very good quality and fast shipping, i recommended buy nvx products

By jesus on May 7, 2015

81

found this helpful.

great kit

The following review is for XKIT02, which is a part of the bundle you are viewing.

nice kit good quality but says in description 300a fuse but only comes with 150a fuse

----

NOTE FROM SONIC ELECTRONIX:
300A Fuse sent to customer due to typo on our behalf. We also updated the description.

By sam on December 6, 2013

73

found this helpful.

Awesome

The following review is for XKIT02, which is a part of the bundle you are viewing.

I got this kit to wire a boss 2600 watt amp. The wires were huge there was no way I could run it to my amp. The quality was so great that instead of returning it I used it to upgrade my battery cables and my chassis ground. I only wish it came with more ground wire as I need a few more feet to finish my chassis ground upgrade.

By Ace on June 24, 2015 Checkmark Icon Verified purchase

68

found this helpful.

Super Value

The following review is for XKIT02, which is a part of the bundle you are viewing.

I've owned wiring kits before but this NVX kit put in great work, it has oxygen free copper that is flexable and put clean power to your amp. You will not be dissapointed this is a good value product.

By Carl on December 16, 2017

61

found this helpful.
