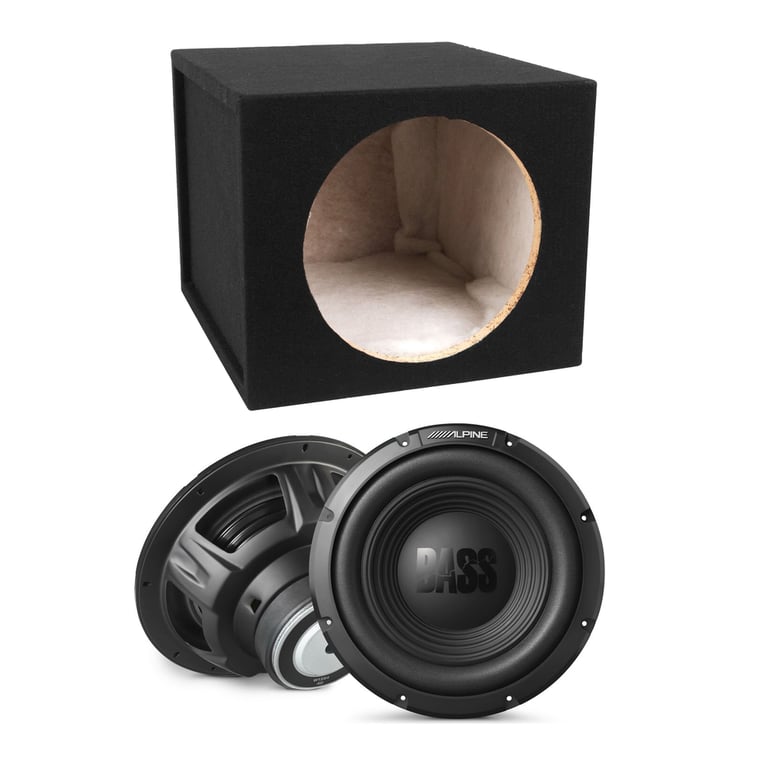

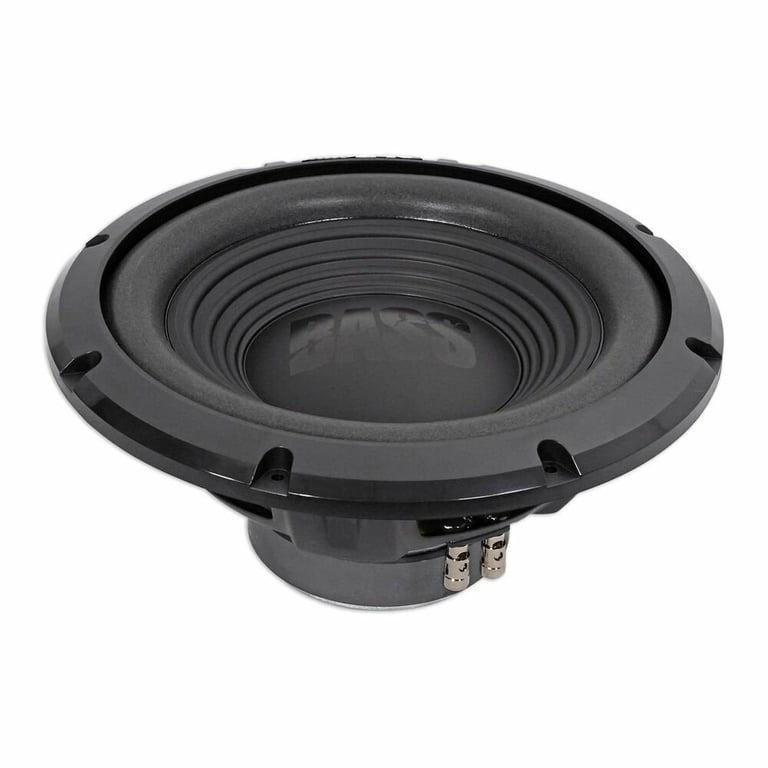

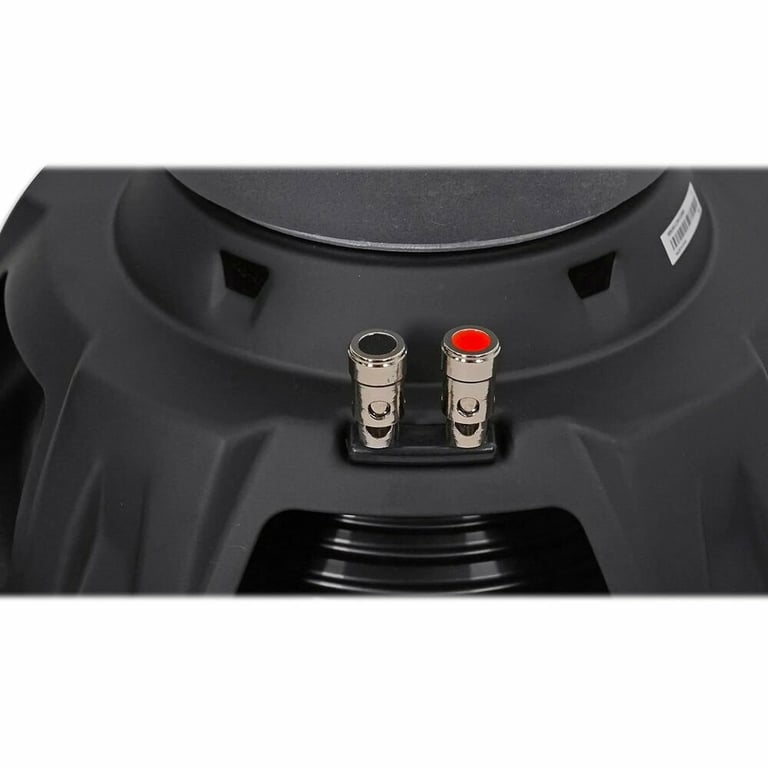

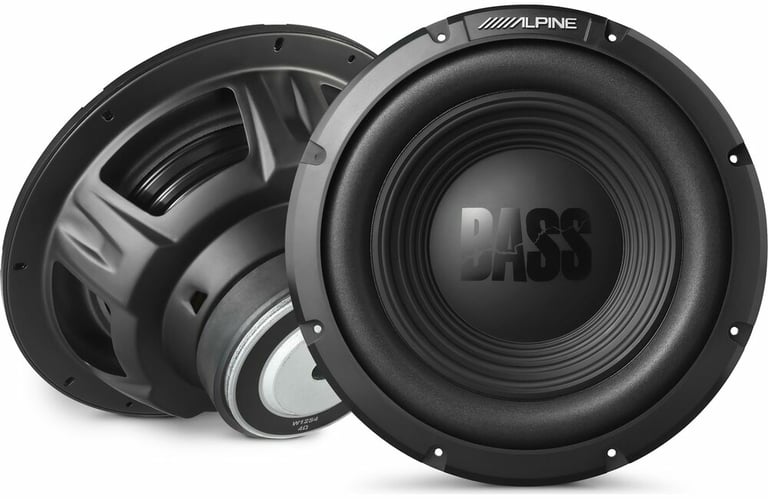

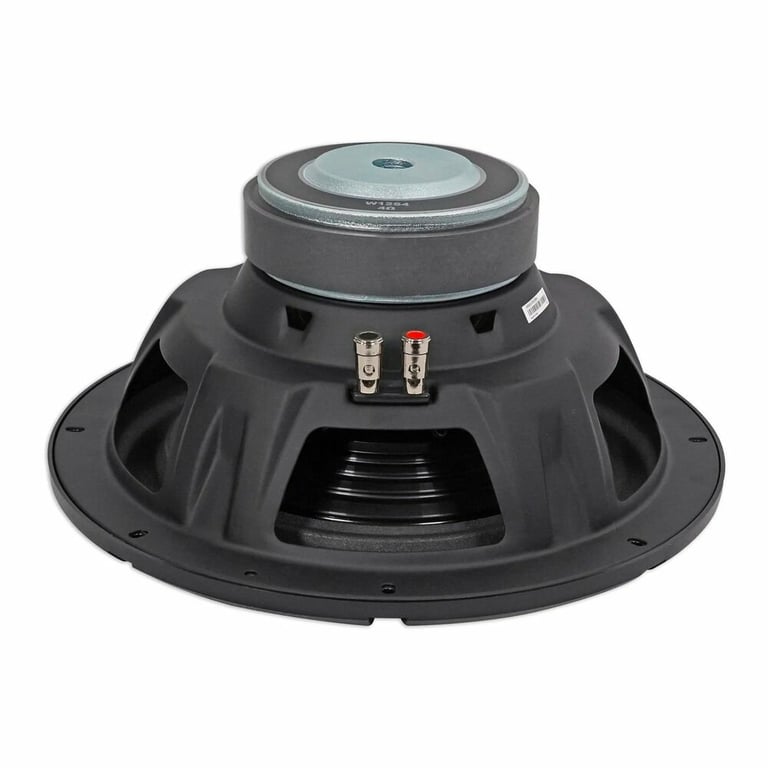

Alpine W12S4 with Sealed Enclosure

750W Max (250W RMS) 12" BassLine Series Single 4 ohm Car Subwoofer

Alpine
Shop all Alpine
highlight-star-icon

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design
• Includes Sealed Enclosure

Learn more about the w12s4_mdfs1215

We apologize

This item has been discontinued


Loading...

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

Description


Alpine brand icon

Authorized dealer

Legendary Alpine quality at an affordable price

Car audio enthusiasts know that Alpine is the leader in technology and innovation. Their reputation for developing the most reliable products is legendary. The BassLine product line is a their quest to give customers a quality product that won't break the bank.

Surround and wattage match made in heaven

The 250 watts of continuous power that the W12S4 handles complements the poly-foam surround that Alpine went with. It provides the best sound quality money can buy at this price point.

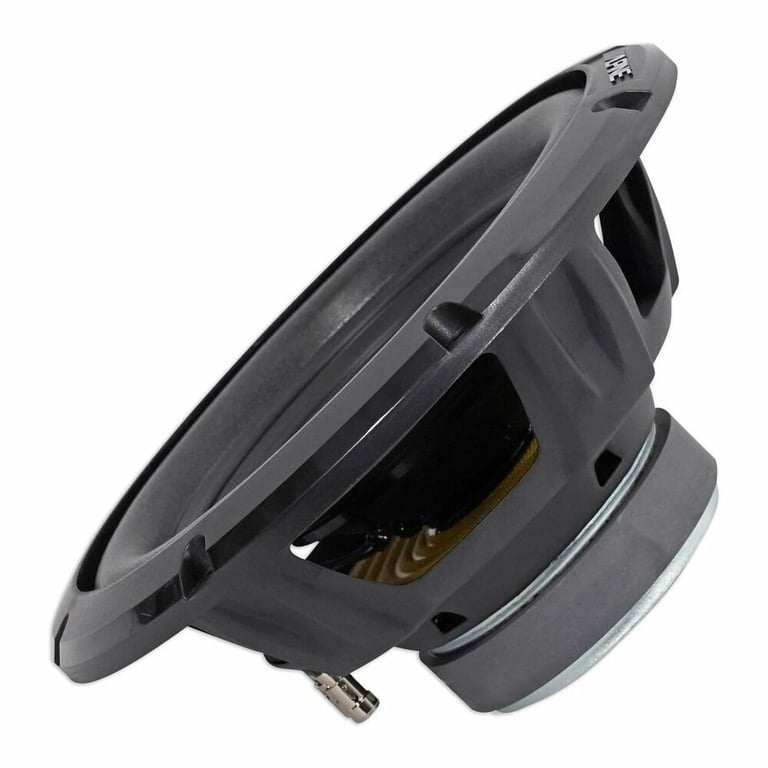

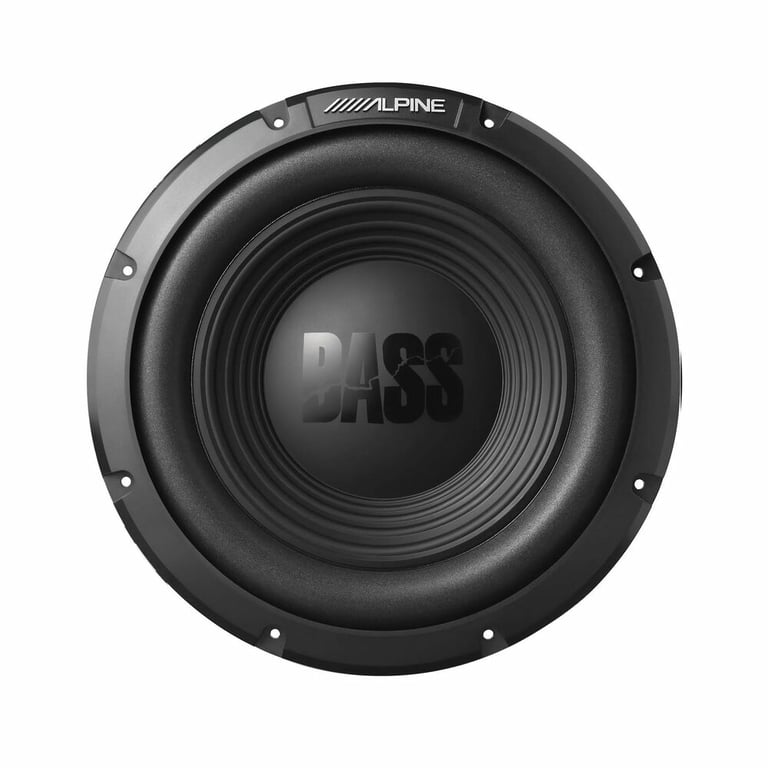

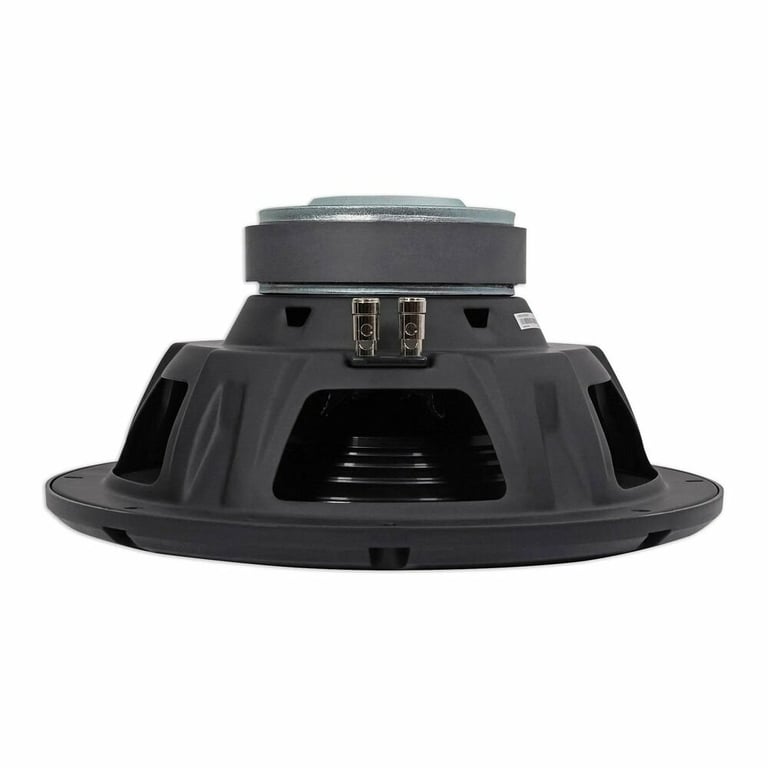

Alpine W12S4

750W Peak (250W RMS) 12" Bass Series Single 4-ohm Car Subwoofer
Quantity: 1

Product Details:

  • 12" Single 4 ohm Bass Series Subwoofer
  • Power Handling:
    • Peak: 750 watts
    • RMS: 250 watts
  • Mica Injected Polypropylene - MIPP Cone
  • Poly-Foam Surround
  • 2" High Temperature Voice coil
  • 10 mm Xmax
  • 52 oz. Single Stacked magnet motor structure
  • Frequency Response: 22 - 200 Hz
  • Resonance Frequency (Fs): 30 Hz
  • Sensitivity: 87.9 dB
  • Recommended sealed box volume: 0.75 cubic feet - 1.5 cubic feet
  • Recommended ported box volume: 1.5 cubic feet - 2.5 cubic feet
  • Top-mount depth: 5-5/16"
  • Cutout diameter: 10-5/8"
  • Subwoofer grille Alpine KTE-12PG optional (sold separately)
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

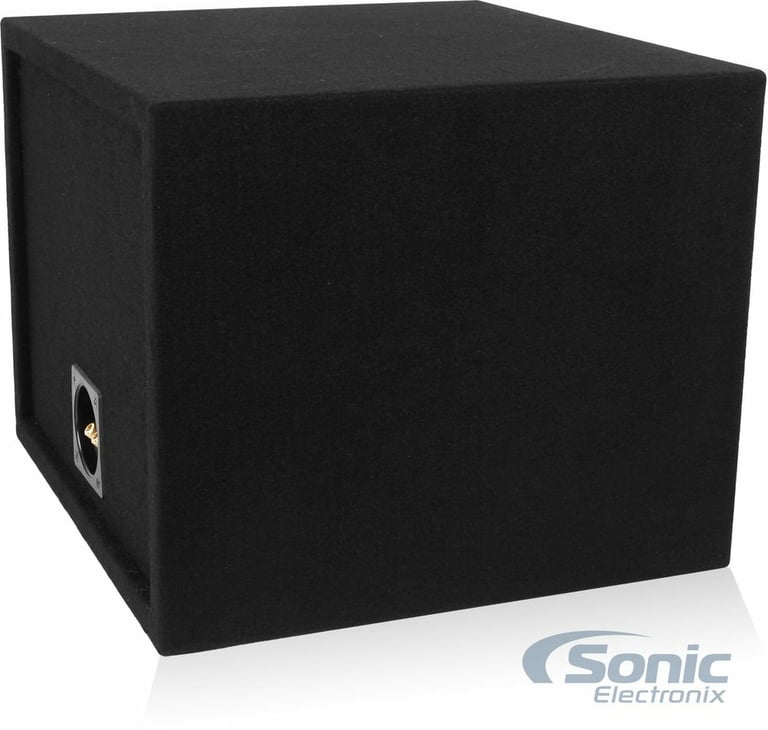

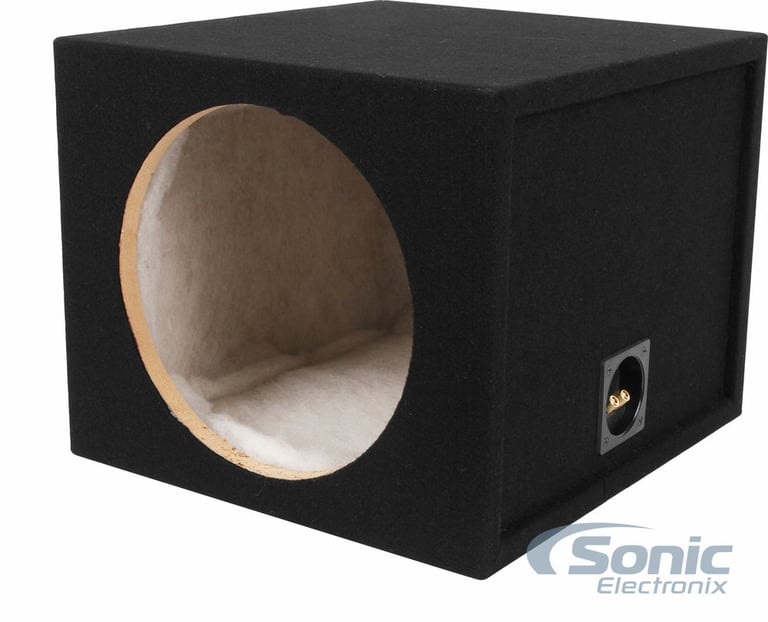

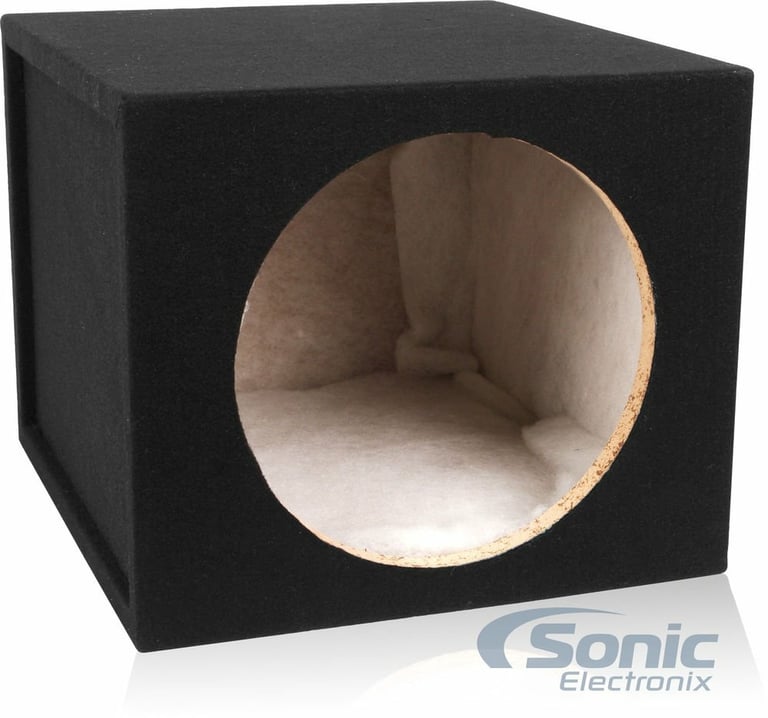

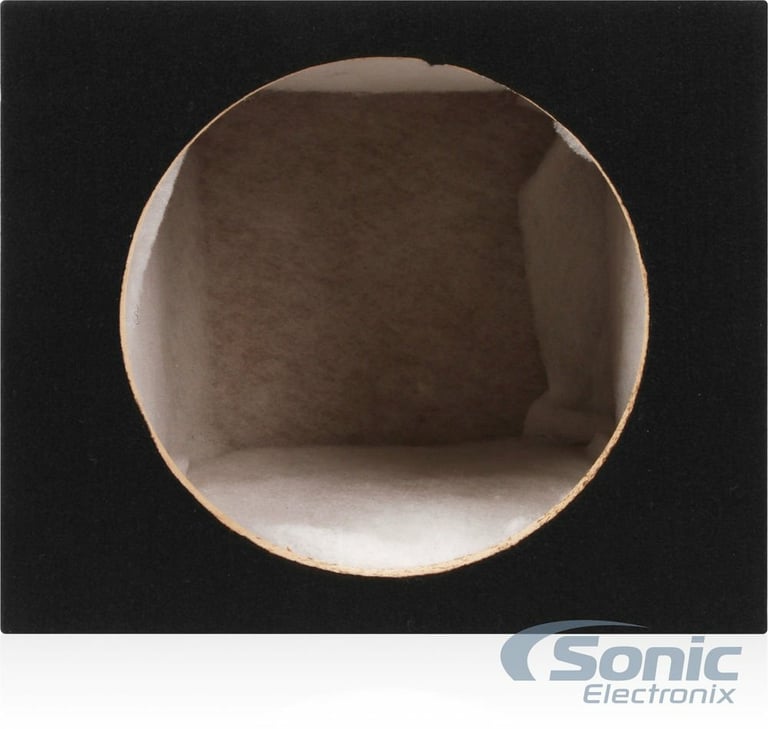

1.5 Cu Ft - Single 12" Sealed MDF Subwoofer Enclosure (Belva MDFS1215)

12-inch Sealed Car Sub Box Made with 3/4" MDF and lined w/ Polyfil (1.5 cu ft airspace)
Quantity: 1

General Features:

  • Single Sealed 12" Enclosure
  • Internal box volume: 1.5 cubic ft
  • High Quality 3/4" MDF Construction
  • Durable black carpeting
  • Pre-lined with Poly-Fil
  • Seams are fully caulked for better efficiency

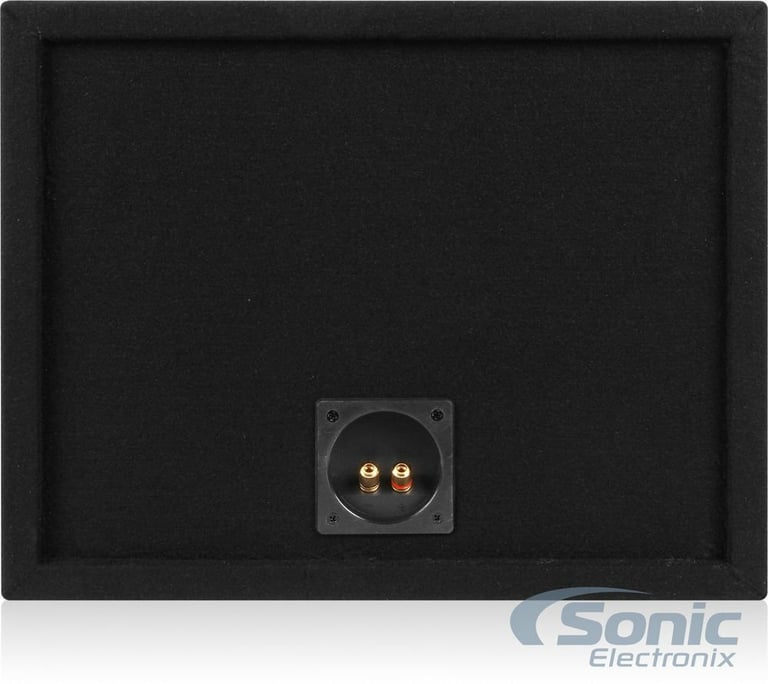

  • Gold post terminals for clean and easy wiring access
  • Box Dimensions: 16"L x 17"D x 13-1/2"H
  • 30 Day return policy

Product history:

Alpine W12S4, MDFS1215 thumbnail
(newest, current model)
Alpine SWA-12S4 thumbnail
(previous model, replaced by Alpine W12S4 with Sealed Enclosure)

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

R2S-1X10 small

Rockford Fosgate Prime R2S-1X10

• Sealed truck enclosure with 1 10" Prime R2 Series Subwoofer
• 200 watts RMS (400 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 19" L x 13.5" H x 5.25" W x 3.25" W2

(17)

$239.99

List price $239.99

TNE212D small

MTX Audio TNE212D

• Sealed enclosure with 2 12" Terminator Series Subwoofer
• 200 watts RMS each
• Final Impedance: 2-ohm
• Dimensions: 29.63" L x 14" H x 13.5" W

(32)

$219.95

List price $249.95

49L7TDF122 small

Kicker L7TDF122 (49L7TDF122)

• Sealed truck enclosure with 1 12" Solo-Baric L7 Series Subwoofer
• 300-600 watts RMS Power Rating
• Final Impedance: 2-ohm
• Dimensions: 23 7/8" L x 6 1/2" H x 15" W

(5)

$399.99

List price $429.99

CLS113RG-W7AE small

JL Audio CLS113RG-W7AE

• ProWedge 13" W7AE Loaded Sealed Subwoofer Enclosure
• 3000W Peak
• 1500W RMS
• 3 Ohm Final Impedance
• High Grade Black Carpet Finish
• Engraved JL Audio and W7 Logos
• Rear Firing Design
• 10th Anniversary Edition W7 Subwoofer

(8)

$2199.99

List price $2299.99

TRTP122 small

Kicker TRTP122 (48TRTP122)

• Sealed truck enclosure with 2 12" CompRT Series Subwoofer
• 250-500 watts RMS Power Rating
• Final Impedance: 2-ohm
• Dimensions: 27 1/2" L x 6 1/8" H x 14 5/8" W

(4)

$349.99

List price $379.99

BXSQ112 small

NVX BXSQ112

• Sealed enclosure with 1 12" SQ Series Subwoofer
• 600 watts RMS (1200 watts Peak)
• Final Impedance: 2-ohm

$349.99

List price $479.99

49DL7TDF122 small

Kicker DL7TDF122 (49DL7TDF122)

• Sealed enclosure with 2 12" Solo-Baric L7T Series Subwoofer
• 1200 watts RMS Power
• Final Impedance: 2-ohm
• Dimensions: 38-3/16" L x 8-1/4" H x 17-1/8" W

(1)

$749.99

List price $849.99

BE-TOYHIG3-VS102 small

NVX Loaded BOOST Box - 2014-2019 Toyota Highlander - BE-TOYHIG3-VS102

• Sealed BOOST enclosure with 1 10" N Series Subwoofer
• Fits select 2014-2019 Highlander and Highlander Hybrid
• 500 watts RMS (1000 watts Peak)
• Final Impedance: 2-ohm

(2)

$349.99

List price $437.99

BE-TSLAY-G1P small

NVX Loaded BOOST Box - 2020-2023 Tesla Model Y - BE-TSLAY-G1P (Passenger's Side)

• Sealed BOOST enclosure with 1 10" N Series Subwoofer (Passenger Side)
• Fits select 2020-2023 Model Y (5-seat models only)
• 500 watts RMS (1000 watts Peak)
• Final Impedance: 2-ohm

(2)

$279.99

List price $562.99

TL7T122 small

Kicker TL7T122 (46TL7T122)

• Sealed truck enclosure with 1 12" Solo-Baric L7T Series Subwoofer
• 600 watts RMS power handling
• Final Impedance: 2-ohm
• Dimensions: 21.5" L x 13.75" H x 7.75" W x 4.375" W2

(9)

$295.96

List price $399.99

Specifications & Details


Subwoofer Specifications
Series
BassLine Series
Subwoofer Size
12"
RMS Power Handling
250 watts
Peak Power Handling
750 watts
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Poly-Foam
Sensitivity
87.9 dB
Frequency Response
22 - 200 Hz
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

W12S4, MDFS1215

Weight:

35.25lbs

Internal SKU:

w12s4_mdfs1215

Internal Product ID:

198571

Customer Ratings & Reviews


Alpine W12S4 with Sealed Enclosure thumbnail image

5 star
82%
4 star
16%
3 star
2%
2 star
0%
1 star
0%



Durability
4.8
Value
4.9
Features
4.7
Design
4.8
Usability
5

Customer Reviews

Sort by:

Loading...

Giveaway

The following review is for MDFS1215, which is a part of the bundle you are viewing.

At the price they are asking,($40 shipped), this is a no-brainer. You'd be very hard pressed to buy the MDF used in this enclosure for the price they are selling the complete box for. Its true 3/4", ( I laid a caliper to it to check), and its advertised dimensions and airspace are spot on.

By Joe on March 17, 2014

135 found this helpful


Great bass

The following review is for MDFS1215, which is a part of the bundle you are viewing.

Bought this for an old punch 2 I had sitting around that I put into my sons car. Previously it was in a small truck box for an s10. Couldn't believe the difference that this box made. The sub is getting 200 watts from the little fosgate amp that I had for it but it is twice as loud as it was in my truck with no distortion. Obviously I had it in way to small of a box before. I got one happy kid though.

By Bruce on January 10, 2015

130 found this helpful


solid box

The following review is for MDFS1215, which is a part of the bundle you are viewing.

Solid box had one screw that didn't grab anything must of hit a soft spot in the wood other then that solid box

By Davy on March 31, 2014

129 found this helpful


A winner

The following review is for MDFS1215, which is a part of the bundle you are viewing.

This is just what the woofer doc ordered. The poly fill is already installed. The black carpet looks great. I'm installing a Rockford T-1 dual 4 ohm 12 in the box. I'm anxious to hear how this is gonna sound in my Mark VIII.

By Big O on September 1, 2014

129 found this helpful


Exactly what I needed.

The following review is for MDFS1215, which is a part of the bundle you are viewing.

I purchased this box to house an Alpine type E sub. I had originally intended on building my own box, but after looking around at the prices of MDF, I found this box, I literally couldn't purchase the materials cheaper than buying this. It's sturdy, and is a perfect match for my sub. I am extremely pleased with my purchase, and would recommend it to anyone looking for a very well built, sealed, enclosure.

By Joshua on February 26, 2015

123 found this helpful


Good box!

The following review is for MDFS1215, which is a part of the bundle you are viewing.

For a pre built box it does the job very well! The poly fill is useless if you need a bigger box just order a bigger box... No leaks what so ever. I did replace it for a custom built ported box.

By john on December 28, 2014

123 found this helpful


Great price

The following review is for MDFS1215, which is a part of the bundle you are viewing.

I'm running a rockford fosgate p2 in it. This box has held up great. i can hear a very small leak but only when I was checking for leaks. Otherwise it was inaudible from even a few feet away. Being 100% sealed is very crucial considering it is a sealed box. But overall id say that this is a great box. Cant beat the price. Nothing a little silicon cant fix.

By Derek on August 29, 2013

120 found this helpful


SEALED ENCLOSURE

The following review is for MDFS1215, which is a part of the bundle you are viewing.

Yes its a prefab box, it is constructed very well with .75" MDF. Solid no leaks.Carpet well done.Looks nice. Just match the air space you want for your sub and your done. I could not build this for the price i paid, so its a no brainer for me. If i was looking for ported or vented i would build one myself because of propper tunning. Just wanted something simple and this exceeded my expectations.

By Charles on May 8, 2014

121 found this helpful


Awesome price and fast shipping

The following review is for MDFS1215, which is a part of the bundle you are viewing.

Very nice for the money. You can't go wrong with this box. Very nice craftsmanship. Does not come pre-wired though. More than enough poly fill though and very durable carpet.

By ken on August 5, 2013

120 found this helpful


Nice Touch!!!

The following review is for MDFS1215, which is a part of the bundle you are viewing.

This box has bundled with the NVX 12" VSW sub and it does some good bass! Well crafted, quality carpet, more than enough polylester. It doesn't come pre-wired though, but since it was a free bundle... I could careless!

By William on June 12, 2013

118 found this helpful




MDFS10,S-W10D2 small

Alpine S-W10D2 with Sealed Enclosure

(600W RMS) 10" Dual 2 Ohm Subwoofer + MDFS10 Sealed Enclosure Made with 3/4" MDF and lined w/ Polyfil

(124)

$239.94

List price $289.99

BLC12650H small

Black and Decker BLC12650H

White Cyclone 12 Speed Blender

$33.99

List price $49.95

MDFS12,S-W12D4 small

Alpine S-W12D4 with Sealed Enclosure

1800W Peak (600W RMS) 12" Type-S Series Dual 4 Ohm Car Subwoofer

(16)

$219.94

List price $299.99

No picture

Kenwood eXcelon DNR1007XR - New (Damaged Packaging, Product A+)

10.1" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Navigation, Apple CarPlay, Android Auto (Sirius XM Ready)

(2)

$1709.99

List price $2100.00

No picture

JL Audio C3-570 (Like New (Open Box))

300W Peak (150W RMS) 5x7" Evolution C3 Series 2-way 4-ohm Component Speaker System

$424.99

List price $499.99

X-W12D4, 12DQ small

(2) Alpine X-W12D4 with Sealed Dual Enclosure

2700W Peak (900W RMS) 12" X-Series Dual 4-Ohms Subwoofers

(26)

$1299.90

List price $1534.99

TR570-CXi_CSM small

JL Audio TR570-CXi w/ Sound Dampening

5" x 7" / 6" x 8" TR Series 2-way Speakers with Two 10" x 10" Pieces of Sound Dampening Material

(18)

$146.44

List price $184.94

No picture

JL Audio C3-570 (Open Box, Great)

300W Peak (150W RMS) 5x7" Evolution C3 Series 2-way 4-ohm Component Speaker System

$349.99

List price $499.99

Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2001 Kia Rio

2019 Audi S3

2015 Audi Allroad

1985 Ford Ranger

2010 Ford Ranger

2009 BMW M3

2009 Mitsubishi Eclipse

1984 Buick Electra

2008 Lexus LS600hL

2008 Lexus ES350

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
