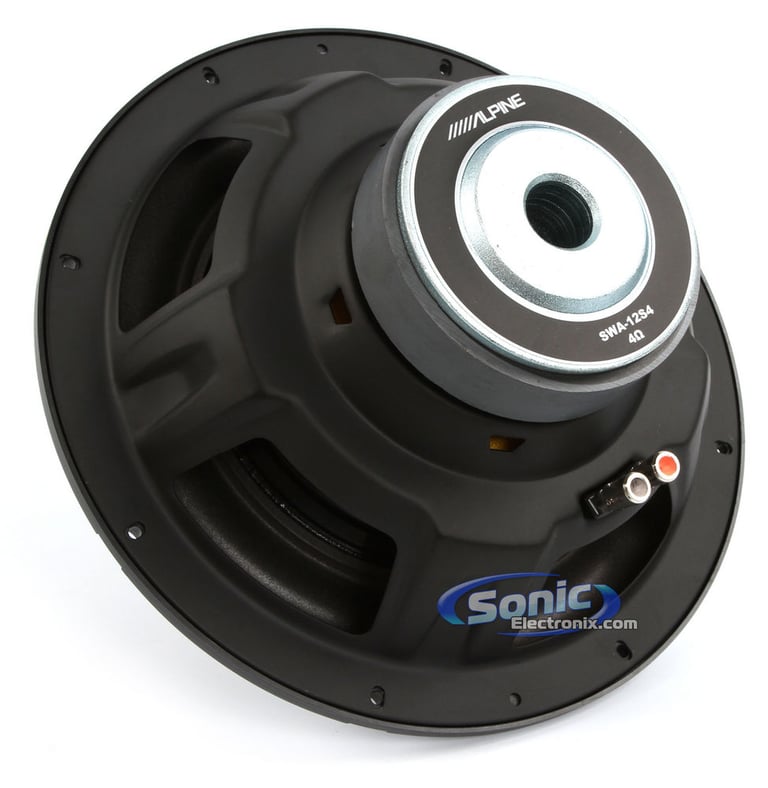

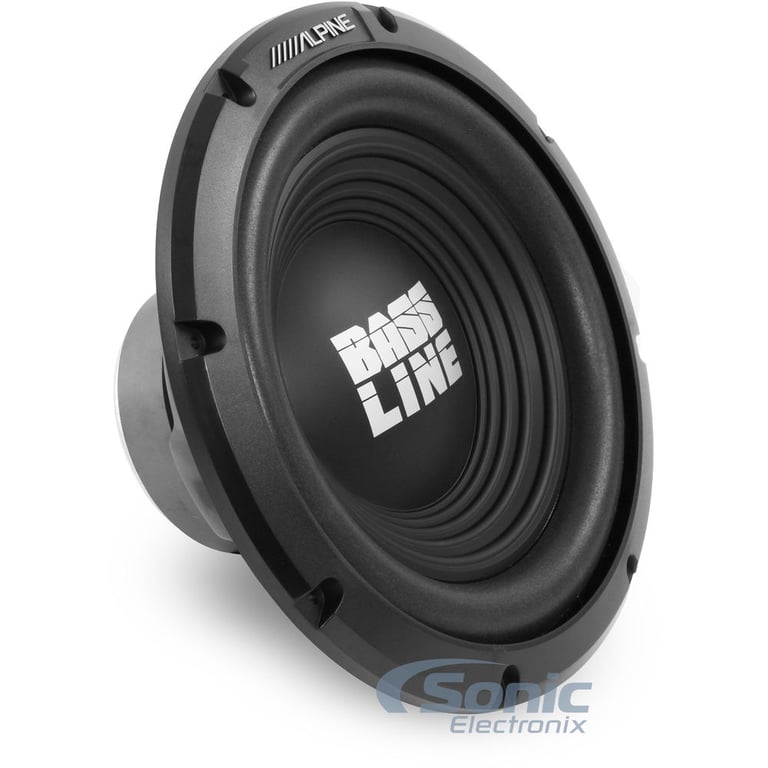

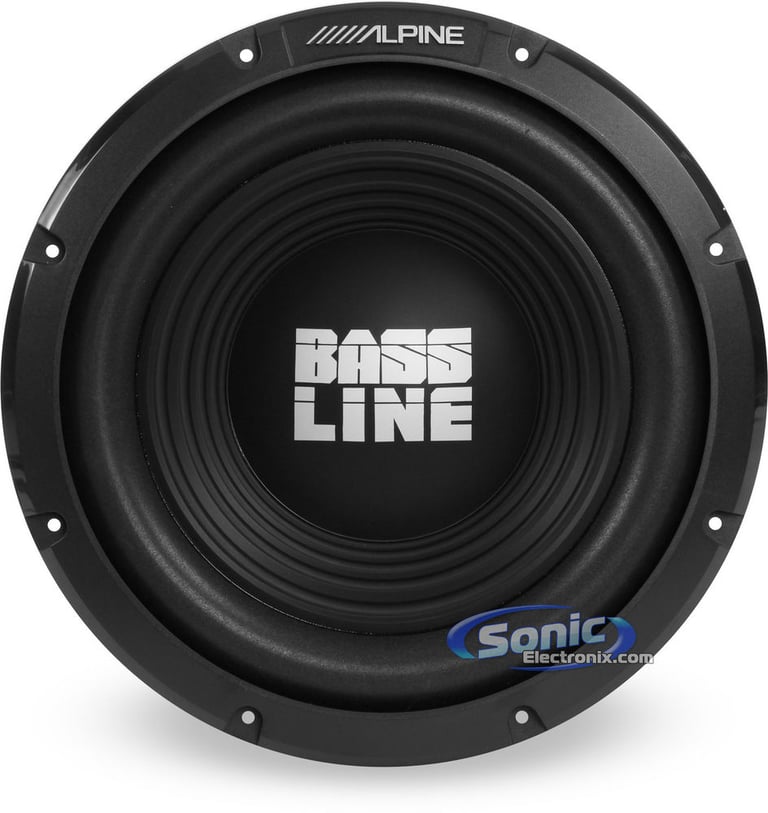

Alpine Bassline SWA-12S4

750W Peak (250W RMS) 12" Single 4 Ohm BASSLINE Series High Performance Subwoofer

Alpine
Shop all Alpine
Product videos
highlight-star-icon

• 750W Peak
• 250W RMS
• Single 4 ohm Voice Coil
• Polypropylene & Mica Damped Cone
• High-Excursion Poly-Foam Surround
• High Strength Custom Steel Frame
• 2" Aluminum Steel Frame
• 8 Gauge Push Pin Terminals

Learn more about the swa12s4

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

w12s4 thumbnail

Alpine W12S4

OUR PRICE: $119.95

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
40-EU55 main

Metra 40-EU55

Antenna Adapter for select 2000-2026 vehicles from Audi, Chevrolet, Ram

49
-13.05%

$19.99

List price $22.99

Metra 99-3012G (Includes Wiring Harness)

Single DIN / Double DIN Installation Kit for select 2012-2016 Sonic

2
-31.18%

$255.99

List price $371.99

GMK315DA main

American International GMK315DA

Single DIN or Double DIN Stereo Dash Kit for select 2012-2016 Sonic (Dark Argent)

1
-54.07%

$33.99

List price $74.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
DMX809S main

Kenwood eXcelon DMX809S

6.8” Double DIN Digital Multimedia Touchscreen Bluetooth Receiver with Wireless Apple CarPlay and Android Auto (SiriusXM Ready)

11
-37.63%

$499.00

List price $800.00

Limited time!
DCPA723W main

Dual DCPA723W

7” Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto

4
-23.61%

$219.99

List price $287.99

Limited time!
Kappa 63XF main

Infinity Kappa 63XF (INFSPKKA63XFAM)

510W Peak (170W RMS) 6.5" Kappa Series 2 Way Coaxial 3-ohm Speakers

10
-33.34%

$199.95

List price $299.95

CVMPCL6.5 main

Cerwin Vega CVMPCL6.5 (Sold Individually)

200W Peak (100W RMS) 6.5" Stroker Pro Series Full Range 4-ohm Speakers

9
-16.67%

$99.99

List price $119.99

Limited time!
CS-DF620 main

JVC CS-DF620

600W Peak (50W RMS) 6.5" DRVN DF Series 2-Way 4-ohm Shallow-Mount Coaxial Car Speakers

4
-39.08%

$38.99

List price $64.00

Product Highlights


• 750W Peak
• 250W RMS
• Single 4 ohm Voice Coil
• Polypropylene & Mica Damped Cone
• High-Excursion Poly-Foam Surround
• High Strength Custom Steel Frame
• 2" Aluminum Steel Frame
• 8 Gauge Push Pin Terminals

Description


Alpine brand icon

Authorized dealer



General Features:

  • 12" Single 4 Ohm BASSLINE Series Subwoofer
  • Power Handling:
    • Peak: 750 watts
    • RMS: 250 watts
  • Recommended Power Range: 50 - 250 watts RMS

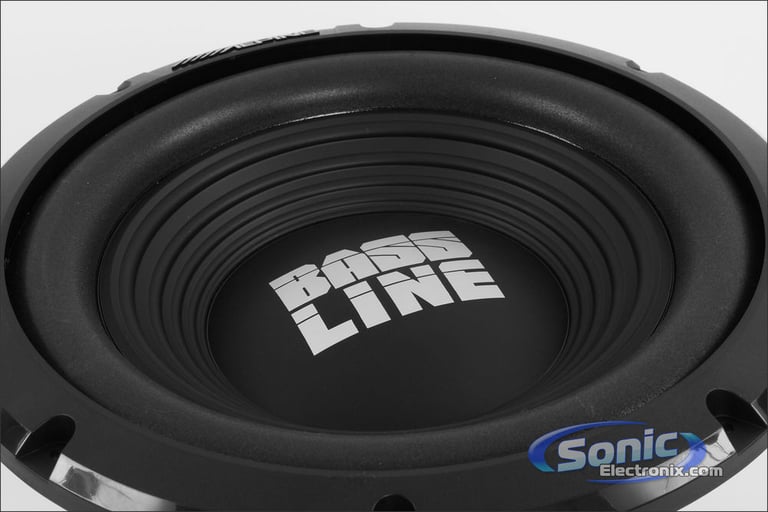

  • Polypropylene & mica damped cone with Progressive Wavelet Rib (PWR) design
  • High-excursion poly-foam surround
  • Polyester progressive spider
  • Two-piece yoke with vented pole for improved air flow and voice coil cooling
  • High strength custom steel frame
  • Optional Protective Grille available KTE-12PG
  • 8 Gauge push pin terminals
  • 2" Aluminum voice coil
  • 60 oz. Single stacked magnet
  • Resonance Frequency (Fs): 30 Hz
  • Top-mount depth: 5-1/2"
  • Sensitivity: 87.6 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Alpine W12S4 thumbnail
(newest, current model)
Alpine SWA-12S4 thumbnail
(previous model, replaced by Alpine W12S4)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Alpine Bassline SWA-12S4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Alpine Bassline SWA-12S4 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Alpine Bassline SWA-12S4 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Alpine Bassline SWA-12S4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(3)

$199.96

List price $279.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(2)

$599.99

List price $719.99

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
BassLine Series
Subwoofer Size
12"
Peak Power Handling
750 watts
RMS Power Handling
250 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Frequency Response
22 - 200 Hz
Sensitivity
87.6 dB
Xmax (millimeters)
10 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Poly-Foam
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.75 cubic feet
Optimum Sealed Box Volume
1.09 cubic feet
Maximum Sealed Box Volume
1.5 cubic feet
Minimum Ported Box Volume
1.5 cubic feet
Optimum Ported Box Volume
1.91 cubic feet
Maximum Ported Box Volume
2.5 cubic feet
Top-Mount Depth (Mounting Depth)
5-1/2"
Cutout Diameter
10-9/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
30 Hz
Equivalent Compliance (Vas)
67.8 liters
Total Speaker Q Value (Qts)
0.49
Electrical Q Value (Qes)
0.53
Electrical Resistance of Voice Coil (Re)
3.6 ohm
Mechanical Q Value (Qms)
7.07
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SWA-12S4

Weight:

12.50lbs

Internal SKU:

swa12s4

Internal Product ID:

72379

Product and How-to Videos


  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


Alpine Bassline SWA-12S4 thumbnail image

5 star
78%
4 star
22%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
5
Features
4.9
Design
4.9
Usability
4.9

Customer Reviews

Sort by:

Loading...

great sub.

I have a dodge Dakota and I pit a single 12 in a bandpass box with 200 watts rms it hits hard enough to flex.thank you sonic.

By clown on July 4, 2014

53 found this helpful


Alpine SWA - 12S4

This sub woofer is pretty loud and kicks pretty hard for something so cheap and affordable . Better than what I expected.

By Jaex on April 11, 2014

53 found this helpful


Good Sub

This is a good sub. I would recommend it.Alpine has always been a good brand and for the price this is a really good sub. Haven't had any problems with it and you don't need a lot of power to get it to hit. If you want some good bass to round out your system this works.

By Yeti on January 20, 2014

50 found this helpful


Great sub for price

Great sub for price really bumps on my 1000.2 autotek amp would recommend to any beginner or expert can't go wrong with alpine

By bryan on May 1, 2014

50 found this helpful


good cheap loud bass filled woofer

Didnt pay much and this Lil pup rocks hard crisp clear clean. Bass

By polywogles on June 17, 2014

48 found this helpful


best bang for your buck

i ordered 8 of these subs and they are amazing.. especially for the price... i would and always do business with sonic electronix and would highly recommend them for all that they sell...

By street dr3amz on November 14, 2014

46 found this helpful


Thanks sonic!

When I first got this sub and hooked it up in my escalade ext it sounded real good nice hitting lows and clean hard bass I totally recommend this sub for everyone that like clear crisp bass.

By james on July 14, 2014

48 found this helpful


Wow

Wow. Absolutely under rated. These in a 4^3 box ported to 32hz and they're louder than my single 15" l7 and 2 12" type R's in a ported box.

Very good sub for the price. would recommend to everyone.
they're windshield flexing a nissan altima.

By james on October 7, 2013

47 found this helpful


pure bass

got 2 hooked up to 1000watt amp [500 each sub] and its flexing my windshield and the sound is insane wish i had more room for 2 more lol but by far best bang for your buck

By bass head on October 12, 2013

44 found this helpful


Awesome Sub

Fantastic Sub, any sub in the right box will sound awesome, but this sub hits hard. Two of these in a 3.8cube box has change dancing in my cup holder. The only thing i dont like is the leads are not woven into the spider, but what do you expect for 55$? Recommend these to anyone.

By Wes on October 18, 2013

41 found this helpful




AX-TOYRSAV small

Axxess AX-TOYRSAV

Rear Seat Entertainment Retention Harness for select 2007-2018 vehicles from Toyota

$12.99

List price $19.00

MW-80, XBAF8, SDSK2, SDRLR1, BTK106 small

Diamond Audio DMD42 with Speaker Installation Kit

350W Peak (175W RMS) 8” Machete Series Midbass + Speaker Baffles, Sound Dampening, Roller, and Panel Removal Kit

(142)

$145.71

List price $182.61

G8400.4D small

DS18 G8400.4D

8400W Peak (4000W RMS) Class D Gen-X Series 4-Channel Car Amplifier

$659.95

List price $659.95

99-5862CH small

Metra 99-5862CH Dash Kit

Install a New Single DIN 2" or Double DIN 4" Car Stereo with Factory 8" Screen in select 2011-2019 Explorer

$795.99

List price $1441.99

MOBU-99-6532 small

Metra MOBU-99-6532 Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2015-2018 Renegade

$100.00

List price $269.98

PDKM7 small

Pyle PDKM7

7 Microphone Wired Drum Kit w/ Mounting Accessories

(2)

$129.95

List price $239.99

HY1609B small

Scosche HY1609B / HY1609 Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2006-2010 Sonata (Black)

(9)

$14.99

List price $17.99

BBSW127,1TRUCK12,REF1200S small

12" Infinity Reference REF1200S & Sealed Truck Box

Shallow Mount 1000W 12" Reference Series Single Voice Coil Selectable Smart Impedance Car Audio Package

(55)

$169.95

List price $294.93

CHR02U3 small

GROM Audio CHR02U3 (GROM-USB3-CHR02)

Android and iOS Compatable Bluetooth Integration for Select 2002-2007 Chrysler, Dodge & Jeep Vehicles

$174.99

List price $174.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1987 Ford Ranger

2011 Audi A5 Quattro

2015 Subaru Legacy

2000 Toyota Corolla

2009 Honda Element

2014 Mazda 2

2016 Mazda CX-5

2003 Mazda B2300

2003 Dodge Neon

2008 Dodge Viper

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
