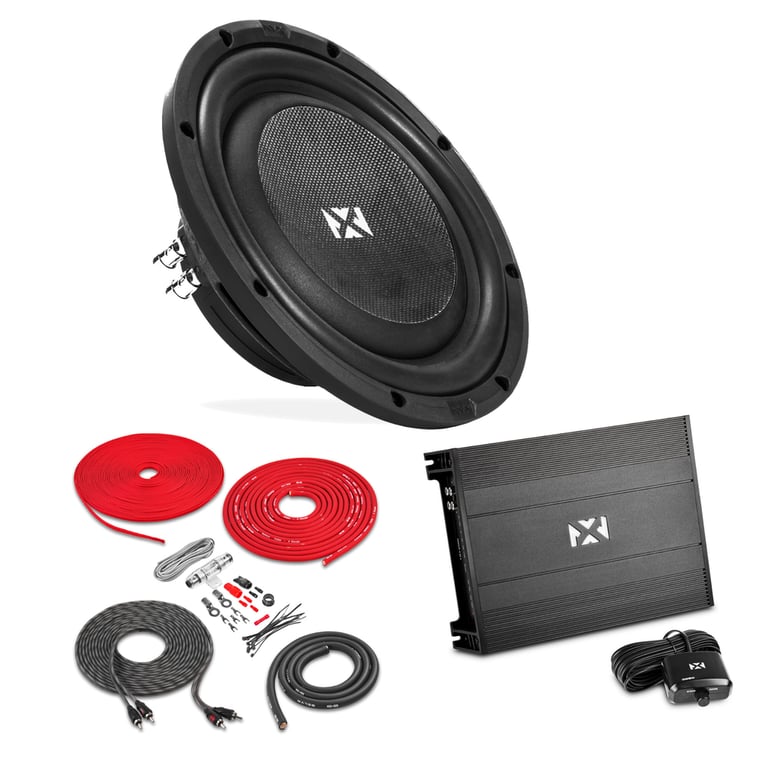

NVX SMW10D4 + NDA101 500W Monoblock and Amp Kit

350W RMS Shallow-Mount 10" Dual 4-Ohm Subwoofer + 500W Class-D 1-Ohm Stable Monoblock Amplifier with Amp Kit

141
NVX
Shop all NVX
highlight-star-icon

• 700 watts Watts Peak
• 350 watts Watts RMS
• Carbon Fiber Reinforced Polypropylene Cone
• Butyl Rubber Surround
• Includes Depth Extension Clearance Plate
• Mounting Depth: 3-1/4"

Learn more about the smw10d4_nda101_bak42
List $459.97

$229.93

with warranty

Thanks , You Pay:

Heads up

We confirm fitment and offer accessories for speakers. Please set your vehicle first if you would like to purchase more than one smw10d4_nda101_bak42.

Set your vehicle or Return to product page
shipping truck icon
FREE shipping to VA. Get it Tue, June 6
Quantity
In Stock
Brand new

Buy it now

×

Buy Now with Credit Card

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

protection

Add an extended warranty

allStateProtection
3-years for

For over 22 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

AwardWinning
Award-Winning Service
Shipping
FREE Shipping Orders $49+
60Days
60-Day Easy Returns
lowestPrice
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Description

NVX

Authorized dealer

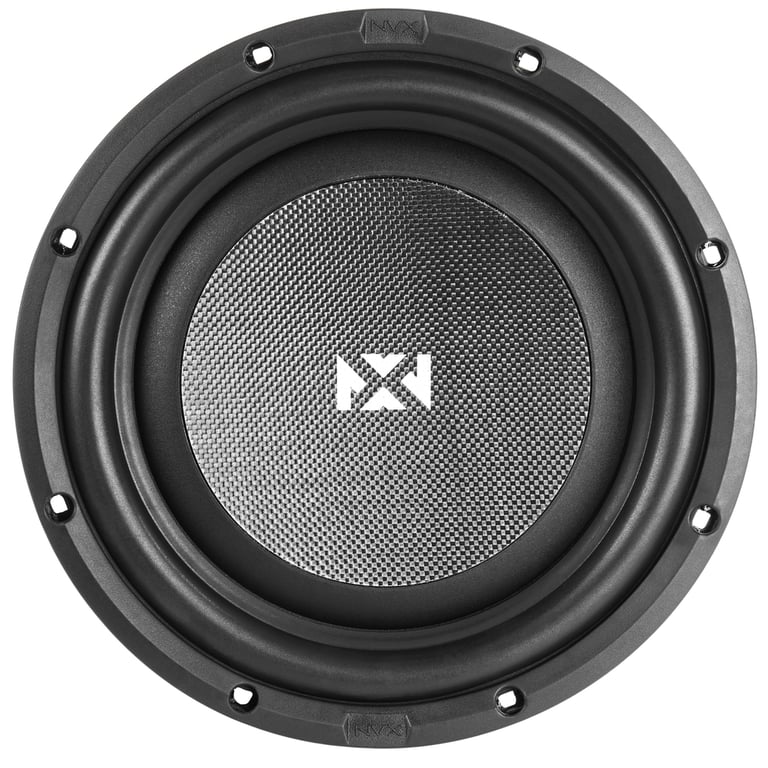

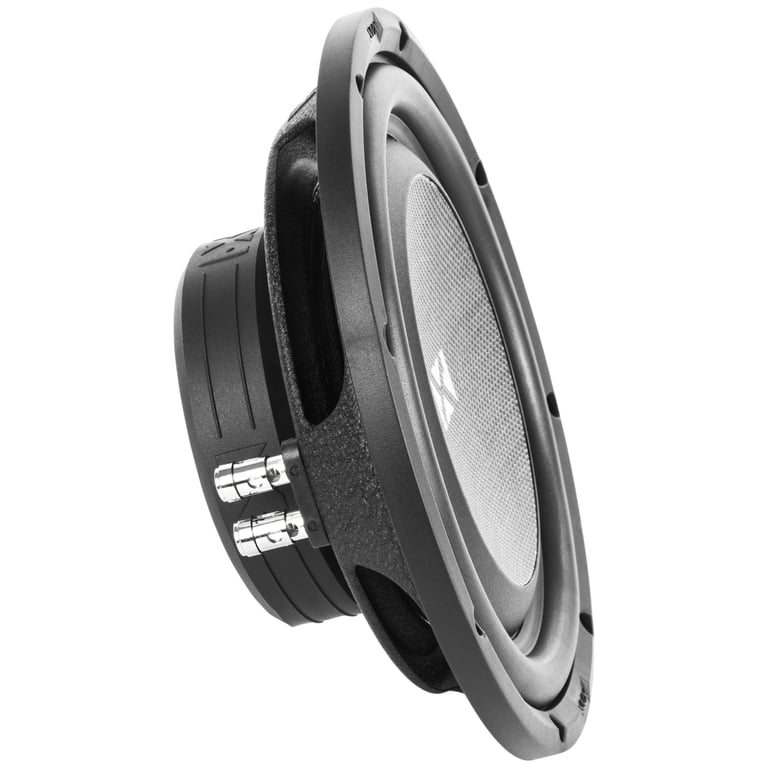

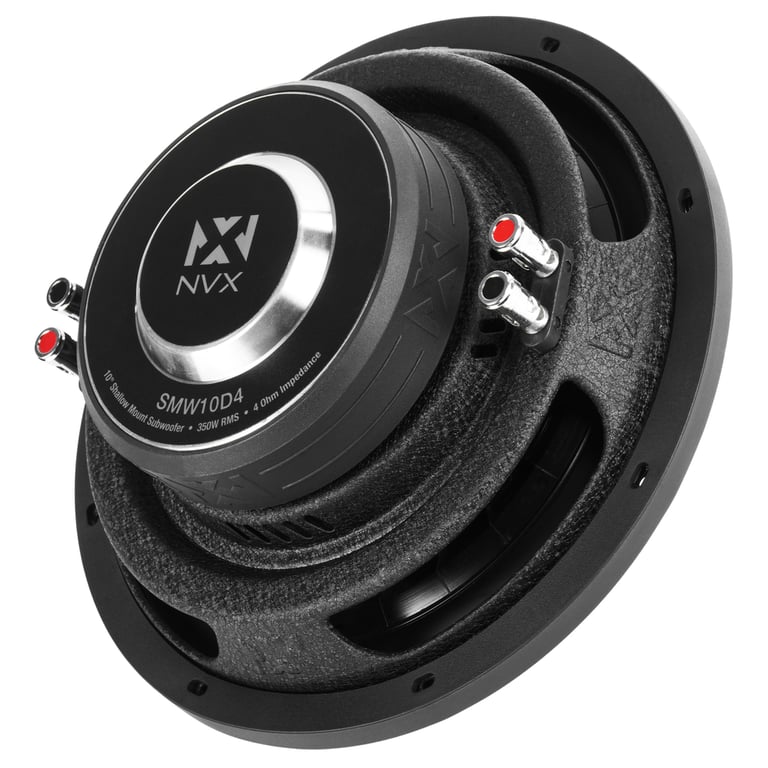

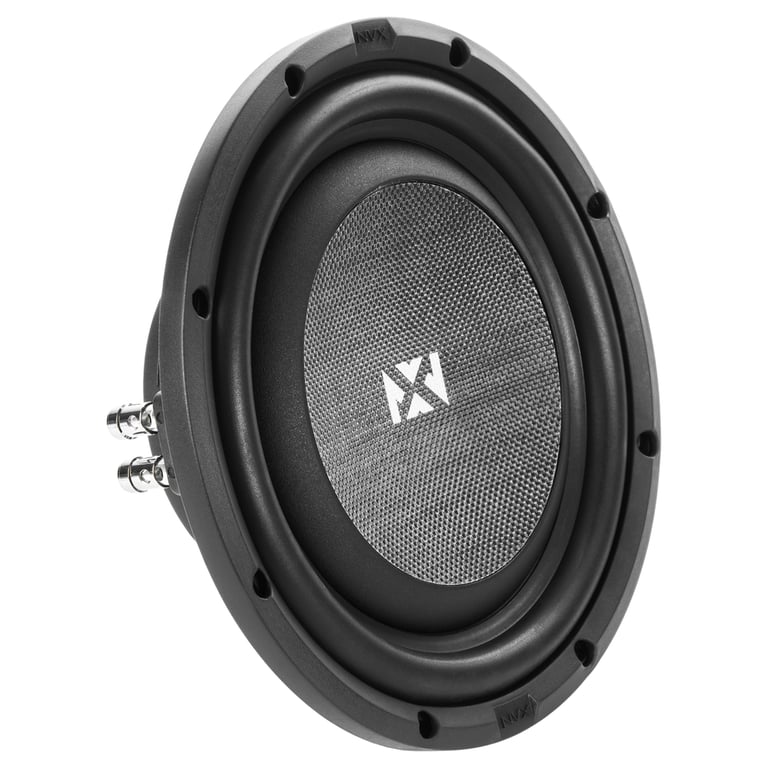

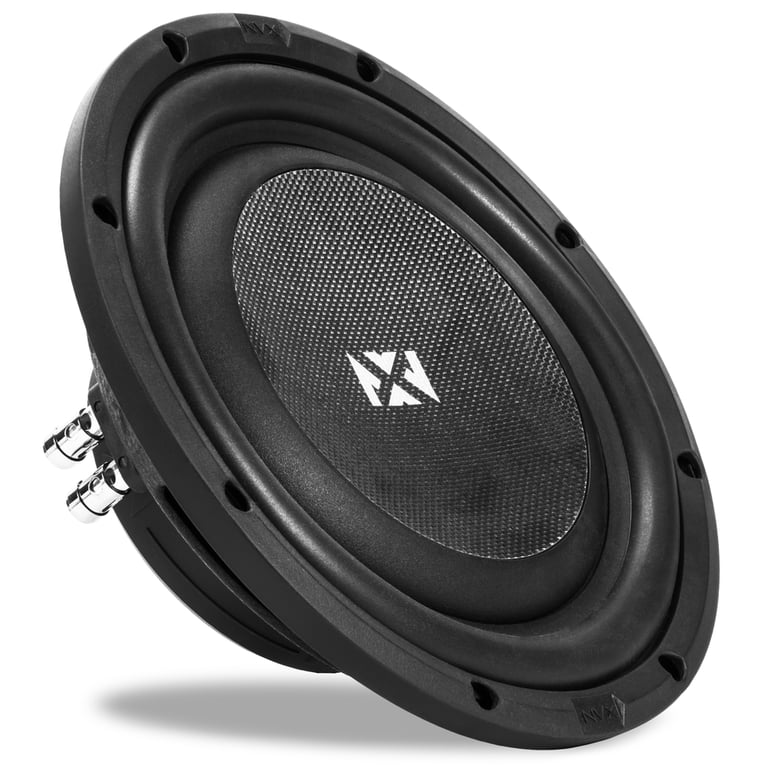

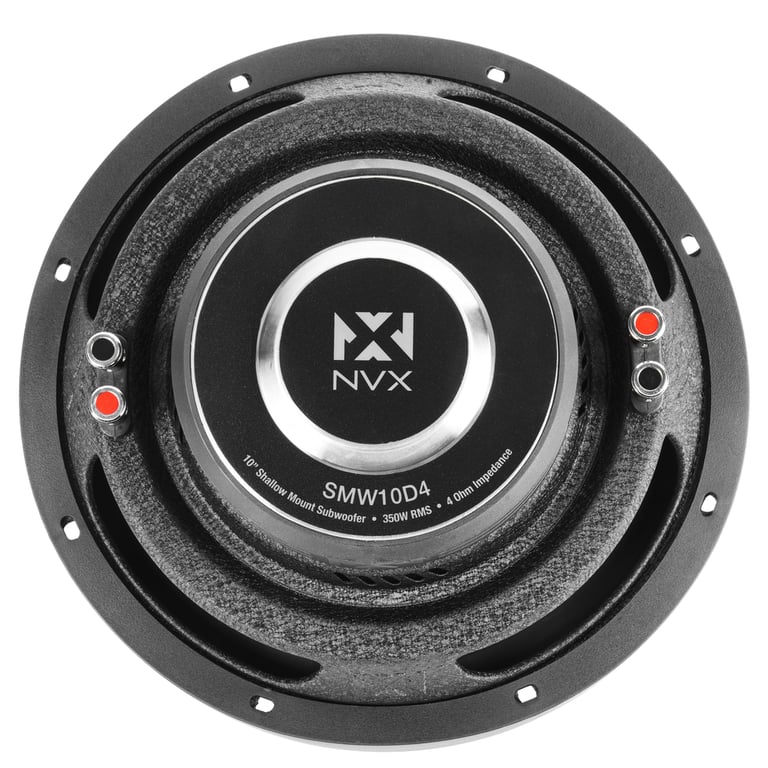

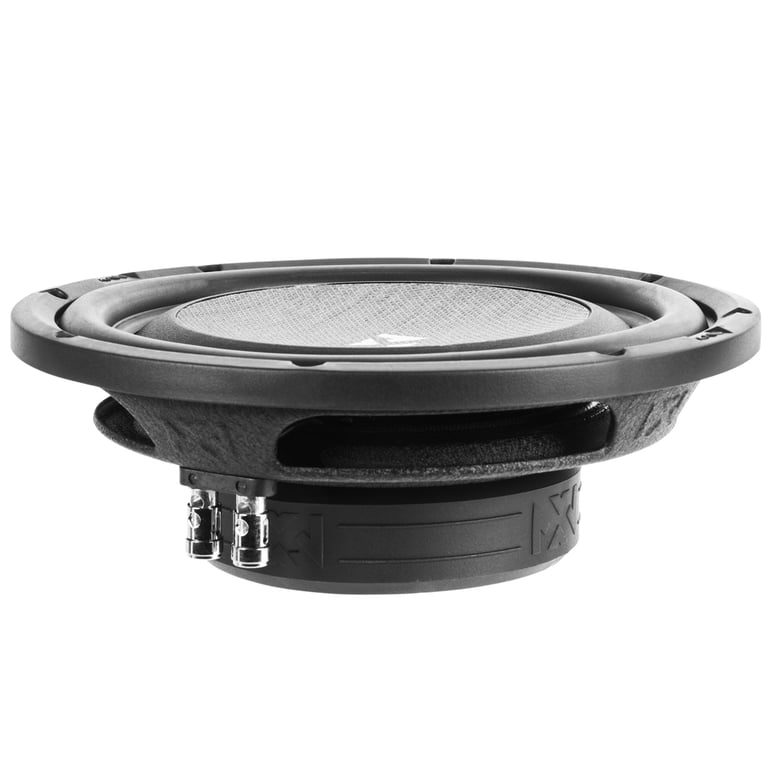

NVX SMW10D4

700W Peak (350W RMS) S-Series Shallow-Mount 10" Dual 4-Ohm Subwoofer
Quantity: 1

Product Details:

  • 10" Dual 4 ohms S Series Series Subwoofer
  • Power Handling:
    • Peak: 700 watts
    • RMS: 350 watts

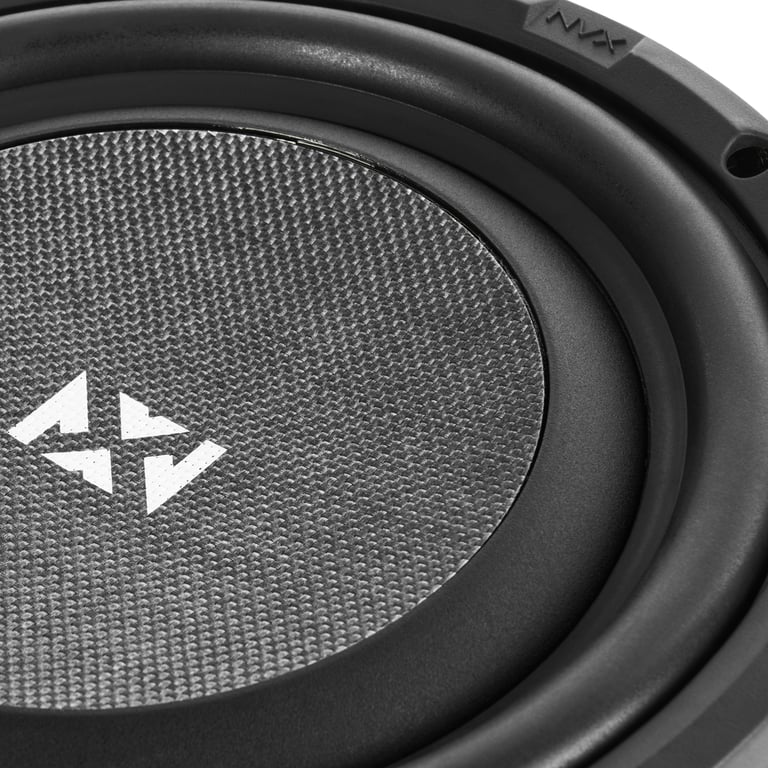

  • Carbon Fiber Reinforced Polypropylene Cone
  • Butyl Rubber Surround
  • 50oz Y30 High Energy Ferrite Magnet

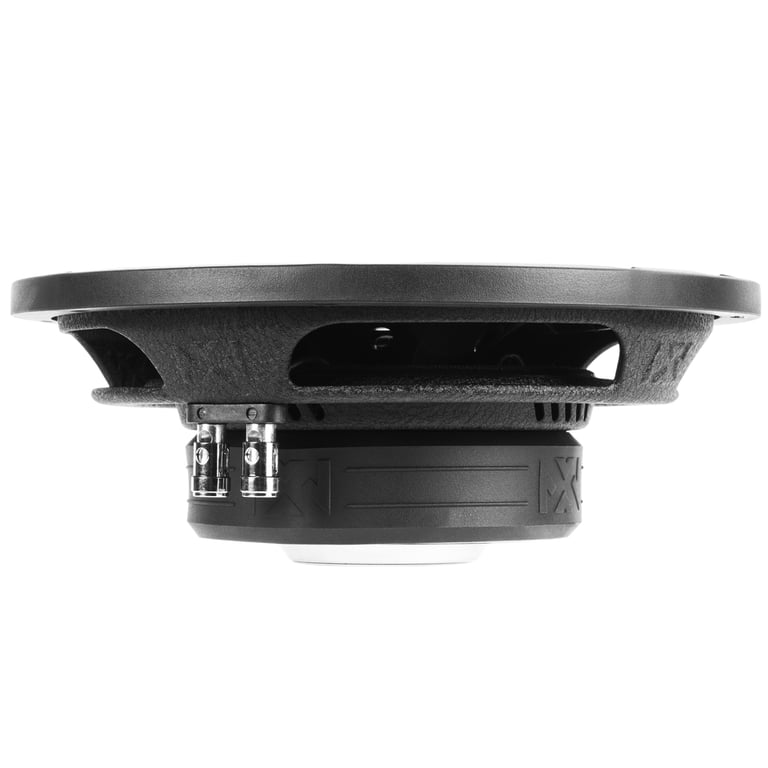

  • Top-mount depth: 3.23"

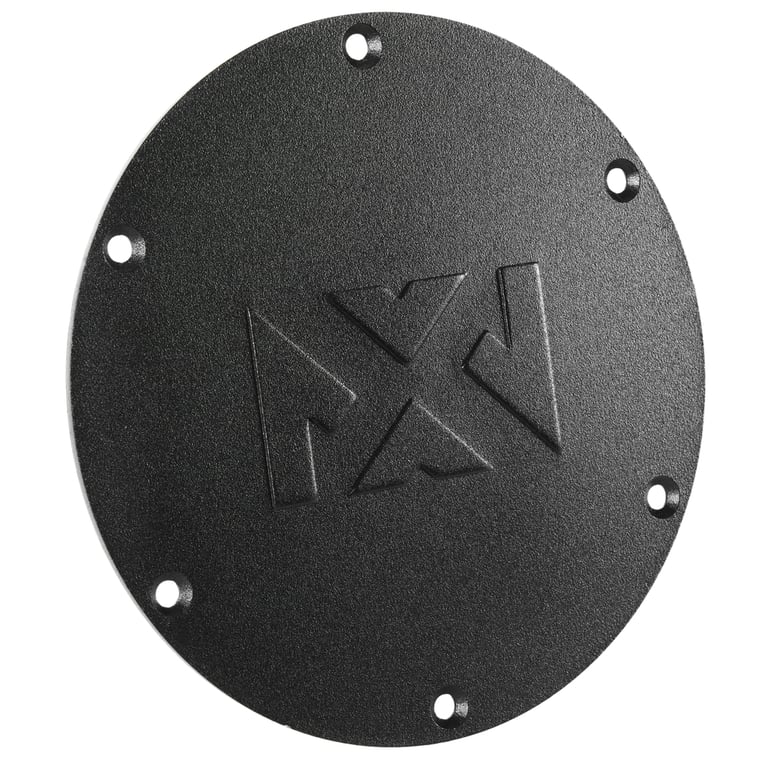

  • Includes Depth Extension Clearance Plate for extremely shallow boxes that the subwoofer may not fit in
    • This allows you to cut a hole in the box and mount the plate over the hole to allow more depth for the subwoofer
  • Cutout diameter: 9.14"
  • Frequency Response: 25 - 350 Hz
  • Sensitivity: 88 dB
  • Resonance Frequency (Fs): 35.83 Hz
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

    • Priced Individually


NVX SMW10D4 Manual

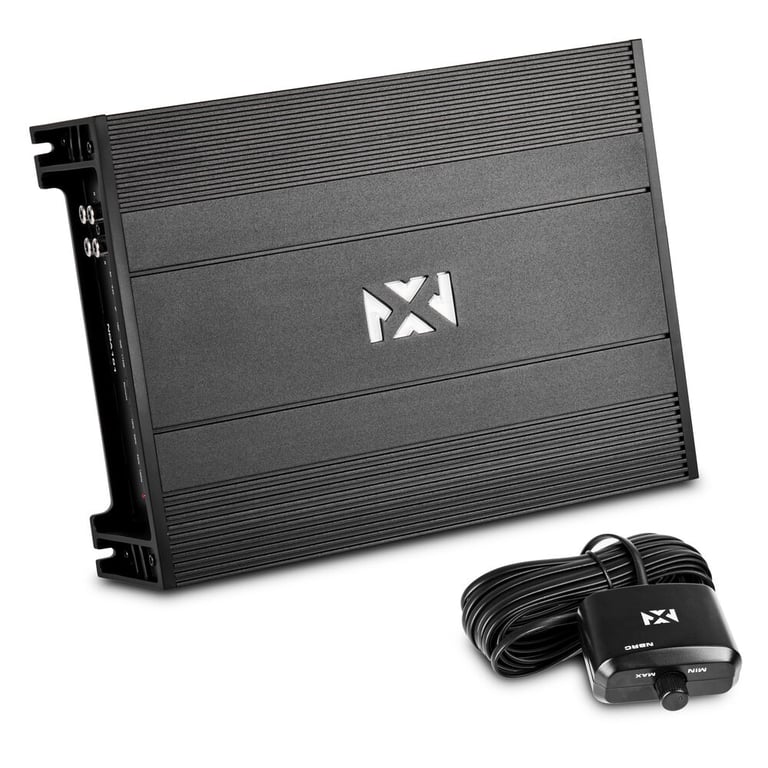

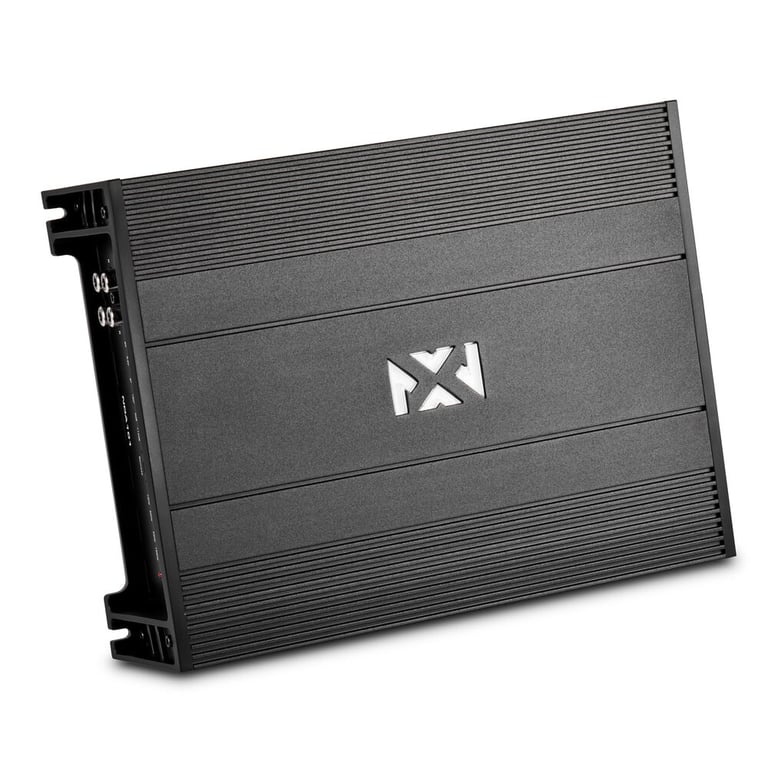

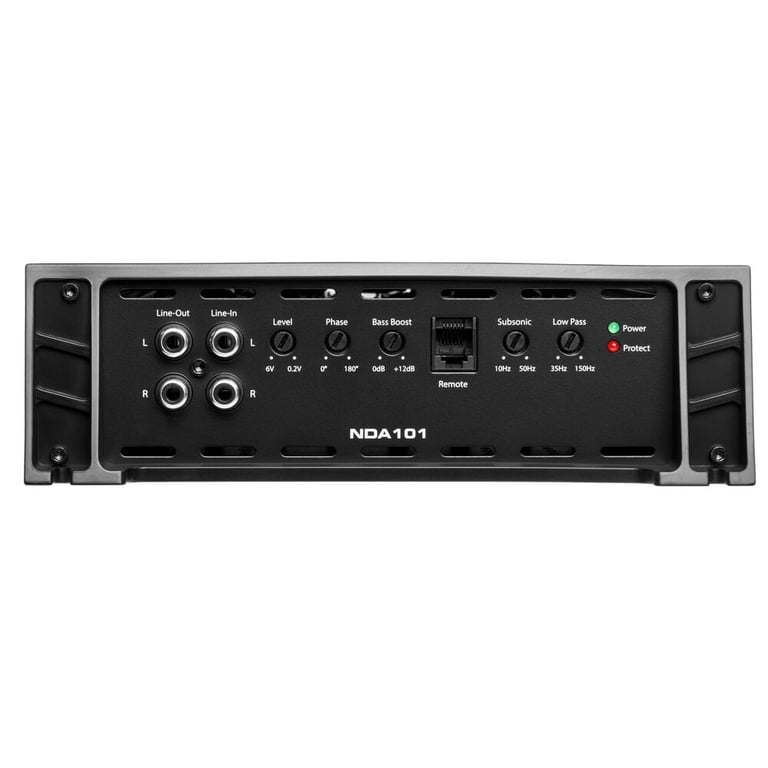

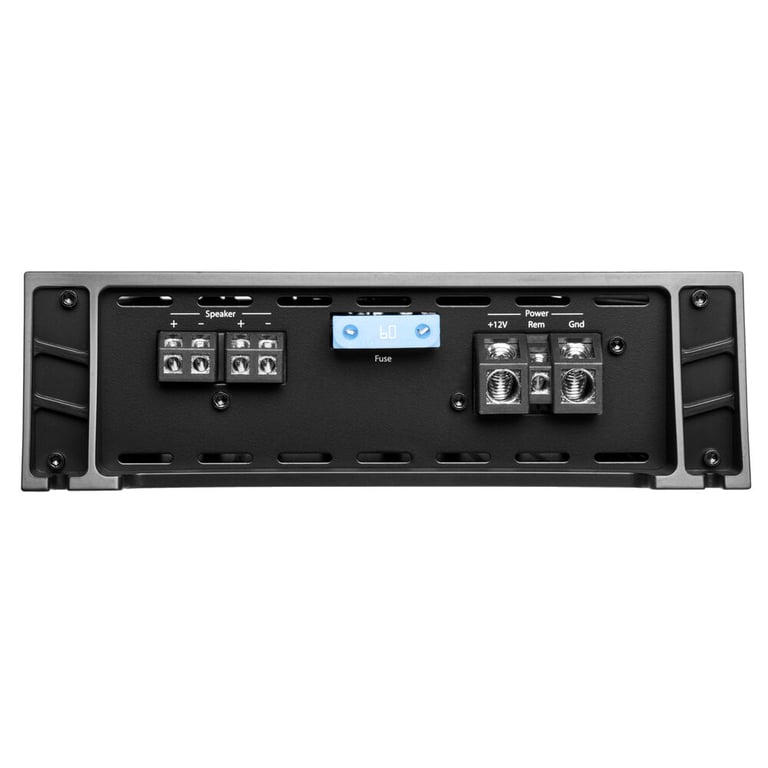

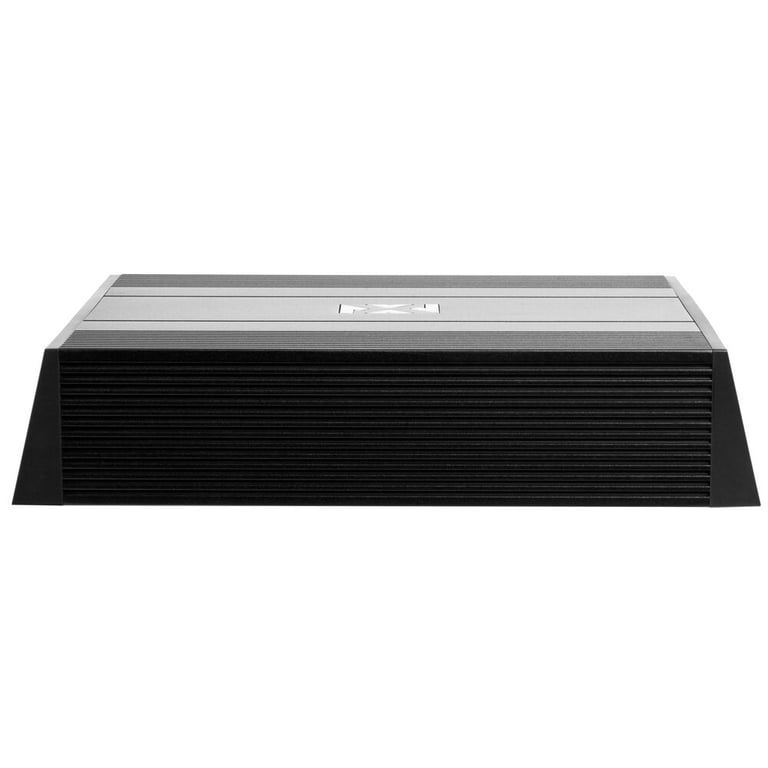

NVX NDA101

1000W Peak (500W) RMS N-Series Class-D 1-Ohm Stable Monoblock Amplifier
Quantity: 1

Product Details:

  • NVX N Series Series NDA101
  • Class D 1 ohms Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohms: 210 watts x 1 channel
    • 2 ohms: 330 watts x 1 channel
    • 1 ohm: 500 watts x 1 channel
  • Total RMS power output: 500 watts
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply

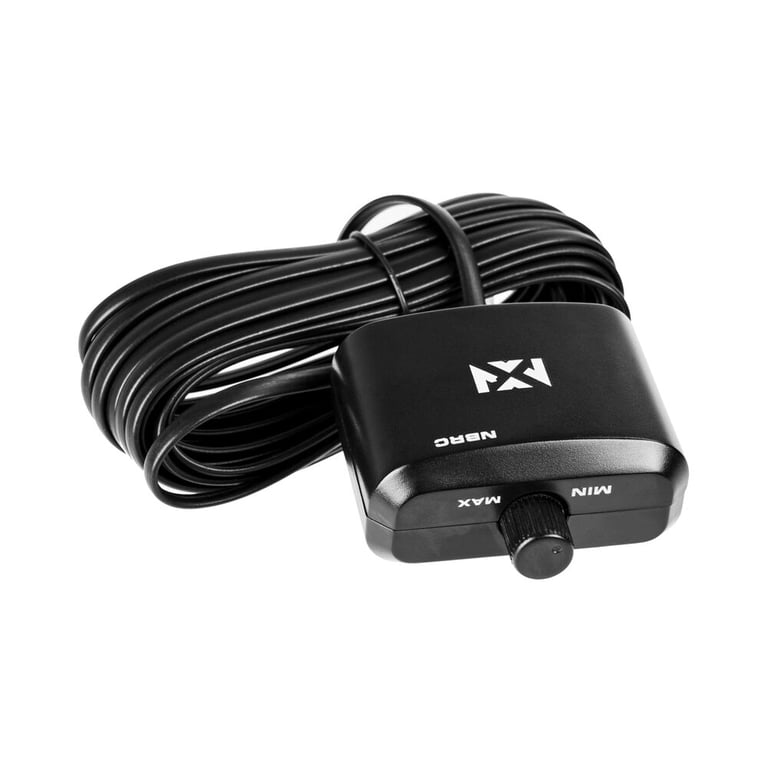

  • Wired remote bass level control included
  • Soft start turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity:
    • Low level: 0.2V-6V
  • Frequency Response: 10 - 150 Hz
  • Total Harmonic Distortion (THD): 0.5%
  • Signal to Noise Ratio: 90 dB
  • Variable low-pass filter: 35 - 150 Hz
  • Subsonic filter: 10 - 50 Hz
  • Variable Bass Boost: 0 - 12 dB
  • Fuse Rating: 60A x 1
  • 4 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 11"W x 7.8"L x 2.4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Belva BAK42

4 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - RED
Quantity: 1

Product Details:

  • Complete 4 Gauge 2-Channel Amplifier Installation Kit
  • Designed for car audio systems up to 1200 watts RMS
  • Premium Powerflex power and ground wire provides optimal power transfer
  • Belva CCA wire is made from 30% copper while the competition uses only 10%
  • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
  • MINI-ANL Fuse holder with a 80 amp fuse offers ideal protection for high powered systems
  • Complies to American Wire Gauge standards
  • Also available in Black and Blue
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

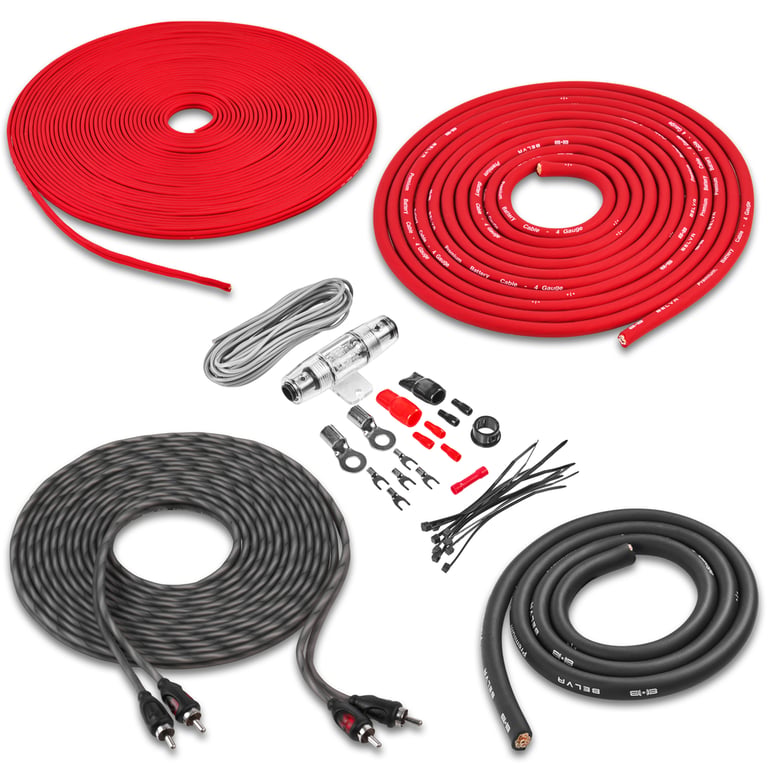

Kit includes:

  1. 17 ft. (5.2 meters) Red 4 gauge power wire
  2. 3 ft. (.91 meters) Black 4 gauge ground wire
  3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire
  4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable
  5. 20 ft. (6.1 meters) 16 Gauge Speaker cable
  6. One MINI-ANL Fuse Holder with a 80 amp fuse
  7. One Black rubber firewall grommet
  8. One 4 Gauge Red chrome plated ring terminals
  9. One 4 Gauge Black chrome plated ring terminal
  10. Three 18 Gauge Red Spade terminal
  11. Two 18 Gauge Black Spade terminal
  12. One 18 Gauge Red butt connector
  13. Ten 4" Black zip ties

Specifications & Details

Subwoofer Specifications
Series
S Series
Subwoofer Size
10"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohms
RMS Power Handling
350 watts
Peak Power Handling
700 watts
Woofer Surround
Butyl Rubber
Woofer Composition
Polypropylene
Sensitivity
88 dB
Frequency Response
25 - 350 Hz
Xmax (millimeters)
8 mm
Top-Mount Depth (Mounting Depth)
3.23"
Cutout Diameter
9.14"
Recommended Enclosure Type
Ported / Vented
Sealed
Amplifier Wiring Kit
Is Amplifier Wiring Kit included?
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details

Manufacturer:

NVX

Model Number:

SMW10D4, NDA101, BAK42

Weight:

21.00lbs

Internal SKU:

smw10d4_nda101_bak42

Internal Product ID:

198628
