NVX NDA101

1000W Peak (500W) RMS N-Series Class-D 1-Ohm Stable Monoblock Amplifier

NVX
Shop all NVX
Product videos
highlight-star-icon

• 210 watts x 1 channel @ 4 ohm
• 330 watts x 1 channel @ 2 ohm
• 500 watts x 1 channel @ 1 ohm
• Total RMS Power: 500 watts
• CEA-2006 Compliant
• 0 to +12 dB bass boost

Learn more about the nda101

We apologize

This item has been discontinued


Loading...
82-8146 main

Metra 82-8146

6x9" Speaker Bracket for select 2002-2024 vehicles from Toyota, Subaru, Lexus

31
-46.07%

$19.95

List price $36.99

Lowest price in 30 days
H7694 main

Cerwin Vega H7694

800W Peak (150W RMS) 6x9" HED Series 4-Way Coaxial 4-ohm Speakers

32
-25.93%

$79.99

List price $107.99

S2-S40 main

Alpine S2-S40

280W Peak (90W RMS) 4" S-Series Hi-Res 2-Way Coaxial 4-ohm Car Speakers

2
-15.42%

$109.95

List price $130.00

CVP69 main

Cerwin-Vega CVP69 (Sold Individually)

300W Peak (150W RMS) 6x9" CVPRO Series Pro Full Range 4-ohm Speaker

1
-16.67%

$49.99

List price $59.99

XED1T main

Cerwin-Vega XED1T

1000W Peak (90W RMS) 1” XED Series 4-ohm Piezo Dome Tweeters

19
-16.67%

$29.99

List price $35.99

Product Highlights


• 210 watts x 1 channel @ 4 ohm
• 330 watts x 1 channel @ 2 ohm
• 500 watts x 1 channel @ 1 ohm
• Total RMS Power: 500 watts
• CEA-2006 Compliant
• 0 to +12 dB bass boost

Description


NVX brand icon

Authorized dealer

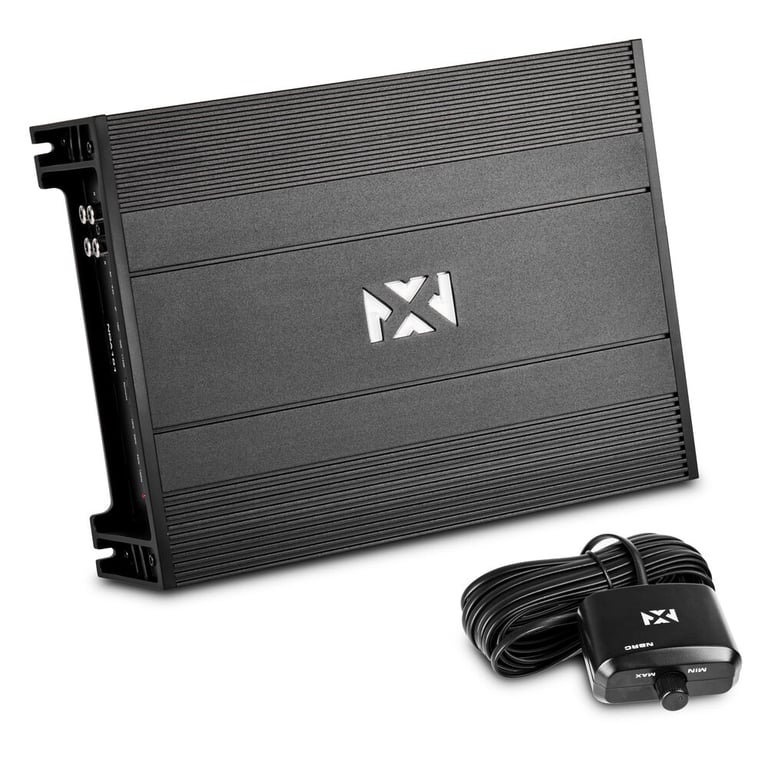

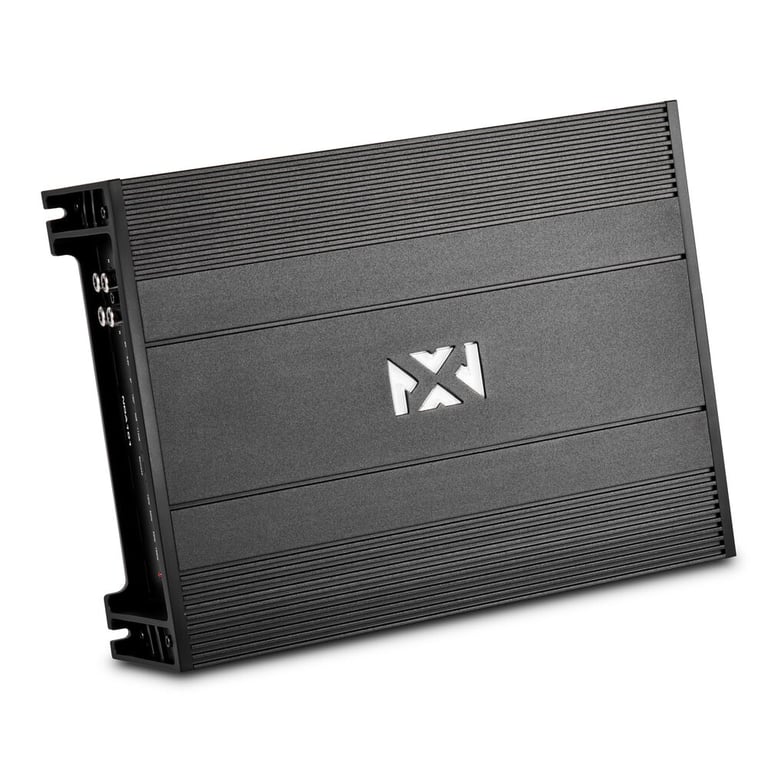

Class D Monoblock Amplifier

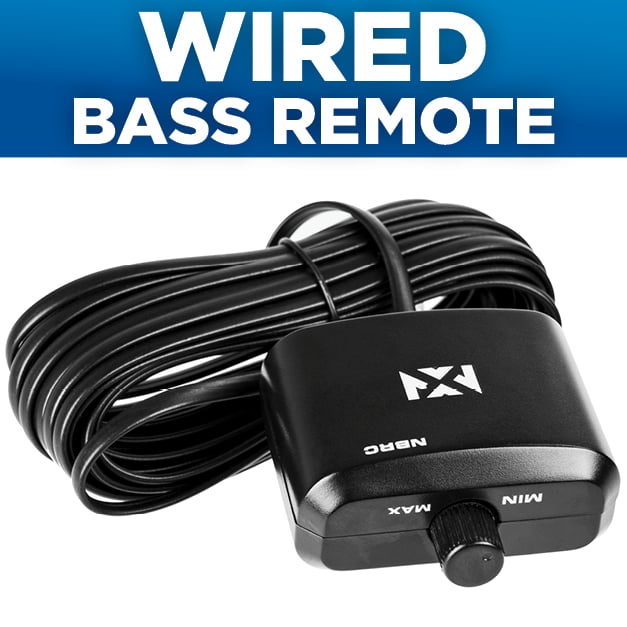

3 Way Protection Circuitry Mosfet Power Supply Wired Bass Remote
1000 Watt Peak Power

Product Details:

  • NVX N Series Series NDA101
  • Class D 1 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 210 watts x 1 channel
    • 2 ohm: 330 watts x 1 channel
    • 1 ohm: 500 watts x 1 channel
  • Total RMS power output: 500 watts
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply

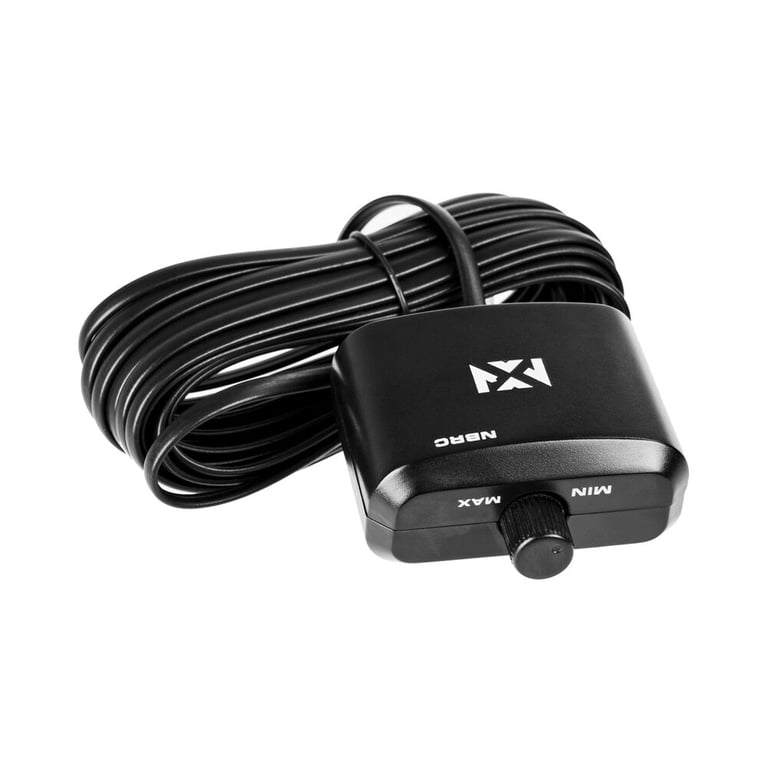

  • Wired remote bass level control included
  • Soft start turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

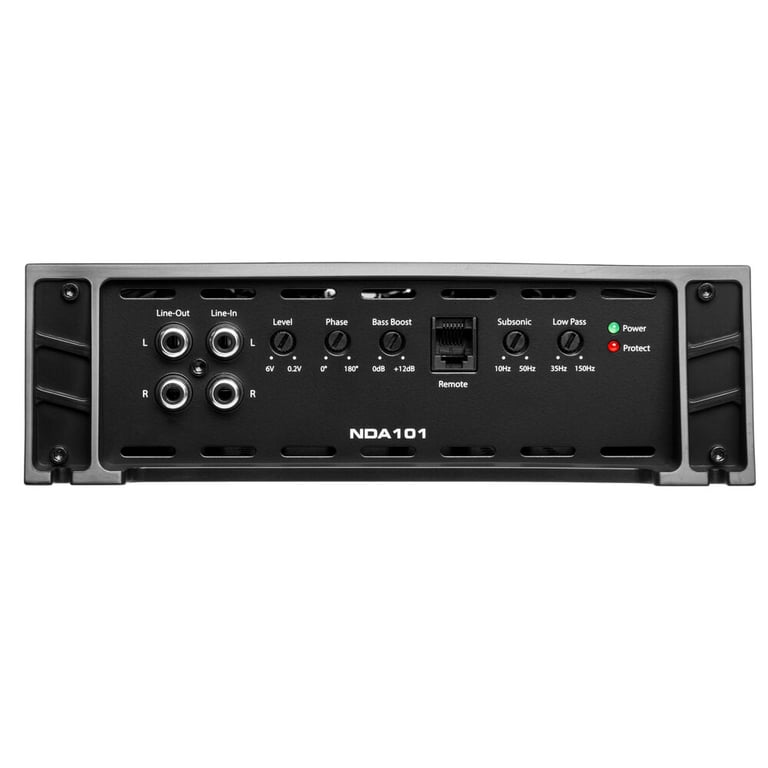

  • Input sensitivity:
    • Low level: 0.2V-6V
  • Frequency Response: 10 - 150 Hz
  • Total Harmonic Distortion (THD): 0.5%
  • Signal to Noise Ratio: 90 dB
  • Variable low-pass filter: 35 - 150 Hz
  • Subsonic filter: 10 - 50 Hz
  • Variable Bass Boost: 0 - 12 dB

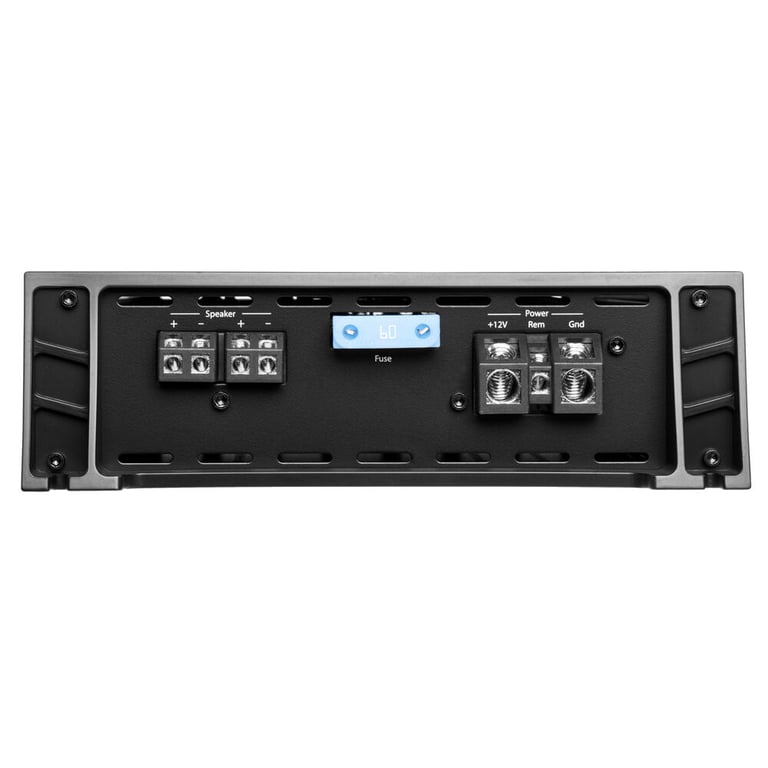

  • Fuse Rating: 60A x 1
  • 4 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 11"W x 7.8"L x 2.4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

REF697F main

Infinity REF697F (INFSPKRF697FUS)

600W Peak (200W RMS) 6x9" Reference Series 2-Way Coaxial 4-ohm Speakers

5
-17.65%

$139.95

List price $169.95


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Key Features
Amplifier Key Features
Bass Boost
Power Specifications - Full Range Channels
RMS Power @ 1 ohm
500 watts x 1 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
210 watts x 1 channel
RMS Power @ 2 ohms
330 watts x 1 channel
RMS Power @ 1 ohm
500 watts x 1 channel
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
420 watts x 1 channel
Peak Power @ 2 ohms
660 watts x 1 channel
Peak Power @ 1 ohm
1000 watts x 1 channel
Amplifier Specifications
Series
N Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1000 watts
Total RMS Power Output
500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Frequency Response
10 - 150 Hz
THD at Rated RMS Power
0.5%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
35 - 150 Hz
Subsonic Filter
10 - 50 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
60A x 1
Strappable
No
Sonic Certified Amplifier
Yes
Amp Bluetooth Connectivity
No
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier
Wired gain knob (wire separate)
Gain knob wire
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

NDA101

Weight:

10.00lbs

Internal SKU:

nda101

Internal Product ID:

181077
