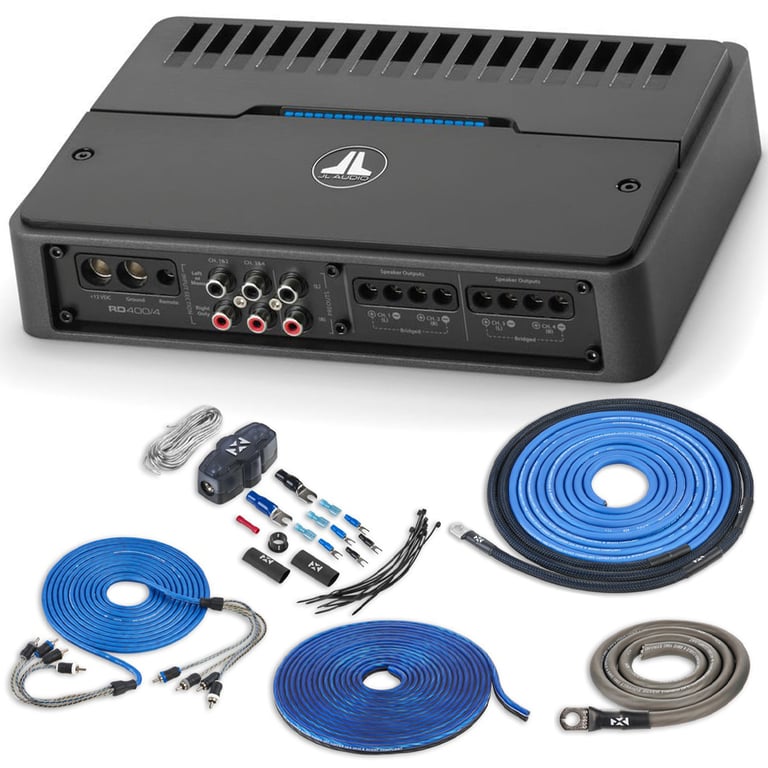

JL Audio RD400/4 with Amplifier Wiring Kit

400W RMS RD-Series NexD 4-Channel Class-D Amplifier

JL Audio
Shop all JL Audio
highlight-star-icon

• 75 Watts RMS x 4 @ 4 ohm
• 100 Watts RMS x 4 @ 2 ohm
• Total Peak Power: 800 Watts
• Variable Bass Boost: 0 to +12 dB bass boost at 45 Hz
• Heavy duty aluminum alloy heat-sink
• 7"W x 9-3/16"L x 2-1/8"H • Includes Amplifier Wiring Kit

Learn more about the rd4004_xkit44

We apologize

This item has been discontinued


Loading...
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

JS35K main

Jensen JS35K

150W Peak (50W RMS) 3.5" Apex Series 2-Way Coaxial 4-ohm Car Speakers

51KSC3504 main

Kicker KSC35 (51KSC3504)

200W Peak (100W RMS) 3.5" KS Series 2 Way Coaxial 4-ohm Speakers

4
-11.11%

$79.99

List price $89.99

CF-350mt main

JL Audio CF-350mt

70W RMS 3.5" CF Series Custom-Fit Midrange 4-ohm Tweeters

4
Club 34F main

JBL Club 34F (JBLSPKCB34F)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

4
-27.29%

$79.95

List price $109.95

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

Limited time!
P1V2-25 main

Rockford Fosgate Punch P1V2-25

300W Peak (150W RMS) 2.5" Punch P1 Series 3 Way Coaxial 4-ohm Speakers

-25.93%

$159.99

List price $215.99

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

Limited time!
46CSC354 main

Kicker CSC35 (46CSC354)

180W Peak (60W RMS) 3.5” CS Series 2 Way Coaxial 4-ohm Speakers

16
-30.71%

$51.96

List price $74.99

Description


JL Audio brand icon

Authorized dealer

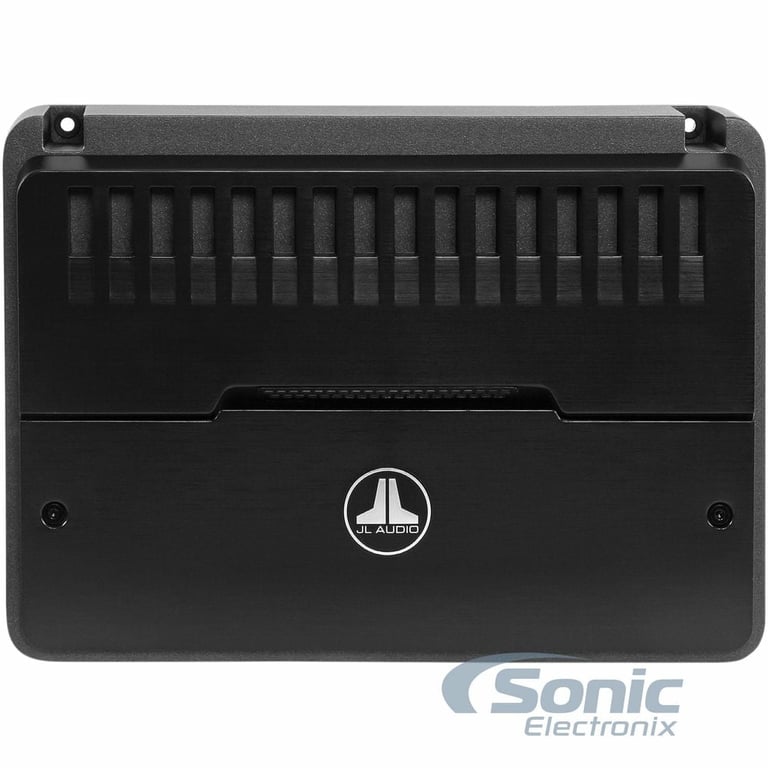

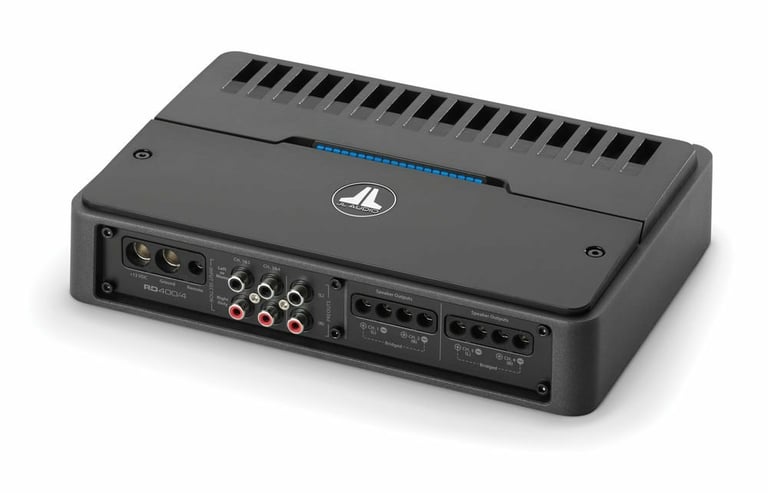

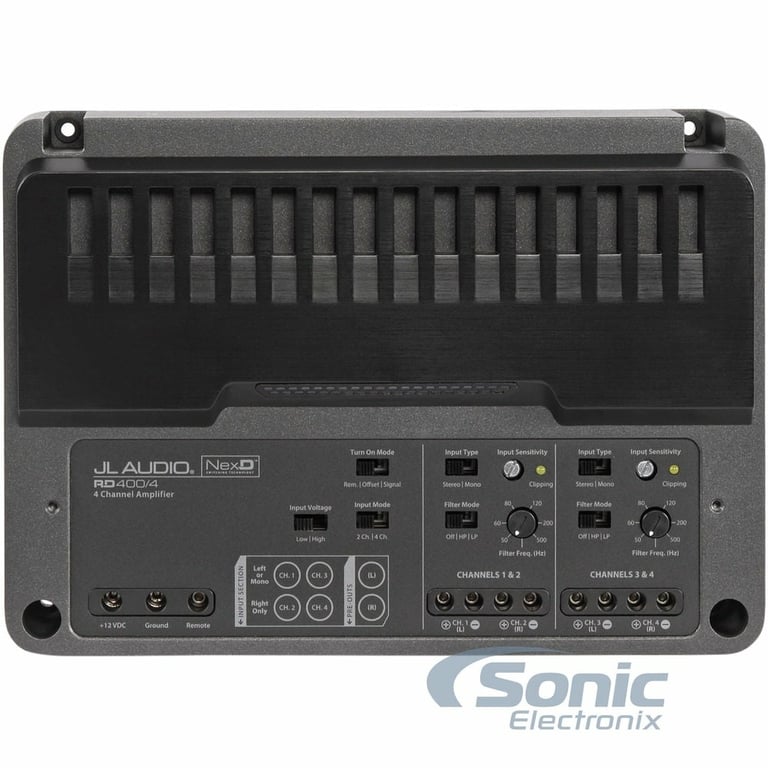

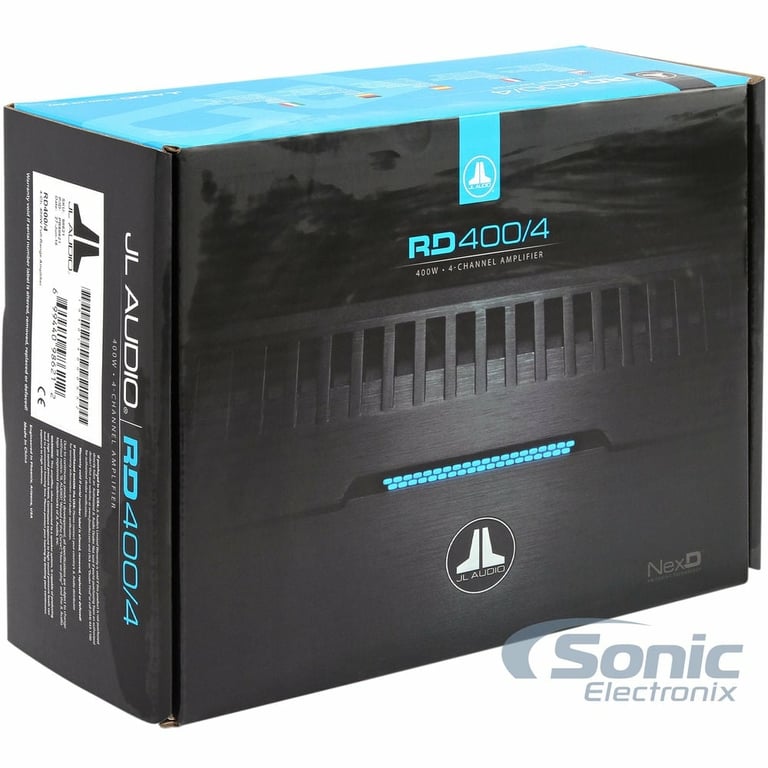

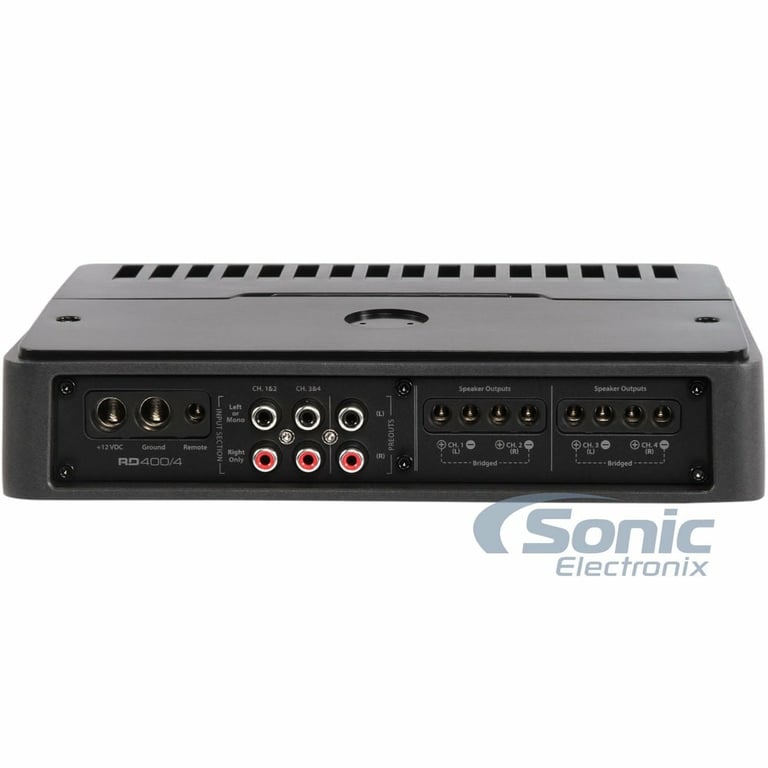

JL Audio RD400/4

400W RMS Class D RD Series 4 Channel Car Amplifier
Quantity: 1

Product Details:

  • RD Series Class D 2 ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 75 watts x 4 channel
    • 2 ohm: 100 watts x 4 channel
    • Bridged: 200 watts x 2 channel @ 4 ohm
  • Total power output: 400 watts
  • Onboard LED clipping indicator rings
  • 1 pair of preamp output
  • Speaker-level (high-level) inputs (Requires adapter like the JL Audio XD-CLRAIC2-SW)
  • Signal sensing remote turn-on
  • NextD switching amplifier technology
  • Differential-balanced inputs help eliminate noise
  • Advanced Rollback Protection System prevents thermal shut-down
  • Input sensitivity:
    • Low level: 200mV - 2 volts
    • High level: 800mV - 8 volts
  • Frequency Response: 12 - 22000 Hz
  • Total Harmonic Distortion (THD): <1%
  • Signal to Noise Ratio: >104 dB
  • Variable high-pass filter: 50 - 500 Hz
  • Variable low-pass filter: 50 - 500 Hz
  • Fuse Rating: 40A (AFS, AGU or MaxiFuse)
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 9.78" L x 6.96" W x 2.13" H
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty
  • MFR #: RD400/4

NVX XKIT44

Full Spec 4 Gauge 100% (OFC) Oxygen Free Copper Complete 4-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1500 Watts
Quantity: 1

Product Details:

  • 4 Gauge 4-Channel X-Series Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1500 watts RMS
  • Made from 100% Oxygen-Free Copper (OFC)
  • Tinned conductors for corrosion resistance
  • Pre-installed black nylon mesh covering protects the power wire from damage
  • Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Pre-terminated seamless power and ground ring terminals provide reliable performance
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • CEA-2015 and BC5W2 compliant
  • V-Series RCA Interconnect Cable
  • Shielded noise-rejecting coaxial construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Twisted-pair construction featuring two conductors per channel
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

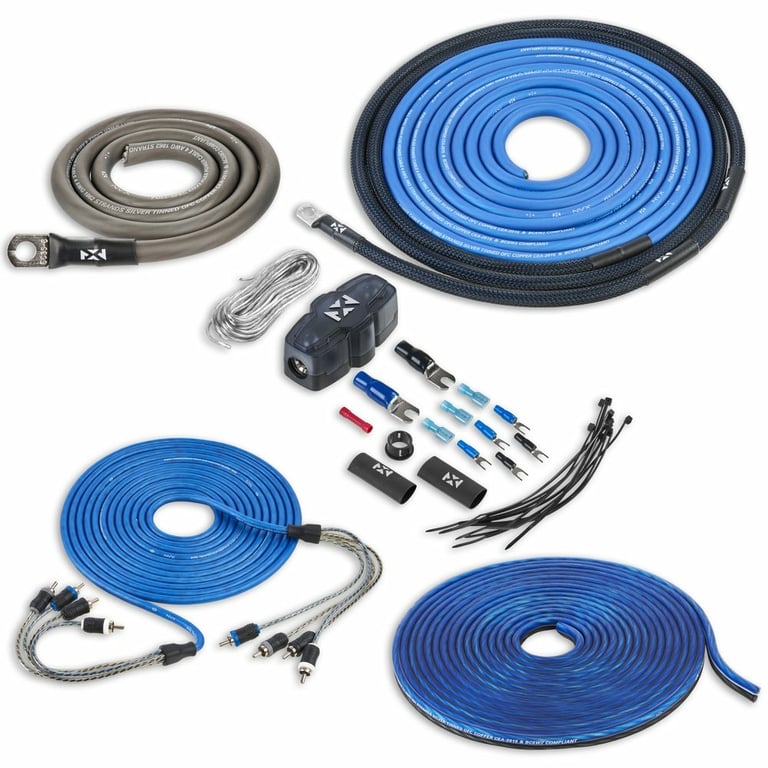

Kit includes:

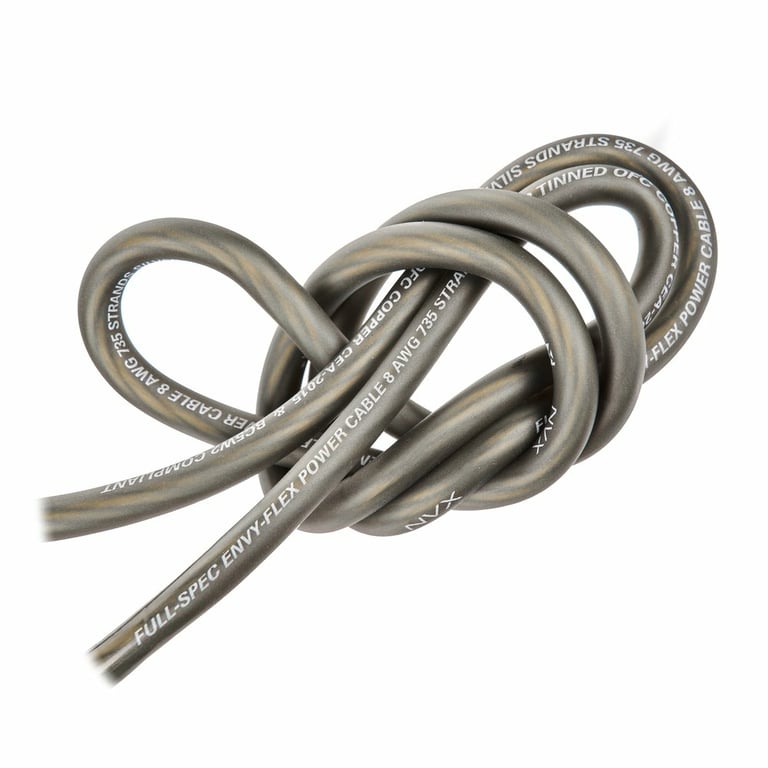

  1. 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal
  2. 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal
  3. 17 ft. Clear 18 gauge remote lead wire
  4. 20 ft. Frosted Black/Blue 16 gauge speaker wire

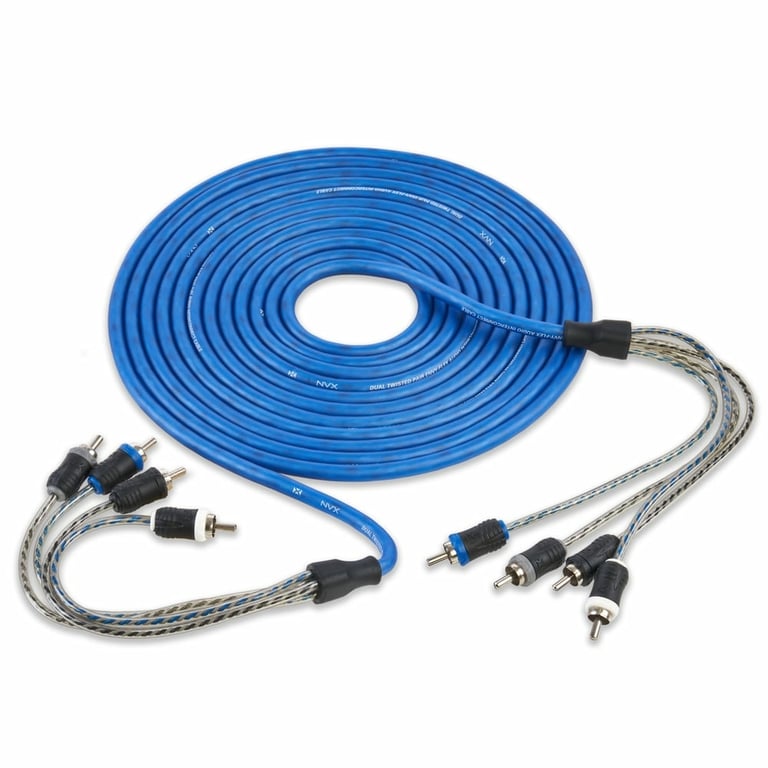

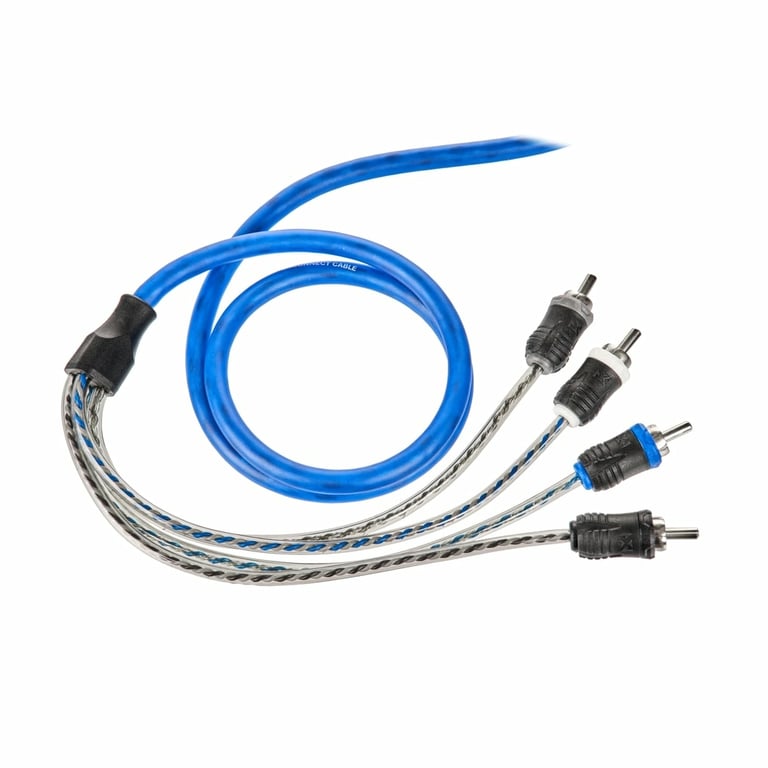

  5. One 16.4 ft. 4-channel dual twisted construction RCA interconnect Cable (NVX XIV45)

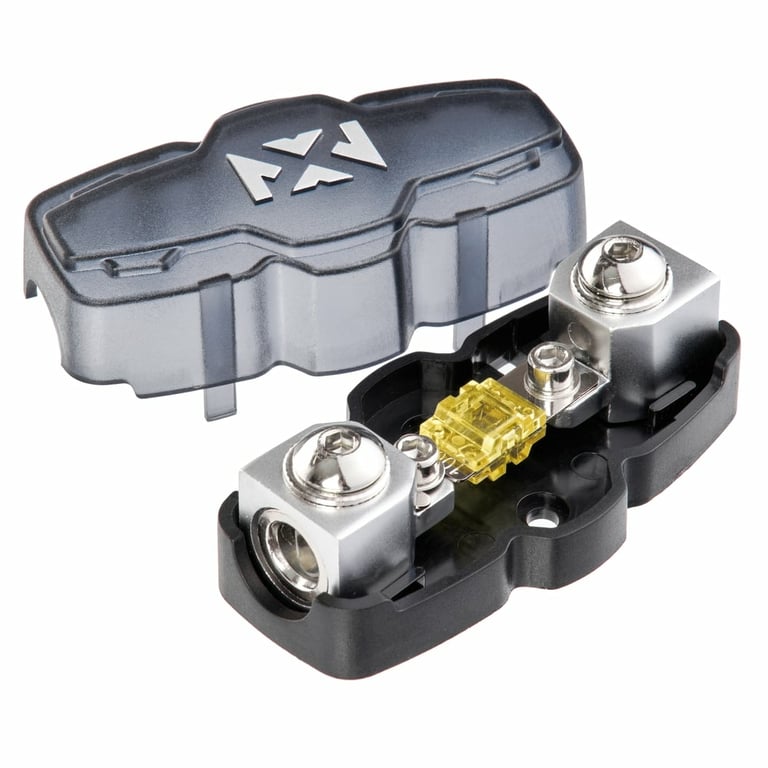

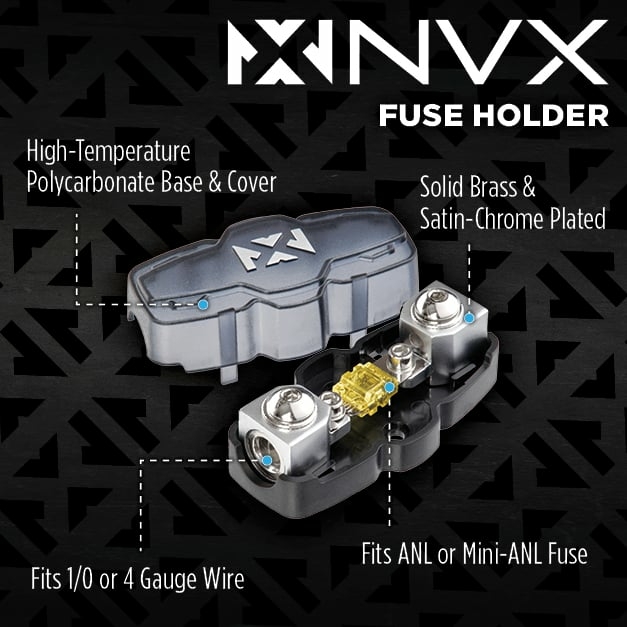

  6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 4 Gauge Nickel Plated spade terminals
  9. Four 18 Gauge Spade terminal
  10. Two 18 Gauge Red butt connectors
  11. Four 16 Gauge quick disconnect
  12. Five 16 Gauge Nickel Plated spade terminals
  13. Two Heat Shrink tubes with the NVX logo
  14. Ten 6" Black zip ties

Product history:

JL Audio RD400/4, XKIT44 thumbnail
(newest, current model)
JL Audio JX400/4D thumbnail
(previous model, replaced by JL Audio RD400/4 with Amplifier Wiring Kit)
JL Audio JX360/4 thumbnail
(previous model, replaced by JL Audio JX400/4D)

Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(255)

$486.93

List price $677.43

51HS10_BAK82_2NK small

Kicker HS10 (51HS10) w/ Free Amp Install Kit

  • Kicker HS10 180W RMS Single Loaded 10-Inch Hideaway Series Powered Subwoofer Enclosure
  • Convenient wired remote for independent bass level control
  • 8 Gauge Premium CCA complete 2-channel amplifier wiring kit with RCA
  • Premium polyurethane foam can insulator sleeve koozie with black logo
  • Complete bass solution includes compact powered subwoofer and installation hardware

(99)

$319.99

List price $489.96

QBSTA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QBSTA & Two Pair 6.5" Speakers

• 11" Spare Tire Subwoofer System
• Built-In Class D Amplifier
• Top-mount amplifier controls
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(260)

$396.93

List price $581.43

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

BAK42,46CXA4001T small

Kicker 46CXA4001 with Amplifier Wiring Kit


• 150 Watts RMS x 1 @ 4 ohm
• 300 Watts RMS x 1 @ 2 ohm
• Total Peak Power: 600 Watts
• Preamp RCA outputs to daisy chain multiple amps
• Variable Low-Pass Crossover: 50 - 200Hz 12dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 40 Hz
• Includes Amplifier Wiring Kit

(45)

$199.99

List price $269.98

46CS65_46CS69_VA4_XK84_SK small

Pair Kicker 6.5" and 6x9" Speakers + NVX Amp w/ Free Amp Install Kit

  • Kicker CSC65 600W Peak 6.5-inch 2-Way Coaxial 4-Ohm Speakers
  • CSC693 900W Peak 6x9-inch 3-Way Coaxial 4-Ohm Speakers with Integrated Midrange
  • NVX VADM4 v2 500W RMS Micro Full-Range Class D 4-Channel Amplifier
  • XKIT84 Full Spec 8 Gauge 100% OFC Complete 4-Channel Wiring Kit with RCA
  • Sonic Electronix Premium Polyurethane Foam Can Insulator Sleeve Koozie

(243)

$401.94

List price $637.94

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(244)

$311.43

List price $533.42

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
100 watts x 4 channel
Bridged RMS Power
200 watts x 2 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
4-Channel
Total Peak Power Output
800 watts
Total RMS Power Output
400 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
84 dB
Channel Separation
12 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
40A x 1
CEA-2031 Compliant
No
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
4 gauge
Power Wire Length
20 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
60 feet
Remote Wire Length
20 feet
Interconnect (RCA) Signal Cables Included
4 Channel
Fuse Holder
ANL/MINI ANL
Fuse Size
100A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

RD400/4, XKIT44

Weight:

14.25lbs

Internal SKU:

rd4004_xkit44

Internal Product ID:

199189

Customer Ratings & Reviews


JL Audio RD400/4 with Amplifier Wiring Kit thumbnail image

5 star
92%
4 star
6%
3 star
1%
2 star
0%
1 star
1%



Durability
4.9
Value
4.8
Features
4.8
Design
4.9
Usability
4.9

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Good value

The following review is for XKIT44, which is a part of the bundle you are viewing.

This kit is true 4 gauge copper wire. Worked great for what I needed it for. Not much else to say besides it is also very flexible!

By Adam on March 14, 2014

121 found this helpful


Honda civic 2010 lx big 3

The following review is for XKIT44, which is a part of the bundle you are viewing.

This big 3 is a very nice setup and I haven't installed it just yet. Great quality wire and you can never go wrong with this product. The price is ok just a little over my budget lol

By Brandon on June 5, 2014

115 found this helpful


Honda civic 2010 lx big 3

The following review is for XKIT44, which is a part of the bundle you are viewing.

This big 3 is a very nice setup and I haven't installed it just yet. Great quality wire and you can never go wrong with this product. The price is ok just a little over my budget lol

By Brandon on June 5, 2014

108 found this helpful


Best kit money can buy

The following review is for XKIT44, which is a part of the bundle you are viewing.

This kit includes everything I needed for my 4-channel JL Audio amp. I love it. The look of the fuse holder is awesome and the braided cable protector is great under the hood too. The RCAs worked like a charm and I had plenty of speaker wire included. No complaints.

By Hamid on August 16, 2012

109 found this helpful


great

The following review is for XKIT44, which is a part of the bundle you are viewing.

Have not installed yet but it seems to be everything it claims to be. Did recomend itnto a friend but he didn't listen and spent way to much for a kitat a local best buy. Did a lot of research before I bought this kit and it looked like the best value for my hard earned money. Having not yet installed is why I didn't go all five stars. Soon it will be going into my 89 olds custom cruiser with 4 12s....

By Tyler on August 24, 2014

110 found this helpful


Great Amp Kit

The following review is for XKIT44, which is a part of the bundle you are viewing.

This is a high quality 4g amp kit for a great price .... nice 100 amp fuse box

By Kyle on June 13, 2014

108 found this helpful


Awesome kit!!!

The following review is for XKIT44, which is a part of the bundle you are viewing.

This wiring kit is the best I've used so far. It bends very easy in tight places and this is the size wire that I actually paid for. Don't waste $ on cheaper brands...NVX is AWESOME!!!

By jeremy on September 1, 2014

104 found this helpful


Great Complete Package

The following review is for XKIT44, which is a part of the bundle you are viewing.

I replaced all speaker wiring in my car with this kit. The quality of all the wires is very good. NVX is nice quality!

By detekk on June 29, 2013

105 found this helpful


great product

The following review is for XKIT44, which is a part of the bundle you are viewing.

This kit is very good and great quality. I would recommend this product for basic and some advanced systems.

By Brandon on December 30, 2014

108 found this helpful


Top of the line kit at decent price

The following review is for XKIT44, which is a part of the bundle you are viewing.

This kit has everything and is as good as you can buy. Better than jl, Rockford, stinger, and kicker. At a price less than or equal to those mentioned. True spec, silver tinned ofc

By Donnie on March 30, 2013

102 found this helpful



KMR-D558BT small

Kenwood KMR-D558BT

Single-Din Bluetooth Marine Stereo w/ iPod Control, Internet Radio, and Sirius XM Ready

(6)

$139.99

List price $199.99

SX PRO 12D2_BBX112RD small

1000W RE Audio Subwoofer and Enclosure Package

Single 12" SX PRO 12D2 Subwoofer + Ported Enclosure Custom Red Baffle

(6)

$349.95

List price $729.98

TX10 small

Phoenix Gold TX10 10" TantrumX Series

$59.99

List price $169.99

ZR-10D2 small

Phoenix Gold ZR-10D2 10" Octane-ZR DVC 2 Ohms ( ZR10D2 )

$59.99

List price $199.99

RSdC102 small

Phoenix Gold RSdC102 (RSdC 102)

10" Dual 2 ohm RSdC (Radial SD Competition) Series Subwoofer

(3)

$99.99

List price $319.99

GR100 small

Kicker GR100 10" Speaker Grille-OPEN BOX

10" Speaker Grille for Kicker Comp, CompVR, CompVT , CompVX, and Solo Classic

$10.95

List price $25.95

VM9423-2 small

Jensen VM9423 + Jensen NAV102 Package

Combo with GPS Navigation + Double DIN 6.5" Touchscreen CD, DVD, MP3, WMA Multimedia Receiver w/ HD Radio Tuner and Media Link Interface

$579.99

List price $949.98

No picture

Pioneer AVIC-N3 (DEFECTIVE - NO GUARANTEES - ALL SALES FINAL)

Core Unit without Face Plate

$75.00

List price $0.00

AVIC-D3+CD-i200+CD-BTB200 small

Combo: Pioneer AVIC-D3 + CD-i200 + CD-BTB200

Double DIN 6.1" TFT-LCD Touchscreen DVD/CD/MP3 Receiver with GPS Navigation System PLUS iPod Adapter Cable Included AND Bluetooth Kit Included

(1)

$809.99

List price $1519.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2021 Mazda CX-30

2011 Land Rover LR4

2025 GMC Terrain

1999 Chrysler LHS

2004 Volvo XC70

1990 Volvo 760

2017 Dodge Ram ProMaster 2500

2004 BMW 645Ci

1992 Lexus ES300

1988 BMW 528e

Vehicle
Store
Delete

2000 Harley Davidson FXSTS/I Springer Softail

2012 Harley Davidson FLS Softail Slim

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
