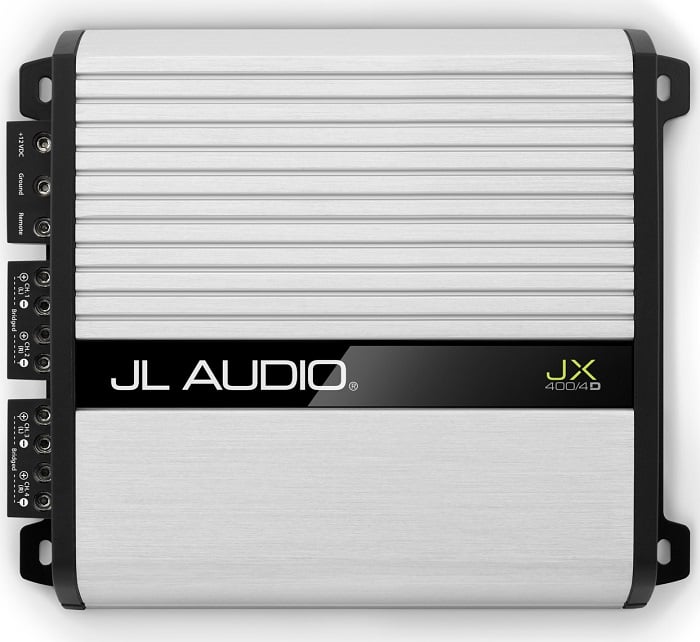

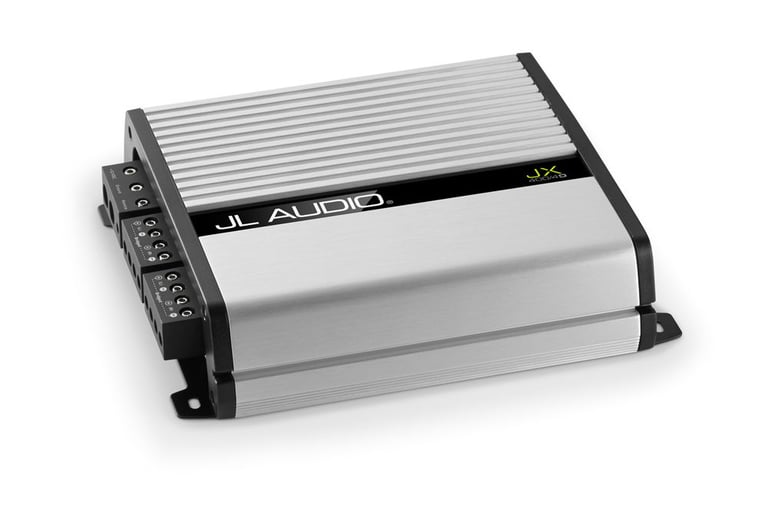

JL Audio JX400/4D Image 1 — JL Audio JX400/4D

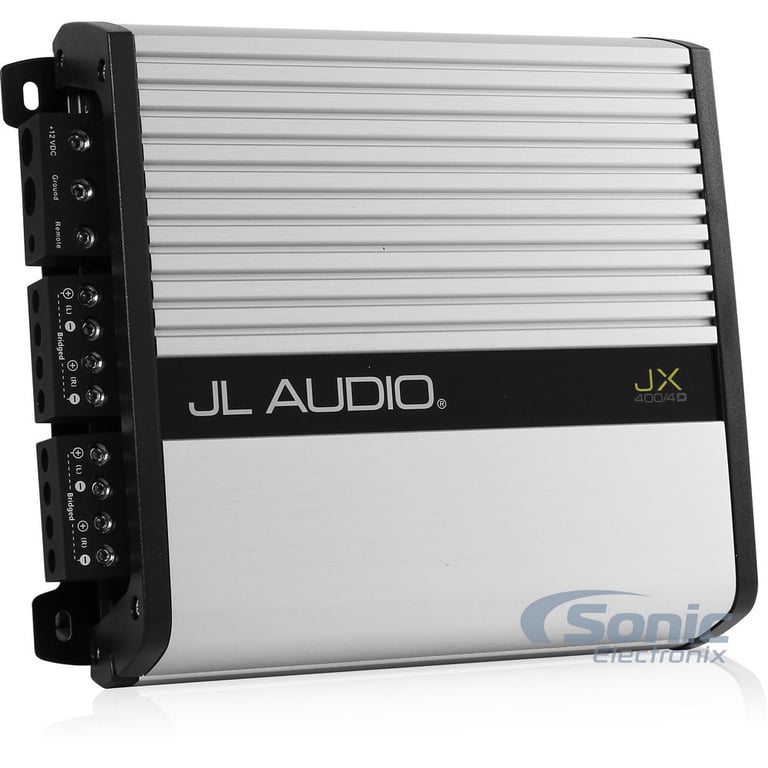

JL Audio JX400/4D Image 2 — JL Audio JX400/4D

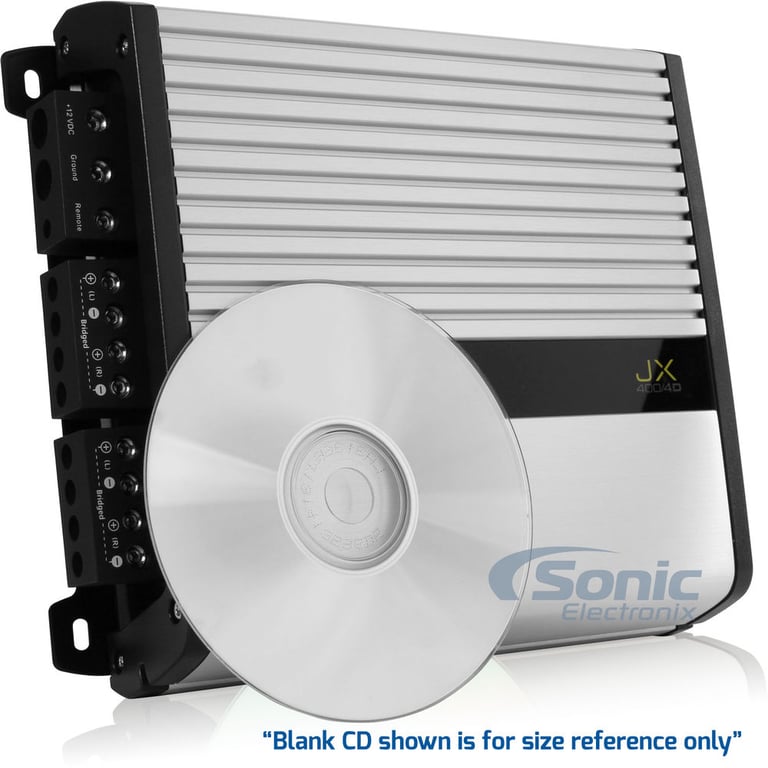

JL Audio JX400/4D Image 3 — JL Audio JX400/4D

JL Audio JX400/4D Image 4 — JL Audio JX400/4D

JL Audio JX400/4D Image 5 — JL Audio JX400/4D

JL Audio JX400/4D Image 6 — JL Audio JX400/4D

JL Audio JX400/4D Image 7 — JL Audio JX400/4D

JL Audio JX400/4D Image 8 — JL Audio JX400/4D

Product videos

Product highlights

• Peak: 70W x 4 @ 4 ohm, 100W x 4 @ 2 ohm, 200W x 2 @ 4 ohm Bridged
• Unregulated PWM switching type power supply
• Class D Circuitry
• Defeatable 12 dB / octave filter
• Speaker-level (high-level) inputs with included harness
• Dimensions: 7.68"W x 9.05"L x 2.09"H

Learn more about the jx4004d

Other Mazda MPV owners bought

Product Highlights

Description

Authorized dealer

JL Audio JX400/4D - JX Series 4-Channel Class D Full-Range Amplifier

The JL Audio JX Series of amplifiers are designed with a specific purpose; to deliver clean, rock-solid performance and reliability at an affordable price. The JL Audio JX400/4D is a four-channel, full-range audio amplifier utilizing Class D technology that can be operated with a wide variety of source units and system configurations. Unlike gimmicky price-conscious amplifiers, JL Audio employs specified oversized output transistors and rugged MOSFET power supplies to unsure proper current, thermal capacity and better overall performance. In addition, the JX400/4D includes flexible signal processing capabilities with a fully variable 12 dB/octave crossover filter, pass-through preamp outputs and high-level inputs.

Integration Flexibility

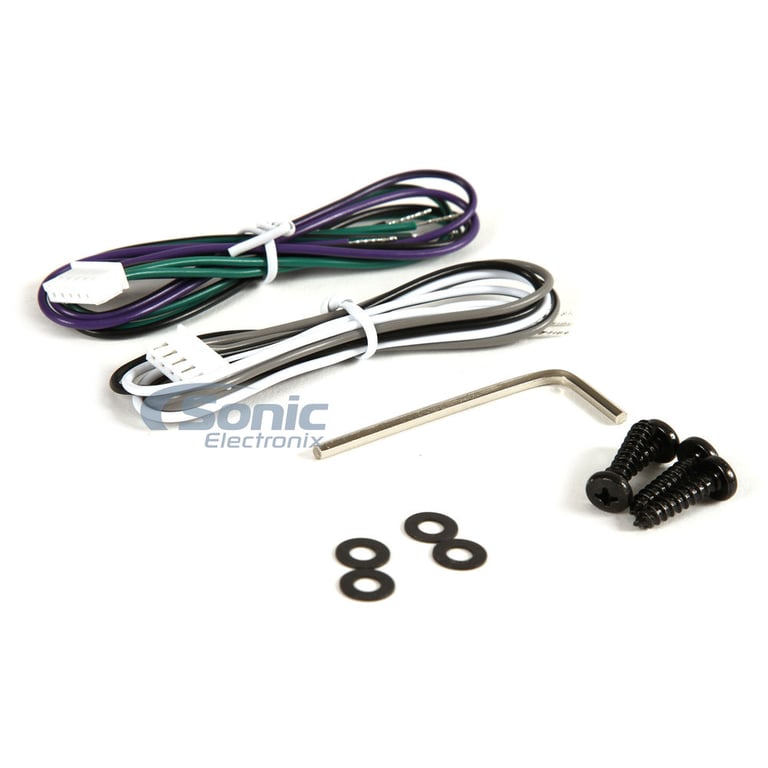

For those systems that do not offer a preamp level signal option, you can connect speaker level signals directly to the “Hi-Level Inputs” connector using the supplied connector and wire harness. Simply splice the appropriate left/right and positive/negative wires to the included harness and plug the harness into the “Hi-Level Inputs” connector on the amplifier. The JX monoblock will attenuate the high-level signal to make it compatible with its input stage. Alternatively, a traditional left/ right pair of RCA type jacks is used for preamp level (low-level) signals. This is the preferred connection method whenever available.

Selectable 12 dB / octave filter

The JX class D full-range amplifier features a defeatable 12 dB / octave filter, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-200 Hz. This feature is designed to attenuate frequencies above or below its filter frequency, so that the system’s speakers do not reproduce any audible and often harmful frequencies. 80 Hz is a good starting point for system tuning, but its also advisable to match the crossover point with that of your subwoofer's low-pass filter - this ensures that your system is properly distributing the frequencies to the appropriate medium.

General Features:

JX Series 4-Channel Class D Subwoofer Amplifier
RMS Power Rating (14.4V):

4 ohm: 70 watts x 4 chan.
2 ohm: 100 watts x 4 chan.
Bridged, 4 ohm: 200 watts x 2 chan.

RMS Power Rating (12.5V):

4 ohm: 50 watts x 4 chan.
2 ohm: 80 watts x 4 chan.
Bridged, 4 ohm: 160 watts x 2 chan.

Unregulated PWM switching type power supply
LED power (green) and protect (red) indicators
Soft start turn-on prevent clicking and popping when system turns on
Speaker-level (high-level) inputs with included harness
Preamp RCA outputs to daisy chain multiple amps
3-way protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heatsink for effective heat dissipation
Nickel-plated RCA level inputs

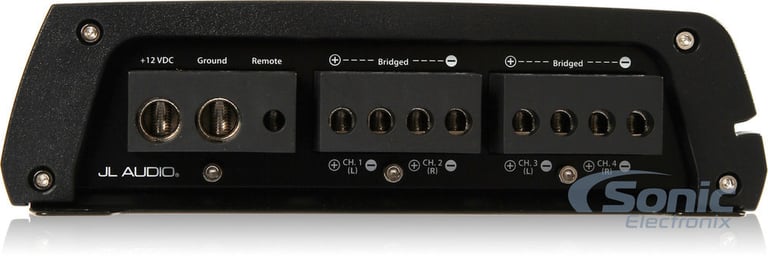

Nickel-plated screw terminals

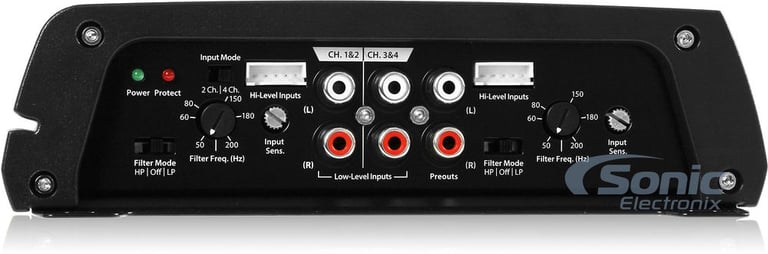

Selectable input mode: 2 Ch. / 4 Ch.
Input sensitivity:

Low level input: 200mV - 4V
High level input: 2.0mV - 10.0V

Selectable filter mode: HP / Off / LP
Variable cutoff filter: 50 - 200 Hz, 12 dB/octave
Frequency Response: 20 - 20,000 Hz
Total Harmonic Distortion (THD): <1%
Signal to Noise Ratio: >93 dB
Damping Factor @ 4 ohm: >60 @ 4 ohm
Fuse Rating: 40A x 1 inline (not supplied)
4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
Weight: 4.80 lb
Dimensions: 7.68"W x 9.05"L x 2.09"H
Authorized Internet Dealer
2 Year Manufacturer's Warranty

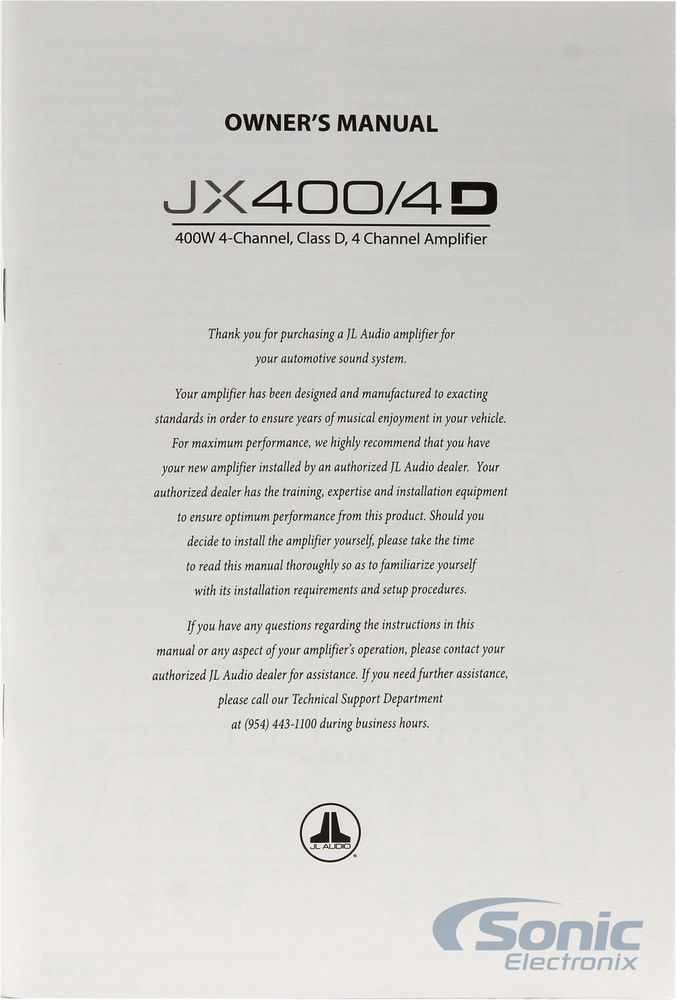

Check out the JL Audio JX400/4D Owner's Manual

Product history:

	JL Audio RD400/4 (newest, current model)
	JL Audio JX400/4D (previous model, replaced by JL Audio RD400/4)
	JL Audio JX360/4 (previous model, replaced by JL Audio JX400/4D)
