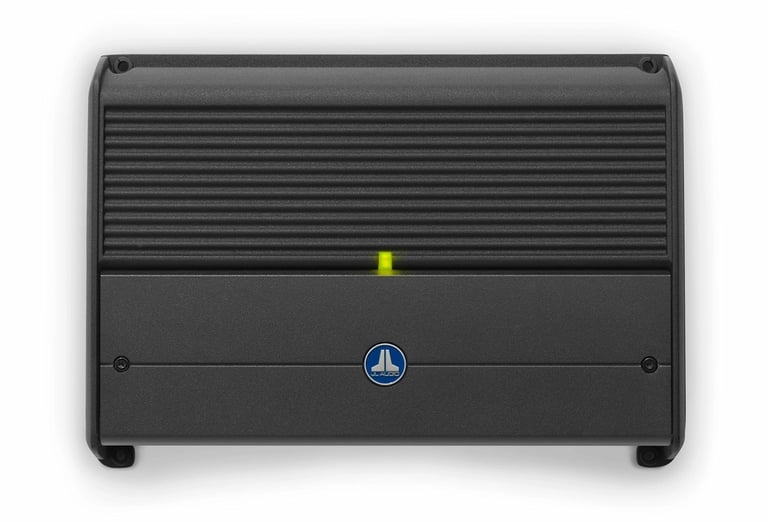

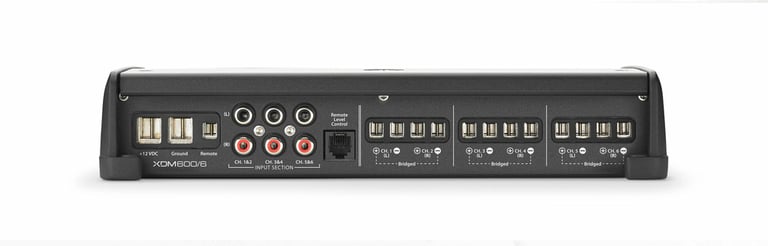

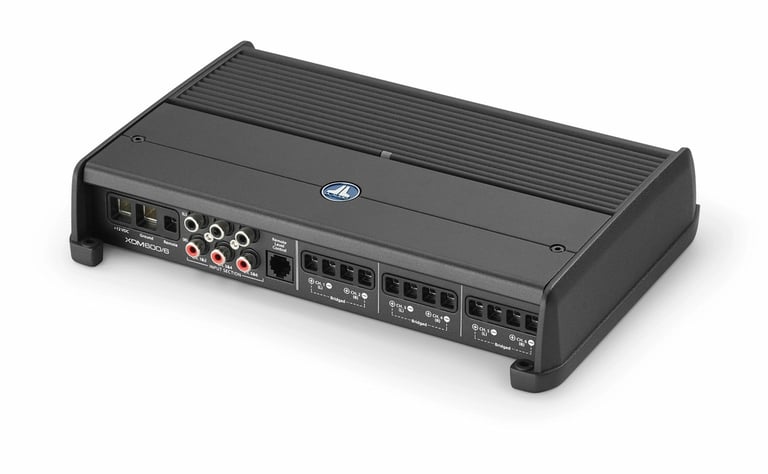

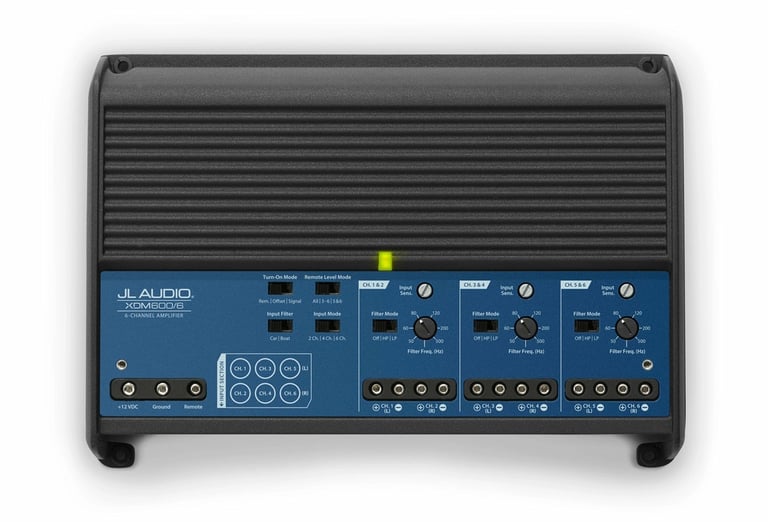

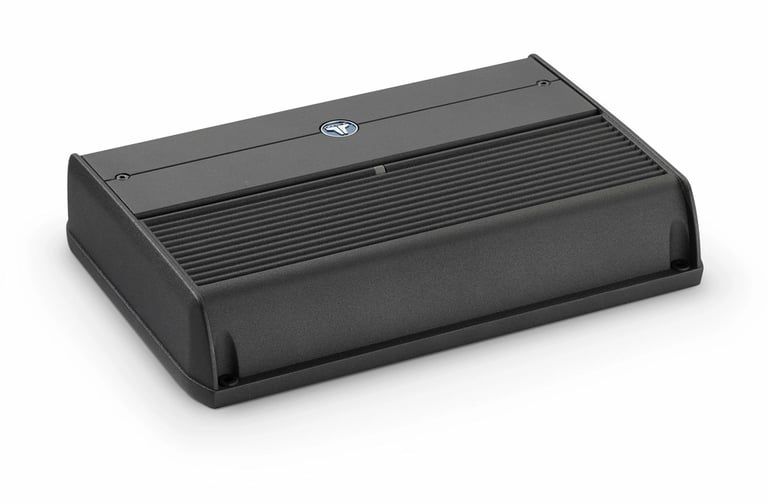

JL Audio XDM600/6 (Like New (Open Box))

600W RMS Class D XMD Series 6 Channel Car and Marine Amplifier

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

• 75 watts x 6 channel @ 4 ohm
• 100 watts x 6 channel @ 2 ohm
• Bridged: 200 watts x 3 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 6-Channel Amplifier

Learn more about the ls-xdm6006-u9

We apologize

This item has been discontinued

Product Highlights


• 75 watts x 6 channel @ 4 ohm
• 100 watts x 6 channel @ 2 ohm
• Bridged: 200 watts x 3 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 6-Channel Amplifier

Description


JL Audio brand icon

Authorized dealer

Item Condition - Like New (Open Box):

This product works and looks like new. It may have been opened for a visual demo or product video. In some cases there may be signs of an attempt at installation like opened packaging or mounting screw holes used, but there is no real sign of use or wear. Includes all original parts, packaging and accessories (or suitable replacement)


XDM600/6

The incredibly flexible XDM600/6 packs a serious full-range wallop and delivers a stunning 100 watts to each of its six channels into 2 ohms (14.4V, 1% THD). The technology that makes this much power possible in such a compact chassis is its advanced NexD high-speed switching design, which permits full bandwidth Class D operation with extremely low distortion and remarkable efficiency. Suitable for car or boat installations, the XDM600/6 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.


Product Details:

  • XDM Series Class D 2 ohm Stable 6-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 75 watts x 6 channel
    • 2 ohm: 100 watts x 6 channel
    • Bridged: 200 watts x 3 channel @ 4 ohm
  • Total power output: 600 watts
  • LED Power/Protect Light
  • Wired bass level remote control with optional JL Audio HD-RLC or JL Audio MHD-RLC
  • Speaker-level (high-level) inputs (Requires adapter like the JL Audio XD-CLRAIC2-SW)
  • Signal sensing remote turn-on
  • Protection Circuitry with Status LED
  • NextD switching amp technology
  • Differential-balanced inputs help eliminate noise
  • Weather-resistant chassis: black powder-coat finish, gasketed control cover, stainless steel hardware
  • Input sensitivity:
    • Low level: 200mV - 4 volts
  • Frequency Response: 12 - 22000 Hz
  • Total Harmonic Distortion (THD): <1%
  • Signal to Noise Ratio: >104 dB
  • Variable high-pass filter: 50 - 500 Hz
  • Variable low-pass filter: 50 - 500 Hz
  • Fuse Rating: 50A
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 10.23" L x 7.09" W x 2.05" H
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty
  • MFR #: XDM600/6

Product history:

JL Audio XDM600/6-4 thumbnail
(newest, current model)
JL Audio XD600/6V2 thumbnail
(previous model, replaced by JL Audio XDM600/6 (Like New (Open Box)))

Specifications & Details


Key Features
Amplifier Key Features
Speaker Level Inputs
Weather-Resistant
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 6 channel
RMS Power @ 2 ohms
100 watts x 6 channel
Bridged RMS Power
200 watts x 3 channel
Amplifier Specifications
Series
XDM Series
Amplifier Class
D
Number of Channels
6-Channel
Total RMS Power Output
600 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Frequency Response
12 - 22000 Hz
THD at Rated RMS Power
<1%
Speaker Level Inputs
Optional (Requires Accessory Adapter)
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
>104 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
50A x 1
Total Fuse Rating
50
Strappable
No
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
200mV - 4 volts

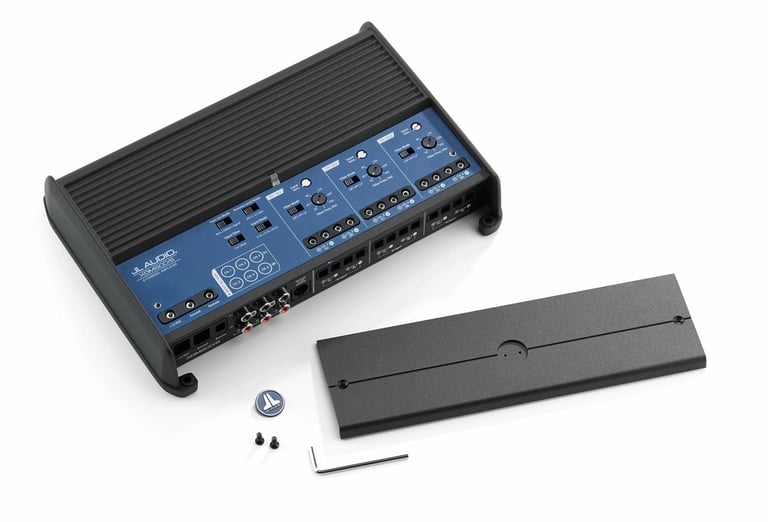

What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Amplifiers
Amplifier
Adhesive brand badge
Allen wrench
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XDM600/6-4

Weight:

6.65lbs

Internal SKU:

ls-xdm6006-u9

Internal Product ID:

228423
