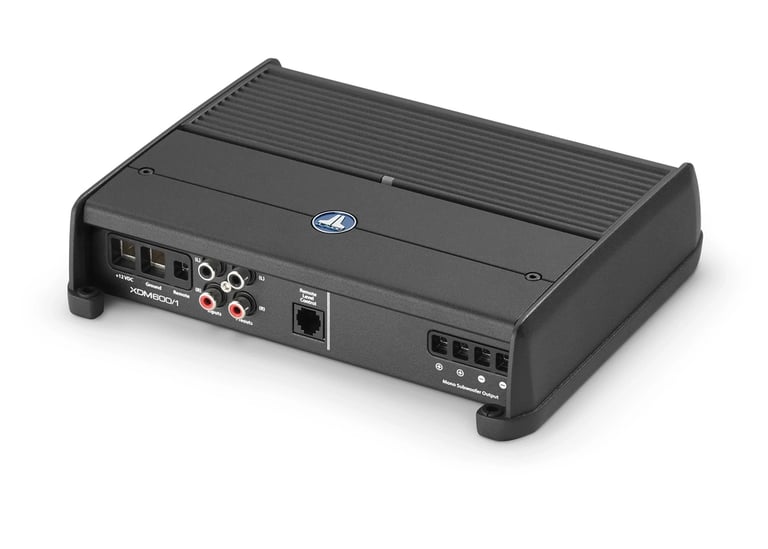

JL Audio XDM600/1 (Open Box, Good) Image 1 — JL Audio XDM600/1 (Open Box, Good)

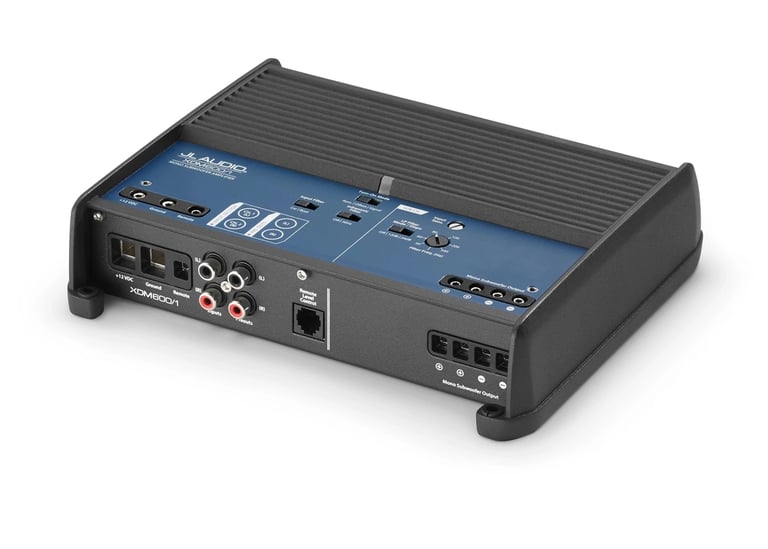

JL Audio XDM600/1 (Open Box, Good) Image 2 — JL Audio XDM600/1 (Open Box, Good)

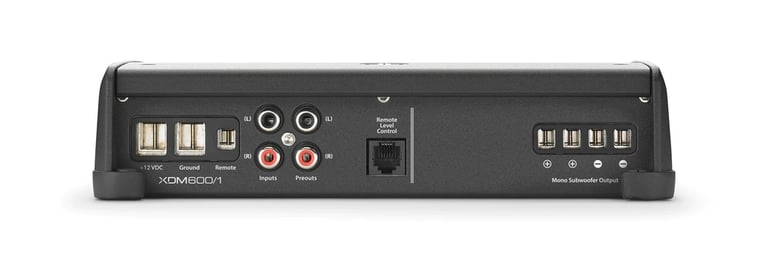

JL Audio XDM600/1 (Open Box, Good) Image 3 — JL Audio XDM600/1 (Open Box, Good)

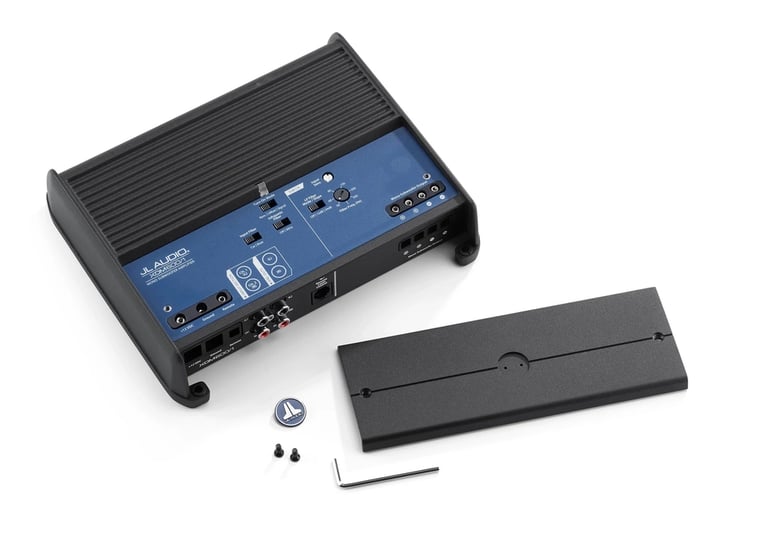

JL Audio XDM600/1 (Open Box, Good) Image 4 — JL Audio XDM600/1 (Open Box, Good)

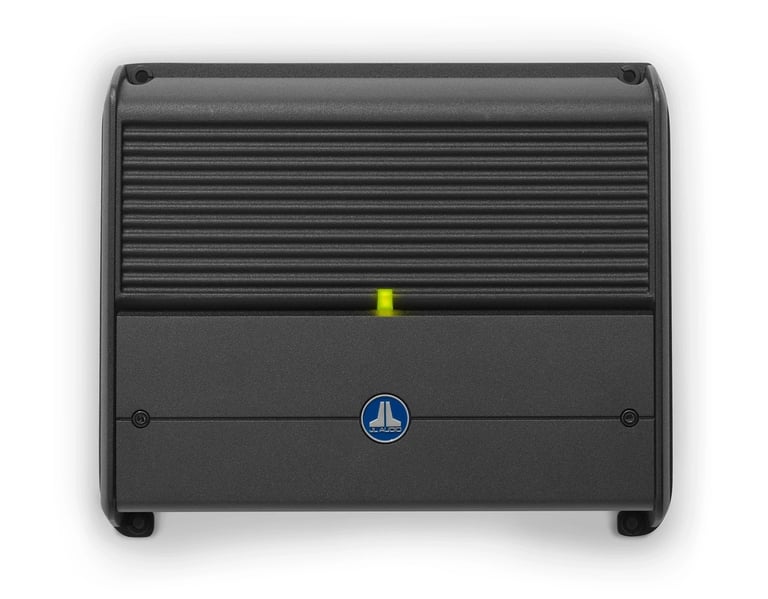

JL Audio XDM600/1 (Open Box, Good) Image 5 — JL Audio XDM600/1 (Open Box, Good)

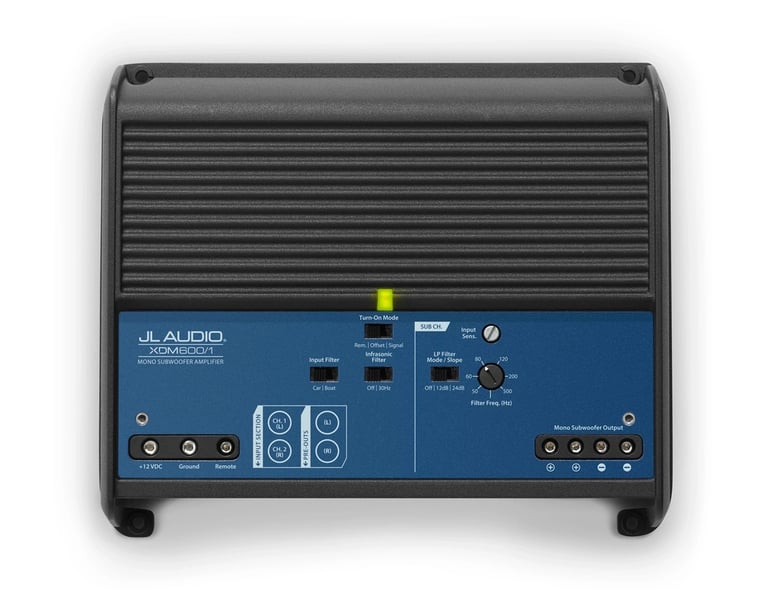

JL Audio XDM600/1 (Open Box, Good) Image 6 — JL Audio XDM600/1 (Open Box, Good)

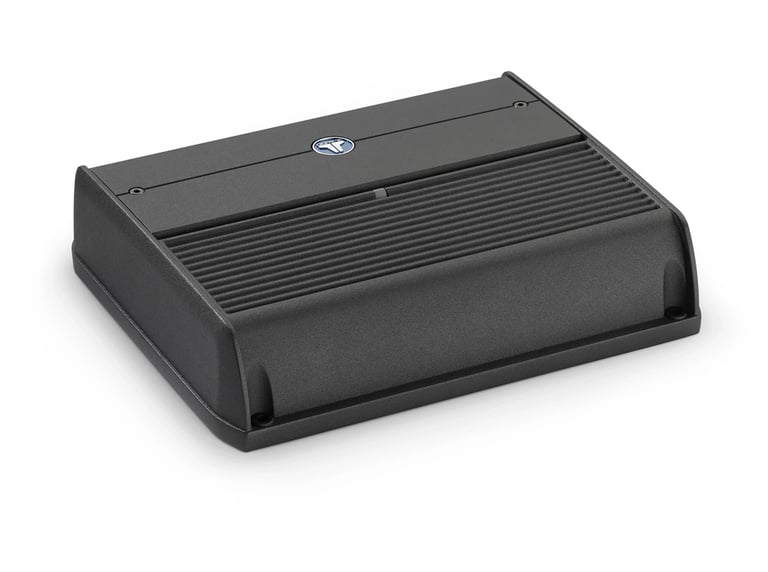

JL Audio XDM600/1 (Open Box, Good) Image 7 — JL Audio XDM600/1 (Open Box, Good)

JL Audio XDM600/1 (Open Box, Good)-video

Product videos

Product highlights

• 400 watts x 1 channel @ 4 ohm
• 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable Monoblock Amplifier

Learn more about the ls-xdm6001-u7

Product Highlights

• 400 watts x 1 channel @ 4 ohm
• 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable Monoblock Amplifier

Description

Authorized dealer

Item Condition - Open Box, Good:

This product is used, but it will work like new and is in overall good condition. It will show signs of wear that can include scuffing, scratches, fingerprints, dents, and worn corners or installation marks. May be missing non-essential parts, accessories or original packaging.

XDM600/1

This potent monoblock amplifier employs high-speed NexD switching design to achieve unprecedented efficiency and amazing power output from a very compact chassis. Don't let its small size fool you, though... the XDM/600/1 generates serious subwoofer power, delivering a full 600 W of continuous power into a 2 ohm load (14.4V, 1% THD). Designed for car or boat installations, the XDM600/1 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.

Targeted specifically for subwoofer applications, the XDM600/1 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500 Hz.

Product Details:

XDM Series Class D 2 ohm Stable Monoblock Amplifier
RMS Power Rating:

4 ohm: 400 watts x 1 channel
2 ohm: 600 watts x 1 channel

Total power output: 600 watts
LED Power/Protect Light
Wired bass level remote control with optional JL Audio HD-RLC or JL Audio MHD-RLC
Speaker-level (high-level) inputs (Requires adapter like the JL Audio XD-CLRAIC2-SW)
Signal sensing remote turn-on
Protection Circuitry with Status LED
NextD switching amp technology
Differential-balanced inputs help eliminate noise
Weather-resistant chassis: black powder-coat finish, gasketed control cover, stainless steel hardware
Input sensitivity:

Low level: 200mV - 4 volts

Frequency Response: 7 - 500 Hz
Total Harmonic Distortion (THD): <1%
Signal to Noise Ratio: >87 dB
Variable low-pass filter: 50 - 500 Hz
Subsonic filter: 0 - 30 Hz
Fuse Rating: 50A
4 AWG gauge amplifier wiring kit is recommended for installation
Dimensions: 8.52" L x 7.09" W x 2.05" H
Authorized Internet Dealer
2 Year Manufacturer's Warranty
MFR #: XDM600/1

Product history:

	JL Audio XDM600/1 (Open Box, Good) (newest, current model)
	JL Audio XD600/1v2 (previous model, replaced by JL Audio XDM600/1 (Open Box, Good))
	JL Audio XD600/1 (previous model, replaced by JL Audio XD600/1v2)

Specifications & Details

Key Features

Amplifier Key Features

Compact Design
Speaker Level Inputs
Weather-Resistant

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

400 watts x 1 channel

RMS Power @ 3 ohm

500 watts x 1 channel

RMS Power @ 2 ohms

600 watts x 1 channel

Amplifier Specifications

Series

XDM Series

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

600 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

Not Bridgeable

Frequency Response

7 - 500 Hz

THD at Rated RMS Power

<1%

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
Subsonic

Low-Pass Crossover Frequency

50 - 500 Hz

Subsonic Filter

0 - 30 Hz

Signal-to-Noise Ratio

>87 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

Fuse Rating

50A x 1

Total Fuse Rating

Strappable

Amp Bluetooth Connectivity

Hi-Res Certified

Low-Level Input Sensitivity

200mV - 4 volts

What is in the box?

Paperwork

User manual

WITB: Amplifiers

Amplifier
Adhesive brand badge
Allen wrench

Warranty and Return Policy

Parts Warranty Duration

2 years

Labor Warranty Duration

2 years

Warranty Provider

Manufacturer
