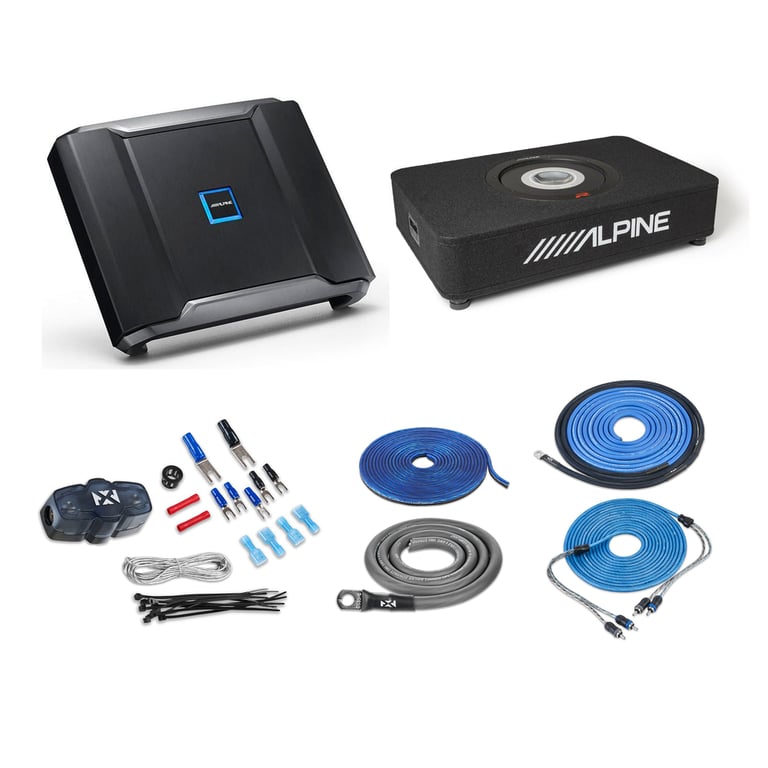

Alpine RS-SB12 + Alpine R-A75M + Amplifier Wiring Kit

1800W Peak (600W RMS) 12” Halo Series 2-Ohm Loaded Subwoofer Sealed Enclosure

Alpine
Shop all Alpine
highlight-star-icon

• 600 watts Single 12" Sealed Subwoofer Enclosure
• Spring-loaded Terminal Posts
• Enclosure Dimensions: 16" TD x 24.5" W x 5.25" H

Learn more about the rssb12_ra75m_xkit42

We apologize

This item has been discontinued

Description


Alpine brand icon

Authorized dealer

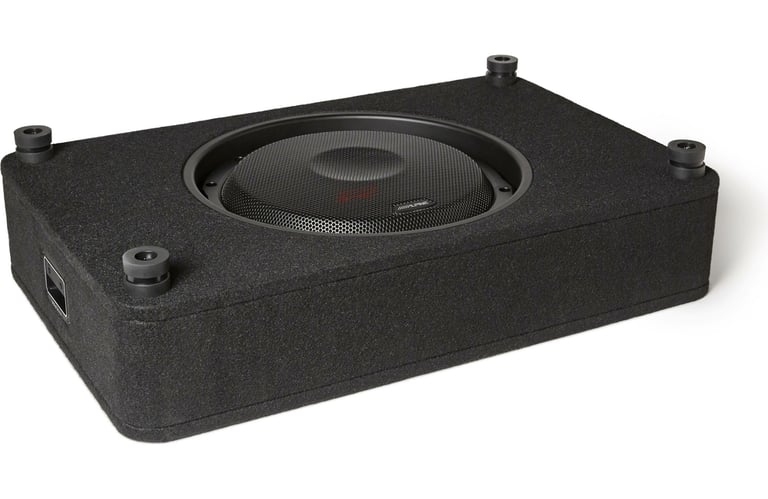

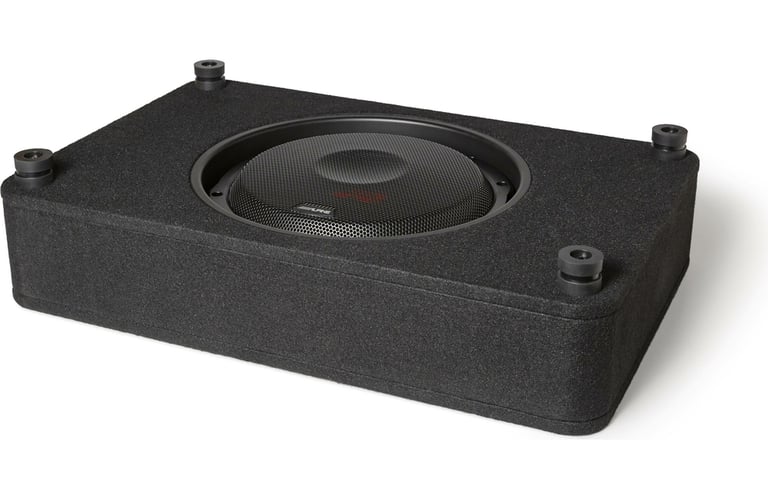

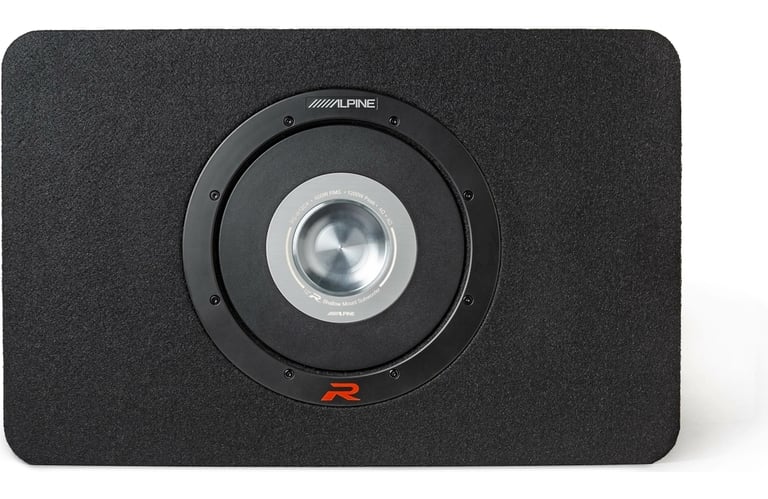

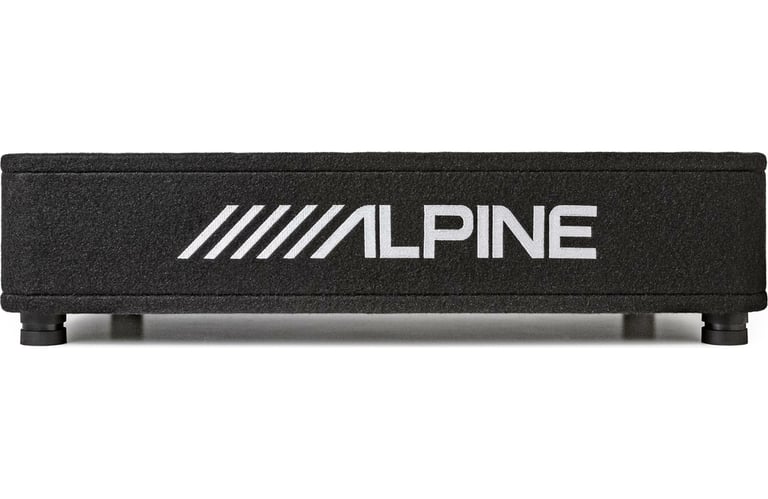

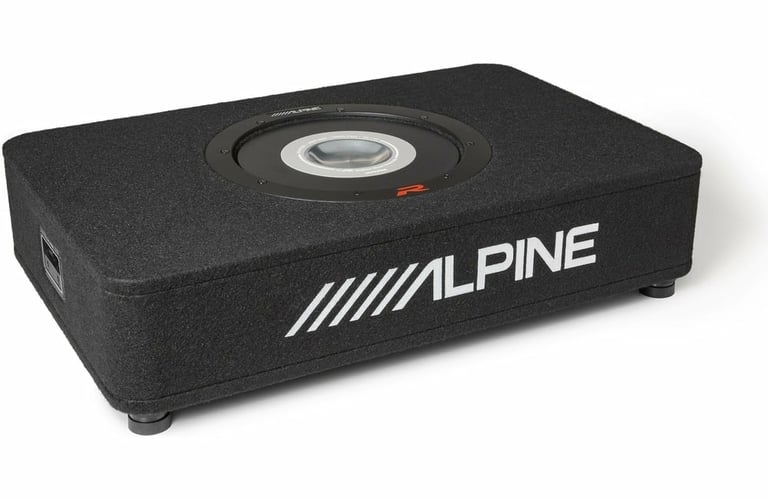

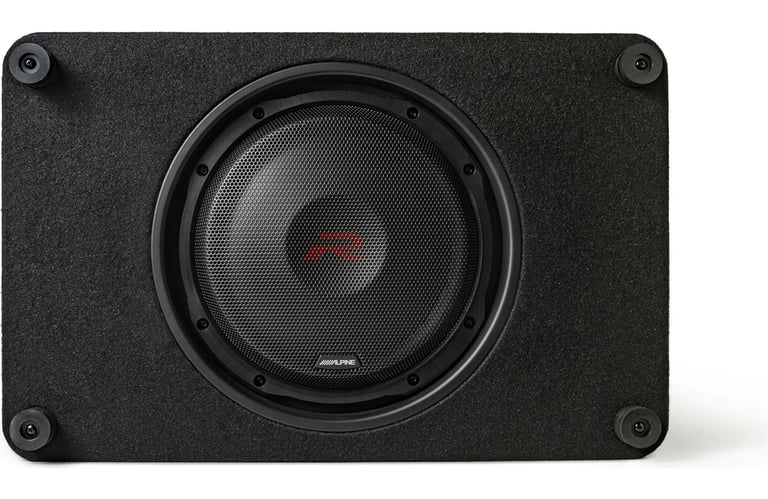

Alpine RS-SB12

1800W Peak (600W RMS) 12” Halo Series 2-Ohm Loaded Subwoofer Sealed Enclosure
Quantity: 1

Product Details:

  • Sealed enclosure with 1 12" Halo R-Series Subwoofer
  • 3/4" medium-density fiberboard construction covered with Carpet
  • Power Handling:
    • RMS: 600 watts
  • Final Impedance: 2-ohm
  • Polypropylene cone
  • Rubber surround
  • Frequency Response: 26 - 200 Hz
  • Sensitivity: 84 dB
  • Dimensions: 17" L x 5.25" H x 26.5" W
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

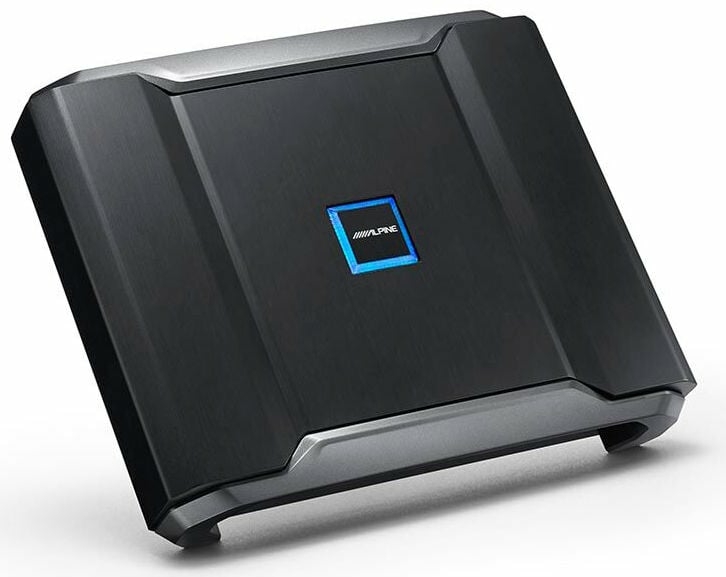

Alpine R-A75M

R-Series Class D Monoblock Subwoofer Amplifier (750 Watts RMS)
Quantity: 1

Product Details:

  • R-Series Class D Monoblock Subwoofer Amplifier
  • Power Output:
    • 500 watts RMS x 1 @ 4 ohms
    • 750 watts RMS x 1 @ 2 ohms
  • CTA-2006 compliant
  • Variable low-pass filter (50-400 Hz, 24 dB/octave)
  • Variable bass boost (0-12 dB at 50 Hz)
  • Variable subsonic filter (min-40 Hz, 24 dB/octave)
  • We recommend the Alpine RUX-KNOB.2 if you are looking for a remote bass knob for Alpine Amplifiers
  • Preamp and speaker-level inputs
  • Speaker wire to RCA adapter required for speaker-level input - we recommend the Rockford Fosgate RFI2SW
  • Preamp outputs
  • Wiring and hardware not included with amplifier
  • 4-gauge power and ground leads recommended - get the NVX XAPK4 for this
  • Fuse rating: 40A x 2
  • Dimensions: 9" W x 2-1/16" H x 7-1/8" D
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

NVX XKIT42

Full Spec 4 Gauge 100% (OFC) Oxygen Free Copper Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1500 Watts
Quantity: 1

Product Details:

  • 4 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1500 watts RMS
  • Made from 100% (OFC) Oxygen-Free Copper for pure uninterrupted power and current transfer
  • Tinned conductors for corrosion resistance
  • Pre-installed black nylon mesh covering protects power wire from being damaged

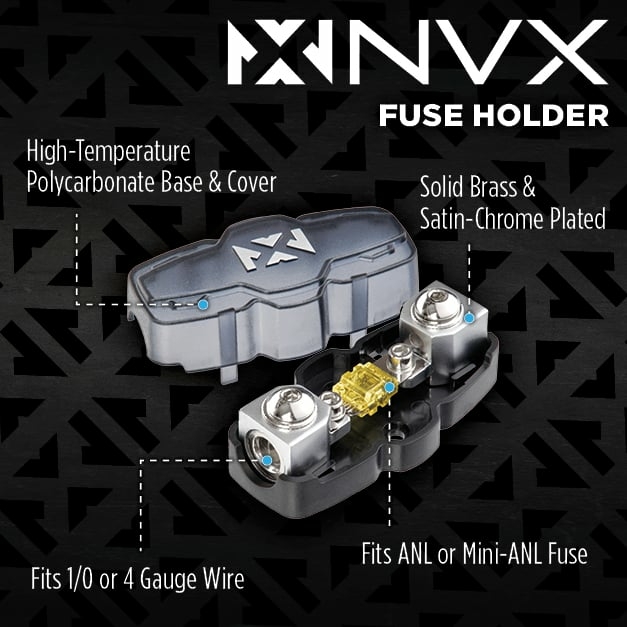

  • Solid Brass and Satin Chromed ANL/Mini-ANL Fuse holder offers ideal protection for high powered systems
  • Pre-terminated seamless power and ground ring terminals provide reliable performance
  • Full Spec cables meet or exceed the American Wire Gauge standards

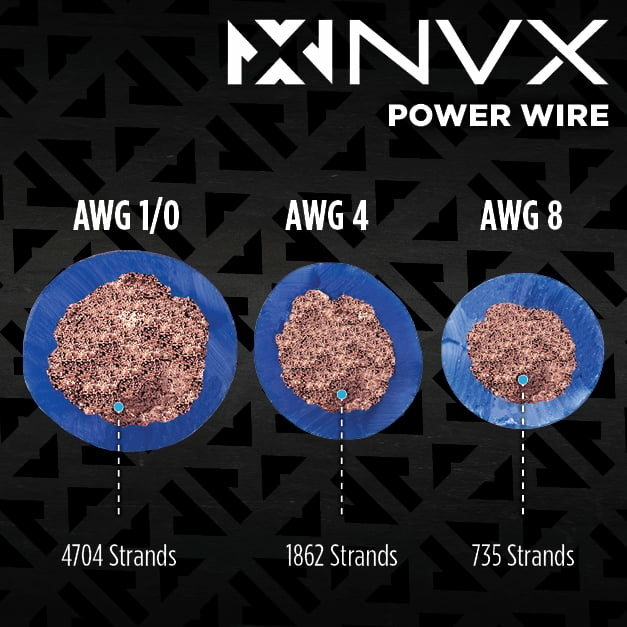

  • Strand Count: 1862
  • CEA-2015 and BC5W2 Compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

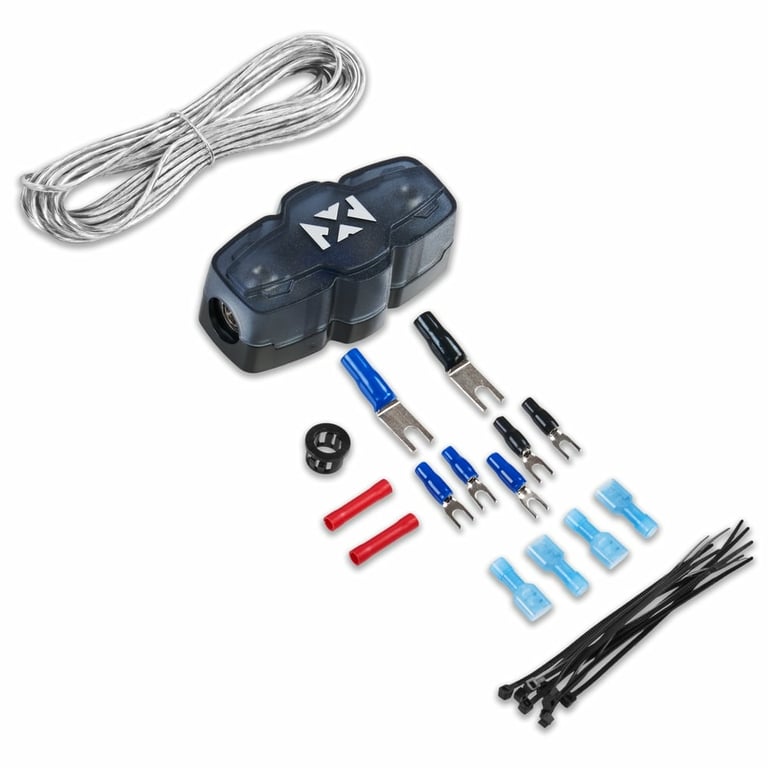

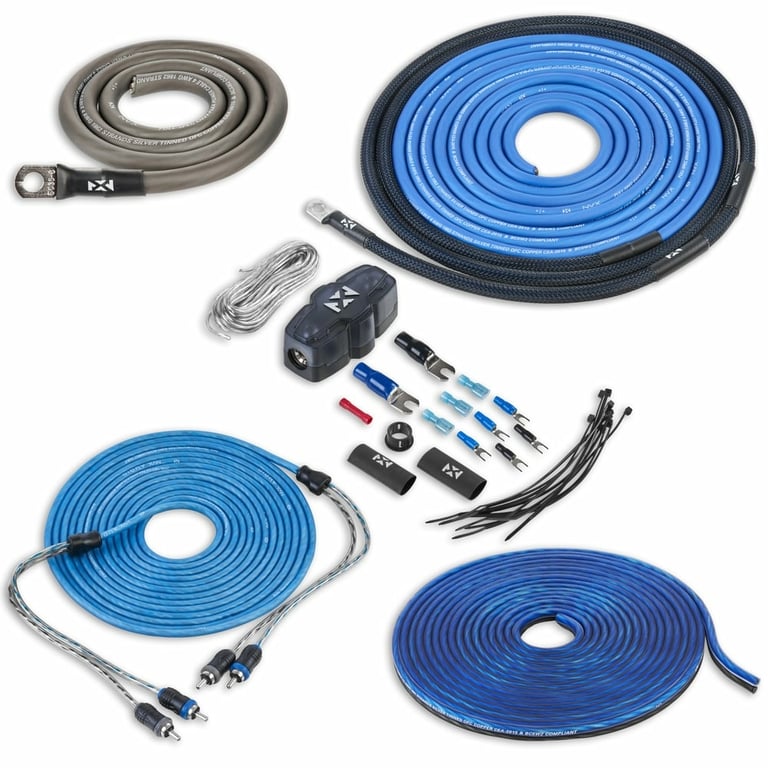

Kit includes:

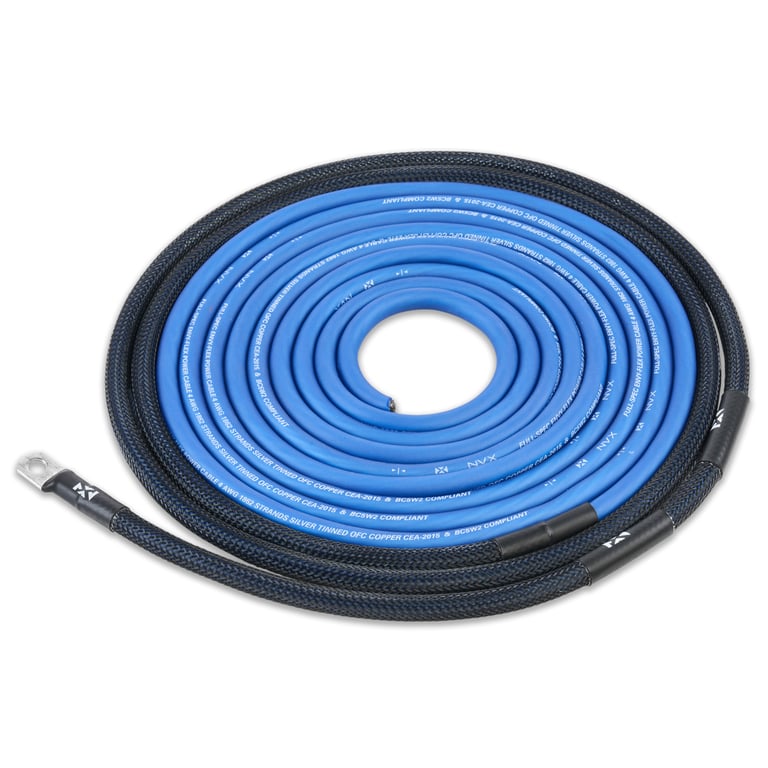

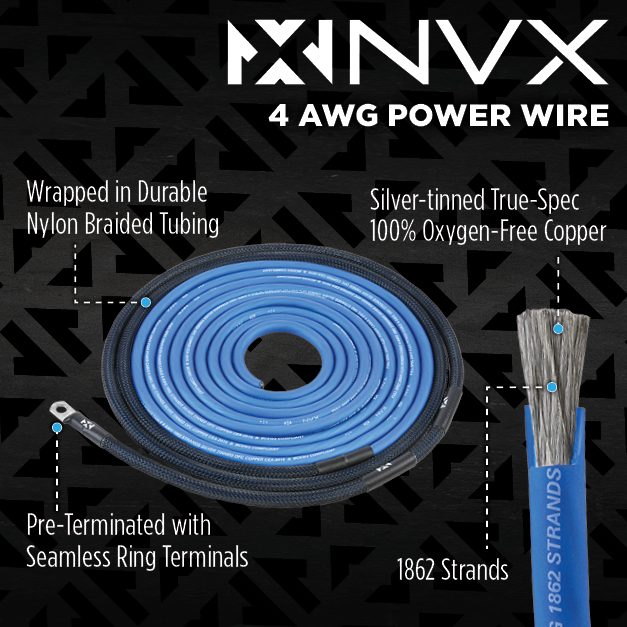

  1. 20 ft. (6.1 meters) Frosted Blue 4 gauge power wire with seamless crimp ring terminal

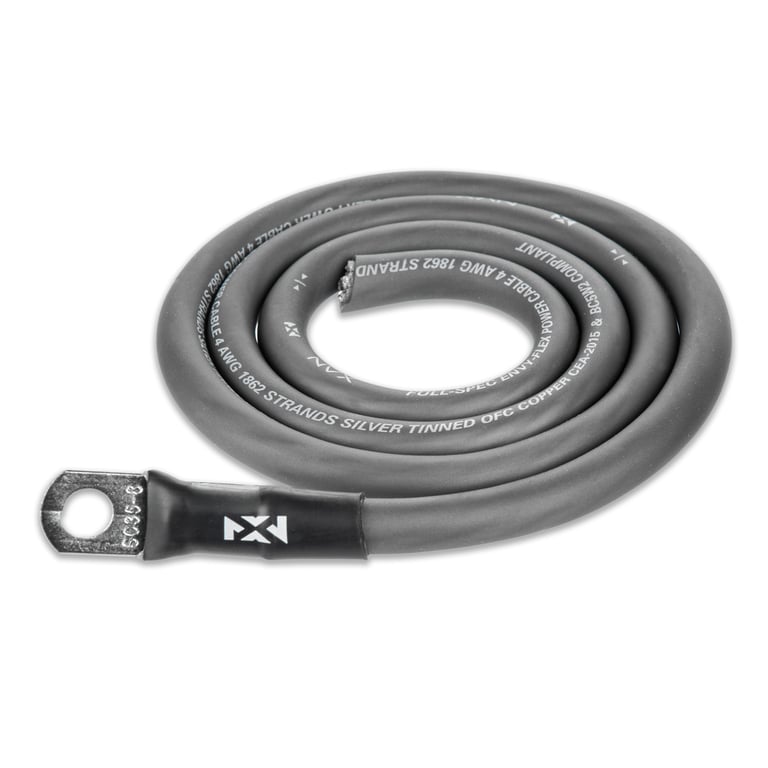

  2. 3 ft. (.91 meters) Frosted Black 4 gauge ground wire with seamless crimp ring terminal
  3. 20 ft. (6.1 meters) Clear 18 gauge remote lead wire

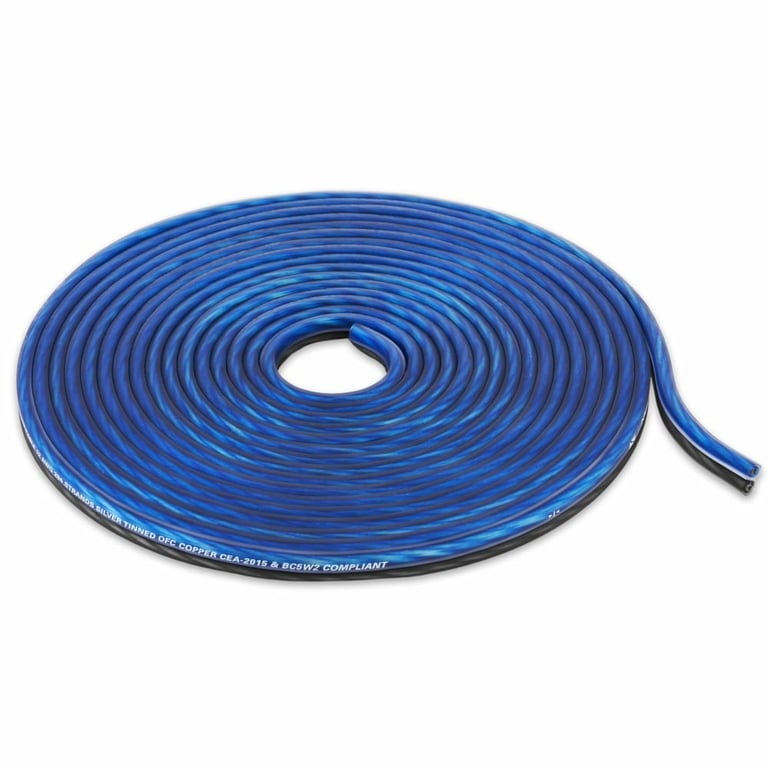

  4. 40 ft. (12.2 meters) Frosted Black/Blue 16 gauge speaker wire

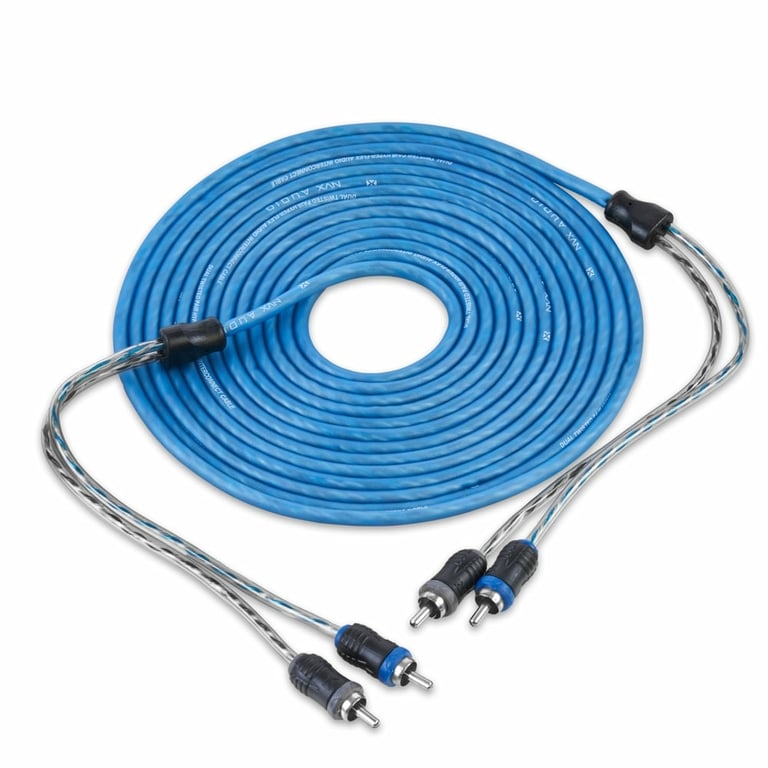

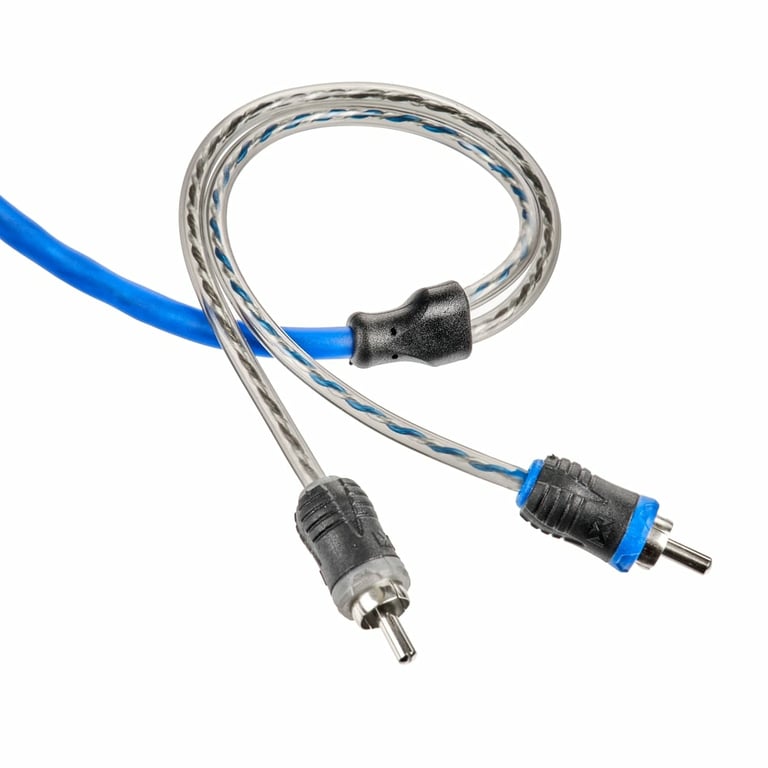

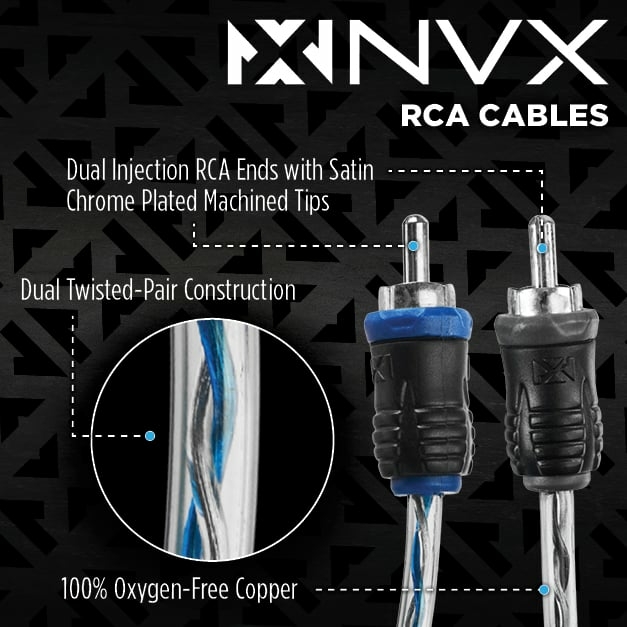

  5. One 16 ft. (5 meters) 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)

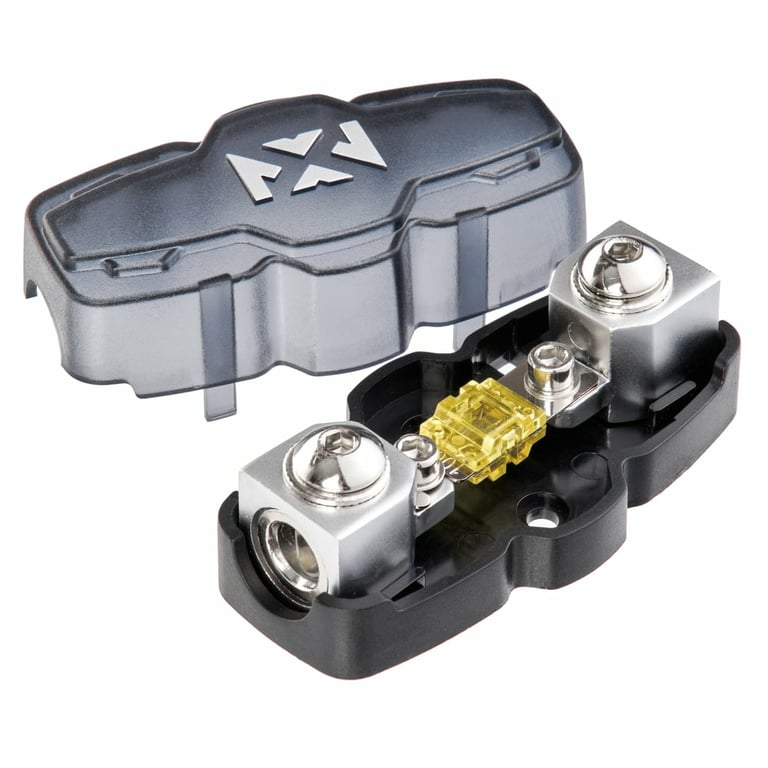

  6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 4 Gauge Nickel Plated spade terminals
  9. Four 18 Gauge Spade terminal
  10. Two 18 Gauge Red butt connectors
  11. Four 16 Gauge quick disconnect
  12. Five 16 Gauge Nickel Plated spade terminals
  13. Two Heat Shrink tube with NVX logo
  14. Ten 6" Black zip ties

Specifications & Details


Series
Series
Halo R-Series
Subwoofer Amplifier Power Specifications
RMS Power @ 4 ohms
500 watts x 1 channel
RMS Power @ 2 ohms
750 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
4 AWG
THD at Rated RMS Power
>1%
Speaker Level Inputs
Optional (Requires Accessory Adapter)
Preamp Outputs
Mono output
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
50 - 400 Hz
Subsonic Filter
10 - 40 Hz
Bass Boost
0 - 12 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
40A x 2
CEA-2031 Compliant
Yes
Subwoofer Specifications
Subwoofer Size
12"
Total RMS Power Handling
600 watts
Total Peak Power Handling
1800 watts
Woofer Surround
Rubber
Woofer Composition
Polypropylene
Sensitivity
84 dB
Frequency Response
26 - 200 Hz
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Height
5.25"
Width
24.5"
Depth
16"
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Binding posts
Box Exterior Color
Black
Box Finish
Carpet
Final Wired Impedance
2-ohm
Amplifier Wiring Kit
Is Amplifier Wiring Kit included?
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

RS-SB12, RA75M, XKIT42

Weight:

48.80lbs

Internal SKU:

rssb12_ra75m_xkit42

Internal Product ID:

199764
