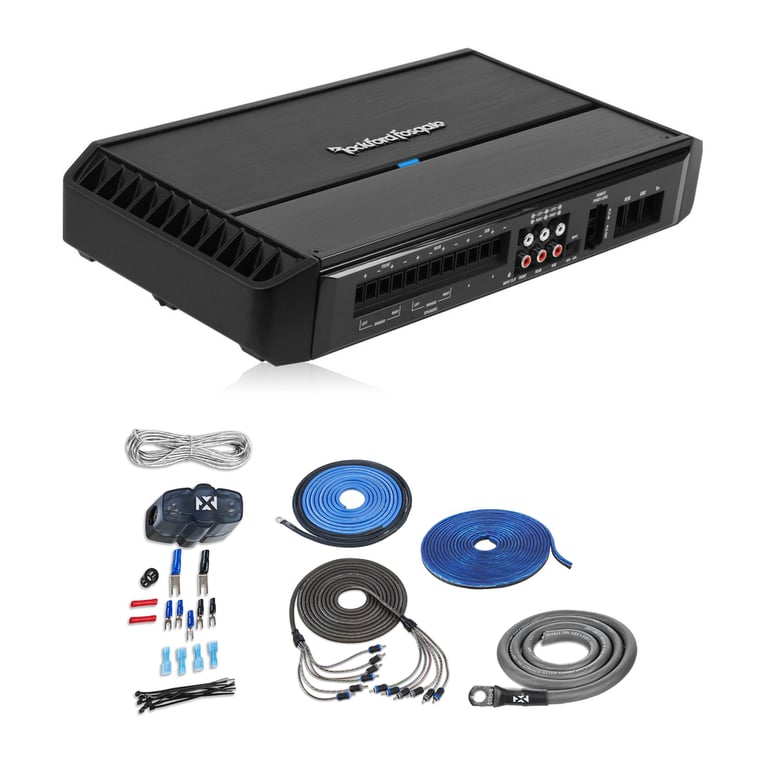

Rockford Fosgate Punch P1000X5 with Amplifier Wiring Kit

1000W RMS Punch Series 5-Channel Stereo Full-Range Class BD Car Amplifier w/ Dedicated Sub Channel

highlight-star-icon

• 75W x 4 Chan. + 200W x Sub Chan. @ 4 ohm
• 100W x 4 Chan. + 400W Sub Chan. @ 2 ohm
• 100W x 5 Chan. RMS
• Built In NOMAD "Real Time" Analog Computer
• 5/4/3/2/1 Channel Operation
• 4 Gauge Power and Ground Inputs
• MESHA3 Reduces MOSFET Temperatures for Improved Durability
• Includes Amplifier Wiring Kit

Learn more about the p1000x5_xkit46
Was $869.98 Details
Thanks , You Pay:

$689.99

 with warranty

Heads up

We confirm fitment and offer accessories for speakers. Please set your vehicle first if you would like to purchase more than one p1000x5_xkit46.

Set your vehicle or Return to product page
Save 10% Off Package Deals at Checkout!
shipping truck icon
FREE 2-day shipping to OH. Get it Thu, Nov. 20
Quantity
In Stock
Brand new

Buy it now


Acima Logo

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Extend logo

Keep your product protected longer! Extend the warranty after the manufacturer warranty expires.

  • Hassle-free immediate replacement within minutes!
  • Easy online claims 24/7
  • Covers product breakdowns and failures
Swoosh Icon Icon of Swoosh

For over 25 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

Award winning icon
Award-Winning Service
Shipping icon
FREE Shipping Orders $49+
60 days return policy icon
60-Day Easy Returns
lowest price guarantee icon
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Description


Rockford Fosgate brand icon

Authorized dealer

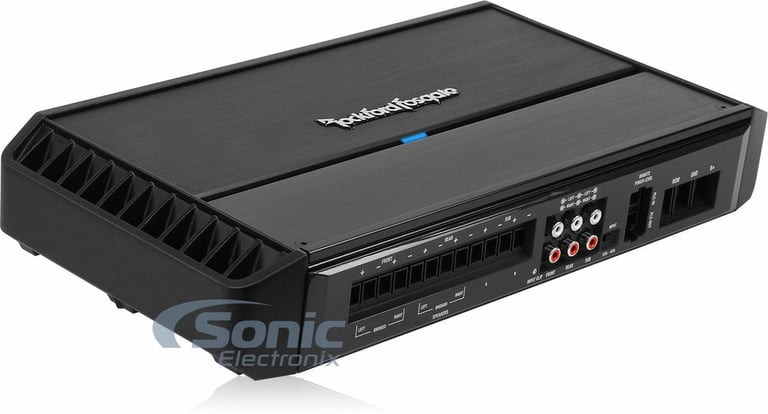

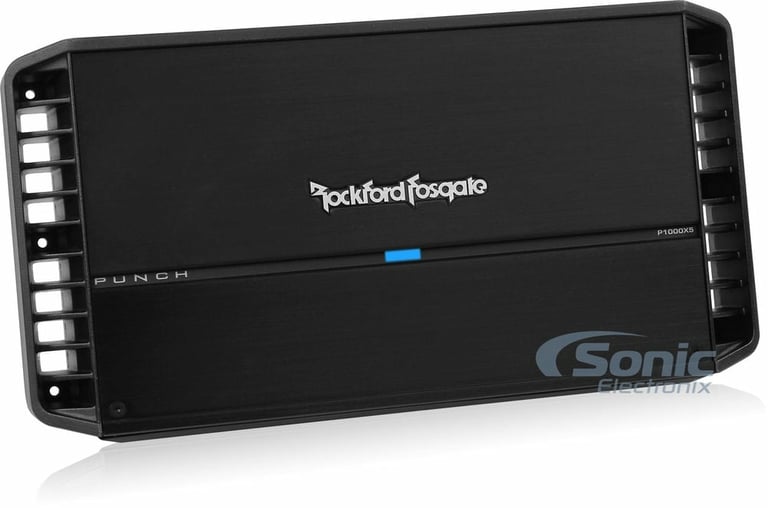

Rockford Fosgate Punch P1 P1000X5

1000W RMS Class AB/BD Punch Series 5 Channel Car Amplifier
Quantity: 1

Product Details:

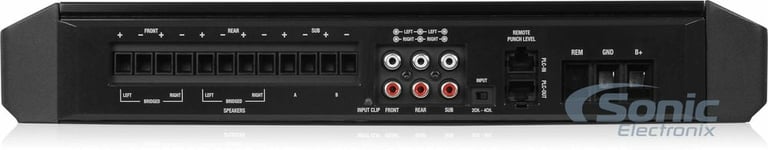

  • Punch Series Class AB / BD 2 ohm Stable 5-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 75 watts x 4 channel + 150 watts x 1 channel
    • 2 ohm: 125 watts x 4 channel + 300 watts x 1 channel
    • Bridged: 250 watts x 2 channel @ 4 ohm + 300 watts x 1 channel @ 2 ohm
  • Total RMS power output: 1000 watts
  • Power, protect, thermal, input, and output clip LED visual indicators
  • Wired bass level remote control with optional Rockford Fosgate PLC2
  • Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
  • On-board Punch EQ with +18dB boost @ 45Hz
  • 12dB/octave Butterworth crossover
  • High level input capable with Auto Turn-On circuit
  • Short circuit and over current protection
  • Muted turn on
  • 2/4 channel input switch

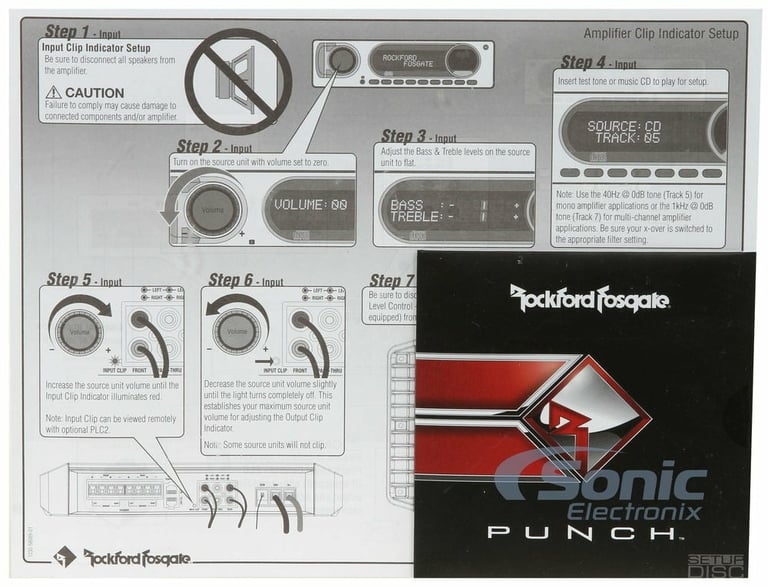

  • Features C.L.E.A.N. Set-up
  • Cast aluminum heatsink

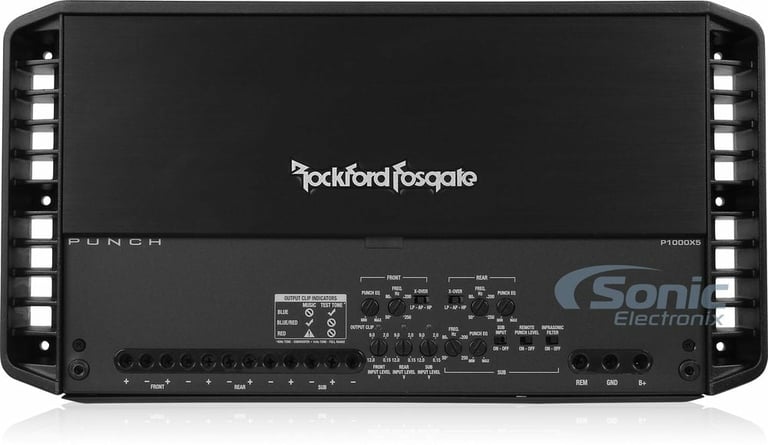

  • Stealth top mounted control panel
  • CTA-2006 compliant
  • Input sensitivity: 150mV - 12 volts
  • Frequency Response: 20 - 20000 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: 85 dB
  • Variable high-pass filter: 50 - 250 Hz
  • Variable low-pass filter: 50 - 250 Hz
  • Subsonic filter: 0 - 28 Hz
  • Variable Bass Boost: 0 - 18 dB
  • Fuse Rating: 150A
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 7.76" L x 15.03" W x 2.38" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: P1000X5

NVX XKIT46

Full Spec 4 Gauge 100% (OFC) Oxygen Free Copper Complete 5/6-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1500 Watts
Quantity: 1

Product Details:

  • 4 Gauge 5/6-Channel X-Series Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1500 watts RMS
  • Made from 100% Oxygen-Free Copper (OFC)
  • Tinned conductors for corrosion resistance
  • Pre-installed black nylon mesh covering protects the power wire from damage
  • Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Pre-terminated seamless power and ground ring terminals provide reliable performance
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • CEA-2015 and BC5W2 compliant

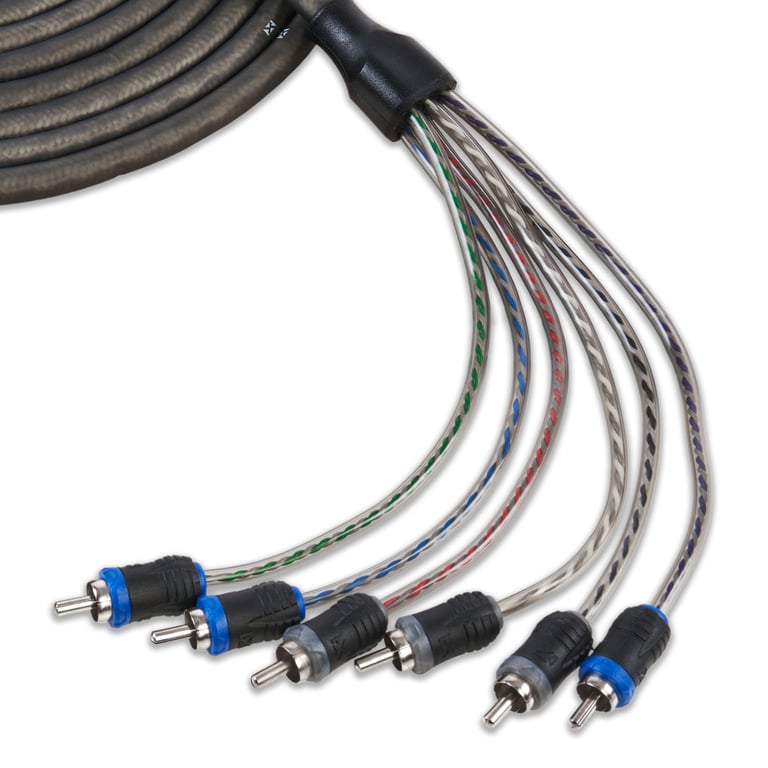

  • V-Series RCA Interconnect Cable
  • Shielded noise-rejecting coaxial construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Twisted-pair construction featuring two conductors per channel
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Kit includes:

  1. 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal
  2. 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal
  3. 17 ft. Clear 18 gauge remote lead wire
  4. 60 ft. Frosted Black/Blue 16 gauge speaker wire
  5. One 16.4 ft. 4-channel dual twisted construction RCA interconnect Cable (NVX XIV45)
  6. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)

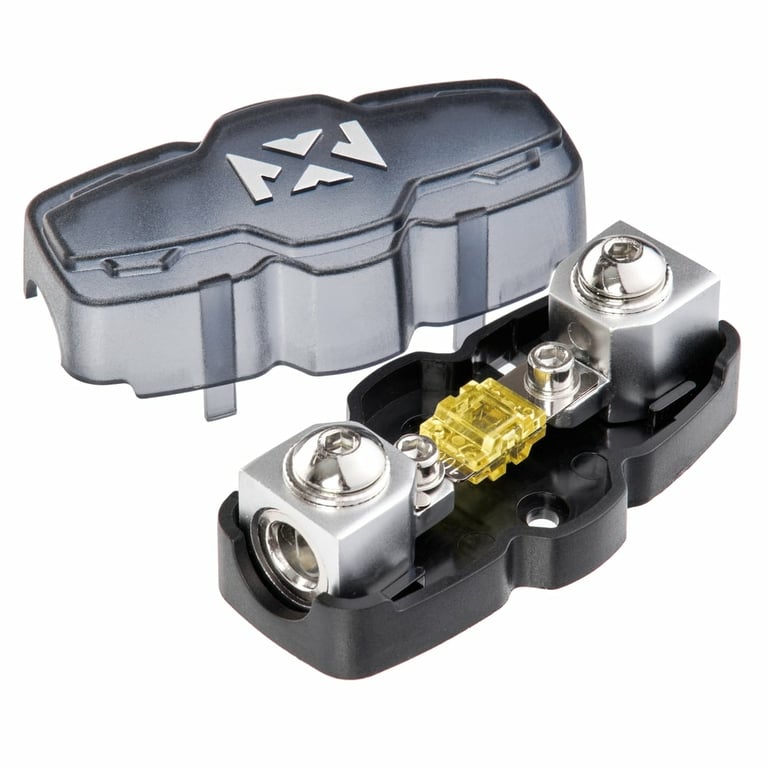

  7. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
  8. One Black rubber firewall grommet
  9. Two 4 Gauge Nickel Plated spade terminals
  10. Four 18 Gauge Spade terminal
  11. Two 18 Gauge Red butt connectors
  12. Four 16 Gauge quick disconnect
  13. Five 16 Gauge Nickel Plated spade terminals
  14. Two Heat Shrink tubes with the NVX logo
  15. Ten 6" Black zip ties

Product history:

Rockford Fosgate P1000X5, XKIT46 thumbnail
(newest, current model)
Rockford Fosgate P1000X5D thumbnail
(previous model, replaced by Rockford Fosgate Punch P1000X5 with Amplifier Wiring Kit)

Best selling similar products

NVX Audio Upgrade Kit – NPKG212 Bass Package with 6x9" & 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 and 6x9 Coaxial Speakers and Damping Kits

(313)

$468.43

List price $681.43

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(310)

$459.43

List price $675.43

Sundown Audio SW-NSV612D1 + NVX XCA6K

• Peak Power: 7000 watts
• Sensitivity: RMS Power: 3000 watts
• Sensitivity: Impedance: Dual 1 ohm
• Sensitivity: Polypropylene Cone
• Sensitivity: Mega Roll V2 Surround
• Sensitivity: Mount depth: 12.75"
• Sensitivity: Sensitivity: 83.02 dB

(1)

$2779.97

List price $3599.97

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(72)

$309.99

List price $369.98

NVX NPKG212 with Free BAK82BL Amp Kit

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(41)

$359.99

List price $469.98

NVX XCW122 + XQA25001 + XKIT02

• One 12" XCW122 XC-Series 2000W RMS Subwoofer
• 5000W Peak (2500W RMS) Class D XQA25001 Monoblock Amplifier
• XKIT02 Complete 0 AWG Amplifier Wiring Kit
• 1-year Warranty from the Original Purchase Date

(39)

$1179.97

List price $1667.97

NVX Audio Upgrade Kit – QB12SPA with 2 Pair 6.5" Speakers

• 12" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(304)

$360.43

List price $555.42

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(304)

$342.43

List price $531.42

Sundown Audio ZV6 15" D2 + NVX XCA6K

• RMS Power: 2500 watts
• Impedance: Dual 2 ohm
• Mega Roll V2 Surround
• Mount depth: 12.93"
•Sensitivity: 86.57 dB

(1)

$2899.97

List price $3599.97

Alpine Full Audio Truck Package

• 600W RMS Dual Ported 8" Loaded Enclosure
• Modular Stackable Design
• Integrated Amplifier Tray
• Class D 8-Channel-Channel Amplifier
• 6"x9" Component Speakers
• 6.5" Coaxial Speakers

(11)

$1945.99

List price $2690.00

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
125 watts x 4 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
150 watts x 1 channel
RMS Power @ 2 ohms
300 watts x 1 channel
RMS Power @ 1 ohm
500 watts x 1 channel
Amplifier Specifications
Amplifier Class
BD
Number of Channels
5-Channel
Total Peak Power Output
1000 watts
Total RMS Power Output
500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1.00%
Speaker Level Inputs
Optional (Requires Accessory Adapter)
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
Switchable Off/28 Hz
Bass Boost
0 - 18 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
150A Fuse Recommended, Not Included
CEA-2031 Compliant
Yes
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
4 gauge
Power Wire Length
20 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
60 feet
Remote Wire Length
20 feet
Interconnect (RCA) Signal Cables Included
6 Channel / 5 Channel
Fuse Holder
ANL/MINI ANL
Fuse Size
100A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

P1000X5, XKIT46

Weight:

22.38lbs

Internal SKU:

p1000x5_xkit46

Internal Product ID:

199954

Customer Ratings & Reviews



5 star
96%
4 star
4%
3 star
0%
2 star
0%
1 star
0%



Durability
4.9
Value
4.9
Features
4.9
Design
4.9
Usability
4.9

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Great buy

The following review is for XKIT46, which is a part of the bundle you are viewing.

The kit would work great in a car but in a boat the kit needs to have alot more speaker wire and a longer ground wire

By Cory on March 10, 2015

100 found this helpful Helpful?


Amazing amp

The following review is for P1000X5, which is a part of the bundle you are viewing.

I'm not sure why more people have not purchased this amplifier. I have this powering 4 Infinity Kappa 682.11cf. I used to have it powering a single 12's 400 watt sub as well, but I upgraded to two and needed more power. The power and clarity this amp provides is astonishing. The built in adjustable crossover frequency point is a fantastic tool if you know how to use it correctly. The C.L.E.A.N set up makes sure you properly set your gains to match your head unit. It's like having a SMD DD1 built into the amp! This amplifier is highly underrated as well. The birthsheet stated that it is actually producing 1399 watts. 400 watts OVER what it claims! Awesome job, Rockford!

By Gage on March 8, 2014

69 found this helpful Helpful?


Wow!

The following review is for P1000X5, which is a part of the bundle you are viewing.

I wanted one amp to drive 4 door speakers and 1 12 inch sub and as always Rockford Fosgate did not disappoint. The sound is crisp and clean, and just performs accurately. I usually use a 7 to 10 band eq or crossover in my installs, but I don't think I will need one with this system. This is my third vehicle using Rockford Fosgate amps and they have never let me down. I still have a 2000 model Punch 500a2 that is still going strong in another vehicle.

By bigboris1969 on December 3, 2022 Checkmark Icon Verified purchase

62 found this helpful Helpful?


Good stuff

The following review is for XKIT46, which is a part of the bundle you are viewing.

I got this kit for 50% off with my NVX amp. The power wires are very nice, the 6channel RCA cable is fantastic and the speaker wire is great quality too. The assortment of connectors they give you didn't really help. I ended up purchasing my own nicer ones.

By Nathanael on April 22, 2020 Checkmark Icon Verified purchase

60 found this helpful Helpful?


Awesome Amp Kit

The following review is for XKIT46, which is a part of the bundle you are viewing.

This kit was free with an amp purchase. I definitely like it, but I used 9 conductor speedwire for remote wire and 4 speakers. Worked out very well overall, great quality.

By Justin on March 30, 2018

56 found this helpful Helpful?


Awesome kit!

The following review is for XKIT46, which is a part of the bundle you are viewing.

Nice flexible, durable, strong wires! Everything you need! Makes for easy connections/install! Thanks again NVX and Sonic!!!

By Anonymous on September 21, 2018

56 found this helpful Helpful?


Very complete! High Quality

The following review is for XKIT46, which is a part of the bundle you are viewing.

What a great kit. Far exceeded expectations. Nice touches like, mesh loom for the engine compartment on the 4GA power cable, heat shrinked where the you cut to install the fuse. Speaker wire is heavy gauge. The power and ground are come with the end connectors installed. My only complaint is there are no instructions so I had to reconfigure the fuse to add the rubber connectors. At least I assume thats where they go as it didnt have waterproof bushings.

By Ron on March 16, 2018 Checkmark Icon Verified purchase

55 found this helpful Helpful?


NVX XKIT46 (5- or 6-Channel Amp Kit)

The following review is for XKIT46, which is a part of the bundle you are viewing.

This Amp wiring kit was perfect for my 5-Channel amp. Wire is good quality and so far I have had no issues. Would not hesitate to recommend.

By Anonymous on June 13, 2018 Checkmark Icon Verified purchase

55 found this helpful Helpful?


Great kit

The following review is for XKIT46, which is a part of the bundle you are viewing.

I was impressed with this kit. Their claim of a "true gauge" wire seems to be true because wires are thicker compared to other wires I have used claiming to be the same gauge. Overall the wires seem to be of great quality. Patch cables are good. They aren't super high end, but they do the job well. I'd recommend it to anyone looking for an amp kit.

By Kenneth on August 13, 2015 Checkmark Icon Verified purchase

58 found this helpful Helpful?


Great Amp Kit

The following review is for XKIT46, which is a part of the bundle you are viewing.

This is a great amp kit. The actual wire is much thicker than other 4 gauge amp kits. It's also a very affordable price. I'm happy with the kit.

By Anonymous on April 1, 2019 Checkmark Icon Verified purchase

52 found this helpful Helpful?




Rockford Fosgate Punch P142 with Sound Damping

120W Peak (60W RMS) 4" Punch Series 2-way 4-ohm Coaxial Car Speakers + NVX SDBSK2 Premium Sound Damping

(55)

$124.98

List price $128.73

Pioneer TS-G1020S with Speaker Installation Accessories

420W Max (120W RMS) 4" G-Series 2-Way Coaxial Car Speakers

(135)

$96.23

List price $136.71

Rockford Fosgate T1462 with Speaker Installation Accessories

180W Peak (90W RMS) 4x6” Power Series 2-Way Coaxial Speakers

(148)

$255.53

List price $292.70

Hertz MPS 300 S4 (Open-box, Like New)

1000W Peak (500W RMS) 12" Mille Pro Series Single Shallow-Mount 4-ohm Subwoofer

$509.99

List price $680.00

Deaf Bonce LW-65A4 with Speaker Installation Kit

Includes: (2) 6.5" 2-Way speaker, 2 Piece Foam Speaker Ring Kit, Sound Damping Kit, Installer Panel Removal Tool Kit, Rubber Roller

(237)

$142.15

List price $197.61

Second Skin Audio FURY

Fury Folding Utility Knife with Pocket Clip

$14.99

List price $14.99

Rockford Fosgate Power T1000-4AD with Amplifier Wiring Kit

1000W 4-Channel Class AD Power Series Constant Power Amplifier

(92)

$1099.99

List price $1255.98

Rockford Fosgate T1000-4AD + Free NVX XFLOC4 Line-Output-Converter and Amp Kit

1000W 4-Channel Power Amplifier + NVX 4-Channel L.O.C + 4 Gauge Amp Kit

(71)

$1099.99

List price $1203.72

Polk MM572 MM1 600 Watt 5" x 7" Coaxial Speakers with Speaker Installation Kit

600W Peak (200W RMS) 5" x 7" 2-Way Coaxials with Sound Dampening and Roller

(63)

$197.88

List price $233.72

Related Searches


Save up to 10 different vehicles in your garage

Add vehicle
Loading...
Identify your vehicle and submodel details
  • Owner’s manual
  • Vehicle’s insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver’s side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon
