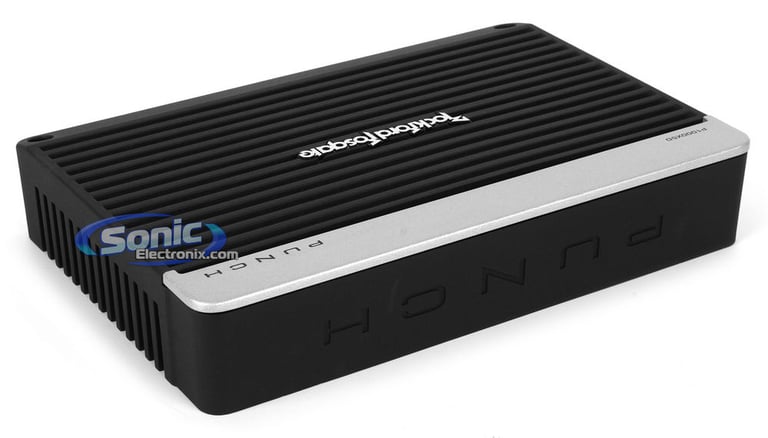

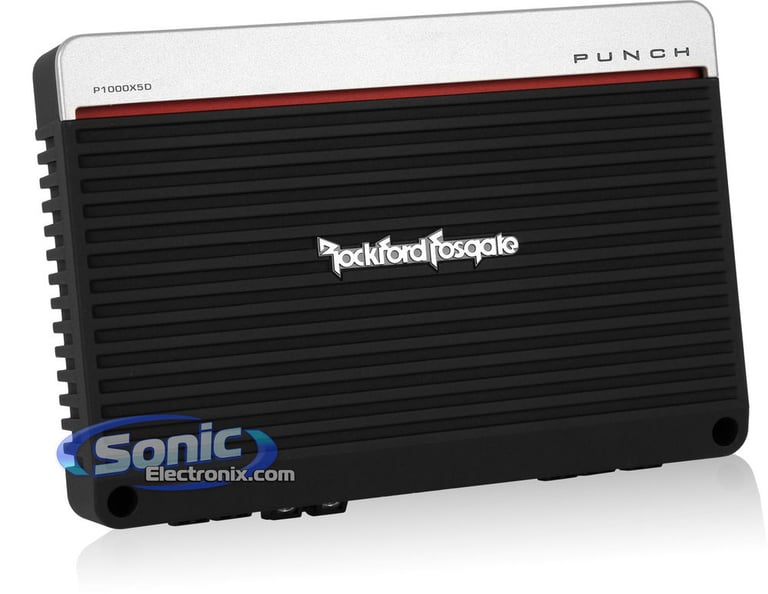

Rockford Fosgate P1000X5D

1000W RMS 5-Channel Class D Punch Series High Efficiency Amplifier

Product videos
highlight-star-icon

Punch Series Class D Full Range 5-Channel Car Amplifier • Punch EQ 2 Variable Bass Boost • MOSFET Power Supply • Variable High/Low Pass Crossovers • Infrasonic Filter • CEA-2006 Compliant

Learn more about the p1000x5d

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

p1000x5 thumbnail

Rockford Fosgate Punch P1000X5

OUR PRICE: $629.99

View item

Product Highlights


Punch Series Class D Full Range 5-Channel Car Amplifier • Punch EQ 2 Variable Bass Boost • MOSFET Power Supply • Variable High/Low Pass Crossovers • Infrasonic Filter • CEA-2006 Compliant

Description


Rockford Fosgate brand icon

Authorized dealer

Class D with a Punch

Looking for an amplifier than can power up your speakers and subs? Then look no further than Rockford Fosgate's 2011 P1000X5D 5-channel amplifier. With 5,4,3,and 2 channel operations this amplifier will pretty much work for any application and in different configurations. The high and low-level inputs will allow the installation of the amplifier into any factory or aftermaket car audio system with quickness and ease. High and low crossovers, along with an infrasonic crossover and bass boost, will allow for complete control and fine tuning of your system to better suit your personal preferences and needs. Its CEA-2006 compliance assures that the power rating will be accurate each and every single time. So if you are looking for an amplifier than can amplify a complete car audio system, then the P1000X5D is the solution to your quest.

  • Punch Series Class D Full Range 5-Channel Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 75 watts x 4 chan. + 200 watts x 1 chan.
    • 2 ohms: 125 watts x 4 chan. + 500 watts x 1
  • MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Remote bass level input (remote level control sold separately
  • Punch EQ 2 variable bass boost ( 0 to +18 dB at 45 Hz))
  • Soft Start Turn-on

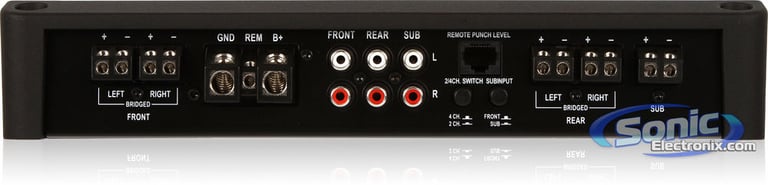

  • 5/4/3/2 channel operation
  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty cast aluminum alloy heatsink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Variable high-pass filter: Front/Rear Channels (50-500 Hz, 12 dB/octave)
  • Variable low-pass filter: Sub Channel (50-500 Hz, 12 dB/octave)
  • Infrasonic filter: Sub Channel(24 dB at 25 Hz)
  • Phase Shift: 0-180°
  • CEA-2006 compliant amplifier
  • Frequency response:
    • Front/Rear Channels: 20-20,000 Hz
    • Sub Channel: 20-500 Hz
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Dimensions: 8-1/10"W x 11-9/10"L x 2-2/10"H
  • 1-year SonicElectronix.com warranty

Product history:

Rockford Fosgate P1000X5 thumbnail
(newest, current model)
Rockford Fosgate P1000X5D thumbnail
(previous model, replaced by Rockford Fosgate Punch P1000X5)

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
125 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
200 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Amplifier Specifications
Amplifier Class
D
Number of Channels
5-Channel
Total RMS Power Output
1000 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Bass Boost
0 - 18 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

P1000X5D

Weight:

10.00lbs

Internal SKU:

p1000x5d

Internal Product ID:

34756

Product and How-to Videos


  • 3Sixty3 Aftermarket Setup Wizard Tutorial
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews



5 star
67%
4 star
0%
3 star
0%
2 star
0%
1 star
33%



Durability
3.7
Value
3.4
Features
3.4
Design
4
Usability
4

Customer Reviews

Sort by:

Loading...

AMAZING!!! Buy without hesitation!

I have this unit installed in my boat fed by a Kenwood KDC-BT952HD. It is driving 8 (yes 8, 4 pairs) MTX 8" two way marine speakers AND 2 Image Dynamics ID10 D2 subs. MTX Coaxials are wired in parallel to achieve 2ohm per channel. Image Dynamic subs are wired in series/parallel again to achieve 2 ohms.

I've always assumed class D amps would only be for sub woofers but with the current wave of manufacturers releasing class D full range amps I was intrigued. I found a white paper online detailing the latest class D chips and how they have been improved (heavy read but worth it if you can grasp even half of it) to increase accuracy and efficiency. That paper combined with the ease of installation (1 amp for 10 speakers vs a typical 3 amp setup) and the potential weight savings (again, 3 amps vs 1) and I figured why not try it.

In my application, the sound quality is simply amazing. Someone running more accurate silk dome tweeters may disagree but EVERYONE that has heard my boat has said exactly the same thing: Painfully loud, crystal clear, full and rich sounding (compared to typical tower/can "systems").

The real magic is in the unit itself. On top of being fairly light weight and small considering the power output / number of channels this thing runs COLD. With 4 ohm loads the amp barely gets above ambient. Even with max load (aka minimum ohms) on all channels, moderate listening levels barely get the unit warm to the touch. That is not to say you can bury it under carpet however... After 4 hours of max effort blasting, it will get HOT. However I have never bumped into thermal protection. This thing is a TANK. With quality 4v discrete inputs I found the limits of my drivers LONG before I any perceivable amp clipping or distortion.

I power my system with one standard size Optima blue top deep cycle... Even driving the amp as hard as I do, 4hrs of run time is no problem for this combo. Proof positive class D is efficient.

The ONLY gripes I have are with the speaker terminals.

I assume the screws are knurled to give them 'bite' on the wire but that 'bite' tends to break the wire. The only way to combat this is to solder the tips (which is a good practice anyway).

The terminals themselves do not accept as large of a gauge wire as I would have expected with level of power output. Not a huge deal but if you are trying to run fat wire, it doesn't leave you much clearance for solder tipping the ends.

I recommend this series of amp to ANYONE who owns a boat or wants big power in a small package. Simply amazing.

By Newby on February 7, 2013

28

found this helpful.

Tank Tough

I thought this was a great amp to use to run your whole system with only one amp. Build solid and tough! Rockford still has great products. I installed one in both my sons cars and wow they rock. We are using Kicker subs. One son is using Alpine speakers and my other son went with the Rockford pro series speaker.

By TAZ on September 28, 2013

24

found this helpful.

Wouldn't buy again

Being a little older (40) i remember when Rockford was one of the best u could get, I still have Punch 150s I bought new, what a great product. That was not the case here. The item arrived well packed. After that it was all bad. I opened the box to find made in china all over the amp. I spent the day installing the amp. It worked great for the first 5 minutes. The protect light came on and it never worked again. I wouldn't recommend buying something like this online if it can be avoided. I know I won't. There are plenty of company's out there that still make amps right here in the USA. That's what I'll buy from now on.

By Keith on February 10, 2013

24

found this helpful.
