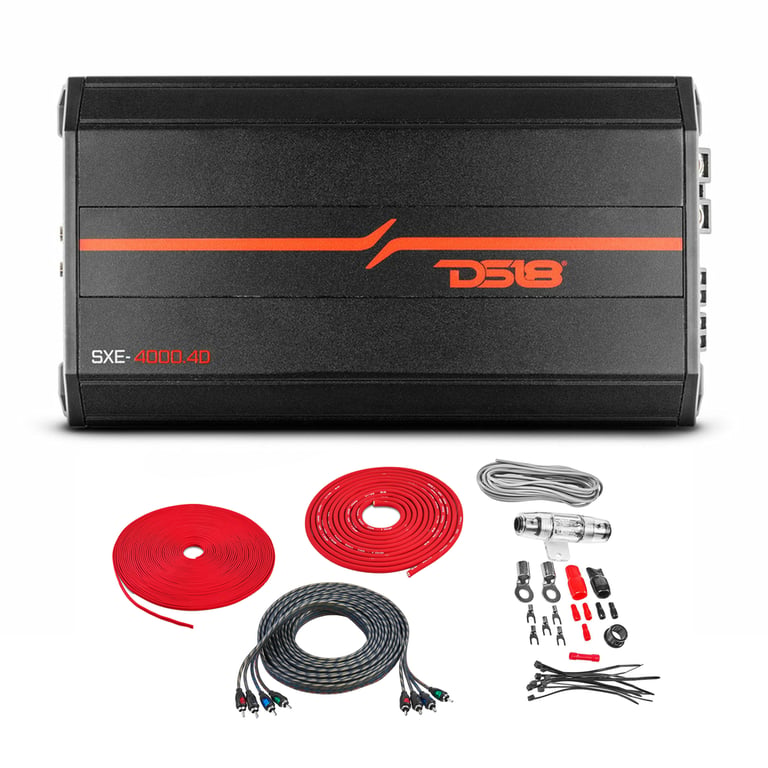

DS18 SXE-4000.4D/BK with Belva 4 Gauge Amp Kit

1720W RMS SXE Series Class-D 4-Channel Car Amplifier

DS18
Shop all DS18
highlight-star-icon

• 275 watts x 4 channel @ 4 ohm
• 430 watts x 4 channel @ 2 ohm
• Bridged: 750 watts x 2 channel @ 4 ohm
• Class D 2 ohm Stable 4-Channel-Channel Amplifier
• Includes Amplifier Wiring Kit

Learn more about the sxe40004dbk_bak44

We apologize

This item has been discontinued


Loading...
Limited time!
C2-075CT main

JL Audio C2-075CT

120W RMS 0.75" C2 Series 8-ohm Component Dome Tweeters

8
-15.63%

$134.99

List price $159.99

Description


DS18 brand icon

Authorized dealer

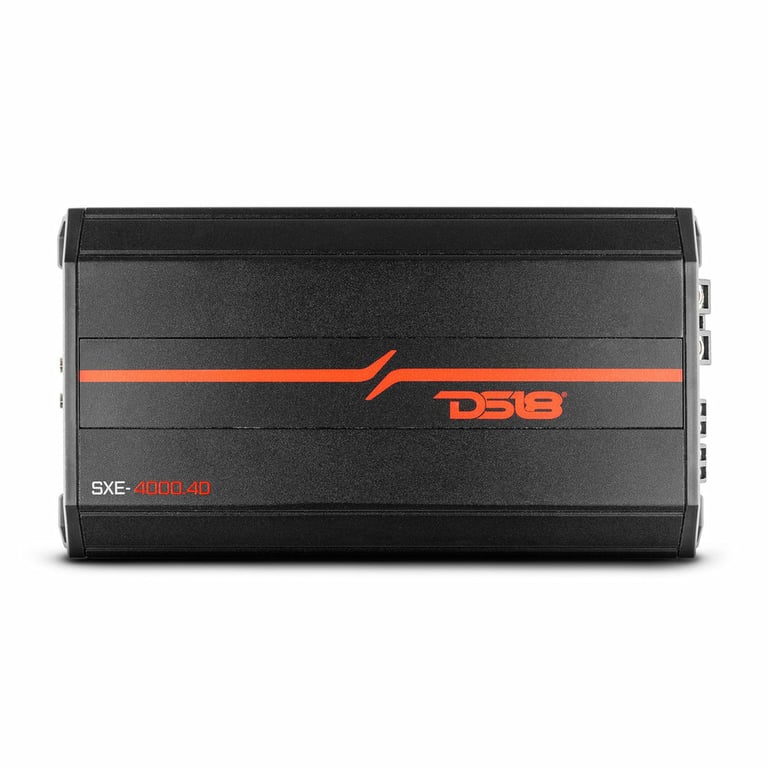

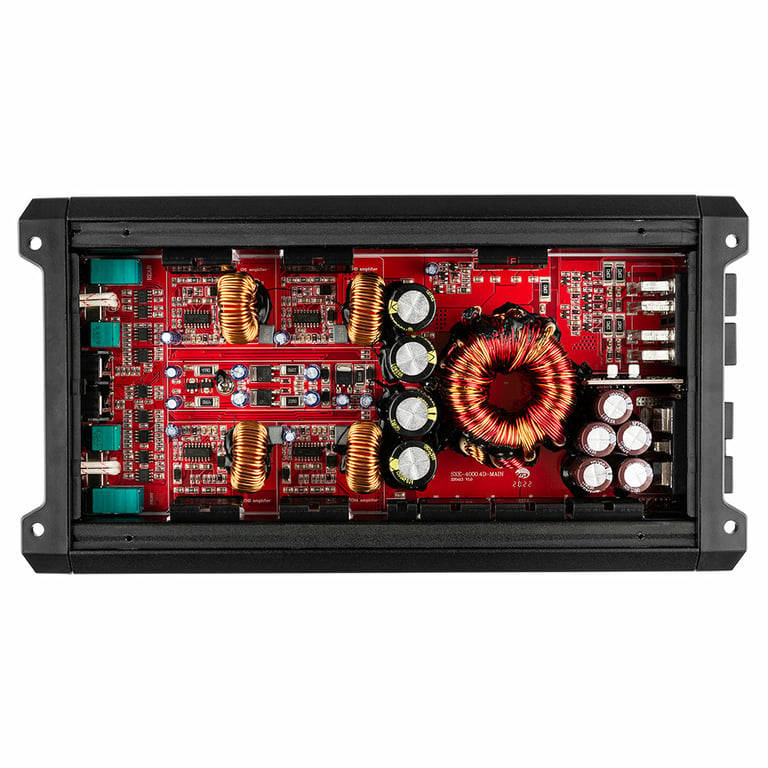

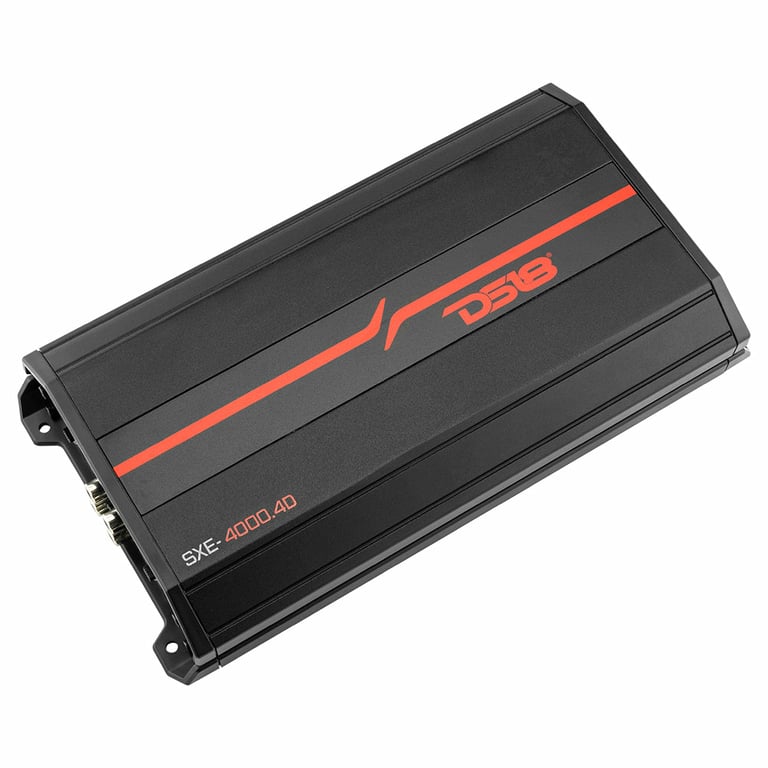

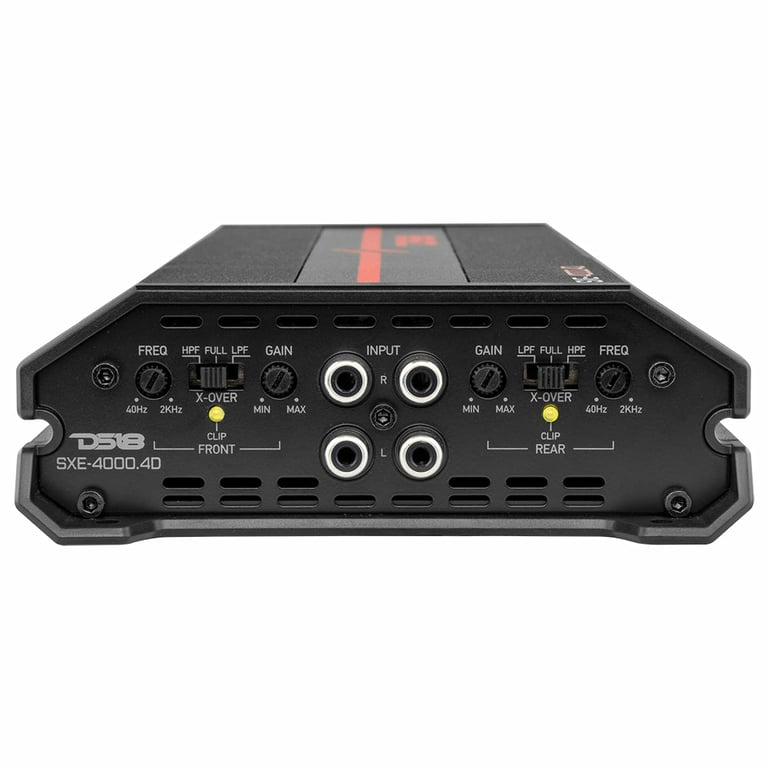

DS18 SXE-4000.4D/BK

4000W Peak (1720W RMS) Class D SXE Series 4 Channel Car Amplifier
Quantity: 1

Product Details:

  • SXE Series Class D 2 ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 275 watts x 4 channel
    • 2 ohm: 430 watts x 4 channel

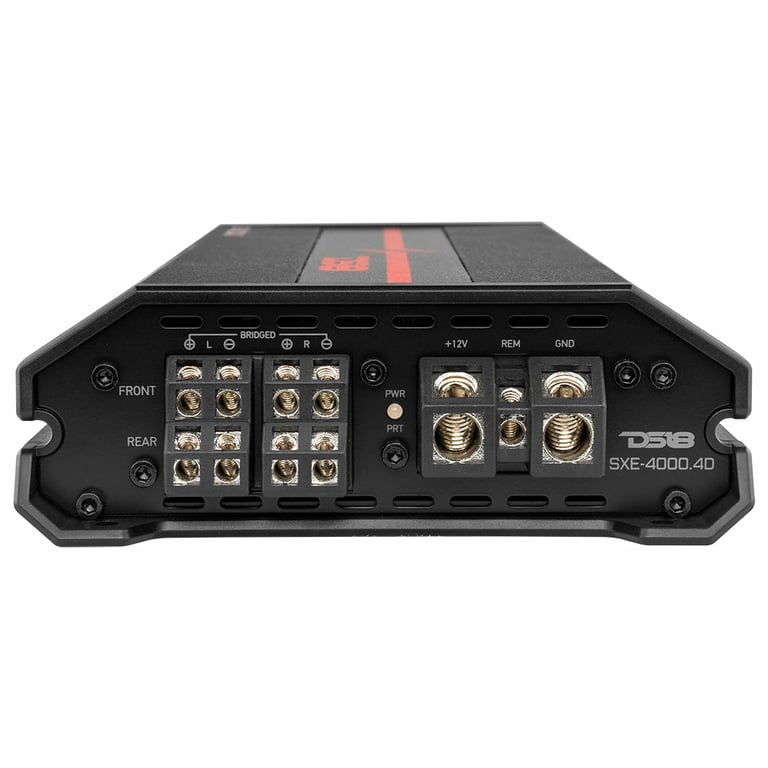

    • Bridged: 750 watts x 2 channel @ 4 ohm
  • Total power output: 1720 watts
  • LED Power/Protect/Clip Light
  • Signal sensing remote turn-on
  • Thermal, overload, DC, and speaker short protection
  • Red / Black Brushed Aluminum Body Finish

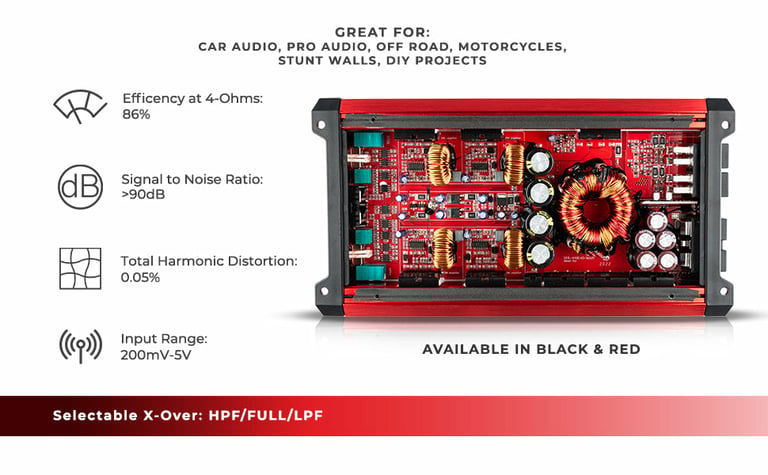

  • Input sensitivity: 200 mV - 5 volts
  • Frequency Response: 10 - 20000 Hz
  • Total Harmonic Distortion (THD): 0.05%
  • Signal to Noise Ratio: 90 dB

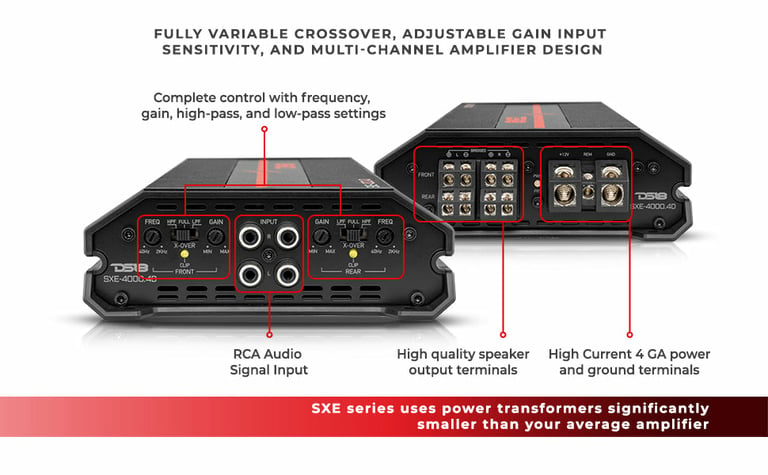

  • Variable high-pass filter: 40 - 2000 Hz
  • Variable low-pass filter: 40 - 2000 Hz
  • Fuse Rating: 80A
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 12.5" L x 7.75" W x 3.25" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: SXE-4000.4D/BK

Belva BAK44

4 Gauge Premium (CCA) Copper Clad Aluminum Complete 4-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - RED
Quantity: 1

Product Details:

  • 4 Gauge 4-Channel Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1200 watts RMS
  • Made from 100% Copper-Clad Aluminum (CCA)
  • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • RCA Interconnect Cable
  • Twisted-pair construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

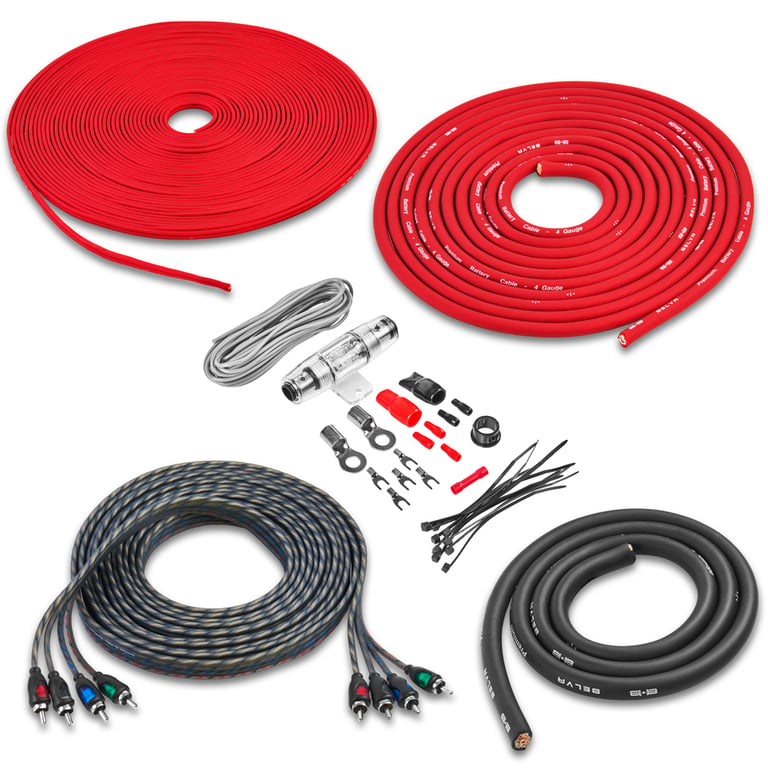

Kit includes:

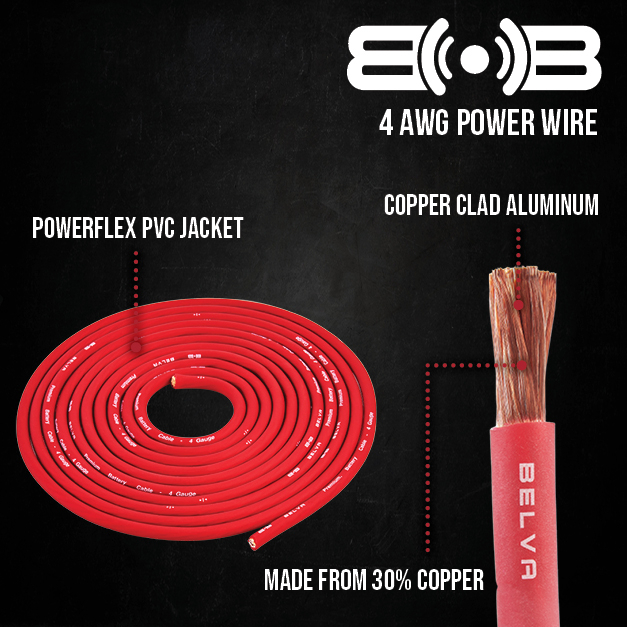

  1. 17 ft. Red 4 gauge power wire
  2. 3 ft. Black 4 gauge ground wire
  3. 17 ft. Gray 18 gauge remote lead wire
  4. 40 ft. 16 gauge speaker wire
  5. One 17 ft. 4-channel twisted-par construction RCA interconnect Cable
  6. One Mini-ANL Fuse Holder with 80 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 4 Gauge Chrome Plated ring terminals
  9. Five 16 Gauge Spade terminal
  10. One 18 Gauge Red butt connectors
  11. Ten 4" Black zip ties

Loading...
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

REF3032CFXAM main

Infinity Reference 3032cfx (REF3032CFXAM)

150W Peak (50W RMS) 3.5" Reference Series 2-Way Coaxial 3-ohm Car Speakers

28
-38.45%

$79.99

List price $129.95

JS35K main

Jensen JS35K

150W Peak (50W RMS) 3.5" Apex Series 2-Way Coaxial 4-ohm Car Speakers

-16.67%

$79.99

List price $95.99

AP-W81AC main

Deaf Bonce Apocalypse AP-W81AC

1200W Peak (600W RMS) 8" Apocalypse Series 4-ohm Midbass Car Speakers

Limited time!
REF407F main

Infinity REF407F (INFSPKRF407FUS)

210W Peak (75W RMS) 4" Reference Series 2-Way Coaxial 3-ohm Speakers

-37.16%

$87.95

List price $139.95

DMDX8 main

Diamond Audio DMDX8

390W Peak (130W RMS) 8" DMDX Series 2-Way Cocentric Coaxial Car Speakers

Limited time!
DMDX4 main

Diamond Audio DMDX4

180W Peak (60W RMS) 4" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

-20.00%

$87.99

List price $109.99

EPICPRO8X main

AudioControl EPICPRO8X

700W Peak (500W RMS) 8" Epic Pro Series Pro Audio Midrange 4-ohm Speakers

Limited time!
H80C main

Cerwin-Vega H80C

900W Peak (300W RMS) 8" HED Series 2 Way Component 4-ohm Speaker System

-33.33%

$175.99

List price $263.99


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(261)

$486.93

List price $677.43

VCW84_NDA12001_XKIT42 small

NVX VCW84v3 + NDA12001 + XKIT42

• Two 8" VCW84v3 VC-Series v3 1300W RMS Subwoofers
• 2400W Peak (1200W RMS) Class D NDA12001 Monoblock Amplifier
• XKIT42 Complete 4 AWG Amplifier Wiring Kit
• 1-year Warranty from the Original Purchase Date

(153)

$619.96

List price $791.96

BAK42,R500X1D small

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(73)

$309.99

List price $369.98

NPKG212_65_69_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 6x9" & 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 and 6x9 Coaxial Speakers and Damping Kits

(267)

$495.93

List price $688.43

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(149)

$530.20

List price $593.98

51HS10_BAK82_2NK small

Kicker HS10 (51HS10) w/ Free Amp Install Kit

  • Kicker HS10 180W RMS Single Loaded 10-Inch Hideaway Series Powered Subwoofer Enclosure
  • Convenient wired remote for independent bass level control
  • 8 Gauge Premium CCA complete 2-channel amplifier wiring kit with RCA
  • Premium polyurethane foam can insulator sleeve koozie with black logo
  • Complete bass solution includes compact powered subwoofer and installation hardware

(99)

$319.99

List price $489.96

S-DB8V-TRK_PKG small

Alpine Full Audio Truck Package

• 600W RMS Dual Ported 8" Loaded Enclosure
• Modular Stackable Design
• Integrated Amplifier Tray
• Class D 8-Channel-Channel Amplifier
• 6"x9" Component Speakers
• 6.5" Coaxial Speakers

(11)

$2115.80

List price $2690.00

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
275 watts x 4 channel
RMS Power @ 2 ohms
430 watts x 4 channel
Bridged RMS Power
750 watts x 2 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
4-Channel
Total Peak Power Output
4000 watts
Total RMS Power Output
1720 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Frequency Response
10 - 20,000 Hz
THD at Rated RMS Power
.05%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
Low-Pass Crossover Frequency
.2 - 5 Hz
Signal-to-Noise Ratio
90 dB
Channel Separation
45 dB
Remote bass/level controller
No
CEA-2031 Compliant
No
Hi-Res Certified
No
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
4 gauge
Power Wire Length
17 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
65 feet
Remote Wire Length
17 feet
Interconnect (RCA) Signal Cables Included
4 Channel
Fuse Holder
Mini ANL
Fuse Size
80A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SXE-4000.4D/BK, BAK44

Weight:

8.58lbs

Internal SKU:

sxe40004dbk_bak44

Internal Product ID:

200189

Customer Ratings & Reviews


DS18 SXE-4000.4D/BK with Belva 4 Gauge Amp Kit thumbnail image

5 star
79%
4 star
13%
3 star
7%
2 star
2%
1 star
0%



Durability
4.7
Value
4.9
Features
4.8
Design
4.8
Usability
4.8

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Awesome product for the price

The following review is for BAK44, which is a part of the bundle you are viewing.

I was overall satisfied with everything in the kit. The wire was great quality and easy to run. I liked that it came with a plastic grommet for my firewall. I think the fuse was really nice and looks great under the hood. Just make sure you have a 4 gauge crimping tool which I did not have. I ended up crimping with some pliers and a hammer to tighten up the terminals.

By JT on January 17, 2014

141 found this helpful


Good kit for the $

The following review is for BAK44, which is a part of the bundle you are viewing.

Used this kit to install a 4 channel amp and had plenty of wire to do the job.

By Tomas on January 13, 2015

136 found this helpful


Everything I needed

The following review is for BAK44, which is a part of the bundle you are viewing.

Great value, great quality, everything that was necessary to install the full system. Kudos.

By DEREK on January 29, 2015

129 found this helpful


good amp kit

The following review is for BAK44, which is a part of the bundle you are viewing.

The amp kit works well. The installation was very easy. I had plenty of wire. For the power and ground wires I soldered on my own copper lugs. The only real drawback is that this kit is cca instead of ofc, but that is why it is so cheap.

By Philip on January 26, 2014

133 found this helpful


excellent value

The following review is for BAK44, which is a part of the bundle you are viewing.

this had everything you need in it to do an amp install. I was impressed with the speaker wire as it was a heavy gauge wire. 14awg I think. it was listed to have 20ft of speaker wire in product description but had 65ft in package, (nice). all the wire was nice and flexible (easy to work with) unlike some cheaper wire I've seen or used that's real stiff. couldn't ask for anything more.....

By werthy1 on November 27, 2013

131 found this helpful


great amp kit

The following review is for BAK44, which is a part of the bundle you are viewing.

Made amp installation easy. Good quality gauge wire and inline fuse with this kit.

By Ozzie on January 6, 2015

127 found this helpful


Amp wiring kit

The following review is for BAK44, which is a part of the bundle you are viewing.

This is an above average installation kit with all the wiring you need except a RCA for 5th channel.

Half price with bundle with Amp

By Joel on December 30, 2014

127 found this helpful


Worked Perfect

The following review is for BAK44, which is a part of the bundle you are viewing.

Great price and fast shipping. It was all I needed to hook up my amp and composite speakers. Plenty of length on all can cables.

By Shon on February 27, 2014

128 found this helpful


Really Good Quality!!

The following review is for BAK44, which is a part of the bundle you are viewing.

Got this wiring kit at a discount after purchasing together with amp, so ended up at around $37. Ive bought 4 gauge wiring kits before at local radio shop for the same price, but not the same quality at all! The power and ground wire are super flexible, great for passing through firewall and bending around tight corners. Great quality anl fuse, and was surprised to find 20 ft of equally good, thick, speaker wire, just enough to rewire my whole car! And loved the 4 twisted rca cables that make install a breeze, and helps keep everything looking neat and clean. Perfect for a 4 channel Amp Install.

By Frank on January 1, 2014

127 found this helpful


works great

The following review is for BAK44, which is a part of the bundle you are viewing.

everything I needed to install, good price and value. Will order another shortly.

By Donnie on September 2, 2014

118 found this helpful




9006-12K-SLIM small

Elite Slim Series 9006-12K-SLIM HID Xenon Headlights

12,000K 9006/HB4/9012 Xenon Headlamp Bulbs HID Headlight Conversion Kit w/ Slim Ballasts

(16)

$73.74

List price $170.35

BK800.4 small

Precision Power PPI BK800.4

800W 4-Channel Class A/B Black Ice Series Car Amplifier

(9)

$139.00

List price $329.95

ATX950.4 small

Autotek ATX950.4

950W Max 4-Channel Class AB ATX Series Amplifier

(5)

$54.95

List price $149.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2018 BMW 3 Series

2004 Dodge Caravan

2010 BMW 535i xDrive

1996 Ford Aerostar

1967 Mercury Caliente

2013 Jaguar XKR

1987 BMW 325es

2009 BMW 335i

2011 BMW 3 Series

2003 Saturn L200

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
