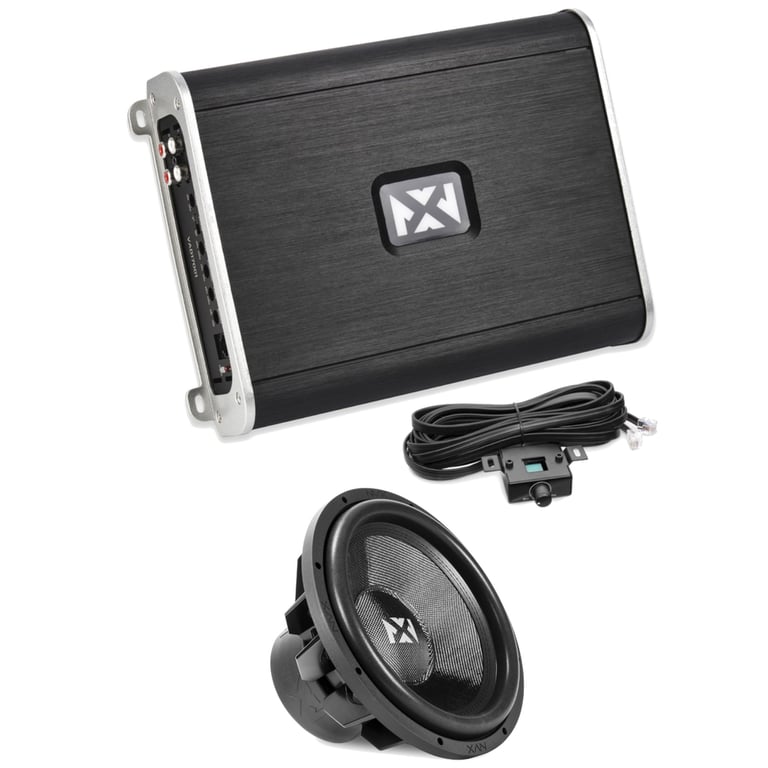

NVX VAD17001 with VCW152V2

1700W Class D Monoblock Amplifier with 1500W RMS 15" Dual 2-Ohm Subwoofer

NVX
Shop all NVX
Out of stock
highlight-star-icon

• RMS: 800 x 1 @ 4 ohms, 1350W x 1 @ 2 ohms, 1700W x 1 @ 1 ohm
• Total RMS Power: 1700W
• CEA-2006 Compliant

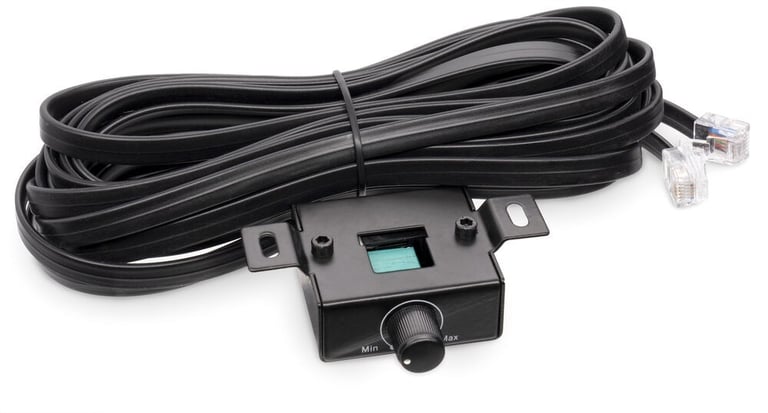

• Wired Bass Remote Included
• Efficient Class D Design
• RMS Power: 1500 Watts
• 3” 4-Layer High-Temperature Black Aluminum Voice coil
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll foam surround with black nylon stitching
• 202 oz. Triple-stacked High Energy ferrite magnet
• Die Cast aluminum vented basket

Learn more about the vad17001_vcw152
Was $699.98 Details
Thanks , You Pay:

$424.98

 with warranty

Heads up

We confirm fitment and offer accessories for speakers. Please set your vehicle first if you would like to purchase more than one vad17001_vcw152.

Set your vehicle or Return to product page
Quantity
Out of stock - Order risk-free, cancel any time.
Brand new

Acima Logo

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Allstate logo

Keep your product protected longer! Extend the warranty after the manufacturer warranty expires.

  • Mechanical, electrical and product failure covered! 100% parts and labor covered. (Coverage starts after Mfr. warranty)
  • Easy online management! Zero hassle claim service, available 24/7
Swoosh Icon Icon of Swoosh

For over 23 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

Award winning icon
Award-Winning Service
Shipping icon
FREE Shipping Orders $49+
60 days return policy icon
60-Day Easy Returns
lowest price guarantee icon
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Description


NVX brand icon

Authorized dealer

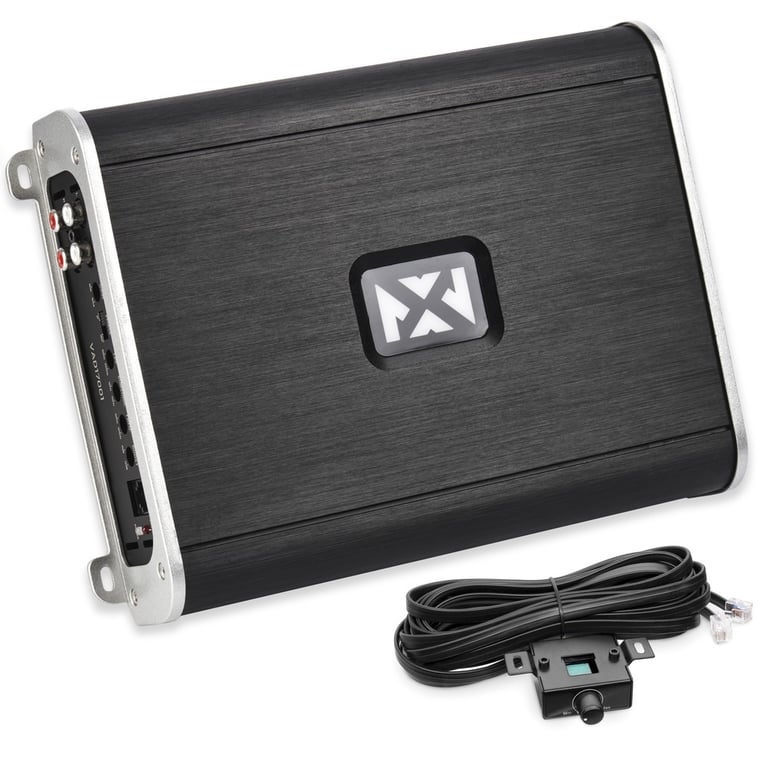

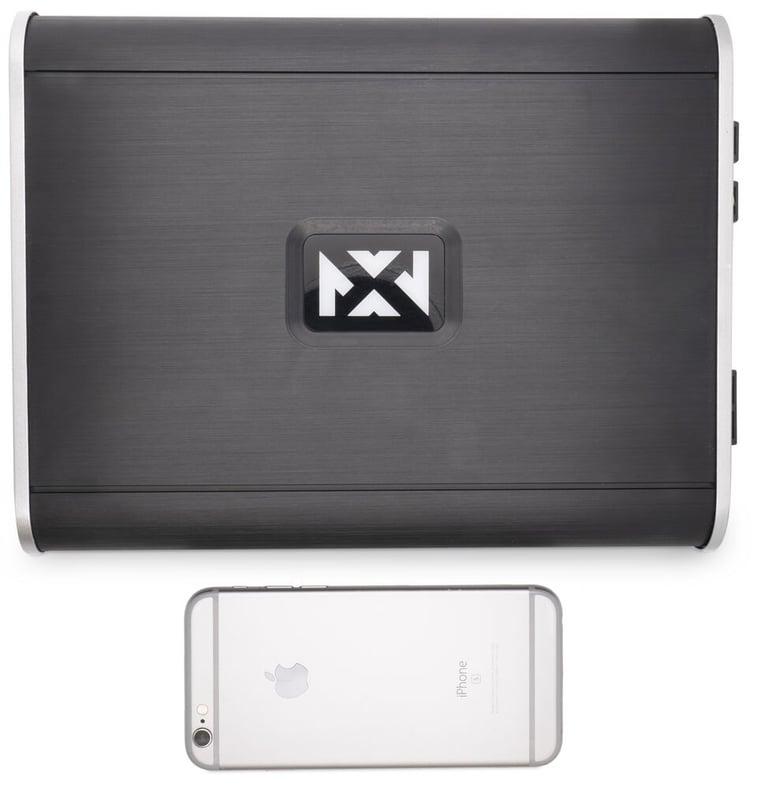

NVX VAD17001

1700W RMS Class D Monoblock Car/Marine/Powersports Amplifier with Bass Remote (Marine Certified)
Quantity: 1

Product Details:

  • Marine Certified Class D Monoblock Amplifier with Bass Remote
  • CEA-2006 Compliant
  • Peak Power Rating: 3400 Watts
  • RMS Power Rating:
    • 4 ohms: 800 watts x 1 chan.
    • 2 ohms: 1350 watts x 1 chan.
    • 1 ohm: 1700 watts x 1 chan.

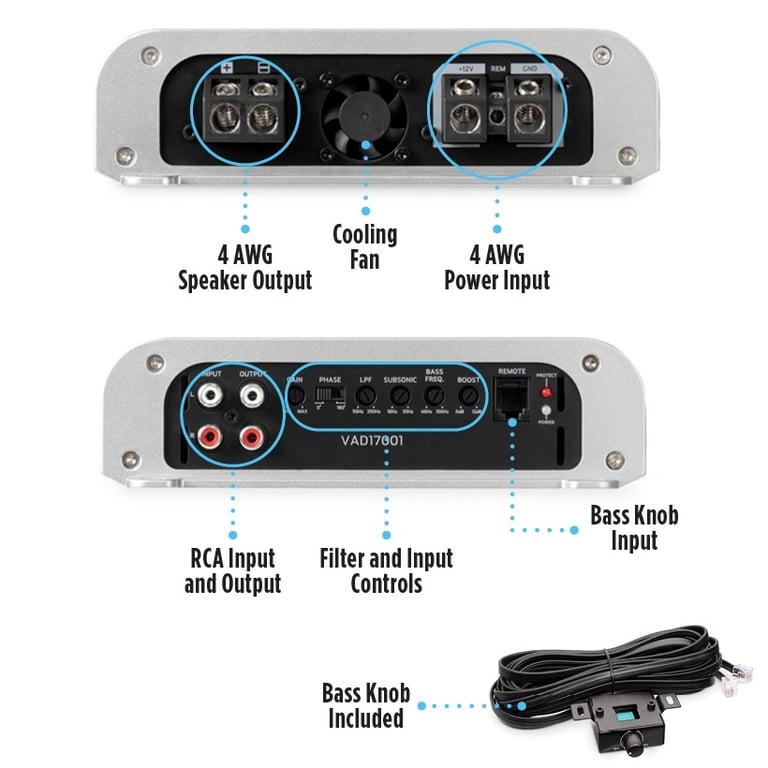

  • LED power (blue) and protect (red) indicators
  • Conformal Coated Marine grade circuit board
  • Heavy duty aluminum alloy heat-sink

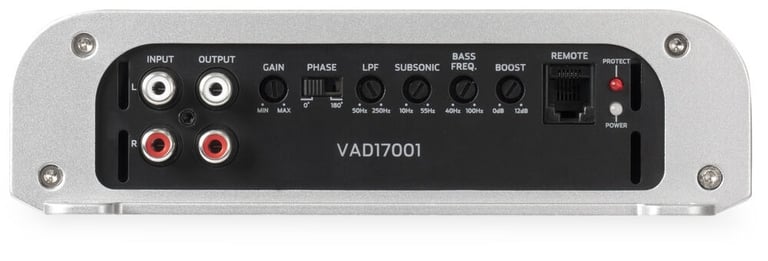

  • Platinum-plated RCA level inputs

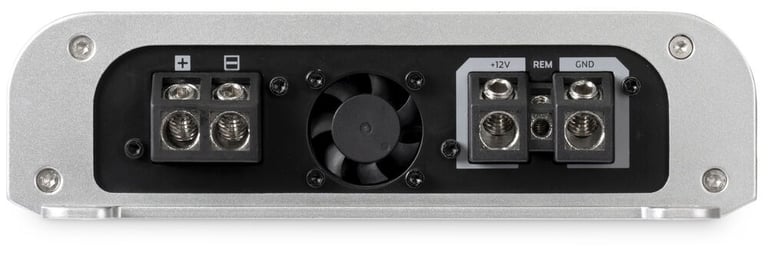

  • Platinum-plated screw terminals
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Variable subsonic filter: 10 - 55 Hz, 12 dB/octave
  • Variable low-pass filter: 50 - 250 Hz, 12 dB/octave
  • Bass Boost: 0 - +12dB boost @ 45Hz
  • Input Sensitivity: 200mV-6V
  • Total Harmonic Distortion: <0.3%
  • Phase: 0-180 Degree Switch
  • Recommended In-line Fuse: 120A
  • Power Wire Gauge: 4 AWG
  • Speaker Wire Gauge: 4 AWG
  • Dimensions: 9.2"L x 7.2"W x 2.0"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Check out the NVX VAD17001 Owner's Manual

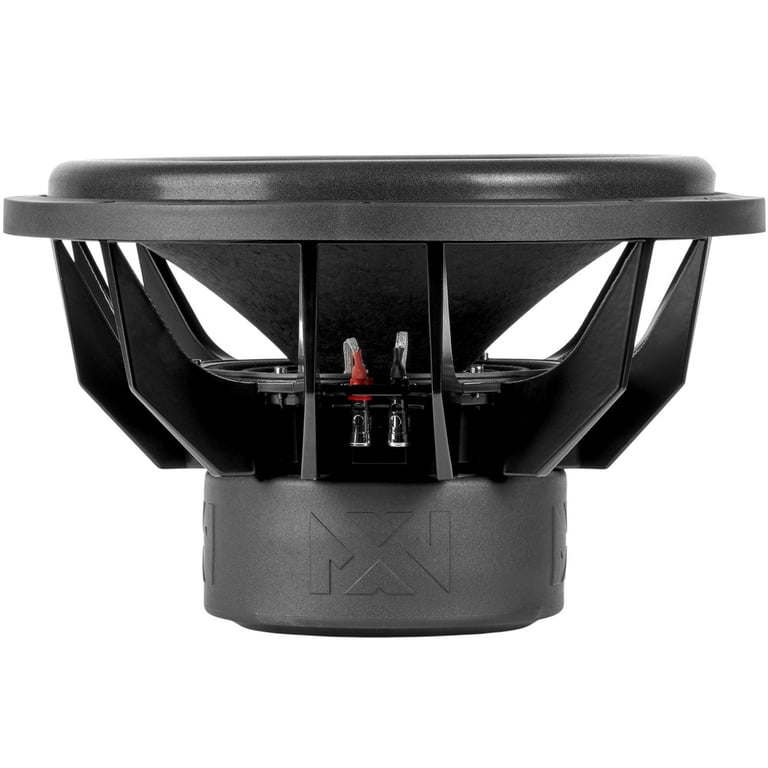

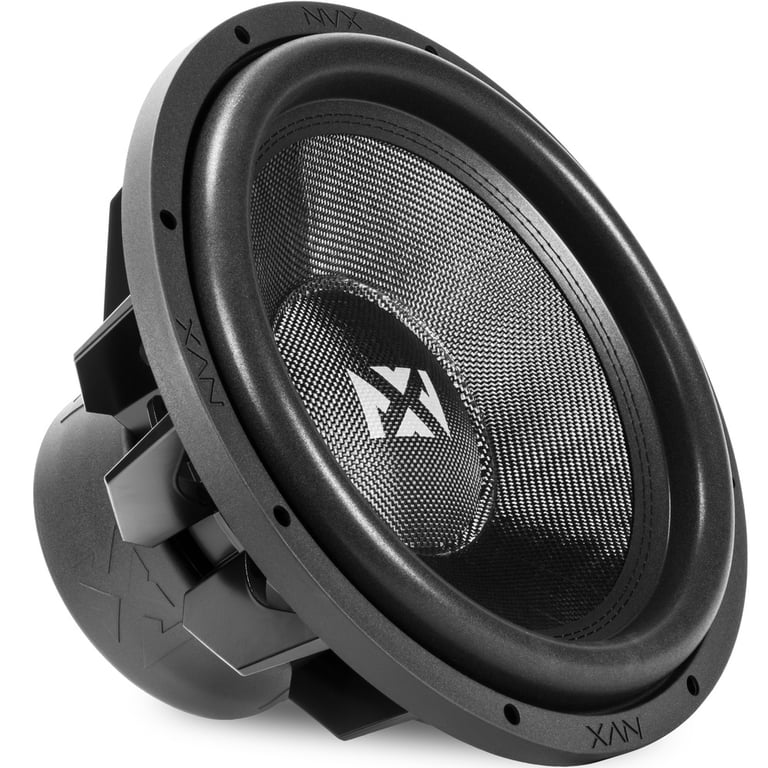

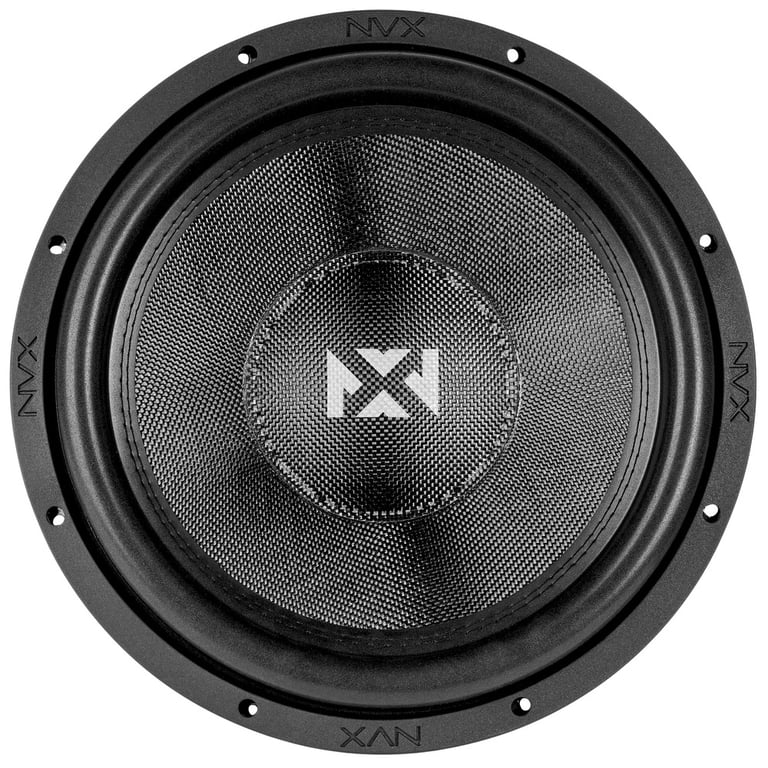

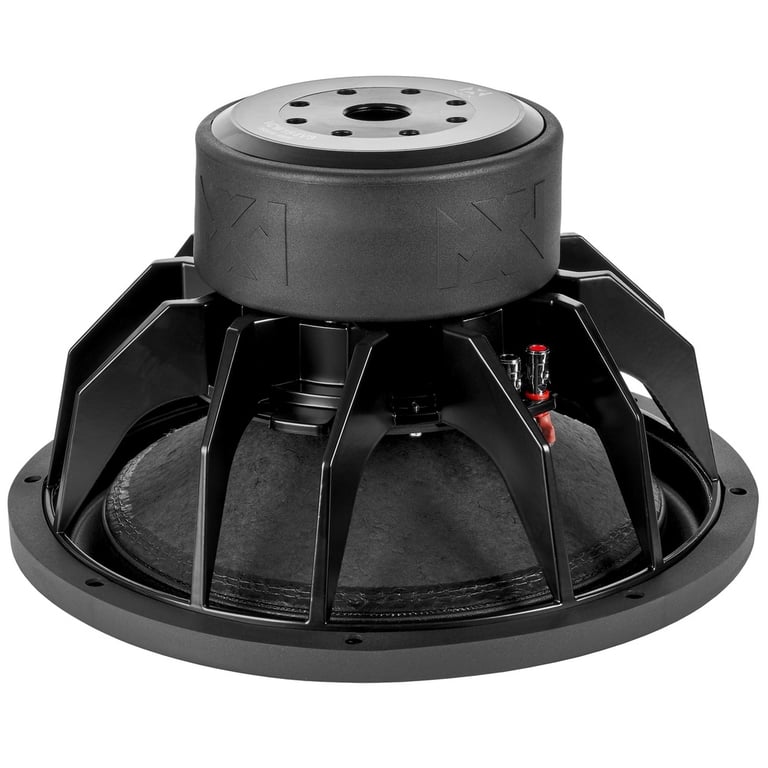

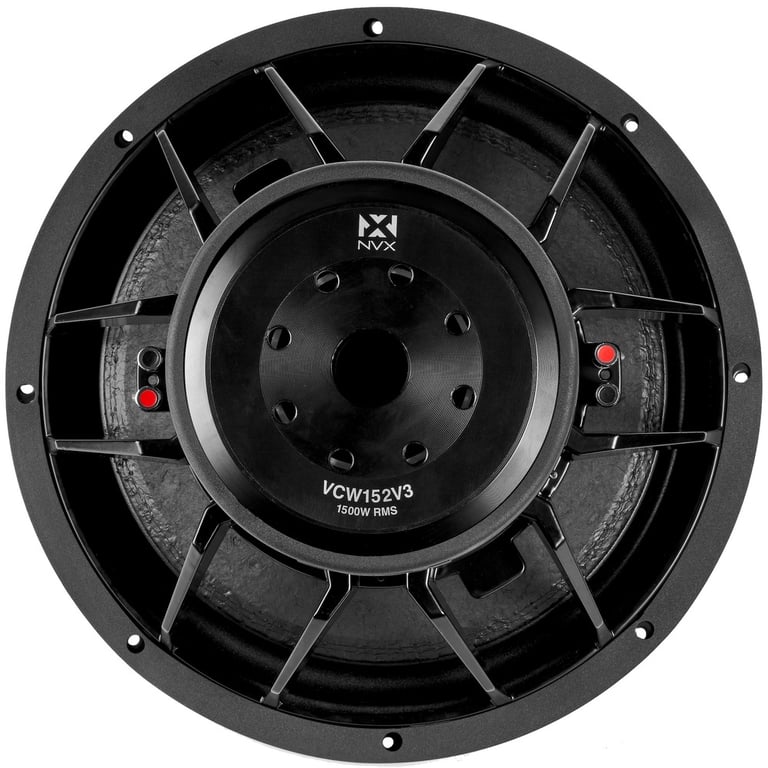

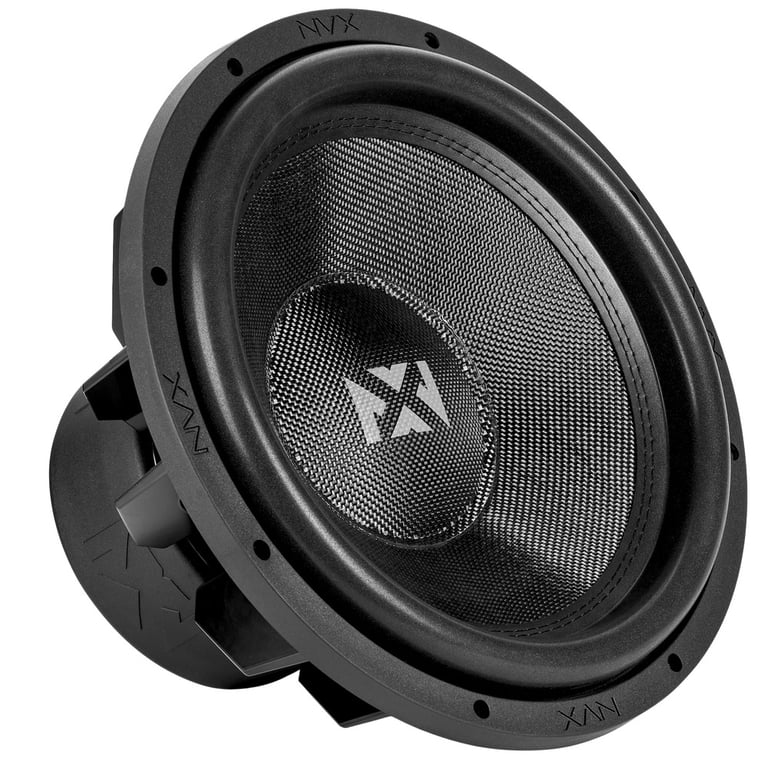

NVX VCW152 Version 3 (VCW152v3)

3000 Watt Peak (1500W RMS) 15" VC-Series v3 Dual 2-Ohm Car Subwoofer
Quantity: 1

Product Features:

  • 15" Dual 2-Ohm VC-Series v3 Car Subwoofer
  • Power Handling:
    • Peak Power: 3000 watts
    • RMS Power: 1500 watts
  • Impedance: Dual 2 ohms
  • Xmax: 23mm (One-way)
  • Carbon Fiber Enhanced Non-Pressed Paper Cone
  • Custom High Roll foam surround with black nylon stitching
  • Die Cast aluminum vented basket
  • Dual Progressive Roll Bolt-on Spiders with Integrated Flat Braided Tinsel Leads
  • 3” 4-Layer High Temperature Black Aluminum Voice coil
  • Optimized high-velocity pole vent
  • One piece T-Yoke with vented magnet gap
  • 202 oz. Triple stacked High Energy Y35 grade ferrite magnet with protective rubber boot
  • Frequency response: 20-200 Hz
  • Resonance Frequency (Fs): 31 Hz
  • Optimal sealed box volume: 2.00 cubic feet
  • Optimal ported box volume: 3 cubic feet
  • Top-mount depth: 8.19"
  • Sensitivity: 88dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

NVX VAD17001, VCW152 thumbnail
(newest, current model)
NVX JAD1200.1 thumbnail
(previous model, replaced by NVX VAD17001 with VCW152V2)

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
800 watts x 1 channel
RMS Power @ 2 ohms
1350 watts x 1 channel
RMS Power @ 1 ohm
1700 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
3400 watts
Total RMS Power Output
1700 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohms
THD at Rated RMS Power
0.3%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
10 - 55 Hz
Signal-to-Noise Ratio
105 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fan Cooled
Yes
CEA-2031 Compliant
Yes
Subwoofer Specifications
Series
VC Series
Subwoofer Size
15"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohms
RMS Power Handling
1500 watts
Peak Power Handling
3000 watts
Woofer Surround
High Roll Foam
Woofer Composition
Woven Fiber Pressed Paper
Maximum Ported Box Volume
3.75 cubic feet
Sensitivity
88 dB
Frequency Response
20 - 200 Hz
Xmax (millimeters)
23 mm
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

VAD17001, VCW152

Weight:

41.50lbs

Internal SKU:

vad17001_vcw152

Internal Product ID:

200192

Customer Ratings & Reviews



5 star
87%
4 star
11%
3 star
2%
2 star
0%
1 star
0%



Durability
4.9
Value
4.9
Features
4.9
Design
4.9
Usability
4.9

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Amazing Subwoofer

The following review is for VCW152v3, which is a part of the bundle you are viewing.

Has a very good feel and structure very solid. Large cone area much better than average stitching and craftsmanship. Mine sounded amazing squeezed the trunk of a VW Golf but you will be heard, Make sure you give it accurate power because of that new motor rating wattage requirements I had mine going for 7 months at around 1200 watts and finally the voice coil was shot.

By Someone in on October 13, 2014

60

found this helpful.

Amazing Deal! So Far So Good

The following review is for VCW152v3, which is a part of the bundle you are viewing.

I bought this sub to install in a friend's car. I bought it with the free ported sub box deal for a fantastic price (Although it didnt fit in the box so I had to sand it down by about 1/2") Regardless this thing suggests about 900 Watts RMS in a ported box (I ran it off of a Rockford Fosgate 750-1D). Sound clarity is amazing and it gets some seriously crushing lows. Its almost as loud as my 2 15" Kicker CVR's in just one woofer! Overall great sub, i would definitely recommend it!

By Mark on October 24, 2013

59

found this helpful.

Just as advertised !!!

The following review is for VCW152v3, which is a part of the bundle you are viewing.

I have this hooked up to a Hifonics 1100.1 d Brutus amp pushing 1000 rms and it beats the block hard!! Hits incredible lows and all around great sound! Great price and fast shipping sonic is the best!!!!

By daniel on February 15, 2015

57

found this helpful.

WOW

The following review is for VCW152v3, which is a part of the bundle you are viewing.

Wow is all i can say this thing is a monster, best bang for your buck (pun intended). I have this running on a my audio 1800 watt amp at 1 ohm and it slams.

By Darrenb on December 23, 2013

52

found this helpful.

loud sub

The following review is for VCW152v3, which is a part of the bundle you are viewing.

i bought this sub with a ground shaker box and a cerwin vega stroker 1,000 watt amp. this sub sounds amazing and is really loud. it shakes my whole car and flexes my headliner alot. if you want a great sub and have awsome sound quality buy this sub.

By Tim on December 1, 2013

53

found this helpful.

Best deal on the net

The following review is for VCW152v3, which is a part of the bundle you are viewing.

I put on of these 15's in a ported box hooked up to a Hifonics 1000 watt RMS amp and WOW! I have used Sounstream, JL, FI Audio, Ascendant Audio, and a bunch others and this is right up at the top. You will not find a better deal anywhere, period.

By Kevin on February 7, 2013

51

found this helpful.

Best sub I've had

The following review is for VCW152v3, which is a part of the bundle you are viewing.

I have this sub running at 1 ohm on a BRX1100.1D mono block

Sub says it's rated at 850-1000 watts rms
But nvx undertakes their speakers so in sure it can handle more cuz mine BANGS and no clipping or distortion
ALSO I have it on a ported box which this sub recommends using a ported/vented box

By Martin on February 8, 2015

49

found this helpful.

Unbelievable

The following review is for VCW152v3, which is a part of the bundle you are viewing.

I have this sub running at 1 ohms with my Re audio monoblock 1500 amplifier and its the cleanest most powerful sub I've ever heard. I highly recommend it.

By Davide on December 22, 2012

50

found this helpful.

Best subwoofer I have ever owned.

The following review is for VCW152v3, which is a part of the bundle you are viewing.

I install car audio and have for the last 13 years, this sub surprised me in the best of ways. It looks amazing and sounds even better, I have turned everyone that hears it into a NVX consumer. I have one in a custom 2.4 cu ft ported box tuned to 40 hz and my SUV flexes everywhere lol. SQ and SPL is unmatched oh and it is taking over 1000 watts like a champ! Give it good clean power and you will be living in your car lol. Buy NVX and support the next big thing to happen to the mobile electronics world before they realize I would have paid 400 for this sub haha. Amazing amazing amazing.

By david on April 30, 2015 Checkmark Icon Verified purchase

46

found this helpful.

NVX VCW152 - 5 star

The following review is for VCW152v3, which is a part of the bundle you are viewing.

Because of budget issues it will take a very long time to finish my orders & I intend to order every item before beginning the install so I don't have to redo anything, hopefully. The NVX VCW152 is everything as described at sonic and at a extremely good value, especially with a free tuned box. It does have a heavy triple stacked magnet with a rubber magnet wrap as in most high grade subwoofers. To leave this review I have to guess on durability. I give it a 4 star only because there is no re cone kit but for the price I'm not complaining. I'd avoid cheaper subs that hide the magnet.

By Fax on August 23, 2013

50

found this helpful.
