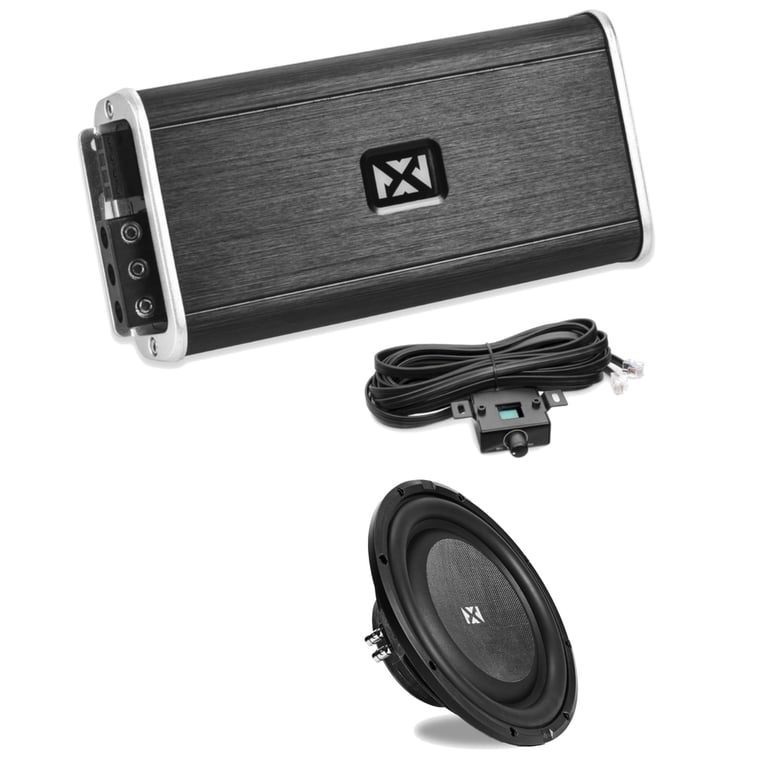

NVX VADM1 with SMW12D4

500W RMS Class D Monoblock Amplifier with 12" Shallow Mount Subwoofer

NVX
Shop all NVX
highlight-star-icon

• 500 Watt True RMS Output!
• Marine Certified Monoblock Micro Class D Amplifier
• 180W x 1-Chan. @ 4 ohms
• 320W x 1-Chan. @ 2 ohms
• 500W x 1-Chan. @ 1 ohms
• 3-Way System Protection

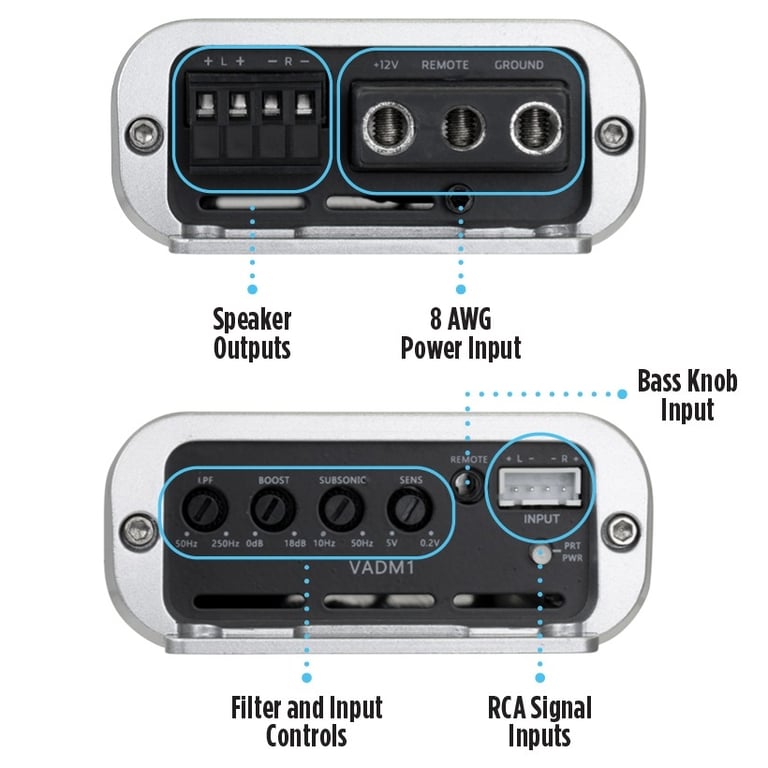

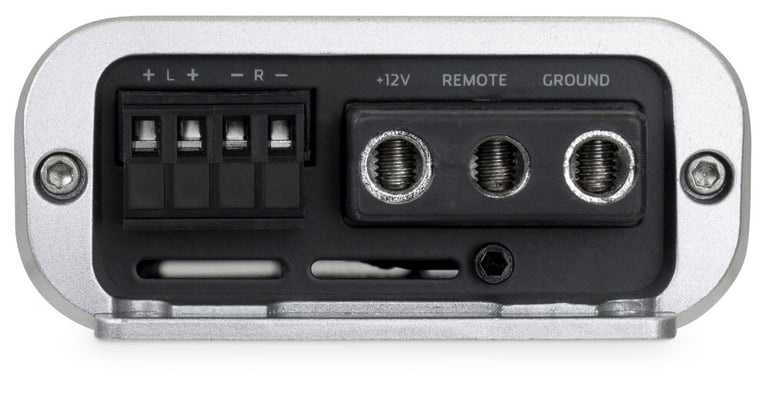

• 8 Gauge Power and Ground Inputs
• Extremely Small Footprint
• 800 watts Watts Peak
• 400 watts Watts RMS
• Carbon Fiber Reinforced Polypropylene Cone
• Butyl Rubber Surround
• Includes Depth Extension Clearance Plate
• Mounting Depth: 3-15/16"

Learn more about the vadm1_smw12d4
Was $392.98 Details
Thanks , You Pay:

$222.27

 with warranty

Heads up

We confirm fitment and offer accessories for speakers. Please set your vehicle first if you would like to purchase more than one vadm1_smw12d4.

Set your vehicle or Return to product page
shipping truck icon Free shipping in USA. Provide zip for delivery date.
Quantity
In Stock
Brand new

Buy it now


Acima Logo

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Allstate logo

Keep your product protected longer! Extend the warranty after the manufacturer warranty expires.

  • Mechanical, electrical and product failure covered! 100% parts and labor covered. (Coverage starts after Mfr. warranty)
  • Easy online management! Zero hassle claim service, available 24/7
Swoosh Icon Icon of Swoosh

For over 23 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

Award winning icon
Award-Winning Service
Shipping icon
FREE Shipping Orders $49+
60 days return policy icon
60-Day Easy Returns
lowest price guarantee icon
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Description


NVX brand icon

Authorized dealer

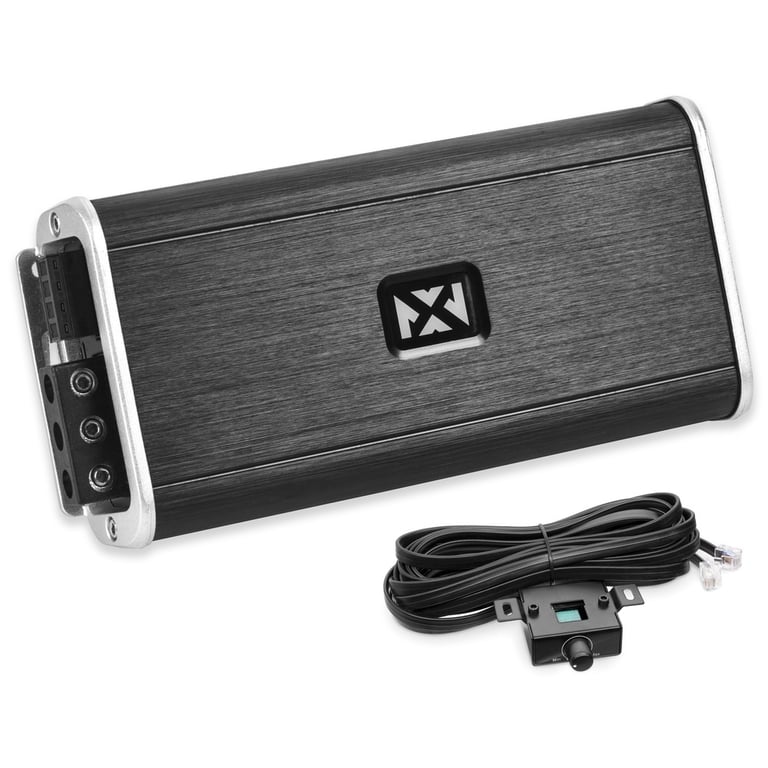

NVX VADM1

500W RMS Class D Monoblock Car/Marine/Powersports Amplifier with Bass Remote
Quantity: 1

Product Details:

  • Marine Certified 1-Channel Class D Car Amplifier
  • Peak Power Rating: 1000 Watts
  • RMS Power Rating:
    • 4 ohms: 180 watts x 1 channel
    • 2 ohms: 320 watts x 1 channel
    • 1 ohm: 500 watts x 1 channel

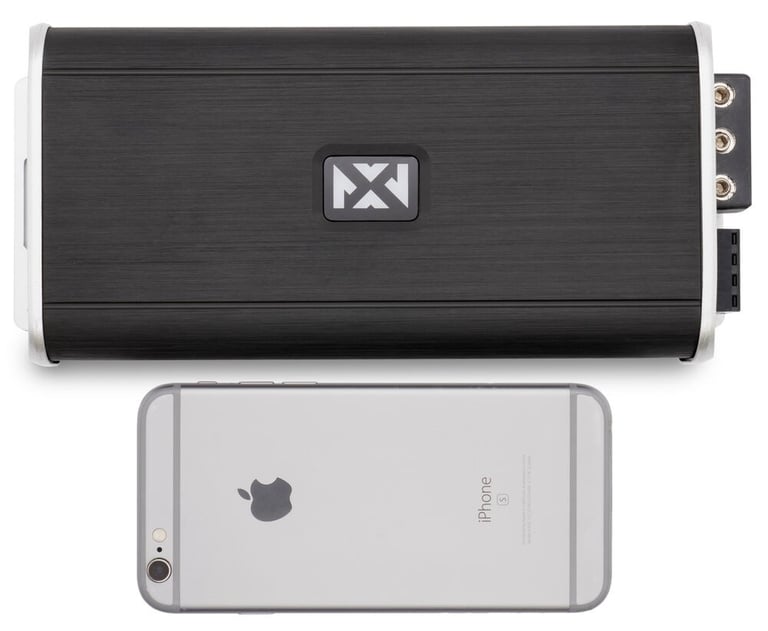

  • Cutting edge Micro Class D technology allows amplifier to be extremely compact

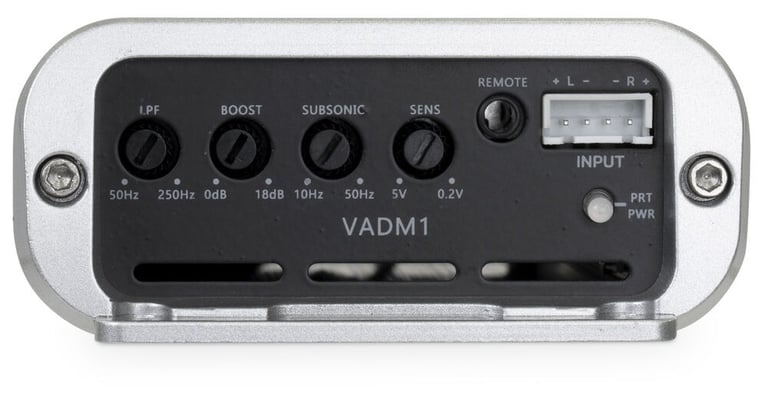

  • LED power (blue) and protect (red) indicators
  • Conformal Coated Marine grade circuit board
  • Balanced Differential Inputs, to eliminate noise picked up by signal cables

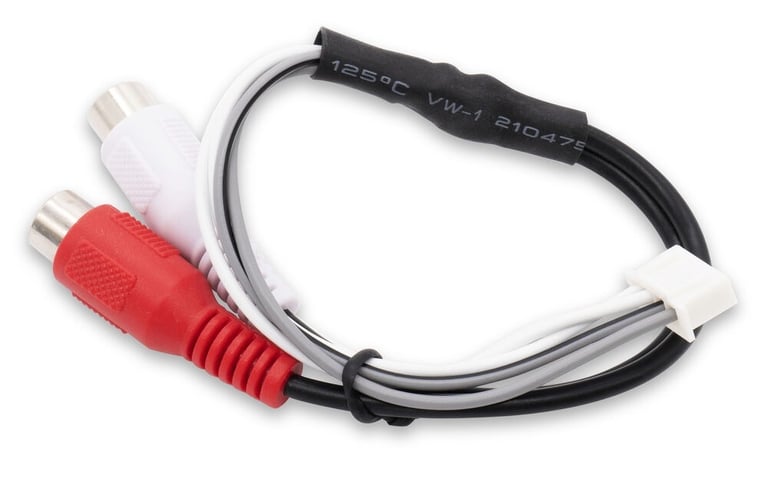

  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity: 0.2V-5V
  • Variable low-pass filter (50-250 Hz)
  • Bass Boost: 0 - +18dB boost @ 45Hz
  • Frequency Range : 20 - 20KHz
  • Total Harmonic Distortion: <0.3%
  • CEA-2006 compliant amplifier
  • Dimensions: 6.8"L x 3.3"W x 1.5"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
NVX VADM1 owner’s manual

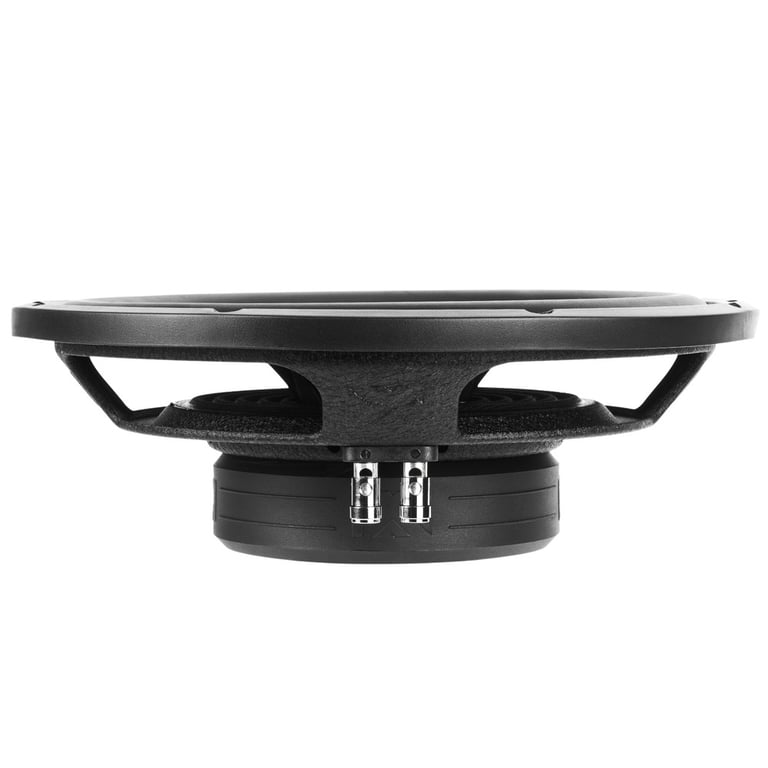

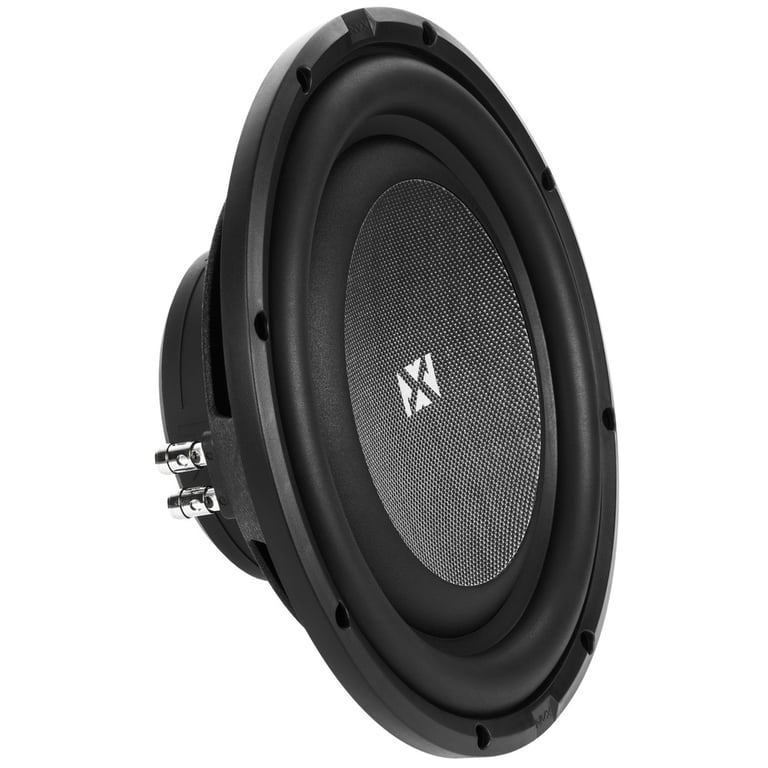

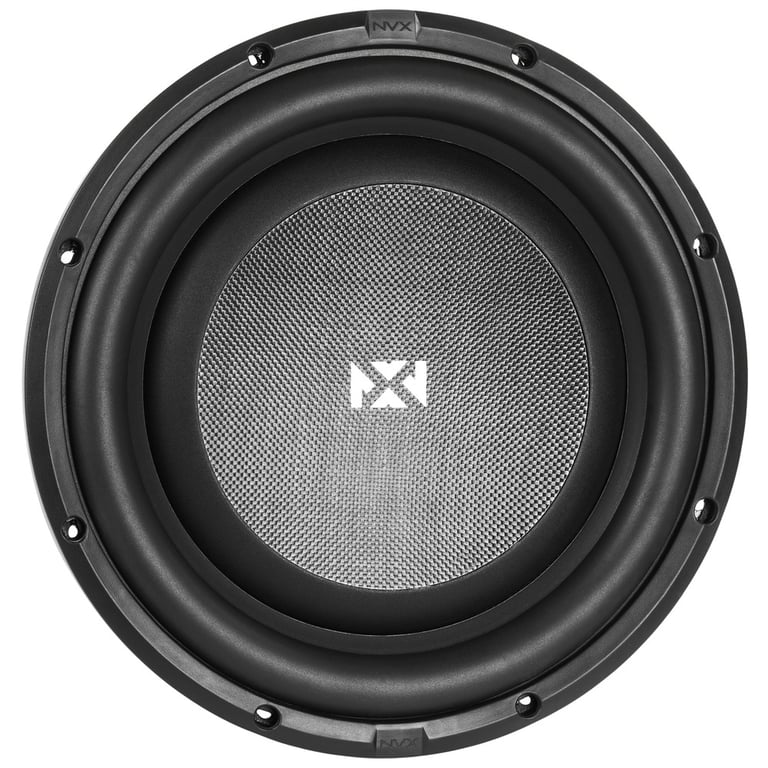

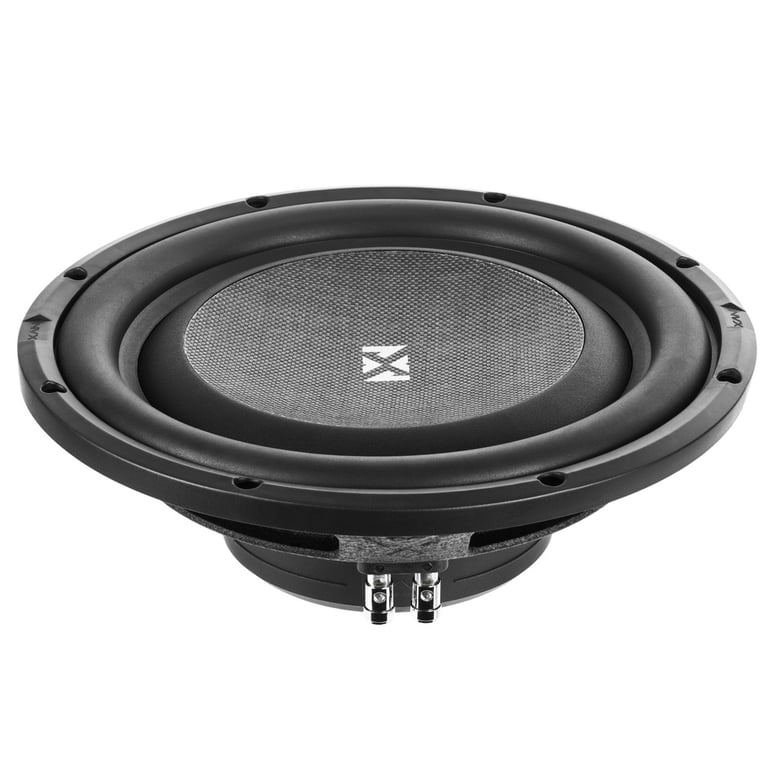

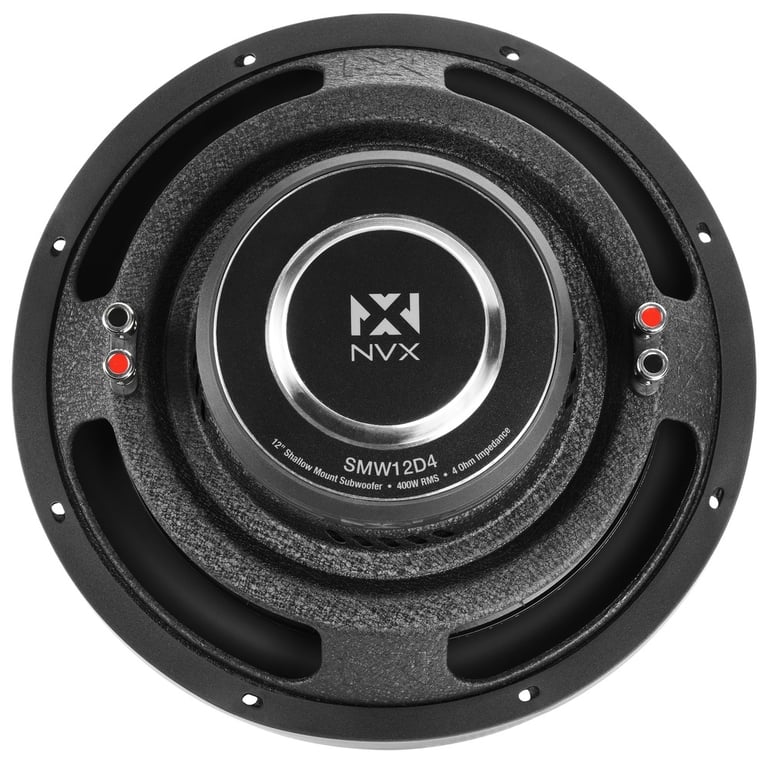

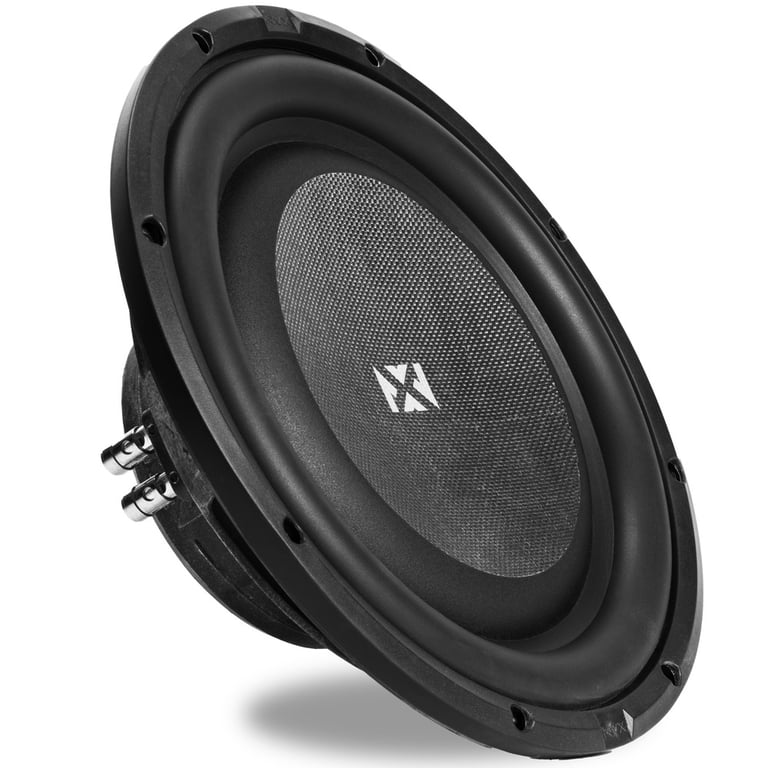

NVX SMW12D4

800W Peak (400W RMS) S-Series Shallow-Mount 12" Dual 4-Ohm Subwoofer
Quantity: 1

Product Details:

  • 12" Dual 4 ohms S Series Series Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 400 watts
  • Carbon Fiber Reinforced Polypropylene Cone
  • Butyl Rubber Surround
  • 53oz Y30 High Energy Ferrite Magnet
  • Top-mount depth: 3.82"

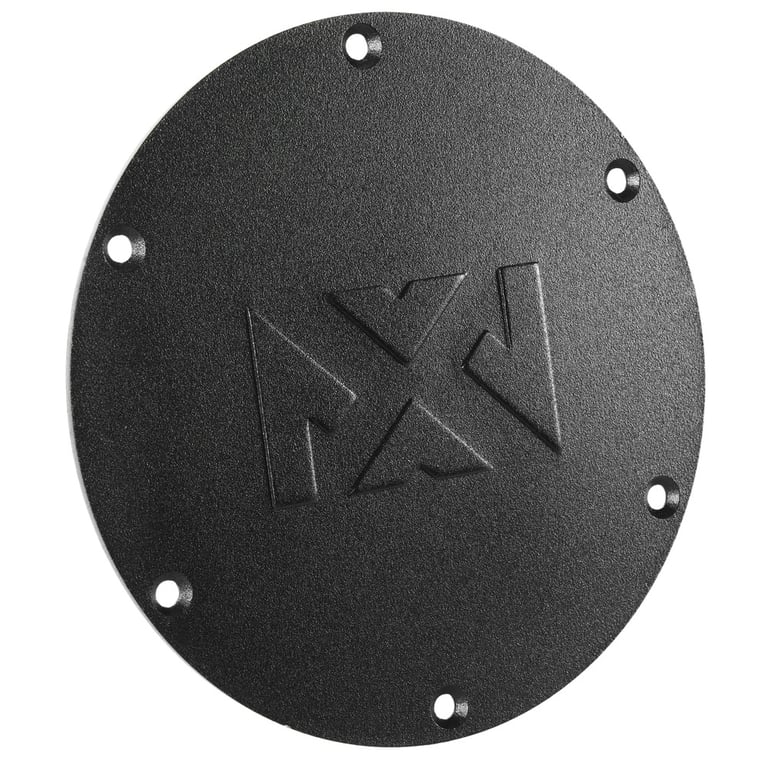

  • Includes Depth Extension Clearance Plate for extremely shallow boxes that the subwoofer may not fit in
    • This allows you to cut a hole in the box and mount the plate over the hole to allow more depth for the subwoofer
  • Cutout diameter: 11.11"
  • Frequency Response: 25 - 350 Hz
  • Sensitivity: 88 dB
  • Resonance Frequency (Fs): 29.1 Hz
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

NVX SMW12D4 Manual

Product history:

NVX VADM1, SMW12D4 thumbnail
(newest, current model)
NVX MVPA1 thumbnail
(previous model, replaced by NVX VADM1 with SMW12D4)

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
180 watts x 1 channel
RMS Power @ 2 ohms
320 watts x 1 channel
RMS Power @ 1 ohm
500 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1000 watts
Total RMS Power Output
500 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
1 ohms
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.3%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
10 - 20 Hz
Signal-to-Noise Ratio
105 dB
Bass Boost
0 - 18 dB

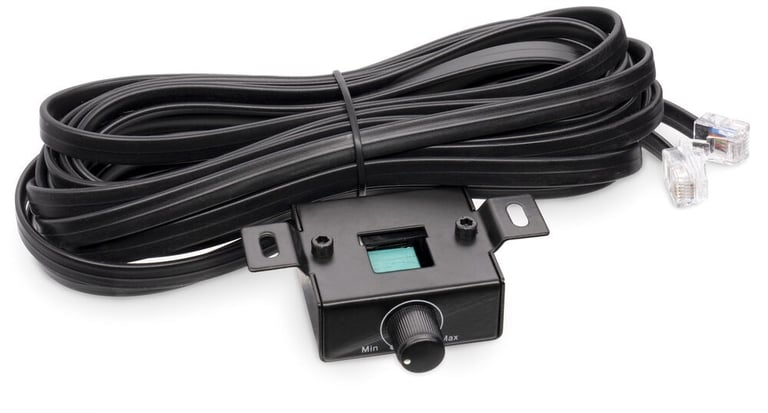

Remote bass/level controller
Yes
Fan Cooled
No
CEA-2031 Compliant
Yes
Subwoofer Specifications
Series
S Series
Subwoofer Size
12"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohms
RMS Power Handling
400 watts
Peak Power Handling
800 watts
Woofer Surround
Butyl Rubber
Woofer Composition
Polypropylene
Sensitivity
88 dB
Frequency Response
25 - 350 Hz
Xmax (millimeters)
8 mm
Top-Mount Depth (Mounting Depth)
3.82"
Cutout Diameter
11.11"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

VADM1, SMW12D4

Weight:

12.40lbs

Internal SKU:

vadm1_smw12d4

Internal Product ID:

200194
