NVX MVPA1 | 600W Micro-V Series Compact Monoblock Amplifier

NVX MVPA1

Marine-V Series 600W RMS Monoblock Class D Compact Marine/Powersports/Motorcycle Amplifier

Marine-V Series 600W RMS Monoblock Class D Compact Marine/Powersports/Motorcycle Amplifier

• Incredibly Tiny! The size of a postcard!
• RMS: 200 x 1 @ 4 ohms, 300W x 1 @ 2 ohms
• Total RMS Power: 300W
• CEA-2006 Compliant
• Switchable Bass Boost: (0dB/+6dB/+12dB)
• Extremely Small Footprint
• Dimensions: 4"W x 5-7/16"L x 1-9/16"H

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

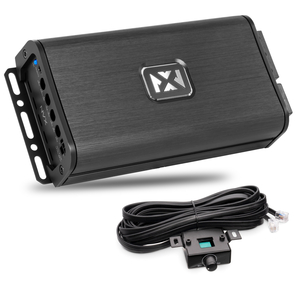

vadm1 thumbnail

NVX VADM1

OUR PRICE: $239.99

View item
DESCRIPTION
NVX

Authorized dealer





Sonic Electronix Power Certified Amplifier

NVX's MVPA1 monoblock amplifier is a Sonic Electronix Certified Amplifier. This amp's power output has been professionally tested with our SMD Amplifier Dyno, bringing you it's true power ratings. Learn more about this amp's Sonic Electronix Certified Power Here!


Impedance
Claimed Output
Certified Results
Dynamic Results
4 Ω
200W @ 14.4v
268W @ 14.79v
252W @ 14.72v
2 Ω
300W @ 14.4v
476W @ 14.74v
471W @ 14.79v



General Features:

  • MVP Series Monoblock Class D Car Amplifier
  • Peak Power Rating: 600 Watts
  • RMS Power Rating:
    • 4 ohms: 200 watts x 1 chan.
    • 2 ohms: 300 watts x 1 chan.
  • Sonic Electronix Certified Power Rating*:
    • 4 ohms: 268 watts x 1 chan.
    • 2 ohms: 476 watts x 1 chan.
  • Cutting edge Micro Class D technology allows amplifier to be extremely compact
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Switchable Bass Boost (0dB/+6dB/+12dB)
  • Soft start turn-on
  • Mono channel operation
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Input sensitivity:
    • Level: 0.2V-5V
  • Operating voltage: 8-16V
  • Variable low-pass filter (40-400 Hz)
  • CEA-2006 compliant amplifier
  • 8 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 4"W x 5-7/16"L x 1-9/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.

Product history:

NVX VADM1 thumbnail
(newest, current model)
NVX MVPA1 thumbnail
(previous model, replaced by NVX VADM1)
FEATURES & SPECS
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
200 watts x 1 channels
RMS Power @ 2 ohms
300 watts x 1 channels
Amplifier Specifications
Amplifier Series
MVP (NVX)
Marine Certified
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
300 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.65%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 400 Hz
Signal-to-Noise Ratio
105 dB
Bass Boost
Selectable 0/+6dB/+12dB
Bass/Gain Remote
No
Fan Cooled
No
Fuse Rating
15A x 2
Strappable
No
CEA-2006 Compliant
Yes
Sonic Certified Amplifier
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer
