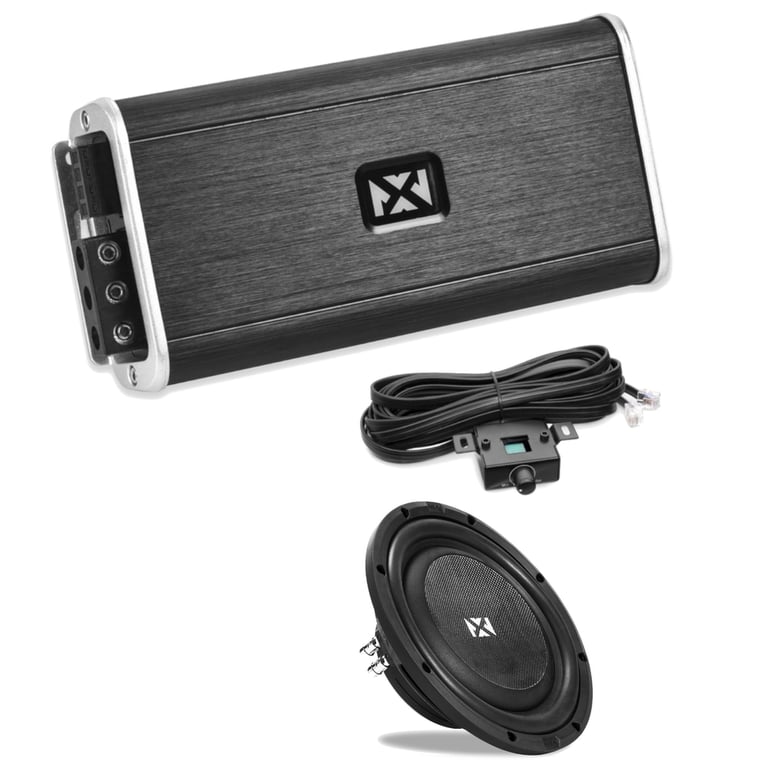

NVX VADM1 with SMW10D4

500W RMS Class D Monoblock Amplifier with 10" Shallow Mount Subwoofer

NVX
Shop all NVX
highlight-star-icon

• 500 Watt True RMS Output!
• Marine Certified Monoblock Micro Class D Amplifier
• 180W x 1-Chan. @ 4 ohms
• 320W x 1-Chan. @ 2 ohms
• 500W x 1-Chan. @ 1 ohms
• 3-Way System Protection

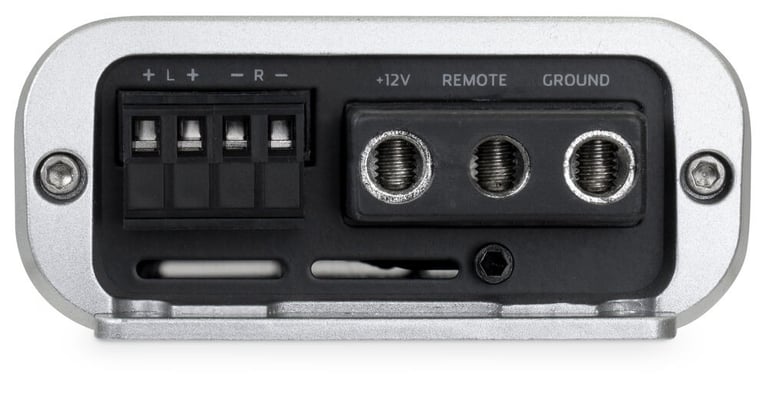

• 8 Gauge Power and Ground Inputs
• Extremely Small Footprint
• 700 watts Watts Peak
• 350 watts Watts RMS
• Carbon Fiber Reinforced Polypropylene Cone
• Butyl Rubber Surround
• Includes Depth Extension Clearance Plate
• Mounting Depth: 3-1/4"

Learn more about the vadm1_swm10d4
Was $479.98 Details
Thanks , You Pay:

$224.98

 with warranty

Heads up

We confirm fitment and offer accessories for speakers. Please set your vehicle first if you would like to purchase more than one vadm1_swm10d4.

Set your vehicle or Return to product page
shipping truck icon
FREE shipping to VA. Get it Fri, June 9
Quantity
In Stock
Brand new

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Allstate logo

Keep your product protected longer! Extend the warranty after the manufacturer warranty expires.

  • Mechanical, electrical and product failure covered! 100% parts and labor covered. (Coverage starts after Mfr. warranty)
  • Easy online management! Zero hassle claim service, Available 24/7

For over 22 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

AwardWinning
Award-Winning Service
Shipping
FREE Shipping Orders $49+
60Days
60-Day Easy Returns
lowestPrice
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Description


NVX

Authorized dealer

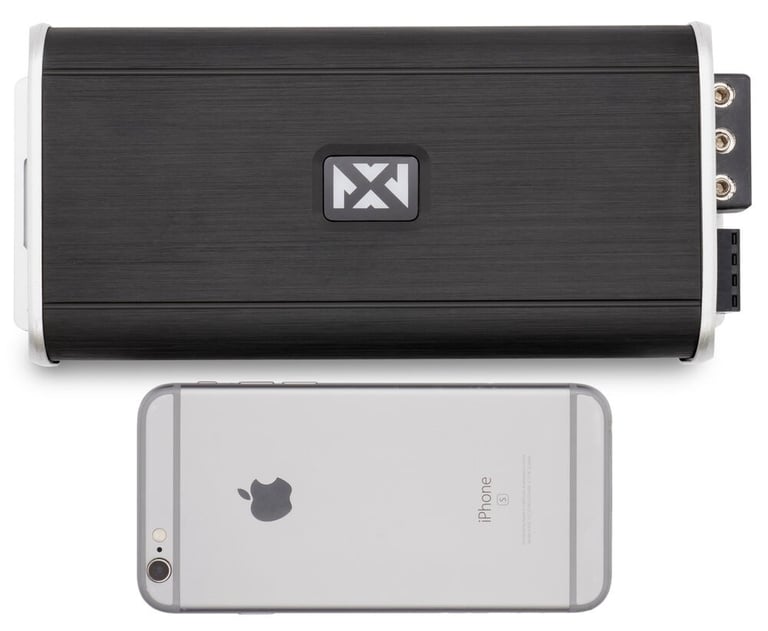

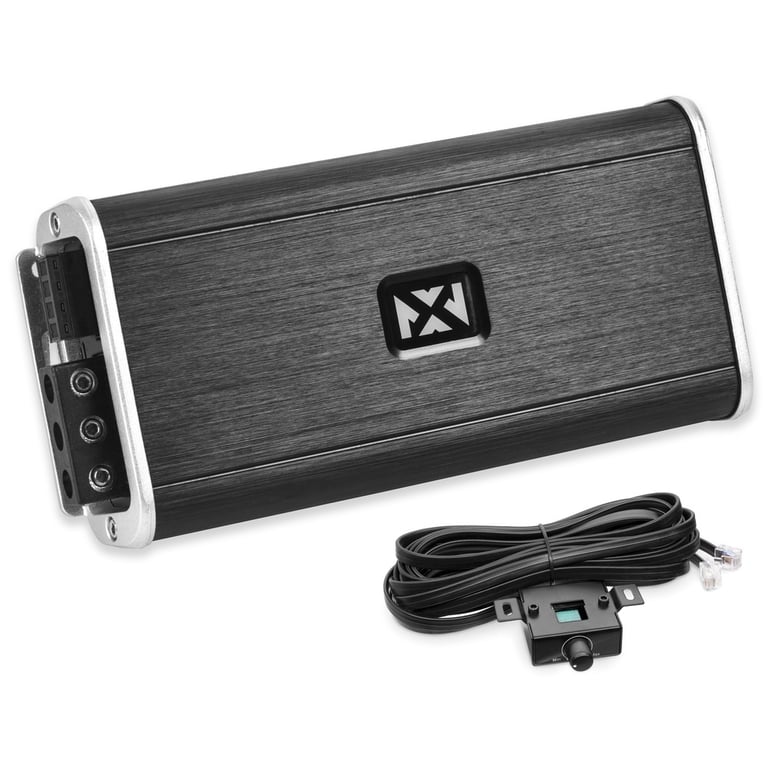

NVX VADM1

500W RMS Class D Monoblock Car/Marine/Powersports Amplifier with Bass Remote
Quantity: 1

Product Details:

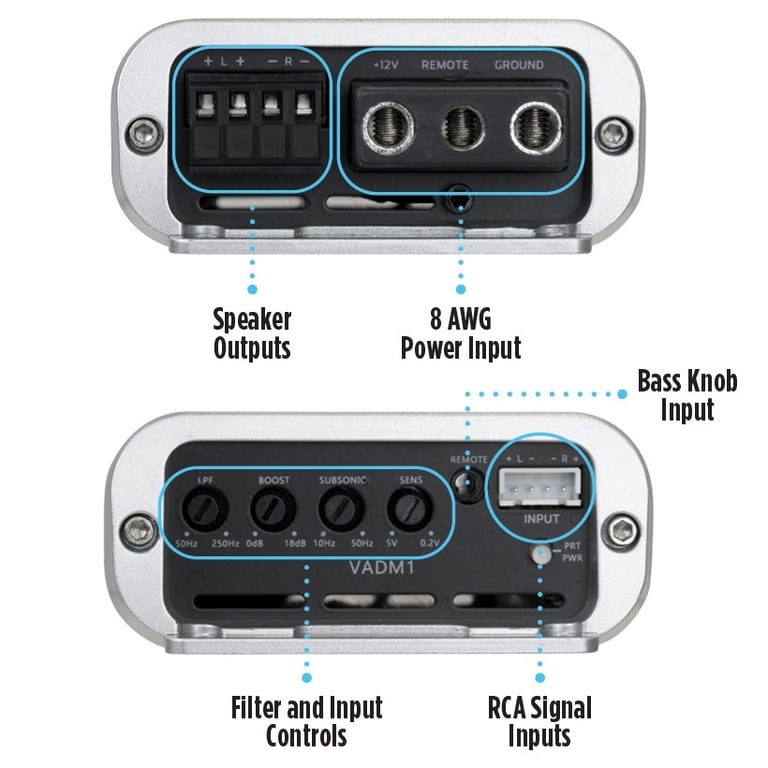

  • Marine Certified 1-Channel Class D Car Amplifier
  • Peak Power Rating: 1000 Watts
  • RMS Power Rating:
    • 4 ohms: 180 watts x 1 channel
    • 2 ohms: 320 watts x 1 channel
    • 1 ohm: 500 watts x 1 channel
  • Cutting edge Micro Class D technology allows amplifier to be extremely compact
  • LED power (blue) and protect (red) indicators
  • Conformal Coated Marine grade circuit board
  • Balanced Differential Inputs, to eliminate noise picked up by signal cables

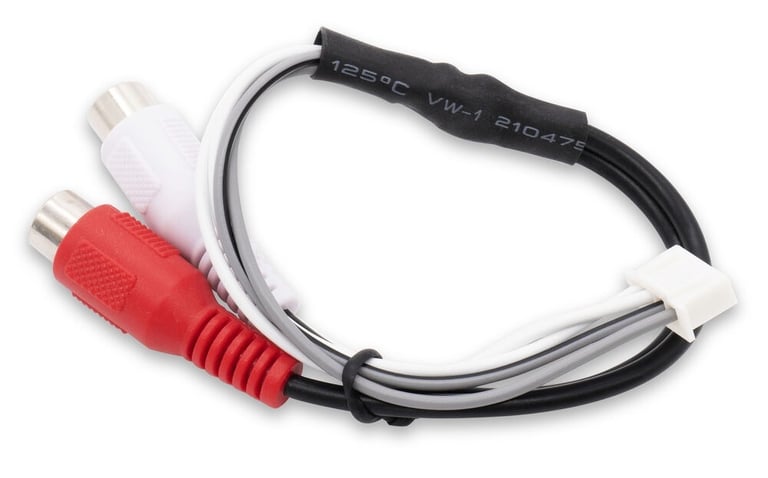

  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity: 0.2V-5V
  • Variable low-pass filter (50-250 Hz)
  • Bass Boost: 0 - +18dB boost @ 45Hz
  • Frequency Range : 20 - 20KHz
  • Total Harmonic Distortion: <0.3%
  • CEA-2006 compliant amplifier
  • Dimensions: 6.8"L x 3.3"W x 1.5"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
NVX VADM1 owner’s manual

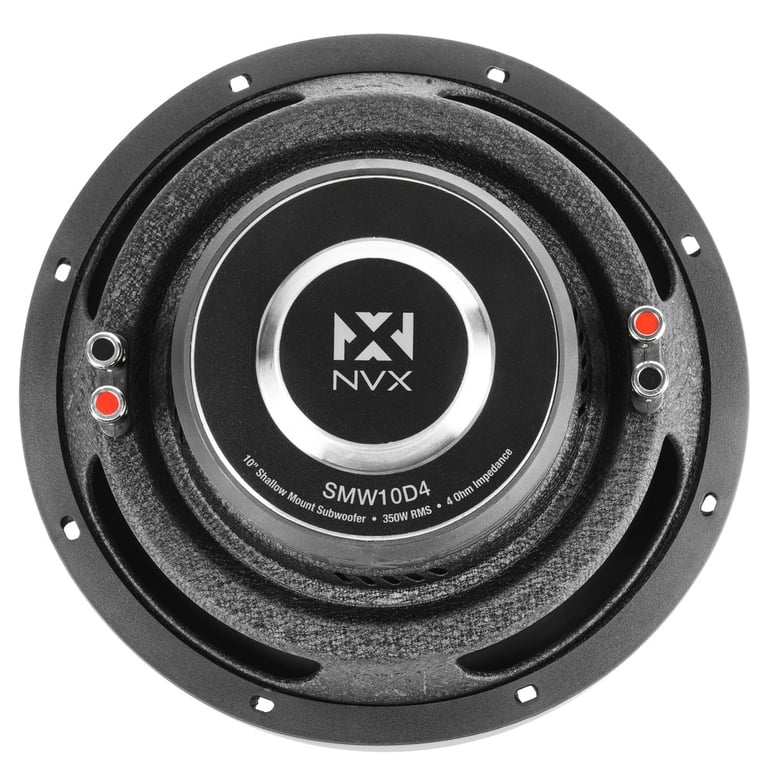

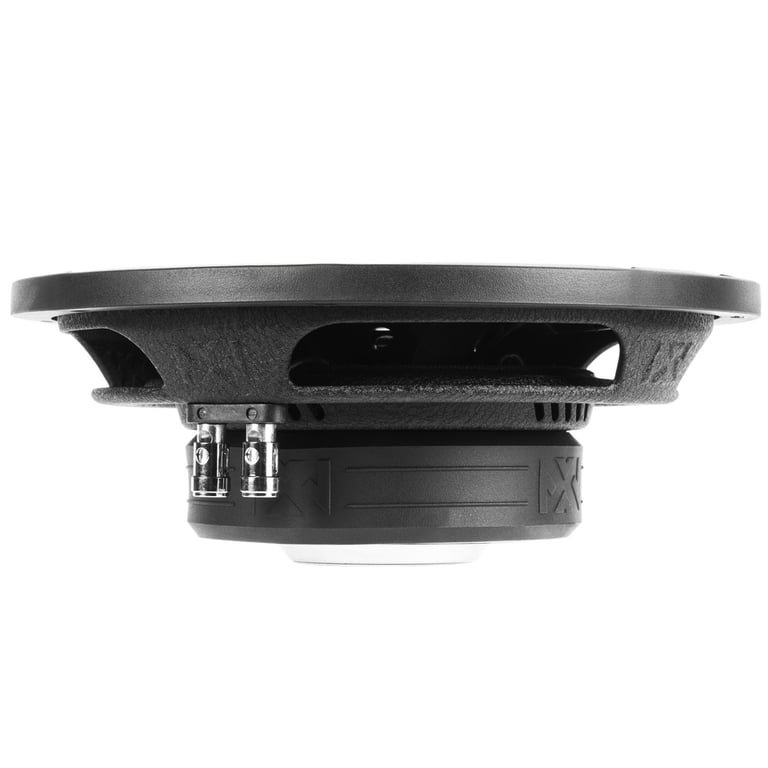

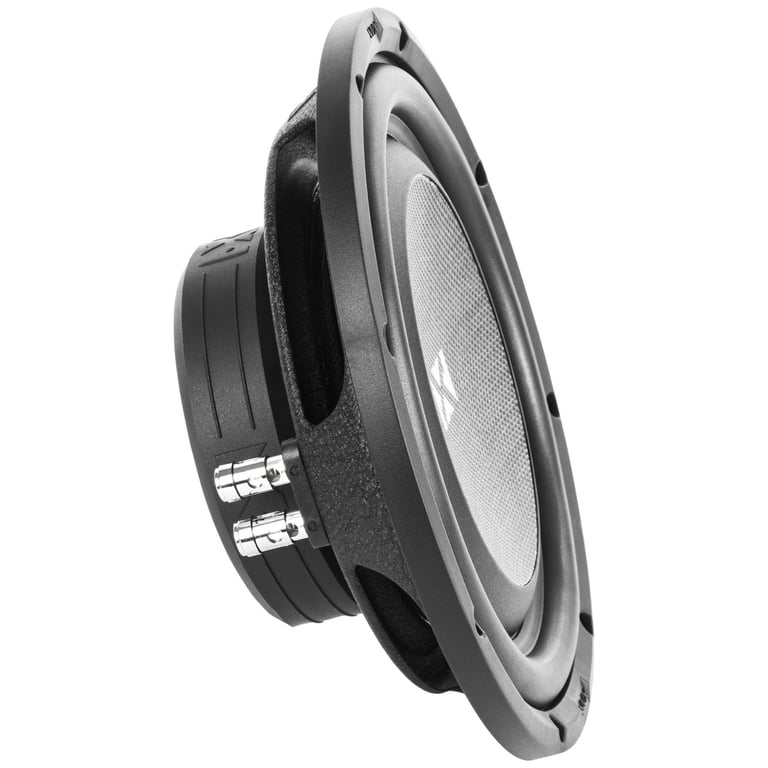

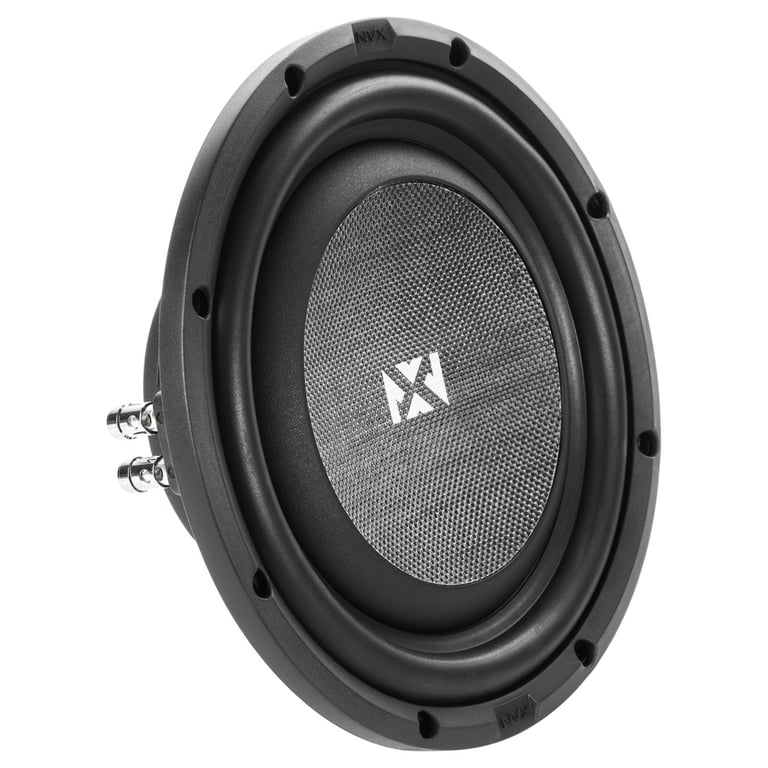

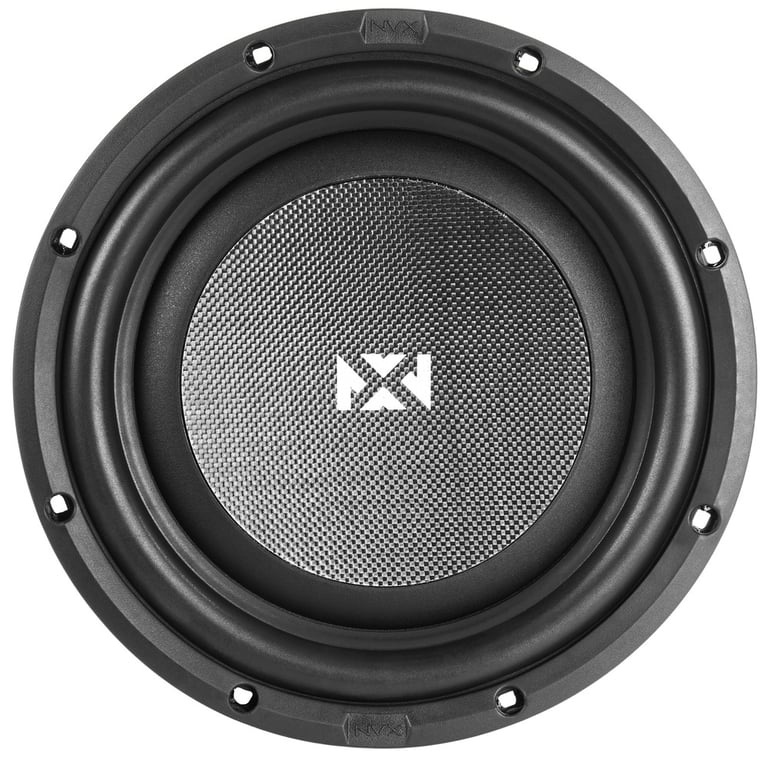

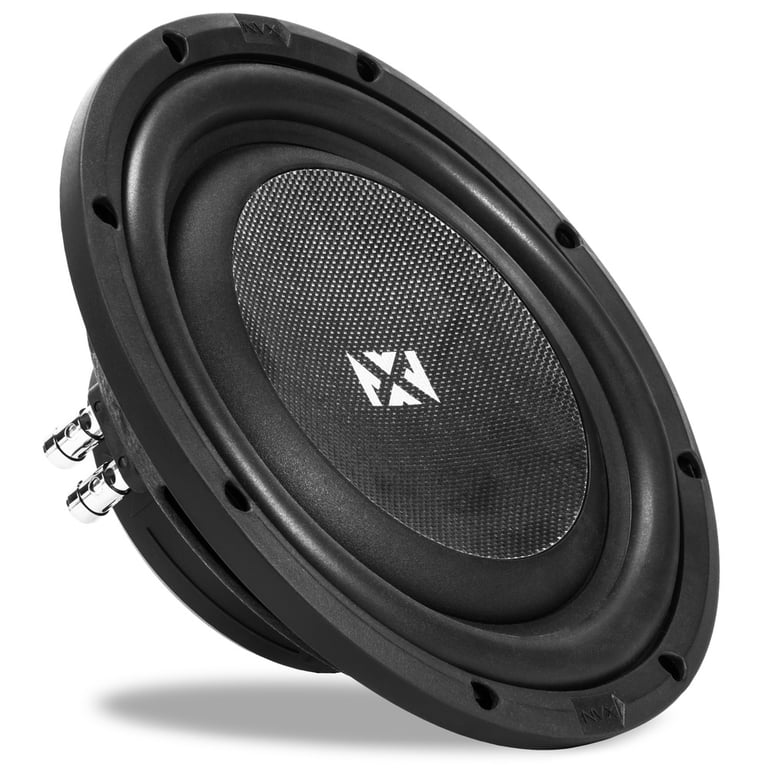

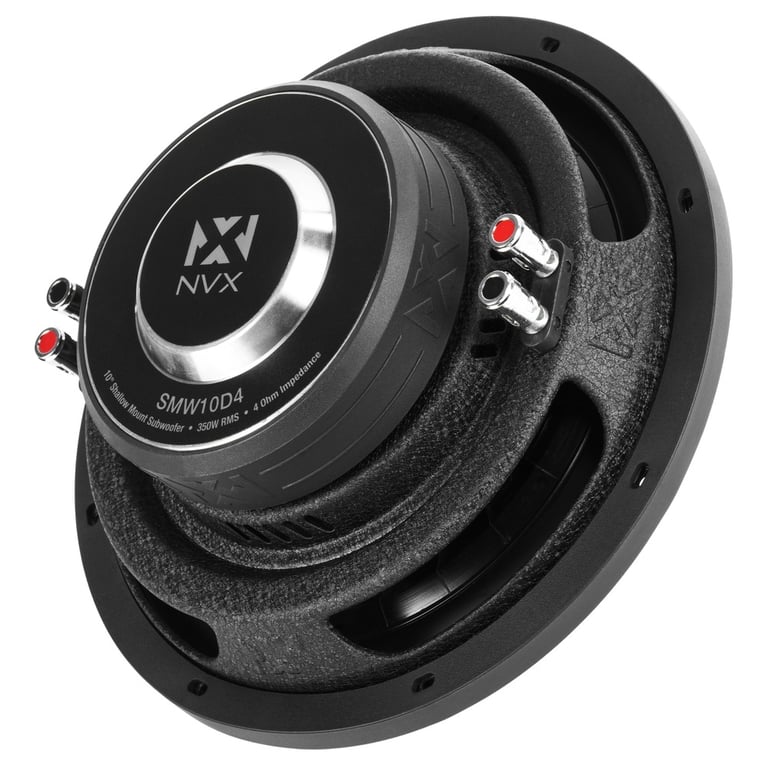

NVX SMW10D4

700W Peak (350W RMS) S-Series Shallow-Mount 10" Dual 4-Ohm Subwoofer
Quantity: 1

Product Details:

  • 10" Dual 4 ohms S Series Series Subwoofer
  • Power Handling:
    • Peak: 700 watts
    • RMS: 350 watts
  • Carbon Fiber Reinforced Polypropylene Cone
  • Butyl Rubber Surround
  • 50oz Y30 High Energy Ferrite Magnet
  • Top-mount depth: 3.23"

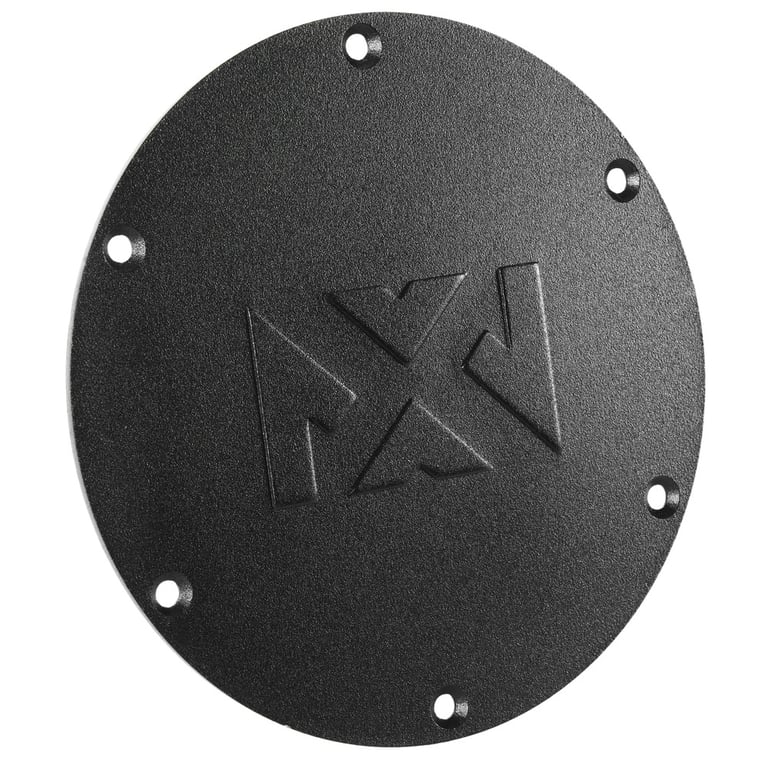

  • Includes Depth Extension Clearance Plate for extremely shallow boxes that the subwoofer may not fit in
    • This allows you to cut a hole in the box and mount the plate over the hole to allow more depth for the subwoofer
  • Cutout diameter: 9.14"
  • Frequency Response: 25 - 350 Hz
  • Sensitivity: 88 dB
  • Resonance Frequency (Fs): 35.83 Hz
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually


NVX SMW10D4 Manual

Product history:

NVX VADM1, SMW10D4 thumbnail
(newest, current model)
NVX MVPA1 thumbnail
(previous model, replaced by NVX VADM1 with SMW10D4)

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
180 watts x 1 channel
RMS Power @ 2 ohms
320 watts x 1 channel
RMS Power @ 1 ohm
500 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1000 watts
Total RMS Power Output
500 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
1 ohms
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.3%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
10 - 20 Hz
Signal-to-Noise Ratio
105 dB
Bass Boost
0 - 18 dB

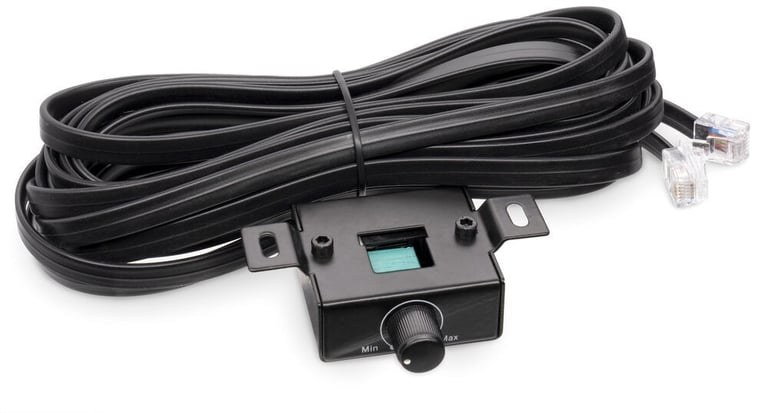

Remote bass/level controller
Yes
Fan Cooled
No
CEA-2031 Compliant
Yes
Subwoofer Specifications
Series
S Series
Subwoofer Size
10"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohms
RMS Power Handling
350 watts
Peak Power Handling
700 watts
Woofer Surround
Butyl Rubber
Woofer Composition
Polypropylene
Sensitivity
88 dB
Frequency Response
25 - 350 Hz
Xmax (millimeters)
8 mm
Top-Mount Depth (Mounting Depth)
3.23"
Cutout Diameter
9.14"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

VADM1, SMW10D4

Weight:

9.80lbs

Internal SKU:

vadm1_swm10d4

Internal Product ID:

200195

Customer Ratings & Reviews



5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
5
Features
4.6
Design
5
Usability
4.6
Sort by:

Loading...

Great amps!

The following review is for VADM1, which is a part of the bundle you are viewing.

Great little amps that put out rated power and are only the size of my Iphone. Wonderful !!!

By Brian on February 17, 2020 checkmarkIcon Verified purchase

21

found this helpful.

Small Amp Tons of power

The following review is for VADM1, which is a part of the bundle you are viewing.

Was really skeptical about how much power this little guy put out but it powers my one kicker perfectly and its so small you can place it anywhere if youre wanting a clean unseen install!

By Hector A on February 14, 2019 checkmarkIcon Verified purchase

22

found this helpful.

Great Little Amp!

The following review is for VADM1, which is a part of the bundle you are viewing.

I bought this to replace my JL 250/1 because I couldn't run a 1-ohm load on it. This amp doesn't sound as clean so I ended up hooking both up, one on each sub for a 2-ohm load. The sound quality got better and it puts out a great amount of power. It slams a kicker Comp VR 12 at 2 ohms.

By Adam on September 11, 2020 checkmarkIcon Verified purchase

19

found this helpful.

Excellent shallow mount subwoofer for the money! Well done NVX!

The following review is for SMW10D4, which is a part of the bundle you are viewing.

I purchased two of these and have only tried one so far. I have the 10" version in a nicely built prefab box (currently for test purposes) that specs right about 0.81 cuft sealed. I'm currently testing it in a preexisting system in a Honda S2000. Its being powered with a 500 watt NVX VAD series amplifier. I have to say that this subwoofer has impressed me more than I expected. The sound quality is quite good for this dollar amount. I am very happy to see that NVX chose to use a rubber surround as opposed to the foam on many of their other subs. I cannot speak to longevity or durability as I haven't had them long enough to comment on that. I'm planning to install them in the spare tire location in my 2022 Veloster N. At just 3.23" deep there will be plenty of space. I hope NVX continues along this line of design for their future of subwoofers. Thank you NVX! Well done!

By Brian on November 9, 2022

9

found this helpful.

Tiny but powerful

The following review is for VADM1, which is a part of the bundle you are viewing.

This amp is tiny, but packs a punch, similar to the other amps in the VAD line up. The only downside is the 8 gauge power terminals and the push-in style connector for the speaker wire. The speaker wires can pretty easily pop out of the connectors on the back of the amp, and I had to use a 4 gauge to 8 gauge reducer to run adequate power and get the 500 @ 1 ohm promised on the box. Overall it's impressive that such a tiny amp can produce such power and be 1 ohm stable. It's compact design means it can be mounted virtually anywhere or easily concealed depending on what your install calls for.

By Blake on January 16, 2023 checkmarkIcon Verified purchase

6

found this helpful.
