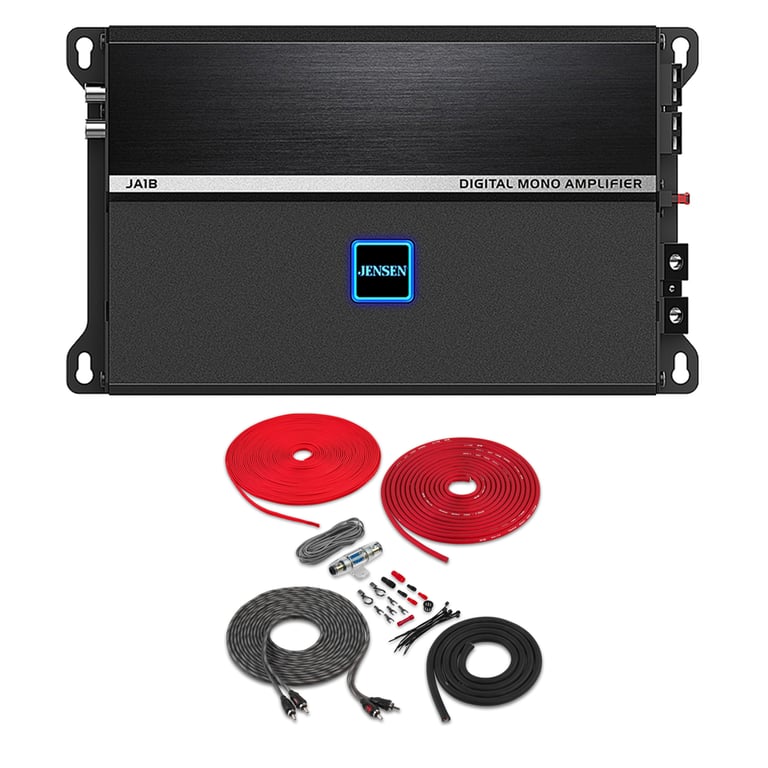

Jensen JA1B with Amplifier Wiring Kit

290W RMS JA Series Class-D Compact Monoblock Car Amplifier with DSP

Jensen
Shop all Jensen
highlight-star-icon

• 290 watts x 1 channel @ 4 ohm
• 470 watts x 1 channel @ 2 ohm
• 595 watts x 1 channel @ 1 ohm
• Total RMS Power: 290 watts
• CEA-2006 Compliant
• Class D 2 ohm Stable Monoblock Amplifier
• Includes Amplifier Wiring Kit

Learn more about the ja1b_bak82

We apologize

This item has been discontinued


Loading...
jp-tsh1 main

Metra JP-TSH1

Fender Light Harness for select 2018-2026 Gladiator and Wrangler (JL)

-10.64%

$41.99

List price $46.99

72-6514 main

Metra 72-6514

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

70
-37.52%

$9.99

List price $15.99

AP4-CH41 main

PAC AP4-CH41 R.2

Amplifier Integration Interface for select 2013-2023 vehicles from Ram, Jeep, Dodge

4
-16.03%

$419.00

List price $499.00

EBM-FFPGLAD-4X8 main

DS18 EBM-FFPGLAD-4X8

Empty Quad 8" Vented Underseat Enclosure for select 2020-2024 Gladiator

JP-1014 main

Metra JP-1014 Speaker Pods Adapters

Install aftermarket 6.5" or 6.75" speakers in select 2018-2024 Gladiator and Wrangler (JL)

7
-10.11%

$79.99

List price $88.99

JP-JTKT main

Metra JP-JTKT

550-lines Replacement Rearview Camera with Multi-Mount Brackets for select 2020-2026 Gladiator

-10.47%

$153.99

List price $171.99

SPV-65-JLT main

Alpine SPV-65-JLT

Rear Soundbar Speaker Upgrade Kit with 6.5" Component Speakers for select 2018-2023 vehicles from Jeep

3
-16.67%

$599.95

List price $720.00

72-6514-12 main

Metra 72-6514-12

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

7
-14.30%

$11.99

List price $13.99

72-6517 main

Metra 72-6517

Install a New Tweeter in select 2005-2024 vehicles from Dodge, Chrysler, Jeep

2
-13.34%

$12.99

List price $14.99

APH-CH03 main

PAC APH-CH03

18" Speaker Connection Harnesses for select 2016-2026 vehicles from Jeep, Dodge, Chrysler

-51.70%

$42.99

List price $89.00

Description


Jensen brand icon

Authorized dealer

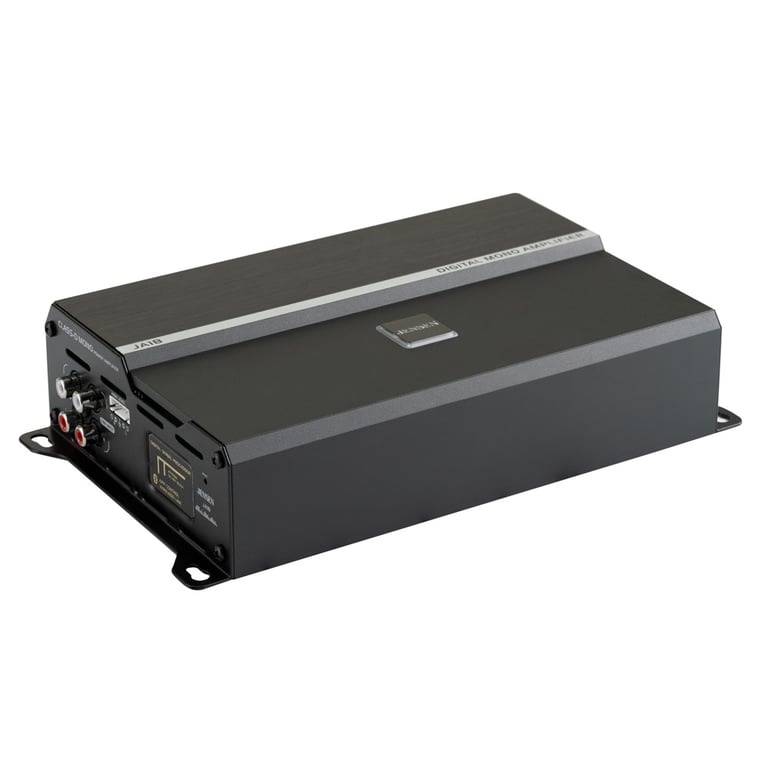

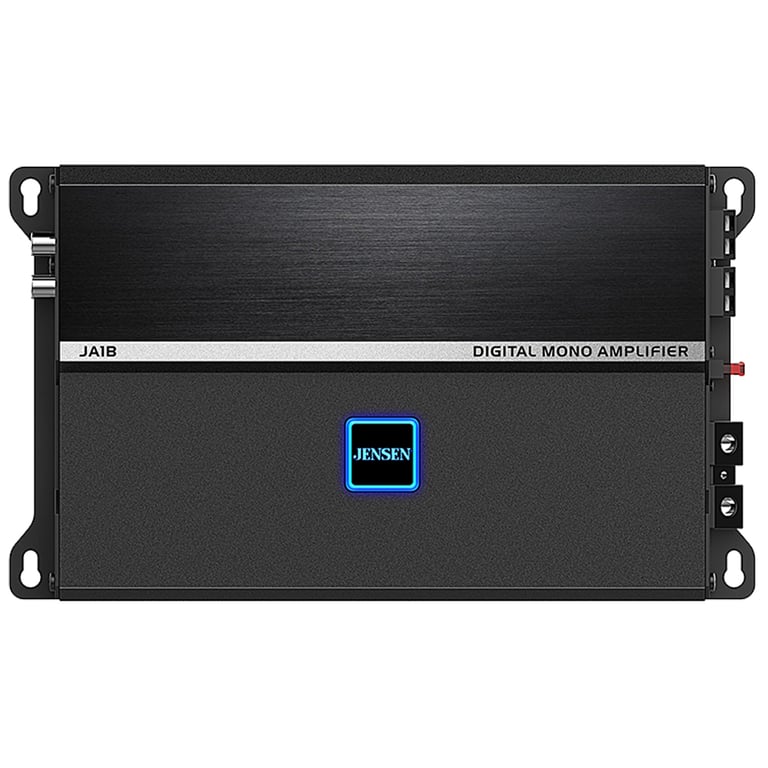

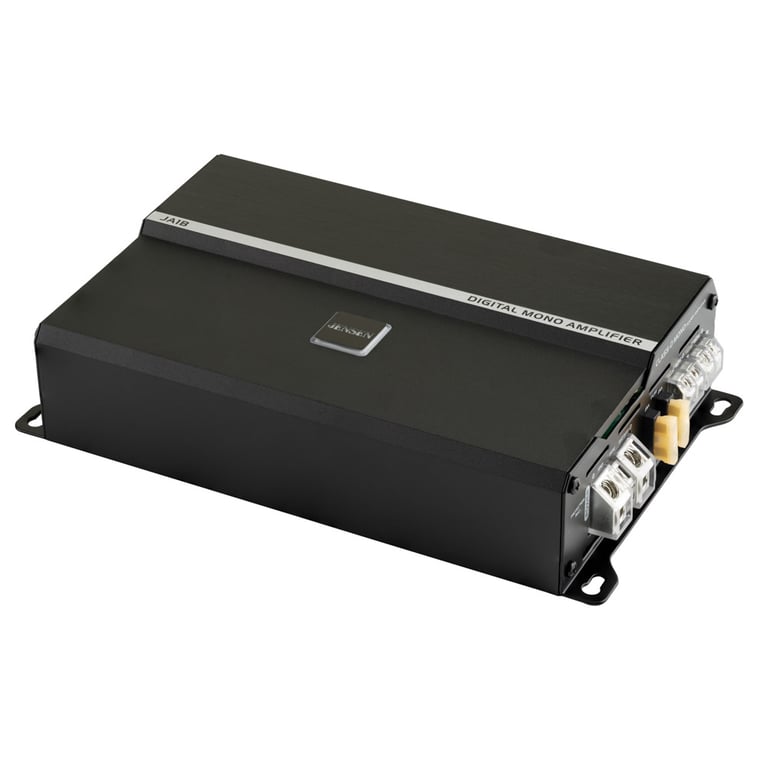

Jensen JA1B

290W RMS JA Series Class-D Compact Monoblock Car Amplifier with DSP
Quantity: 1

Product Details:

  • Class D 2 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 290 watts RMS x 1
    • 2 ohm: 470 watts RMS x 1
    • 1 ohm: 595 watts RMS x 1
  • DSP adjustments on your phone or tablet via Bluetooth connection using Jensen DSP AMP app
  • Total RMS power output: 290 watts
  • CEA-2006 Compliant Amplifier
  • LED Power/Protect Light
  • RGB color illumination control
  • Soft start turn-on

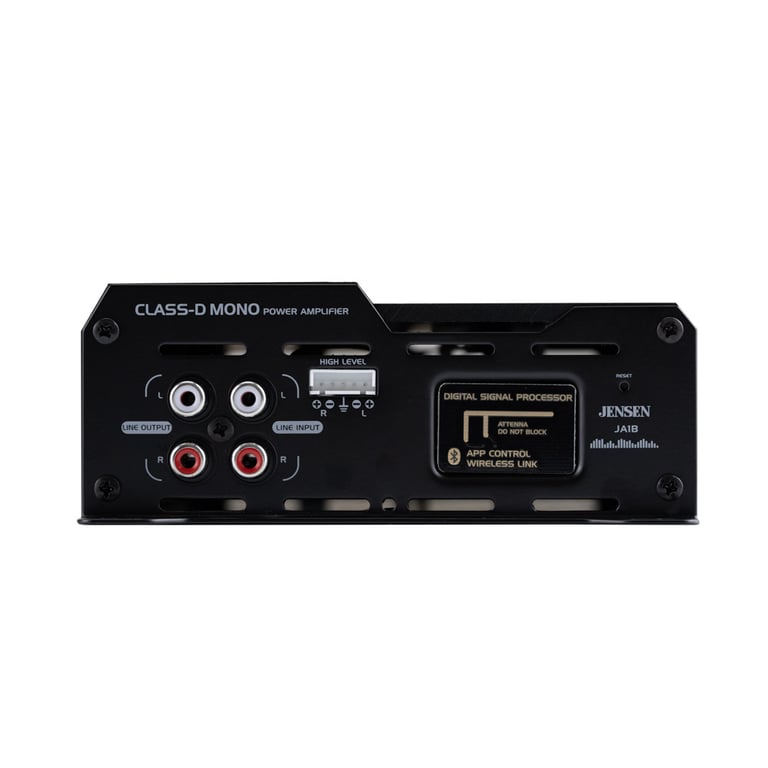

  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Frequency Response: 20 - 300 Hz
  • Total Harmonic Distortion (THD): 0.09%
  • Signal to Noise Ratio: 68 dB
  • Variable low-pass filter: 20 - 500 Hz
  • Fuse Rating: 50A
  • 4 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 9-9/16"W x 2-1/4"H x 5-5/8"D
  • Authorized Internet Dealer
  • 3 Year Manufacturer's Warranty

Jensen JA1B Dash Kit Manual

Belva BAK82

8 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 600 Watts - RED
Quantity: 1

Product Details:

  • 8 Gauge 2-Channel Complete Amplifier Installation Kit
  • Designed for car audio systems up to 600 watts RMS
  • Made from 100% Copper-Clad Aluminum (CCA)
  • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • RCA Interconnect Cable
  • Twisted-pair construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

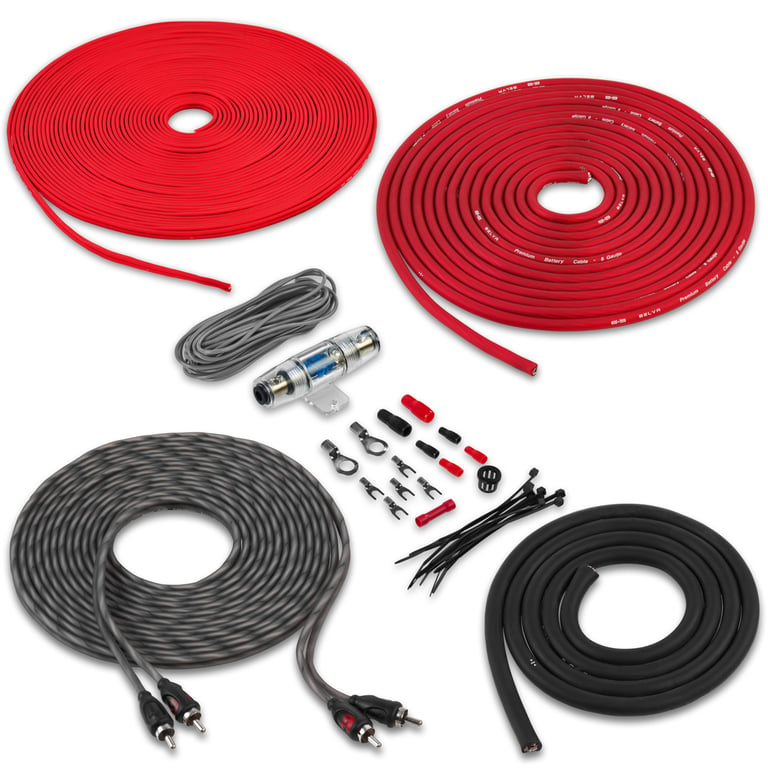

Kit includes:

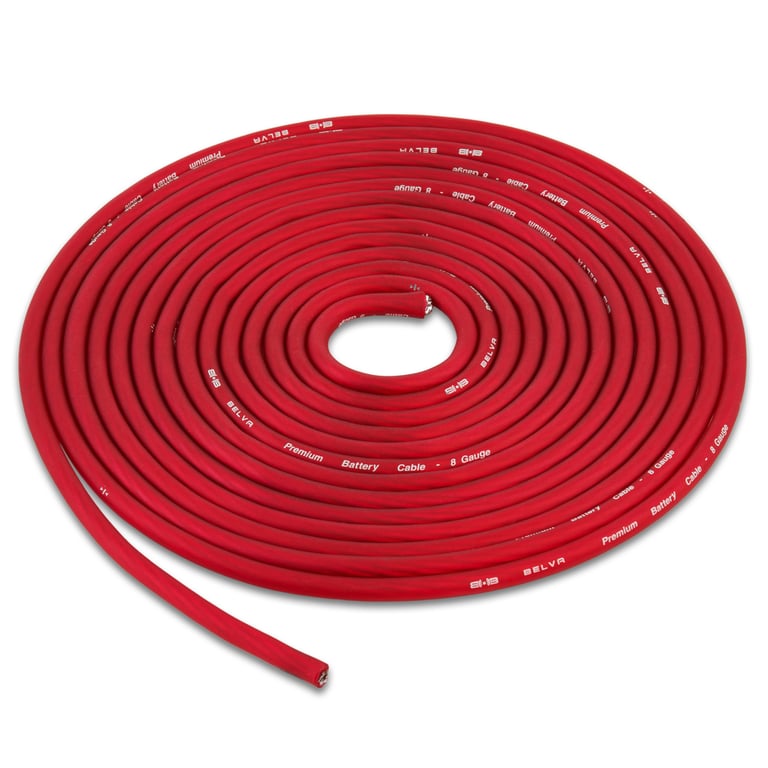

  1. 17 ft. Red 8 gauge power wire
  2. 3 ft. Black 8 gauge ground wire
  3. 17 ft. Gray 18 gauge remote lead wire
  4. 20 ft. 16 gauge speaker wire
  5. One 17 ft. 2-channel twisted-par construction RCA interconnect Cable
  6. One Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 8 Gauge Chrome Plated ring terminals
  9. Five 16 Gauge Spade terminal
  10. One 18 Gauge Red butt connectors
  11. Ten 4" Black zip ties

Loading...
R2-DB8V-TRK main

Alpine R2-DB8V-TRK

2000W Peak (700W RMS) Loaded Dual 8" R-Series Vented Truck Enclosure for select 2007-2024 vehicles from Ford, Jeep, Ram

1
-16.67%

$999.95

List price $1200.00

S2-DB8V-TRK main

Alpine S2-DB8V-TRK

600W Peak (300W RMS) Loaded Dual 8" Vented Enclosure for select 2007-2024 vehicles from Jeep, GMC, Ford

-16.67%

$849.95

List price $1020.00

JT-S84LD main

DS18 JT-S84LD

3600W Peak (1800W RMS) Loaded Quad 8" Sealed Enclosure with Digital LED Lights for select 2020-2026 Gladiator

$1,249.95

SBX-J-JTGLAD/10TW1 main

JL Audio Stealthbox® SBX-J-JTGLAD/10TW1

Custom Fit 10" Subwoofer Enclosure for select 2020-2026 Gladiator

$2,999.99

TXJ-TD8 main

AudioControl TX-JTD8

1000W RMS Loaded Dual 8" Vented Enclosure for select 2020-2024 Gladiator

-15.02%

$849.00

List price $999.00

Limited time!
MBQJT-SUBA-1 main

MB Quart MBQJT-SUBA-1

400W Tuned Dual Subwoofers System for select 2020-2023 Gladiator

-24.22%

$628.99

List price $829.99

JP-GL1-12 main

VIBE JP-GL1-12

900W Peak (300W RMS) Loaded Single 12" Vented Truck Subwoofer Enclosure for select 2020-2025 Gladiator

MBQJT-SUB-1 main

MB Quart MBQJT-SUB-1

Custom underseat enclosure with two 8" subs fits select 2020-2026 Gladiator

-10.00%

$629.99

List price $699.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(257)

$486.93

List price $677.43

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(246)

$311.43

List price $533.42

BAK42BK,R500X1D small

Rockford Fosgate R500X1D 500 Watt Car Amplifier + Amp Wiring Kit Bundle

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(76)

$344.98

List price $369.98

R2-500X1, XKIT42 small

Rockford Fosgate R2-500X1 with Amplifier Wiring Kit

• 300 Watts RMS x 1 @ 4 ohm
• 500 Watts RMS x 1 @ 2 ohm
• CEA-2006 Compliant
• Top Mounted Control Panel
• Class-D Amplifier
• Includes Amplifier Wiring Kit

(137)

$364.98

List price $453.98

51HS10_BAK82_2NK small

Kicker HS10 (51HS10) w/ Free Amp Install Kit

  • Kicker HS10 180W RMS Single Loaded 10-Inch Hideaway Series Powered Subwoofer Enclosure
  • Convenient wired remote for independent bass level control
  • 8 Gauge Premium CCA complete 2-channel amplifier wiring kit with RCA
  • Premium polyurethane foam can insulator sleeve koozie with black logo
  • Complete bass solution includes compact powered subwoofer and installation hardware

(99)

$319.99

List price $489.96

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(80)

$309.99

List price $369.98

46CXA8001T, BAK42 small

Kicker 46CXA8001 with Amplifier Wiring Kit

• 300 Watts RMS x 1 @ 4 ohm
• 600 Watts RMS x 1 @ 2 ohm
• 800 Watts RMS x 1 @ 1 ohm
• Efficient Class-D Monoblock Amplifier
• KickEQ™ 6dB variable bass boost for those additional low frequencies
• Includes Amplifier Wiring Kit

(188)

$324.48

List price $389.98

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
290 watts x 1 channel
RMS Power @ 2 ohms
470 watts x 1 channel
RMS Power @ 1 ohm
595 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
325 watts
Total RMS Power Output
290 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Frequency Response
20 - 300 Hz
THD at Rated RMS Power
0.09%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
20 - 500 Hz
Signal-to-Noise Ratio
68 dB

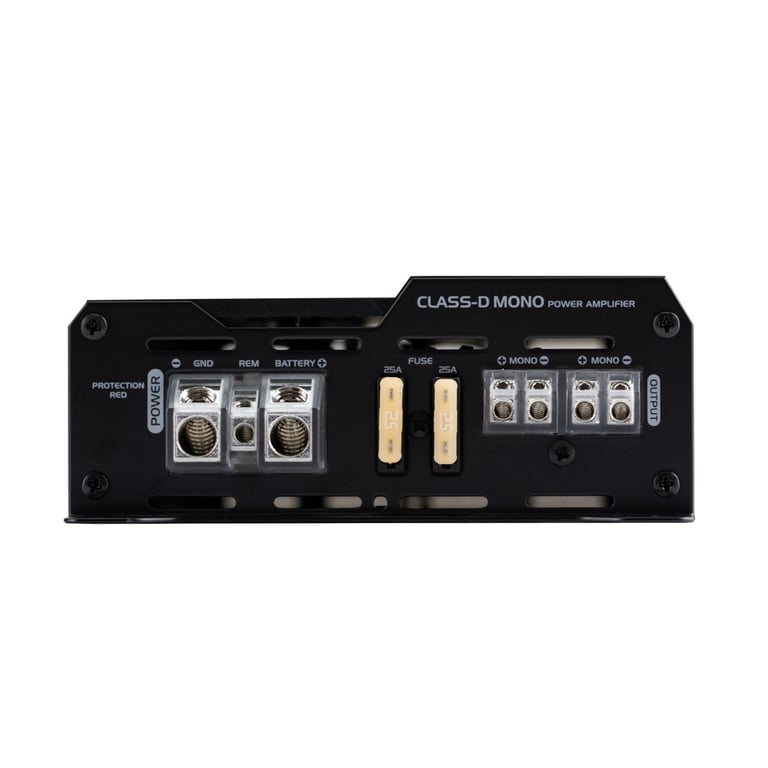

Fuse Rating
25A x 2
Total Fuse Rating
50A
CEA-2031 Compliant
Yes
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
8 gauge
Power Wire Length
17 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
20 feet
Remote Wire Length
17 feet
Interconnect (RCA) Signal Cables Included
2 Channel
Fuse Holder
Mini ANL
Fuse Size
60A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

JA1B, BAK82

Weight:

6.21lbs

Internal SKU:

ja1b_bak82

Internal Product ID:

200232

Customer Ratings & Reviews


Jensen JA1B with Amplifier Wiring Kit thumbnail image

5 star
73%
4 star
21%
3 star
6%
2 star
0%
1 star
0%



Durability
4.7
Value
4.7
Features
4.6
Design
4.7
Usability
4.7

Customer Reviews

Sort by:

Loading...

BAK 82

The following review is for BAK82, which is a part of the bundle you are viewing.

Nice package, quality wire but could more end connectors for the larger wire.

By Sam on June 19, 2014

203 found this helpful


Good product

The following review is for BAK82, which is a part of the bundle you are viewing.

It's exactly what you need for your car amp installation. I bought this kit with Kenwood KAC-1502S amp for 75 bucks. Good deal from Sonic Electronix.

By Collins on January 6, 2014

185 found this helpful


Great kit for the cost

The following review is for BAK82, which is a part of the bundle you are viewing.

Very nice kit for $18.
Wire seems adequately thick. Good quality fuse (not AGU) and fuse holder. RCA's feel durable. Decent assortment of accessories. All together a solid budget kit IMO.

By n2audio on September 24, 2014

185 found this helpful


Don't know what the other guy is talking about.

The following review is for BAK82, which is a part of the bundle you are viewing.

This kit was awesome and included with my package that I bought. In comparison to others for the same price, there is simply not a comparison and the other review is just wrong on so many levels I felt compelled to write this.

The reality is there are a lot of real shoddy amp kits and wire as a whole being used in car audio in terms of cheap amp kits that have over-insulating wires and fake gauge ratings, huge amounts of aluminum, lousy RCA cables, fuse holders and other accessories. BUT and a BIG BUT, this kit excels in those areas where others fall flat on their face. I have bought a few inexpensive 8 gauge kits in my day and XScorpion, Raptor, Install Bay and others haven't even given me the 8 gauge of wire that I paid for, and in some cases gave me wire that heated up to a dangerous level due to the actual make up of the wire.

I also literally laughed when I see that the other reviewer was intending to use spade terminals to connect his amp power and ground wire... It is for the SPEAKER wire knucklehead :-). I am an installer and the smaller accessories work just fine when you use them correctly. Most amps will still work with them when used with the speaker wire. Of course one can be used for the remote wire connection to the amp and the other end with the butt connector being used to connect to the stereo. The funny thing is, if you do not need them, who cares? It is like ordering this kit for a compact car or single cab pickup. You will not use all of the power wire for these applications, so do you complain that the manufacturer gave you extra wire? That just made me laugh.

Now, onto the other accessories. The AFS fuse and holder that are included are so far superior to others in this price range and the amount of copper (albeit CCA) is much better than others in the price range. Lastly, the RCAs included are awesome for the price. I cannot find ANYTHING to complain about here for $21.99.

All in all, you will not get a better value for the money.

By Double Down on August 14, 2012

180 found this helpful


Good product for the price

The following review is for BAK82, which is a part of the bundle you are viewing.

Good wiring package, good quality fuse holder and wires, I would like more connectors on it and maybe some tube for the power wire, but overall is a good kit.

By Alfredo on October 29, 2014

175 found this helpful


Good Purchase

The following review is for BAK82, which is a part of the bundle you are viewing.

I used this kit to install a 2 channel Boss amp. The quality of the pieces in this kit is five stars, but I'm giving it 4 because it is my belief that to do a clean install you need (4) 8 gauge terminals (one at the batt, one at the amp, one at ground, one at the amp), not just two. I had to spend an extra six bucks at Orchard for the extra terminals, but since the cost of the kit here at Sonic was only $20 at the time, it was still a good deal.

By Jumbo Dumbo on December 19, 2013

167 found this helpful


Good kit

The following review is for BAK82, which is a part of the bundle you are viewing.

Good kit for basic setups. Using it right now in my mothers system powering a simple 12. Could handle more if needed.

Pros: Handles power, Wires are HQ, More copper than rubber, Wires are good length, Fuse is HQ, Comes with lots of ties and rubbers.

Cons: None

I would recommend this kit to anyone who has a simple system. All around good kit.

By Mitch on January 31, 2014

174 found this helpful


Great wiring kit

The following review is for BAK82, which is a part of the bundle you are viewing.

works great on my MB Quart 2x100 watt amp.

By Eric on November 29, 2013

166 found this helpful


Good Kit

The following review is for BAK82, which is a part of the bundle you are viewing.

Great kit for the price. the price is good. Long wires.

By Joshua on December 8, 2013

162 found this helpful


Belva BAK82

The following review is for BAK82, which is a part of the bundle you are viewing.

Worked very well for the money, great value for my system! Only thing that kept me from giving this 5 stars across the board is the design of the fuse holder and how you have to change/connect the fuse, minimal complaint.

By Dwight on April 9, 2014

151 found this helpful



K495 NC small

AKG K495 NC

Audiophile Grade Rechargeable USB Noise Canceling Stereo Headphones with Closed-Loop Technology

(1)

$179.99

List price $399.95

QS216 small

MB Quart QS216-OPEN BOX

6.5" 2-Way Q Series Component Car Audio Speaker System

$229.99

List price $599.99

MX 12D1 small

RE Audio MX12D1 (MX 12D1)

1500W 12" MX Series Dual 1 ohm Subwoofer

$399.99

List price $1424.99

MM 30i small

Sennheiser MM 30i Black (MM30i) Earbuds with 3-Button Mic for Apple iPhone

In-Ear Noise Isolating Headphones Wired Stereo with 3-Button Mic for Apple iPhone/iPod/iPad

(8)

$29.95

List price $59.95

2-10C124_GT5-A3011 small

600W Kicker + JBL Bass Bundle

Pair of 12" Kicker 10C124 Competition Comp Series Subwoofers + JBL GT5A3011 Amplifier + 8 Gauge Amp Kit

(141)

$170.38

List price $488.84

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2021 Jeep Gladiator

2020 Toyota 4Runner

1994 GMC Sonoma

1961 Chrysler Imperial

2012 Chevrolet Camaro

2011 Volvo XC70

2023 Jeep Gladiator

1974 Mercury Capri

1970 Chevrolet Corvette

2018 Chevrolet Corvette

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
