Alpine S-A55V | 540 Watt S-Series Class-D 5-Channel Amplifier

Alpine S-A55V

S-Series 5-Channel Class D Amplifier (540W RMS)

S-Series 5-Channel Class D Amplifier (540W RMS)

• 5-channel Class D Amplifier
• 40 watts RMS x 4 + 200 watts RMS x 1 at 4 ohms
• 60 watts RMS x 4 + 300 watts RMS x 1 at 2 ohms
• 120 watts RMS x 2 bridged at 4 ohms + 300 watts RMS x 1 at 2 ohms
• CTA-2006 compliant
• High pass and Low pass filters with Bass Boost

List price $460.00
Save: $30.05

$429.95

In Stock. Only 2 Left! with warranty
Thanks , You Pay:
Order within 7 hrs 47 mins to ship today

FREE delivery: Sat, Aug. 7 to VA.

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

BUNDLE AND SAVE (1 offer)

Purchase Select Amplifiers and Receive A Free $50 Sonic Gift Card! This offer cannot be combined with any other coupons or offers.

Alpine S-A55V

100% off


Priced separately $479 95

Bundle Savings of $50 00

Total bundle price:

$429 95

DESCRIPTION
Alpine

Authorized dealer


Alpine S-Series Amplifiers

S-Series amplifiers are your sound system’s workhorse. With unmatched reliability and budget-friendly prices, these amplifiers are the better choice in performance value.

Product Details:

  • 5-channel Class D Amplifier
  • Power Output:
    • 40 watts RMS x 4 + 200 watts RMS x 1 at 4 ohms
    • 60 watts RMS x 4 + 300 watts RMS x 1 at 2 ohms
    • 120 watts RMS x 2 bridged at 4 ohms + 300 watts RMS x 1 at 2 ohms
  • CTA-2006 compliant
  • Variable high-pass filter (50-400 Hz, 12 dB/octave) on 4-channel section
  • Variable low-pass filter (50-400 Hz, 24 dB/octave) on sub channel
  • Variable bass boost (0-12 dB at 50 Hz) on sub channel
  • Optional RUX-KNOB.2 wired remote level control for sub channel

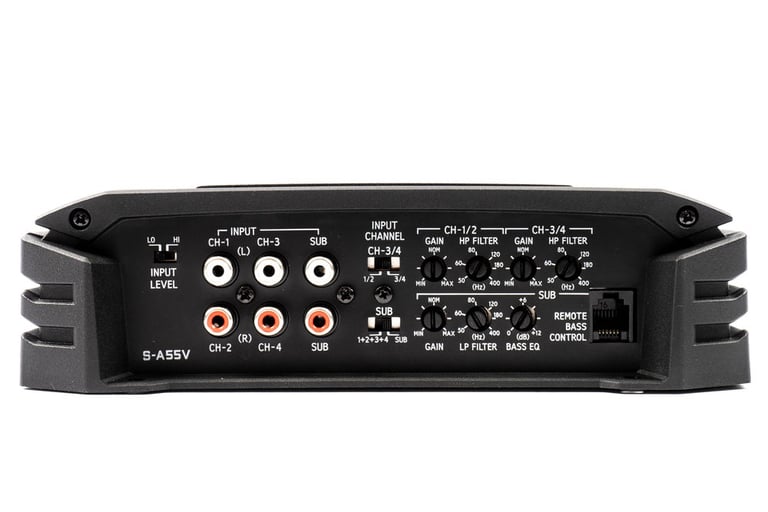

  • Preamp and speaker-level inputs
  • Wiring and hardware not included with amplifier

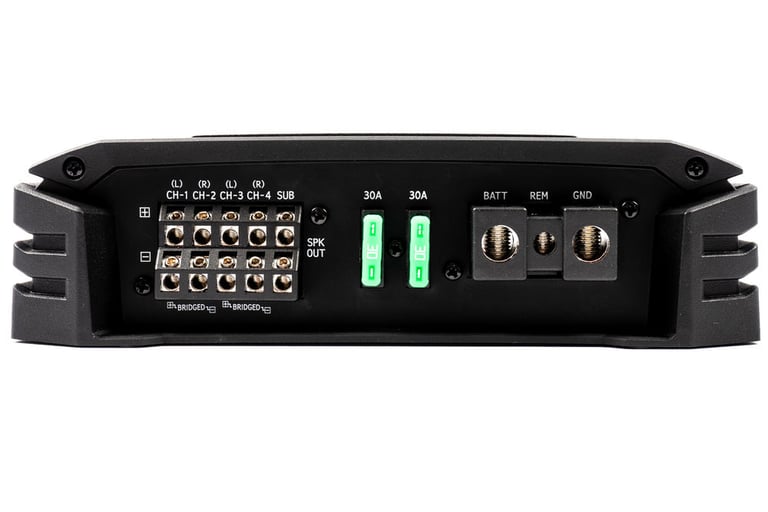

  • Fuse rating: 30A x 2
  • Dimensions: 11-1/4" W x 2-1/4" H x 8" D
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
FEATURES & SPECS
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
160 watts x 4 channels
RMS Power @ 2 ohms
240 watts x 4 channels
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
200 watts x 1 channels
RMS Power @ 2 ohms
300 watts x 1 channels
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
320 watts x 4 channels
Peak Power @ 2 ohms
480 watts x 4 channels
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
400 watts x 1 channels
Peak Power @ 2 ohms
600 watts x 1 channels
Amplifier Specifications
Amplifier Series
S (Alpine)
Marine Certified
No
Amplifier Class
D
Number of Channels
5
Total Peak Power Output
800 watts
Total RMS Power Output
500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1%%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Subsonic
High-Pass Crossover Frequency
50 - 400 Hz
Low-Pass Crossover Frequency
50 - 400 Hz
Subsonic Filter
50 Hz
Bass Boost
0 - 12 dB
Bass/Gain Remote
Optional (Accessory required and sold separately)
Fan Cooled
No
Fuse Rating
30A x 2
Total Fuse Rating
60
Strappable
No
CEA-2006 Compliant
Yes
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Authorized Dealer
Authorized Dealer
Authorized Dealer
What is in the box?
WITB: Amplifiers
Amplifier
Mounting screws (4)
Allen wrench
Paperwork
User manual
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer
