Precision Power MPA700.4D with Amplifier Wiring Kit

700W RMS 4-Channel Water-Resistant Class D Amplifier

highlight-star-icon

• 100 watts x 4 channel @ 4 ohms
• 175 watts x 4 channel @ 2 ohms
• Bridged: 350 watts x 2 channel @ 4 ohms
• Total RMS Power: 700 watts
• Class D 2 ohms Stable 4-Channel-Channel Amplifier

Learn more about the mpa7004d_bak02_bbic5

We apologize

This item has been discontinued

Description


Precision Power

Authorized dealer

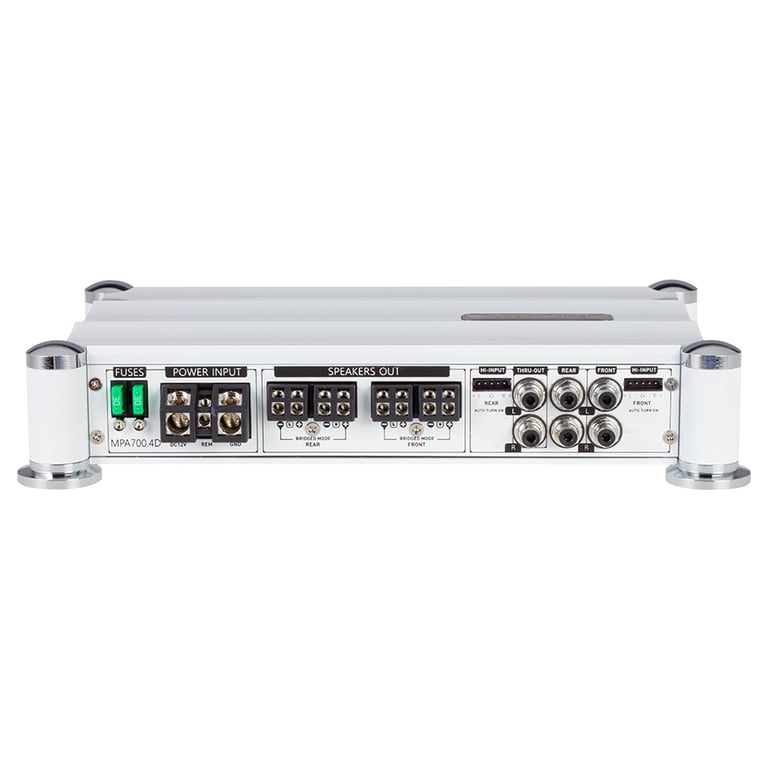

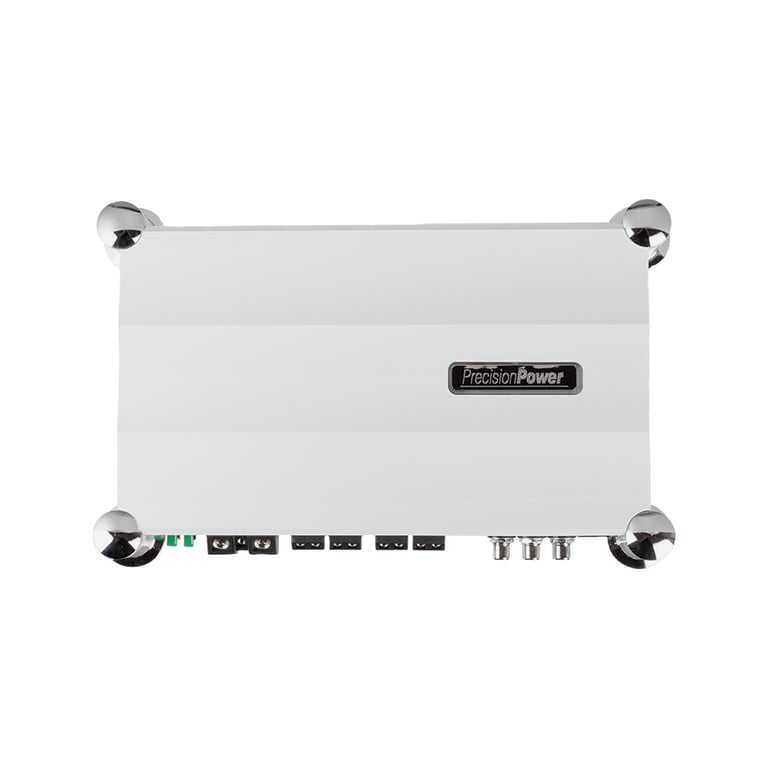

Precision Power (PPI) MPA700.4D

700W RMS ATOM Series Water-Resistant Class D 4-Channel Amplifier
Quantity: 1

Product Details:

  • Class D 2 ohms Stable 4-Channel-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 100 watts x 4 channel
    • 2 ohms: 175 watts x 4 channel
    • Bridged, 4 ohms: 350 watts x 2 channel
  • Total power output: 700 watts
  • Differential RCA Inputs Isolate 12v/Audio to Ground
  • MOSFET Power Supply w/ Audiophile Grade IR™ Transistors
  • Hybrid Aluminum Alloy Heatsink for Heat Optimum Dissipation
  • Individually regulated preamp/crossover power supply ensures signal purity
  • Marine grade/Water-Resistant
  • LED Power/Protect Light
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity:
    • Low level: 200mV - 6 volts
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: 90 dB
  • 12dB Bass Boost Increase Low octave harmonics
  • Fuse Rating: 90A
  • 4 AWG gauge power and ground wiring is recommended for installation.
  • Made in Korea
  • Dimensions: 6" W x 10" L x 2.25" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Belva BAK02

1/0 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 2000 Watts - RED
Quantity: 1

Product Details:

  • 1/0 Gauge 2-Channel Amplifier Installation Kit
  • Designed for car audio systems up to 2000 watts RMS

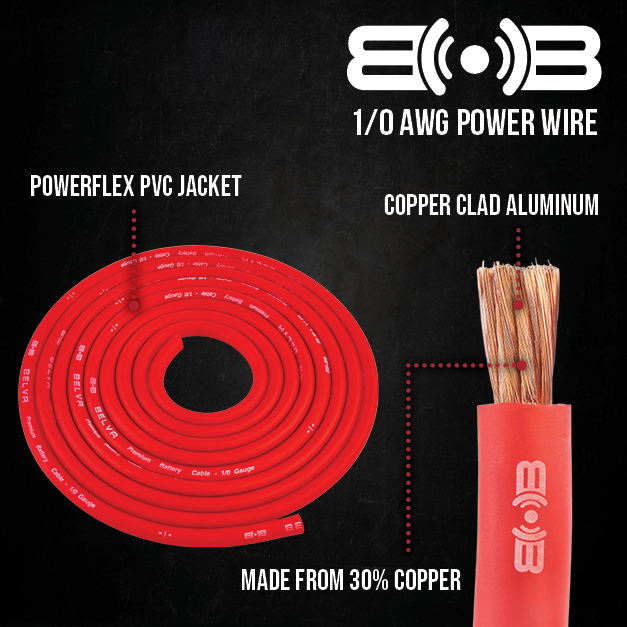

  • Premium Powerflex power and ground wire provides optimal power transfer
  • Belva CCA wire is made from 30% copper while the competition uses only 10%
  • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
  • ANL Fuse holder with a 150 amp fuse offers ideal protection for high powered systems
  • Complies to American Wire Gauge standards
  • Also available in Blue
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

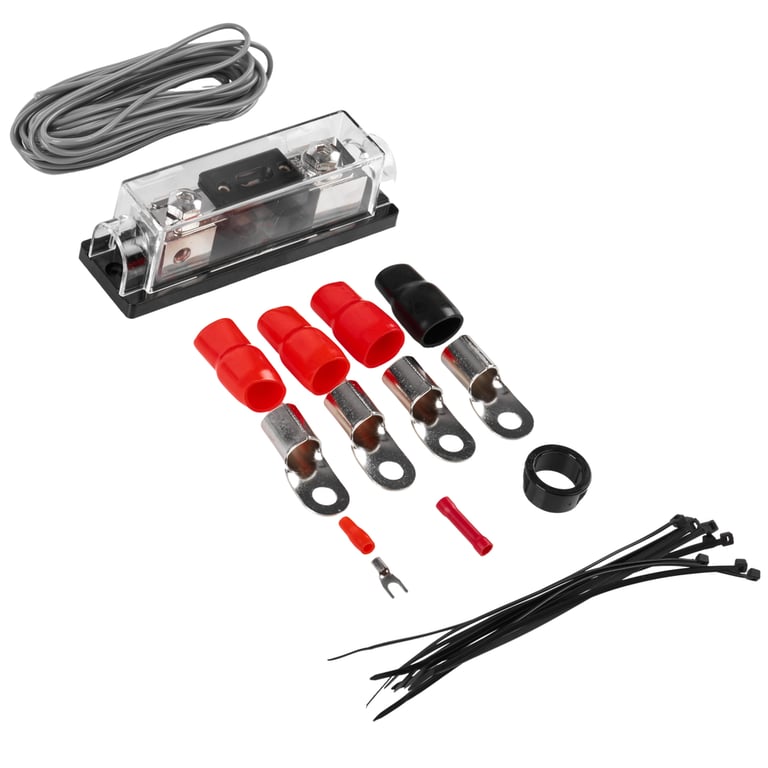

Kit includes:

  1. 17 ft. (5.2 meters) Red 1/0 gauge power wire
  2. 3 ft. (.91 meters) Black 1/0 gauge ground wire
  3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire
  4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable

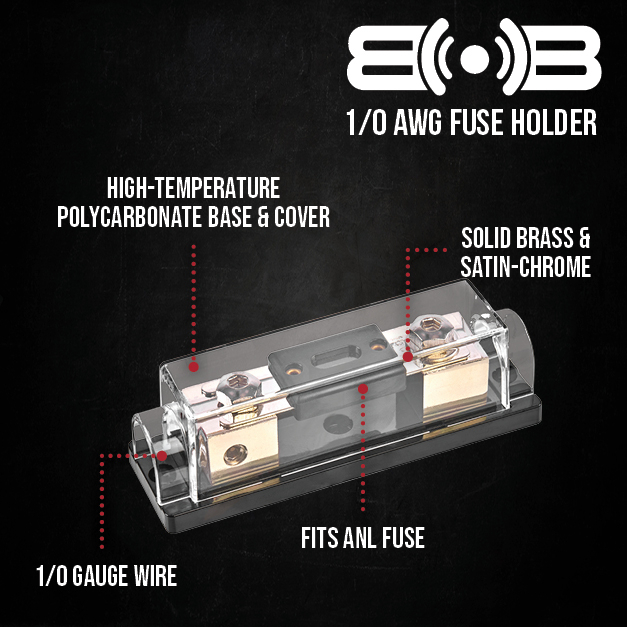

  5. One ANL Fuse Holder with a 150 amp ANL fuse
  6. One Black rubber firewall grommet
  7. Three 1/0 Gauge red chrome plated ring terminals
  8. One 1/0 Gauge chrome plated ring terminal
  9. One 18 Gauge red Spade terminal
  10. One 18 Gauge red butt connector
  11. Eight 6" Black zip ties

Belva BBIC5

5m (16.4 Ft) 2-Channel RCA Audio Interconnect Cable (CCA)
Quantity: 1

General Features:

  • Audio Interconnect Cable (CCA)
  • 2-Channel RCA, perfect for stacking, strapping or connecting amps
  • Helical Twist construction minimizes noise and interference
  • Patented high tolerance compact machined metal end
  • Packed in resealable bag
  • Length: 5m (16.4 feet)
  • Also available in 9.8 Ft.
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 4 channel
RMS Power @ 2 ohms
175 watts x 4 channel
Bridged RMS Power
350 watts x 2 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
4-Channel
Total Peak Power Output
1400 watts
Total RMS Power Output
700 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Subsonic
Signal-to-Noise Ratio
90 dB
Remote bass/level controller
No
Fan Cooled
No
Total Fuse Rating
90A
CEA-2031 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
200mV - 6 volts
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
1/0 gauge
Power Wire Length
17 feet
Ground Wire Length
3 feet
Speaker Wire Included
No
Remote Wire Length
17 feet
Interconnect (RCA) Signal Cables Included
4 Channel
Fuse Holder
ANL
Fuse Size
150A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

MPA700.4D, BAK02, BBIC5

Weight:

10.45lbs

Internal SKU:

mpa7004d_bak02_bbic5

Internal Product ID:

200804

Customer Ratings & Reviews



5 star
68%
4 star
21%
3 star
3%
2 star
6%
1 star
3%



Durability
4.6
Value
4.7
Features
4.5
Design
4.7
Usability
4.6

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Good

The following review is for BAK02, which is a part of the bundle you are viewing.

This wire is very flexible and fit nicely in my 2000 nissan maxima. ring terminals were a little fussy, but that was operator error. very nice 150 amp fuse. Lots of wire crammed into it. Very inexpensive for the quality. I would recommend this to anyone looking for an upgrade.

By Blane on February 24, 2014

96

found this helpful.

Decent Amp Kit

The following review is for BAK02, which is a part of the bundle you are viewing.

I am a professional installer first of and my father is an electrician. Following the AWG- American Wire Gauge standards this is not 1/0 wire it's closer to 2AWG, please understand that true 1/0AWG copper wire will cost around $5-8 a foot.

That being said for the price it is an amazing kit but should be marketed as 2AWG.

When compare to Kicker and Memphis true to spec 1/0AWG wire there is a major difference in size and weigh over all. 5 feet of Memphis 1/0 Wire weigh the same as 17 feet of Belva 1/0AWG.

By josh on October 3, 2014

82

found this helpful.

Great

The following review is for BAK02, which is a part of the bundle you are viewing.

It is what it says it is.. no problems with install.

By PJ on September 17, 2013

78

found this helpful.

Great Wire

The following review is for BAK02, which is a part of the bundle you are viewing.

It's the size it says it is, and powers my 1400 watt system with no problems. For the price and ease of install, I couldn't be happier!

By Bay on May 18, 2014

77

found this helpful.

a great kit for the price

The following review is for BAK02, which is a part of the bundle you are viewing.

these are great for the money and would definitely buy again

By Joseph on February 6, 2014

77

found this helpful.

top quality

The following review is for BAK02, which is a part of the bundle you are viewing.

I got this kit on a deal with a amplifier I purchased thought it looked good turned out to be one of the best amp kits I have ever owned would of paid full price for it

By Drew on March 28, 2014

74

found this helpful.

Great deal

The following review is for BAK02, which is a part of the bundle you are viewing.

I got this kit because I got a deal on it with my amp...great starting kit...didn't have any problem with it when I installed it...The ground cable was to short for me but that is due to my custom box..All in all good 1/0 Guage kit

By Robert on August 8, 2014

73

found this helpful.

Huge

The following review is for BAK02, which is a part of the bundle you are viewing.

I have never ran 0 gauge before and when I got it and took it out I was surprised but the big wire didn't really hurt the install it is still hidden under the carpet and it's thick and flexible so it was easy to run through the firewall. Now I'm gonna get the Belva big 3

By Brennen on June 9, 2014

72

found this helpful.

True 0 AWG!

The following review is for BAK02, which is a part of the bundle you are viewing.

Pros:
This kit comes with everything you need for a 0 AWG amp install with RCA inputs.

Cons:
NONE

I would definitely recommend purchasing this kit if you need a quality 0 AWG kit at a fair price with super fast shipping!

By Michael on October 10, 2013

70

found this helpful.

good product

The following review is for BAK02, which is a part of the bundle you are viewing.

Good product, they give you plenty of length. Only complaint is that the o connectors are really hard to clamp down and the rcas are kinda cheesey but work

By Zach on September 12, 2013

68

found this helpful.
