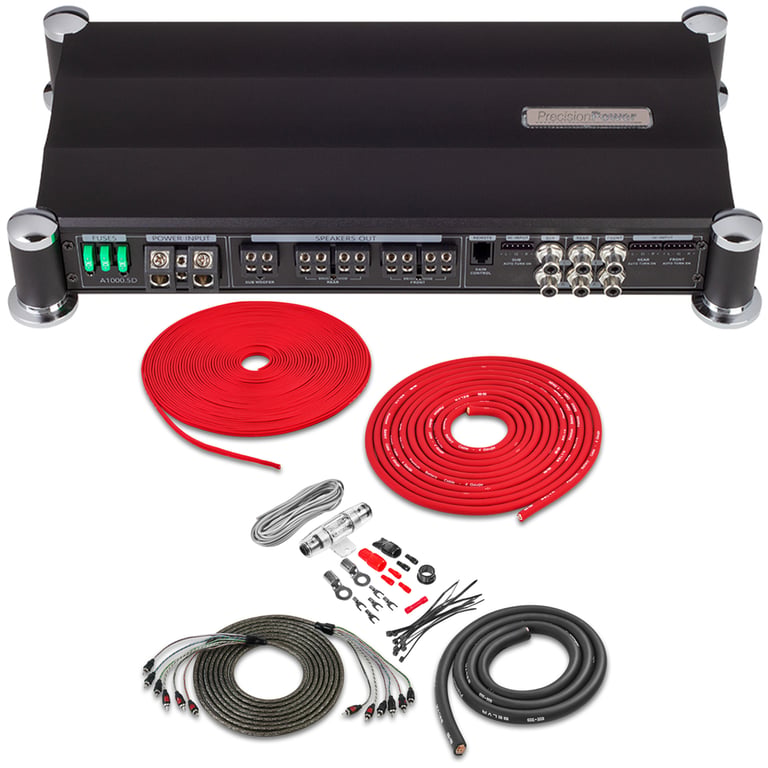

Precision Power A1000.5D with Amplifier Wiring Kit

950W RMS ATOM Series Class-D 5-Channel Car Amplifier

highlight-star-icon

• 60 watts x 4 channel + 250 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel + 450 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm + 450 watts x 4 channel @ 4 ohm
• Total RMS Power: 950 watts
• Class D 2 ohm Stable 5-Channel Amplifier
• Includes Amplifier Wiring Kit

Learn more about the a10005d_bak46

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

VPRO8BM main

NVX VPRO8BM (Sold Individually)

500W Peak (250W RMS) 8" V-Series Pro Midrange Loudspeaker

1
-40.48%

$49.99

List price $83.99

Rockford Fosgate Punch Pro PPS4-8 (Sold Individually)

250 Peak (125W RMS) 8” Punch Pro Series Pro-Audio 4-ohm Speaker

19

Description


Precision Power brand icon

Authorized dealer

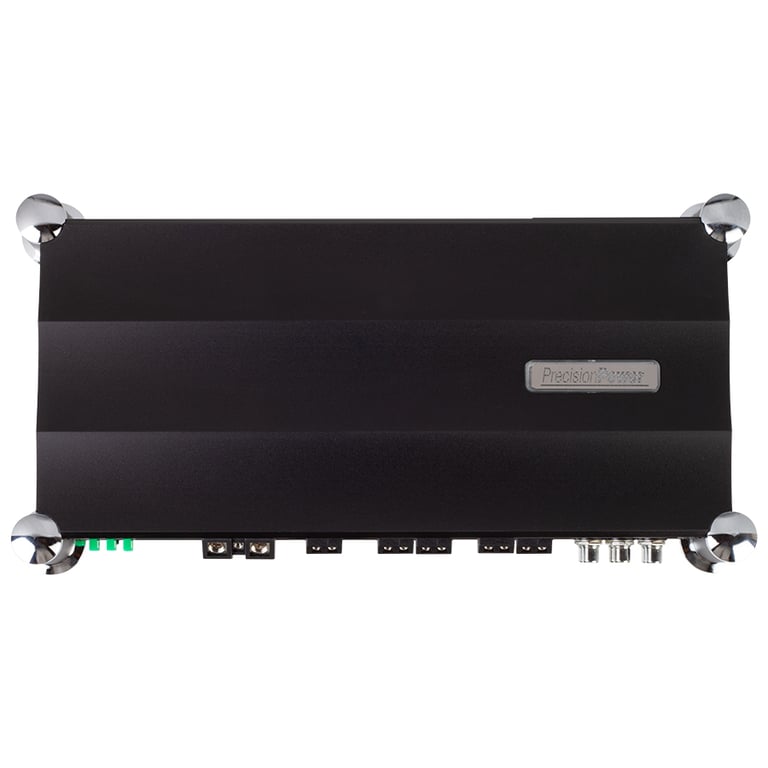

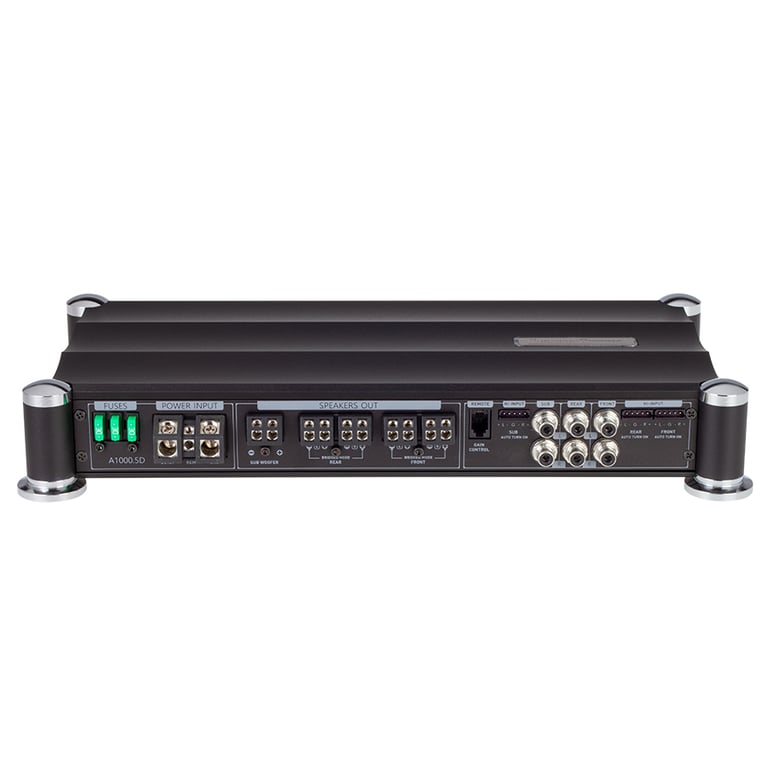

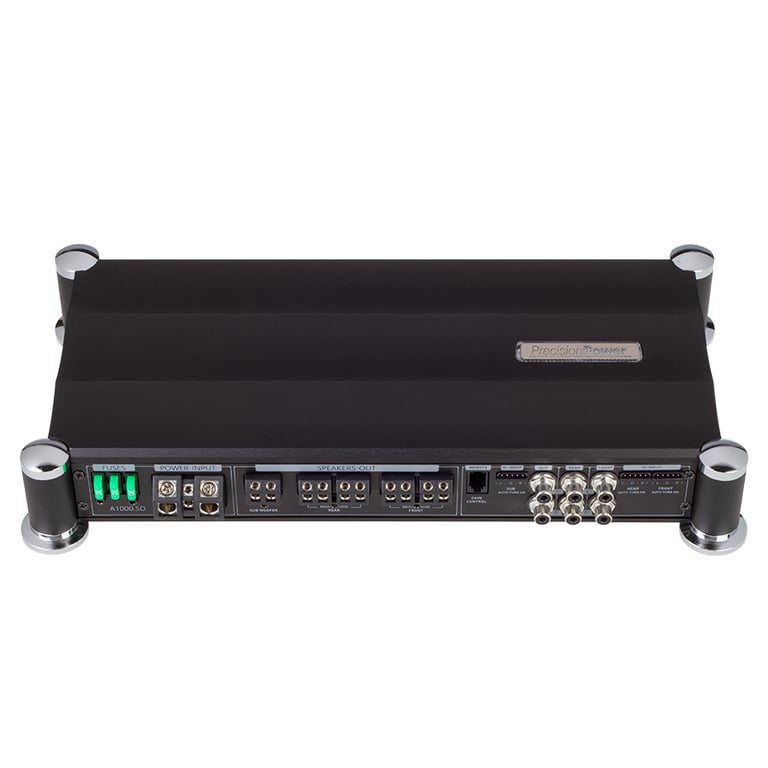

Precision Power A1000.5D

950W RMS Class D ATOM Series 5 Channel Car Amplifier with Bass Remote
Quantity: 1

Product Details:

  • Atom Series Class D 2 ohm Stable 5-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 60 watts x 4 channel + 250 watts x 1 channel
    • 2 ohm: 100 watts x 4 channel + 450 watts x 1 channel
    • Bridged: 200 watts x 2 channel @ 4 ohm + 450 watts x 1 channel @ 2 ohm
  • Total power output: 850 watts
  • Sequenced delays eliminate power-up/power-down pops
  • MOSFET power supply w/ audiophile grade IR™ transistors
  • Individually regulated preamp/crossover power supply ensures signal purity
  • Hybrid Aluminum Alloy heatsink for optimum heat dissipation
  • Differential RCA inputs
  • LED Power/Protect light

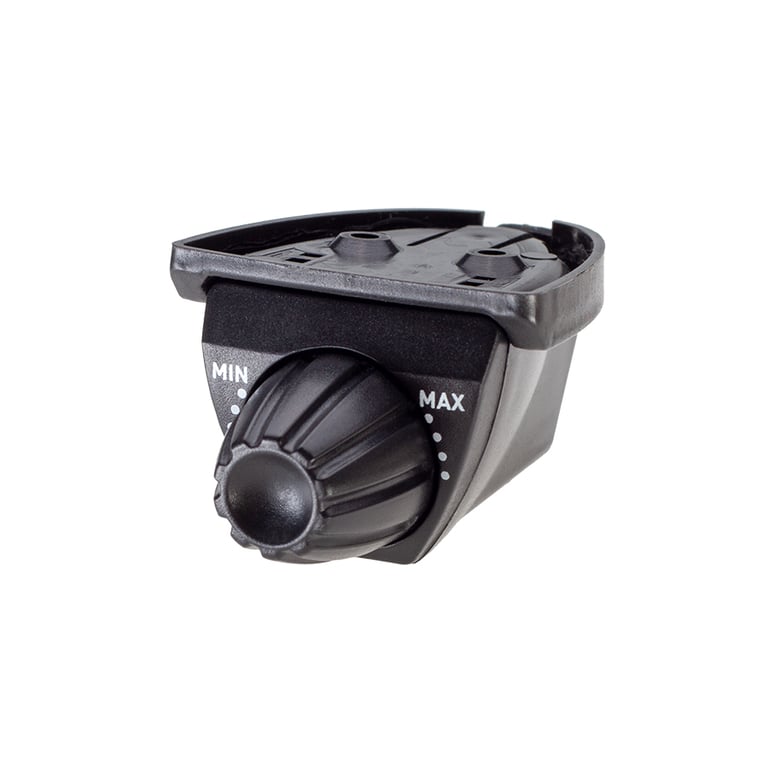

  • Wired remote bass level control included
  • High-level inputs
  • Input sensitivity: Low level: 200mV - 6 volts
  • Frequency Response: 20 - 20000 Hz
  • Total Harmonic Distortion (THD): 0.05%
  • Signal to Noise Ratio: 90 dB
  • Variable high-pass filter: 50 - 500 Hz
  • Variable low-pass filter: 50 - 500 Hz
  • Subsonic filter: 20 - 50 Hz
  • Variable Bass Boost: 0 - 18 dB
  • Dimensions: 13.25" L x 6" W x 2.25" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: A1000.5D

Belva BAK46

4 Gauge Premium (CCA) Copper Clad Aluminum Complete 5/6-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - RED
Quantity: 1

Product Details:

  • Complete 4 Gauge 5/6-Channel Amplifier Installation Kit
  • Designed for car audio systems up to 1200 watts RMS
  • Premium Powerflex power and ground wire provides optimal power transfer
  • Belva CCA wire is made from 30% copper while the competition uses only 10%
  • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
  • MINI-ANL Fuse holder with a 80 amp fuse offers ideal protection for high powered systems
  • Complies to American Wire Gauge standards
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

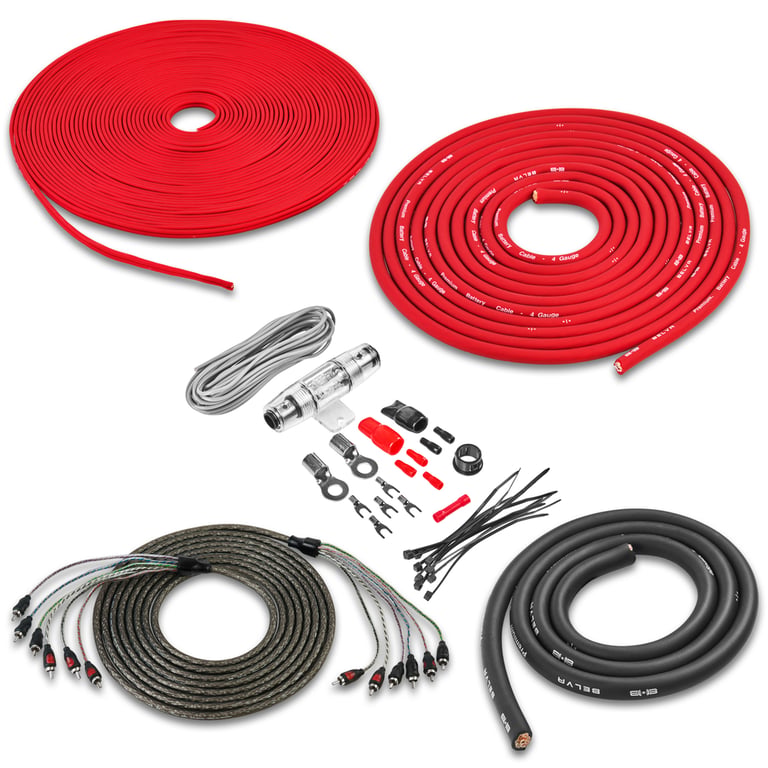

Kit includes:

  1. 17 ft. (5.2 meters) Red 4 gauge power wire
  2. 3 ft. (.91 meters) Black 4 gauge ground wire
  3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire
  4. 17 ft. (5.2 meters) Helical Twist 5/6-channel RCA interconnect cable
  5. 65 ft. (12.2 meters) 16 Gauge Speaker cable
  6. One MINI-ANL Fuse Holder with a 80 amp fuse
  7. One Black rubber firewall grommet
  8. One 4 Gauge Red chrome plated ring terminals
  9. One 4 Gauge Black chrome plated ring terminal
  10. Three 18 Gauge Red Spade terminal
  11. Two 18 Gauge Black Spade terminal
  12. One 18 Gauge Red butt connector
  13. Ten 4" Black zip ties

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(149)

$530.20

List price $593.98

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(261)

$486.93

List price $677.43

BAK42,R500X1D small

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(73)

$309.99

List price $369.98

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(250)

$311.43

List price $533.42

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(80)

$309.99

List price $369.98

NPKG212_65_69_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 6x9" & 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 and 6x9 Coaxial Speakers and Damping Kits

(267)

$495.93

List price $688.43

T500-1bdCP, BAK42 small

Rockford Fosgate Power T500-1bdCP & BAK42 4 AWG Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm, 500W x 1 @ 1 ohm
• Dynamic Power Output: 690W
• CEA-2006 Compliant
• Variable Bass Boost: 0 to +18 dB at 45 Hz
• Ultra Efficient Class bD Circuitry
• Dimensions: 11-7/16"L x 8-3/16"W x 2-3/16"H

(216)

$574.48

List price $609.98

VCW84_NDA12001_XKIT42 small

NVX VCW84v3 + NDA12001 + XKIT42

• Two 8" VCW84v3 VC-Series v3 1300W RMS Subwoofers
• 2400W Peak (1200W RMS) Class D NDA12001 Monoblock Amplifier
• XKIT42 Complete 4 AWG Amplifier Wiring Kit
• 1-year Warranty from the Original Purchase Date

(153)

$619.96

List price $791.96

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
60 watts x 4 channel
RMS Power @ 2 ohms
100 watts x 4 channel
Bridged RMS Power
200 watts x 2 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
250 watts x 4 channel
RMS Power @ 2 ohms
450 watts x 4 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
5-Channel
Total RMS Power Output
950 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Frequency Response
20 - 20000 Hz
THD at Rated RMS Power
0.05%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
Subsonic
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
90 dB
Channel Separation
55 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
30A x 3
Total Fuse Rating
90A
CEA-2031 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
200mV - 6 volts
High-Level Input Sensitivity
200mV - 6 volts
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
4 gauge
Power Wire Length
17 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
65 feet
Remote Wire Length
17 feet
Interconnect (RCA) Signal Cables Included
6 Channel / 5 Channel
Fuse Holder
Mini ANL
Fuse Size
80A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

A1000.5D, BAK46

Weight:

11.93lbs

Internal SKU:

a10005d_bak46

Internal Product ID:

200831

Customer Ratings & Reviews


Precision Power A1000.5D with Amplifier Wiring Kit thumbnail image

5 star
85%
4 star
12%
3 star
4%
2 star
0%
1 star
0%



Durability
4.8
Value
5
Features
4.8
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Great Value/perfect Amp install kit for my 5 channel

The following review is for BAK46, which is a part of the bundle you are viewing.

This Amp install kit made it easy as I had 6 in to 1 rca cables on both ends and made it easier to fish in the wires Through the front to the back...

By Abner on January 25, 2018

57 found this helpful


Excellent

The following review is for BAK46, which is a part of the bundle you are viewing.

Everything fit my amp as if they spoke with the manufacturer beforehand. the lengths are correct the RCA's I love them. The quality and feel!! I saw FEDEX coming and I felt like a little kid. Sitting at my dining room table pre-wiring and letting the cables get used to being straight again after being coiled in the package. You WILL NOT BE DISAPPOINTED!!!

By Anonymous on November 18, 2018

55 found this helpful


quality

The following review is for BAK46, which is a part of the bundle you are viewing.

The RCA cable was really convenient. I was even able to cut it in the middle to fit it through a small hole and then solder it back together. (this did take a looong time but its possible)
Wire was quality too

By Sean on October 30, 2017

54 found this helpful


Helpful kit

The following review is for BAK46, which is a part of the bundle you are viewing.

Great kit with everything you need to get your system going and can handle adequate power

By David on February 3, 2020 Checkmark Icon Verified purchase

50 found this helpful


Nice kit

The following review is for BAK46, which is a part of the bundle you are viewing.

The kit is complete with everything you need to install an amplifier and speakers.
Power and ground wire very flexible.

By casper on February 9, 2022 Checkmark Icon Verified purchase

47 found this helpful


Nice kit

The following review is for BAK46, which is a part of the bundle you are viewing.

I bought this kit and am quite happy with it, the 4 gauge cable and RCA's seem to be of high quality along with the rest of the parts. only problem I had was the length of the power cable, in an avalanche I came up about 2ft short mounting the amp in the back of the truck so I had to go to the local shop to get a 2ft cable to make it from the fuse to the battery. would I buy this kit again yes.....

By David on April 2, 2017 Checkmark Icon Verified purchase

50 found this helpful


Just do it ..

The following review is for BAK46, which is a part of the bundle you are viewing.

I questioned whether the installation kit would really be "all that."

It was .. almost everything you need is included ... I opted for getting the quick connect/disconnect adapters for the speakers. Had those been in the kit I would have lost it.

Great quality, great layout, totally worth it.

By MICHAEL on October 5, 2015

47 found this helpful


Great Kit

The following review is for BAK46, which is a part of the bundle you are viewing.

Bought this and am sooo happy I did. Price was great and the quality of all the components is too. Even the speaker was great quality. Highly recommend.

By Brian on October 20, 2016

47 found this helpful


Great price fast delivery

The following review is for BAK46, which is a part of the bundle you are viewing.

Great value for quality products and fast delivery will order again

By Anonymous on October 19, 2019

43 found this helpful


Great value

The following review is for BAK46, which is a part of the bundle you are viewing.

I got this kit free with an NVX amp I ordered and I have to say it's a great kit, the speaker wire worked great as well as the rca's as I had no road noise with them. Would recommend to anyone not looking to break the bank.

By Lucas on January 23, 2022 Checkmark Icon Verified purchase

41 found this helpful




BBSW167,BAK42BK,PDX-V9 small

Alpine PDX-V9 900 Watt RMS Car Audio Class D Amplifier+ Premium Amp Kit

1600W Max, 5-Channel PDX Series Car Amplifier Package

(104)

$1004.95

List price $1134.98

BBX-T600, XLCA2, BAK42 small

Alpine BBX-T600 + NVX XLCA2 Line-Output-Convertor + Free Amp Kit

600W Max (280W RMS) 2-ohm Stable 2-Channel Amplifier + NVX LOC with XBOOST Technology + 8 Gauge Amp Kit

$224.93

List price $409.98

SPT5108R small

Stinger SPT5108R

Pro Series 8 Ga Input to 5/16" Red Ring Shoc Krome - 25 Pack

$29.99

List price $59.00

MRV-F300, BAK84 small

Alpine MRV-F300 with Amplifier Wiring Kit

300W 4-Channel Class D V-Power Series Compact Car Amplifier

(83)

$189.95

List price $339.99

PZ-1520.2, BAK42 small

Crunch PZ-1520.2 with Amplifier Wiring Kit

1500W Powerzone Series 2 ohm Stable 2-Channel Class-A/B Amplifier

(172)

$89.99

List price $209.98

TN250/1-RB_REX10D4 small

400W Complete MTX Audio + RE Audio Bass Package

MTX Audio Terminator TN250/1 Amplifier + RE Audio REX10 Sub + 8 Gauge Amp Kit + 10" Ported Enclosure

(57)

$136.71

List price $479.96

GM5602DDSHB small

Scosche GM5602DDSHB

Double DIN, Full Dash Installation Solution for select 1999-2002 vehicles from GMC, Chevrolet (Shale)

(1)

$119.99

List price $198.31

HB 2 10-GRAY small

Ground Shaker HB 2 10-GRAY

10" Dual Sealed Hatchback Subwoofer Box

$89.95

List price $119.95

XM-GS100, XKIT42 small

Sony XM-GS100 Monoblock Amplifier with Amplifier Wiring Kit

1100W Max GS Series CEA Compliant Compact Monoblock Amplifier with High Level Inputs, Crossover Filters and a 3-year warranty! + NVX 4 Gauge 2-Channel Amp Wiring Kit

(131)

$252.99

List price $593.98

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2017 Audi A4 Quattro

2014 Kia Optima

2005 Dodge Viper

1989 Mercury Topaz

1988 Isuzu Pickup

1991 Jeep Cherokee

2000 Toyota Solara

2006 Toyota Camry

2009 Volvo S80

1981 Oldsmobile Ninety Eight Regency

Vehicle
Store
Delete

2024 Can-Am Defender XT

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
