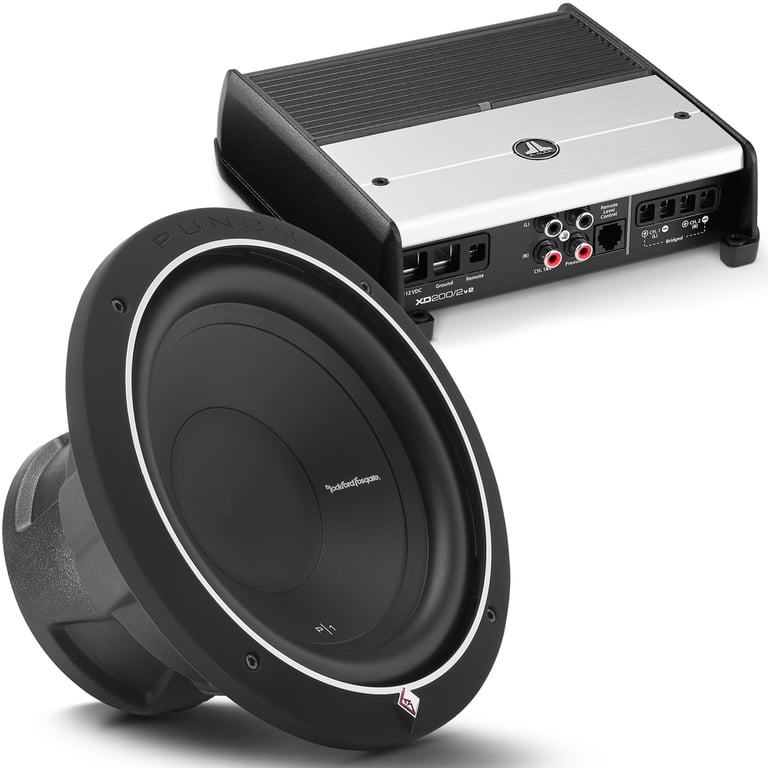

JL Audio XD200/2v2 with Rockford Fosgate P1S4-10

200W 2-Channel Class D Amplifier with 250W RMS 10" Single 4-Ohm Subwoofer

JL Audio
Shop all JL Audio
highlight-star-icon

• NexD Switching Technology
• Differential Balanced Input Section
• Advanced Rollback Protection
• Frequency Response: 12 Hz - 22 kHz (+0, -1dB)
• Detented, Calibrated Filter Freq. Potentiometer
• Rockford 10" Single 4 ohm Subwoofer
• 500W Peak
• 250W RMS
• Kevlar Reinforced Paper Cone
• High Density NBR Half-Roll Surround
• 2" 4-Layer Voice Coil

Learn more about the xd2002v2_p1s410
Was $549.98 Details
Thanks , You Pay:

$311.53

 with warranty

Heads up

We confirm fitment and offer accessories for speakers. Please set your vehicle first if you would like to purchase more than one xd2002v2_p1s410.

Set your vehicle or Return to product page
shipping truck icon
FREE 2-day shipping to VA. Get it Wed, Sept. 27
Quantity
In Stock
Brand new

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Allstate logo

Keep your product protected longer! Extend the warranty after the manufacturer warranty expires.

  • Mechanical, electrical and product failure covered! 100% parts and labor covered. (Coverage starts after Mfr. warranty)
  • Easy online management! Zero hassle claim service, available 24/7

For over 23 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

AwardWinning
Award-Winning Service
Shipping
FREE Shipping Orders $49+
60Days
60-Day Easy Returns
lowestPrice
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Description


JL Audio

Authorized dealer

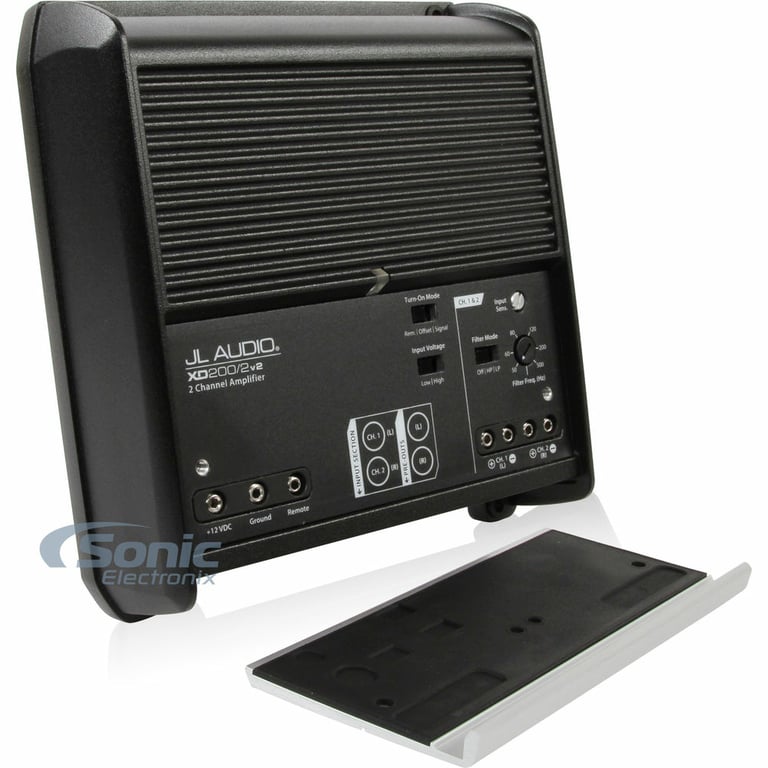

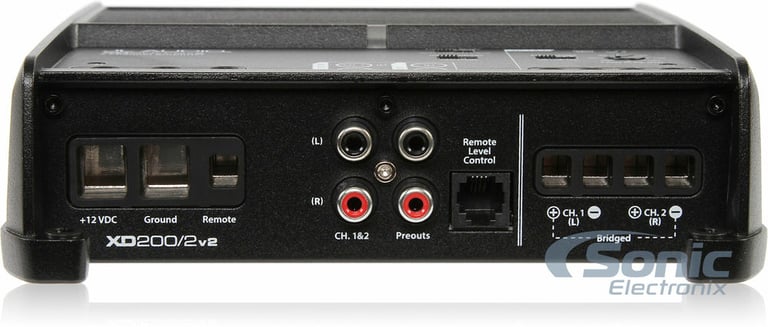

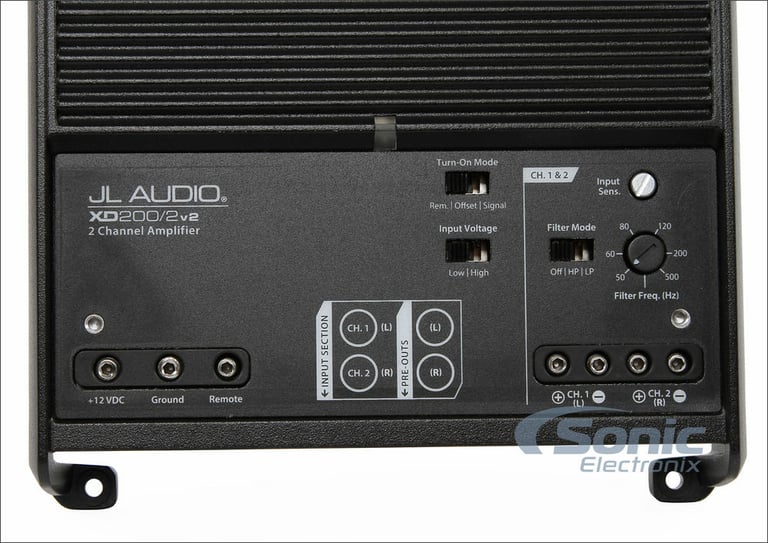

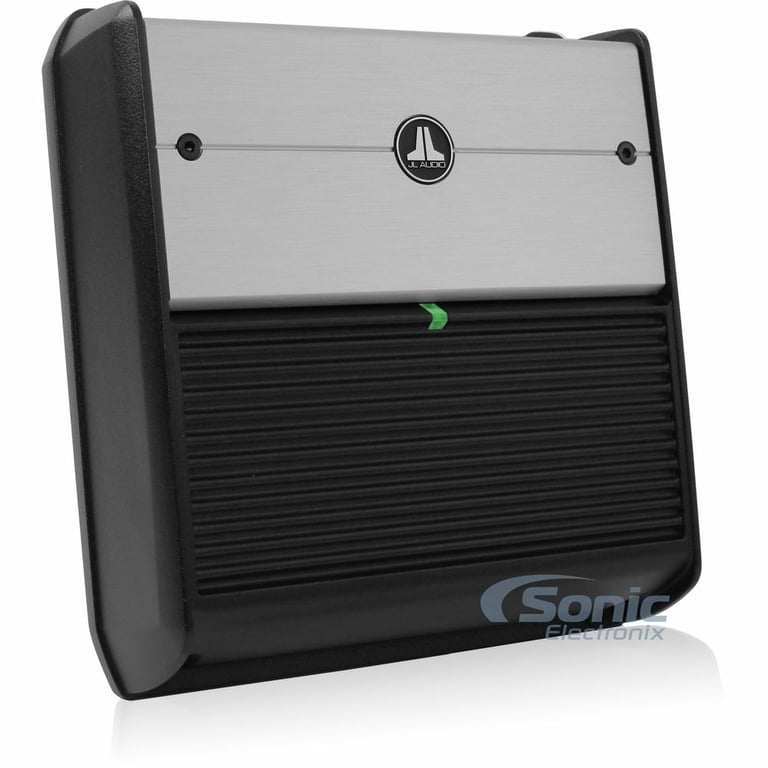

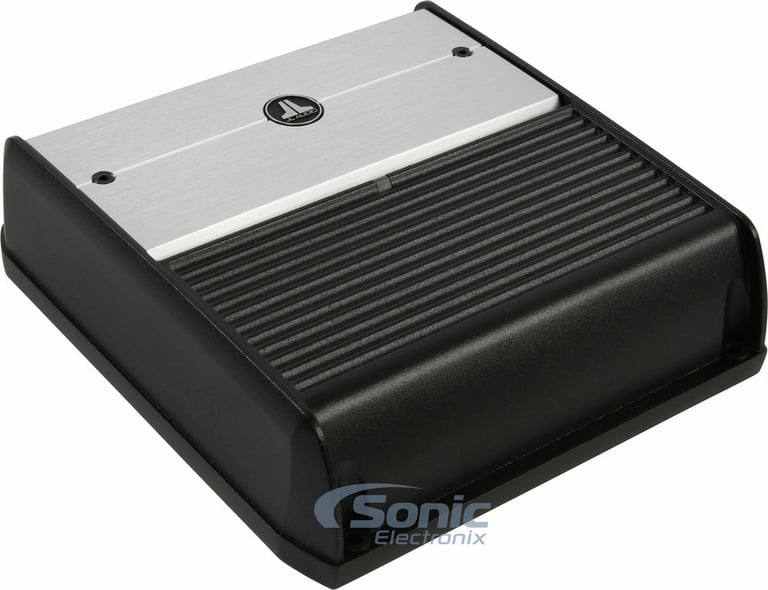

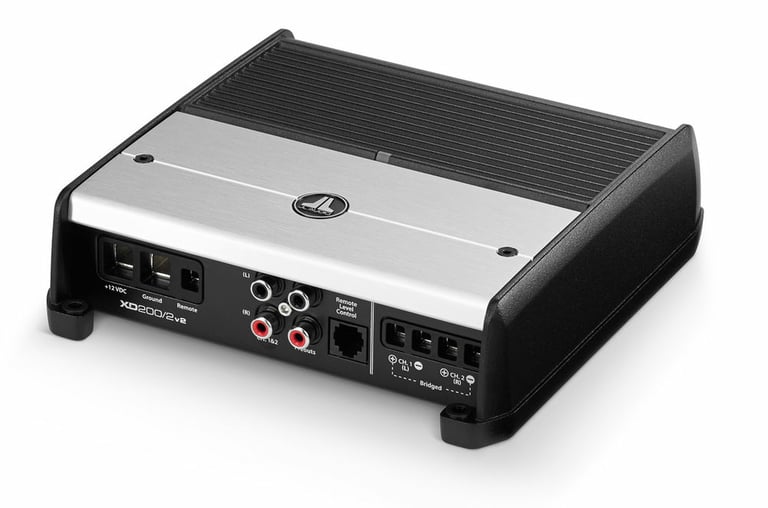

JL Audio XD200/2v2

JL Audio XD200/2v2 - XDv2 Series 2-Channel Class D Full-Range Amplifier

This potent 2-Channel amplifier employs JL Audio's high-speed NexD switching design to achieve unprecedented efficiency and amazing power output in an ultra-compact chassis. Don't let the small size fool you, though... this amplifier is capable of serious power, delivering a full 200W of continuous power into a 4 ohm load (14.4V, 1% THD) Bridged. Targeted specifically for an audiophile-grade subwoofer or two satellite system, the XD200/2v2 includes a variable mode low-pass/high-pass filter with a continuously variable cutoff frequency selection from 50-500 Hz. The XD200/2v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), you can control the volume of the XD200/2v2 from the front of the vehicle. This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.

Advanced Rollback Protection

JL Audio's signature Advanced Thermal Rollback protection system eliminates annoying thermal shutdown events to keep the music playing, even under the most demanding conditions. Should the amplifier reach an unsafe operating temperature, a special circuit rolls back peak power output, without changing gain, until the amplifier cools down to a safe operating temperature. The red "Thermal" LED will light to indicate this condition has been reached. Once the amplifier cools down, the circuit restores full peak power output and the red "Thermal" indicator reverts to its normal state. The operation of Advanced Rollback Protection is inaudible in most cases.


NexD Switching Technology

From the same minds that gave us the technology found in the 'Slash' amplifiers, JL Audio has taken the simple fixed PWM design approach and enhanced it with a very high switching frequency. Full-range NexD amplifiers and channels feature a variable, ultra-high speed version of the NexD technology (switching at well over 400 kHz). In these designs, a self-oscillating modulator with "feed-forward" sends information about the instantaneous power supply voltage to the modulator, combining this with the input signal to cancel out any distortion due to supply voltage fluctuation. This reduces distortion prior to applying feedback, simplifying the overall feedback loop design.

JL Audio XD200/2v2

200W RMS XDv2 Series Class-D 2-Channel Amplifier
Quantity: 1

Product Details:

  • XD-v2 Series Class D 2 ohms Stable 2-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 75 watts x 2 channel
    • 2 ohms: 100 watts x 2 channel
    • Bridged: 200 watts x 1 channel @ 4 ohms
  • Total power output: 200 watts
  • LED Power/Protect Light
  • Wired bass level remote control with optional JL Audio HD-RLC
  • Speaker-level (high-level) inputs (Requires adapter like the JL Audio XD-CLRAIC2-SW)
  • Signal sensing remote turn-on
  • Protection Circuitry with Status LED
  • NextDâ„¢ switching amp technology
  • Differential-balanced inputs help eliminate noise
  • Advanced Rollback Protection System prevents thermal shut-down
  • Speaker-level (high-level) inputs
  • Input sensitivity:
    • Low level: 200mV - 2 volts
    • High level: 800mV - 8 volts
  • Frequency Response: 12 - 22000 Hz
  • Total Harmonic Distortion (THD): <1%
  • Signal to Noise Ratio: >104 dB
  • Variable high-pass filter: 50 - 500 Hz
  • Variable low-pass filter: 50 - 500 Hz
  • Fuse Rating: 20A
  • 8 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 7-1/8" L x 6-7/8" W x 2" H
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty
  • MFR #: XD200/2V2

Check out the JL Audio XD200/2v2 Owner's Manual

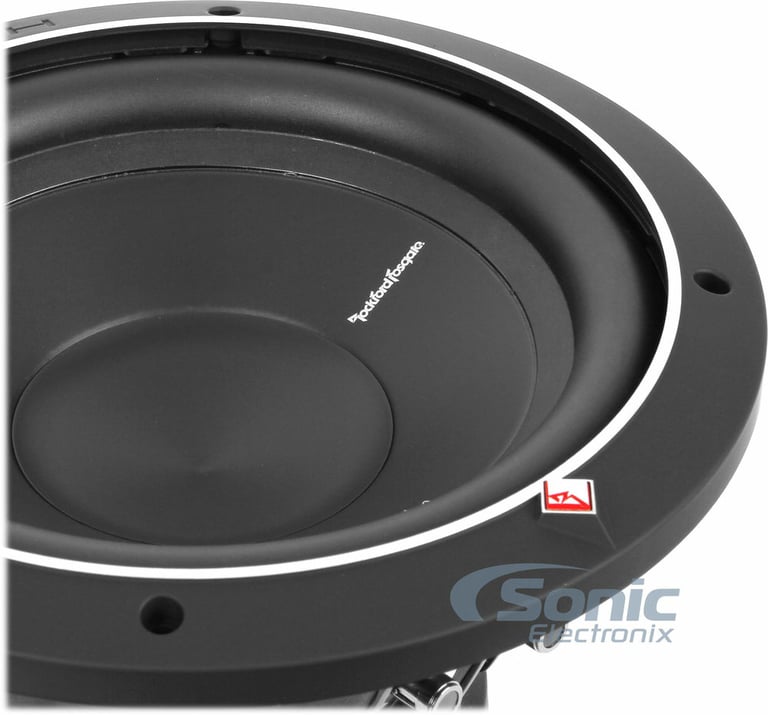

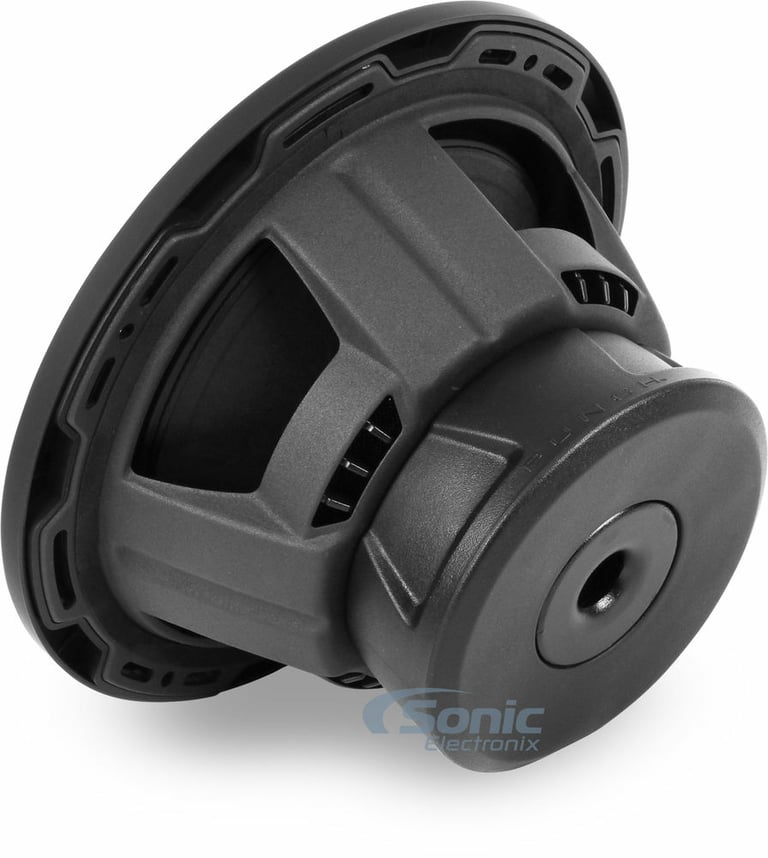

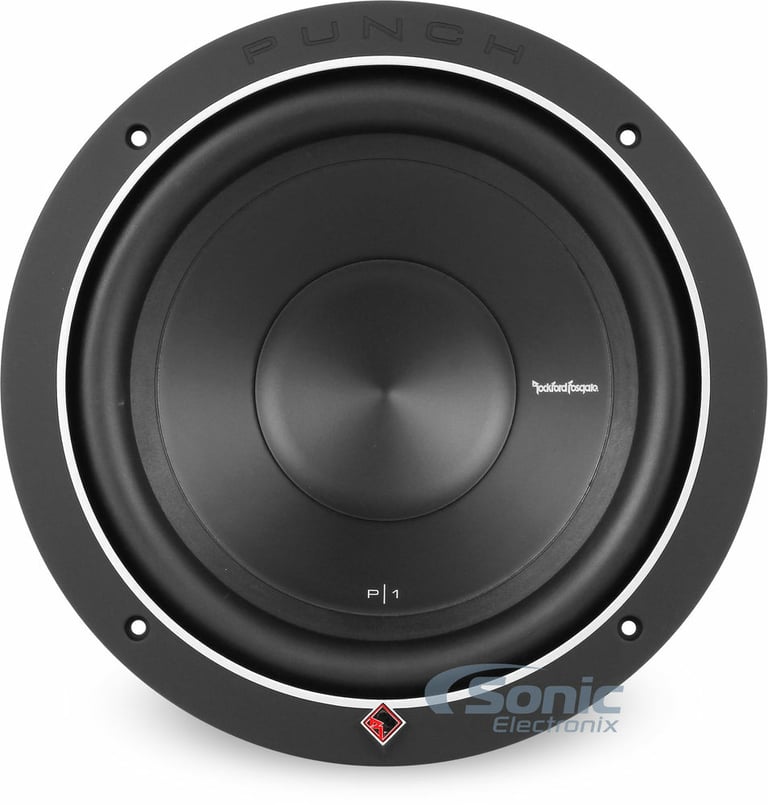

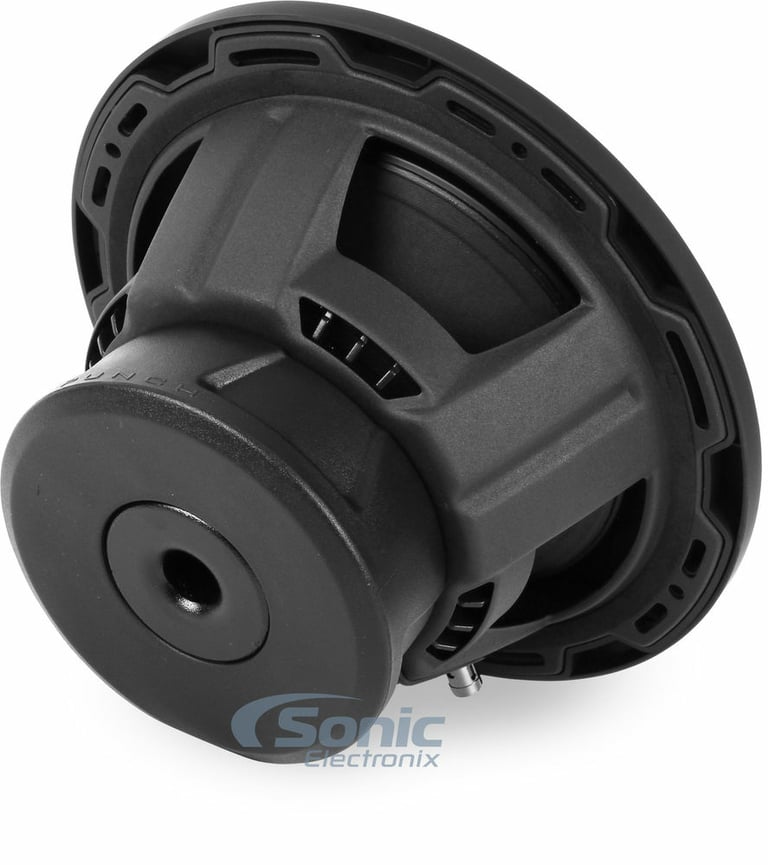

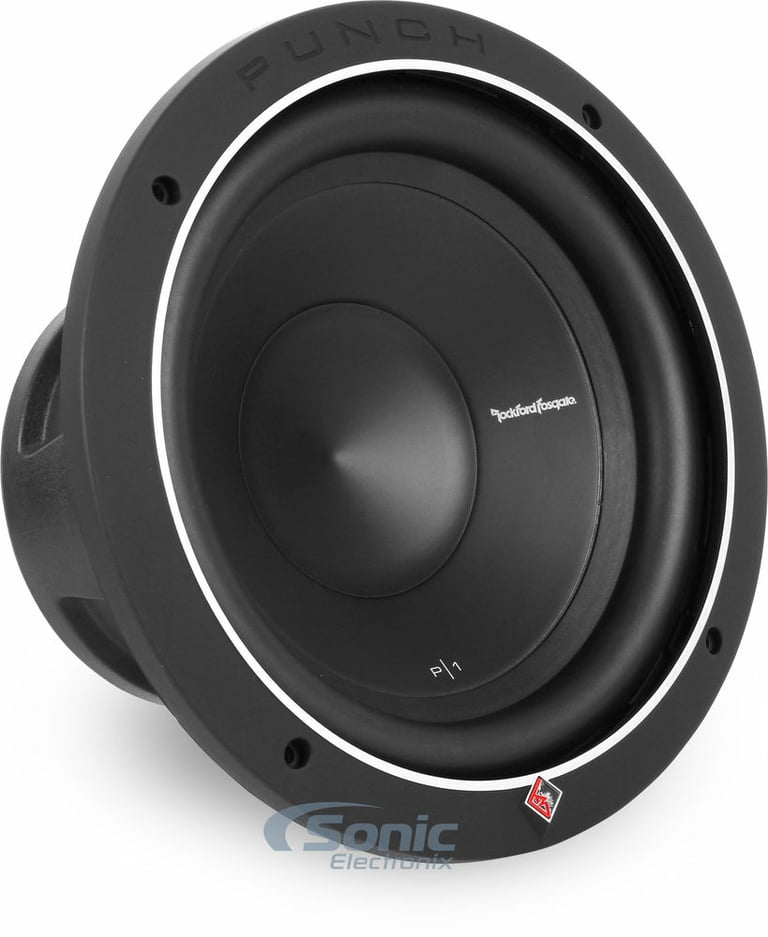

Rockford Fosgate Punch P1S4-10

500W Max (250W RMS) 10" Punch P1 Series Single 4-Ohm Car Subwoofer
Quantity: 1




Key Benefits

  • 10" Single 4 ohm Punch Stage 1 Subwoofer
  • Power Handling:
    • Peak: 500 watts
    • RMS: 250 watts
  • Recommended power range: 125 - 300 watts RMS
  • CEA-2031 Compliant
  • Klippel Verified
  • Flex-fit Mounting pattern
  • Proprietary spider venting/cooling technique
  • StampCast basket with integrated spider venting
  • Sturdy 16 gauge compound bend frame geometry
  • High modulus Kevlar re-inforced paper-pulp cone
  • Semi-flexible, PVC removable protective motor cover
  • Multi-point high-temp/high-strength neck joint bonding technique
  • Tall-profile VAST Santoprene surround for larger surface area
  • Dual tear & fatigue resistant poly-cotton spider with woven tinsel leads
  • Fatigue resistant and reduced strain "stitched on" flexible lead wire design

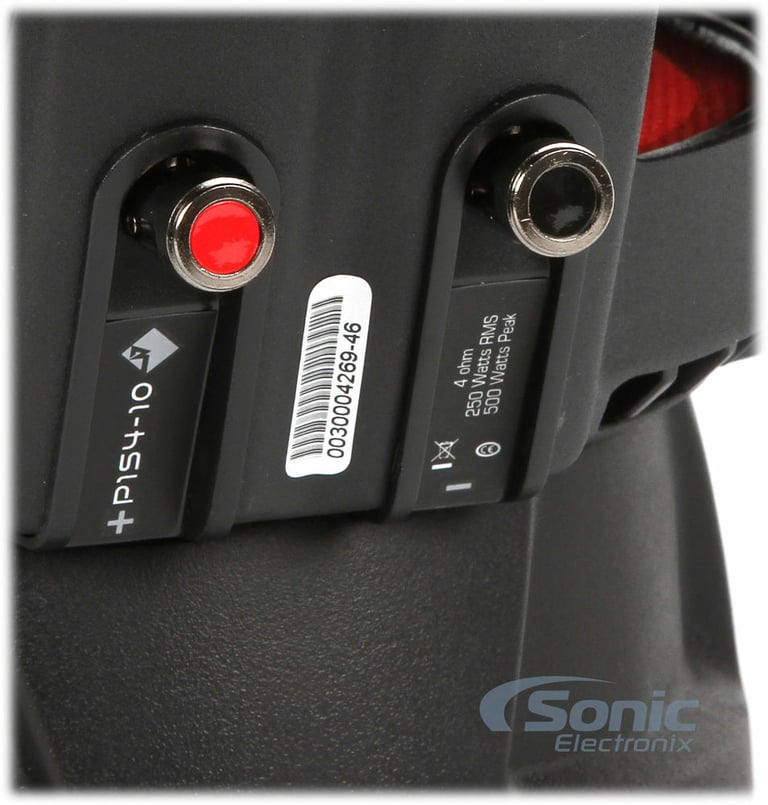

  • Proprietary all metal, radially oriented compression input terminal assembly
  • Optimized motor magnetics with extended pole and bumped vented backplate
  • High temp 2" voice coil w/ spun-laced Nomex insulating re-inforcement collar
  • Die-Cast aluminum soft-touch painted trim ring allows for optional integrated grill
  • Stamped Mesh Grille Insert Available: Rockford Fosgate P1G-10

  •
  • Mounting Depth: 5.33"
  • Cutout Diameter: 9.14"
  • Magnet Weight: 45 oz
  • Frequency Response: 23 - 250 Hz
  • Xmax: 9mm
  • Sensitivity: 84 dB @ 1 watt / 1 meter
  • Recommended Ported Enclosure: 1.40 ft³
  • Recommended Sealed Enclosure: 0.59ft³
  • Matching Amplifiers: (one subwoofer)
  • Matching Amplifier: (two subwoofers)
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

Check out the Rockford Fosgate P1 Series Owner's Manual

Tips for Installing the P1S4-10 Subwoofer


Product history:

JL Audio XD200/2V2, P1S4-10 thumbnail
(newest, current model)
JL Audio XD200/2 thumbnail
(previous model, replaced by JL Audio XD200/2v2 with Rockford Fosgate P1S4-10)

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
75 watts x 2 channel
RMS Power @ 2 ohms
100 watts x 2 channel
Bridged RMS Power
200 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
2-Channel
Total Peak Power Output
400 watts
Total RMS Power Output
200 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
>104 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fan Cooled
No
Fuse Rating
20A X 1 In-Line Fuse Recommended
CEA-2031 Compliant
No
Subwoofer Specifications
Series
Punch P1 Series
Subwoofer Size
10"
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohms
RMS Power Handling
250 watts
Peak Power Handling
500 watts
Woofer Surround
NBR Half Roll
Woofer Composition
Kevlar Reinforced Pulp Paper
Minimum Sealed Box Volume
0.50 cubic feet
Maximum Sealed Box Volume
0.85 cubic feet
Minimum Ported Box Volume
1.40 cubic feet
Maximum Ported Box Volume
1.40 cubic feet
Sensitivity
85 dB
Frequency Response
23 - 250 Hz
Xmax (millimeters)
9.0 mm
Top-Mount Depth (Mounting Depth)
5-3/8"
Cutout Diameter
9-/18"
Recommended Enclosure Type
Ported / Vented
Sealed
Amplifier Wiring Kit
Is Amplifier Wiring Kit included?
No
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XD200/2V2, P1S4-10

Weight:

15.20lbs

Internal SKU:

xd2002v2_p1s410

Internal Product ID:

200990

Customer Ratings & Reviews



5 star
64%
4 star
21%
3 star
14%
2 star
0%
1 star
0%



Durability
4.7
Value
4.7
Features
4
Design
4.3
Usability
4.5

Customer Reviews

Sort by:

Loading...

Great speakers

The following review is for P1S4-10, which is a part of the bundle you are viewing.

Great speakers forward great price. I would recommend these to anybody. Great sound, bass, and quality. I don't have anything bad to say.

By Jay on May 15, 2012

44

found this helpful.

awesome sub

The following review is for P1S4-10, which is a part of the bundle you are viewing.

Great sub for the price!
I have two 10p1s4s in my legacy wagon and makes even other cars rattle. I'm quite impressed with the subs and they don't pull much power since my lights don't dim. Even with hard bass.

The only down is it doesn't really the low, lows like other subs.

By max on November 20, 2012

36

found this helpful.

Superior Sub

The following review is for P1S4-10, which is a part of the bundle you are viewing.

I was looking for a single 10 inch sub to give a little bass to my 67 Firebird. The exhaust on the car is loud so I really need a sub that could handle quite a bit of power. I am powering this sub off of a 900W Kenwood 4 channel amp.(the amp also powers 2 6X9s) I mounted the sub in an enclosed box that lives in the trunk. I did not want bass that would rattle the glass out...just wanted to feel the music over the rumble of the car. This sub sounds crisp and clean and hits hard. I mostly listen to rock, blues and country but my kids will throw in some occasional hip hop and the sub sounds great with all. I plan to buy one more for my daily driver.

By 67 Firebird on October 6, 2014

35

found this helpful.

Good Bang for the Buck

The following review is for P1S4-10, which is a part of the bundle you are viewing.

I installed these under the seat in a Dodge Ram ran off a Punch 300x1 MOno amp. Awesome results. It was a job I did for my neighbor and he is super happy with it and I can hear him coming down the road. Clean low end in the car. Definitely good for novices but not an audiophile speaker. If you want that get Image Dynamics :)

By Scott V on October 22, 2014

33

found this helpful.

Satisfied

The following review is for P1S4-10, which is a part of the bundle you are viewing.

This sub is powered by AMP TYPE Rockford Fosgate T-600-4. Had to go with this little bad boy because I have a shallow box under my back seat (Chevy Truck). It bumps hard and clear. If you want a nice tight sounding sub this is for you. If you want to kill your innards with shock waves get two. I am more than happy with this sub. It fits my application nicely.

By michael on November 15, 2011

34

found this helpful.

Thump!

The following review is for P1S4-10, which is a part of the bundle you are viewing.

I purchased 3 of these subs to put in my car. In a sealed box these have good sound quality even with the right amp they thumped but did not Bang and that is what I wanted. This product is good for the price but you get what you pay for I guess. If your looking for precision sound to add to your music listening experience then these are perfect subs, but if you are looking for a sub that hits hard and is pretty powerful then I'd tell you to get another sub but everyone is different. I'd recommend as someones First Sub maybe second depending on what type of Bass you look for.

By Kyle on February 18, 2013

32

found this helpful.

Still a Rockin!

The following review is for P1S4-10, which is a part of the bundle you are viewing.

I bought this Fosgate system about 6 months ago, and it has really good sound & for it's size..

By Andy on September 13, 2012

31

found this helpful.

nice

The following review is for P1S4-10, which is a part of the bundle you are viewing.

This sub is powered by a dual 150 watt amp. It's a great combo. Tight accurate bass in my sealed enclosure.

By josh on January 21, 2012

31

found this helpful.

Meh good sound for the price.

The following review is for P1S4-10, which is a part of the bundle you are viewing.

So I ordered a set 2 10" because they were a really good price for two. Im running a p5002 Rockford amp. They are in a vented box and they sound decent. They just don't seem to hit the notes i wanted to hear like my last set i had (same series just the 2010 model.) or it could be my box is not sealed the best. but what can i say they do deliver nice clean thumps. they distort a bit when they are on the heavy bass notes. I am happy till i upgrade to the type-r setup! You guys also have great customer service.

By Andrew on June 19, 2012

30

found this helpful.

Perfect just what i needed

The following review is for P1S4-10, which is a part of the bundle you are viewing.

I recommend these because they have good bass and the delivery is quick and easy to install also with the kit.

By Steven on June 1, 2020 checkmarkIcon Verified purchase

10

found this helpful.

Add-ons


Similar Products


Best selling similar products

Belva BPKG212v2 Complete Amplified Bass Package

• Works with both Factory and Aftermarket Audio Systems
• Dual 12" Belva Subwoofers
• Monoblock Amp with Bass Knob
• Ported Enclosure
• Complete Amp Wiring Kit

(75)

$249.99

MTX Audio TNP212D2 Terminator Dual Subwoofer Package + Amplifier

• 800W Peak (2 Subs)
• 400W RMS (2 Subs)
• 48oz. Magnet
• Terminator Series Class D Monoblock Car Amplifier
• Heavy 5/8" MDF Construction
• Black Carpeting

(150)

$279.95

Belva BPKG110v2 Complete Amplified Bass Package

• Works with both Factory and Aftermarket Audio Systems
• Single 10" Belva Subwoofer
• Monoblock Amp with Bass Knob
• Ported Enclosure
• Complete Amp Wiring Kit

(24)

$129.99

Cerwin-Vega BKX212S

• XED Series Bass Package
• Two 12" Subwoofers with 2" Voice Coill
• 400W RMS Monoblock Amplifier
• Carpeted and Embroidered Enclosure

(1)

$329.99

JL Audio Thin-Line 12TW3-D4 + FREE NVX 500W Monoblock Amplifier

• Mounting depth: 3.50 "
• Precision-built in USA at JL Audio’s Miramar, Florida factory
• Injection molded, mica-filled polypropylene cone
• Rubber Surround
• Cast Alloy Basket
• DMA-optimized motor design
• Very small sealed enclosure volume requirements

(17)

$533.13

Related Searches


XD200/2V2, P1S4-10 small

Item added to your cart.

Price: $311.53

Essential add-ons
Belva BAK82

Complete 8 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects

$49.99

$29.99

Add to cart
NVX XKIT82 8-Gauge Wiring Kit

In case you didn't know, NVX has top notch wire and this kit has everything you need!

$99.99

$69.99

Add to cart
40 Square Feet of Sound Dampening Material

Thicker than the competition, complete sound damping kit for entire vehicle! Use for trunk, doors, roof and floor.

$279.99

$89.99

Add to cart
Stinger Sound Dampening Bulk Kit

Stinger's Roadkill sound dampening series is sure to kill unwanted road noise and rattles! Enough sound dampening for the whole car!

$219.00

$129.99

Add to cart
Belva BBG3KT CCA 1/0 Gauge Big Three Kit

Features everything needed to upgrade factory power and ground wire.

$79.99

$59.99

Add to cart
NVX XBG3PK 1/0 Gauge OFC Big 3 Upgrade Kit

Comes with everything you need to upgrade your power and ground wire.

$114.99

$99.99

Add to cart
2" Universal, Professional Heavy Duty Roller for Sound Damping/Dampening

Universal rubber roller to make it easy to install sound dampening.

$9.99

$7.99

Add to cart
Five Piece Installer Panel Removal Tool Kit

Installer's Panel Removal Installation Tool Kit for Car Stereo, Speakers and Car Audio Installs

$18.99

$11.99

Add to cart
SMD DD-1 Distortion Detector

Set the gain of an audio amplifier quickly and accurately

$207.99

$197.99

Add to cart

Add vehicle

Save up to 10 different vehicles in your garage

Loading...
< Back
