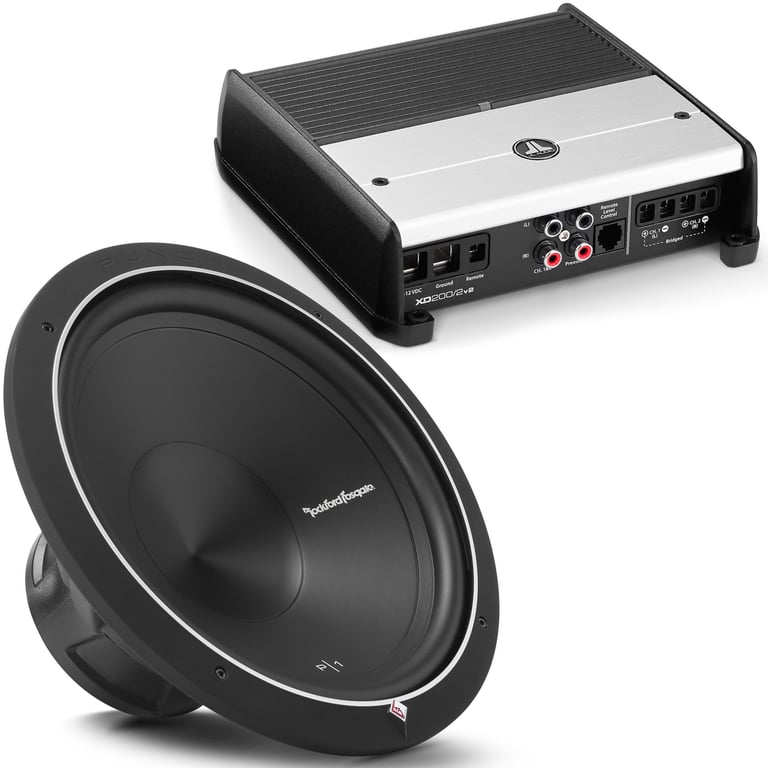

JL Audio XD200/2v2 with Rockford Fosgate P1S4-15

200W 2-Channel Class D Amplifier with 250W RMS 15" Single 4-Ohm Subwoofer

JL Audio
Shop all JL Audio
highlight-star-icon

• NexD Switching Technology
• Differential Balanced Input Section
• Advanced Rollback Protection
• Frequency Response: 12 Hz - 22 kHz (+0, -1dB)
• Detented, Calibrated Filter Freq. Potentiometer
• Rockford 15" Single 4 ohm Subwoofer
• 500W Peak
• 250W RMS
• Kevlar Reinforced Paper Cone
• High Density NBR Half-Roll Surround
• 2" 4-Layer Voice Coil

Learn more about the xd2002v2_p1s415
Was $609.98 Details
Thanks , You Pay:

$341.53

 with warranty

Heads up

We confirm fitment and offer accessories for speakers. Please set your vehicle first if you would like to purchase more than one xd2002v2_p1s415.

Set your vehicle or Return to product page
shipping truck icon
FREE 2-day shipping to VA. Get it Sat, Sept. 30
Quantity
In Stock
Brand new

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Allstate logo

Keep your product protected longer! Extend the warranty after the manufacturer warranty expires.

  • Mechanical, electrical and product failure covered! 100% parts and labor covered. (Coverage starts after Mfr. warranty)
  • Easy online management! Zero hassle claim service, available 24/7

For over 23 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

AwardWinning
Award-Winning Service
Shipping
FREE Shipping Orders $49+
60Days
60-Day Easy Returns
lowestPrice
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Description


JL Audio

Authorized dealer

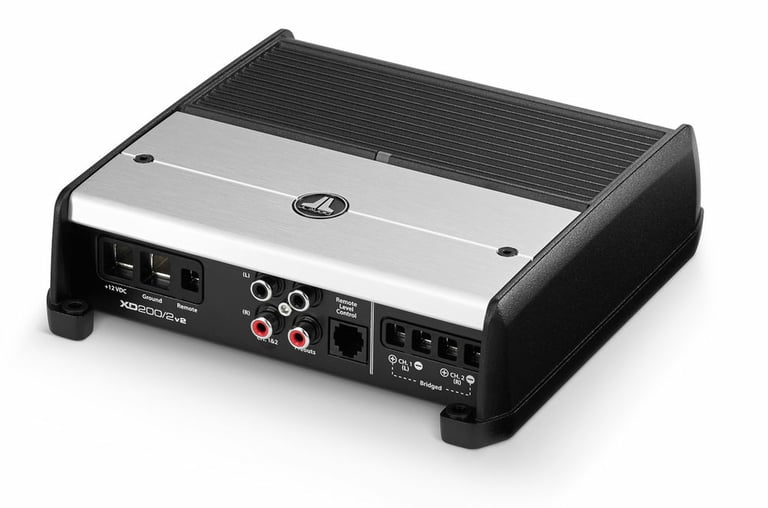

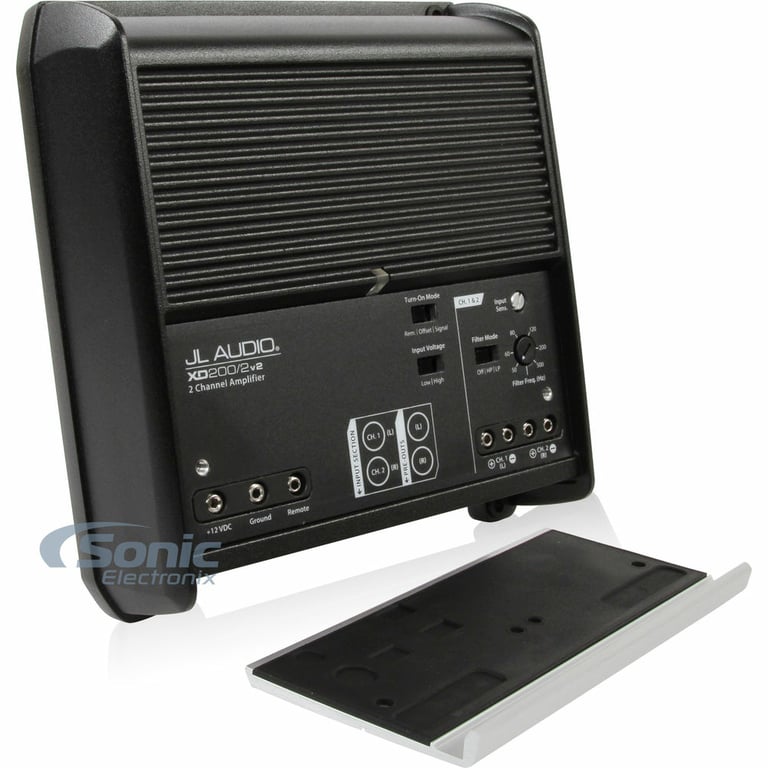

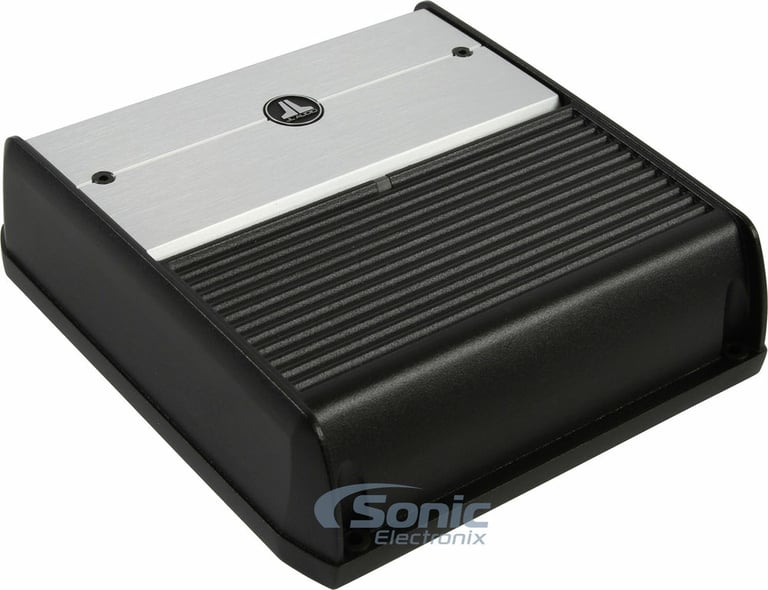

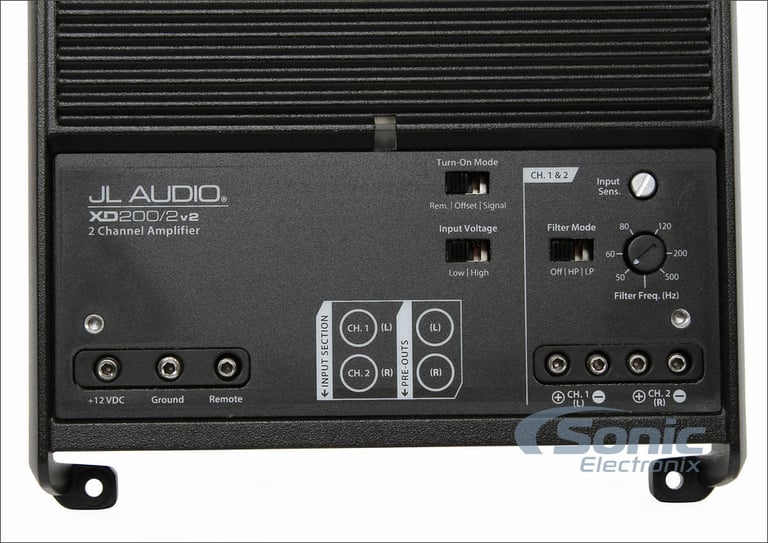

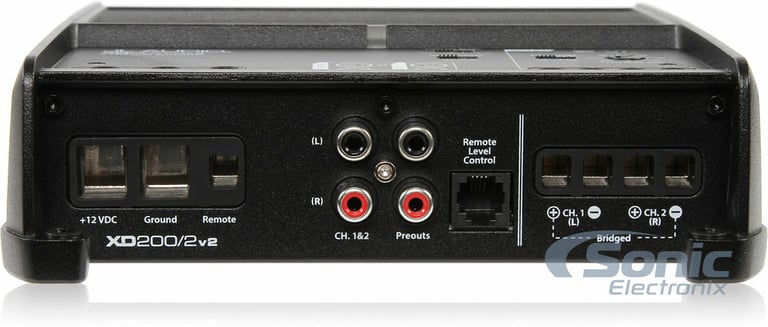

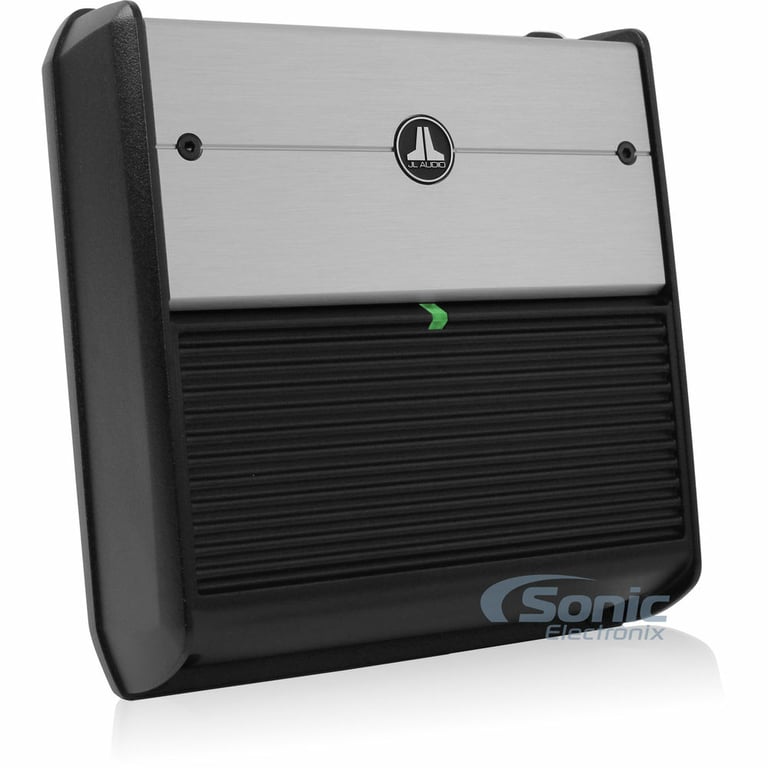

JL Audio XD200/2v2

JL Audio XD200/2v2 - XDv2 Series 2-Channel Class D Full-Range Amplifier

This potent 2-Channel amplifier employs JL Audio's high-speed NexD switching design to achieve unprecedented efficiency and amazing power output in an ultra-compact chassis. Don't let the small size fool you, though... this amplifier is capable of serious power, delivering a full 200W of continuous power into a 4 ohm load (14.4V, 1% THD) Bridged. Targeted specifically for an audiophile-grade subwoofer or two satellite system, the XD200/2v2 includes a variable mode low-pass/high-pass filter with a continuously variable cutoff frequency selection from 50-500 Hz. The XD200/2v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), you can control the volume of the XD200/2v2 from the front of the vehicle. This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.

Advanced Rollback Protection

JL Audio's signature Advanced Thermal Rollback protection system eliminates annoying thermal shutdown events to keep the music playing, even under the most demanding conditions. Should the amplifier reach an unsafe operating temperature, a special circuit rolls back peak power output, without changing gain, until the amplifier cools down to a safe operating temperature. The red "Thermal" LED will light to indicate this condition has been reached. Once the amplifier cools down, the circuit restores full peak power output and the red "Thermal" indicator reverts to its normal state. The operation of Advanced Rollback Protection is inaudible in most cases.


NexD Switching Technology

From the same minds that gave us the technology found in the 'Slash' amplifiers, JL Audio has taken the simple fixed PWM design approach and enhanced it with a very high switching frequency. Full-range NexD amplifiers and channels feature a variable, ultra-high speed version of the NexD technology (switching at well over 400 kHz). In these designs, a self-oscillating modulator with "feed-forward" sends information about the instantaneous power supply voltage to the modulator, combining this with the input signal to cancel out any distortion due to supply voltage fluctuation. This reduces distortion prior to applying feedback, simplifying the overall feedback loop design.

JL Audio XD200/2v2

200W RMS XDv2 Series Class-D 2-Channel Amplifier
Quantity: 1

Product Details:

  • XD-v2 Series Class D 2 ohms Stable 2-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 75 watts x 2 channel
    • 2 ohms: 100 watts x 2 channel
    • Bridged: 200 watts x 1 channel @ 4 ohms
  • Total power output: 200 watts
  • LED Power/Protect Light
  • Wired bass level remote control with optional JL Audio HD-RLC
  • Speaker-level (high-level) inputs (Requires adapter like the JL Audio XD-CLRAIC2-SW)
  • Signal sensing remote turn-on
  • Protection Circuitry with Status LED
  • NextD™ switching amp technology
  • Differential-balanced inputs help eliminate noise
  • Advanced Rollback Protection System prevents thermal shut-down
  • Speaker-level (high-level) inputs
  • Input sensitivity:
    • Low level: 200mV - 2 volts
    • High level: 800mV - 8 volts
  • Frequency Response: 12 - 22000 Hz
  • Total Harmonic Distortion (THD): <1%
  • Signal to Noise Ratio: >104 dB
  • Variable high-pass filter: 50 - 500 Hz
  • Variable low-pass filter: 50 - 500 Hz
  • Fuse Rating: 20A
  • 8 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 7-1/8" L x 6-7/8" W x 2" H
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty
  • MFR #: XD200/2V2

Check out the JL Audio XD200/2v2 Owner's Manual

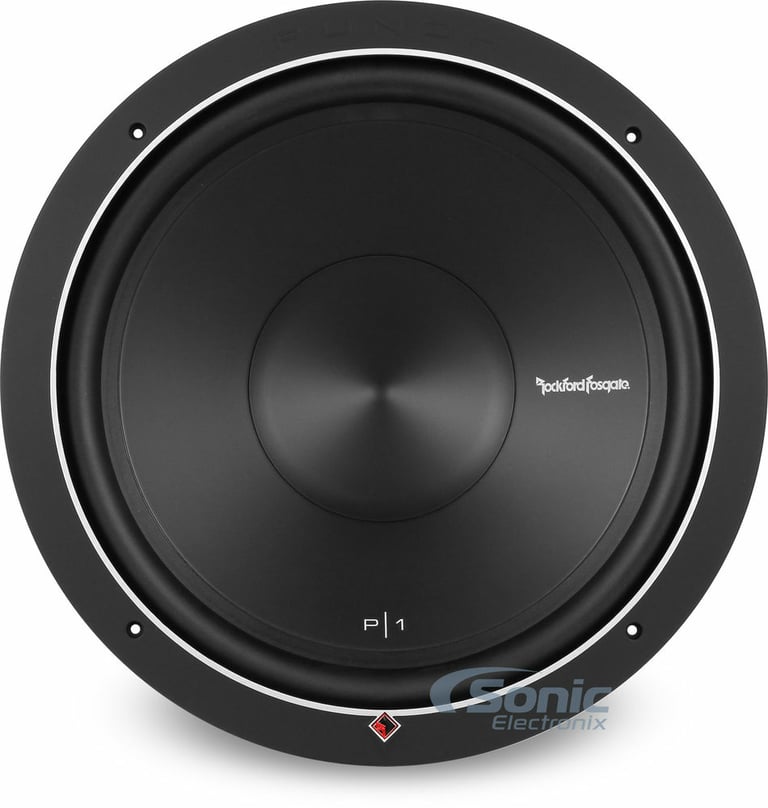

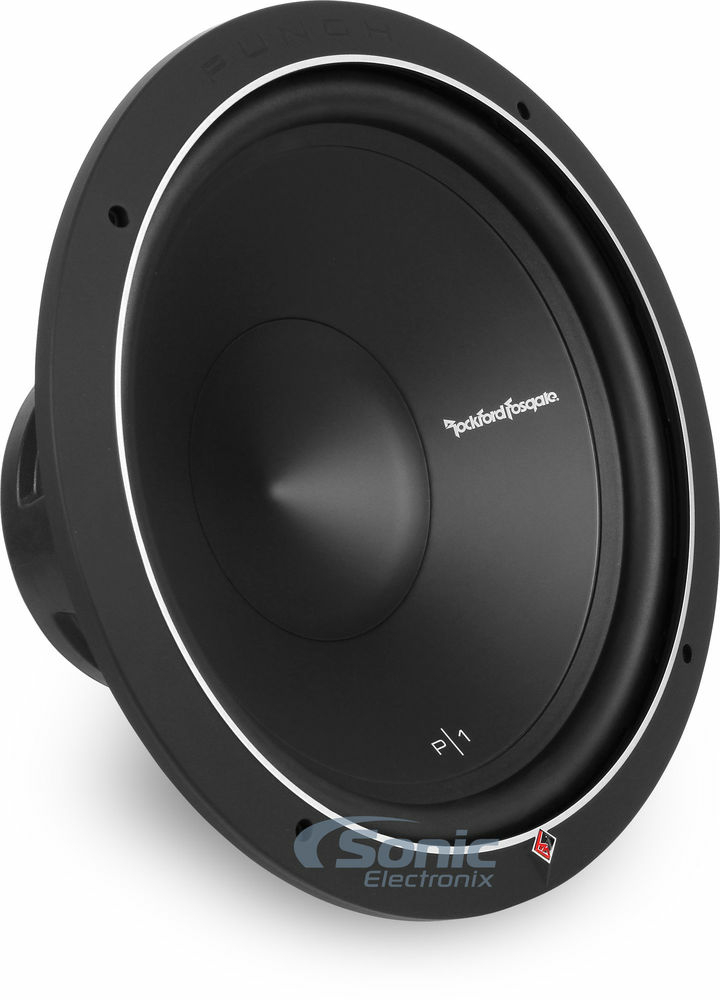

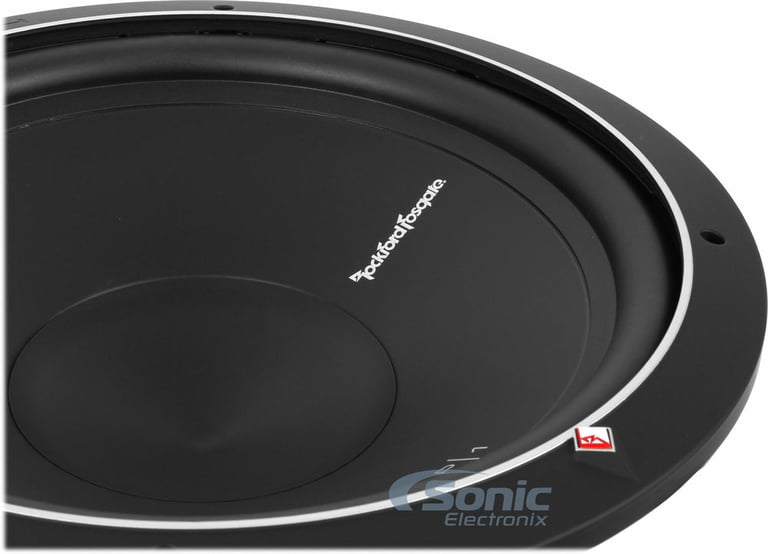

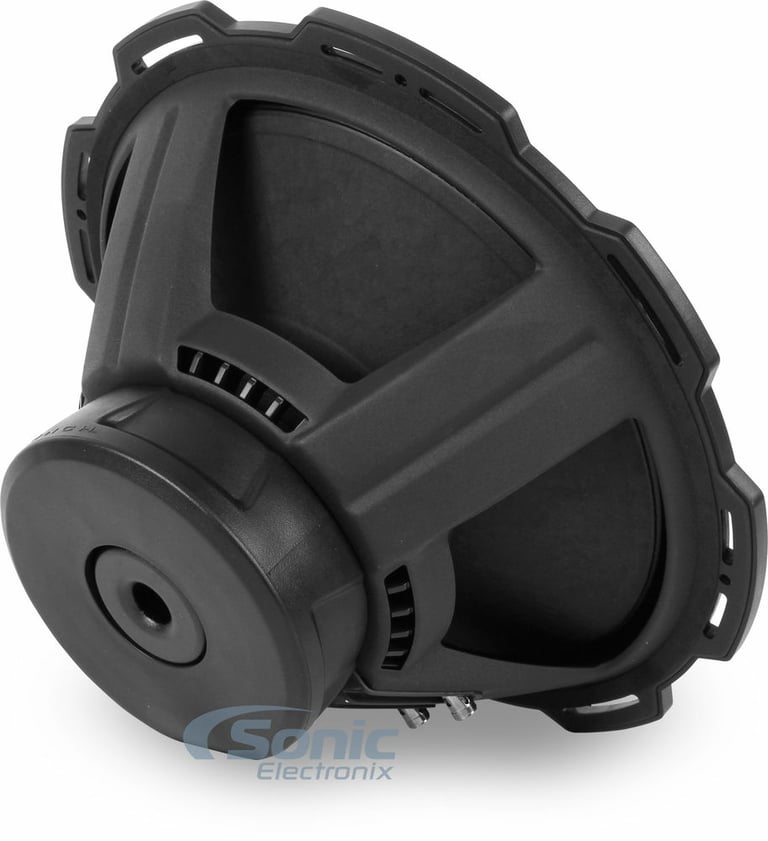

Rockford Fosgate Punch P1S4-15

500W Max (250W RMS) 15" Punch P1 Series Single 4-Ohm Car Subwoofer
Quantity: 1




Key Benefits

  • 15" Single 4 ohm Punch Stage 1 Subwoofer
  • Power Handling:
    • Peak: 500 watts
    • RMS: 250 watts
  • Recommended power range: 125 - 300 watts RMS
  • CEA-2031 Compliant
  • Klippel Verified
  • Flex-fit Mounting pattern
  • Proprietary spider venting/cooling technique

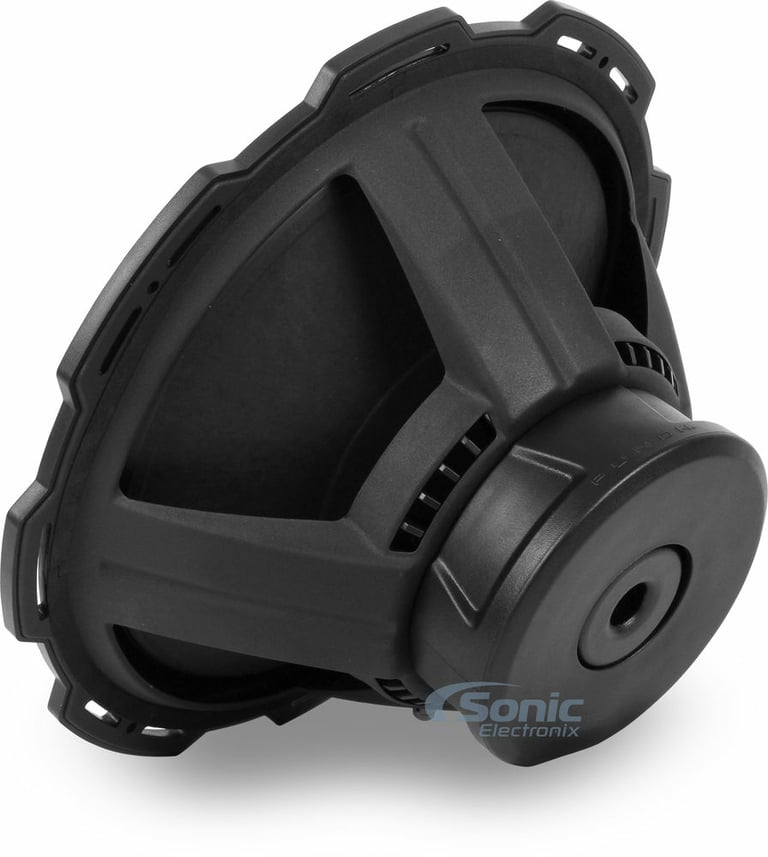

  • StampCast basket with integrated spider venting
  • Sturdy 16 gauge compound bend frame geometry
  • High modulus Kevlar re-inforced paper-pulp cone
  • Semi-flexible, PVC removable protective motor cover
  • Multi-point high-temp/high-strength neck joint bonding technique
  • Tall-profile VAST Santoprene surround for larger surface area
  • Dual tear & fatigue resistant poly-cotton spider with woven tinsel leads
  • Fatigue resistant and reduced strain "stitched on" flexible lead wire design

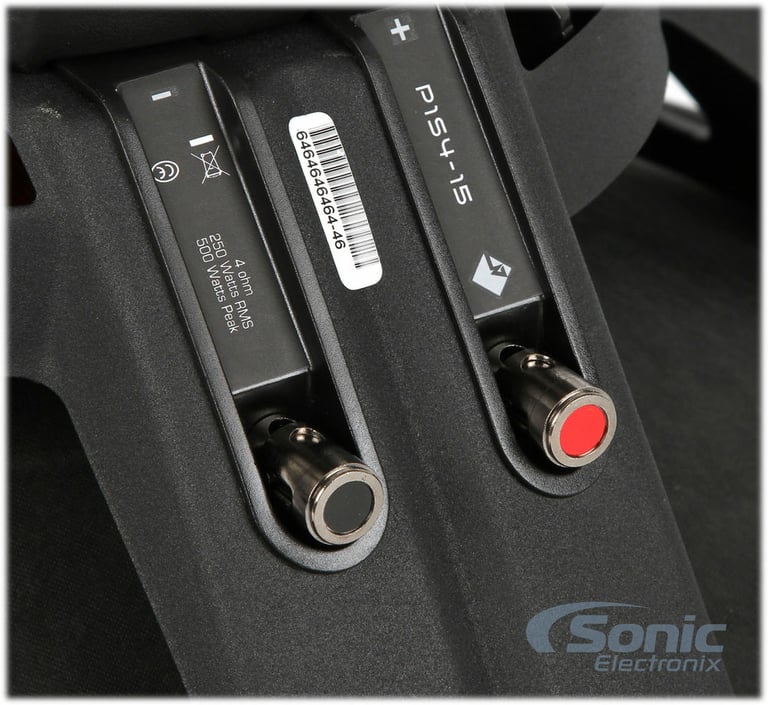

  • Proprietary all metal, radially oriented compression input terminal assembly
  • Optimized motor magnetics with extended pole and bumped vented backplate
  • High temp 2" voice coil w/ spun-laced Nomex insulating re-inforcement collar
  • Die-Cast aluminum soft-touch painted trim ring allows for optional integrated grill
  • Stamped Mesh Grille Insert Available: Rockford Fosgate P1G-15
  • Mounting Depth: 6.98"
  • Cutout Diameter: 13.85"
  • Magnet Weight: 60 oz
  • Frequency Response: 18 - 250 Hz
  • Xmax: 9mm
  • Sensitivity: 87 dB @ 1 watt / 1 meter
  • Recommended Ported Enclosure: 2.66ft³
  • Recommended Sealed Enclosure: 1.58ft³
  • Matching Amplifiers: (one subwoofer)
  • Matching Amplifier: (two subwoofers)
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

Check out the Rockford Fosgate P1 Series Owner's Manual

Tips for Installing the P1S4-15 Subwoofer


Product history:

JL Audio XD200/2V2, P1S4-15 thumbnail
(newest, current model)
JL Audio XD200/2 thumbnail
(previous model, replaced by JL Audio XD200/2v2 with Rockford Fosgate P1S4-15)

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
75 watts x 2 channel
RMS Power @ 2 ohms
100 watts x 2 channel
Bridged RMS Power
200 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
2-Channel
Total Peak Power Output
400 watts
Total RMS Power Output
200 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
>104 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fan Cooled
No
Fuse Rating
20A X 1 In-Line Fuse Recommended
CEA-2031 Compliant
No
Subwoofer Specifications
Series
Punch P1 Series
Subwoofer Size
15"
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohms
RMS Power Handling
250 watts
Peak Power Handling
500 watts
Woofer Surround
NBR Half Roll
Woofer Composition
Kevlar Reinforced Pulp Paper
Minimum Sealed Box Volume
1.30 cubic feet
Maximum Sealed Box Volume
3.50 cubic feet
Minimum Ported Box Volume
2.66 cubic feet
Maximum Ported Box Volume
2.66 cubic feet
Sensitivity
87.5 dB
Frequency Response
23 - 250 Hz
Xmax (millimeters)
7.0 mm
Top-Mount Depth (Mounting Depth)
14"
Cutout Diameter
7"
Recommended Enclosure Type
Ported / Vented
Sealed
Amplifier Wiring Kit
Is Amplifier Wiring Kit included?
No
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XD200/2V2, P1S4-15

Weight:

23.70lbs

Internal SKU:

xd2002v2_p1s415

Internal Product ID:

200992

Customer Ratings & Reviews



5 star
91%
4 star
9%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
4.9
Features
4.8
Design
4.9
Usability
4.9

Customer Reviews

Sort by:

Loading...

Great Product

The following review is for P1S4-15, which is a part of the bundle you are viewing.

These subs pound harder then any other sub I have owned. great product would buy two more if my car could fit them.

By phil on August 31, 2013

33

found this helpful.

Gotta love them 15s

The following review is for P1S4-15, which is a part of the bundle you are viewing.

This is my first purchase of the 2011 line of Punch subwoofers and I must say I like the design and look of these better than the previous line of which I have two 12", although those are wonderful subs as well. I don't really have room for a 15 in any of my vehicles but was missing that deep, "feel it not hear it" bass that only a 15 can provide so I got one of these to add to my garage stereo and I am very happy with this sub. I am pushing the P1S4-15 off of a Fosgate Power 500bd @ a 4 ohm load so the sub is getting at least 250 watts rms and it seems to be a perfect match. I doubt my neighbors are gonna like my new toy very much.

By Buddy Lee on December 29, 2012

28

found this helpful.

Nice 4 Da Price

The following review is for P1S4-15, which is a part of the bundle you are viewing.

Man! These subs really bang. They slam and can hang with the big boys. I put 2 of these on hifonics brx1000 @2ohms and they got down. I couldnt believe how loud and deep they were. Well worth it!

By Lo on July 14, 2013

27

found this helpful.

boom boom boom

The following review is for P1S4-15, which is a part of the bundle you are viewing.

Good subwoofers. No problems so far. They pound hard with the right wattage.

By Don on March 4, 2013

26

found this helpful.

Cant beat it for the money

The following review is for P1S4-15, which is a part of the bundle you are viewing.

I was skeptical that I would be satisfied with an entry level sub after being in the game as long as I have but I was wrong. I installed it in my wife's SUV on 250 watts in an Atrend sealed 2.0 ft sealed box. Sub moves lots of air and produces alot of deep bass you can feel. This is a good set up for someone just getting in the game or thats tight on cash for the sub and box shipped cant be beat.

By Earl on February 24, 2015

25

found this helpful.

fun fun

The following review is for P1S4-15, which is a part of the bundle you are viewing.

Great subs for price. Dont distort at all with my set up. Even ran them at 2 ohms and theyre holding up nicely. They be thumpin holmes

By Linda on February 24, 2013

23

found this helpful.

Great Sub For the Price

The following review is for P1S4-15, which is a part of the bundle you are viewing.

I have 2 of these on a prime 500-1 in a prefab ported box. They did a 142 on the meter. Great subs for the money and I highly recommend. Sonic has great service to I got these in 2 days with just standard shipping.

By Ron on March 23, 2013

22

found this helpful.

Rockford Fosgate Punch P1S4-15

The following review is for P1S4-15, which is a part of the bundle you are viewing.

Very pleased with these subs. Have 2 running off of a MRV-M500. 500 rms Alpine amplifier. Large sealed box. Subs never bottom out and are pretty tight for entry level subs. I was sceptical at first but I am very satisfied with this purchase.

By Anonymous on May 19, 2018

10

found this helpful.

Awesome sub

The following review is for P1S4-15, which is a part of the bundle you are viewing.

I have 2 of these on a prime 500.1 they can bang out a 143Db easy. Mine are in a 4cuft box @ 35hz

By Anonymous on August 12, 2018

9

found this helpful.

Always Great Products!:) Fosgate thanks

The following review is for P1S4-15, which is a part of the bundle you are viewing.

I had a 12' ported box many years ago and this fosgate 15" with a 2 channel 1000 watt class ab amp and WOW this thing has some bass!!!
I have found its better to have more power than what the speakers need so that the speaker gets a clean undistorted signal with some MAJOR bass! For eighty-nine dollars on sale that's so Awesome, I bought a second one. I rated the 5 on durability, time will tell but so far Great, as with anything it can be treated right and last or recked in short order.
I used the sealed box and with the extra juice it still gives a clean hard hitting bass!:)

Thanks team fosgate, and sonic electrinix!

jw

By John on March 23, 2018 checkmarkIcon Verified purchase

9

found this helpful.

Add-ons


Similar Products


Best selling similar products

Belva BPKG212v2 Complete Amplified Bass Package

• Works with both Factory and Aftermarket Audio Systems
• Dual 12" Belva Subwoofers
• Monoblock Amp with Bass Knob
• Ported Enclosure
• Complete Amp Wiring Kit

(75)

$249.99

MTX Audio TNP212D2 Terminator Dual Subwoofer Package + Amplifier

• 800W Peak (2 Subs)
• 400W RMS (2 Subs)
• 48oz. Magnet
• Terminator Series Class D Monoblock Car Amplifier
• Heavy 5/8" MDF Construction
• Black Carpeting

(150)

$279.95

Belva BPKG110v2 Complete Amplified Bass Package

• Works with both Factory and Aftermarket Audio Systems
• Single 10" Belva Subwoofer
• Monoblock Amp with Bass Knob
• Ported Enclosure
• Complete Amp Wiring Kit

(24)

$129.99

Cerwin-Vega BKX212S

• XED Series Bass Package
• Two 12" Subwoofers with 2" Voice Coill
• 400W RMS Monoblock Amplifier
• Carpeted and Embroidered Enclosure

(1)

$329.99

NVX VAD27001 with (2) VCW124

• RMS: 1250 x 1 @ 4 ohms, 1950W x 1 @ 2 ohms, 2700W x 1 @ 1 ohm
• Total RMS Power: 2700W
• CEA-2006 Compliant
• Wired Bass Remote Included
• Efficient Class D Design
• Dimensions: 13.7"W x 5.4"D x 2.0H • RMS Power: 1200 Watts Each
• 3” 4-Layer High-Temperature Black Aluminum Voice coil
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll foam surround with black nylon stitching
• 202 oz. Triple-stacked High Energy ferrite magnet
• Die Cast aluminum vented basket

(141)

$621.97

Related Searches


XD200/2V2, P1S4-15 small

Item added to your cart.

Price: $341.53

Essential add-ons
Belva BAK82

Complete 8 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects

$49.99

$29.99

Add to cart
NVX XKIT82 8-Gauge Wiring Kit

In case you didn't know, NVX has top notch wire and this kit has everything you need!

$99.99

$69.99

Add to cart
Stinger Sound Dampening Bulk Kit

Stinger's Roadkill sound dampening series is sure to kill unwanted road noise and rattles! Enough sound dampening for the whole car!

$219.00

$129.99

Add to cart
Belva BBG3KT CCA 1/0 Gauge Big Three Kit

Features everything needed to upgrade factory power and ground wire.

$79.99

$59.99

Add to cart
NVX XBG3PK 1/0 Gauge OFC Big 3 Upgrade Kit

Comes with everything you need to upgrade your power and ground wire.

$114.99

$99.99

Add to cart
2" Universal, Professional Heavy Duty Roller for Sound Damping/Dampening

Universal rubber roller to make it easy to install sound dampening.

$9.99

$7.99

Add to cart
Five Piece Installer Panel Removal Tool Kit

Installer's Panel Removal Installation Tool Kit for Car Stereo, Speakers and Car Audio Installs

$18.99

$11.99

Add to cart
SMD DD-1 Distortion Detector

Set the gain of an audio amplifier quickly and accurately

$207.99

$197.99

Add to cart

Add vehicle

Save up to 10 different vehicles in your garage

Loading...
< Back
