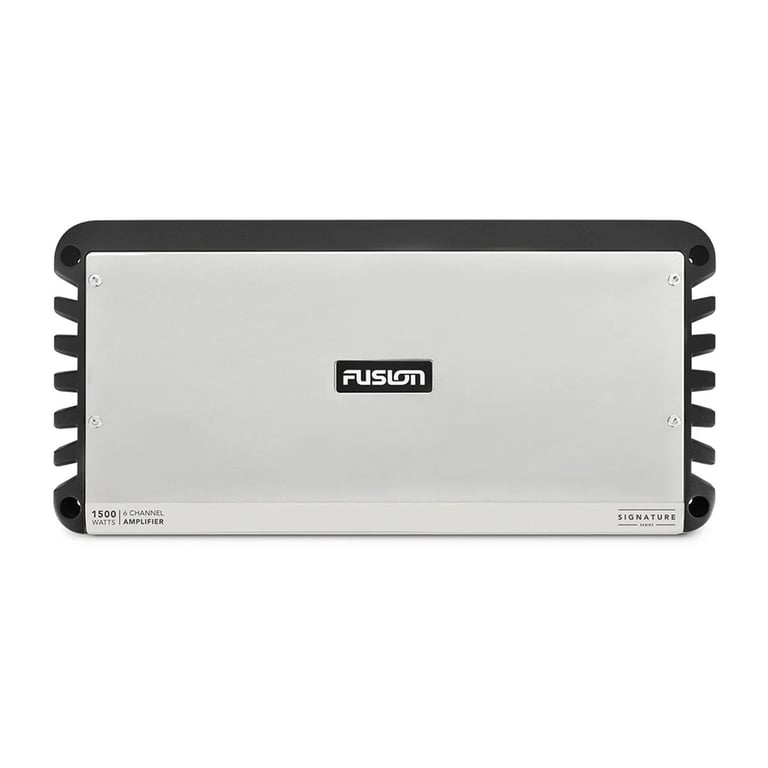

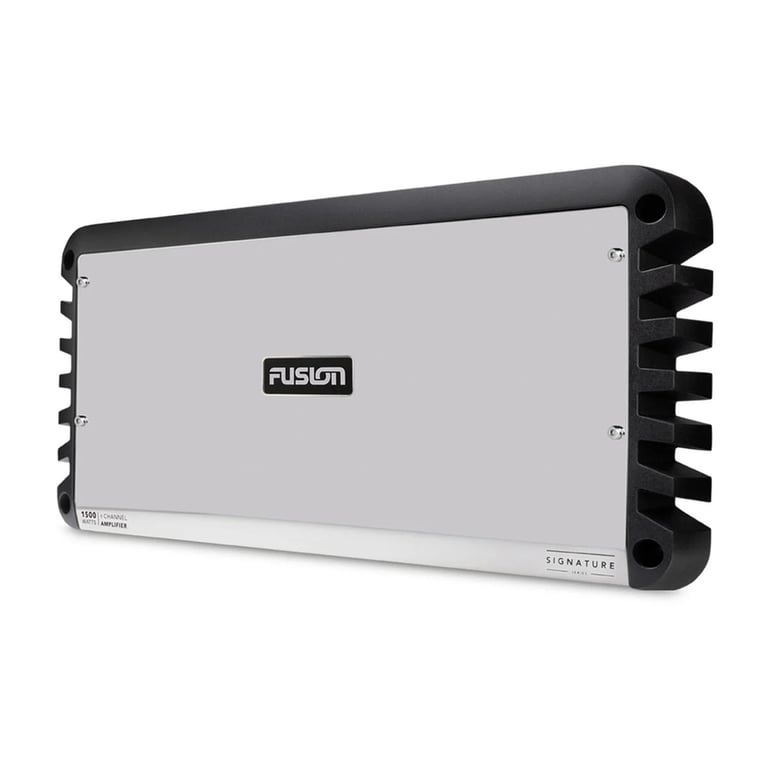

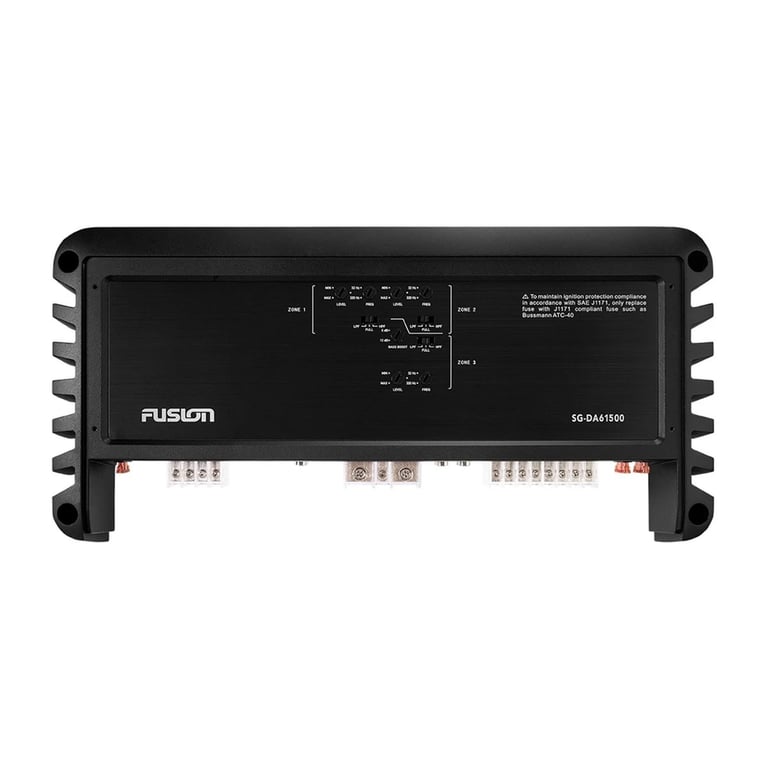

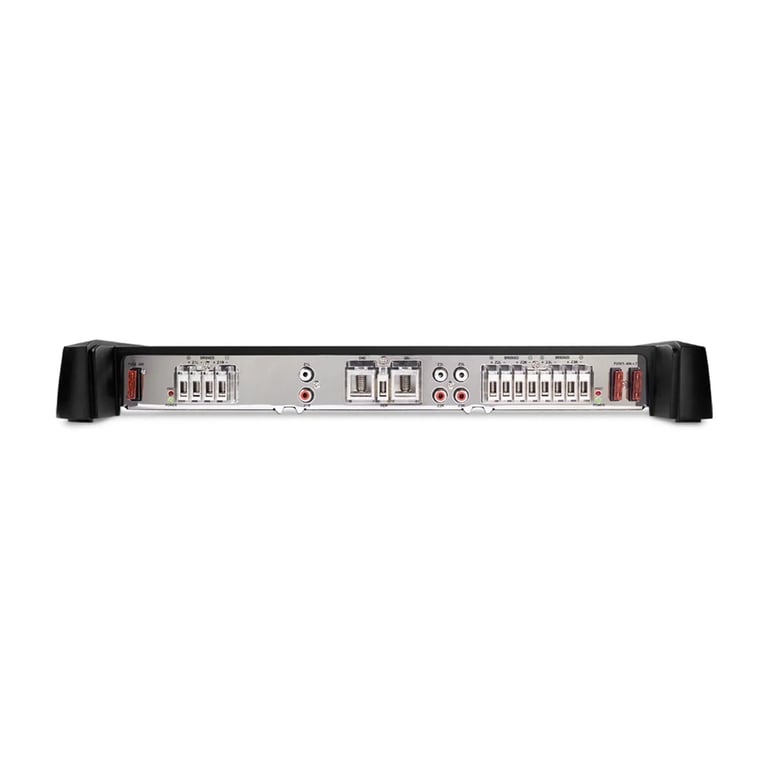

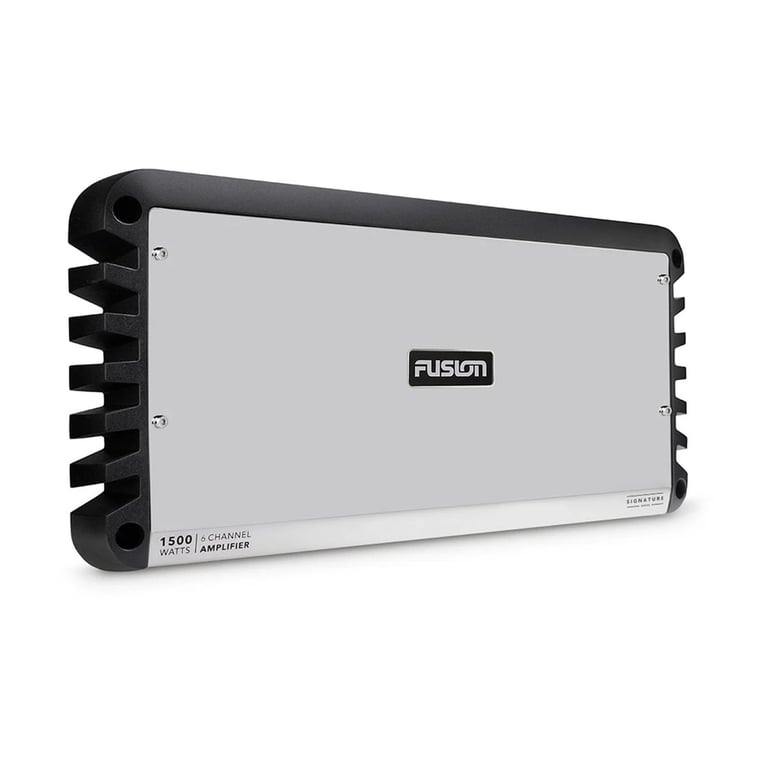

Fusion SG-DA61500

1500W Peak (840W RMS) Signature Series Class-D 6-Channel Marine Amplifier

Fusion
Shop all Fusion
Product videos
highlight-star-icon

• 100 watts x 6 channel @ 4 ohm
• 140 watts x 6 channel @ 2 ohm
• Bridged: 280 watts x 3 channel @ 4 ohm
• Total RMS Power: 840 watts
• Class D 2 ohm Stable 6-Channel Amplifier

Learn more about the 010-02161-00

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
40-EU55 main

Metra 40-EU55

Antenna Adapter for select 2000-2026 vehicles from Audi, Chevrolet, Ram

49
-13.05%

$19.99

List price $22.99

99-3307G main

Metra 99-3307G (Includes Wiring Harness)

Install a new Single-DIN or Double-DIN car stereo in select 2010-2015 Terrain and Equinox (Gray)

3
-41.18%

$319.99

List price $543.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

GTO629 main

JBL GTO629

360W Peak (120W RMS) 6.5" GTO Series 2-Way Full Range Coaxial 3-ohm Car Speakers

38
-34.45%

$117.99

List price $180.00

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Lowest price in 30 days

NVX VSP65

600W Peak (200W RMS) 6.5" V-Series 2 Way Coaxial Car Speakers

64
-16.67%

$99.99

List price $119.99

Product Highlights


• 100 watts x 6 channel @ 4 ohm
• 140 watts x 6 channel @ 2 ohm
• Bridged: 280 watts x 3 channel @ 4 ohm
• Total RMS Power: 840 watts
• Class D 2 ohm Stable 6-Channel Amplifier

Description


Fusion brand icon

Authorized dealer

Product Details:

  • Signature Series Class D 2 ohm Stable 6-Channel Marine Amplifier
  • RMS Power Rating:
    • 4 ohm: 100 watts x 6 channel
    • 2 ohm: 140 watts x 6 channel
    • Bridged: 280 watts x 3 channel @ 4 ohm
  • Total power output: 840 watts
  • LED Power/Protect Light
  • Speaker-level (high-level) inputs
  • Signal sensing remote turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Rigid aluminum alloy heat
  • Stainless steel mirror
  • Weather-resistant construction
  • Conformal-coated circuit board
  • Input sensitivity:
    • Low level: 0.3V - 8 volts
    • High level: 300mV - 8 volts
  • Frequency Response: 10 - 40000 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: 85 dB
  • Variable high-pass filter: 32 - 320 Hz
  • Variable low-pass filter: 32 - 320 Hz
  • Variable Bass Boost: 0 - 12 dB
  • Fuse Rating: 120A
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 16-5/8" L x 8-5/16" W x 2-3/16" H
  • Authorized Internet Dealer
  • 3 Year Manufacturer's Warranty
  • MFR #: SG-DA61500
PDF IconFusion 010-02161-00 owner’s manual

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

22
-20.01%

$119.95

List price $149.95


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(111)

$209.99

List price $239.99

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(137)

$349.99

List price $419.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(144)

$259.99

List price $335.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(117)

$279.99

List price $335.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

VAD22008v2 small

NVX VAD22008 v2 (VAD22008v2)

• 150 watts x 6 channel + 250 watts x 2 channels @ 4 ohm
• 225 watts x 6 channel + 400 watts x 2 channels @ 2 ohm
• Bridged: 450 watts x 3 channel + 850 watts x 1 channel @ 4 ohm
• Total RMS Power: 2200 watts
• Class D 2 ohm Stable 8-Channel Amplifier

(2)

$399.99

List price $539.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(54)

$189.99

List price $239.99

VAD8402v2 small

NVX VAD8402 v2 (VAD8402v2)

• 300 watts x 2 channel @ 4 ohm
• 420 watts x 2 channel @ 2 ohm
• Bridged: 840 watts x 1 channel @ 4 ohm
• Total RMS Power: 840 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(17)

$229.99

List price $275.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Key Features
Amplifier Key Features
Bass Boost
Speaker Level Inputs
Weather-Resistant
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 6 channel
RMS Power @ 2 ohms
140 watts x 6 channel
Bridged RMS Power
280 watts x 3 channel
Amplifier Specifications
Series
Signature Series
Amplifier Class
D
Number of Channels
6-Channel
Total Peak Power Output
1500 watts
Total RMS Power Output
840 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Frequency Response
10 - 40000 Hz
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
32 - 320 Hz
Low-Pass Crossover Frequency
32 - 320 Hz
Signal-to-Noise Ratio
85 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
40A x 3
Total Fuse Rating
120
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
0.3V - 8 volts
High-Level Input Sensitivity
300mV - 8 volts
What is in the box?
Paperwork
User manual
Quick start guide
WITB: Amplifiers
Amplifier
Mounting screws (4)
Three spare fuses
Allen wrenches (2)
Warranty and Return Policy
Parts Warranty Duration
3 years
Labor Warranty Duration
3 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SG-DA61500

Weight:

13.42lbs

Internal SKU:

010-02161-00

Internal Product ID:

201976

Product and How-to Videos


Customer Ratings & Reviews


Fusion SG-DA61500 thumbnail image

5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
0
Value
0
Features
0
Design
0
Usability
0

Customer Reviews

Sort by:

Loading...
Sorry, no reviews found


No picture

Infinity Kappa 63XF - New (Damaged Packaging, Product A+)

510W Peak (170W RMS) 6.5" Kappa Series 2-Way Coaxial Speakers with Silk Dome Tweeters

(10)

$179.95

List price $299.95

SG-DA41400 small

Fusion SG-DA41400

1400W Peak (880W RMS) Signature Series Class-D 4-channel Marine Amplifier

$449.99

List price $449.99

Stage3 627 small

JBL Stage3 627 (Stage3627AM)

270W Peak (90W RMS) 6.5" Stage3 Series 2 Way Coaxial 3-ohm Speakers

(5)

$84.95

List price $109.95

No picture

Rockford Fosgate Power T1650 (Open Box, Like New)

300W Peak (150W RMS) 6.5" Power Series 2-way 4-ohm Coaxial Car Speakers

(10)

$186.99

List price $219.99

GM-D8701 small

Pioneer GM-D8701

1600W Peak (800W RMS) Class D GM Series Monoblock Car Amplifier with Bass Remote

(98)

$169.95

List price $270.00

No picture

Sundown Audio SA-6.5CX (S-SA6.5CXV2) (Open Box, Great)

320W Peak (160W RMS) 6.5" SA Series Coaxial Car Speakers

(1)

$199.99

List price $239.99

PTID-8920 small

Power Acoustik PTID-8920

Single DIN In-Dash 7" LCD Touchscreen DVD/MP3/DivX Car Stereo w/ USB, Dual Zone Playback, Aux & Detachable Face

(12)

$115.97

List price $399.99

GM-ME500X1 small

Pioneer GM-ME500X1

1600W Peak (800W RMS) ME-Series Class-D Monoblock Marine Amplifier

$179.99

List price $300.00

LCD2BLTC_A20 small

Audeze LCD-2 Bamboo / Leather (LCD2-B-L-TC) + Beyerdynamic A 20 - A20

High Performance Planar Magnetic Headphone plus Professional Grade Brushed Aluminum Desktop Headphone Amplifier

(4)

$1180.97

List price $1744.00

Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1990 Chrysler LeBaron

2012 Chevrolet Equinox

2008 Volvo XC70

1998 Mazda B3000

2004 Subaru Impreza 2.5

2008 Ford Fusion

2021 MINI Countryman

1986 Buick Skyhawk

1994 Eagle Talon

2021 Chevrolet Express 3500

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
