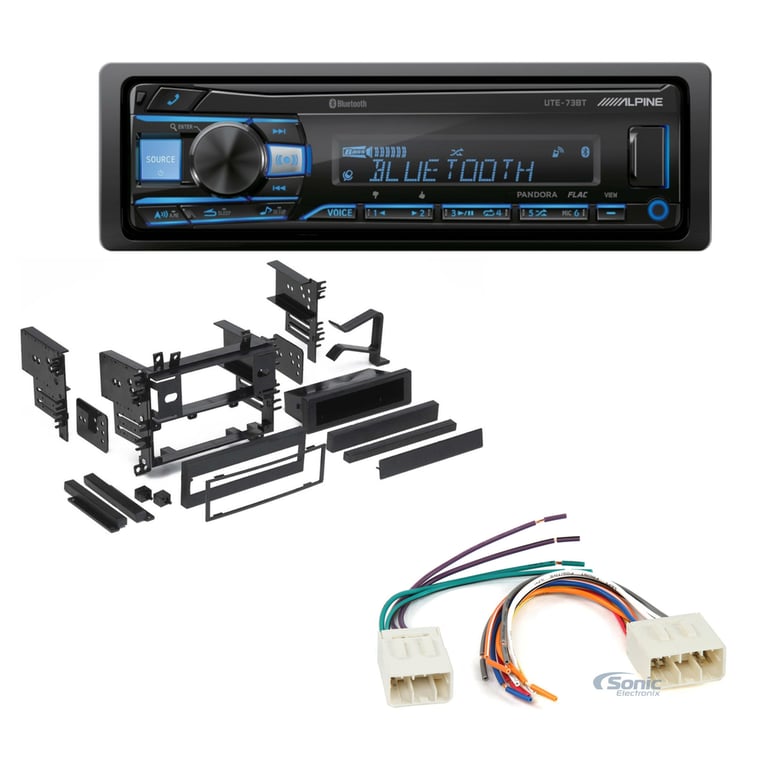

1990-1997 Mazda Miata Single DIN Bluetooth Front SD/USB/AUX Car Stereo Upgrade

Product Details

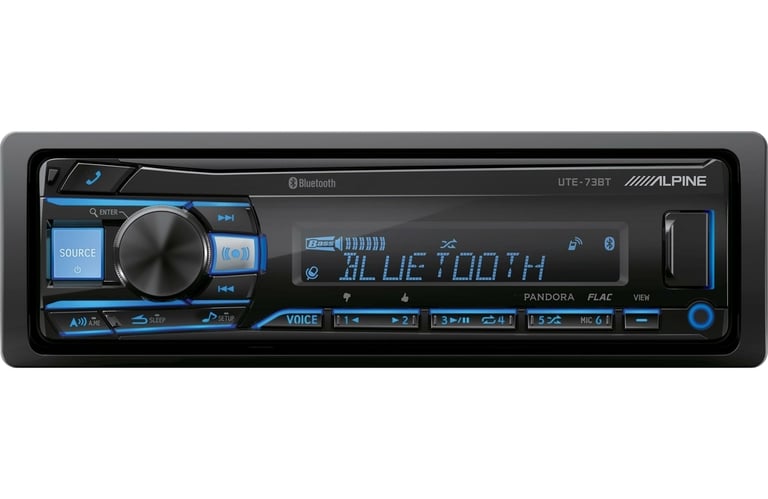

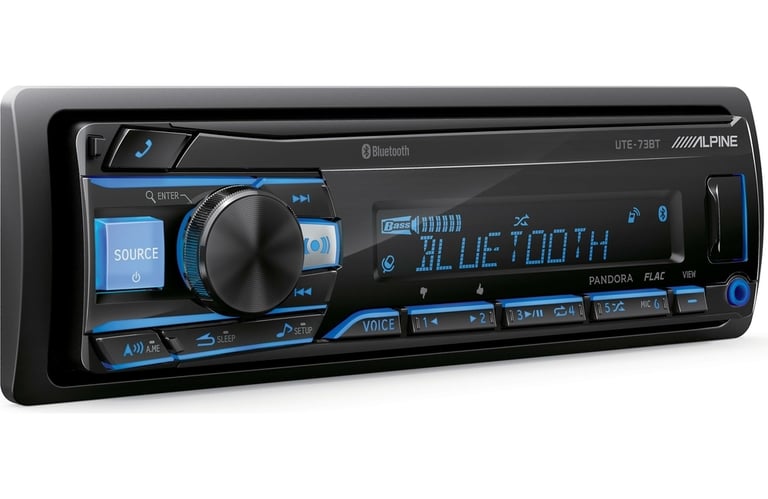

• Single DIN In-Dash Bluetooth Digital Media Receiver
• 1-line Digital LED Backlit Display with RGB illumination
• Power Output:
• Peak: 50 watts x 4 channel
• RMS: 18 watts x 4 channel
• Bluetooth hands-free calling and audio streaming
• Wireless remote control optional, sold separately

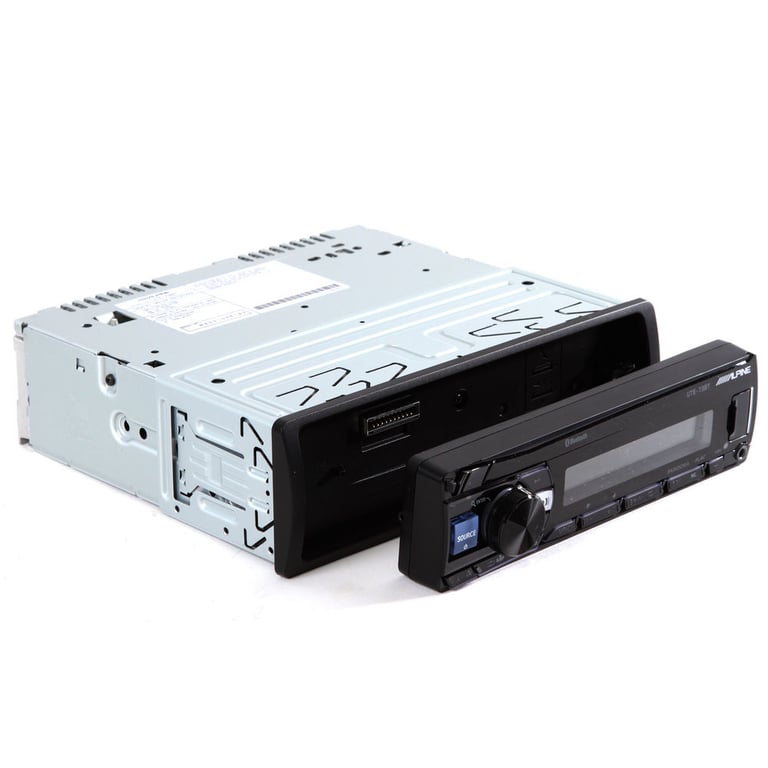

• Detatchable face plate
• High contrast LCD display
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: UTE-73BT

Smartphone Features

• Display and control music, and other apps with iPhone and Android via Bluetooth or USB
• Pandora and Spotify capable
• Siri Eyes Free control for select iPhones
• NFC-compatible for select Android devices
• Android AOA 2.0 compatible

Playback and Audio Features

• MP3 | WMA | FLAC | AAC Audio Playback
• AM/FM tuner with 18 FM / 12 AM presets
• Radio Data System feature
• 24-Bit DAC for ultimate sound quality
• Can playback FLAC (Free Lossless Audio Codec) files via USB
• Displays song name, artist name, and radio station name
• 3-Band Parametric Equalizer

Expandability Options

• Steering Wheel Control Ready: Axxess AXSWC-2 required and sold separately
• Built-in amplifier with high-pass/low-pass crossover and bass engine SQ
• Alpine KTP-445A amplifier-ready (sold separately)

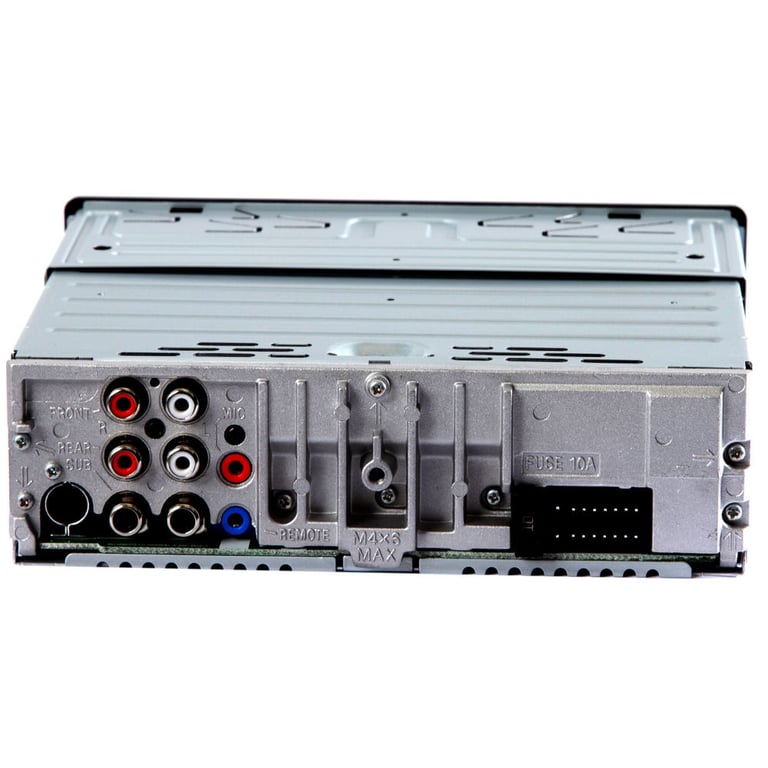

Audio/Video Inputs and Outputs

• 3 sets of 2 volts preamp outputs (front, rear, and subwoofer)
• Front Auxiliary Input: 3.5mm headphone jack allows connection to your mobile device
• Front USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.

Bluetooth Features

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Includes an external wired microphone for clear, convenient, distortion-free talking

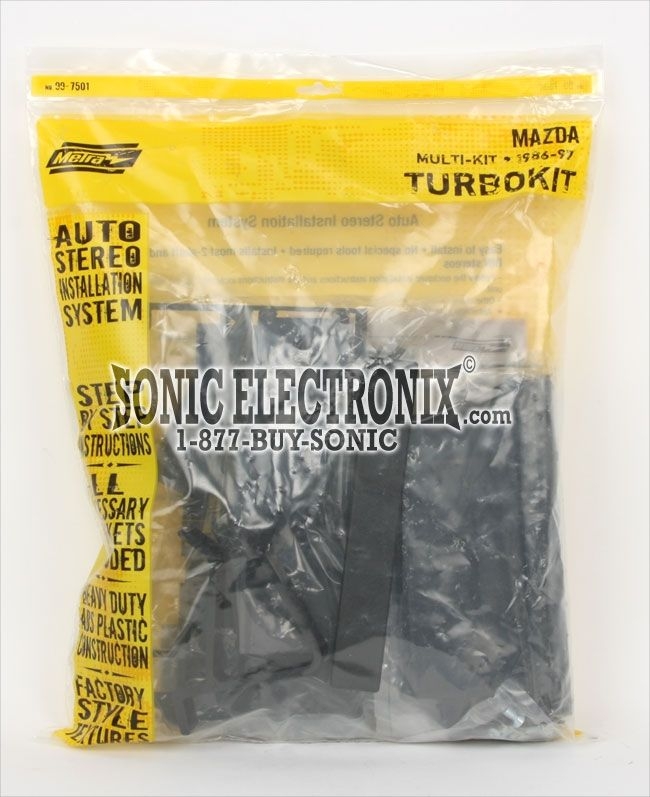

Product Features:

• Allows for installation of an aftermarket Single-DIN car stereo
• Compatible with select 1984-1997 vehicles from Mazda
• Made from the highest quality ABS plastic for an original factory-like fit and finish
• Includes brackets and hardware parts needed with detailed installation instructions
• Provision for the installation of a 1/4 “ or 1/2 “ equalizer
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

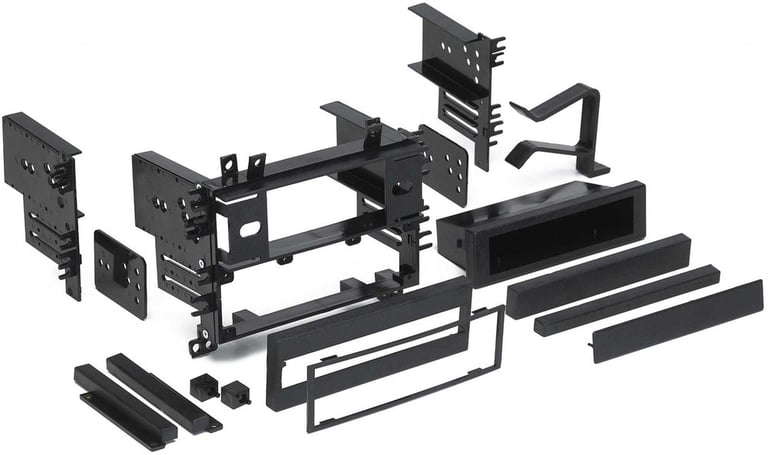

Kit Includes:

1. Radio Housing
2. Pocket
3. 1" Spacer
4. ½" Spacer
5. ISO-DIN Trim ring
6. ISO-DIN Spacers
7. Equalizer Faceplate
8. Bracket Set #1
9. Bracket Set #2
10. Spacer Set #1
11. Spacer Set #2
12. (6) #6 Flathead Screws
13. Rear Support
14. (4) #8 Phillip Screws
15. (2) PPH Screws
16. (4) 3/8" Machine thread Screws
17. Step by step instructions

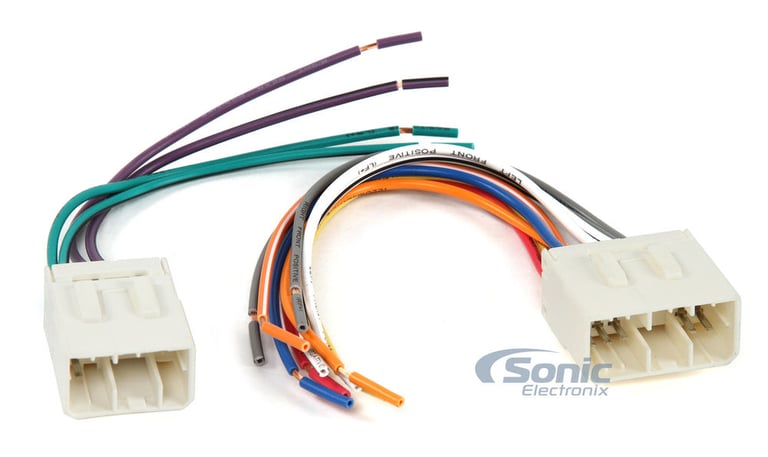

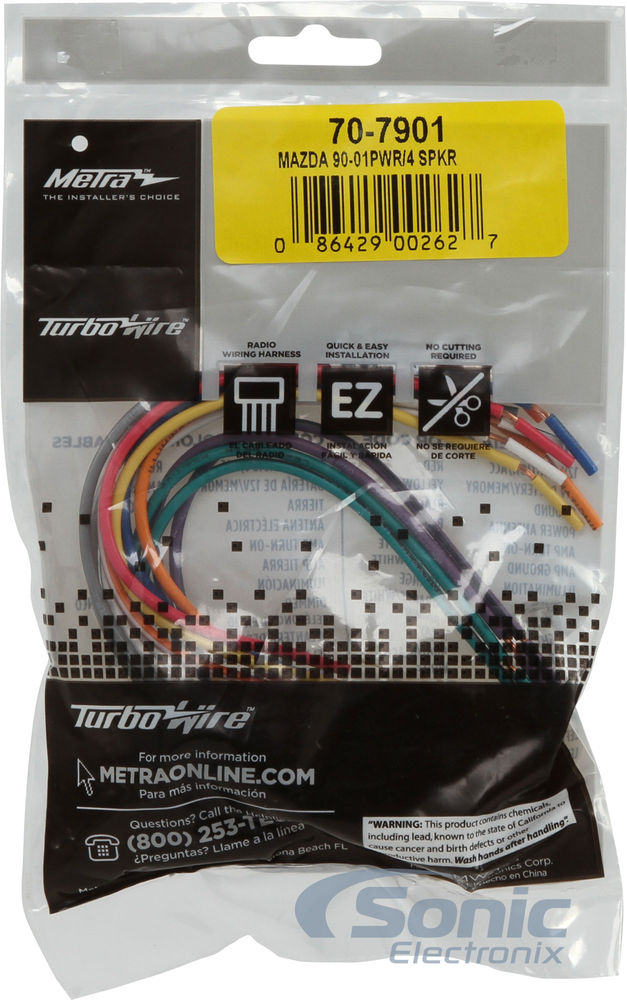

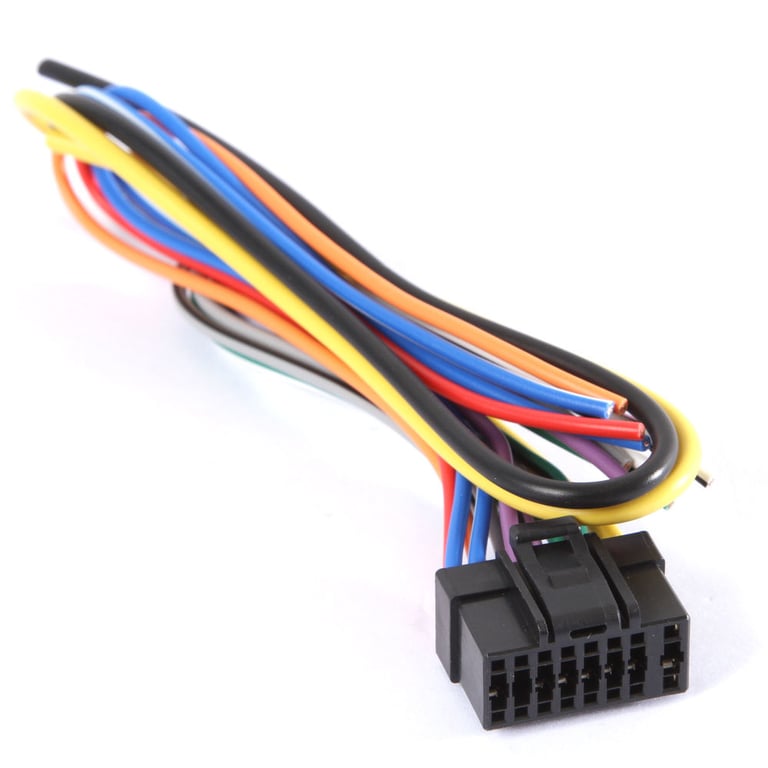

Product Features:

• Wire harness to Install a new car stereo in Compatible with select 1990-2001 vehicles from Mazda
• Plugs into the cars original factory radio connectors
• Color-coded wires for easy installation to the aftermarket radio
• No wire cutting needed for factory radio connectors
• 1-year Manufacturer's Warranty

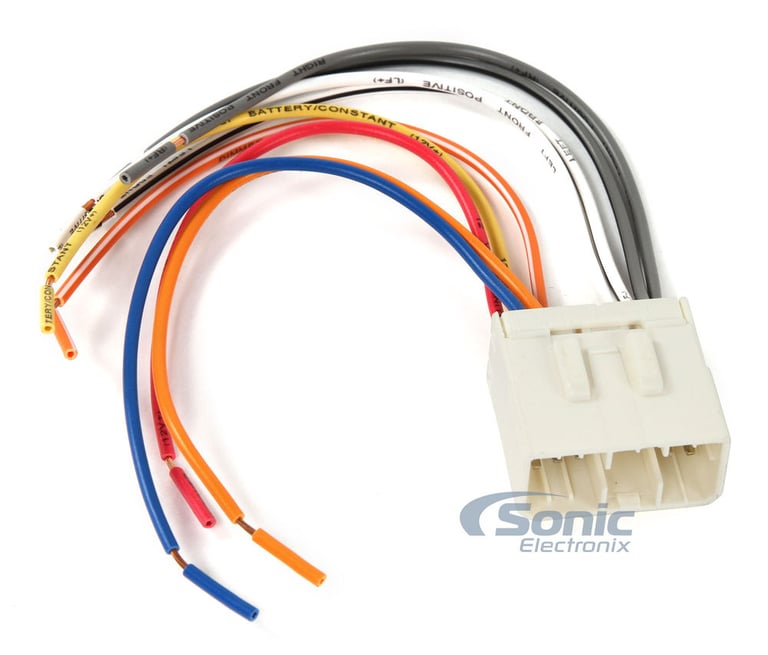

Connections:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange – Dash Light Dimmer/Illumination

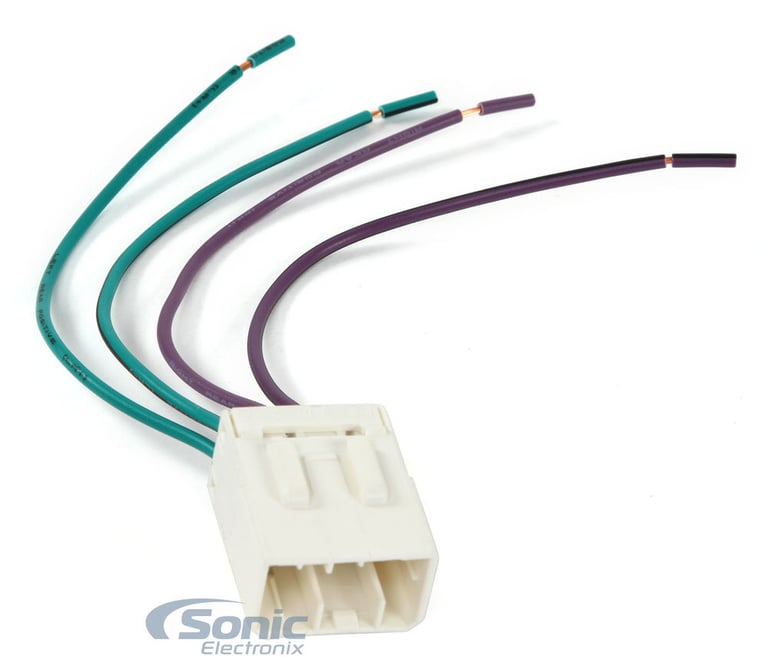

• Green – Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)
