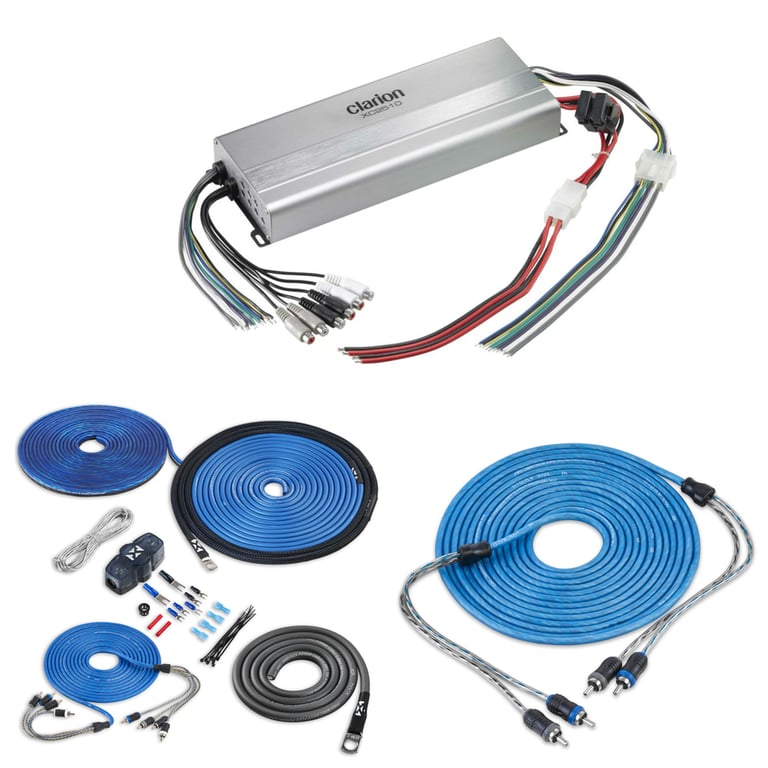

Clarion XC2510 with NVX 8 Gauge Amp Kit

700W Peak Ultra Compact 5/4/3 Channel XC Series Micro Class D Marine Amplifier

Clarion
Shop all Clarion
highlight-star-icon

• 50 Watts RMS x 4 @ 4 ohm
• 75 Watts RMS x 4 @ 2 ohm
• Total Peak Power: 700 Watts
• CEA-2006 Compliant
• 0 to +12 dB bass boost at 50 Hz
• Nickel heat-sink for extreme heat dissipation
• 11.02"W x 4.33"L x 1.54"H
• Includes Amplifier Wiring Kit

Learn more about the xc2510_xkit86

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-6514 main

Metra 72-6514

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

70
-37.52%

$9.99

List price $15.99

HKSB110 main

American International HKSB110

6.5" or 6.75" Speaker Mounting Adapters for select 2006-2021 vehicles from Hyundai, Kia

11
-51.31%

$18.99

List price $39.00

72-7300 main

Metra 72-7300

Install New Speakers in select 1998-2021 vehicles from Hyundai, Kia, Toyota

8
-33.36%

$9.99

List price $14.99

KAAB main

Scosche KAAB Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2007-2025 vehicles from Hyundai, Kia, Genesis

11
-10.96%

$6.99

List price $7.85

70-7304 main

Metra 70-7304 Wiring Harness

Install a New Car Stereo in select 2010-2021 vehicles from Kia, Hyundai

14
-42.44%

$18.99

List price $32.99

99-7359B main

Metra 99-7359B Dash Kit

Install a new Single-DIN car stereo in select 2014-2015 Optima (Matte Black)

-43.19%

$24.99

List price $43.99

SWRHK-65E main

Crux SWRHK-65E Wiring Interface

Install new car stereo and retains steering wheel audio controls and other factory features in select 2010-2016 vehicles from Hyundai, Kia

3
-35.71%

$85.05

List price $132.30

95-7359B main

Metra 95-7359B Dash Kit

Install a new Double-DIN car stereo in select 2014-2015 Optima (Matte Black)

2
-11.43%

$30.99

List price $34.99

40-KI10 main

Metra 40-KI10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2007-2025 vehicles from Hyundai, Kia, Genesis

1
-41.20%

$9.99

List price $16.99

AXSP-HK main

Axxess AXSP-HK Wiring Interface

Install a New Car Stereo and Retain Factory Amplifier in select 2012-2025 vehicles from Hyundai, Kia

1
-10.08%

$115.99

List price $128.99

Description


Clarion brand icon

Authorized dealer

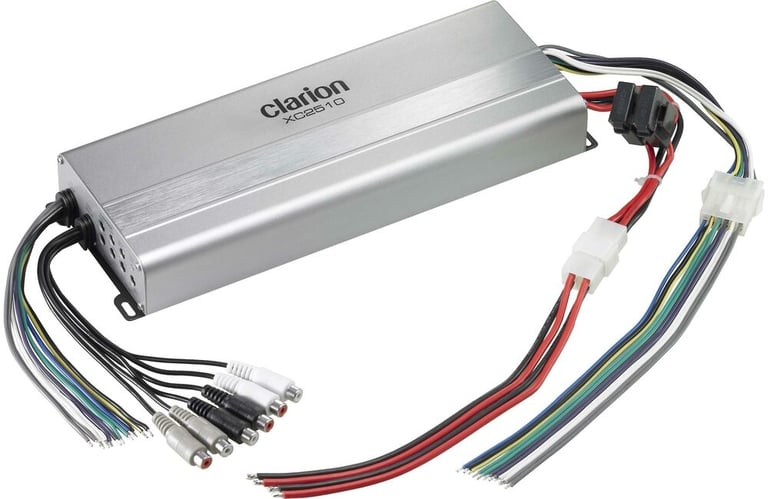

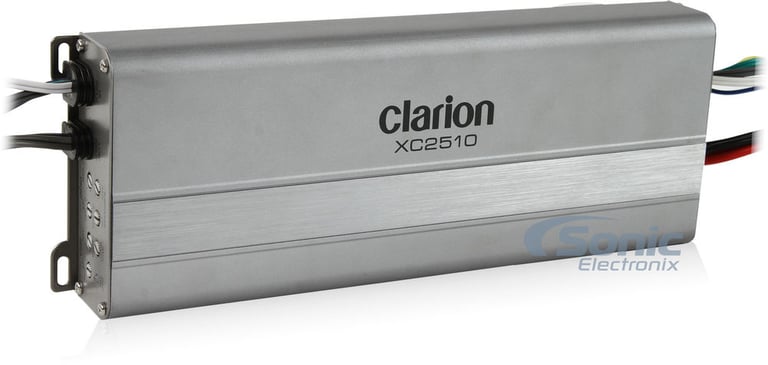

Clarion XC2510

700W Peak Ultra Compact 5/4/3 Channel XC Series Micro Class D Marine Amplifier
Quantity: 1

General Features:

  • Clarion XC 2110
  • Class-D FullRange 2-Ohm Stable 5-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 50 watts x 4 chan. + 200W x 1 chan.
    • 2 ohm: 75 watts x 4 chan. + 300W x 1 chan.
    • Bridged, 4 ohm: 150 watts x 2 chan.
  • Total power output: 700 watts
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Turn-On/Off Muting Circuitry (Soft Mute)
  • Ground Loop Isolation Input Circuit
  • 5/4/3 channel operation
  • Speaker-level (high-level) input
  • RCA inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Nickel heat-sink for extreme heat dissipation
  • Input sensitivity:
    • Line level: 200mV-8V
    • Speaker level: 600mV-20V
  • Frequency Response: 20 - 30,000Hz
  • Total Harmonic Distortion (THD): ≤1%
  • Signal to Noise Ration: 70dB

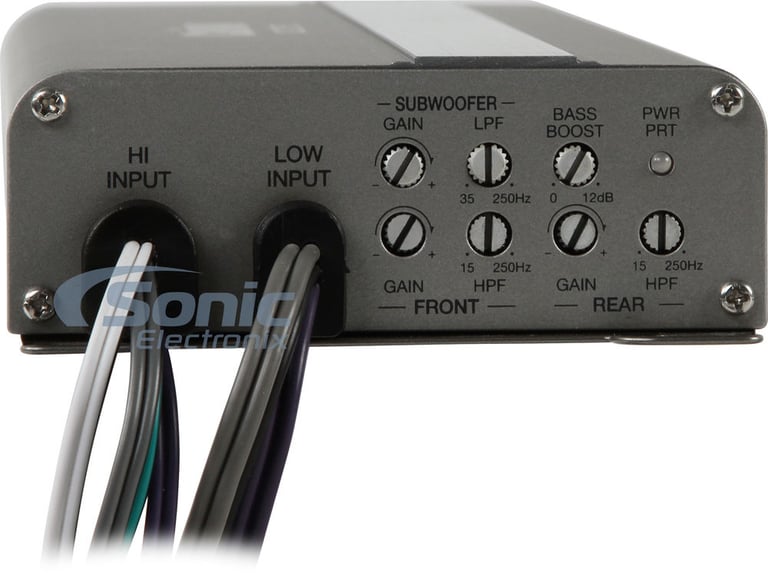

  • Variable low-pass filter: 35 - 250Hz, 12dB/octave
  • Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
  • 4 - 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.

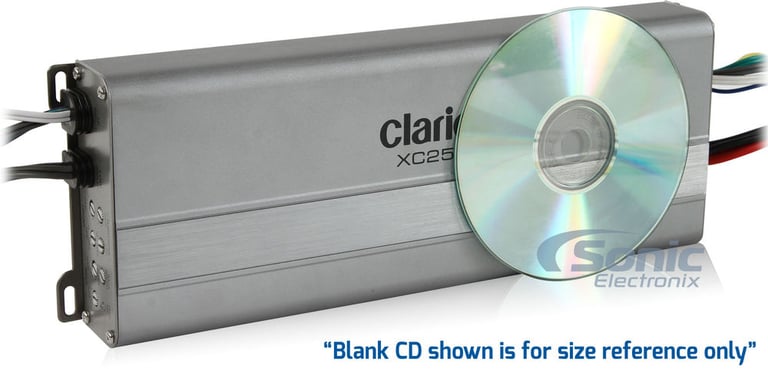

  • Dimensions: 11.02"W x 4.33"L x 1.54"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

NVX XKIT84

Full Spec 8 Gauge 100% (OFC) Oxygen Free Copper Complete 4-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 800 Watts
Quantity: 1

Product Details:

  • 8 Gauge 4-Channel X-Series Complete Amplifier Installation Kit
  • Designed for car audio systems up to 800 watts RMS
  • Made from 100% Oxygen-Free Copper (OFC)
  • Tinned conductors for corrosion resistance
  • Pre-installed black nylon mesh covering protects the power wire from damage
  • Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Pre-terminated seamless power and ground ring terminals provide reliable performance
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • CEA-2015 and BC5W2 compliant
  • V-Series RCA Interconnect Cable
  • Shielded noise-rejecting coaxial construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Twisted-pair construction featuring two conductors per channel
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

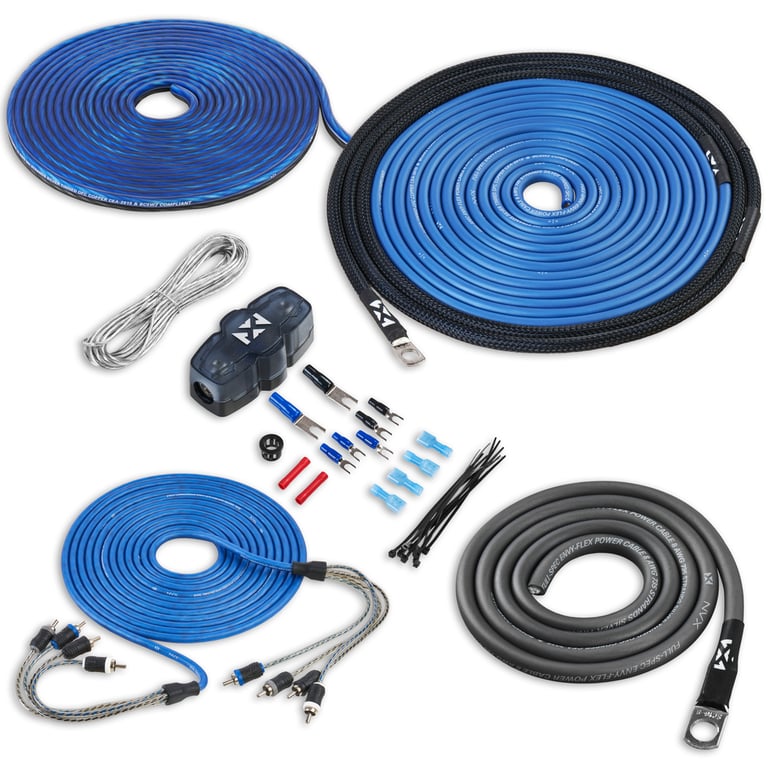

Kit includes:

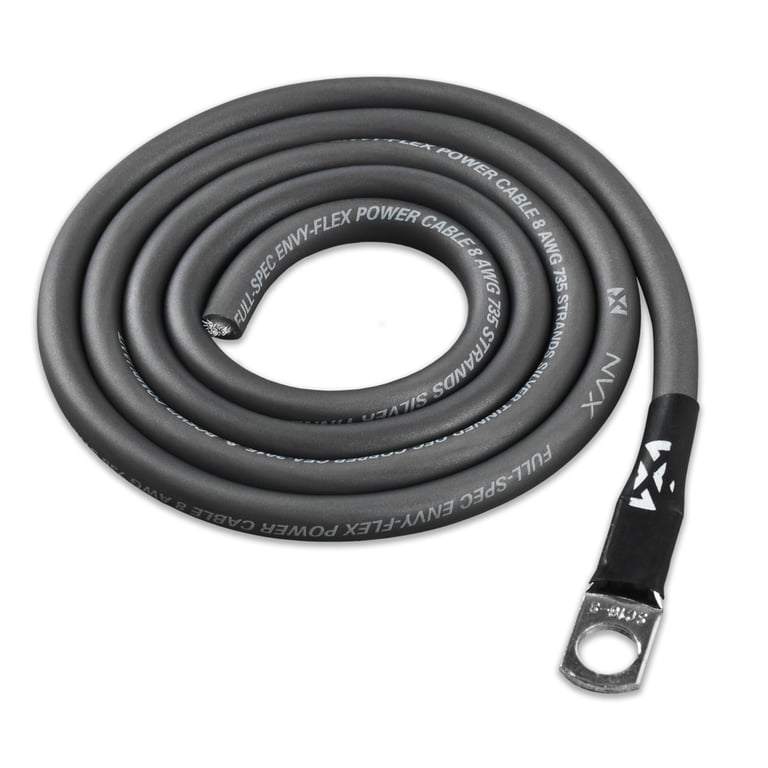

  1. 17 ft. Frosted Blue 8 gauge power wire with seamless crimp ring terminal
  2. 3 ft. Frosted Black 8 gauge ground wire with seamless crimp ring terminal
  3. 17 ft. Clear 18 gauge remote lead wire
  4. 20 ft. Frosted Black/Blue 16 gauge speaker wire
  5. One 16.4 ft. 4-channel dual twisted construction RCA interconnect Cable (NVX XIV45)
  6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 8 Gauge Nickel Plated spade terminals
  9. Four 18 Gauge Spade terminal
  10. Two 18 Gauge Red butt connectors
  11. Four 16 Gauge quick disconnect
  12. Five 16 Gauge Nickel Plated spade terminals
  13. Two Heat Shrink tubes with the NVX logo
  14. Ten 6" Black zip ties

NVX XIV25

16.4 ft (5 meter) 2-Channel V-Series RCA Audio Interconnect Cable
Quantity: 1

Product Features:

  • 16.4 feet (5 meters) 2-Channel V-Series Interconnect Cable
  • Shielded noise-rejecting coaxial construction provides protection against interference
  • Heavy gauge OFC conductors ensure superior sound quality and unmatched signal transfer
  • Split-tip Silver-Plated ends offer high-quality performance, best in class signal transfer and resist corrosion
  • High-strength molded strain reliefs enhance durability
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Twisted-pair construction featuring two conductors per channel
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
