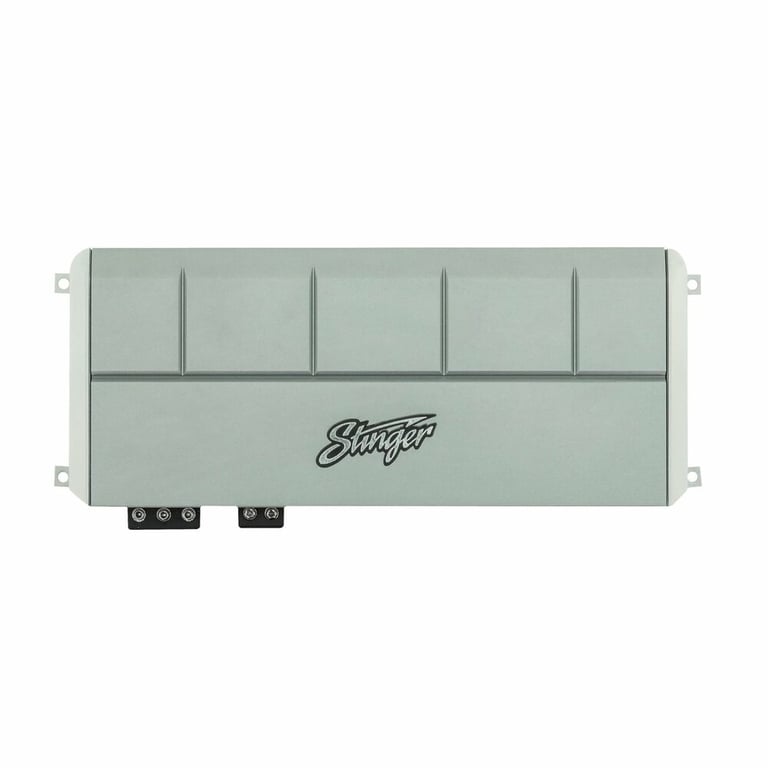

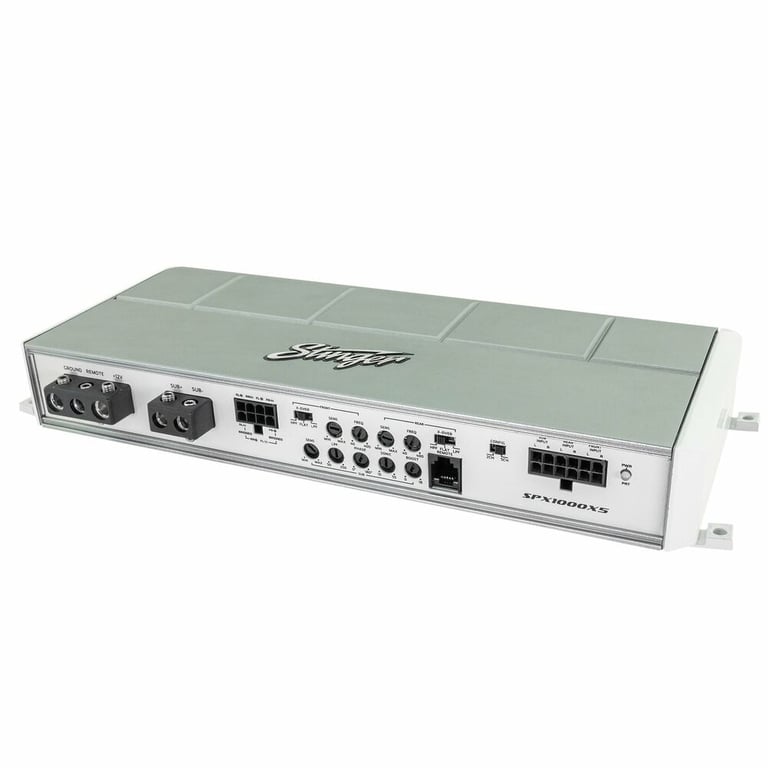

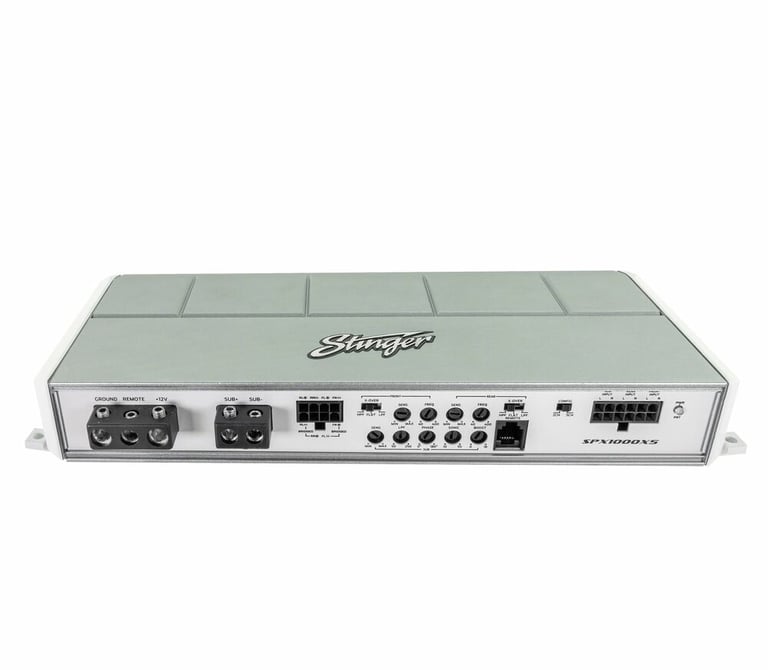

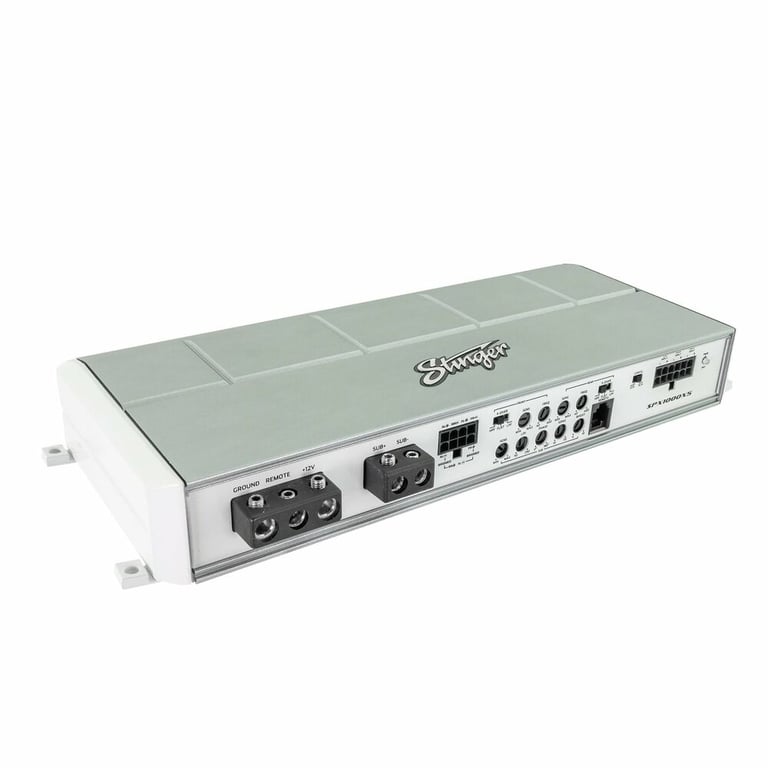

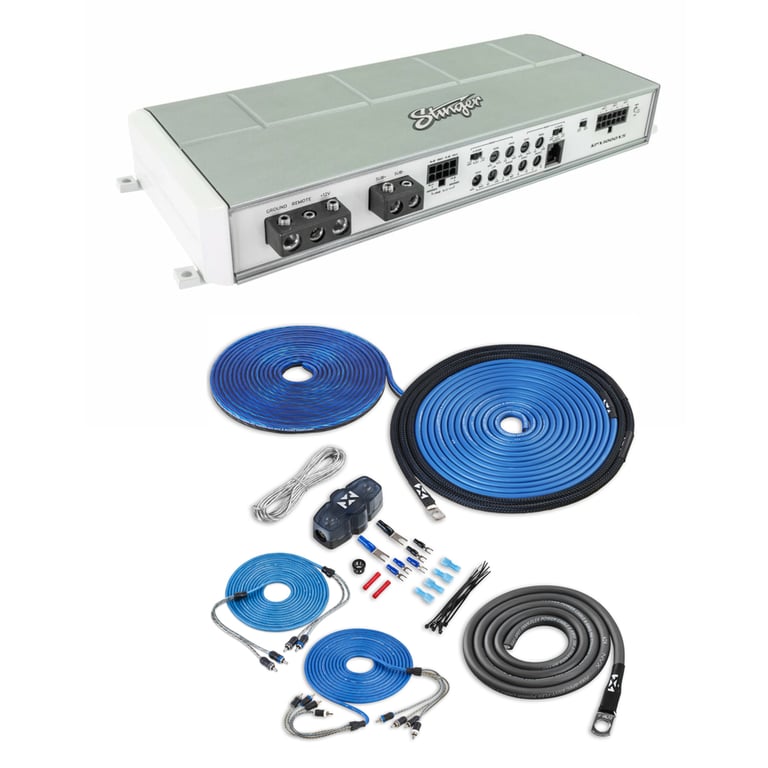

Stinger SPX1000X5 with NVX 8 Gauge Amp Kit

Product Details:

• Class D 2 ohm Stable 5-Channel Amplifier
• RMS Power Rating:
• 4 ohm: 95 watts x 4 channel + 275 watts x 1 channel
• 2 ohm: 150 watts x 4 channel + 500 watts x 1 channel
• Bridged: 300 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total power output: 1100 watts
• LED Power/Protect Light
• Wired remote subwoofer level controller included
• Speaker-level (high-level) inputs
• Signal sensing remote turn-on
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Small footprint and low profile, ideal for installations where space is limited

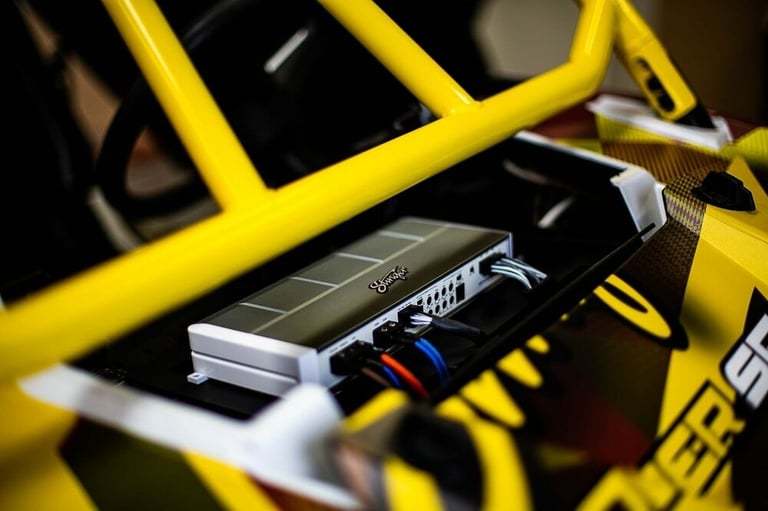

• Fits on small boats or motorcycle applications
• IPX4/5 weather-resistant design
• Corrosion-resistant aluminum chassis
• Nickel-plated termination with stainless hardware
• Conformal coated PCBs to reject salt and fog intrusion
• Unregulated power supply for simplicity and cost effectiveness
• Die-cast end caps with removable mounting feet
• Features volume control with mute function
• Stream Bluetooth with an ISBT23 BT receiver (sold separately)
• Robust 16-gauge marine grade harness with quick connectors
• Variable Phase Control: 0° - 180°
• Input sensitivity: 0.20 - 12 volts
• Frequency Response: 20 - 20,000 Hz
• Total Harmonic Distortion (THD): 1%
• Signal to Noise Ratio: 110 dB
• Variable high-pass filter: 40 - 400 Hz
• Variable low-pass filter: 40 - 400 Hz
• Subsonic filter: 10 - 55 Hz
• Variable Bass Boost: 0 - 18 dB
• Fuse Rating: 80A
• 8 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 11.16" L x 4.73" W x 1.6" H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: SPX1000X5

Product Details:

• 8 Gauge 4-Channel X-Series Complete Amplifier Installation Kit
• Designed for car audio systems up to 800 watts RMS
• Made from 100% Oxygen-Free Copper (OFC)
• Tinned conductors for corrosion resistance
• Pre-installed black nylon mesh covering protects the power wire from damage

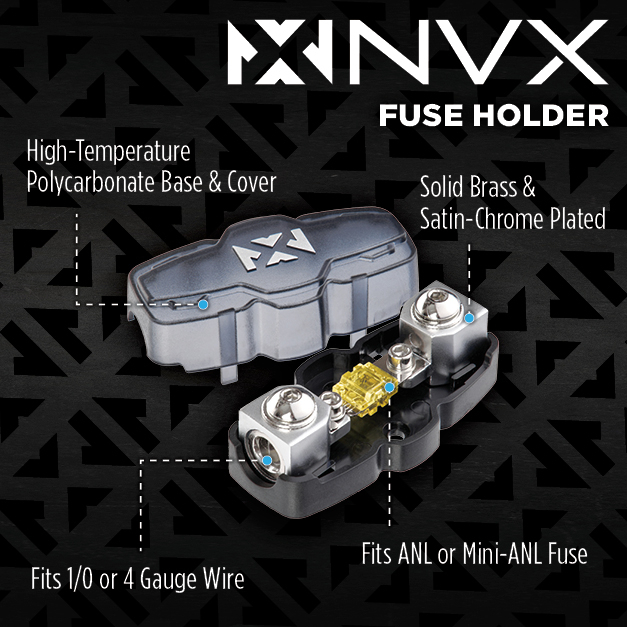

• Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
• Pre-terminated seamless power and ground ring terminals provide reliable performance
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• CEA-2015 and BC5W2 compliant
• V-Series RCA Interconnect Cable
• Shielded noise-rejecting coaxial construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition
• Twisted-pair construction featuring two conductors per channel
• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

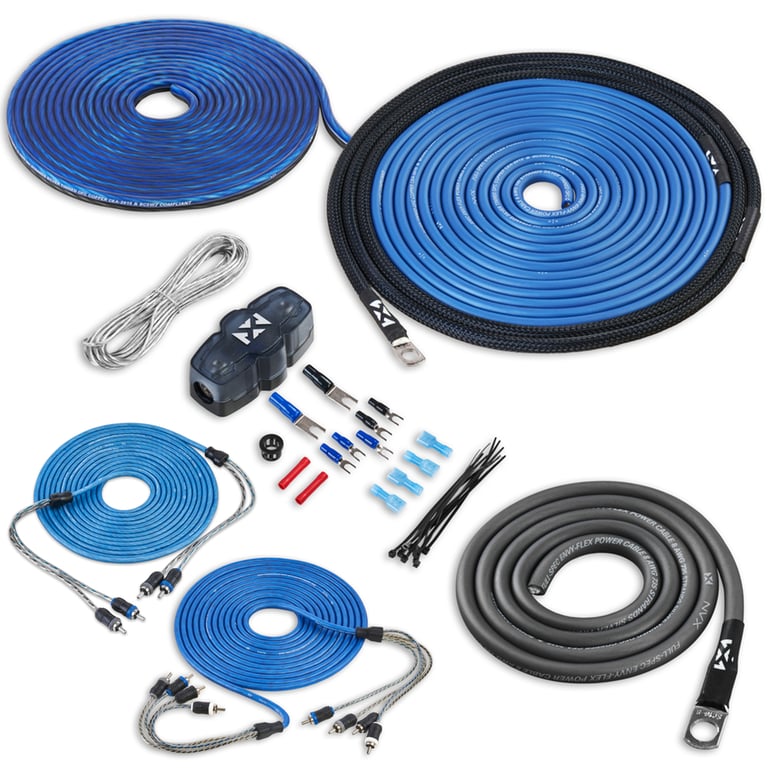

Kit includes:

1. 17 ft. Frosted Blue 8 gauge power wire with seamless crimp ring terminal

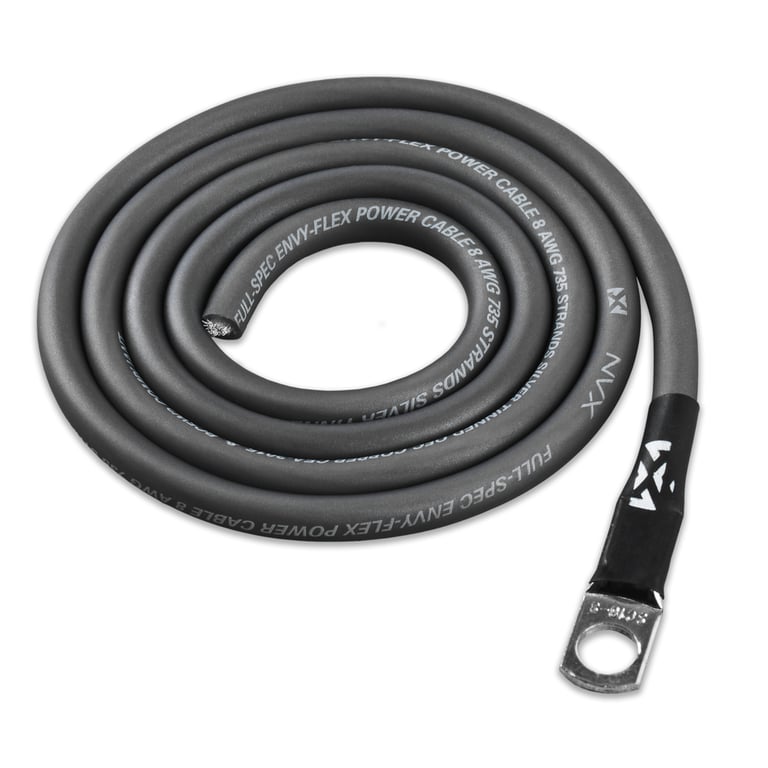

2. 3 ft. Frosted Black 8 gauge ground wire with seamless crimp ring terminal
3. 17 ft. Clear 18 gauge remote lead wire
4. 20 ft. Frosted Black/Blue 16 gauge speaker wire
5. One 16.4 ft. 4-channel dual twisted construction RCA interconnect Cable (NVX XIV45)
6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. Two 8 Gauge Nickel Plated spade terminals
9. Four 18 Gauge Spade terminal
10. Two 18 Gauge Red butt connectors
11. Four 16 Gauge quick disconnect
12. Five 16 Gauge Nickel Plated spade terminals
13. Two Heat Shrink tubes with the NVX logo
14. Ten 6" Black zip ties

Product Features:

• 16.4 feet (5 meters) 2-Channel V-Series Interconnect Cable
• Shielded noise-rejecting coaxial construction provides protection against interference
• Heavy gauge OFC conductors ensure superior sound quality and unmatched signal transfer
• Split-tip Silver-Plated ends offer high-quality performance, best in class signal transfer and resist corrosion
• High-strength molded strain reliefs enhance durability
• Molded ends equipped with colored channel identifiers for easy recognition
• Twisted-pair construction featuring two conductors per channel
• Authorized Internet Dealer
• 1-year Manufacturer's warranty
