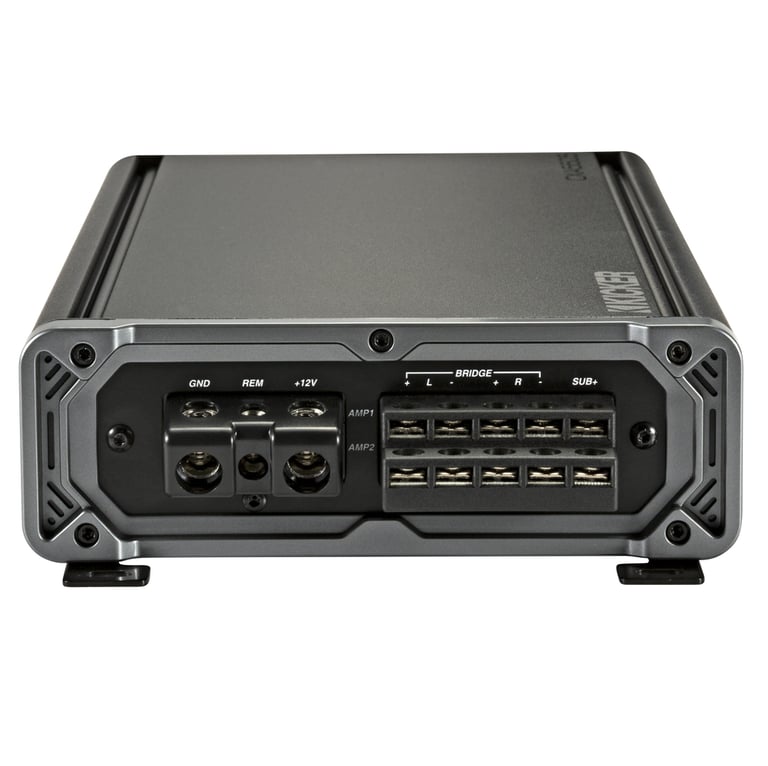

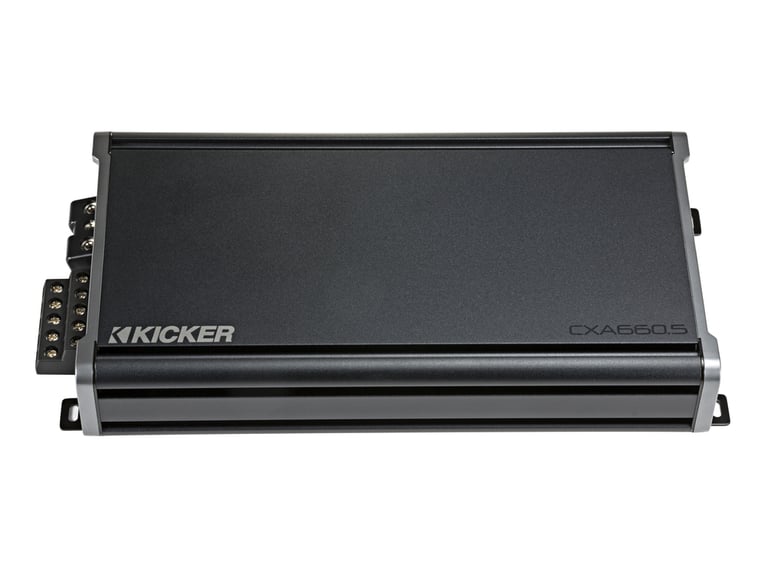

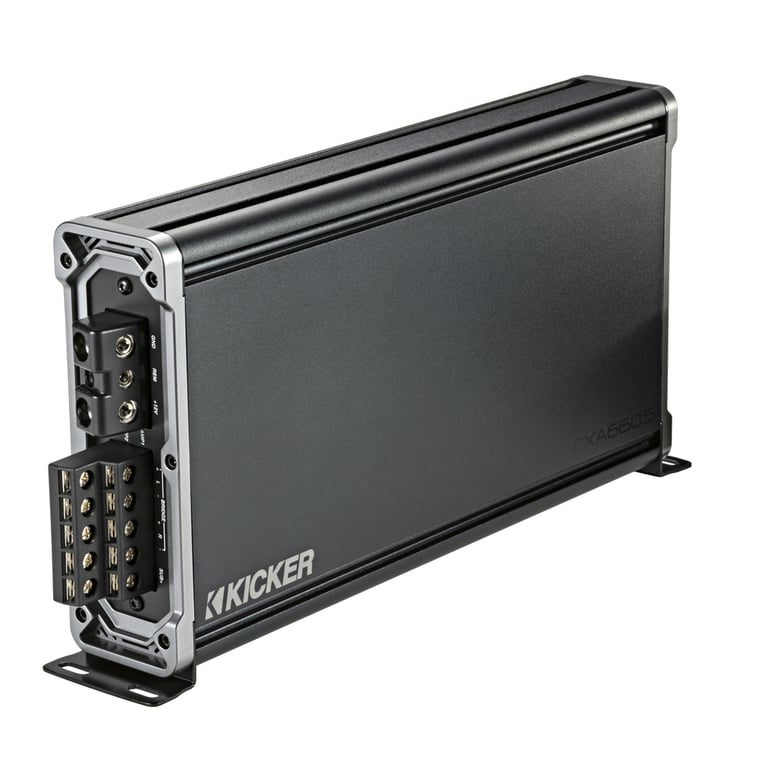

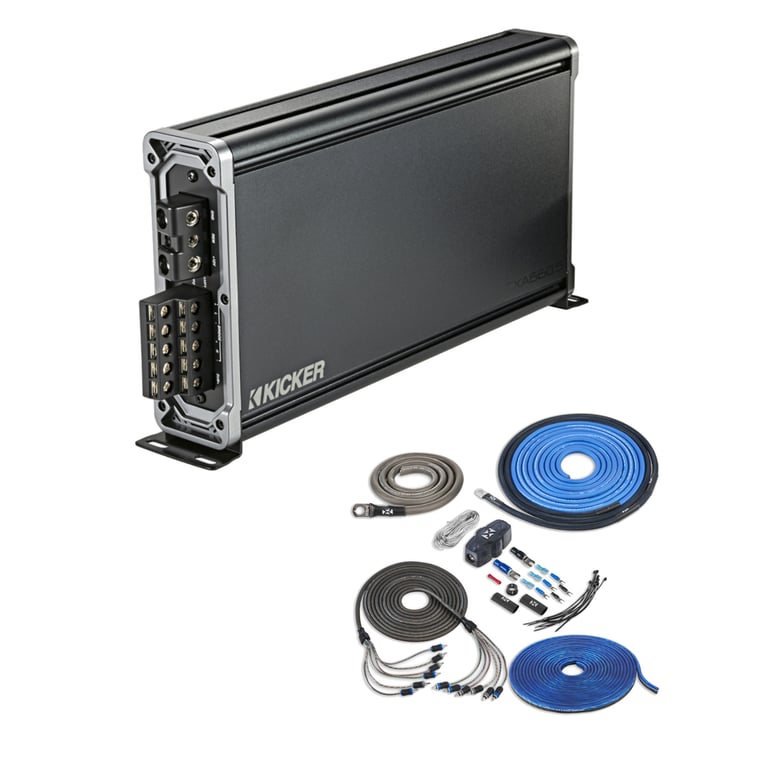

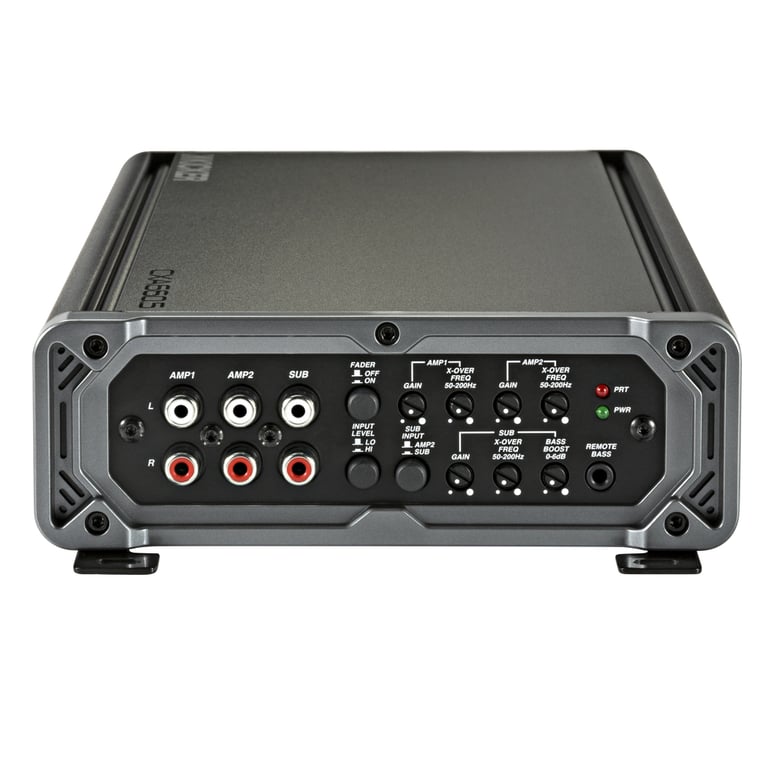

Kicker CXA660.5 (46CXA6605T) with NVX 4 Gauge Amp Kit

Product Details:

• CX Series Class A/B 2 ohm Stable 5-Channel Amplifier
• RMS Power Rating:
• 4 ohm: 65 watts x 4 channel + 150 watts x 1 channel
• 2 ohm: 90 watts x 4 channel + 300 watts x 1 channel
• Bridged: 180 watts x 2 channel @ 4 ohm + 300 watts x 1 channel @ 2 ohm
• Total power output: 660 watts
• Optional wired bass level remote control (sold separately)
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
• Class D bass channel included for one amp to run an entire system
• 3-second turn-on/off delay to eliminate unwanted interference
• KickEQ 6dB variable bass boost for additional low frequencies
• 24dB subsonic filter for protection from potentially damaging frequencies
• FIT+ (Fail-safe Integration Technology-PLUS) works with nearly every radio
• Small and compact footprint for easier installation
• Vertical mounting hardware included for unique look
• Accepts up to 40-volt input signal
• Input sensitivity:
• Low level: 0.125 - 5 volts
• High level: 1 - 40 volts
• Frequency Response: 20 - 20000 Hz
• Total Harmonic Distortion (THD): 1%
• Signal to Noise Ratio: 90 dB
• Variable high-pass filter: 10 - 200 Hz
• Variable low-pass filter: 50 - 200 Hz
• Subsonic filter: 0 - 25 Hz
• Variable Bass Boost: 0 - 6 dB
• Fuse Rating: 80A
• 4 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 13-5/8" L x 6-11/16" W x 2-5/16" H
• Authorized Internet Dealer
• 2 Year Manufacturer's Warranty
• MFR #: 46CXA6605T

Product Details:

• 4 Gauge 5/6-Channel X-Series Complete Amplifier Installation Kit
• Designed for car audio systems up to 1500 watts RMS
• Made from 100% Oxygen-Free Copper (OFC)
• Tinned conductors for corrosion resistance
• Pre-installed black nylon mesh covering protects the power wire from damage
• Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
• Pre-terminated seamless power and ground ring terminals provide reliable performance
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• CEA-2015 and BC5W2 compliant

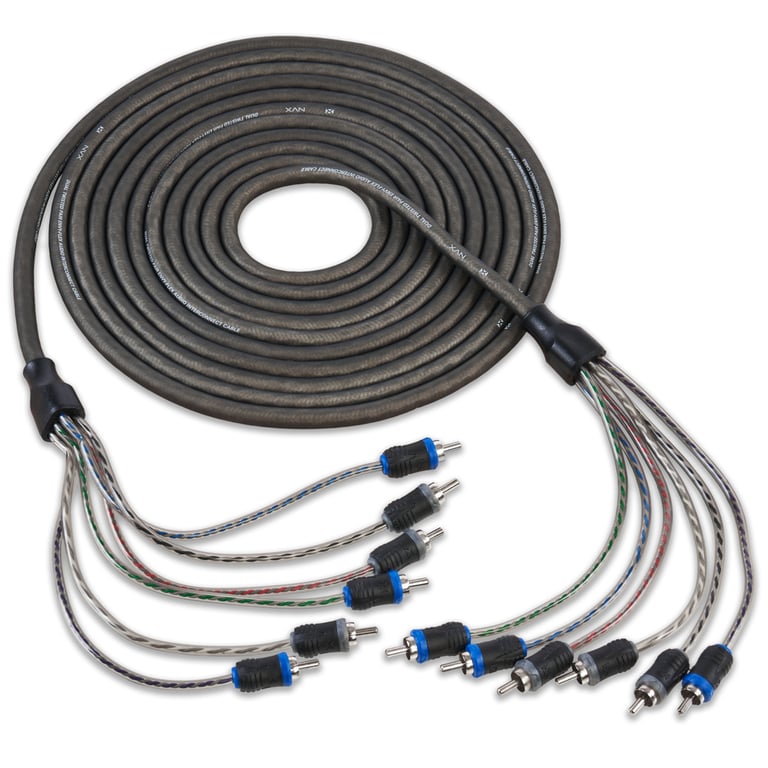

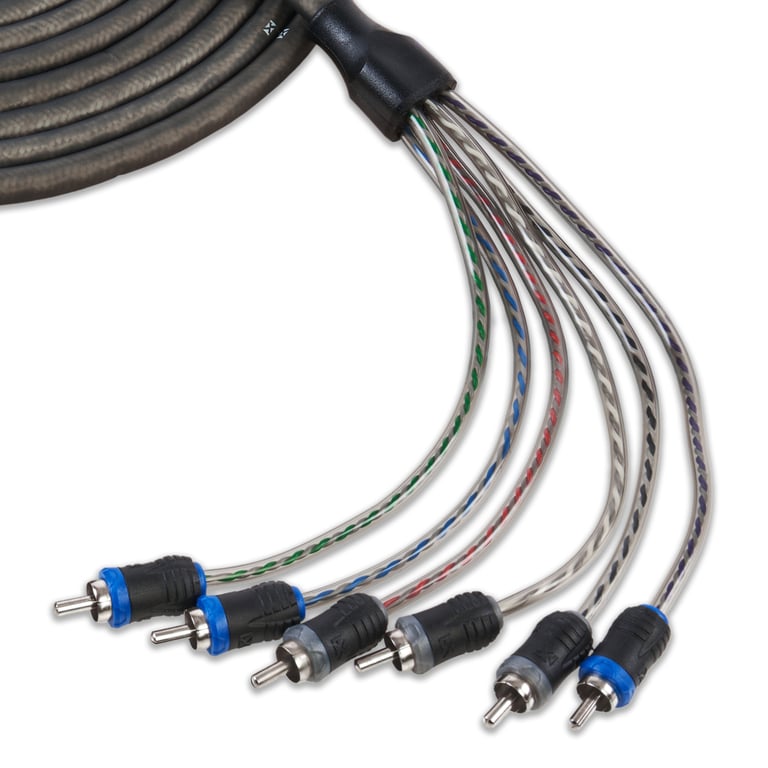

• V-Series RCA Interconnect Cable
• Shielded noise-rejecting coaxial construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition
• Twisted-pair construction featuring two conductors per channel
• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

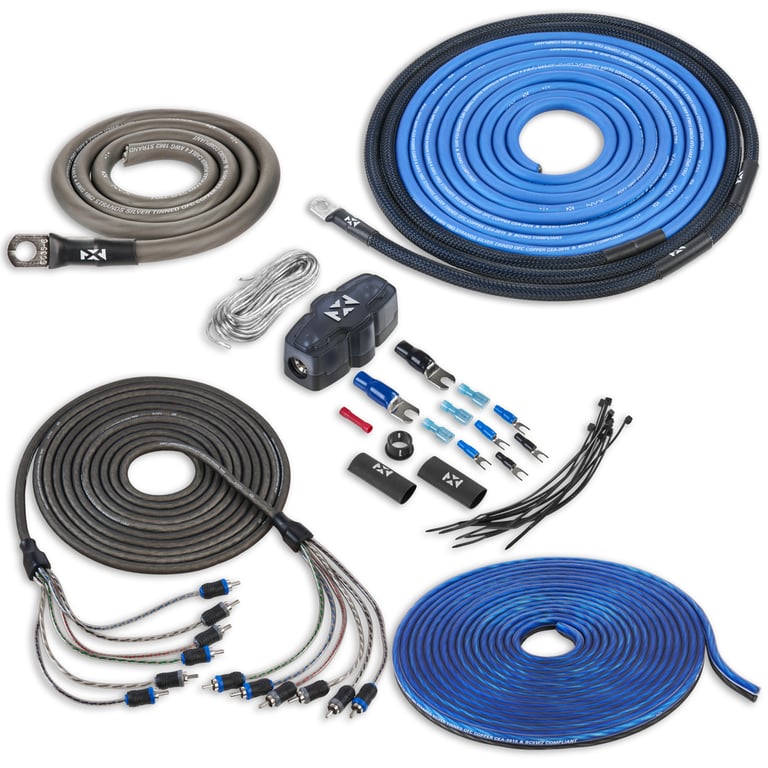

Kit includes:

1. 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal
2. 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal
3. 17 ft. Clear 18 gauge remote lead wire
4. 60 ft. Frosted Black/Blue 16 gauge speaker wire
5. One 16.4 ft. 4-channel dual twisted construction RCA interconnect Cable (NVX XIV45)
6. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)
7. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
8. One Black rubber firewall grommet
9. Two 4 Gauge Nickel Plated spade terminals
10. Four 18 Gauge Spade terminal
11. Two 18 Gauge Red butt connectors
12. Four 16 Gauge quick disconnect
13. Five 16 Gauge Nickel Plated spade terminals
14. Two Heat Shrink tubes with the NVX logo
15. Ten 6" Black zip ties
