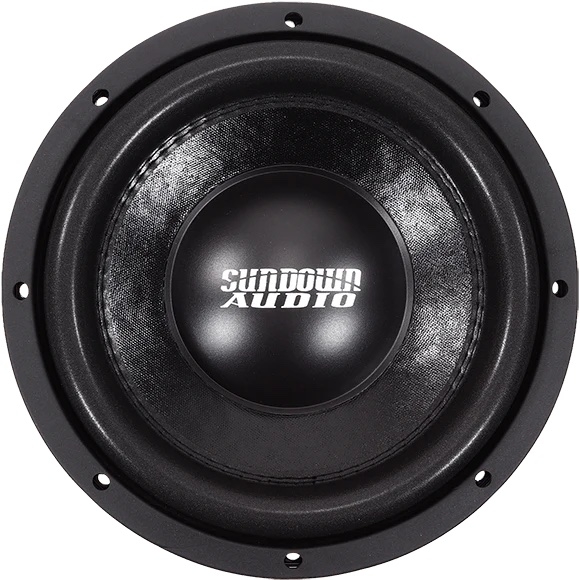

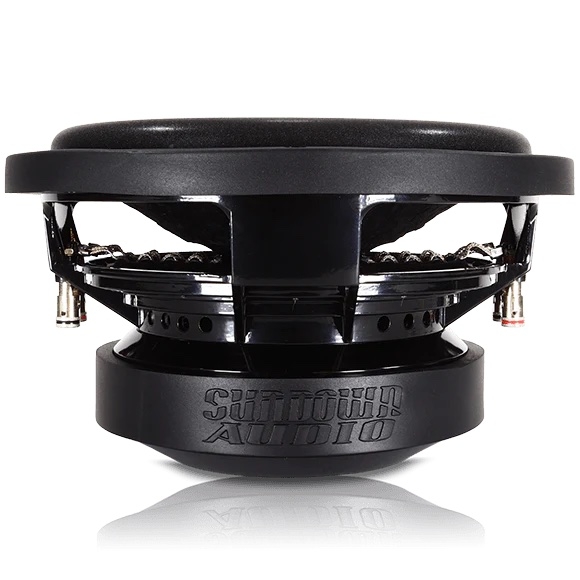

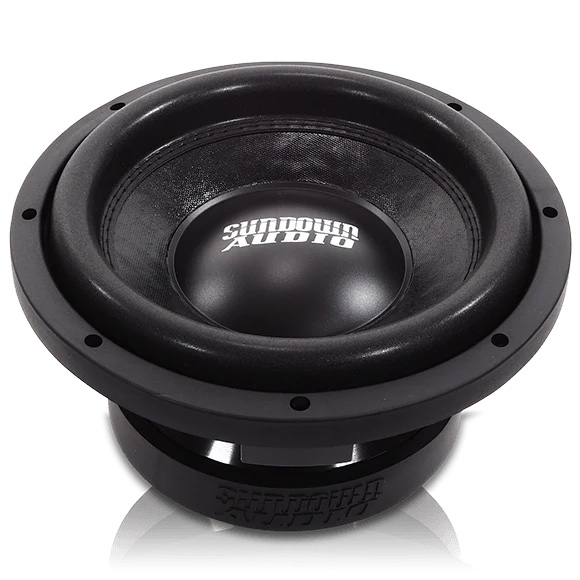

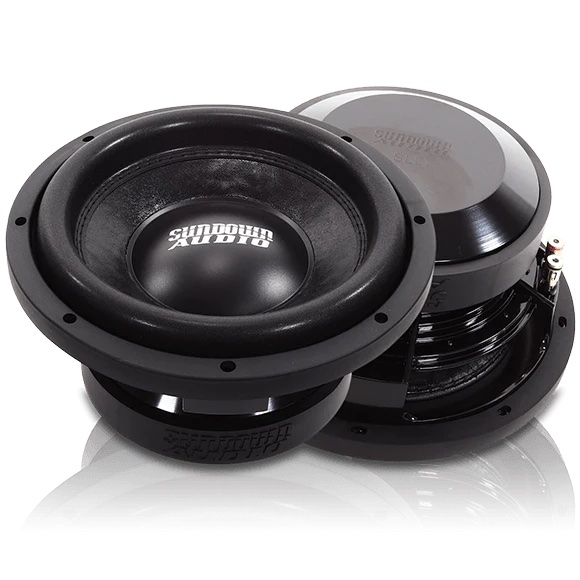

Sundown Audio SLD 10″ D4

600W RMS 10" SLD Series Dual 4-ohm Shallow Car Subwoofer

Sundown Audio
Shop all Sundown Audio
highlight-star-icon

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mount depth: 4.9"
• Sensitivity: 85.4 dB

Learn more about the sld10d4

We apologize

This item has been discontinued


Loading...

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

Kenwood KMM-BT232U

Single DIN Digital Media Receiver with Bluetooth

3
-15.00%

$119.00

List price $140.00

Description


Sundown Audio brand icon

Authorized dealer


Sundown Audio SW-SLD10D4

Sundown’s highest-power slim subwoofers, the SLD takes incredibly high volume by introducing numerous important upgrades: pole-piece channels for reduced air noise & increased cooling, top-plate “slits” for better cooling and less distortion, and a magnet shorting ring. Sundown also bolted down the spider, bolted the motor together, bolted on the aluminum pole cap, and added “mini-XL” lead wires for years of flawless service.


Product Details:

  • 10" Dual 4 ohm SLD Series Subwoofer
  • Power Handling:
    • RMS: 600 watts
  • Black Aluminum voice coil for superior heat dissipation
  • 4-layer copper voice coil wire

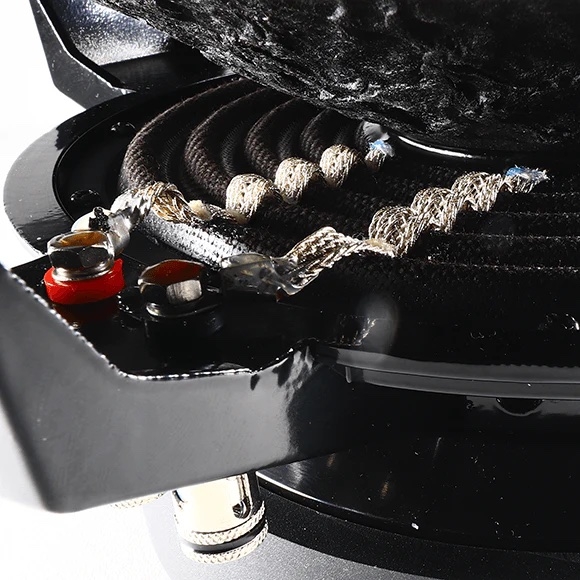

  • Stitched-on “Mini-XL” tinsel leads to prevent fatigue and failure
  • Solid pole-piece and multi-vent magnetic gap
  • Dual-magnet design for smooth acoustic response
  • Custom tooled cone shape for reduced mechanical noise over high excursion

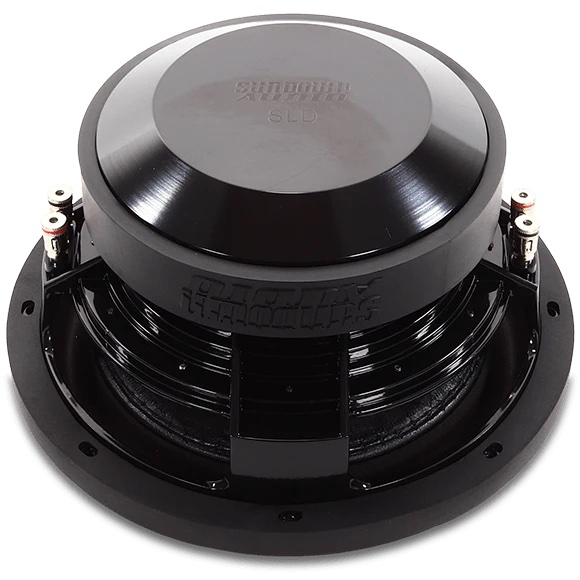

  • Bolt-through motor design to ensure maximum longevity and ruggedness
  • 2.5" High Temperature Aluminum Voice coil
  • 12 mm Xmax
  • Double Stacked magnet motor structure
  • Resonance Frequency (Fs): 46.817 Hz
  • Sensitivity: 85.4 dB
  • Recommended sealed box volume: 0.5 cubic feet
  • Recommended ported box volume: 1.0 cubic feet
  • Top-mount depth: 4.9"
  • Cutout diameter: 9.25"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Sundown Audio SLD 10″ D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Sundown Audio SLD 10″ D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Sundown Audio SLD 10″ D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Sundown Audio SLD 10″ D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

PNW-69CS2 main

AudioControl PNW-69CS2

250W RMS 6x9″ PNW Series 2-way 3-ohm Component Speaker System

1
-5.42%

$349.00

List price $369.00


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

Specifications & Details


Subwoofer Specifications
Series
SLD Series
Subwoofer Size
10"
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Material
Aluminum
Voice Coil Diameter
2.5"
Sensitivity
85.4 dB
Xmax (millimeters)
12 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Magnet Structure
Double Stacked
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.5 cubic feet
Optimum Ported Box Volume
1.0 cubic feet
Top-Mount Depth (Mounting Depth)
4.9"
Cutout Diameter
9.25"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
46.817 Hz
Equivalent Compliance (Vas)
12.091 liters
Total Speaker Q Value (Qts)
0.440
Electrical Q Value (Qes)
0.547
Electrical Resistance of Voice Coil (Re)
6.85 ohm
Mechanical Q Value (Qms)
2.246
What is in the box?
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SW-SLD10D4

Weight:

22.70lbs

Internal SKU:

sld10d4

Internal Product ID:

206523
