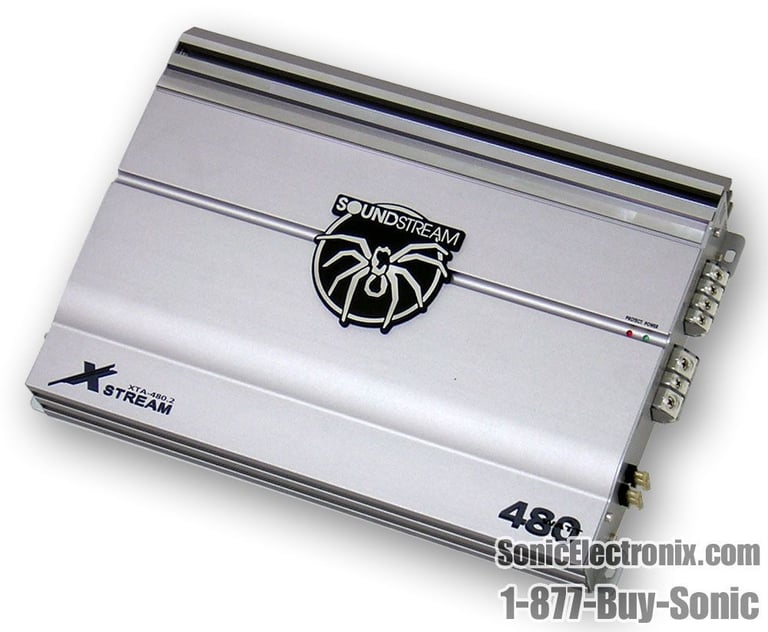

Soundstream XTA480.2

480 watts, 2-Channel Xstream Series Amplifier XTA 480.2

Product videos
highlight-star-icon

480W RMS 2 channel Xstream Series • 240W x 2 channel power output at 2 ohm • 120W x 2 channel at 4 ohm • Bass EQ Control • Drive Delay II • Selectable X-Over HPF / Full / LPF

Learn more about the xta4802

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
99-7006 main

Metra 99-7006 Dash Kit

Install a new Single-DIN car stereo in select 1995-1999 Eclipse and Talon

-10.00%

$35.99

List price $39.99

KDC-X705 main

Kenwood eXcelon KDC-X705

Single DIN CD Multimedia Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

4
-18.21%

$229.00

List price $280.00

iLX-407 main

Alpine iLX-407

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

7
-16.93%

$539.95

List price $650.00

Limited time!
Kappa 63XF main

Infinity Kappa 63XF (INFSPKKA63XFAM)

510W Peak (170W RMS) 6.5" Kappa Series 2 Way Coaxial 3-ohm Speakers

10
-33.34%

$199.95

List price $299.95

Limited time!
XR-1701 main

Kenwood eXcelon XR-1701

600W Peak (200W RMS) 6.5" eXcelon Reference Series 2-Way Coaxial 3-ohm Car Speakers (Hi-Res Audio Certified)

3
-38.28%

$179.00

List price $290.00

Limited time!
KFC-1066S main

Kenwood KFC-1066S

440W Peak (42W RMS) 4" Sport Series 2-Way Coaxial 4-ohm Car Speakers

4
-38.75%

$49.00

List price $80.00

Product Highlights


480W RMS 2 channel Xstream Series • 240W x 2 channel power output at 2 ohm • 120W x 2 channel at 4 ohm • Bass EQ Control • Drive Delay II • Selectable X-Over HPF / Full / LPF

Description


Soundstream brand icon

Authorized dealer

  • Bass EQ Control: Fully adjustable subwoofer equalization circuit providing frequency and boost ("Q") adjustment for optimum subwoofer performance. A frequency tracking subsonic filter protects woofers from potentially harmful low frequency information and maximizes output in a usable range.
  • Drive Delay II: Amplifier section powers up 2 to 3 seconds after the poewr supply eliminating turn-on and off pops. The turn off process is reversed: Amplifier section turns off first, followed by the power supply.
  • Flexible Input Level Control: Allows 500 mV to 4 V input sensativity.
  • Trident 3-way Protection
  • IDI (Intelligent Distress Indicator)
  • Thermal / Short / Over Load Protection
  • Stability:
    • 2/4 ohm Stereo Mode
    • 4 ohm Mono/Bridged Mode
  • P.W.M Mosfet Power Supply
  • Power and Protection Indicator

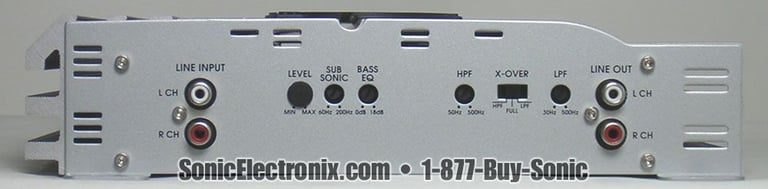

  • Selectable X-Over HPF / Full / LPF
  • 18db Bass Boost with Switch Sub (50Hz)
  • Frequency Response: 10Hz - 30kHz
  • Variable High-Pass Crossover (50-500Hz)
  • Variable Low-Pass Crossover (30Hz~500Hz)
  • Gold Plated Terminal Strips / RCA Jacks
  • Heavy Duty Heat Sink
  • Adjustable Input Sensativity
  • Soft Delay Remote Turn-On
  • Low Level Inputs
  • Phantom Channel For Powering Center Speaker or Subwoofer
  • Dimensions: 17.1"L x 12.4"W x 3"H
  • 1-year SonicElectronix.com warranty

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-500.2 PRO small

Deaf Bonce Apocalypse ATOM-500.2 PRO

• 231 watts x 2 channel @ 4 ohm
• 390 watts x 2 channel @ 2 ohm
• 500 watts x 2 channel @ 1 ohm
• Bridged: 780 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 500 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$189.90

List price $189.90

R2-200X2 small

Rockford Fosgate Prime R2 R2-200X2

• 50 watts x 2 channel @ 4 ohm
• 100 watts x 2 channel @ 2 ohm
• Bridged: 200 watts x 1 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(2)

$239.99

List price $239.99

VADM2 small

NVX VADM2 v2 (VADM2v2)

• 200 watts x 2 channel @ 4 ohm
• 300 watts x 2 channel @ 2 ohm
• Bridged: 600 watts x 1 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(17)

$199.99

List price $239.99

ION700.2D small

DS18 ION700.2D

• 240 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

$299.95

List price $359.99

H400.2D small

Cerwin-Vega H400.2D

• 80 watts x 2 channel @ 4 ohm
• 125 watts x 2 channel @ 2 ohm
• Bridged: 290 watts x 1 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable 2-Channel Amplifier

$239.99

List price $287.99

MFA 2.520 small

Deaf Bonce Machete MFA 2.520

• 520 watts x 2 channel @ 4 ohm
• 750 watts x 2 channel @ 2 ohm
• Bridged: 1500 watts x 1 channel @ 4 ohm
• Total RMS Power: 1500 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

(2)

$239.90

List price $239.90

NBA201 small

NVX NBA201

• 200 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class A/B 2 ohm Stable 2-Channel Amplifier

(11)

$99.99

List price $249.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
120 watts x 2 channel
RMS Power @ 2 ohms
240 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
480 watts
Amplifier Specifications
Number of Channels
2-Channel
Total RMS Power Output
480 watts
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
30 - 500 Hz
Signal-to-Noise Ratio
96 dB
Bass Boost
0 - 18 dB

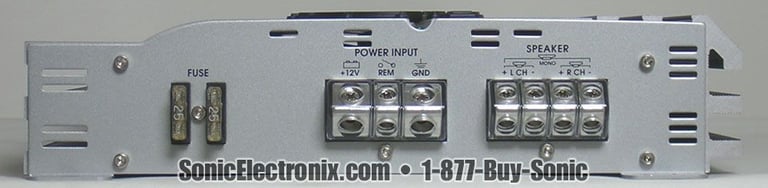

Fuse Rating
25A x 2

Item Details


Manufacturer:

Model Number:

XTA480.2

Weight:

13.15lbs

Internal SKU:

xta4802

Internal Product ID:

2074

Product and How-to Videos


Customer Ratings & Reviews


Soundstream XTA480.2 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Very Very nice amp.. i have a 8' kicker solo baric L7 and it hits so hard and the rms is true.. Its The best amp i have been useing.. and i have been thru an lot of brand names and soundstream has been around for a long time i would tell any one to go soundstreamn

By Allen on December 20, 2004

1 found this helpful
