Name: Soundstream PCX4.540 R/B
Brand: Soundstream
SKU: LS-pcx4540-RB
Price: 119.99 USD
Availability: Discontinued

by Soundstream

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

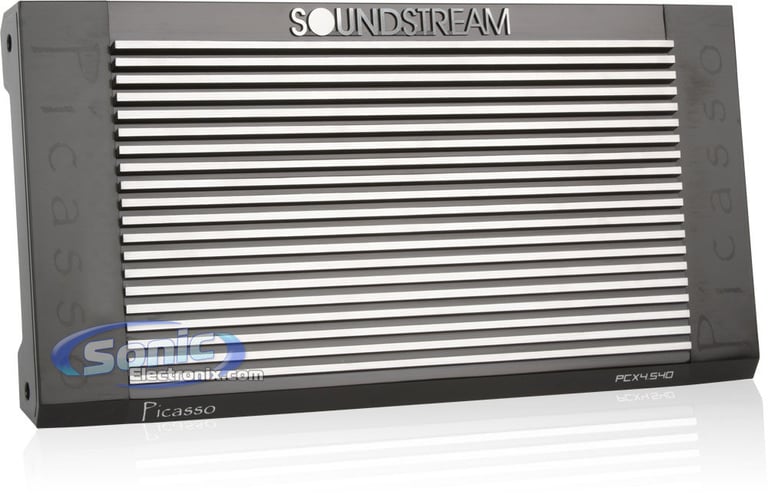

Soundstream PCX4.540 R/B Image 1 — Soundstream PCX4.540 R/B

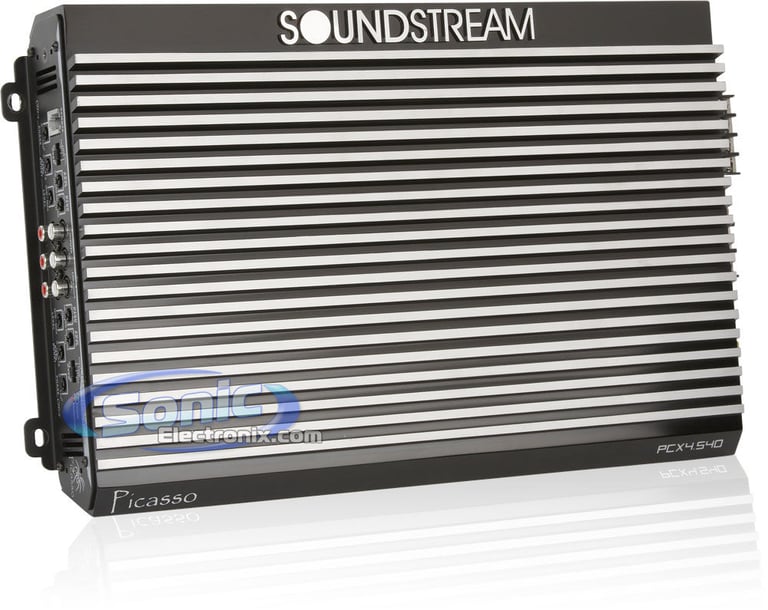

Soundstream PCX4.540 R/B Image 2 — Soundstream PCX4.540 R/B

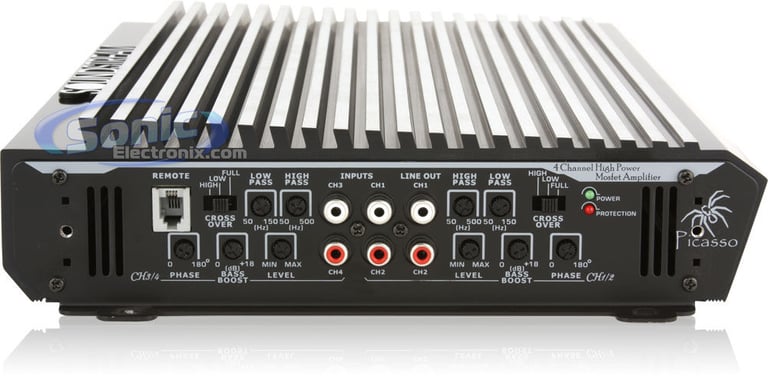

Soundstream PCX4.540 R/B Image 3 — Soundstream PCX4.540 R/B

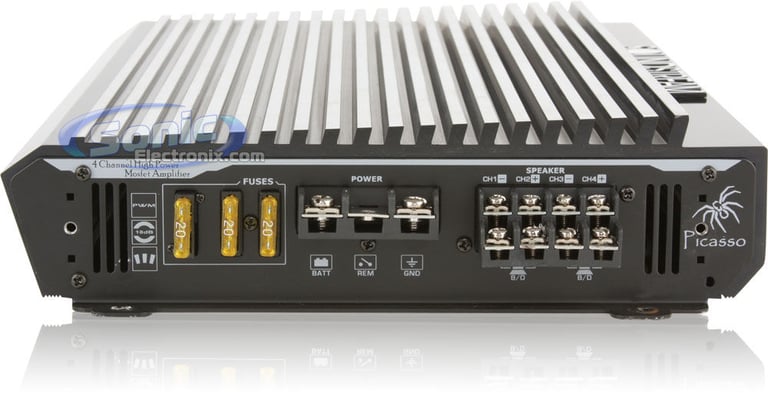

Soundstream PCX4.540 R/B Image 4 — Soundstream PCX4.540 R/B

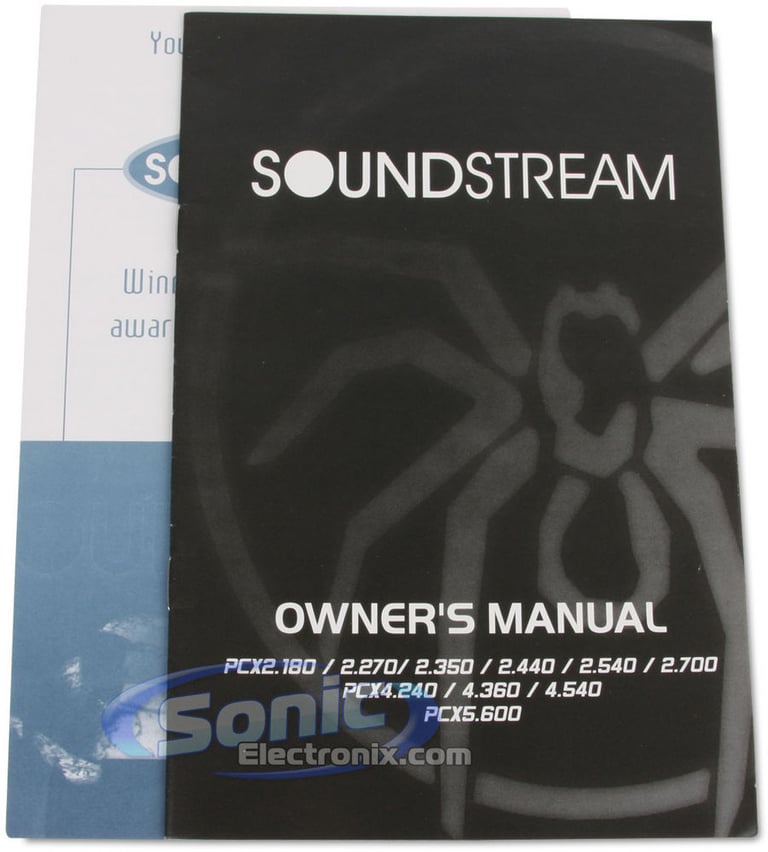

Soundstream PCX4.540 R/B Image 5 — Soundstream PCX4.540 R/B

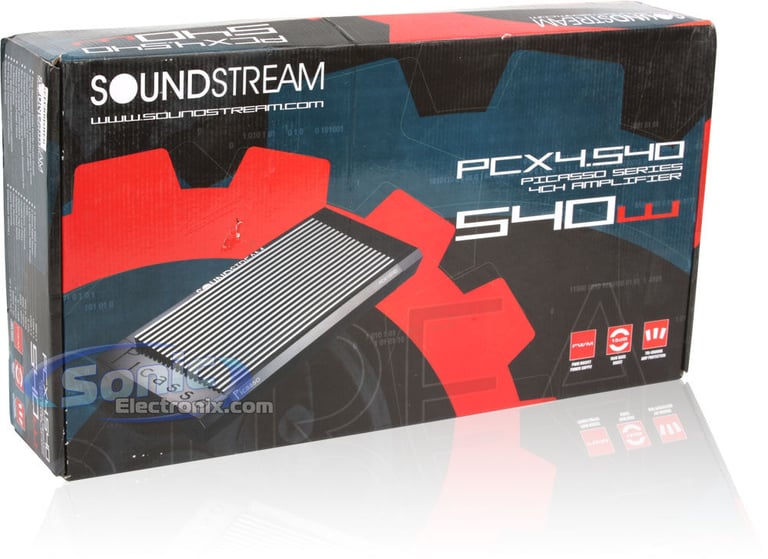

Soundstream PCX4.540 R/B Image 6 — Soundstream PCX4.540 R/B

Product videos

Product highlights

Picasso Series 4-Channel Class AB Car Amplifier • 80W x 4 Chan. @ 4 ohm • 135W x 4 chan. @ 2 ohm • 540 Watts Total • Bi-linear Selectable • Tuned Bass EQ • Platinum-Plated Contacts • End Caps Included

Learn more about the LS-pcx4540-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

Picasso Series 4-Channel Class AB Car Amplifier
RMS Power Rating:
- 4 ohm: 80 watts x 4 chan.
- 2 ohm: 135 watts x 4 chan.
- Bridged, 4 ohm: 270 watts x 2 chan.
Total RMS power output: 540 watts
Fully Regulated MOSFET PWM Power Supply
Power and protection LED indicators
Tuned Bass EQ (0-18 dB bass boost at 50 Hz)
Tri-Guard amplifier protection
4/2 Channel operation
1 Pair of preamp RCA outputs
Bi-linear selectable, infinitely variable crossovers (HP/Full/LP)
IDI (Intelligent Distress Indicator) for thermal, short, and impedance protection
Turn on/off delay for soft start-up
Black hairline anodized aluminum heatsink for excellent heat dissipation
Platinum-plated RCA level inputs
Platinum-plated screw terminals
Variable high-pass filter (50-500 Hz, 24 dB/octave)
Variable low-pass filter (50-150 Hz, 24 dB/octave)
Professional end caps for a clean install
Frequency response: 10-35,000 Hz
Dimensions: 19-1/2"L x 10"W x 2-1/2"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
Item Condition: Factory Refurbished
1-year Manufacturer's Warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

80 watts x 4 channel

RMS Power @ 2 ohms

135 watts x 4 channel

Bridged RMS Power

270 watts x 2 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

4-Channel

Total RMS Power Output

540 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.10%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

50 - 500 Hz

Low-Pass Crossover Frequency

50 - 150 Hz

Bass Boost

0 - 18 dB

Remote bass/level controller

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
