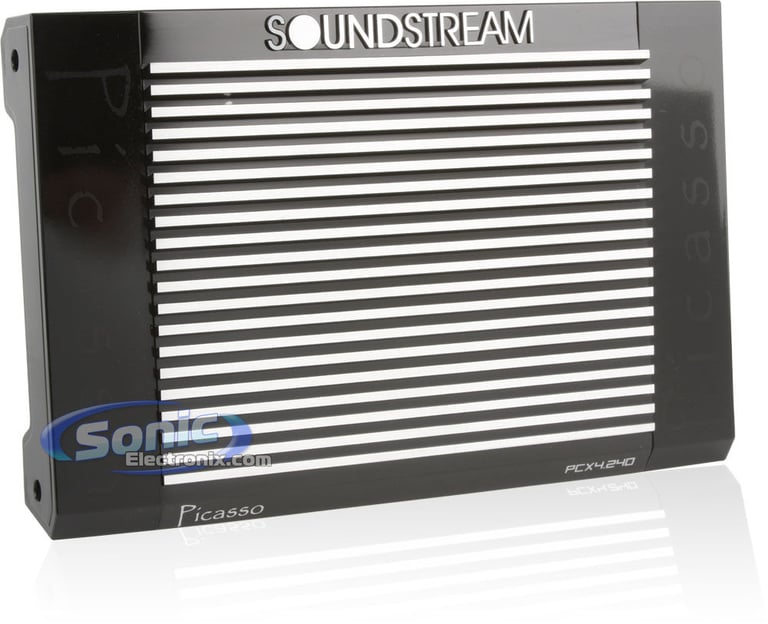

Soundstream PCX4.240 R/B

240W RMS, 4-Channel Picasso Series Amplifier

Product videos
highlight-star-icon

Picasso Series 4-Channel Class AB Car Amplifier • 40W x 4 Chan. @ 4 ohm • 60W x 4 chan. @ 2 ohm • 240 Watts Total • Bi-linear Selectable • Tuned Bass EQ • Platinum-Plated Contacts • End Caps Included

Learn more about the LS-pcx4240-RB

We apologize

This item has been discontinued

Product Highlights


Picasso Series 4-Channel Class AB Car Amplifier • 40W x 4 Chan. @ 4 ohm • 60W x 4 chan. @ 2 ohm • 240 Watts Total • Bi-linear Selectable • Tuned Bass EQ • Platinum-Plated Contacts • End Caps Included

Description


Soundstream brand icon

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

  • Picasso Series 4-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 40 watts x 4 chan.
    • 2 ohm: 60 watts x 4 chan.
    • Bridged, 4 ohm: 120 watts x 2 chan.
  • Total RMS power output: 240 watts
  • Fully Regulated MOSFET PWM Power Supply
  • Power and protection LED indicators
  • Tuned Bass EQ (0-18 dB bass boost at 50 Hz)
  • Tri-Guard amplifier protection
  • 4/2 Channel operation

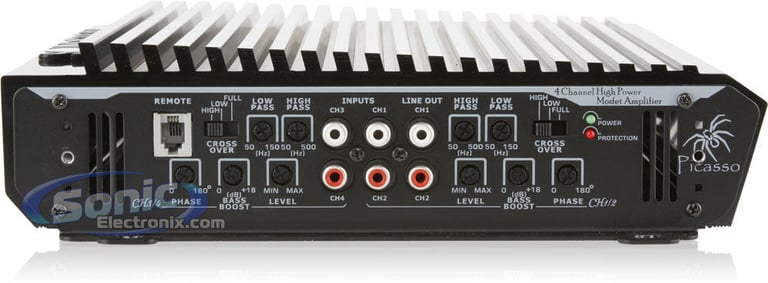

  • 1 Pair of preamp RCA outputs
  • Bi-linear selectable, infinitely variable crossovers (HP/Full/LP)
  • IDI (Intelligent Distress Indicator) for thermal, short, and impedance protection
  • Turn on/off delay for soft start-up
  • Black hairline anodized aluminum heatsink for excellent heat dissipation
  • Platinum-plated RCA level inputs

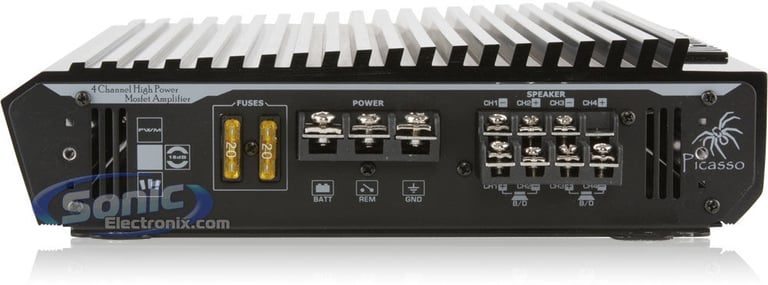

  • Platinum-plated screw terminals
  • Variable high-pass filter (50-500 Hz, 24 dB/octave)
  • Variable low-pass filter (50-150 Hz, 24 dB/octave)
  • Professional end caps for a clean install
  • Frequency response: 10-35,000 Hz
  • Dimensions: 15-1/2"L x 10"W x 2-1/2"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • Item Condition: Factory Refurbished
  • 1-year Manufacturer's Warranty

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
40 watts x 4 channel
RMS Power @ 2 ohms
60 watts x 4 channel
Bridged RMS Power
120 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total RMS Power Output
240 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.10%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 150 Hz
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PCX4.240-RB

Weight:

9.50lbs

Internal SKU:

LS-pcx4240-RB

Internal Product ID:

20777

Product and How-to Videos


Customer Ratings & Reviews


Soundstream PCX4.240 R/B thumbnail image

5 star
0%
4 star
100%
3 star
0%
2 star
0%
1 star
0%



Durability
3
Value
5
Features
3
Design
5
Usability
4

Customer Reviews

Sort by:

Loading...

Great Buy at a Great Price

I bought this amp a few weeks back along with a set of MTX 4" components in the front and a set of MTX 5.25" coax's in the rear of my 01 A4. I was skeptical with the purchase of a soundstream amp. Knowing their amazing reputation from the past but not knowing if they still withheld the same standards I decided to take a chance. The power output matches the speakers perfectly, delivers clean, crisp sound, and offers enough tune-ability to get the sound you desire out of your system. Aside from the performance the other thing I was looking for in the amp I bought was a simplistic tasteful look that if I purchased another amp within the series I could have them side by side and they'd match up nicely. Thanks Sonic ... PS the only disappointment I have with the product is I received it missing a screw on one of the channels.

By Shane on June 4, 2010

2 found this helpful
