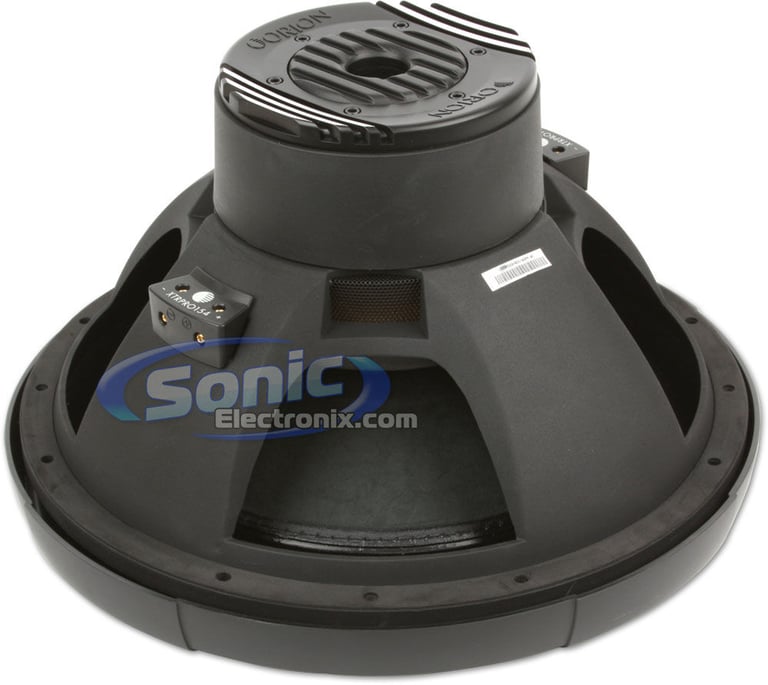

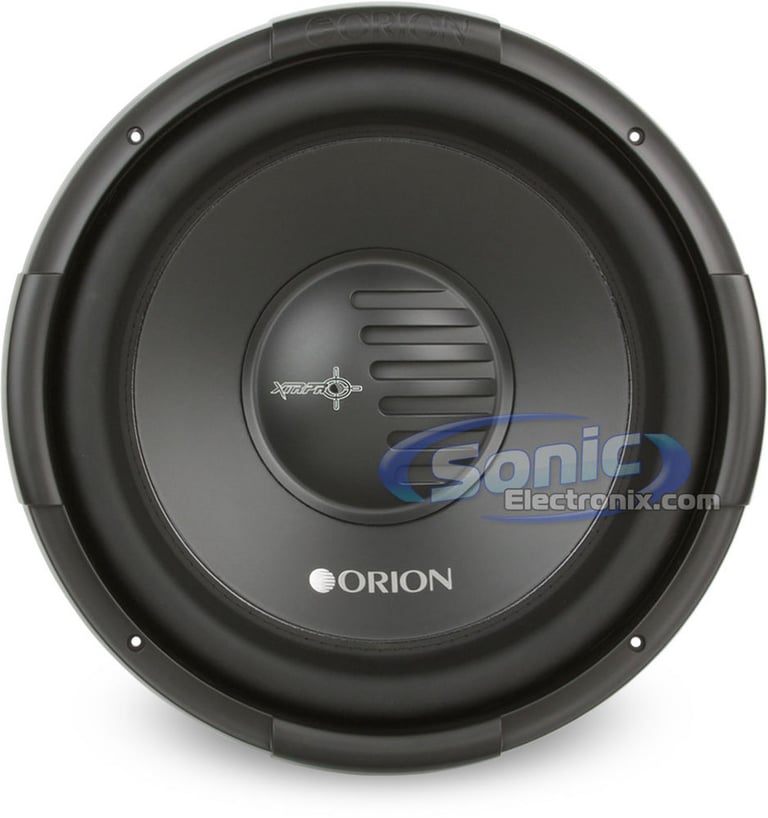

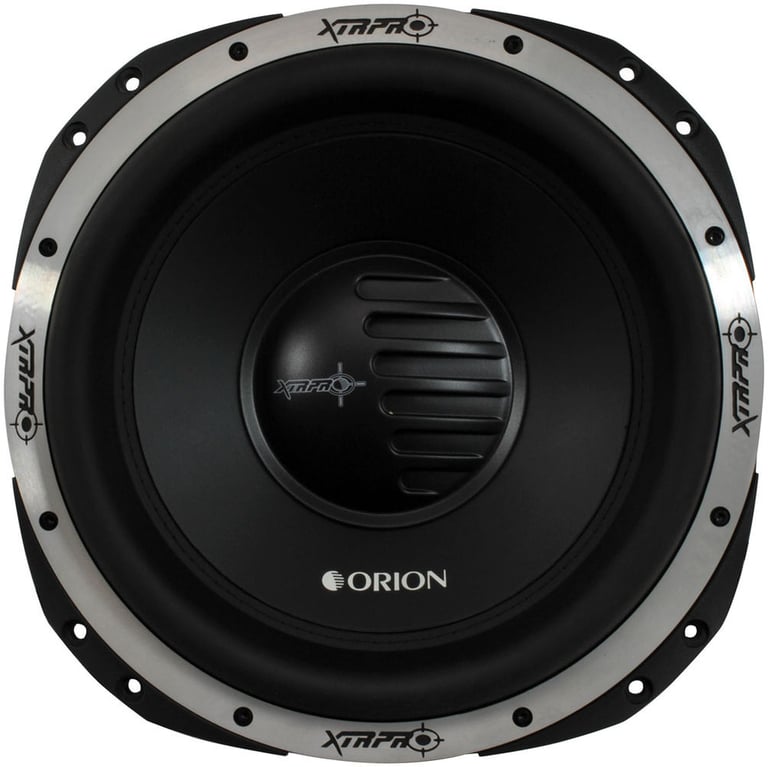

Orion XTRPRO154

15" Dual 4 ohm XTR PRO Series Car Subwoofer

Orion
Shop all Orion
Product videos
highlight-star-icon

• 1000W Peak
• 500W RMS
• Dual 4 ohm
• Symmetrical tuned long-throw surround
• Custom cast aluminum frame
• Tinsel leads stitched and looped across spider

Learn more about the xtrpro154

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
40-EU10 main

Metra 40-EU10 Antenna Adapter

Install a New Car Stereo and Retain Factory Antenna in select 2000-2017 vehicles from BMW, Mercedes-Benz, Ford

44
-14.30%

$11.99

List price $13.99

99-6511 main

Metra 99-6511 Dash Kit

Install a new Single-DIN car stereo in select 2007-2020 vehicles from Dodge, Jeep, Chrysler Multi-Kit

12
-41.39%

$16.99

List price $28.99

MET-CH14 main

Metra MET-CH14

Install a New Car Stereo and Retain Steering Wheel Controls and Other Factory Features in

-10.38%

$94.99

List price $105.99

72-6517 main

Metra 72-6517

Install a New Tweeter in select 2005-2024 vehicles from Dodge, Chrysler, Jeep

2
-13.34%

$12.99

List price $14.99

AXTC-CH13 main

Axxess AXTC-CH13 Wiring Interface

Install a New Car Stereo, Retain Steering Wheel Controls, and Other Factory Features in select 2004-2020 vehicles from Dodge, Chrysler, Jeep

1
-10.00%

$197.99

List price $219.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Limited time!
DMH-241EX main

Pioneer DMH-241EX

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Built-in Alexa

22
-35.00%

$194.99

List price $300.00

51KSC6504 main

Kicker KSC65 (51KSC6504)

400W Peak (200W RMS) 6.5" KS Series 2 Way Coaxial 4-ohm Speakers

70
-13.33%

$129.99

List price $149.99

Product Highlights


• 1000W Peak
• 500W RMS
• Dual 4 ohm
• Symmetrical tuned long-throw surround
• Custom cast aluminum frame
• Tinsel leads stitched and looped across spider

Description


Orion brand icon

Authorized dealer

  • 15" XTR PRO Dual 4 ohm Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
  • Polypropylene dust cap and paper cone is moisture and UV resistant
  • Nitrile-butadiene rubber surround enhances the linear excursion
  • Symmetrical tuned long-throw surround
  • Dual interlaced conex spider
  • Custom cast aluminum frame
  • Custom trim ring
  • Tinsel leads stitched and looped across spider
  • Tri-cooling system
  • Copper wound voice coil on aluminum former
  • Venting in voice coil former is part of the enhanced voice coil cooling system
  • Advanced forced convection cooling system
  • Sensitivity: 87 dB
  • Two large 48 oz. double stacked ceramic magnets (96 oz. total)
  • 1-year Sonic Electronix warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Orion XTRPRO154 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Orion XTRPRO154 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Orion XTRPRO154 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Orion XTRPRO154 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
SB-D-CHLGR/12W3v3 main

JL Audio Stealthbox® SB-D-CHLGR/12W3v3

Custom fit subwoofer enclosure for select 2009-2023 Challenger

1

$1,149.99

KFC-XP6903C, XBAF69, SDSK2, SDRLR1, BTK106 main

Kenwood eXcelon KFC-XP6903C with Installation Accessories

200W RMS 6"x9" 3-way Component Speakers with Speaker Baffles, Sound Damping, Roller, and Panel Removal Kit

190
-38.14%

$255.32

List price $412.71

82-6901,DB6502 main

Polk Audio DB6502 DB+ 6.5" 600 Watt Car Speakers with Free 6" x 9" Adapters

600W Peak (200W RMS) 6.5" DB+ Series 2-way Component Speakers with 6" x 9" Speaker Adapters

47
-9.15%

$211.66

List price $232.98

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99


Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

L7S152 small

Kicker L7S152 (44L7S152)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8 11/16"
• Sensitivity: 88.56 dB

(11)

$383.96

List price $509.99

52L7XS151 small

Kicker L7XS151 (52L7XS151)

• RMS Power: 1500 - 3000 watts
• Impedance: Dual 1 ohm
• Double-pressed pulp Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 11-9/16"

$1499.99

List price $1599.99

P3D2-15 small

Rockford Fosgate Punch P3 P3D2-15

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 2 ohm
• Anodized Aluminum Cone
• Santoprene Rubber Surround
• Mount depth: 7.58"
• Sensitivity: 86 dB

(27)

$309.99

List price $339.99

YSW152 small

NVX YSW152

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 7.47"
• Sensitivity: 85 dB

(3)

$129.99

List price $167.99

ZV715D1 small

Sundown Audio Z-15 v.7 D1 15" (Z15V7D1)

• Peak Power: 7000 watts
• RMS Power: 3500 watts
• Impedance: Dual 1 ohm
• Treated Paper Cone
• Treated Foam Surround
• Sensitivity: 91.58 dB

$1364.99

List price $1559.99

Specifications & Details


Subwoofer Specifications
Series
XTR Pro Series
Subwoofer Size
15"
Peak Power Handling
1000 watts
RMS Power Handling
500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
28 - 500 Hz
Sensitivity
87 dB
Xmax (millimeters)
17.25 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Reinforced Paper
Woofer Surround
Nitrile Butadiene Rubber NBR
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
2 cubic feet
Maximum Sealed Box Volume
2 cubic feet
Minimum Ported Box Volume
3 cubic feet
Maximum Ported Box Volume
3 cubic feet
Top-Mount Depth (Mounting Depth)
7.48"
Cutout Diameter
13.85"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

XTRPRO154

Weight:

25.50lbs

Internal SKU:

xtrpro154

Internal Product ID:

21154

Product and How-to Videos


Customer Ratings & Reviews


Orion XTRPRO154 thumbnail image

5 star
57%
4 star
29%
3 star
14%
2 star
0%
1 star
0%



Durability
5
Value
4.9
Features
4.3
Design
3.9
Usability
5

Customer Reviews

Sort by:

Loading...

Great woofers if you have a good amp these woofers hit hard

I have 2 of these woofers, they sound great for the price. Orion is famous for the amount of air their woofers can move. I have a 6000Watt amp on 2 of these woofers and they shake the windows in my house when i play it in my driveway.

By GusMan on April 9, 2012

22 found this helpful


NICE!!!!

I have 2 of these in a ported 10ft gross 7.5net ported box in an Escalade ext. I love them. They can be over powerd with a clean amp that's been tuned and sounds insanely loud, I get windshield flex and the steeringwheel shake. I have around 700watts cea each right now and do pump 1000watts each for half a song every now and then. Great sub that can't be beat for the price. You better know how to build a box and tune your amps with these!!!!

By Mark on February 23, 2012

21 found this helpful


Above Average Woofer

Pros- This sub can handle more power than rated. Sound quality is incredible. Works with almost any box. Great for all types of music. Break in period is quicker than average. Very light in comparison to other subwoofers. Very durable materials.
Cons- After a period, the sub will leave you wanting more bass. The sub is mid class and performs great, but not like the HCCA series.
Overall amazing sub that I would recommend to any bass fanatic!

By Dusty on February 6, 2012

22 found this helpful


Great subwoofer

The Orion xtr pro 15 is excellent and the subs have nice deep bass I just love the Orion xtr pros And I love buying from Sonic Electronix they have great prices and ships right on time.

By marcus on October 28, 2011

22 found this helpful


great sub for the money !

I had 2 of these in a custom box (4.0cubic feet) in my regular cab f150 running off the orion xtr 1500.1 amp loud yes but sound quality not so great. I had 2 Kicker CVR 10s on the same amp in a ported box that was 10x times louder and 10x cleaner. Great speaker but as they break in they start to sound muddy .

By thef150monster on December 15, 2010

21 found this helpful


orion kicks kickers a**

ok i had 2 kicker L7 15s in my car on a Hifonics Brutus 2006d (2000watt) amp and didnt like they wouldnt hit or sound good i put 2 of the orion 15s on it wired to 2ohms (only running amp at half power or 1000 watts) and they sound better and hit 2 times as hard as those kickers while being way cheaper as well

By orion on October 6, 2010

21 found this helpful


Excellent Subs!

i upgraded from the cobalts to the xtrspros, really big difference wired at 1 ohm on a 2000 wt planet audio amp..and a ported box they beat so hardd .

By Brandy on May 29, 2012

20 found this helpful




XTR124 small

Orion XTR124

12" Dual 4 ohm XTR Series Car Subwoofer

(5)

$89.95

List price $179.99

XTRPRO122 small

Orion XTRPRO122

12" Dual 2 ohm XTR PRO Series Car Subwoofer

(11)

$269.95

List price $349.99

VTL300CIR small

BOYO Vision VTL300CIR

Universal Full-Frame License Plate Backup Camera with Night Vision and Parking Lines

(18)

$119.99

List price $129.99

MFW-10 small

Kole Audio MFW-10

10" Single 4 ohm Super Flat Series Car Subwoofer

(2)

$69.99

List price $199.99

ABB101J small

Audiobahn ABB101J

300W RMS, Single 10" Slot Ported Loaded Subwoofer Enclosure

$89.99

List price $199.99

2SL10-2.7-GRAY small

Sonic Sub Box: 2SL10-2.7 (GRAY)

Dual 10" Sealed MDF Enclosure

(1)

$44.95

List price $99.99

MFW-12 small

Kole Audio MFW-12

12" Single 4 ohm Super Flat Series Car Subwoofer

(11)

$99.99

List price $219.99

15W0v2-4 small

JL Audio 15W0v2-4

15" Single 4 ohm W0v2 Series Subwoofer (92163)

(6)

$179.99

List price $229.95

MST 3 10 small

Ground Shaker MST 3 10

10" Triple Sealed Ford Mustang Subwoofer Enclosure

$119.95

List price $209.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1992 Dodge Colt

2009 Dodge Challenger

2014 Scion iQ

2008 Buick Enclave

1997 GMC C3500

1986 BMW 635CSi

2012 Toyota Sequoia

1990 Ford Aerostar

2014 Subaru Tribeca

2018 GMC Canyon

Vehicle
Store
Delete

2023 Can-Am Defender PRO

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
