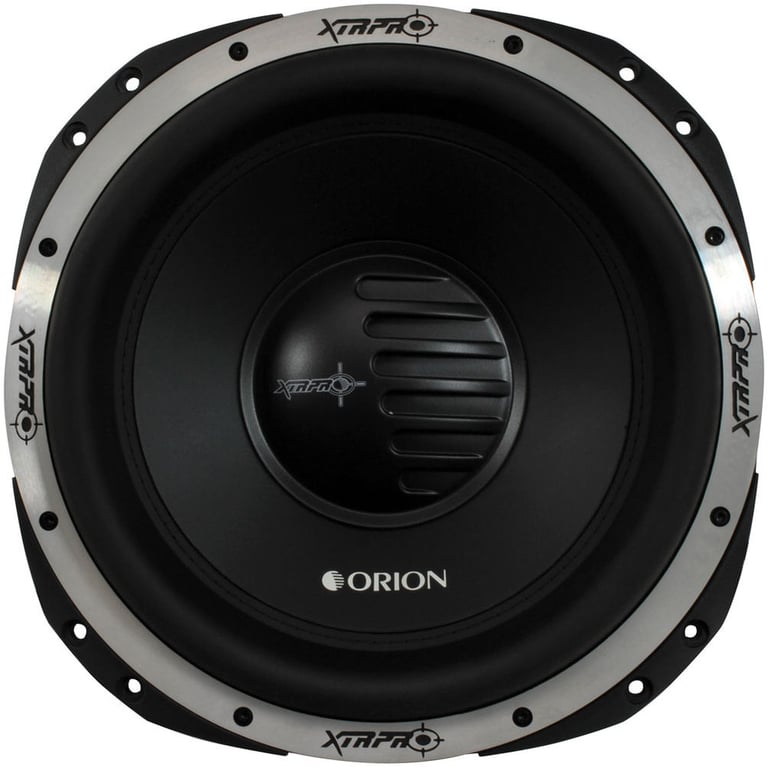

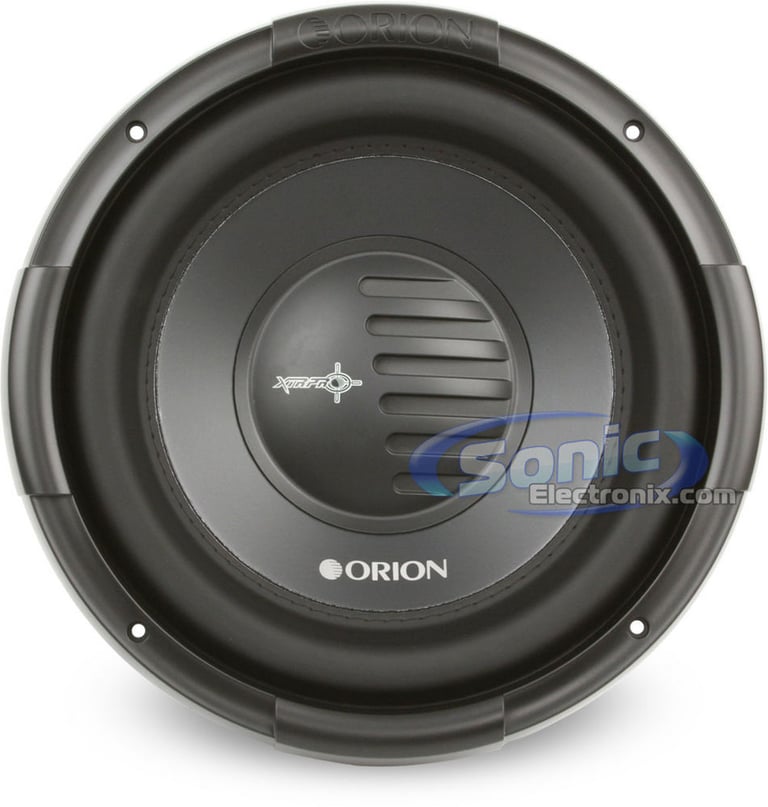

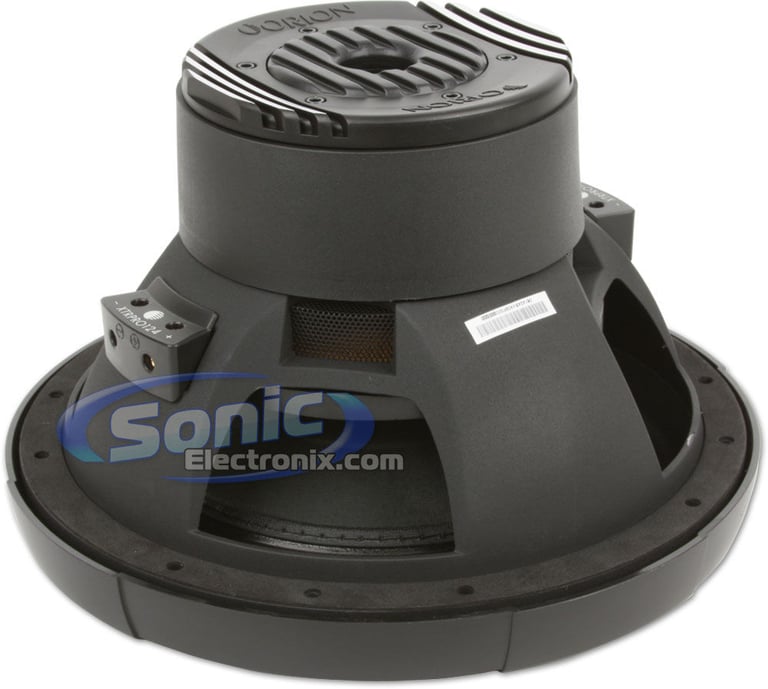

Orion XTRPRO124

12" Dual 4 ohm XTR PRO Series Car Subwoofer

Orion
Shop all Orion
Product videos
highlight-star-icon

• 1000W Peak
• 500W RMS
• Dual 4 ohm
• Symmetrical tuned long-throw surround
• Custom cast aluminum frame
• Tinsel leads stitched and looped across spider

Learn more about the xtrpro124

We apologize

This item has been discontinued


Loading...
Limited time!
KFC-1366S main

Kenwood KFC-1366S

520W Peak (60W RMS) 5.25" Sport Series 2 Way Coaxial 4-ohm Car Speakers

3
-38.75%

$49.00

List price $80.00

Product Highlights


• 1000W Peak
• 500W RMS
• Dual 4 ohm
• Symmetrical tuned long-throw surround
• Custom cast aluminum frame
• Tinsel leads stitched and looped across spider

Description


Orion brand icon

Authorized dealer

General Features

  • 12" XTR PRO Dual 4 ohm Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
  • Polypropylene dust cap and paper cone is moisture and UV resistant
  • Nitrile-butadiene rubber surround enhances the linear excursion
  • Symmetrical tuned long-throw surround
  • Dual interlaced conex spider
  • Custom cast aluminum frame
  • Custom trim ring
  • Tinsel leads stitched and looped across spider
  • Tri-cooling system
  • Copper wound voice coil on aluminum former
  • Venting in voice coil former is part of the enhanced voice coil cooling system
  • Advanced forced convection cooling system
  • Sensitivity: 82 dB
  • Two large 48 oz. double stacked ceramic magnets (96 oz. total)
  • 1-year Sonic Electronix warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Orion XTRPRO124 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Orion XTRPRO124 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Orion XTRPRO124 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Orion XTRPRO124 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
CAR723W main

Jensen CAR723W

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, Android Auto

15
-11.11%

$239.99

List price $269.99

MVH-S622BS main

Pioneer MVH-S622BS

Double DIN Digital Media Receiver with Bluetooth, Amazon Alexa and SiriusXM Ready

4
-10.00%

$179.99

List price $200.00

BE7ACP.XC main

Boss Elite BE7ACP.XC

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and Backup Camera (SiriusXM Ready)

-16.67%

$329.99

List price $395.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
XTR Pro Series
Subwoofer Size
12"
Peak Power Handling
1000 watts
RMS Power Handling
500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
32 - 500 Hz
Sensitivity
84 dB
Xmax (millimeters)
17.25 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Reinforced Paper
Woofer Surround
Nitrile Butadiene Rubber NBR
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.5 cubic feet
Maximum Sealed Box Volume
1.5 cubic feet
Minimum Ported Box Volume
1.5 cubic feet
Maximum Ported Box Volume
1.5 cubic feet
Top-Mount Depth (Mounting Depth)
6.46"
Cutout Diameter
10.91"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

XTRPRO124

Weight:

24.00lbs

Internal SKU:

xtrpro124

Internal Product ID:

21158
