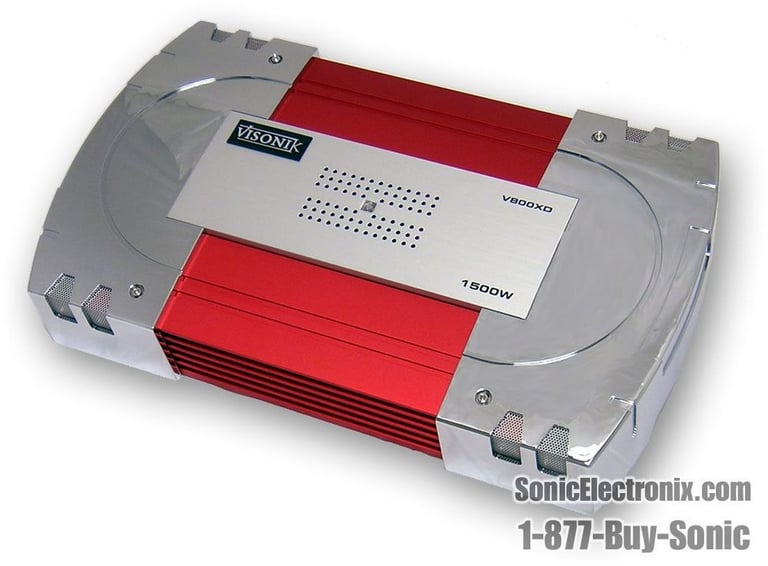

Visonik V800XD Digital Class X ( Class D )

Visonik
Shop all Visonik
Product videos
highlight-star-icon

Class X • Mono block digital amplifier • Signal-to-Noise Ratio: >96dB • Bass Boost Control at 45Hz: 0 - 18dB

Learn more about the v800xd

We apologize

This item has been discontinued


Loading...
70-1771 main

Metra 70-1771

Install a New Car Stereo in select 1998-2011 vehicles from Ford, Mazda, Mercury

51
72-5600 main

Metra 72-5600

Install New Speakers in select 1993-2017 vehicles from Ford, Mazda, Mercury

107
-33.36%

$9.99

List price $14.99

95-5817 main

Metra 95-5817 Dash Kit

Install a new Double-DIN car stereo in select 1995-2011 vehicles from Ford, Mercury, Mazda

44
-21.92%

$17.95

List price $22.99

82-5601 main

Metra 82-5601

5 1/4" Component Speaker to 6" x 8" Adapter Kit for select 1990-2019 vehicles from Ford, Mazda, Mercury

3
-13.64%

$18.99

List price $21.99

FM-K552 main

American International FM-K552

Single DIN or Double DIN Stereo Dash Kit for select 1995-2011 vehicles from Ford, Lincoln, Mazda

21
-55.03%

$8.99

List price $19.99

FD1330B main

Scosche FD1330B / FD1330 Dash Kit

Install a new Double-DIN car stereo in select 1995-2011 vehicles from Ford, Mercury, Lincoln (Black)

50
-15.14%

$10.99

List price $12.95

SHFD03B main

Scosche SHFD03B

Speaker Harness for select 1998-2019 vehicles from Ford, Mazda, Lincoln

8
-18.50%

$8.99

List price $11.03

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

Product Highlights


Class X • Mono block digital amplifier • Signal-to-Noise Ratio: >96dB • Bass Boost Control at 45Hz: 0 - 18dB

Description


Visonik brand icon

Authorized dealer

Question: What is a Class "X" Amplifier?
Answer: A Class "X" Amplifier is a Class "D" Amplifier with a digitally controlled power supply. It is this highly sophisticated power supply that gives Class "X" an edge in overall efficiency when compared to a Class "D" Amplifier.

The Visonik V800XD is the "little brother" to the world-record setting V900XD! If you are in need of a true high power amplifier and want to save hundreds of dollars, now is the time! This is a limited time closeout and once they are gone...they are gone for good! You will never see another amp at this great of a deal!

  • Class X Digital amplifier
  • Monoblock sub amplifier
  • RMS Power @ 14.4V:
    • 4 Ohm 500 watts
    • 2 Ohm 750 watts
    • 1 Ohm 1000 watts
  • MAX Power @ 14.4V :
    • 4 Ohm 750 watts
    • 2 Ohm 1000 watts
    • 1 Ohm 1500 watts
  • THD Level :
    • 4 Ohm 0.5%
    • 2 Ohm 0.5%
    • 1 Ohm 1.0%
  • Signal-to-Noise Ratio: >96dB
  • Frequency Response: 10Hz - 350Hz
  • 24dB Low Pass Filter: 50Hz - 350Hz
  • 24dB Subsonic Filter: 15Hz - 50Hz
  • Bass Boost Control at 45Hz: 0 - 18dB
  • RCA Input Sensitivity: 0.2 - 8V
  • Low Level Input Impedance 22K Ohm
  • Damping Factor 200 @ 4 Ohm
  • Fuse Rating 40A x 4
  • Dimensions (W x H x L) 10.5" x 3.11" x 17.91"
  • 2-year Authorized Manufacturer's warranty
