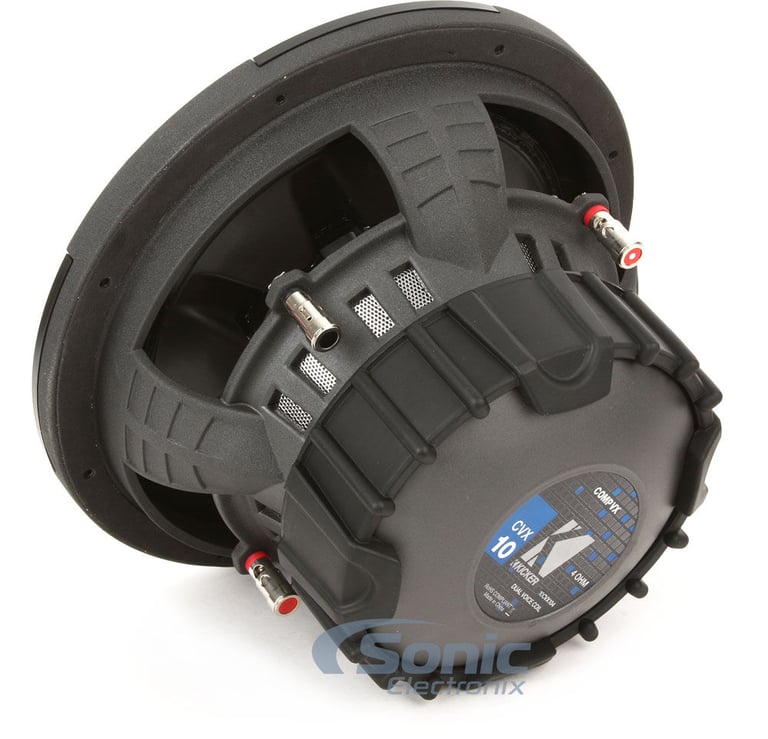

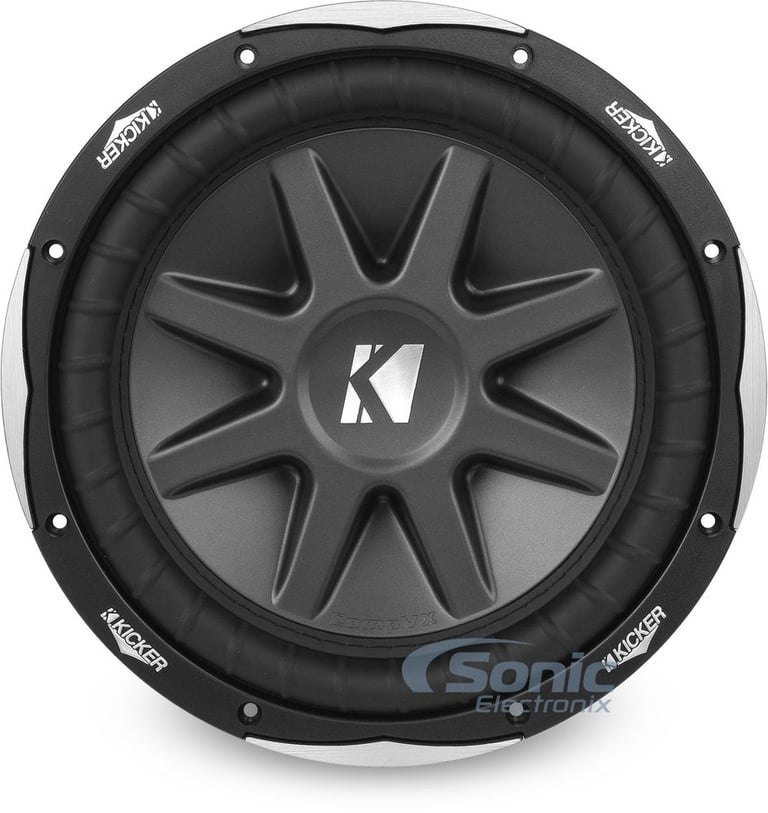

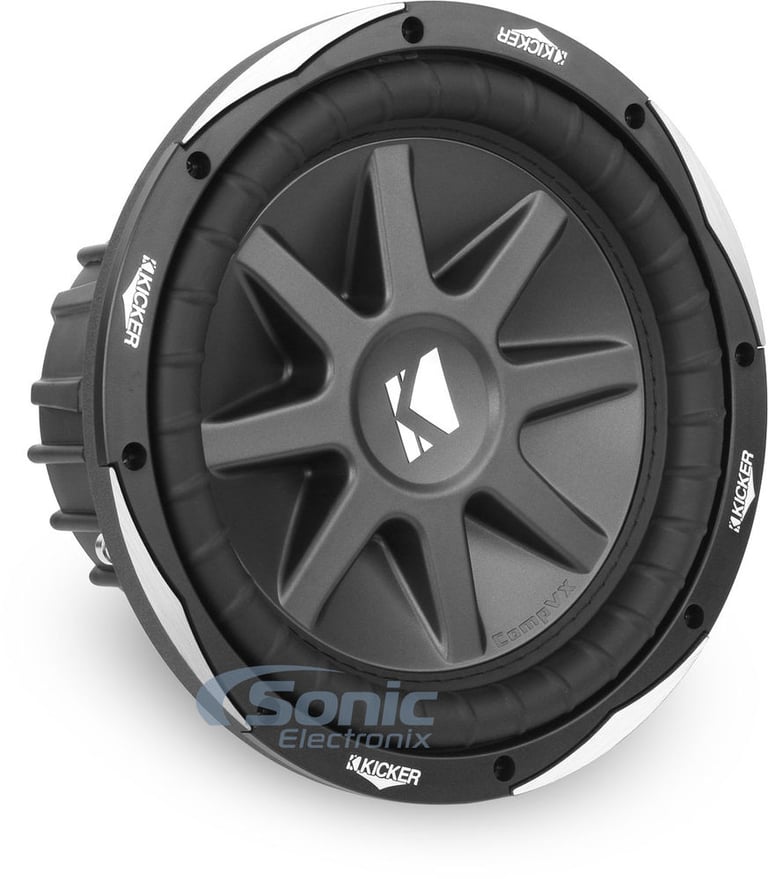

Kicker CompVX CVX104 (10CVX104)

1200W Peak (600W RMS) 10" Comp VX Series Dual 4 ohm Subwoofer - CVX104

7
Kicker
Shop all Kicker
Product videos
highlight-star-icon

• 1200W Peak
• 600W RMS
• Dual 4 Ohm
• Improved SoloKon Cone
• Ribbed Santoprene Surround
• Stitched Surround
• Spiralead Tinsel Leads
• Aluminum Basket

Learn more about the 10cvx104

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

44cvx104 thumbnail

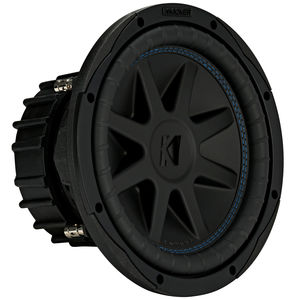

Kicker CompVX CVX104 (44CVX104)

OUR PRICE: $229.99

View item

Product Highlights

• 1200W Peak
• 600W RMS
• Dual 4 Ohm
• Improved SoloKon Cone
• Ribbed Santoprene Surround
• Stitched Surround
• Spiralead Tinsel Leads
• Aluminum Basket

Description

Kicker

Authorized dealer



Kicker Audio: Quality, Performance, and Passion
(Sonic at Stillwater Designs HQ)


Kicker Authorized Dealer

Subwoofer Features:

  • 10" CompVX (CVX) Subwoofer
  • The round equivalent of the Kicker Solo-Baric L7 subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
  • Recommended power range: 250 - 600 watts RMS
  • Impedance: Dual 4 Ohm
  • Improved injection-molded SoloKon cone

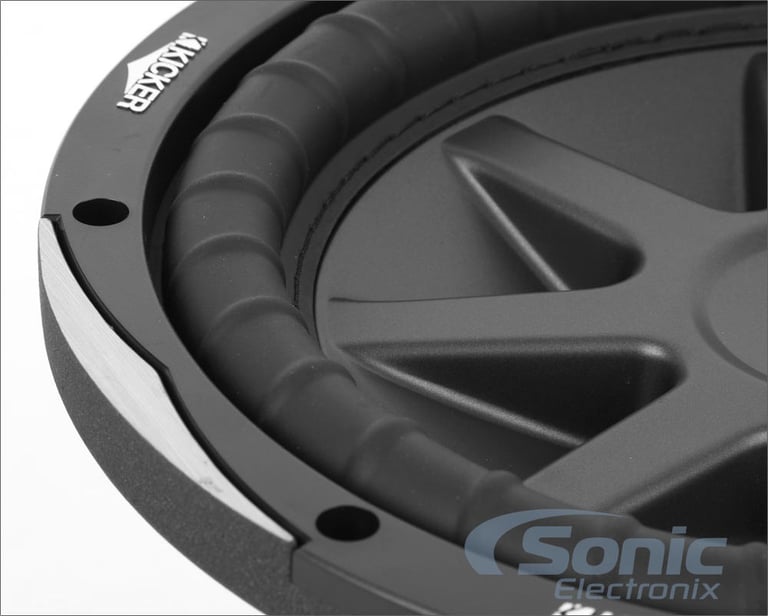

  • Ribbed Santoprene surround
  • Ultra strong adhesive and a stitched surround ensure the cone and surround do not separate
  • 360-Degree back bracing, along with the SoloKon cone produce zero distortion
  • Cast aluminum basket is designed with perimeter venting around the voice coil
  • T-cut top plate along the motor structure results in stronger bass, as well as better sound
  • Excellent heat dissipation from the solid pole piece and the aluminum basket
  • Solid pole piece also assists in the playing of a larger range of low frequencies
  • Aluminum basket is non-ferrous and does not effect the strength of the magnet
  • Poly-cotton, semi-progressive-roll spider
  • Spiralead tinsel leads woven into the spider
  • Spring loaded push terminals are compatible with up to 10 AWG wire
  • High temperature voice coil
  • Large, powerful magnet
  • Frequency response: 24-500 Hz
  • Sensitivity: 85.7 dB
  • Mounting depth: 5-15/16"
  • Also found as: 10CVX10-4 ohm, CVX-104, CompVX 104, Comp VX 10" 4 ohm, 2010 CVX104, CompVX104
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Tips for Installing the 10CVX104 Subwoofer


Product history:

Kicker CVX104 thumbnail
(newest, current model)
Kicker 10CVX104 thumbnail
(previous model, replaced by Kicker CompVX CVX104 (44CVX104))
Kicker CVX104 thumbnail
(previous model, replaced by Kicker CompVX CVX104 (10CVX104))

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Subwoofer Wiring Guide

Wiring Guide to Wire 1 Kicker CompVX CVX104 (10CVX104) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Kicker CompVX CVX104 (10CVX104) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Kicker CompVX CVX104 (10CVX104) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Kicker CompVX CVX104 (10CVX104) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details

Subwoofer Specifications
Series
CompVX/CVX Series
Subwoofer Size
10"
Peak Power Handling
1200 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohms
Voice Coil Material
Frequency Response
24 - 500 Hz
Sensitivity
85.7 dB
Subwoofer Design
Round / Circle
Main Cone Color
Dark Gray
Woofer Composition
SoloKon Polypropylene
Woofer Surround
Santoprene Rubber
Magnet weight
Magnet Type
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
CTA-2031 Compliant
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.8 cubic feet
Maximum Sealed Box Volume
3.0 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
1.75 cubic feet
Top-Mount Depth (Mounting Depth)
5-15/16"
Cutout Diameter
9-3/16"
Shallow Mount Installation
No
What is in the box?
Paperwork
WITB: Subwoofers
Other Accessory #1
Other Accessory #2
Other Accessory #3
Other Accessory #4
Other Accessory #5
Other Accessory #6
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details

Manufacturer:

Kicker

Model Number:

10CVX104

Weight:

22.00lbs

Internal SKU:

10cvx104

Internal Product ID:

21919

Product and How-to Videos

  • Kicker 2010 CVX (CompVX) Subwoofer at CES 2010
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?
  • How to Install a Car Subwoofer in a Box

Customer Ratings & Reviews

Kicker CompVX CVX104 (10CVX104)
7
Rate or review product
5 star
71%
4 star
14%
3 star
0%
2 star
0%
1 star
14%
Durability
4.3
Value
4.2
Features
4.3
Design
4.7
Usability
4.7
Sort by:
Loading...

Great Sub

Sub sounds great I have had it for 6 moths and so far no problems. I dont have it setup and powered to its max performance but it works great and is loud.

By Peter Klavin on December 6, 2011

29

found this helpful.
Helpful? Report abuse

Don't Buy

I got one of these when I bought my truck and switched it out for a pair of L5's. These blew so I am temporarily running one of these off of a Rockford T20001 BD. I had it in a sealed enclosure, and it would pop when the bass got turned up even a bit. I thought I would swap it out to a bigger vented enclosure to remedy this, but it's not much better at all. It's fully powered, and I tested it with an ohm meter, and there are no voice coil problems. Anyone who recommends this sub has obviously never heard anything else. I do not recommend to anyone looking for bass. My 12" cvr's are much better, and cheaper, but the girlfriend has them in her car right now. Can't wait for the Rockford t1's to arrive.

By aaron on May 10, 2012

29

found this helpful.
Helpful? Report abuse

Loud

I have 2 in my s10 on 1500 watts and they keep up with 2 15 CVX's

By nick on December 5, 2010

25

found this helpful.
Helpful? Report abuse

SUPER PUNCHY!!! BASS!!!

IHAVE ONE OF THESE KICKER CVX 10, SEAL BOX, WITH A APLINE MRP-M500 AT 2OHMS IN MY ROOM USING A 55 AMP DC REGULATOR (POWERSUPPLY) AN HITSS PRETTY GOOD>>>

By victor on June 16, 2014

24

found this helpful.
Helpful? Report abuse

best deal at sonic price

Solid clean sharp bass! My two tens spit out those higher frequencies with no stress. I love the CVX version of Kicker subs. Very durable just give it the recommended 500-600 watts rms and you will think you have 12" subs. Great value and ill be ordering more of them!

By jasper on November 28, 2011

24

found this helpful.
Helpful? Report abuse

Awesome!

I have two of these in my S10 and they pound so hard that they flex my back window.

By Nick on October 14, 2010

24

found this helpful.
Helpful? Report abuse

bada** subs

my buddy has two in his truck and they sound better than his old 12"

By Nate on October 2, 2010

21

found this helpful.
Helpful? Report abuse
