Alpine PSS-23FORD-F150BO

Product Details:

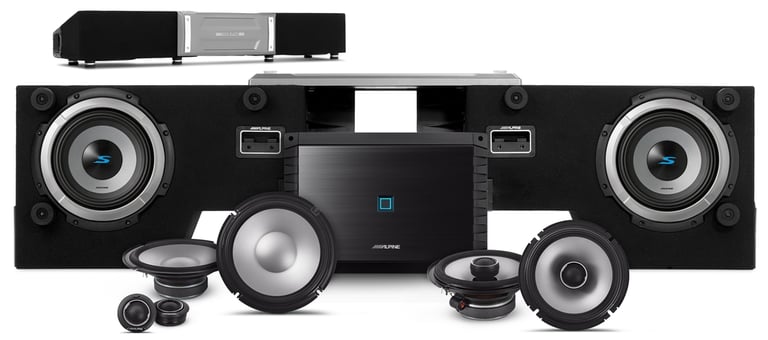

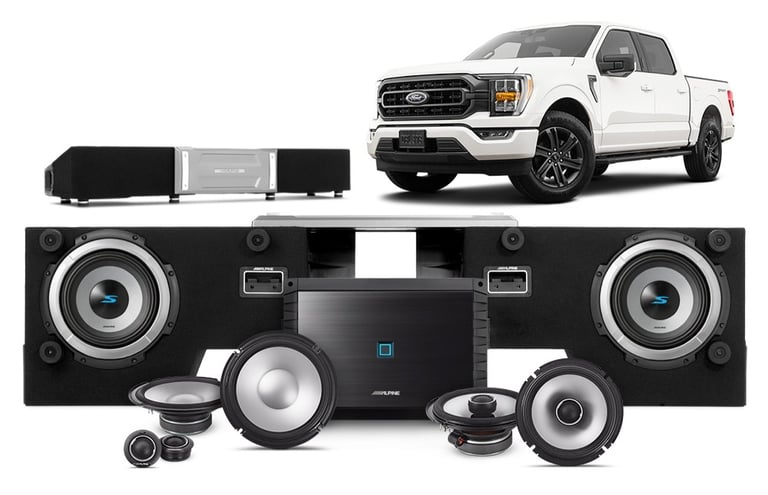

• System includes a pair of 8" component front speakers, a pair of 6.5" coaxial rear speakers, one loaded dual 8" vented truck enclosure, one 5-channel amplifier, speaker adapter rings, and plug-and-play harnesses
• Designed and engineered to match and compliment the factory fit and finish of your vehicle
• Enclosures for subwoofers integrate with no loss of passenger space
• Pre-tuned for F-Series truck cabin environment
• Plug and play design for easy installation
• Factory-fit integration with custom mounting hardware
• Power, speaker, and input and output harness included
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• Compatible with select 2018-2025 F-150 with premium B&O Audio System

Alpine S2-S80C 8" 2-way Component Speakers:

• Power Handling:
• Peak: 520 watts per set / 260 watts each side
• RMS: 170 watts per set / 85 each side
• Hi-Res Audio certified
• Polypropylene, Glass Fiber and Mica cone material
• High-Amplitude Multi-Roll (HAMR) speaker surround
• 1" Silk Dome tweeters
• Ferrite magnet motor structure
• Designed for lightweight construction, high output and low distortion
• Seamless OEM fitment with simplified installation
• In-line crossovers for optimal sound separation and precise tuning
• Top-mount Depth: 2.61"
• Cutout Dimensions: 7.02"
• Impedance: 4 ohm
• Frequency Response: 50 - 40000 Hz
• Sensitivity: 80 dB
• MFR #: S2-S80C

Alpine S2-S65 6.5" 2-way Coaxial Speakers:

• Power Handling:
• Peak: 480 watts per pair / 240 watts each
• RMS: 160 watts per pair / 80 watts each
• Hi-Res Audio-certified
• Polypropylene, Glass Fiber and Mica cone material
• High-Amplitude Multi-Roll (HAMR) speaker surround
• 1" Cloth Dome tweeters
• Ferrite magnet motor structure
• Top-mount Depth: 2-5/16"
• Cutout Dimensions: 5-1/8"
• Impedance: 4 ohm
• Frequency Response: 70 - 40000 Hz
• Sensitivity: 88 dB
• Speaker grilles optional, sold separately
• MFR #: S2-S65
• 1-year Manufacturer's Warranty

Alpine S-DB8V-TRK Loaded Dual 8" Vented Truck Enclosure:

• 5/8" medium-density fiberboard construction covered with carpet
• Rugged center link plate links two preloaded enclosures together
• RMS Power Handling: 600 watts
• Final Impedance: 2-ohm x 2 sets
• Kevlar Reinforced Pulp Paper cone
• Ribbed Santoprene surround
• Frequency Response: 34-200 Hz
• Sensitivity: 84 dB
• Dimensions: 40 - 51" L x 8-3/4" H x 13-1/4" W
• MFR #: S-DB8V-TRK

Alpine S2-A55V Class D 5-Channel Amplifier:

• Power Rating:
• 4 ohm: 40 watts x 4 channel + 200 watts x 1 channel
• 2 ohm: 60 watts x 4 channel + 300 watts x 1 channel
• Bridged: 120 watts x 2 channel @ 4 ohm + 300 watts x 1 channel @ 2 ohm
• Total power output: 540 watts
• LED power and protect light
• Wired bass level remote control Alpine RUX-KNOB.2 or Alpine RUX-H01 optional
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
• Signal sensing remote turn-on
• Hi-res audio certified (up to 40khz)
• Two-sided terminal layout
• Selectable and adjustable crossovers
• CTA-2006-D Certification
• Input sensitivity:
• Low level: 0.2 - 4 volts
• High level: 0.5 - 10 volts
• Frequency Response: 50 - 40000 Hz
• Total Harmonic Distortion (THD): 1%
• Signal to Noise Ratio: 83 dB
• Variable high-pass filter (channel 1-4 and sub): 50 - 400 Hz
• Variable low-pass filter (channel 1-4 and sub): 50 - 400 Hz
• Fuse Rating: 60A
• 4 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 11.9" L x 8.25" W x 2.25" H
• MFR #: S2-A55V
