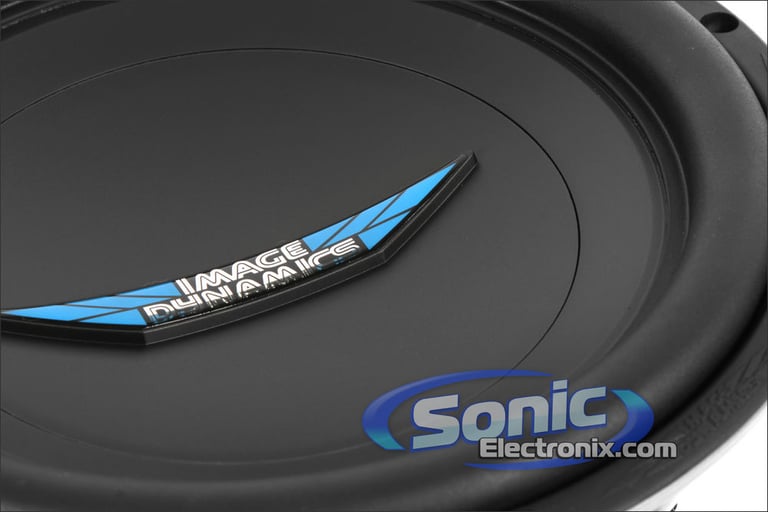

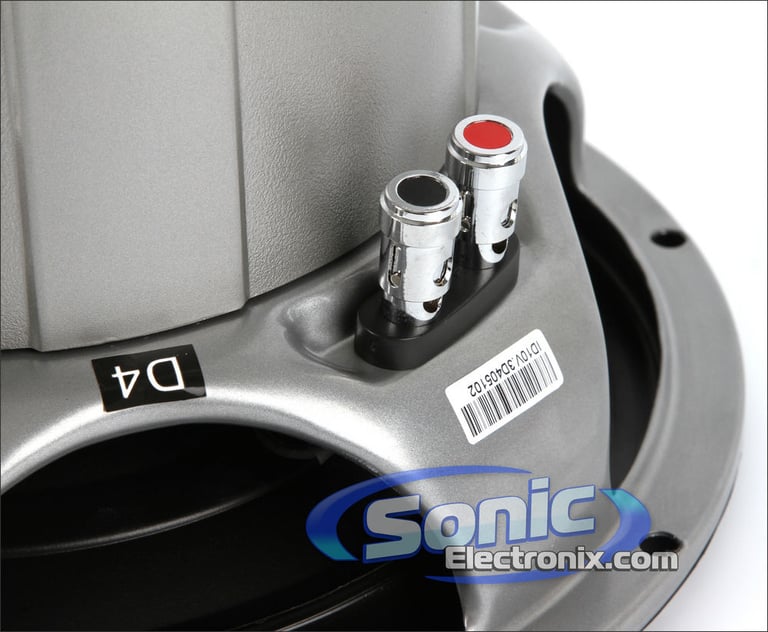

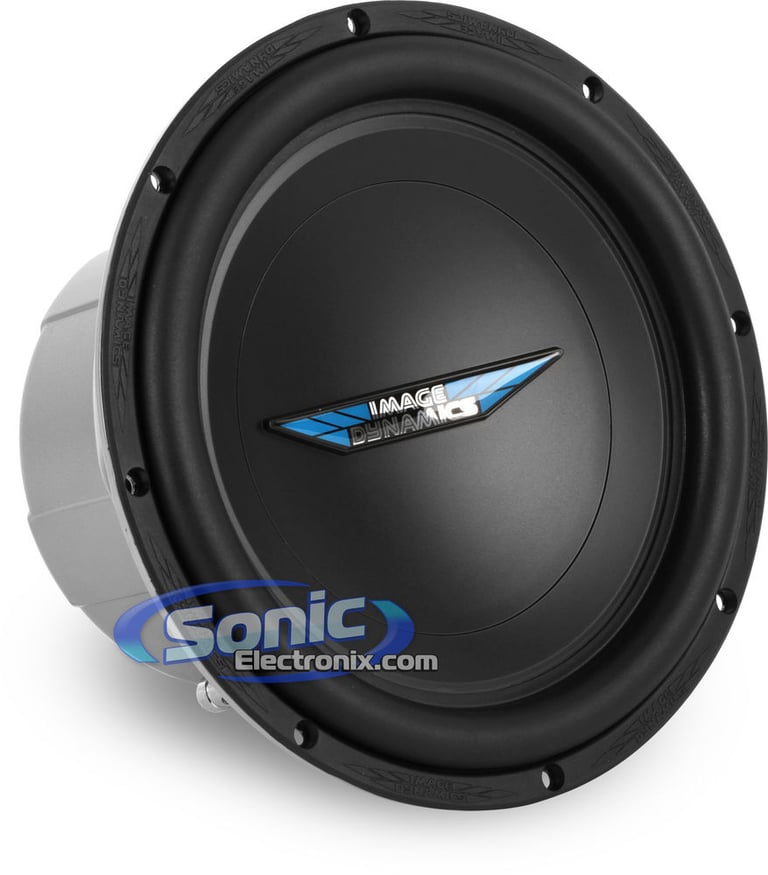

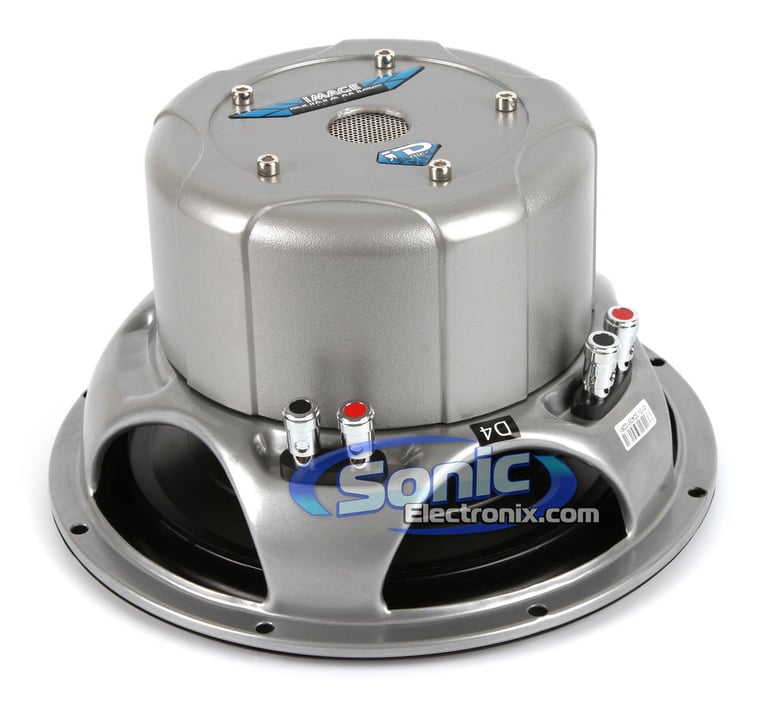

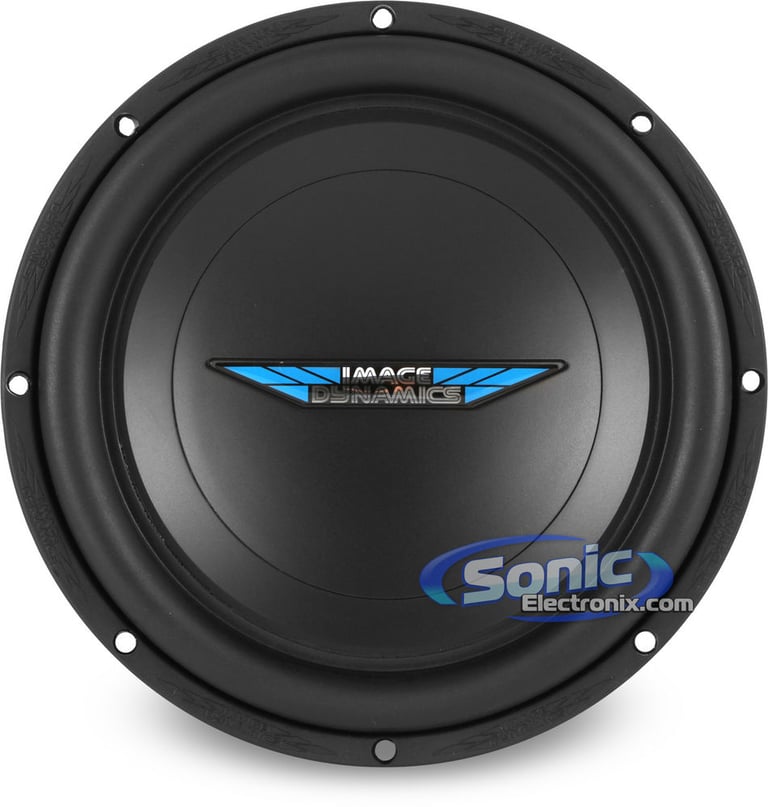

Image Dynamics ID10 D4 V.3

250W 10" ID V.3 Series Dual 4 ohm Subwoofer

Product videos
highlight-star-icon

• 400W Peak
• 200W RMS
• Mica Polypropylene Cone Woofer
• Rubber Surround
• Stamped Steel Basket
• Black Anodized Aluminum Copper Voice Coil
• Optimized Motor Structure

Learn more about the id10d4v3

We apologize

This item has been discontinued


Loading...
40-VW10 main

Metra 40-VW10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1973-2025 vehicles from Audi, Mercedes-Benz, Volkswagen

22
-33.36%

$7.99

List price $11.99

BMWK320 main

American International BMWK320

Double DIN Stereo Dash Kit for select 2006-2013 vehicles from BMW (Satin Black)

1
-45.96%

$39.99

List price $74.00

Limited time!
XAV-AX6000 main

Sony XAV-AX6000

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto (Sirius XM Ready)

10
-21.71%

$548.00

List price $699.99

S2-S40 main

Alpine S2-S40

280W Peak (90W RMS) 4" S-Series Hi-Res 2-Way Coaxial 4-ohm Car Speakers

2
-15.42%

$109.95

List price $130.00

H7TAK main

Cerwin Vega H7TAK

600W Peak (70W RMS) 0.75" HED Series 4-ohm Silk Dome Tweeters

8
-16.67%

$69.99

List price $83.99

Product Highlights


• 400W Peak
• 200W RMS
• Mica Polypropylene Cone Woofer
• Rubber Surround
• Stamped Steel Basket
• Black Anodized Aluminum Copper Voice Coil
• Optimized Motor Structure

Description


Image Dynamics brand icon

Authorized dealer

Bass In All Sizes with ID Subs

Image Dynamics' ID series car subwoofers are the perfect solution for anyone looking to add some base into their vehicle. The various available sizes (8",10",12", and 15") make them suitable for any application in any vehicle, even those with limited space. Ranging from 300 watts to 700 watts of peak power makes them perfect to to satisfy any bass needs, whether you are adding a single sub or numerous subs. The ID series subs are equipped with a mica polypropylene cone woofer for rigidity and an optimized motor and suspension design for optimum high linear excursion. Available in Dual 2 ohm and 4 ohm version for various wiring options to meet any needs. So if you are looking to get a little more serious with your bass then look no further than Image Dynamics' ID series subwoofers.

  • 10" Dual 4 ohm ID V.3 Series Subwoofer
  • Power Handling:
    • Peak: 450 watts
    • RMS: 250 watts
    • Recommended Power Range: 100-400 watts
  • Impedance: Dual 4 ohm
  • Mica Polypropylene cone woofer
  • Rubber surround
  • Black anodized aluminum high temperature copper voice coil
  • Stamped steel basket for improved rigidity and better power handling
  • Optimized motor structure that uses finite element analysis for symmetrical and long linear excursion
  • Also found as: ID10D4 V.3, ID10 V.3 D4, ID10 D4, ID10D4, ID10V.3 D4, IDv3
  • Sensitivity: 86.5dB
  • Mounting Depth: 5-1/2"
  • Cutout dimensions: 9-1/8"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Image Dynamics ID10 D4 V.3 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Image Dynamics ID10 D4 V.3 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Image Dynamics ID10 D4 V.3 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Image Dynamics ID10 D4 V.3 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

2
-30.01%

$349.95

List price $500.00

Limited time!
XAV-AX3200 main

Sony XAV-AX3200

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, WebLink, Apple CarPlay, and Android Auto (SiriusXM Ready)

14
-25.50%

$298.00

List price $399.99

DPX505BT main

Kenwood DPX505BT

Double DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

18
-22.17%

$179.00

List price $230.00

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

R2-W10D2 small

Alpine R2-W10D2

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 5.92"
• Sensitivity: 82.3 dB

(3)

$319.95

List price $480.00

Specifications & Details


Subwoofer Specifications
Series
ID V.3 Series
Subwoofer Size
10"
Peak Power Handling
450 watts
RMS Power Handling
250 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
86.5 dB
Xmax (millimeters)
17.0 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene-Mica
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.40 cubic feet
Maximum Sealed Box Volume
0.85 cubic feet
Minimum Ported Box Volume
1.14 cubic feet
Maximum Ported Box Volume
1.62 cubic feet
Top-Mount Depth (Mounting Depth)
5-1/2"
Cutout Diameter
9-1/8"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ID10 D4 V.3

Weight:

11.50lbs

Internal SKU:

id10d4v3

Internal Product ID:

22183

Product and How-to Videos


  • Image Dynamic ID V.3 Series Car Subwoofers
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


Image Dynamics ID10 D4 V.3 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
4
Usability
5

Customer Reviews

Sort by:

Loading...

lol bass

the performance is great sealed, vented or band pass. I love image dynamics.

By xavijack on September 17, 2013

21 found this helpful
