Image Dynamics CTX-46

100W 4" x 6" 2-Way CTX Series Full Range Coaxial Car Speakers w/ Silk Tweeter (CTX46)

highlight-star-icon

• List price $109.99
•100 Watts Max Each, 50 Watts RMS Each
• Silk dome swivel tweeter
• Mica-Polymer mid-woofer cone material
• 4 Ohm Impedance
• Sensitivity: 88 dB
• Mounting Depth: Frequency Response: 100 - 22,000 Hz

Learn more about the ctx46

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Description


Image Dynamics brand icon

Authorized dealer

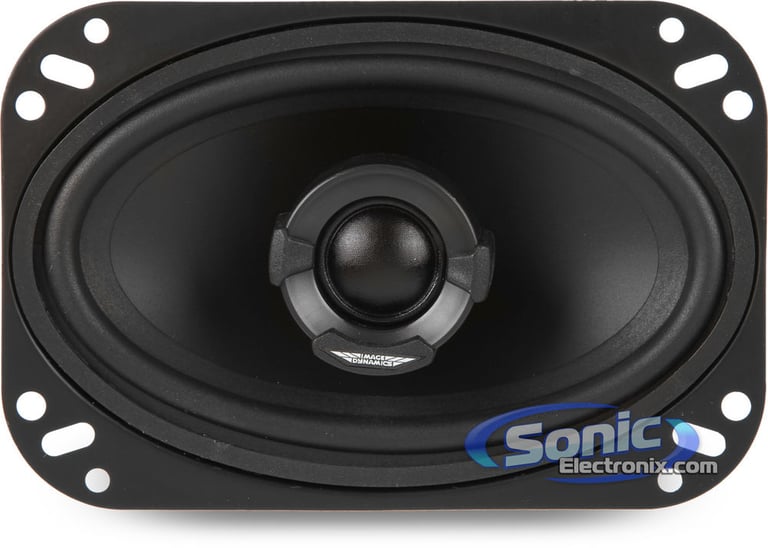

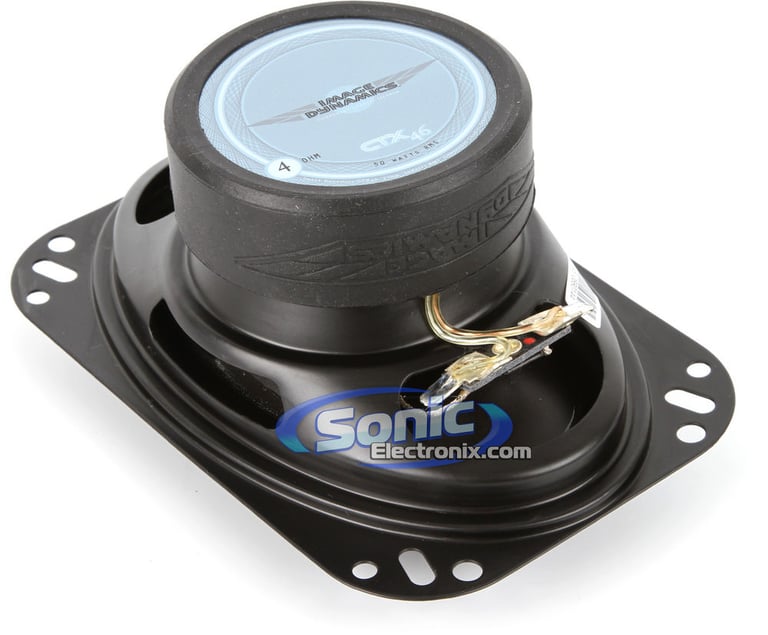

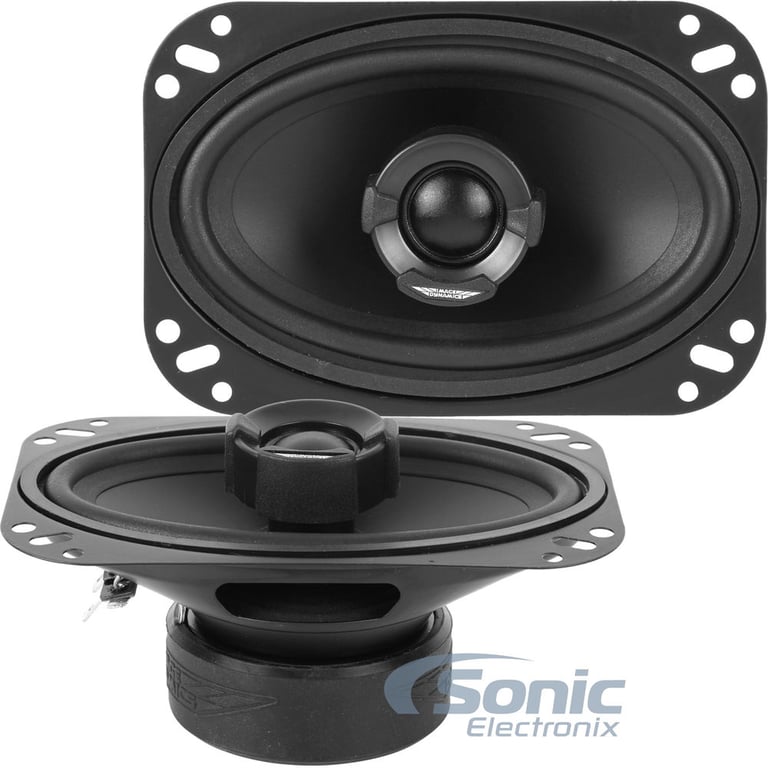

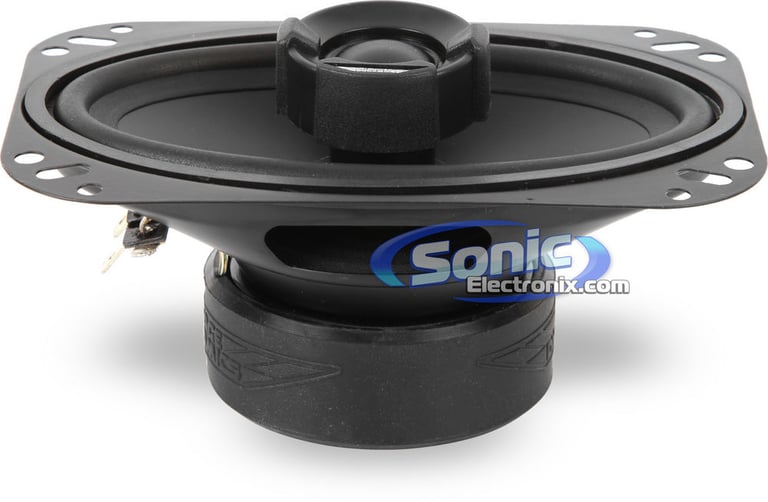

Image Dynamics CTX-46

100 Watt 4" x 6" Full Range Speakers

For those seeking out the industry's most affordable and well balanced speakers, Image Dynamics introduces the CTX46. The CTX series offers incredible acoustic detail and beautiful tonal qualities that is rarely found in speakers of the same price range. Whether you are planning on powering the speakers directly off of the OEM car stereo, an aftermarket stereo or with an aftermarket amplifier, the Image Dynamics CTX46 coaxial speakers will handle the power gracefully with outstanding performance.

Image Dynamics CTX speakers have been carefully designed, meticulously engineered and properly built with ideal materials. The final result is a well balanced speaker that sound brilliant in just about every installation. Experience the CTX sound today!

General Features

  • 4" x 6" CTX Series 2-Way Full Range Car Speakers
  • Power Handling:
    • Peak: 200 watts per pair / 100 watts each
    • RMS: 100 watts per pair / 50 watts each
  • Recommended Power Range: 10 - 50 watts RMS per channel
  • Mica-Polymer mid-woofer cone material
  • Butyl rubber woofer speaker surround

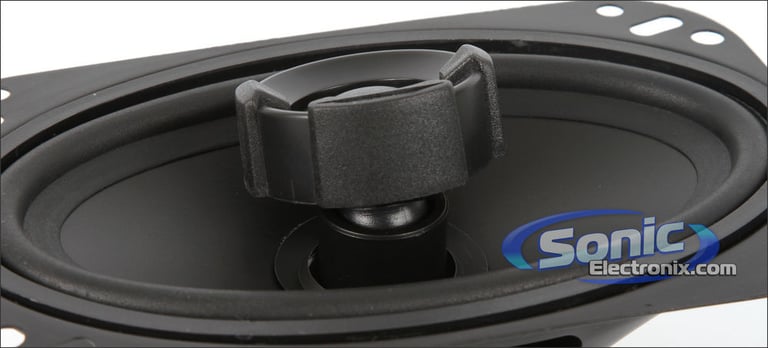

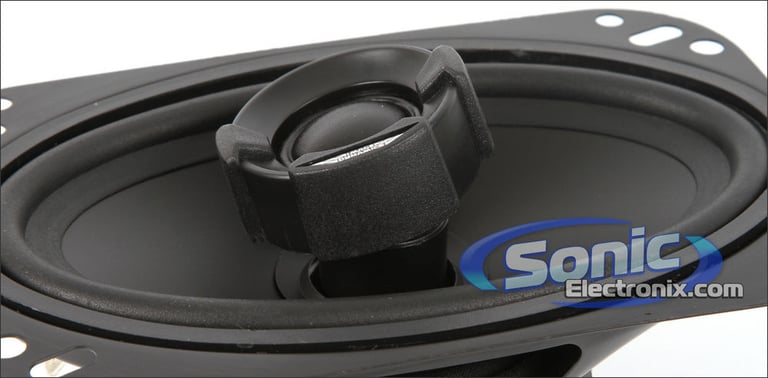

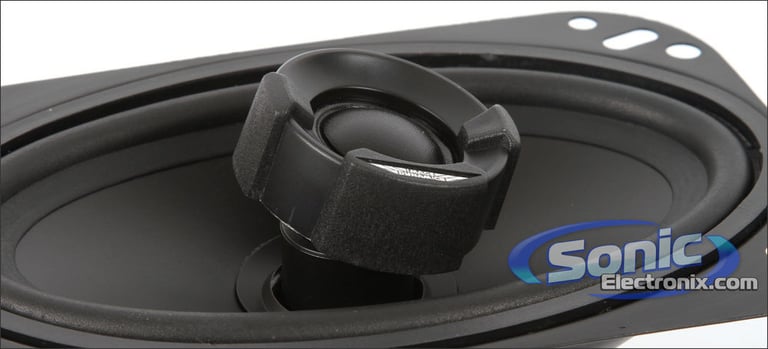

  • Silk dome swivel tweeter
  • High-energy neodymium tweeter magnets
  • High temperature and high power voice coil
  • Rubber magnet boot cover

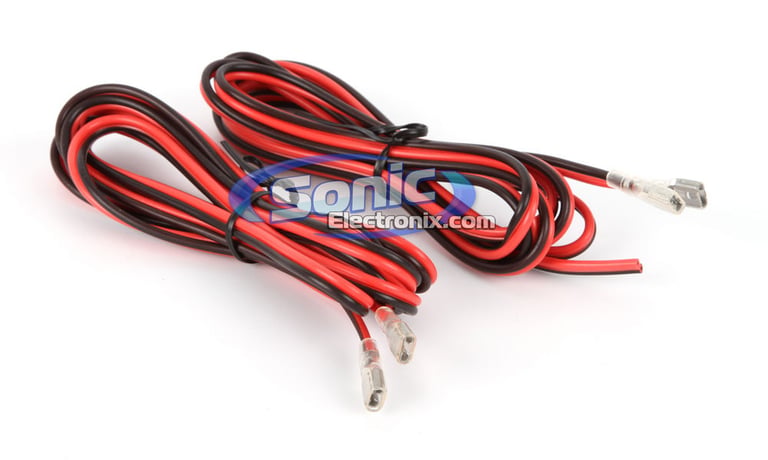

  • Quick connect speaker wire extensions included

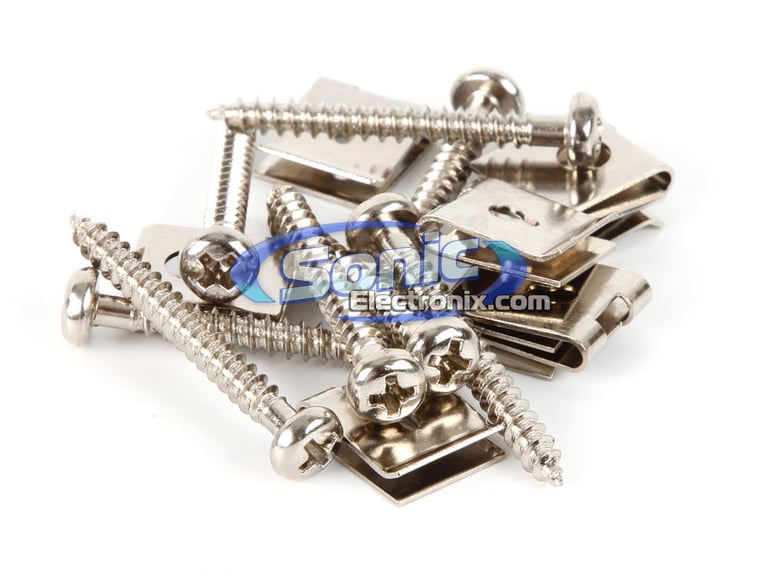

  • Mounting tab installation hardware included

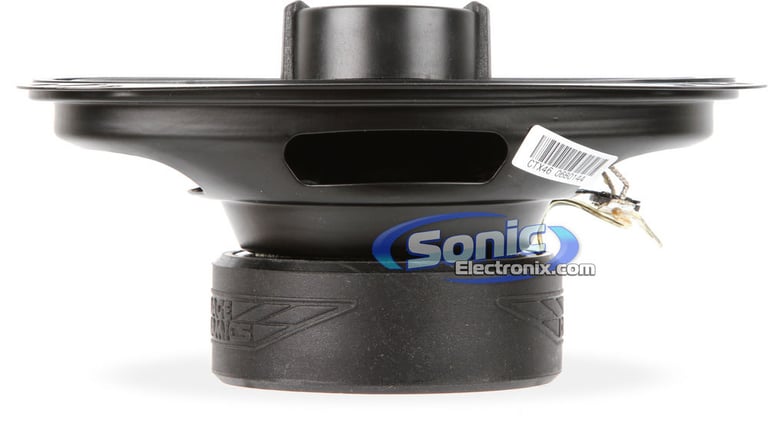

  • Top-mount depth: 2.40"
  • Cutout Dimensions: 3.43" x 5.59"
  • 4 ohm impedance
  • Frequency Response: 100 - 22,000 Hz
  • Sensitivity: 91 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Priced Per Pair


Caution: This product is capable of very high sound pressure levels. Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. Please listen using common sense and restraint.


Check out the Image Dynamics CTX-46 Owner's Manual


Best selling similar products

H46 small

Cerwin-Vega H46

• 150 watts Peak Each, 50 watts RMS Each
• 1" PEI (Polyetherimide) Balanced Dome Tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 83 dB

$79.99

List price $95.99

T46 small

Earthquake Sound T46

• 300 watts Peak Each
• 1" Mylar Dome Tweeters
• Low Mass Poly-Injection cone material
• Impedance: 4 ohm
• Sensitivity: 87 dB

(1)

$79.99

List price $99.00

NSP46 small

NVX NSP46

• 150 watts Peak Each, 50 watts RMS Each
• 3/4" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 86 dB
• Mounting Depth: 1.81"

(34)

$49.99

List price $59.99

46CSC464 small

Kicker CSC46 (46CSC464)

• 150 watts Peak Each, 50 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome Tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB

(15)

$59.96

List price $84.99

KFC-4675C small

Kenwood KFC-4675C

• 60 watts Peak Each, 20 watts RMS Each
• 1" PEI (Polyetherimide) Balanced Dome tweeters
• Injection Molded Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(16)

$77.00

List price $128.00

Stage3 6427 small

JBL Stage3 6427 (STAGE36427AM)

• 175 watts Peak Each, 35 watts RMS Each
• Edge Driven Dome tweeters
• Polypropylene cone material with Plus One woofer cone architecture
• Impedance: 3 ohm
• Sensitivity: 91 dB

(1)

$89.95

List price $109.95

DB462 small

Polk Audio DB462 (DB 462)

• 150 watts Peak Each, 50 watts RMS Each
• 3/4" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(7)

$90.00

List price $99.99

P1462 small

Rockford Fosgate Punch P1 P1462

• 70 watts Peak Each, 35 watts RMS Each
• 3/4" PEI (Polyetherimide) Dome tweeters
• Injection-molded Mineral-filled Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(37)

$109.99

List price $109.99

43DSC460 small

Kicker DSC460 (43DSC4604)

• 120 watts Peak Each, 30 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome Tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB

(8)

$64.99

List price $74.99

H746 small

Cerwin-Vega H746

• 275 watts Peak Each, 40 watts RMS Each
• 1" PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 86 dB

(9)

$59.99

List price $59.99

Specifications & Details


Speaker Specifications
Series
CTX Series
Priced Per
Pair
Number of Speakers
2
Speaker Size
4" x 6"
Design
2-way Coaxial
Tweeter Design
Dome
Tweeter Composition
Silk
Woofer Composition
Polypropylene-Mica
Woofer Surround
Butyl Rubber
Peak Power Handling
100 watts
RMS Power Handling
50 watts
Sensitivity
91 dB
Frequency Response
100 - 22,000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
2"
Bottom-Mount Depth
2-1/8"
Cutout Dimensions
3.43 x 5.59
General specifications
Speaker Grilles
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CTX-46

Weight:

3.80lbs

Internal SKU:

ctx46

Internal Product ID:

22332

Customer Ratings & Reviews


Image Dynamics CTX-46 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

great brand and nice tweeter

sound great for a little speaker. also image dynamics is amazing stuff. cant go wrong. put into a single cab s10

By bob on March 7, 2016

11 found this helpful


Very Nice

I cannot believe the quality of these for the price. Very impressed with the craftsmanship and sound quality. You will not be blown away, mostly because of the size, but for what they are, and at the cost point, these are a great buy

By Douglas on November 28, 2016 Checkmark Icon Verified purchase

10 found this helpful


does what it promised

like it, fairly easy to install, fast shipper, works ok

By Jack on June 1, 2016

10 found this helpful


By Barrie on January 7, 2025 Checkmark Icon Verified purchase
