Sony XS-GS120LD

520W 12" GS Series Dual 4-ohm Subwoofer w/ 3-year warranty!

Sony
Shop all Sony
Product videos
highlight-star-icon

• Free 3-Year Warranty
• Peak Power: 1500W
• RMS Power: 520W
• Mica Reinforced Cellular Glass Fiber Cone
• Rubber Surround

Learn more about the xsgs120ld

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

xsgsw121d thumbnail

Sony XS-GSW121D

OUR PRICE: $129.99

View item

Loading...
Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

Crunch CS653

600W Peak (120W RMS) 6.5" CS Series 3-Way Coaxial 4-ohm Car Speakers

21
-9.09%

$29.99

List price $32.99

Product Highlights


• Free 3-Year Warranty
• Peak Power: 1500W
• RMS Power: 520W
• Mica Reinforced Cellular Glass Fiber Cone
• Rubber Surround

Description


Sony brand icon

Authorized dealer

Sony Store

Five-Sided Bass

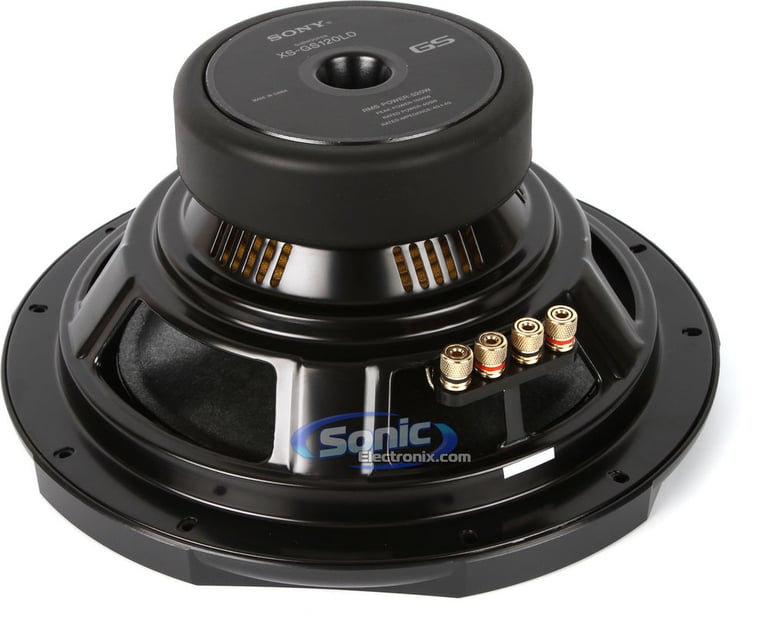

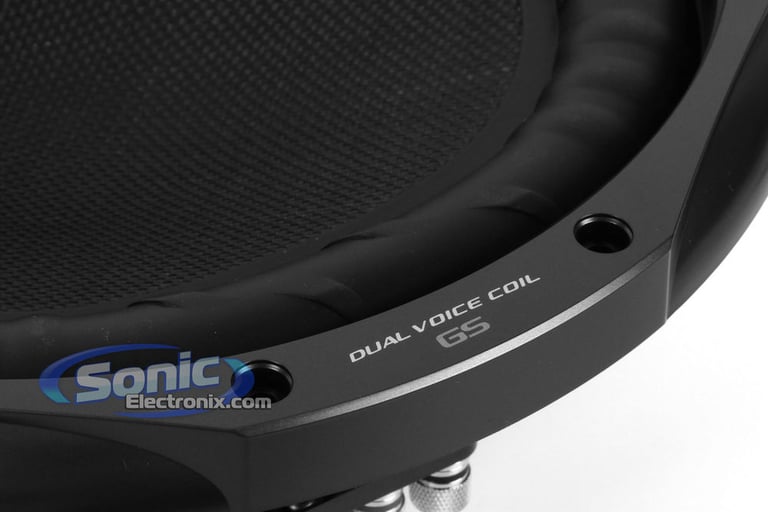

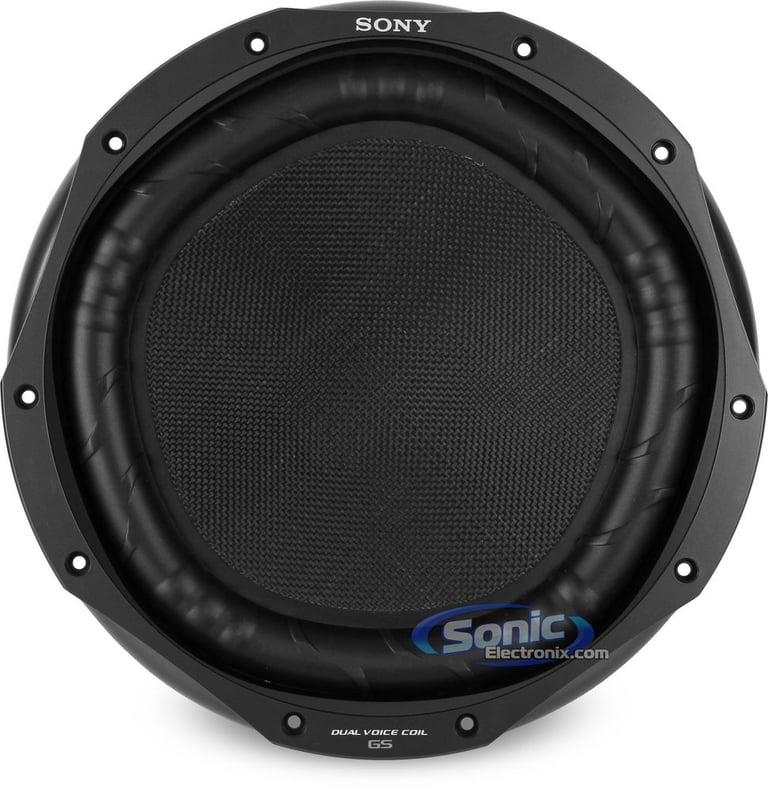

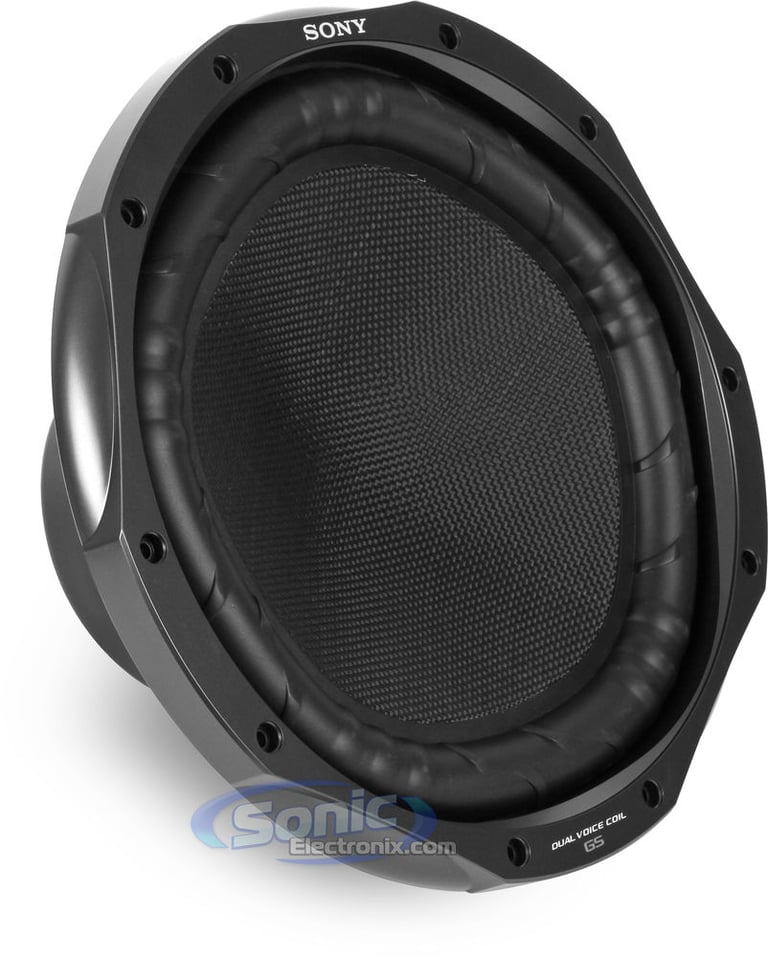

The Sony XS-GS120LD 12" woofer features a micra reinforced glass fiber cone that is lightweight and also able to reduce distortion. A rubber surround keeps the woofer flexible and capable of lasting. This design allows reliable performance and steady output. This subwoofer is rated to handle 520 watts of RMS power, making it a great entry level or mid-tier woofer. Although the subwoofer has the unique five sided design, this sub fits into a standard subwoofer enclosure, both ported and sealed.







General Features:

  • 12" Dual 4 ohm GS Series Subwoofer
  • Power Handling:
    • Peak: 1500 watts
    • RMS: 50-400 watts
    • RMS (CEA-2031 Approved): 520 watts
  • Impedance: Dual 4 ohm
  • Mica Reinforced Cellular Glass Fiber Cone With Five-Sided Design
  • Rubber Surround
  • Binding Post Wire Terminals
  • Frequency response: 30-1,000 Hz
  • Top-mount depth: 5-3/8"
  • Sensitivity: 84dB
  • Authorized Internet Dealer
  • 3 Year Manufacturer's Warranty

Product history:

Sony XS-GSW121D thumbnail
(newest, current model)
Sony XS-GS120LD thumbnail
(previous model, replaced by Sony XS-GSW121D)
Sony XS-GTX120L thumbnail
(previous model, replaced by Sony XS-GS120LD)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Sony XS-GS120LD Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Sony XS-GS120LD Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Sony XS-GS120LD Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Sony XS-GS120LD Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

Specifications & Details


Subwoofer Specifications
Series
GS Series
Subwoofer Size
12"
Peak Power Handling
1500 watts
RMS Power Handling
520 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
30 - 1000 Hz
Sensitivity
84 dB
Xmax (millimeters)
6.0 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Mica Reinforced Cellular Glass-Fiber
Woofer Surround
Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.77 cubic feet
Optimum Ported Box Volume
1.13 cubic feet
Top-Mount Depth (Mounting Depth)
5-3/8"
Cutout Diameter
10-15/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
33 Hz
Equivalent Compliance (Vas)
48 liters
Total Speaker Q Value (Qts)
0.4
Electrical Q Value (Qes)
0.42
Mechanical Q Value (Qms)
7.3
Warranty and Return Policy
Parts Warranty Duration
3 years
Labor Warranty Duration
3 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XS-GS120LD

Weight:

14.00lbs

Internal SKU:

xsgs120ld

Internal Product ID:

45926

Product and How-to Videos


  • Sony GS Series Subwoofers | CES 2014
  • Sony GS Series Car Subwoofers | Product Overview
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


Sony XS-GS120LD thumbnail image

5 star
0%
4 star
0%
3 star
100%
2 star
0%
1 star
0%



Durability
3
Value
3
Features
3
Design
3
Usability
3

Customer Reviews

Sort by:

Loading...

Ok

It's pretty good but there's no way it takes 500 watts 400 makes it over thump more like 350 and it's good for a small space.
