Name: Pioneer GM-D9500F Factory Refurbished
Brand: Pioneer
SKU: LS-gmd9500f-RB
Price: 139.99 USD
Availability: Discontinued

by Pioneer

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

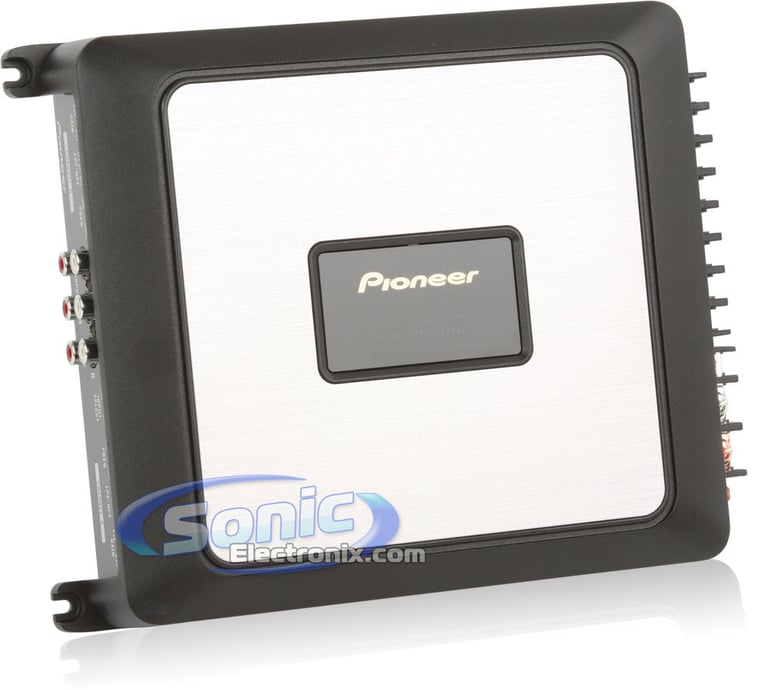

Pioneer GM-D9500F Factory Refurbished Image 1 — Pioneer GM-D9500F Factory Refurbished

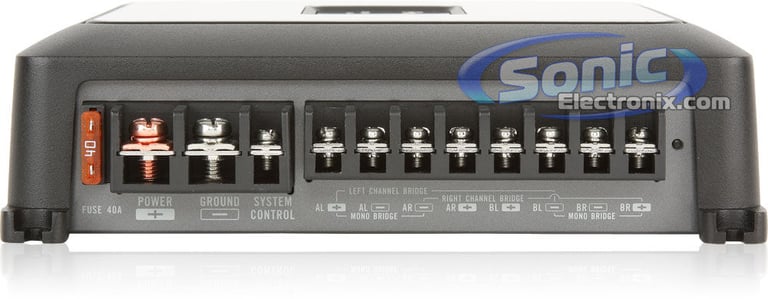

Pioneer GM-D9500F Factory Refurbished Image 2 — Pioneer GM-D9500F Factory Refurbished

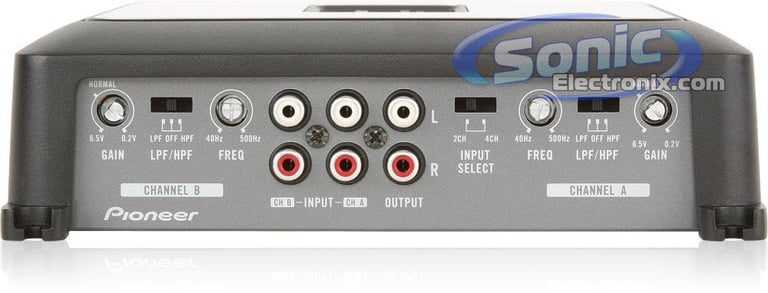

Pioneer GM-D9500F Factory Refurbished Image 3 — Pioneer GM-D9500F Factory Refurbished

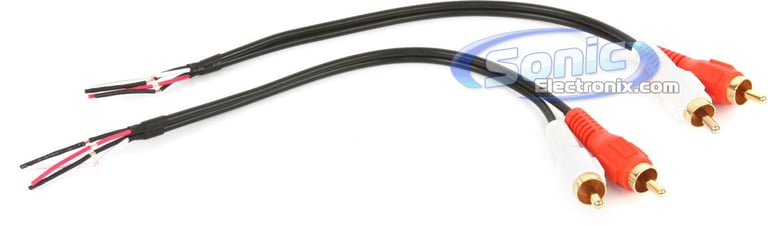

Pioneer GM-D9500F Factory Refurbished Image 4 — Pioneer GM-D9500F Factory Refurbished

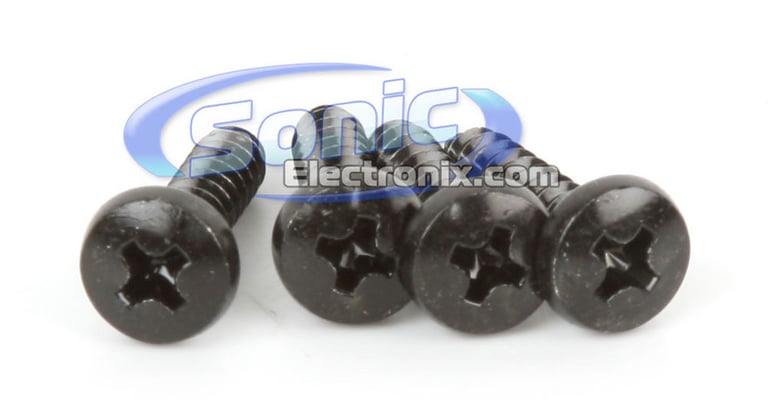

Pioneer GM-D9500F Factory Refurbished Image 5 — Pioneer GM-D9500F Factory Refurbished

Pioneer GM-D9500F Factory Refurbished Image 6 — Pioneer GM-D9500F Factory Refurbished

Pioneer GM-D9500F Factory Refurbished-video

Product videos

Product highlights

FD Series Class D 4-Channel Car Amplifier • 75W x 4 Chan. @ 4 Ohm • 100W x 4 Chan. @ 2 Ohm • 800W Max • 4/3/2 Channel Operation • Speaker-Level Inputs • Compression-Type Terminals • LPF • HPF

Learn more about the LS-gmd9500f-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

100% of the Power, 45% of the Size

FD Series Class D 4-Channel Car Amplifier
RMS Power Rating:

4 ohm: 75 watts x 4 chan.
2 ohm: 100 watts x 4 chan.
Bridged, 4 ohm: 200 watts x 2 chan.

Max power output: 800 watts x 1 chan.
Pulse width modulated (PWM) MOSFET power supply
4/3/2 Channel operation
Pioneer digital signal amplification technology allows for great amplification within an extremely compact design
Balanced isolator speaker-level inputs
One-pair of pass through RCA outputs
Compression-type speaker terminals
Hi-Volt input level control (200mV-6.5V)
Variable low-pass filter (40-500 Hz, 12 dB/octave)
Variable high-pass filter (40-500 Hz, 12 dB/octave)
CEA-2006 compliant amplifier
Frequency response: 10-35,000 Hz
Dimensions: 8-7/8"L x 7-7/8"W x 2-1/4"H
4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
90 day SonicElectronix.com warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

75 watts x 4 channel

RMS Power @ 2 ohms

100 watts x 4 channel

Bridged RMS Power

200 watts x 2 channel

Amplifier Specifications

Amplifier Class

Number of Channels

4-Channel

Total Peak Power Output

800 watts

Total RMS Power Output

400 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.06%

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

40 - 500 Hz

Low-Pass Crossover Frequency

40 - 500 Hz

Signal-to-Noise Ratio

95 dB

Remote bass/level controller

Fuse Rating

40A x 1

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Sonic Electronix
